Refrigerator-Freezer
HD-366FWEW / HD-423FWE

Dear customer:
Thank you for buying this refrigerator-freezer. To ensure that you get the best
results from your new refrigerator-freezer, please take time to read through the
simple instructions in this booklet.
Please ensure that the packing material is disposed of in accordance with the
current environmental requirements.
When disposing of any refrigerator-freezer equipment please contact your local
waste disposal department for advice on safe disposal.
This appliance must beonly used for its intended purpose.
a) DANGER –Risk of fire or explosion. Flammable refrigerant used. Do not use
mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing.
b) DANGER –Risk of fire or explosion. Flammable refrigerant used. To be
repaired only by trained service personnel. Do not puncture refrigerant tubing.
c) CAUTION –Risk of fire or explosion. Flammable refrigerant used. Consult
repair manual/owner’s guide before attempting to service this product. All safety
precautions must be followed.
d) CAUTION –Risk of fire or explosion. Dispose of property in accordance with
federal or local regulations. Flammable refrigerant used.
e) CAUTION –Risk of fire or explosion due to puncture of refrigerant tubing;
1

Follow handling instructions carefully. Flammable refrigerant used.
CAUTION :
General：
This type of refrigerator-freezer is widely used in places such as hotels,
offices, student dormitories,and houses. It is suitable for refrigerating
and preserving food and beverage. It features the advantages of small
size, lightweight, low electric consumption and easy use.
2

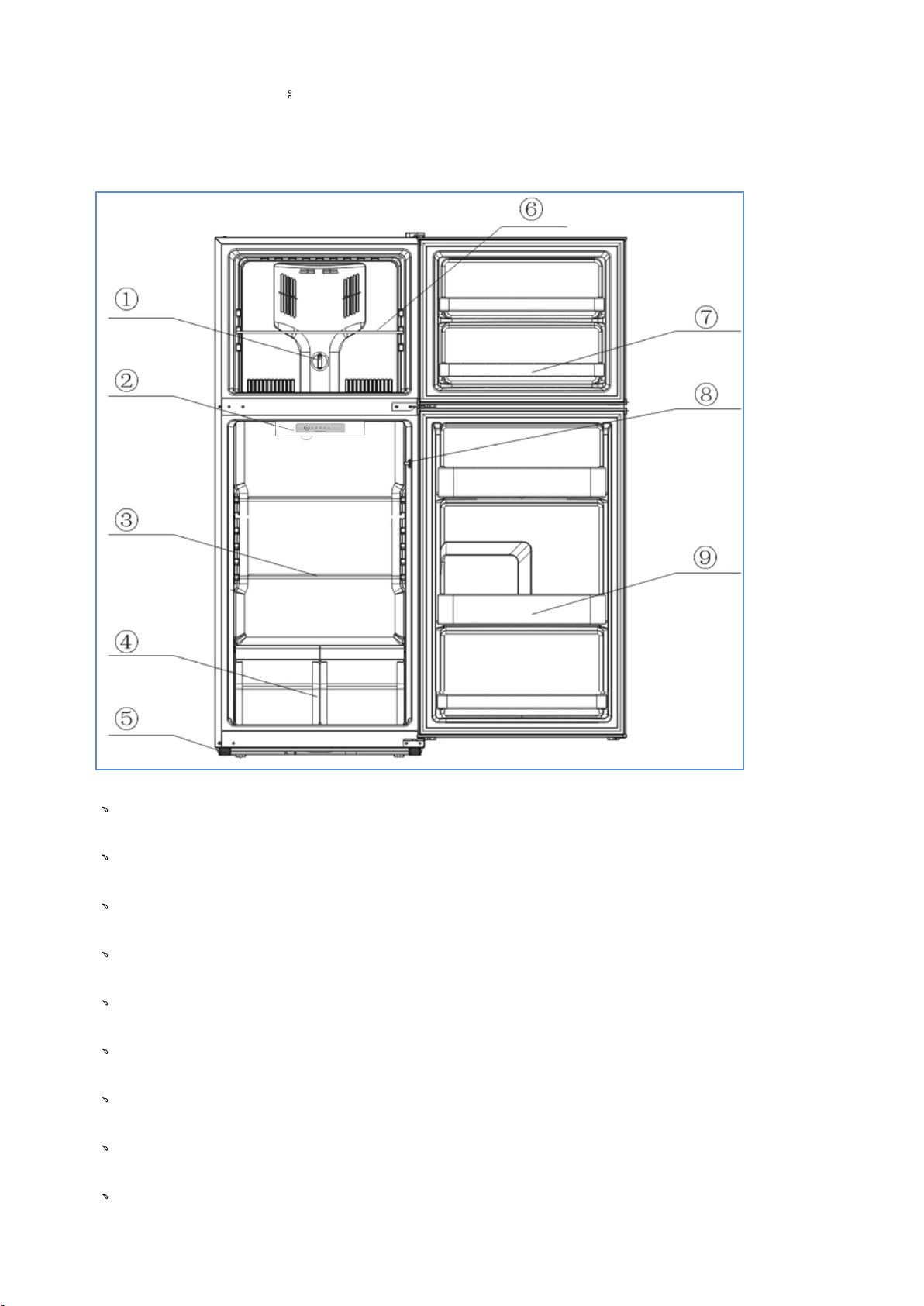

Main Configuration：
The sample outline is representation of this series of refrigerator, which have similar structure and
different capacity.
1、Thermostat
2、Temperature control panel
3、Refrigerator shelf
4、Crisper
5、Adjustable foot
6、Freezer shelf
7、Freezer tray
8、Lamp switch
9、Refrigerator tray
3

UNPACKING YOUR REFRIGERATOR-FREEZER
WARNING: Use two or more people to move refrigerator-freezer. Failure to
do so can result in back or other injury.
Remove tape and any labels from your refrigerator-freezer before using,
Do not remove the rating label..
To remove any remaining tape or glue, rub the area briskly with your thumb.
Tape or glue residue can also be easily removed by rubbing a small amount of
liquid dish soap over the adhesive with your fingers. Wipe with warm water and
dry.
Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive
cleaners to remove tape or glue. These products can damage the surface of your
refrigerator-freezer.
When moving the refrigerator-freezer, do not tilt the refrigerator-freezer beyond
45° from upright position.
CLEANING BEFORE USE：
Remove all packaging material, including the foam between the outside
condenser and cabinet. Clean the inside of your refrigerator-freezer thoroughly
before use.
SPACE REQUIREMENTS
WARNING: Keep flammable materials and vapors, such as gasoline, away form
refrigerator-freezer.
Failure to do so can result in death, explosion, fire or burns .
To ensure proper ventilation for your refrigerator-freezer, allow for 8 inches space
4

on each side between walls, 8 inches space between the back of your refrigerator-
freezer and the wall, and 12 inches space between the counter top and the roof or
ceiling.
If you are installing your refrigerator-freezer next to a fixed wall, leave sufficient
space on the hinge side to allow for the door to swing open.
Never install your refrigerator-freezer near a heat source or in direct sunlight.
5

ELECTRICAL REQUIREMENT
WARNING: DO NOT REMOVE GROUND PRONG.
DO NOT USE AN ADAPTER.
DO NOT USE EXTENSION CORD.
Failure to follow these instructions can result in death, fire or electrical shock.
Before you move your refrigerator-freezer into its final location, it is important to
make sure you have the proper electrical connection.
Recommended Grounding Method
AC115Volt 60Hz, AC only 10 amp fused and properly grounded electrical
supply is required. It is recommended to use a separate dedicated circuit for this
appliance. Use a receptacle which cannot be turned off with a switch or pull
chain. Do not use an extension cord.
NOTE: Before performing any type of installation, disconnect the
refrigerator-freezer from the electrical source. When you are finished, connect the
refrigerator-freezer to the electrical source and reset the control to the desired
setting.
LEVELING
If the refrigerator-freezer is not leveled during installation, the doors may not
close or seal properly, causing cooling, frost, or moisture problems. It is very
important for the refrigerator-freezer to be level in order to function properly.
To level your refrigerator-freezer you may turn the adjustable foot clockwise
or counter-clockwise to raise or lower the desired side.
/
6

NOTE: Have someone push against the top of the refrigerator-freezer to take
some weight off. This makes it easier to adjust the adjustable foot.
USE OF THE APPLIANCE
To obtain the best possible results from your refrigerator-freezer, it is important
that you operate it properly.
OPERATION
HMI and keys operaon
The keys in HMI and display layout are referred in the following figure：
1.1 Key
A.SET posion set key
1.2 Display screen
①Shi1
②Shi2
③Shi3
④Shi4
⑤Shi5
1.3 Display
◆Once inially powered on，the display screen is on full display for 3s，and then operates as the
displayed middle shi.
◆Normal operaon display
In case of a failure，the appropriate LED light will show in combination with the failure code (in recycling display)；
In case of no failures，the actual operation position of refrigerator will be on display.
1.4 Shiseng
Each time the shift setting key A is pressed once，the shift position changes one time. After the shift setting has been
completed, the refrigerator will operate according to the set value in 5mins.
The shift regulation is：
Shift 1 Shift 2 Shift 3 Shift 4 Shift 5
A ①②③④⑤
7

1.5 Fault indicaon
Display Malfuncon
The LED1 and LED2 lit Refrigerator temperature sensor circuit
The LED1 and LED3 lit Freezer defrost sensor
The LED1 and LED4 lit Ambient temperature sensor
Fresh Food Storage
Wrap or store food in the refrigerator in airtight and moisture –proof material.
This prevents food odor and taste transfer throughout refrigerator.
·Fruit –wash, let dry and store in refrigerator in plastic bags or crisper.
·Leafy vegetables- Remove wrapping and trim or tear off bruised and discolored
areas, wash in cold water and drain. Place in plastic bag or plastic container and
store in crisper.
·Fish–Use fresh fish the same day as purchased.
·Meat –Store most meat in original wrapping as long as it is airtight and
moisture–proof.
Re–wrap if necessary.
·Leftovers –Cover leftovers with plastic wrap or aluminum foil. Plastic containers
with airtight lid can also be used.
Frozen Food Storage

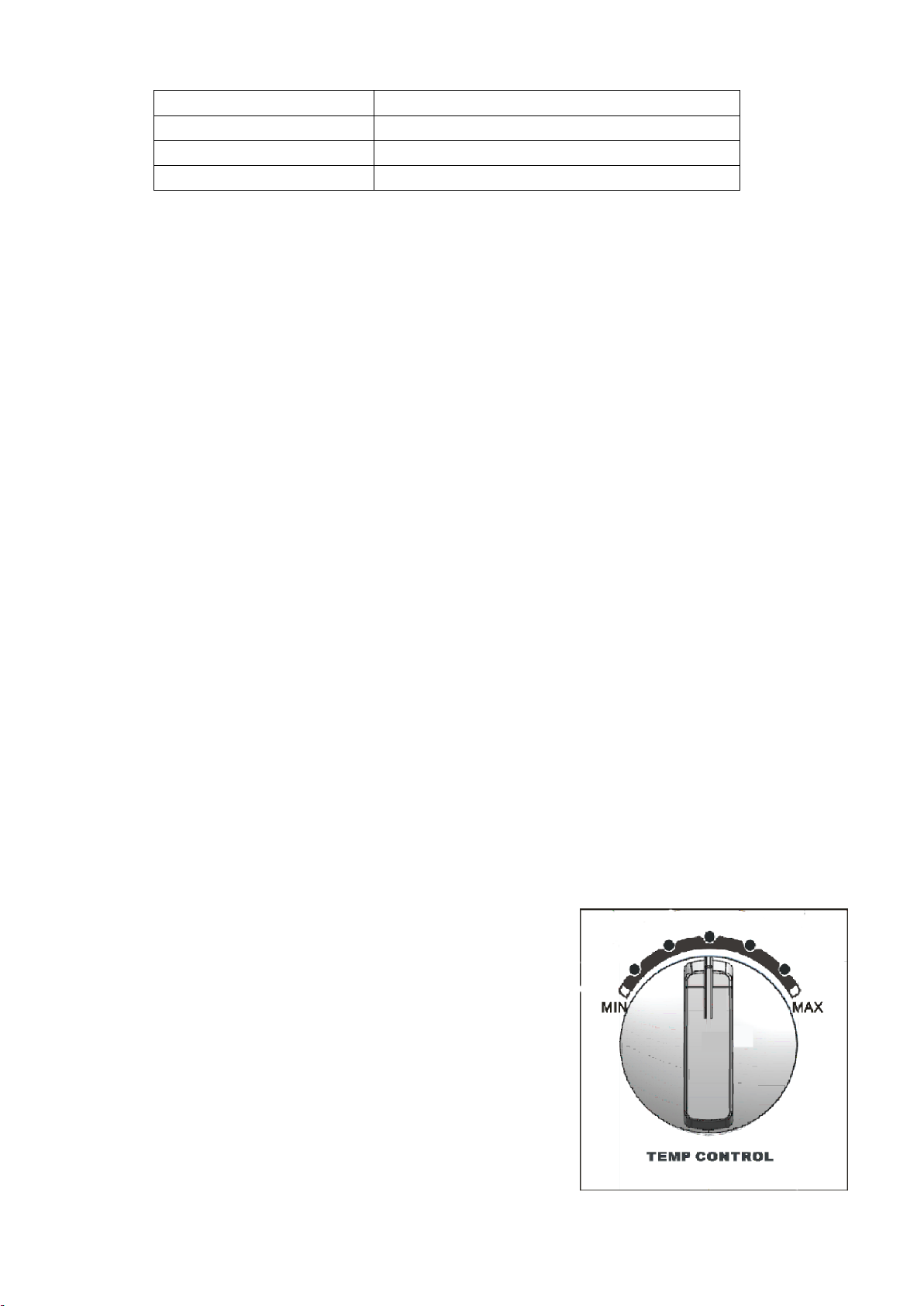

Temperature Control
When using the refrigerator-freezer for the
first time or after defrosting, turn the
temperature control to set “MAX” for at least
8

two hours before introducing the food to be stored.
All frozen food products you purchase should be placed in the freezer
compartment as soon as possible to avoid the frozen food from defrosting.
Storage recommendation printed on the packaging of frozen food by the
manufacturers should always be followed.
Be careful that the drawer does not mangle the refrigeration pipeline.
Freezing Fresh Food
Ensure that your freezing operations are carried out under the most hygienic
conditions, as freezing alone does not sterilize the food. It is advisable to freeze
the food by packing it into separate meal portions and not in bulk form. Never put
hot or even warm food into the freezer compartment. Prior to storing the
frozen food, pack it in plastic bags, aluminum foil or freezing containers and
place into the freezer compartment. See the data plate on the back of the
refrigerator-freezer for the maximum permissible amount in ounces of fresh
food that can be frozen in any 24 hour period with a room temperature of 77°F.
Never freeze more than the maximum permissible amount.
NOTE: Never put bottled food or drinks in the freezer compartment. For best
performance, leave enough space in the freezer compartment for air to circulate
around the packages.
Cleaning Your Refrigerator-freezer
Before you start to clean your refrigerator-freezer, remove the main plug from the
9

power supply.
Use a clean sponge or soft cloth and a mild detergent in warm water. Do
not use abrasive or harsh cleaners.
Hand wash, rinse and dry all surfaces thoroughly.
Do not use cleaning waxes, concentrated detergents, bleaches or
cleaners containing petroleum on plastic and rubber parts.
Never use paper towels, window sprays, scouring cleansers or flammable fluids
on plastic parts, as these can scratch or damage material.
Clean with a cloth soaked in this solution and then dry with a soft cloth.
PROLONGED OFF PERIODS
If the refrigerator-freezer is not in use for a long period of time, proceed as
follows:
Disconnect the refrigerator-freezer from the main supply by removing the plug
from the wall socket.
Clean and dry the inside as instructed under the heading of cleaning the
refrigerator-freezer.
Leave the door open to prevent any unpleasant smells from building up while the
refrigerator-freezer is not in use.
TROUBLESHOOTING
In case of malfunction, you can solve many common problems easily.
Your refrigerator-freezer will not operate…Check if
-- The power supply cord is unplugged.
The doors will not close completely…Check if
10

-- The drawers are out of position.
-- The gaskets are dirty.
-- The refrigerator-freezer is not level.
The refrigerator-freezer is noisy when running…Check if
-- Check the refrigerator-freezer is level and it is not in contact with another
appliance or kitchen furniture.
The refrigerator-freezer does not cool sufficiently…Check if
-- If the door has been opened too often, or it has been left open for a while it
will take time for the refrigerator-freezer to reach its set temperature.
-- Check the airflow to the rear of the refrigerator-freezer has not been
reduced due to insufficient clearance.
The following characteristics should not be looked upon as a problem.
-- A gentle trickling sound caused by coolant flowing through the pipe.
Compressor operating at high temperature.

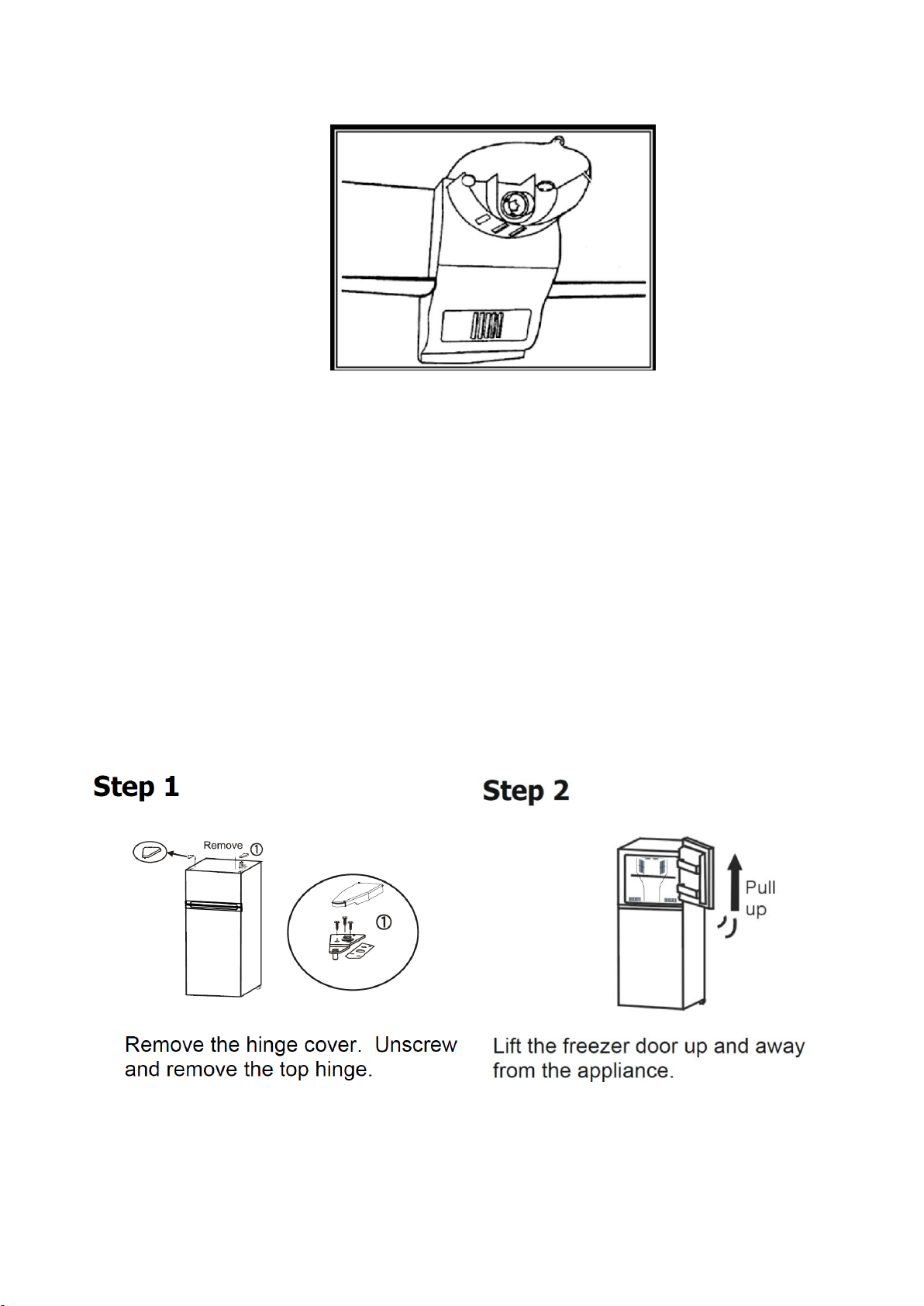

Replacing Your Light Bulb
NOTE:
All parts removed must be saved to do the replacement of the light bulb.
Before removing the light bulb, either turn off the appliance or disconnect the
electricity leading into the appliance at the main power supply. Failure to do
so could result in electrical shock or personal injury.
�Unplug the AC power cord from the wall.
�Pull down to remove the light cover.
�Unscrew the bulb.
11

Repace with a 15-watt bulb that is the same shape and size.
REQUESTING ASSISTANCE OR SERVICE
If the problem is not due to one of the items listed in Troubleshooting, Contact the
dealer or authorized Service Company.
Changing the Reversible Door
Before reversing the door swing, ensure the appliance is unplugged and empty. Provide
additional support for the doors while hinges are being removed. Do not depend on the door
magnets to hold the door in place. It is recommended that two people perform this task. DO
NOT lay the appliance completely flat as this may damage the coolant system.
12

Remove the screws from the
middle hinge. Lift the
refrigerator door up and away
from the appliance.
Remove right bottom hinge and reserve the
screws. Remove screw covers at left corner
and put them into the screw holes at right
corner. Install left hinge by using those
reserved screws.
Remove right pin assemblies from the bottom
of the freezer and refrigerator doors. On the
opposite side, attach the replacement pin
assemblies (located in the plastic bag with the
Use and Care Manual) with a screwdriver.
Note: You must re-use the screws from the pin
assemblies that are removed in this step when
attaching the new assemblies.
Place the refrigerator door on the bottom hinge.
Ensure the door is aligned horizontally and
vertically. Attach middle hinge to refrigerator door
and attach bolt washer to the back of the hinge,
then fix them to the middle beam and fasten them
with a screwdriver.
13

WARNING
RECOMMENDATIONS：
1) WARNING –Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
2) WARNING –Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the manufacturer.
3) WARNING –Do not damage the refrigerant circuit.
4) WARNING –Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type recommended by the
manufacturer.
Place the freezer door on the middle
hinge. Ensure that the door is aligned
horizontally and vertically, and that the
gasket seals on all sides before attaching
the top hinge. Attach the top hinge and
replace the hinge cover.
14

5) The appliance has to be unplugged after use and before carrying out user
maintenance on the appliance.
6) This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
7) Children should be supervised to ensure that they do not play with the
appliance.
8) If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
9) Please dispose of the refrigerator-freezer according to local waste regulations
due to its use of flammable blowing gas and refrigerant.
10）Please adhere to local regulations regarding disposal of the appliance for
its flammable refrigerant and blowing gas. Before you scrap the appliance, please
take off the doors to prevent children from being trapped.
11) Do not use an extension cord.
15

Correct Disposal of this product：
This marking indicates that this product should not be disposed with other
household wastes throughout the US/NA. To prevent possible health or
environmental harm from uncontrolled waste disposal, recycle it responsibly
to promote the sustainable reuse of material resources.
16

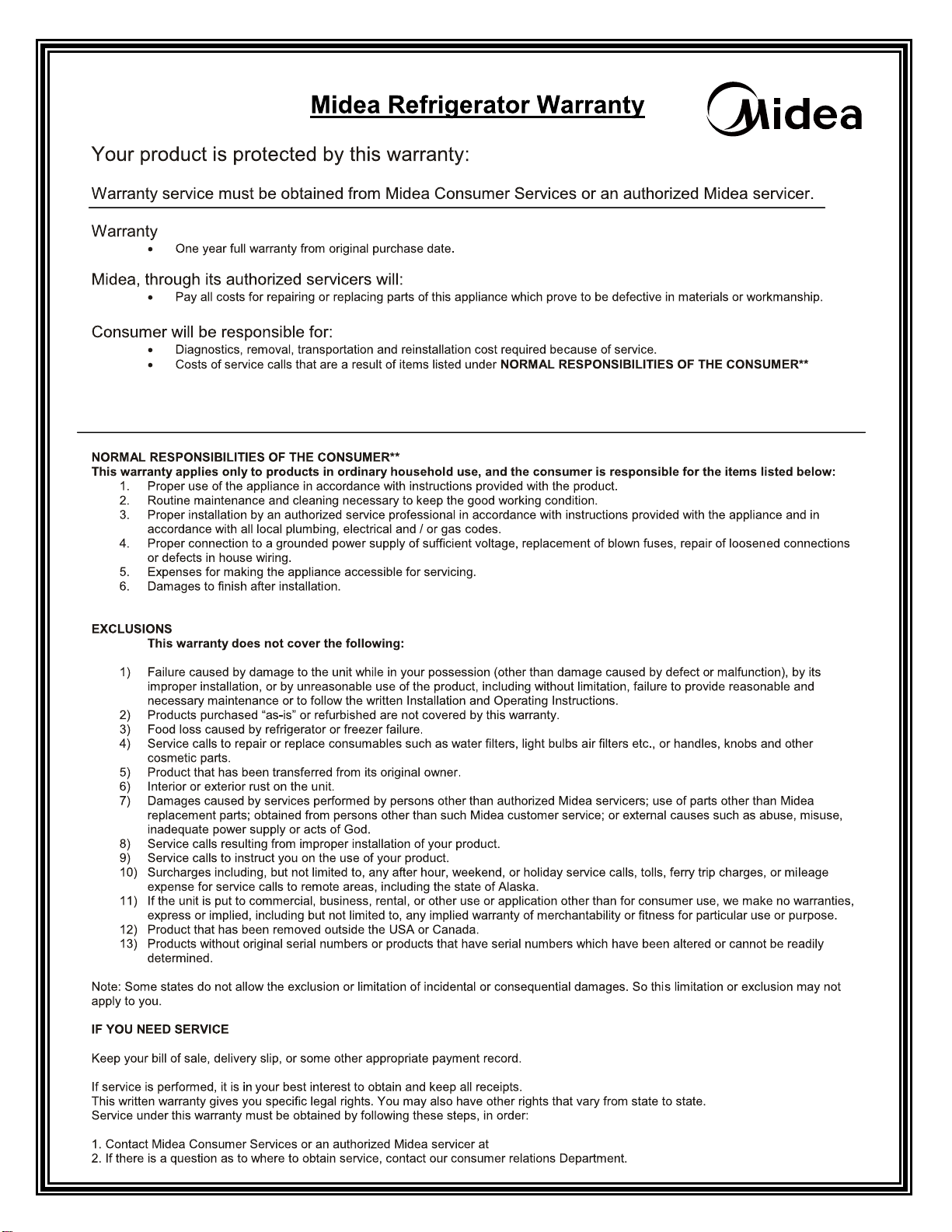

Midea replacement parts shall be used and will be warranted only for the period remaining on the
original warranty.
1-866-646 4332.
The date on the bill established the warranty period should service be required.
