OWNER’S MANUAL Washing MachineRead This ManualUse all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the application is sold or passed on then ensure that the new owner always receives those operation instructions.M FN75-S1403/ C31E-AU(25)

1CONTENTSSAFETY INSTRUCTIONS Safety Instructions ..................................................INSTALLATION Product Description ................................................ Installation ...........................................................OPERATIONS Quick Start ............................................................. Before Each Washing .............................................. Detergent Dispenser ............................................... Control Panel ......................................................... Option.................................................................... Other Functions ..................................................... Programmes .......................................................... MAINTENANCES Cleaning And Care ................................................. Trouble Shooting .................................................... Technical Specifications ......................................... Testing methods .....................................................2781112131415161820232425

2Safety Instructions
For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life.Explanation of the symbols:
manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • If the supply cord is damaged, it must be replaced by the The electric shock!SAFETY INSTRUCTIONSThis combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it’s avoided.Warning!！This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.Note!This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.Caution!Warning!！

3• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.• Before any maintenance the device, unplug the appliance from the mains.• Always unplug the machine and turn off the water supply after use. The max. inlet water pressure, in pascals. The min. inlet water pressure, in pascals.• To ensure your safety, power plug must be inserted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed.• Make sure that the water and electrical devices must be connected by a qualified technician in accordance with the manufacturer's instructions and local safety regulations. Risk to children! from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.• • Children of less than 3years should be supervised to ensure that they do not play with appliance.• Animals and children may climb into the machine. Check the machine before every operation.• Kids should be supervised that they do not play with the appliance.EN countries: the appliance can be used by children aged SAFETY INSTRUCTIONS

4• Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.• Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation very wet rooms as well as in the rooms with explosive or caustic gas.• Plug must be accessible after installation.Risk of explosion!• • Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances( such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) This may result in fire or explosion.Before hand thoroughly rinse items of washing by hand.• This washing machine is for indoor use only. • It isn't intended to be built-in using.• The openings must not be obstructed by a carpet.• Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.• The washing machine with single inlet valve only can be connected to the cold water supply. The product with double inlet valves should be correctly connected to the hot water and cold water supply.• Plug must be accessible after installation.Installing the product!SAFETY INSTRUCTIONSCaution!

5• Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.Risk of damaging appliance!• Your product is only for home use and is only designed for the textiles suitable for machine washing.• Do not climb up and sit on top cover of the machine.• Do not lean against machine door.• Cautions during Handling Machine: 1.Transport bolts shall be reinstalled to the machine by a specialized person. 2.The accumulated water shall be drained out of the machine. 3.Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door can not be used as the handle during the conveyance. 4.This appliance is heavy. Transport with care. • Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the clothes are put in or distributed well.• It is forbidden to wash carpets.Operating the appliance!• Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside.• Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc.Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum.SAFETY INSTRUCTIONS

6• Make sure that all pockets are emptied. Sharp and rigid items such as coin,brooch,nail,screw or stone etc. may cause serious damages to this machine.• Please check whether the water inside the drum has been drained before opening its door.Please do not open the door if there is any water visible.• Be careful of burning when the product drains hot washing water.• Never refill the water by hand during washing.• After the program is completed, Please wait for two minutes to open the door. This marking indicates that this product should not be disposed with other household wastes throughout the EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of material resources.To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.
Packaging/Old appliance
SAFETY INSTRUCTIONS

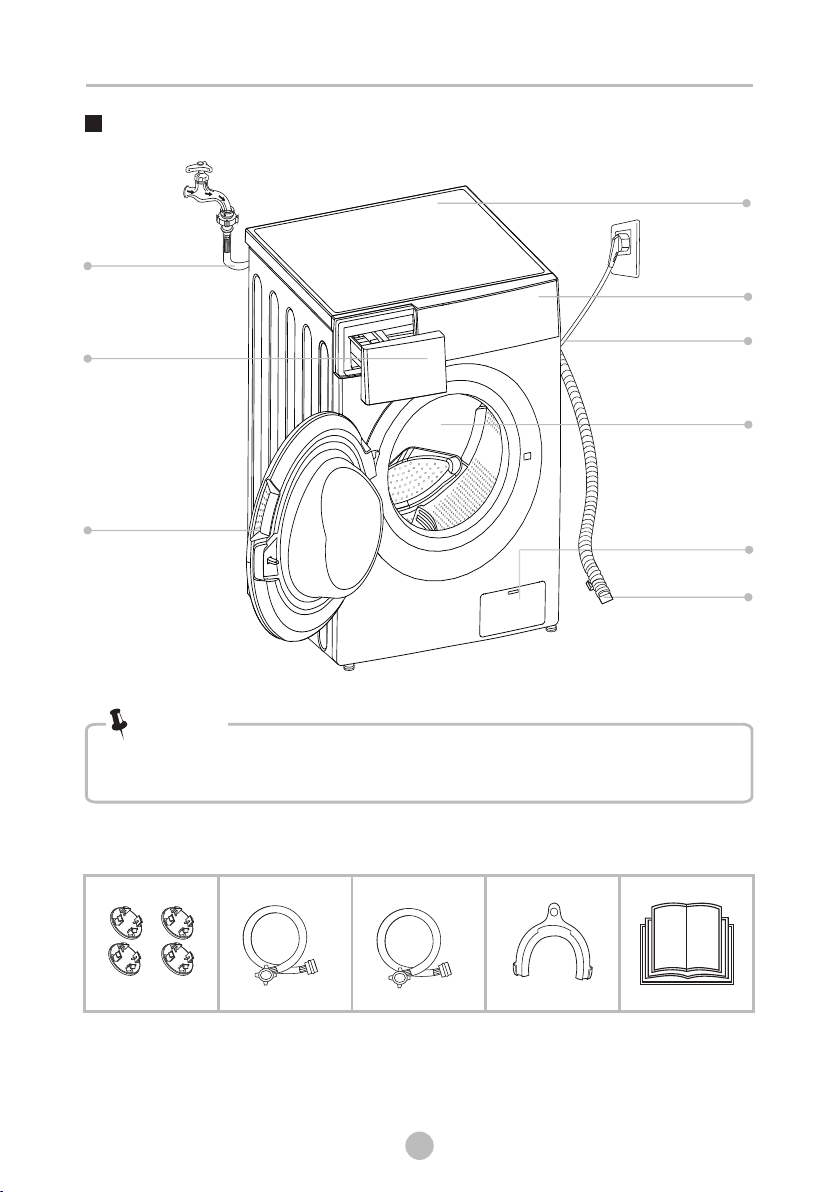

7AccessoriesProduct DescriptionTransport plughole Supply hose hot water (optional)Supply hosecold water Drain hose (optionalsupport )
• The product line chart is for reference only, please refer to real product as standard.
Note!Drum Power supply cordControl panel
Detergent dispenser
Service filterDoor
Water supply hose
Top cover Drain hoseOwner’s manualINSTALLATION

8INSTALLATIONInstallation Before installing the machine, the location characterized follows shall be selected:1.Rigid, dry, and level surface 2.Avoid direct sunlight3.Sufficient ventilation4.Room temperature is above 0℃ 5.Keep far away from the heat resources such as coal or gas.as Unpacking the washing machine1. Remove the cardboard box and styrofoam packing.2. Lift the washing machine and remove the base packing.3. Remove the tape securing the power supply cord and drain hose.4. Remove the inlet hose from the drum.Make sure the small triangle foam is removed with the bottom one together. If not, lay the unit down with side surface, then remove the small foam from the unit bottom manually.Please take the following steps to remove the bolts:1.Loosen 4 bolts with spanner and then remove them.2.Stop the holes with transport hole plugs.3.Keep the transport bolts properly for future use.Remove transport bolts•• Stability is important to prevent the product from wandering!Make sure that the product should not stand on the power cord.Warning!！• • Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk of suffocation ! Keep all packaging well away from children.Warning!！
• •product you You must remove the transport bolts from the backside before using the product. You’ll need the transport bolts again if you move the , so make sure keep them in a safe place.
Warning!！wwW> 20mmInstallation area

99INSTALLATION1.Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts.2.Loosen the lock nut turn the feet until it closely contacts with the floor. 3.Adjust the legs and lock them with a spanner, make sure the machine is steady.Levelling the washing machine
• The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply HoseConnect the inlet pipe as indicated, There are two ways to connect the inlet pipe.1.Connection between ordinary tap and inlet hose. • To prevent leakage or water damage, follow the instructions in this chapter Do not kink, crush, modify or sever . !•water inlet hose•For the model equips hot valve,connect it to hot water tap with hot water supply hose. Energy consumption will decrease automatically for some program.2341RaiseLowerLock nutfootWarning!！Warning!！Loosen clamp nut and four boltsTighten clamp nutPress slide bushing, insert inlet hose into connecting base
slide bushing
2341Connection finished
clamp nut
Tap with threads and inlet hoseSpecial tap for washing machine2.Connection between screw tap and inlet hose.
slide bushing

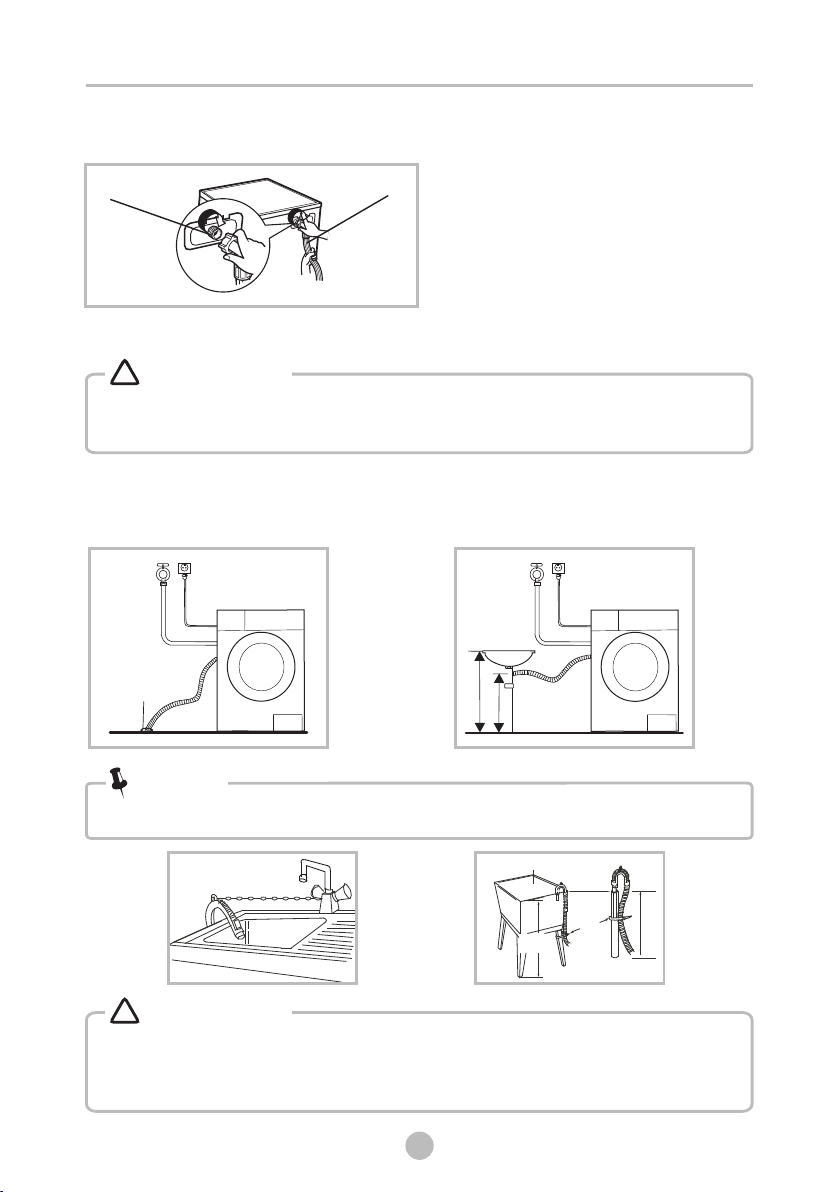

1010INSTALLATIONWarning!！Drain HoseThere are two ways to place the end of drain hose:1.Put it into the water trough.2.Connect it to the branch drain pipe of the trough.
•• If drain hose is too long, do not force it into washing machine as it will cause abnormal noises. When installing drain hose, fix it properly with a rope.
• •Position drain hose properly ,otherwise damage might result of water leakage.Do not kink or protract the drain hose.
Water trough
Min.60cm100cmMax.
TroughHose Retainer
Bind
Max.100cmMin.60cm
Min.60cmMax.100cm
If the machine has • drain hose support, please install it like the following .Warning!！Warning!！Note!
water supply hose
water Inlet valveConnect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise.

1011
Before washing, please make sure it’s installed properly. Before washing at first time, the washing machine shall be operated in one of the whole procedures without clothes in as follows. • • round
1. Before Washing“End” on display.
Open tap
Load
Close door
Plug in
Add detergent
Quick Start3. After Washing• Detergent need to be added in "case I “after selecting pre-washing for machines with this function.123452. WashingSelect Programme
Select function ordefault Start up
123• If default is selected, step 2 can be skipped.Note!Note!Caution!OPERATIONSMain wash Prewash Softener

1012Knot the long strips,zip or button • When washing a single clothes, it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly. • Don’t washing the clothes touching with kerosene, gasoline, alcohol and other flammable materials. • The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0℃or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. • Please check the labels and the explanation of using detergent before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly. Take out the items out of the pockets Put small clothes into the pillow slip Check the labelBefore Each Washing
Turn easy-pilling and long-pile fabric inside out
Separate clothes with
different texturesWarning!！OPERATIONS

1013
ProgrammeCotton EcoCottonSyntheticMixDelicateJeansColorSpin OnlyRinse & Spin
Means must ○ Means optional
ProgrammeBulky/BedlinenBaby CareWoolSport WearDaily/Rapid 45’Quick 15’IntensiveECO 40-6020
Detergent Dispenser

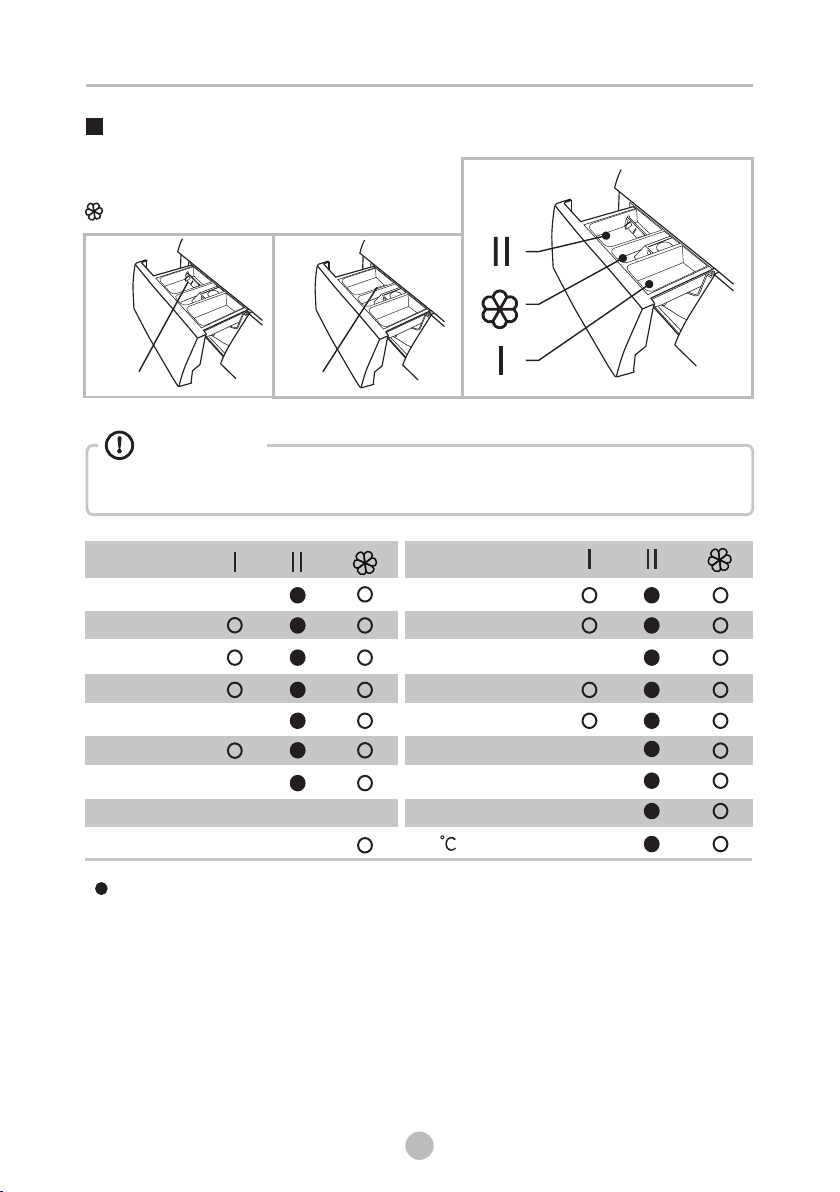

Pre wash detergentMain wash detergentSoftener IIIPull out the dispenserLiquid detergent Powder detergent Caution!• Detergent only need to be added in "case I “after selecting pre-washing for machines with this function.OPERATIONSDam-boardDam-board

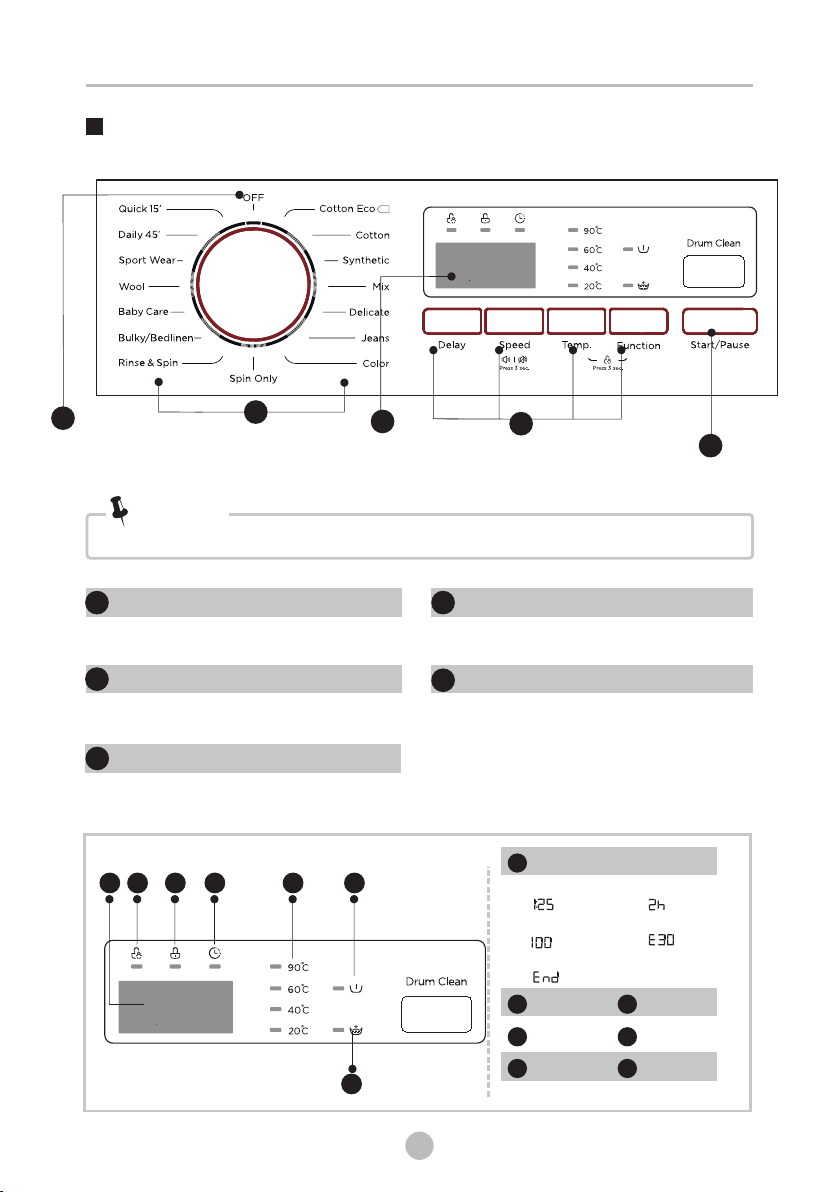

Control Panel OPERATIONS1014On/OffProduct is switched On/Off.Start/PausePress the button to start or pause the washing cycle.ProgrammesAvailable according to the laundry type.Option This allows you to select an additionalfunction and will light when selected.Note!The chart is for reference only, Please refer to real product as standard.• 113124DisplayThe display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.5532114
Child Lock
B
Delay
D
Display
AWash Time Delay Time Speed Error End
Door Lock
CE
Temp.
AGBCDEF
Pre Wash
F
Extra Rinse
G

DelaySet the Delay function:1. Select a programme; 2.Press the Delay button to choose the time(the delaying time is 0-24 H.); 3.Press [Start/Pause] to commence the delay operation
Choose the ProgrammeStartSetting timeDelay
Cancel the Delay function: Press the [Delay] button until the display be 0H.It should be pressed before starting the programme. If the programme already started, should switch off programme to reset a new one. Option Caution!• If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and when the power is restarted, the program will continue.
Programme OptionProgramme Option
Extrarinse
○ Means optional(Some models have intelligent weighing function, please refer to the actual product) 1015
PrewashPrewashExtrarinse
Delay
OPERATIONS
Delay
Cotton EcoCottonSyntheticMixDelicateJeansColorSpin OnlyRinse & SpinBulky/BedlinenBaby CareWoolSport WearDaily/Rapid 45’Quick 15’IntensiveECO 40-60
20

SpeedPress the button to change the speed.1400: 0-400-600-800-1000-1200-1400 Temp.℃,Press the button to regulate the temperature(Cold,20 40℃,60℃,90℃)Other Functions1016OPERATIONS
Programme Default Speed(rpm) Cotton EcoCottonSyntheticMixDelicateJeansColorSpin OnlyProgramme Rinse & SpinBulky/BedlinenBaby CareWoolSport WearDaily/Rapid 45’Quick 15’Default Speed(rpm)
1400140080060080080012008001400800800800800600800800800

1017Mute the buzzerTo act the buzzer function, press the button again for 3 seconds. The setting until the next reset. will be kept • MuAfter ting the buzzer function, the sounds will not be activated any more.Caution!OPERATIONS
Press the [Speed]button for 3sec.,the buzzer is mute.SpeedChoose the Programme

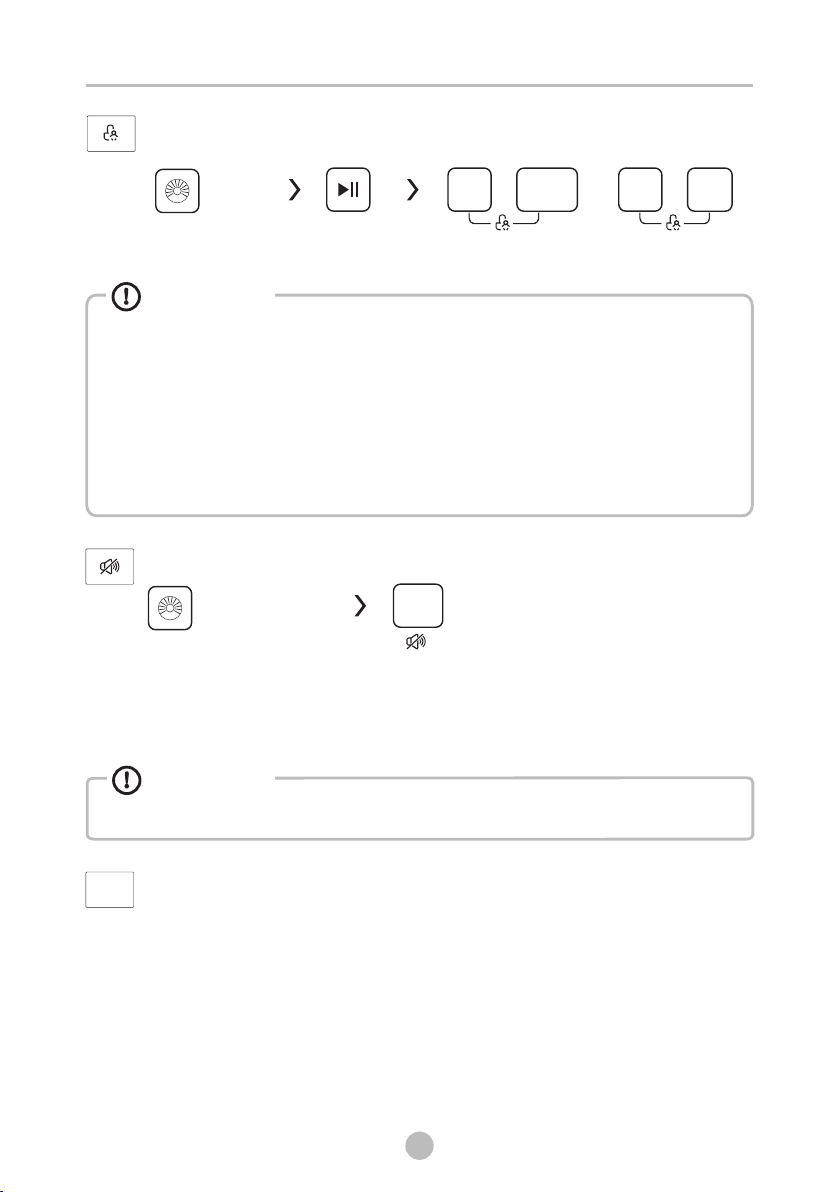

When child lock is activated and program starts, child lock indicator will switch on, and the CL and remaining time on the display are alternately displayed in 0.5s. Press the other buttons will make child lock indicator flash for 3s. when program finish,CL and END alternate for 10s in 0.5s, then the child lock lights flash for 3s.• only press and hold the two button can release child lock, even power off, switch off and program end• The “Child Lock” will lock all buttons except Power button and Child Lock button• please release child lock before selecting program and starting washing.
Caution!Child LockTo avoid mis operation by children.
StartPress [] and []or 3 sec. till buzzer beep.Temp.Function[Temp.] and [Dry]Temp.Choose the ProgrammeFunctionTemp.Dryor
Drum CleanDrum CleanAfter the machine runs to the set counting period(counting cycle is 25 times), Drum Clean lamp flashes at the end of the last program, reminding the user to run the program;Release condition: 1.Press and hold the Drum Clean button for 3s, Drum cleaner indicator remind will be cancel and the washing cycles will be recount for another 25 cycles. 2.The counted cycles will be recounted when drum clean program is finished.

Programmes Quick 15' Wool Mix Cotton Hard-wearing textiles, heat-resistant textiles made of cotton or linen.Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles. Washing the baby’s clothes, it can make the baby's wear cleaner and make the rinse performance better to protect the baby skin.Washing few and not very dirty clothes quickly.Mixed load consisting of textiles made of cotton and synthetics.Specially for jeans.Washing brightly colored clothes, it can protect the colors better .Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.For delicate, washable textiles, e.g. made of silk, satin, synthetic fibres or blended fabrics.Hand or machine-washable wool or richwool textiles.Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).Extra spin with selectable spin speed.Extra rinse with spin.To increase the washing effects, washing time is increased.Washing the activewear.This program is specially designed for washing Bulky/Bedlinen.Specially set in this machine to clean the drum and tube. It applys 90 °C high temperature sterilization to make the clothes washing more green. When this programme is performed, the clothes or other washing cannot be added. When proper amount of chlorine bleaching agent is put in, the barrel cleaning effect will be better. The customer can use this programme regularly according to the need. Spin Only Rinse&Spin Baby Care Color/20℃ Synthetic Daily/Rapid 45' Delicate 1018OPERATIONSProgrammes are available according to the laundry type.ProgrammesCotton EcoDrum CleanJeansSport WearBulky/Bedlinen

1019OPERATIONS Programmes Dry Only 1Hour W/D Select it to dry clothes, the temperature is different .The drying time according to the load .For small synthetic clothes or shirts, load limitation is 1 kg (about 4 shirts). When you have an urgent appointment but no more clean shirtleft in your cupboard, this program will help you.Time duration is only 1 hour including wash and dry. Remark: Big towels or jeans is not suitable for this program, they will enlarge the time duration and affect the moisture content. 5kg W/D
• Reference to your product to select the programmes.
Note!For wash and dry, load limitation is 5 kg.Default 40℃,not selectable,suitabale for laundry washing at about 40℃-60℃.To increase the washing effects, washing time is increased.ECO 40-60Intensive Wash & Dry The standard energy program.
