Midea MAE180-2404TPS/01FM User manual

Read This Manual
Use all instructions and explanations of the
installation before use. Follow the instructions
carefully. Keep the operation instructions
handy for later use. If the application is sold or
passed on then ensure that the new owner
always receives those operation instructions.
MODEL:
MAE180-2404TPS/01FM
Washing Machine
Fully Automatic
USER MANUAL

1
The usage of detergent and washing powder.............
7
7

SAFETY INSTRUCTIONS
For your safety, the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
2
Safety instructions
• This appliance is not intended for use by persons(including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge unless they have
been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•
•
•
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household and similar
applications such as:
− staff kitchen areas in shops, offices and other working environments;
− farm houses;
− by clients in hotels, motels and other residential type environments;
− bed and breakfast type environments;
− areas for communal use in blocks of flats or in launderettes.
Children should be supervised to ensure that they do not
play with the appliance.
The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
Model Washing Capacity Standard Water Pressure
MAE180-2404TPS/01FM
18.0kg 0.03MPa~0.8MPa

3
SAFETY INSTRUCTIONS
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
Caution!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in slight
or minor injuries or damage to property and the environment.
Warning!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in death
or serious injuries unless it’s avoided.
Explanation of the symbols:

• EN countries: the appliance can be used by children aged
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
• Animals and children may climb into the machine. Check the
machine before every operation.
• Young children should be supervised that they do not play
with the appliance.
• Machine may be very hot during the operation. Keep kids and
pets far away from the machine during the operation very
wet rooms as well as in the rooms with explosive or caustic gas.
4
SAFETY INSTRUCTIONS
Risk to children!
Warning!
The electric shock!
•
•
• Hands shall not be inserted into running spin-dry tub .
• If the spin-dry tub does not stop within 15 seconds after opening
the cover , please stop using the machine and have it repaired.
• Before any maintenance the device, unplug the appliance
from the mains.
• Always unplug the machine and turn off the water supply
after use. The max. inlet water pressure, in pascals . The min.
inlet water pressure, in pascals.
• To ensure your safety, power plug must be inserted into
an earthed three-pole socket. Check carefully and make sure
that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must be
connected by a qualified technician in accordance with the
manufacturer's instructions and local safety regulations.
This appliance is for indoor use only.
Do not put washing machine at humid place.

• This washing machine is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or very wet
rooms as well as in the rooms with explosive or caustic gases.
• Remove all packages and transport bolts before using the
appliance. Otherwise, serious damage may result.
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product with double
inlet valves should be correctly connected to the hot water
and cold water supply.
• Plug must be accessible after installation.
Risk of damaging appliance!
5
SAFETY INSTRUCTIONS
Caution
Installing the product!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
Risk of explosion!
•
in, soaked in, or dabbed with combustible or explosive substances
( such as wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) This may result in fire or explosion.
• Before hand thoroughly rinse items of washing by hand.
Do not wash or dry articles that have been cleaned in, washed
•
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product with double
inlet valves should be correctly connected to the hot water
and cold water supply.
• Plug must be accessible after installation.
Remove all packages before using the appliance. Otherwise,
serious damage may result.

Operating the appliance!
• Before washing the clothes at first time, the product
operated in one round of the whole procedures without the
clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc. Shall not be used as detergents.
Please only select the detergents suitable for machine washing,
especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid items
such as coin, brooch, nail, screw or stone etc. may cause
serious damages to this machine.
• Please check whether the water inside the drum has been
drained before opening its door. Please do not open the door
if there is any water visible.
• Be careful of burning when the product drains hot washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two minutes to
open the door.
shall be
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly
to promote the sustainable reuse of material resources.
To return your used device, please use the collection systems
or contact the retailer where the product was purchased.
They return and can take this product for environmental
safe recycling.
Packaging/Old appliance
6
SAFETY INSTRUCTIONS
1.Transport bolts shall be reinstalled to the machine by a
specialized person.
2.The accumulated water shall be drained out of the machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can not
be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.
• Please do not close the door with excessive forces.
• It is forbidden to wash carpets.

INSTALLATION

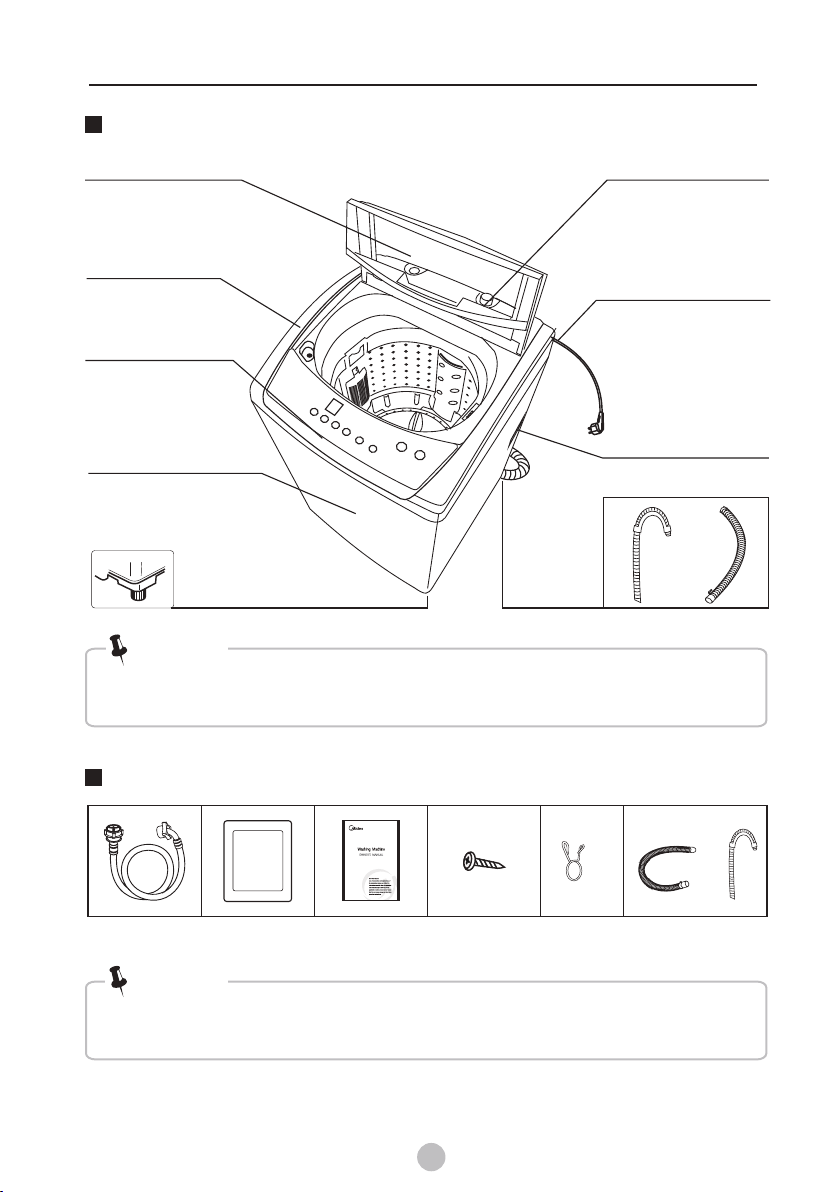

Product description
• The product line chart is for reference only, please refer to real product as
standard.
Note!
7
Accessories
Spring clamper Drain loose ass Inlet hose ass Manual Screw Cabinet baseboard
• Note: if the drain hose is already installed on the machine, then there is no
spring clamper and drain hose in the accessories.
Note!
Or
Frame
Top lid
Drain hose
Handle
Power case and plug
Control panel
Cabinet
Adjustable foot knob
Water inlet valve
Or

8
Installation area
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0 C
5.Keep far away from the heat resources such as coal or gas.
as

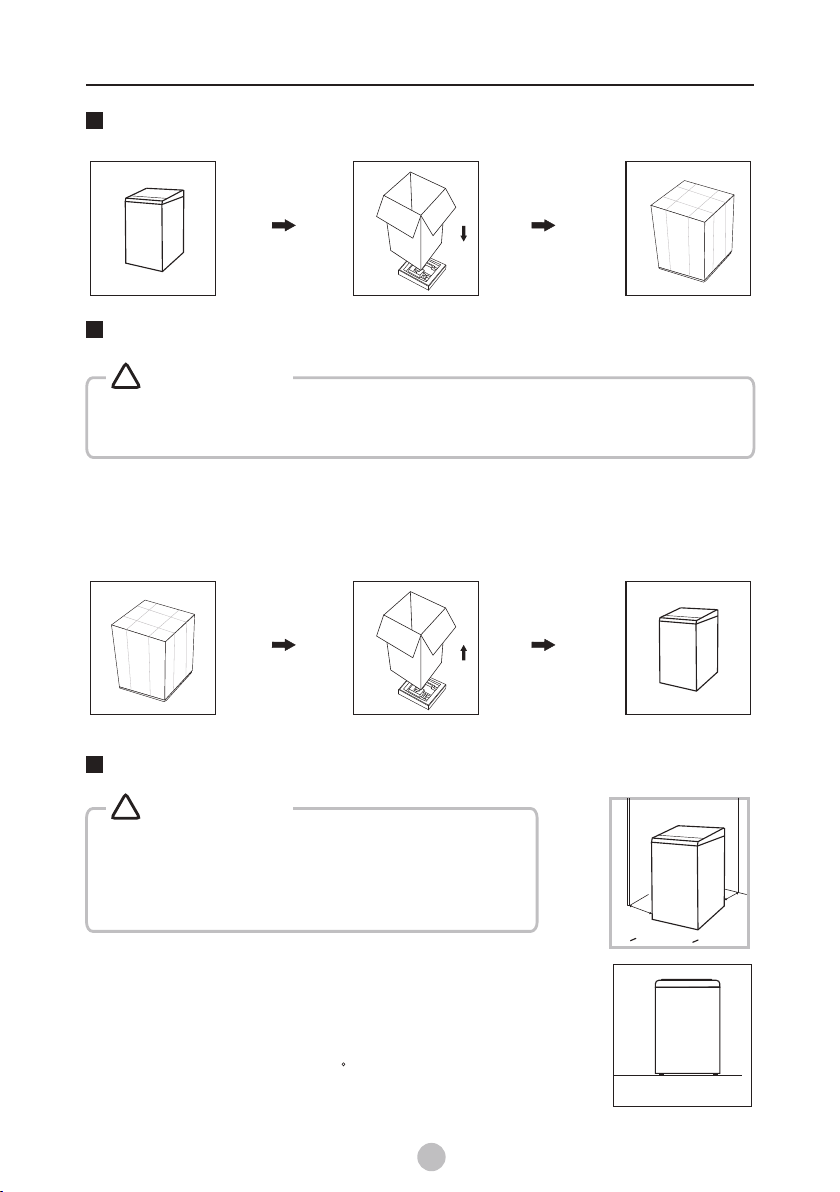

Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
•
•
Stability is important to prevent the product from
wandering!
Make sure that the product should not stand on
the power cord.
Warning!
！
• dangerous for children.
• well away from children.
Packaging material (e.g. Films, Styrofoam) can be
There is a risk of suffocation ! Keep all packaging
Warning!
！
INSTALLATION
L
w
W> 20mm L> 45mm
Packing the washing machine

9
9

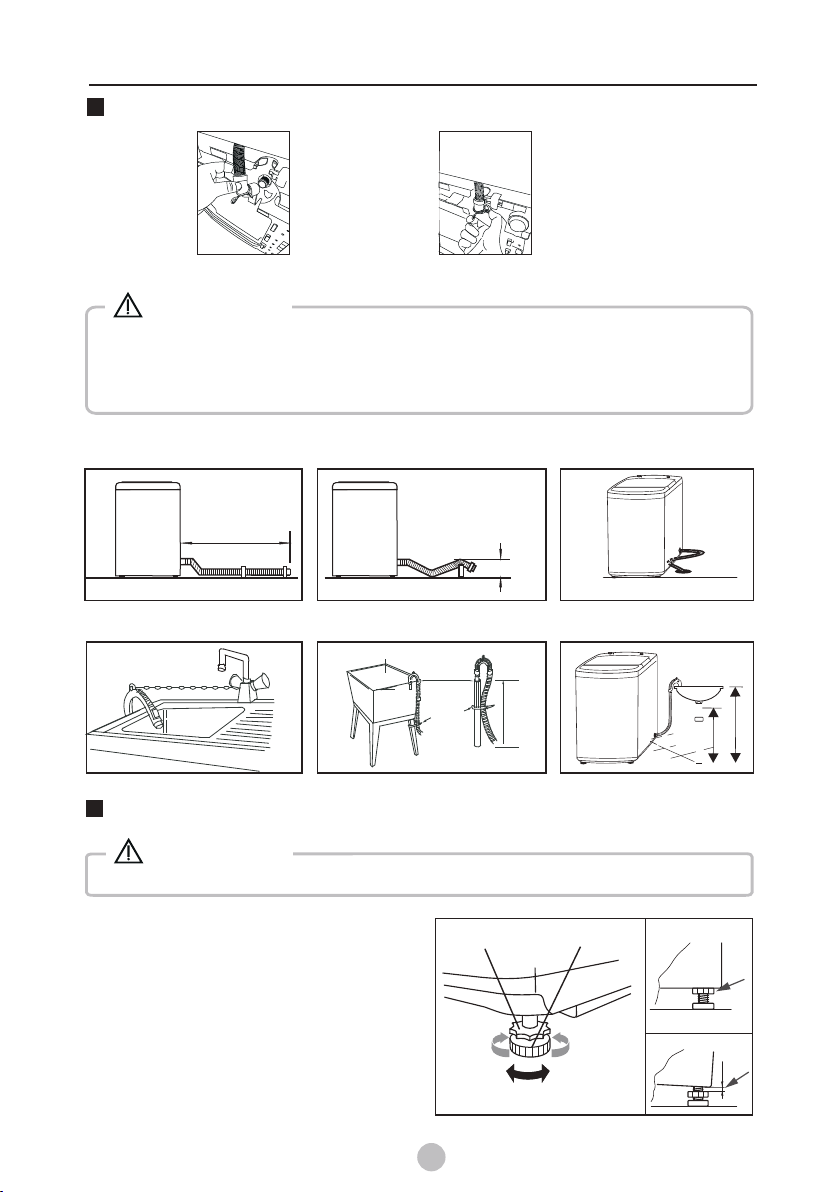

There are two ways to place the end of drain hose:
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
Trough
Hose
Retainer
Bind
Min.86cm
Max.100cm
Warning!Warning!
Water
trough
Under3m
Under 15cm
Min.86cm
100cm
Max.
1.For lower drain system
2.For upper drain system
1.Check if the legs are closely attached
the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Check alignment of the product with a
spirit level and if required, correct.
3.Loosen the lock nut and turn the feet
until it closely contacts with
to
the floor.
4.After being locked properly, press four
corners again to make sure that they has
been adjusted properly.
• The lock nuts on all four feet must be screwed tightly against the housing.
Levelling the washing machine
Warning!
INSTALLATION
Lock nut foot
Right
Wrong
Raise Lower
Lock
Loosen
The installation of drain hose
Clamping spring
Drain inserted
hose into the drain

10
10
Wall
1:Connection between ordinary tap and inlet hose.
2:connection between screw tap and inlet hose.
• To prevent leakage or water damage, follow the instructions in this chapter
Do not kink, crush, modify or sever .
!
• water inlet hose
Warning!
Selection of tap
Please select
tap.
appropriate
Connection of inlet hose, tap and washing machine
Clamp nut
Tap
1.Loosen clamp nut to
show 5mm thread
2.Loosen four bolts 3.Set connecting base
on tap and tighten
bolts evenly
4.Tighten clamp nut
inlet valve
inlet hose
slide bushing
5.Press slide bushing,
insert inlet hose into
connecting base
6.Connection finished 7.After connection and installation,
check if there is water leakage
Tap with threads and inlet hose Special tap for washing machine
Screw tap Special washing
machine tap
Ordinary faucet
INSTALLATION

Caution!

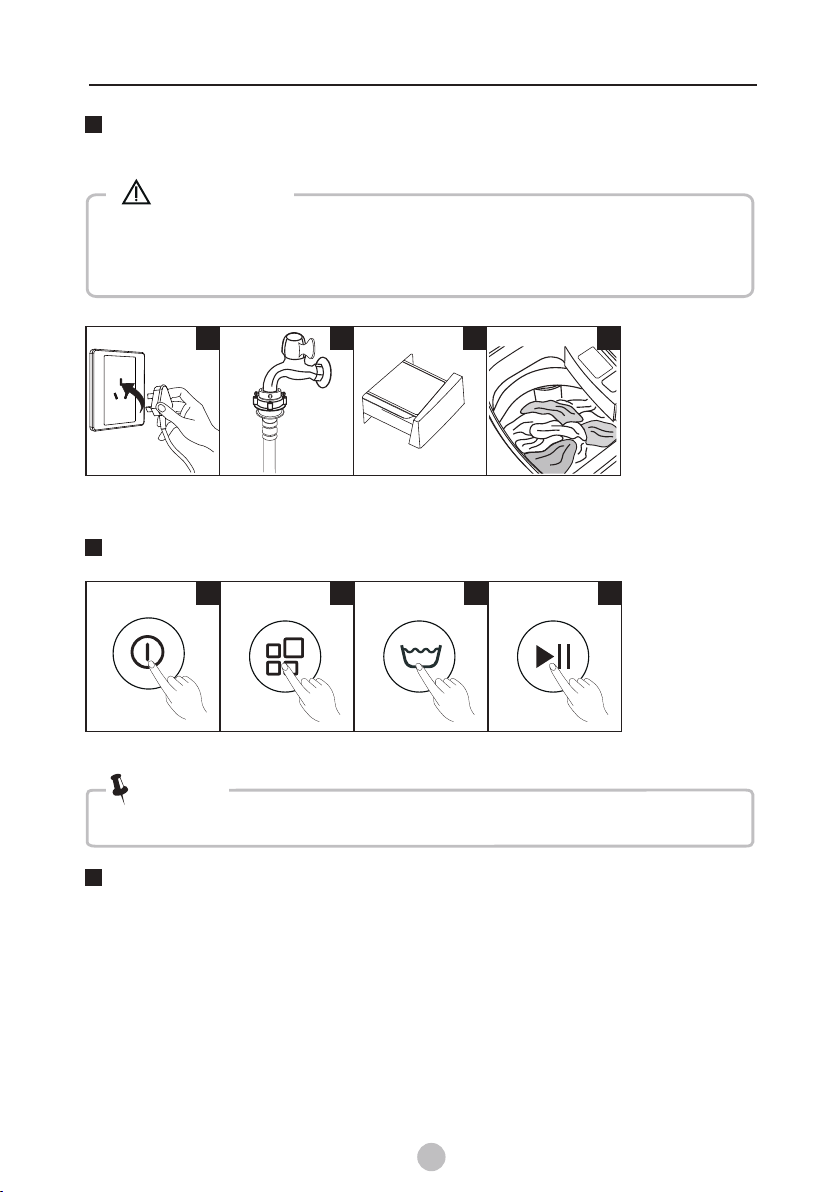

Before washing, please make sure it’s installed properly.
Before washing it at first time, the washing machine shall be operated in one
of the whole procedures without clothes in as follows.
•
•
round
Open tap
Plug in Add detergent
After washing
1 2 3 4
Washing
Power on Start up
1 2
• , If default is selected, step 2 3 can be skipped.
Note!
10
11
Load and close door
Buzzer will beep after washing finished and the power supply will be cut off automatically
Then unload the laundry.
.
3 4
Select program Select level
Preparation before washing
OPERATIONS

Knot the long strips,zip or
button
• When washing a single piece of clothing, it may easily cause great eccentricity
and give alarm due to great unbalance. Therefore it is suggested to add one or
two more clothes to be washed together so that draining can be done smoothly.
• Don’t washing the clothes touching with kerosene, gasoline, alcohol and other
flammable materials.
• The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet
valve and draining system may be damaged. If the machine is placed under condition
of 0℃or less, then it should be transferred to normal ambient temperature to ensure
the water supply hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label

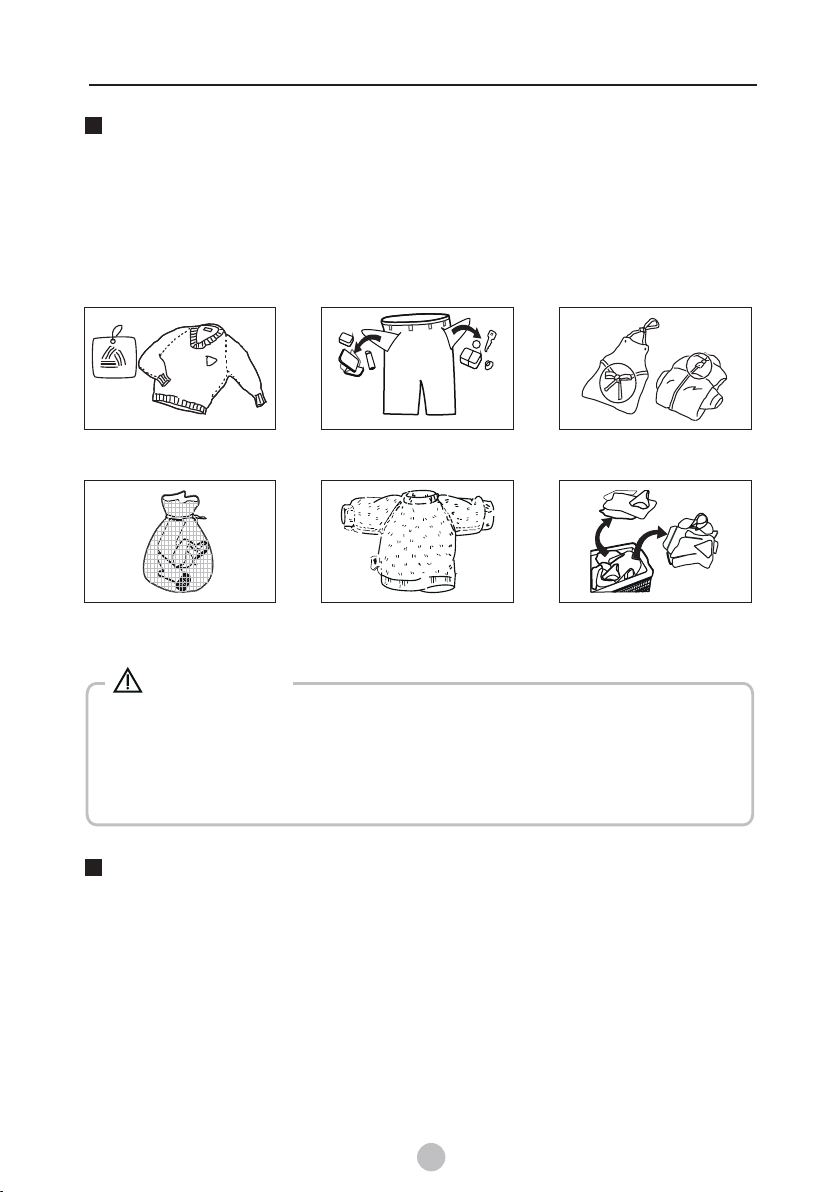

Washing matters needing attention
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
10
12
• As for the agglomerated or ropy detergent or additive, before they are poured
the detergent box, it is suggested to use some water for dilution to prevent
inlet of detergent box from being blocked and overflowing while filling water.
•
into
the
Please choose suitable type of detergent for the various washing temperature to
get the best washing performance with less water and energy consumption.
The usage of detergent and washing powder
OPERATIONS

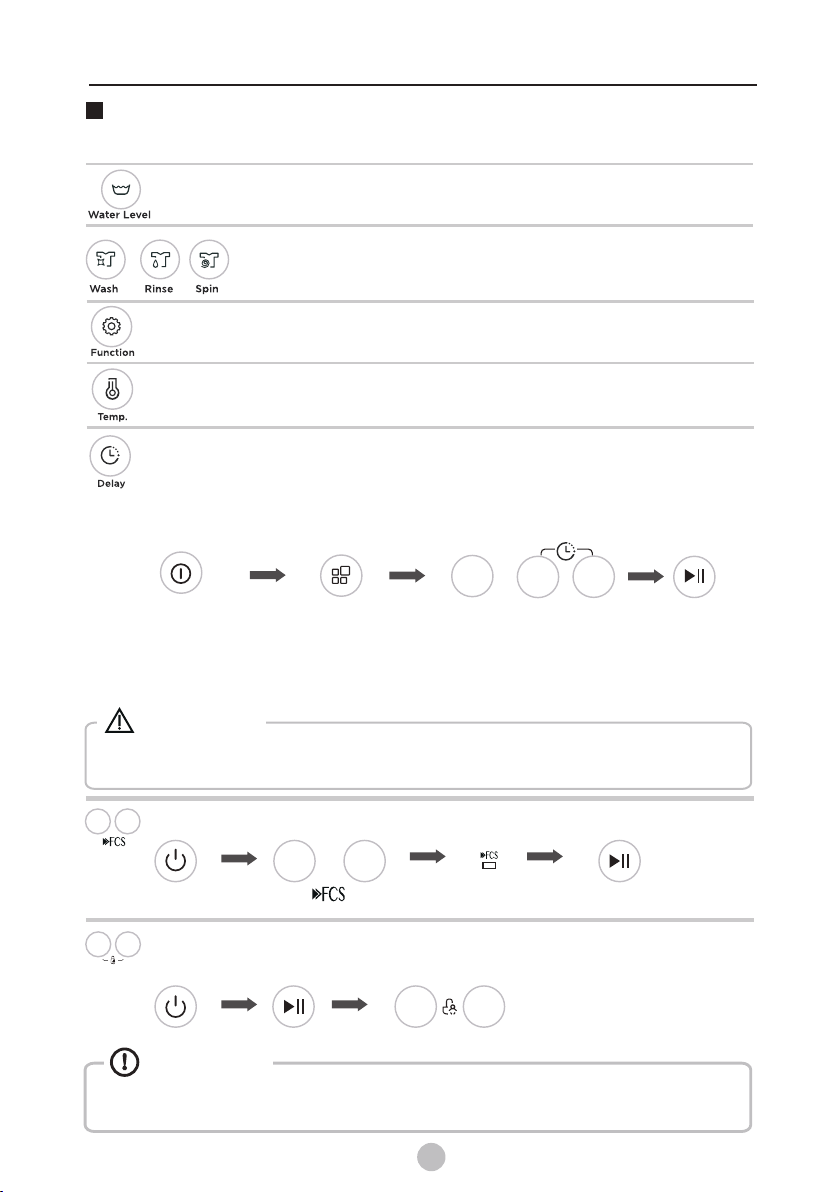

Control panel
10
13
OPERATIONS
On/Off
Product is switched on or off.
Start/Pause
Press the button to start or pause the
washing cycle.
Program
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
Note!
The chart is for reference only, Please refer to real product as standard.•
1
1
4
1
2
3
53 1
2
4 4
Display
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
5
When LED flashing it means the time that delay to start the machine. When LED lighting it means
the program time that remaining
, ,
.

Option
14
OPERATIONS
Child Lock
To avoid mis operation by children.
Start Press Child Lock
Power on
Select water level according to clothing categories, degree of soiling and washing
habits of customers.
Washing time, rinsing times, spinning time and other settings can
be selectable.
FCS
Start
ON/OFF
Delay
1. Select a program
2.Press the Delay button to choose the time
3.Press [Start/Pause] to commence the delay operation
Choose the Program Start
On Setting time
Delay
It should be pressed before
starting the program. If the program already started, should press the [On/Off]
button to reset the program.
Press the [Delay] button until the Delay light is off .
Caution!
• If there is any break in the power supply while the machine is operating, a
special memory stores the selected program and when the power is restarted.
Function
Combination of soaking, washing, rinsing and spinning light is available.
Press the button to regulate the Hot, warm, cold water for wash.
Only for washers having these function.
• Press the two button also to be released the function.
• The “ Child Lock” will lock all buttons except [ On/Off ].
Caution!
Temp.
Water level
Wash /Rinse /Spin
The FCS light
or
Set the delay function
Cancel the delay function

OPERATIONS
Water Level
Program
Personalized setting of washing program
Customers can select washing program according to actual demand, and set rinsing
times water volume and appointment time,
Customers can set single process or combinations of washing,rinsing and spinning
freely according to demand. Detailed operations as follows for different models:
Note: other process combinations are just like above.
Operations of washing process
StartOn
Rinse Delay Function Temp.
Wash Spin+Rinse+
keep pressing function key until
spinning light is on only
Keep pressing function key until
washing, rinsing,spinning lights are on
Press rinse separately,
set parameters
On
On
Start
Start
One Touch Smart Wash
On Start
10
15
Only wash

Washing program table
10
16
XX XXXX XX
XX XXXX XX
XX XXXX XX
XX XXXX XX
OPERATIONS
Program
The washing machine will select the water level automatically
according to the load weight.
1. When there's water in the tub, this function is not available.
2. Before press [Start/Pause] button, if consumer selected the
water level, there will be no fuzzy weighting function.
3. After press [Start/Pause] button, the washing machine will run
the fuzzy weighting function. Consumer can also select the water
level to set the water level as needed.
Normal Standard fabric washing program, suitable to wash ramie cotton fabric.
Wash for once, rinsing for twice, the spin time is a little long.
Quick 15' Suitable to wash light stained clothes and clothes in summer.
Soft The tempo is soft, slow washing and spinning speed, to make the lightest
wear and deformation.
Jeans Suitable to wash stained/wearable clothes.Jeans
Fuzzy
weighting
(Standard)
Heavy
Strong
Program are available according to the laundry type.
Only for washers having these function.
Suitable to wash heavy stained/wearable clothes.
Start up Fast Clean Stystem : Power on, select “Normal",”Soft",
“ ","Strong"," " program, then press FCS button.
then press “Start/Pause” button, FCS function starts up. The
relative figures will be showed after FCS function starts up.
Cancellation of FCS function: when the FCS function was selected,
The function can be cancelled by pressing FCS button or power
off.
Mix Jeans
FCS
The wash time is longer, the stream is stronger, so the washing
effect is better.
Suitable to wash cotton ,linen ,flax. jute clothes .
Mix

• Before your maintenance starts, please unplug the machine and close the tap.
Cleaning the cabinet
Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use the wet cloth to wipe it off immediately.
No sharp items are allowed.
Formic acid and its diluted solvents or equivalent are forbidden, such as
solvents or chemical products,etc.
•
alcohol,
Warning!
Note!
10
17
Cleaning and care
Cleaning the inlet filter
• Inlet filter must be cleaned if there is less water.
Washing the filter in washing machine:
1.Screw off the inlet pipe from the backside
of the machine.
2.Pull out the filter with long nose pliers
and reinstall it back after being washed.
3.Use to clean the filter.
4.Reconnect the inlet pipe.
the brush
Note!
1.There is a built-in lint filter in your washer. It
can help to collect lint during washing cycle.
2.It is suggested to clean the lint filter every
10 cycles.
3.Take it out and clean the filter with water.
Then place it back into the washer.
Lint filter clean
magic filter
normal filter
MAINTENANCE

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap
plates should be inserted aligning to hole plates otherwise water may leak;
• When the appliance is in use and depending on the program selected there can
be hot water in the pump. Never remove the pump cover during a wash cycle, always
wait until the appliance has finished the cycle, and is empty. When replacing the
cover, ensure it is securely re-tightened.
Cleaning drain pump filter
Be careful of the hot water!
Allow detergent solution to cool down.
•
•
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the
washing.
• Clean the filter periodically to ensure the normal operation of washing
machine.
123
5
4
Warning!
18
Caution!
Open the filter by turning
to the counter clockwise.
Remove extraneous matter.
Drain the water out of the
pump, under which use a
container to collect.
Restore it and adjust the convex
place to align at the pump hole.
Clean the filter. Tighten the pump
cover clockwise.
6
Only for washers having these function.
MAINTENANCE

Trouble shooting
• or the display
shows other alarm codes
After the check, activate the appliance. If the problem occurs
again, contact the service.
The start of the appliance does not work or it stops during operation.
First try to find a solution to the problem, If not, contact the service centre.
Note!
Description
Description Reason Solution
Please try again first, call up service
line if there are still troubles.
Others
10
19
No washing
Inspection Items
If the power is off or the fuse is burned out.
If the power supply voltage is too low.
If the water amount reaches to the required water level.(The washer will
not work if the water amount does not reach the required water level)
If it is set to "Delay" washing mode. (It will only start to work until the
reservation time reached)
No water flows in
If the power is off or the fuse is burned out.
If the water supply is cut off or the water pressure is too low.
If the inlet hose is properly connected and the water tap is opened.
If the filtering screen of inlet valve is blocked by dirt.
If the coil of inlet valve is damaged. (The slight electromagnetic sound is
normal phenomenon when the inlet valve is switched on)
If the "Start / Pause" button is pressed after the power switch is pressed.
Abnormal draining
If the water drain hose is placed very high.
If the end of water drain hose is sealed in pond.
If the internal rubber ring of drain valve is blocked by dirt.
Abnormal spin
If the door lid is closed.
If all clothing piled largely at one side of barrel or the clothing is excessively
placed.
If the washer is not placed in stable condition or it is placed in inclination
state. (The ground is not flat).
If the motor belt is loosened.
E1
EXX
E2
Check the water tap is
opened or not.
Check the water level
sensor and drain pump.
Alarm for abnormal
water intaking.
Alarm for water drain
has not finished.
Alarm for lid not closed
before wash and spin.
E3
E4
Manually balance clothes
in the barrel by hands.
Alarm for washing stay
at one side.
Close the lid.
MAINTENANCE
