Midea MT100W70 User manual

Read This Manual
Inside you will find many helpful hints on how to use and maintain
your washing machine properly. Just a little preventative care on
your part can save you a great deal of time and money over thelife
of your washing machine. You'll find many answers to common
problems in the chart of troubleshooting tips. If you review the chart
of troubleshooting tips first, you may not need to call for service.
OWNER’S MANUAL
Twin Tub Washing Machine
MODEL:
MT100W70
MT100W80
MT100W90
MT100W110
MT100W130
MT100W150
P A N T O N E P r o c e s s B l a c k C
Dual Force Pulsator
Easy-to-clean
Metal Lint Fitler
AirFresh
Washing Machine
Twin Tub

1
CONTENTS
SAFETY INSTRUCTIONS
Safety precautions.....................................................
INSTALLATION
Product description...................................................
Unpacking the washing machine............................
Installation area..........................................................
Change the position of the drain hose...................
.
OPERATIONS
Control panel...............................................................
Preparation before washing.....................................
Washing.......................................................................
Rinse.............................................................................
Spin................................................................................
Refer to the following table to select spinning time.........
...
Laundry volume and detergent dosage reference.............
Special functions........................................................
MAINTENANCE
Cleaning and Care ......................................................
Cleaning the cabinet..................................................
Cleaning the inlet filter................................................
Anti-freezing protection...........................................
Trouble shooting..........................................................
Technical specifications............................................
.................
.................
.................
.................
.................
.................
.................
.................
.................
................
..
......................................................
..
.................
.................
................
...............
................
...............
................
Reference of laundry quantity .
2
5
5
6
6
7
7
8
8
8
9
9
9
11
12
12
12
12
13
14

SAFETY INSTRUCTIONS
2
Safety precautions
For your safety, the information in this manual must be followed to minimize the
risk of fireor explosion, electric shock, or to prevent property damage, personal
injury or loss of life.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.Children should be supervised to
ensure that they do not play with the appliance.If the supply cord is damaged, it
must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.The new hose-sets supplied with the appliance
are to be used and that old hose-sets should not be reused.
The openings must not be obstructed by a carpet.
This appliance is intended to be used in household and similar applications such as:
− staff kitchen areas in shops, offices and other working environments;
− farm houses;
− by clients in hotels, motels and other residential type environments;
− bed and breakfast type environments;
− areas for communal use in blocks of flats or in launderettes.
Wash rated
capacity
Maximum
Water Pressure
0.6MPa
Model
Spin rated
capacity
7.0 kg 4.0kg MT100W70
MT100W80 0.6MPa 8.0 kg 5.0kg
9.0 kg 5.0kg MT100W90 0.6MPa
MT100W110 11.0 kg 6.0kg 0.6MPa
MT100W130 13.0 kg 7.0kg 0.6MPa
15.0 kg 9.0kg
0.6MPa
MT100W150

SAFETY INSTRUCTIONS
Warning!
This combination of symbol and signal word indicates a potentially
dangerous situation which may result in death or serious injuries
unless it’s avoided.
Caution!
This combination of symbol and signal word indicates a potentially
dangerous situation which may result in slight or minor injuries
or damage to property and the environment.
Note!
This combination of symbol and signal word indicates a potentially
dangerous situation which may result in slight or minor injuries.
Explanation of the symbols:
3

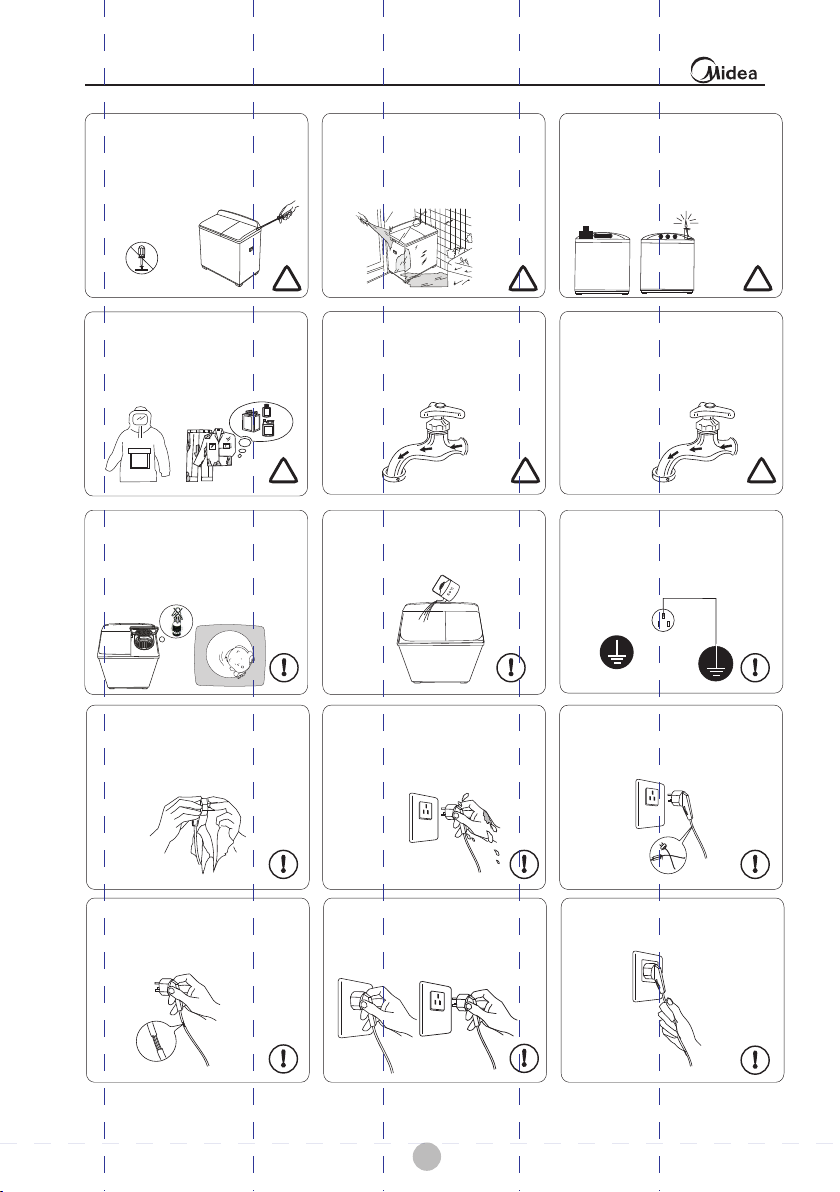

SAFETY INSTRUCTIONS
Do not install the machine in damp or rainy
environment to avoid electric shock, fire,
machine failure, or deformation.
Do not dismantle the machine
by yourself.
Forbid dismantling
Do not place inflammable materials
like burning candle, mosquito incense,
cigaret etc. or heating source like electric
stove, calorifier etc. on the machine.
To avoid electric shock
resulting from electric leakage,
please connect grounding wire
of the plug properly.
Grounding
Wipe off dirty and dust on the
plug often to prevent poor
contact with power supply.
Do not exceed the max. water
level to avoid water overflowing
and machine failure.
+
+
Make sure that the water inlet
hose is connected and the tap
is opened before washing.
Do not let baby climb to the machine
or play near running tub to avoid
accident.
Do not put hands into the tub before
it stopping running.
If use warm water, the water
temperature should not
exceed 50℃.
Do not replace power cord by
yourself.
Do not pull the cord when
unplug the plug.
wat er pr oo f
Insert the plug tightly when use.
Unplug the plug from socket after use.
Do not spray water directly to the machine.
Do not wash clothes that are stained
with kerosene, petrol, alcohol, and
other flammable substance.
Do
not
wash
down-filled
coat, raincoat
or similar clothes.
Do not let baby sit on it or place heavy
things on it.
Do not insert or unplug the plug
with wet hands to avoid electric
shock.
This appliance is for indoor use only.
If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
4
！ ！ ！
！ ！！

INSTALLATION

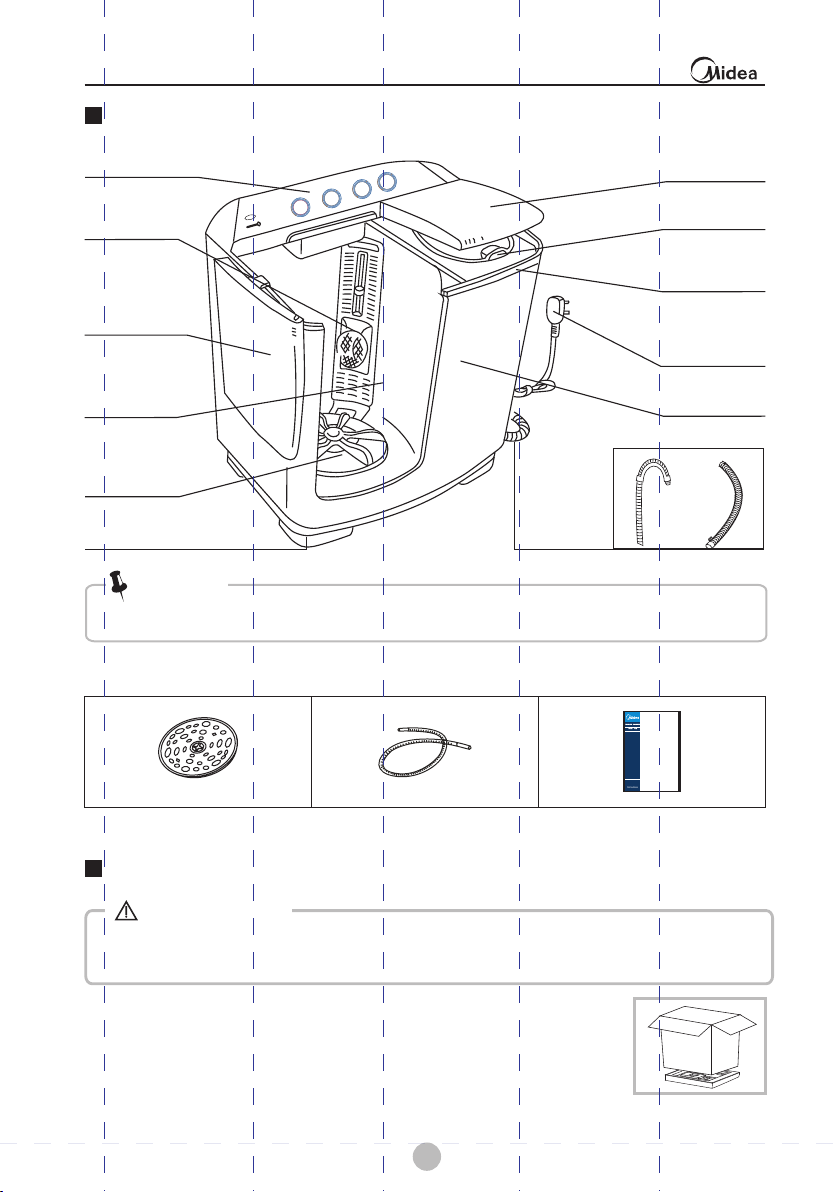

Product description
• The product line chart is for reference only, please refer to real product as standard.
Note!
Drain hose
Accessories
manual
Or
Inner spin cover Water inlet hose
Control panel
Wash cover
Lint filter
Pulsator
Base
Spin cover
Cabinet
Safety cover
Frame
Wash tub
Power plug
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
•
•
Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
There is a risk of suffocation ! Keep all packaging well away from children.
Warning!
5

Installation area
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, level surface
2.Sufficient ventilation
3.Keep far away from the heat resources such as coal or gas.
as
and Avoid direct sunlight
, Room temperature is above 0 C
• wandering!
•
Stability is important to prevent the product from
Make sure that the product should not stand on the power cord.
Warning!
INSTALLATION
w
w
W> 20mm
Change the position of the drain hose
Front
Drain hose
According to the installation site, the drain hose can also be at the wash
side of the machine . The method is as follows:
The ex-factory installation position of the drain hose is located the spin side .
installed
at
1 Unplug the power cord and empty water in the drain hose
completely.
2 Spread a piece of soft cloth on the floor (e.g. a blanket)
and place the washing machine on it gently.
Take the drain hose out from the buckle at the spin side,
put it into the buckle at the wash side.
Hang up the drain hose kit.
.
.
3.
and
4.
Blanket
There are two ways to place the end of drain hose:
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
• If drain hose is too long, do not force it into machine as it will cause abnormal noises.
Trough
Hose
Retainer
Bind
Max.100cm
Warning!
water trough
Under3m
Under 15cm
100cm
Max.
1.For lower drain system
2.For upper drain system
6

7
OPERATIONS
Spin timer
Wash timer Drain selector
Soak
35
15
10
5
Wash in let s ele cto r
Water inlet selector
Washing Spinning
HeavyHeavyHeavyHeavy DrainDrainDrainDrain
NormalNormalNormalNormal
Wash-Drain SelectorWash-Drain SelectorWash-Drain SelectorWash-Drain Selector

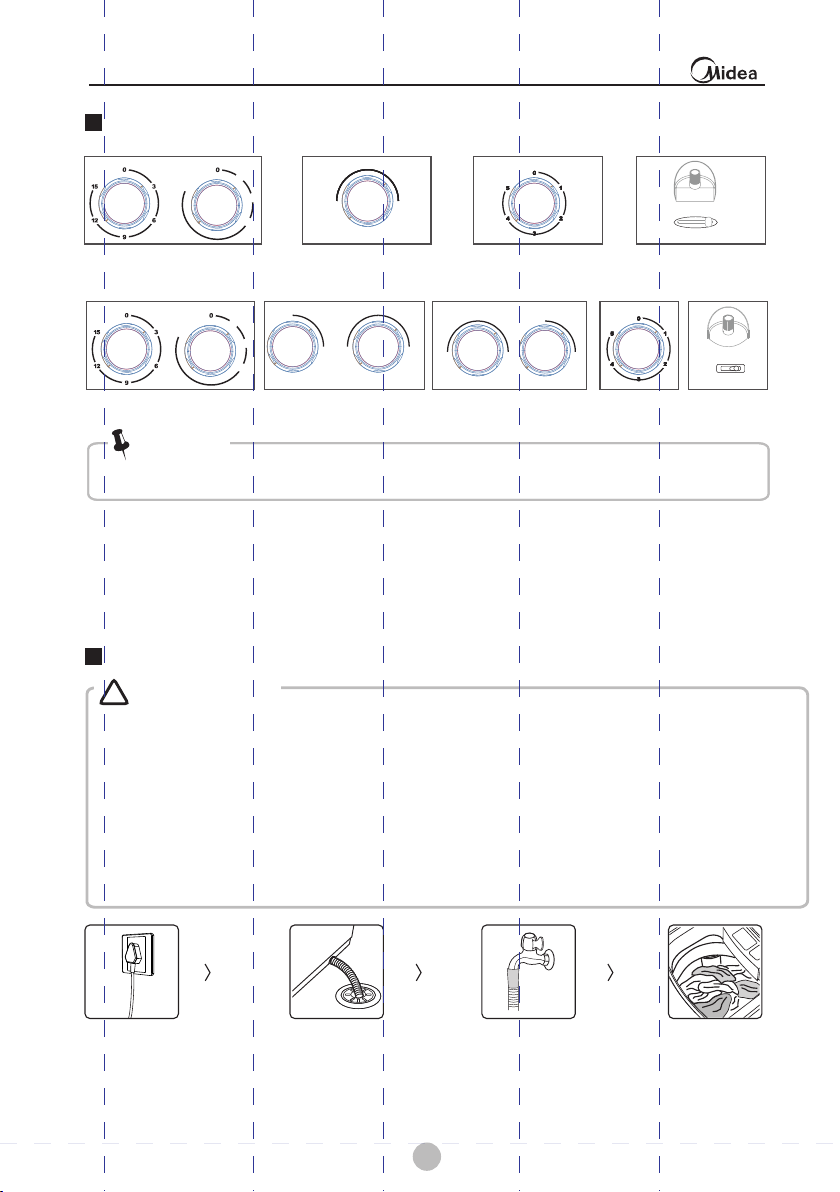

Control panel
Preparation before washing
Wash timer: be used to select required washing time.
Spin timer: be used to select required spinning time.
●
●
● Wash-Drain selector: For washing or rinsing, select “ Normal”or“ Heavy”.For
draining ,select “Drain”
● Water inlet: be used to inject water..
• The product line chart is for reference only, please refer to real product as standard.
Open tap
Plug in load and Close door Put down the drain
• The maximum gradient of the supporting surface for the washing machine should not exceed 2º.
• Do not tear down electrical wires and components in the machine by yourself.
• There are holes on the base for ventilation. These holes should not be blocked by
foreign objects (carpets, etc.).
• Never connect the grounding wire with the live wire, or it may lead to an electric shock.
• Check that there are no objects such as coins, hairpins, mud or sand in the pocket.
• Strings should be knotted in advance to prevent entanglement.
• Clothes can be classified for washing according to the texture, dirty degree and color.
• For small pieces (e.g.,stockings) or fluffy clothes, put them into a nylon net for washing.
Warning!
！
Note!
Spin timer
Wash timer Drain selector
Soak
35
15
10
5
Wash inlet s elec tor
Washing Spinning
HeavyHeavy
NormalNormal
Wash-Drain SelectorWash-Drain Selector
Rinse Drain
Wash
Wash selector
Drain
Wash/Rinse
or
soft
or
Water inlet
selector

OPERATIONS
Drain
Washing
Choose washing
program
Choose washing
time
Choose washing
function
Arrived after the water
level, close the tap
Add detergent
Open the door
Rinse
Wash
Wash-Drain Selector
Heavy
Normal
Drain
Wash-Drain Selector
Heavy Drain
Normal
Choose washing
program
Choose the washing time
To start washing clothes
Arrived after the water
level, Close the tap
Add detergent
Open the door
8
Spin
Spin cover
Safety cover
Shake out the laundry and
put them into the spin tub.
Put the inner spin cover on .
Confirm the inner spin cover is placed
horizontally.
the laundry Close the safety cover
and the spin cover.
Correct Incorrect
spin cover
Spin tub
Open tap
Rinse
Drain
Choose washing
program
Choose washing
time
Choose washing
function
Arrived after the water
level, close the tap
Heavy Drain
Normal
Drain
Heavy Drain
Normal
Open tap
Choose washing
program
Choose the washing time
To start washing clothes
Arrived after the water
level, Close the tap
Wash-Drain Selector Wash-Drain Selector
Drain
Drain
Normal
Heavy Drain
Rinse
Wash
Drain
Rinse
Wash Normal
Heavy Drain
Rinse
Wash

2.0kg Capacity about 4 pcs. about 3 pcs. about 2 pcs. about 1 pcs.
3.0kg Capacity about 6 pcs. about 4 pcs. about 3 pcs. about 1 pcs.
3.6kg Capacity about 7 pcs. about 5 pcs. about 4 pcs. about 2 pcs.
5.0kg Capacity about 10 pcs. about 7 pcs. about 5 pcs. about 3 pcs.
6.0kg Capacity about 12 pcs. about 9 pcs. about 6 pcs. about 3 pcs.
7.0kg Capacity about 14 pcs. about 10 pcs. about 7 pcs. about 4 pcs.
7.5kg Capacity about 15 pcs. about 11 pcs. about 8 pcs. about 4 pcs.
8.5kg Capacity about 17 pcs. about 12 pcs. about 9 pcs. about 5 pcs.
10.0kg Capacity about 20 pcs. about 15 pcs. about 10 pcs. about 6 pcs.
4.6kg Capacity about 9 pcs. about 6 pcs. about 5 pcs. about 2 pcs.
12.0kg Capacity about 24 pcs. about 18 pcs. about 13 pcs. about 7 pcs.
8.0kg Capacity about 16 pcs. about 11 pcs. about 8 pcs. about 4 pcs.
Capacity
Laundry
...... ...... ...... ...... ......
Jacket
about 1600 g
Shirt
about 500 g
Uniform
about 650 g
Jeans
about 900 g
5.5kg Capacity about 11 pcs. about 8 pcs. about 6 pcs. about 3 pcs.
OPERATIONS
Refer to the following table to select spinning time
About 50
seconds
About 1
minute
About 1-2
minutes
About 2-3
minutes
About 3-4
minutes
About 5
minutes
Spin time
Washing
materials Silk Light clothes
(fiber/blended)
Knitwear
(fiber)
Underwear
(cotton)
Slipover
(cotton/linen)
Toweling coverlet
(cotton)
Reference of laundry quantity
9
Laundry volume and detergent dosage reference
Synthetics,silk,
Delicate fabrics
High
Normal 3-5 About 46
Water
level
Fabric type Laundry
capacity(kg)Water flow Wash time
(minutes)
Detergent
amount(g)
Cotton or linen
Heavy soils
0-4.5
4.5-7.0
0-4.5
4.5-7.0
3.0-4.5
0-3.0 Low
Mid
Mid
High
Mid Heavy
Normal
10-35(soak 20)
10
7-10
7
3About 36
About 55
About 46
About 55
About 46
7.0kg Capacity

OPERATIONS
Laundry volume and detergent dosage reference
Synthetics,silk,
Delicate fabrics
High
Normal 3-5 About 51
Water
level
Fabric type Laundry
capacity(kg)Water flow Wash time
(minutes)
Detergent
amount(g)
Cotton or linen
Heavy soils
0-5.0
5.0-8.0
0-5.0
5.0-8.0
3.0-5.0
0-3.0 Low
Mid
Mid
High
Mid Heavy
Normal
10-35(soak 20)
10
7-10
7
3About 39
About 59
About 51
About 59
About 51
8.0kg Capacity
10
Synthetics,silk,
Delicate fabrics
High
Normal 3-5 About 61
Water
level
Fabric type Laundry
capacity(kg)Water flow Wash time
(minutes)
Detergent
amount(g)
Cotton or linen
Heavy soils
Low
Mid
Mid
High
Mid Heavy
Normal
10-35(soak 20)
10
7-10
7
3About 50
About 77
About 61
About 77
About 61
11.0kg Capacity
0-6.5
6.5-11.0
0-6.5
6.5-11.0
5.0-6.5
0-5.0
Synthetics,silk,
Delicate fabrics
High
Normal 3-5 About 65
Water
level
Fabric type Laundry
capacity(kg)Water flow Wash time
(minutes)
Detergent
amount(g)
Cotton or linen
Heavy soils
0-8.0
8.0-13.0
0-8.0
8.0-13.0
4.5-8.0
0-4.5 Low
Mid
Mid
High
Mid Heavy
Normal
10-35(soak 20)
10
7-10
7
3About 42
About 87
About 65
About 87
About 65
13.0kg Capacity
Synthetics,silk,
Delicate fabrics
High
Normal 3-5 About 48
Water
level
Fabric type Laundry
capacity(kg)Water flow Wash time
(minutes)
Detergent
amount(g)
Cotton or linen
Heavy soils
0-5.0
5.0-9.0
0-5.0
5.0-9.0
3.5-5.0
0-3.5 Low
Mid
Mid
High
Mid Heavy
Normal
10-35(soak 20)
10
7-10
7
3About 39
About 51
About 48
About 63
About 48
9.0kg Capacity
Synthetics,silk,
Delicate fabrics
High
Normal 3-5 About 61
Water
level
Fabric type Laundry
capacity(kg)Water flow Wash time
(minutes)
Detergent
amount(g)
Cotton or linen
Heavy soils 0-9.0
9.0-15.0
5.0-9.0
0-5.0 Low
Mid
Mid
High
Mid Heavy
Normal
10-35(soak 20)
10
7-10
7
3About 50
About 90
About 61
About 90
About 61
0-9.0
9.0-15.0
15.0kg Capacity

OPERATIONS
Wash timer
Soak
35
15
10
5
Work time
about 5 about 5 about 5
Total: 35 (mins)
about 1.5 about 1.5 about 2
Static time
For seriously stained clothes, soak wash is useful to achieve better wash result.
15-35 minutes of the wash timer is for soak wash:(illustrate as follows)
35 15
(unit：)mins
Special functions
Function of the buzzer is to alarm finish of washing, and it is helpful to control
wash process. Buzzer will alarm the completion of washing.
Soak function
For machines having the function only
Buzzer function
11

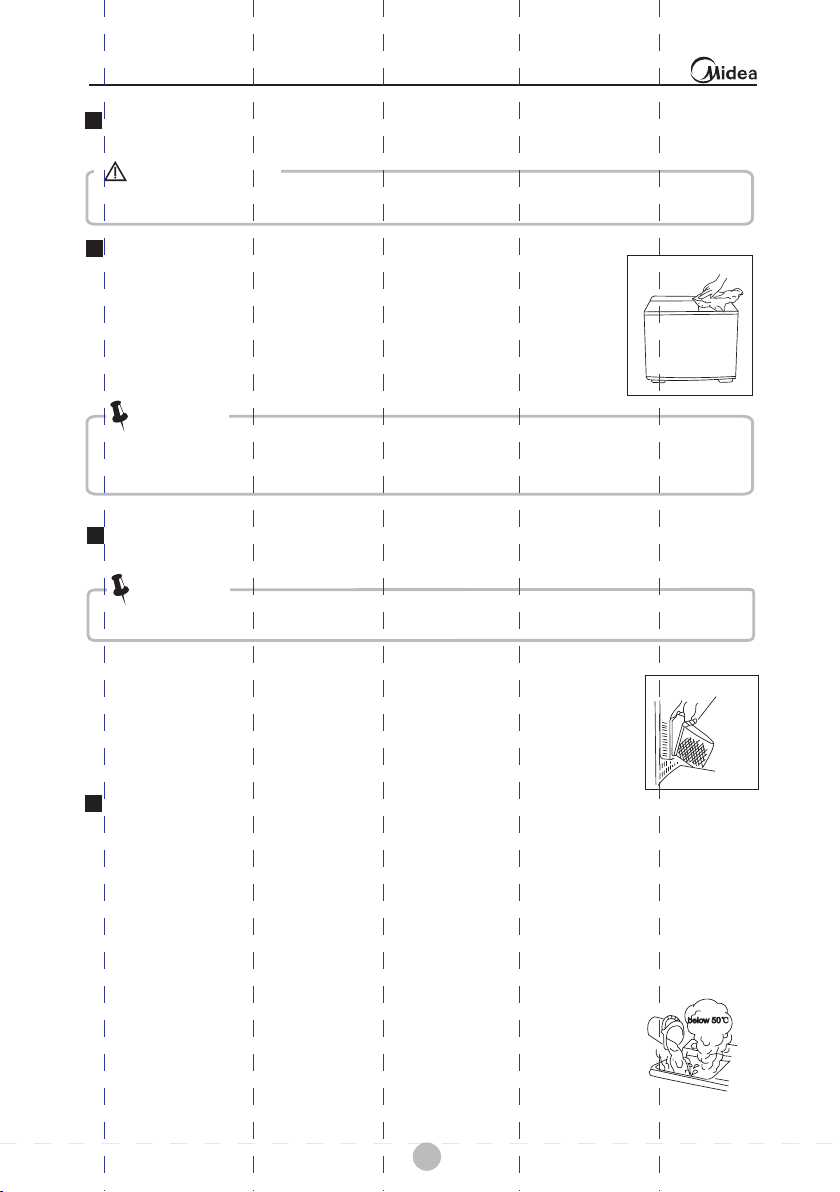

• Before your maintenance starts, please unplug the machine and close the tap.
Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use the wet cloth to wipe it off immediately.
No sharp items are allowed.
Formic acid and its diluted solvents or equivalent are forbidden, such as
solvents or chemical products,etc.
•
alcohol,
Warning!
Note!
Cleaning and care
• Inlet filter must be cleaned if there is less water.
Note!
Lint filter clean
MAINTENANCE
1.
2.
3.
4.
Press the button head, and pull the lint filter out.
Turn the filter net inside out, and rinse it in water.
After inserting the claw, press the button to insert it into place.
A sound of “ba” means proper installation.
Button head
Claw
Anti-freezing protection
To prevent from freezing:
If the water is frozen, please take the following steps:
hose completely.
Lay the drain hose and turn the drain selector knob to the “Drain”position to empty
the water in the tub.
1. water
inlet
2.
Turn off the water tap, remove the water inlet hose and empty water in the
.Keep about 2 liters of warm water below 50℃ in the wash
tub for about 10 minutes and then lay the drain hose and
turn the wash drain selector knob to the “Drain”position
to empty the water .
1
2
.Put the water inlet hose into warm water of about 50℃.
12
Cleaning the inlet filter
Cleaning the cabinet

Cabinet
Frame
Operation when objects are dropped into the
outside of the spin tub
1.Remove all screws on the frame with a screw driver and
loosen the connector of the brake belt .
2.Pull up the frame with both hands and turn it backwards.
3.Take out the clothes dropped into the outside of the spin tub.
4.Fasten the connector of the brake belt ,Press the frame to
reset and tighten screws.
3.Fit the water inlet hose and turn on the water tap to
confirm water filling and draining work properly.
MAINTENANCE
If the following symptoms occur, please disconnect the power plug and
perform the following checks:
Check that the power supply is in good condition.
Check that the power plug is inserted properly.
●
●
● Check that the wash timer knob or the spin timer knob is not
in the "0" position.
Check that the drain hose is not laid too high.
Check that the drain hose is not frozen.
Check that the drain hose is not blocked by foreign matter.
●
●
●
Check that there are no coins or any other foreign objects
dropped into the wash tub.
●
Check that the washing machine is placed on flat, stable floor.
Check that clothes are evenly distributed in the spin tub.
Check that there are no washing materials or foaming debris
dropped into the outside of the spin tub.
●
●
●
The washing
machine does
not work.
The drain hose
does not work.
There is abnormal
noise during washing.
There is abnormal
noise and violent
vibration during
spinning.
Symptom Reason
13
Trouble shooting

Dimension
W*D*H mm)(
Washing Capacity
MAINTENANCE
Model
Wash Spin Wash Spin Water volume
Net
Weight
H:/M:/L:(L)
Rated Power
14
Technical specifications
wash:15 min
Spin:5 min.
Maximum Water Pressure
0.6MPa
Maximum Time
MT100W70
H:55 M:46 L:36
735*430*855
18.5kg 7.0 kg 4.0kg 320W 125W
MT100W80
H:59 M:51 L:39 761*448*885
20.0kg 8.0 kg 5.0kg 340W 135W
Washing /spin level of noise
65/72 dB (A）
MT100W90
H1:70 H:65
M:53 L:41
827*485*895
22.0kg 9.0 kg 5.0kg 370W 135W
MT100W130
H1:92 H:87
M:65 L:42
902*537*974
29.5kg 13.0 kg 7.0kg 450W 180W
MT100W110
H1:77 H:72
M:61 L:50
870*512*950
23.0kg 11.0 kg 6.0kg 400W 135W
MT100W150
H:115 M:78 L:55
995*555*1105
37.5kg 15.0 kg 9.0kg 520W 220W

QUESTIONS OR COMMENTS
This product is RoHS compliant.
Contact Center Web Site
Thailand [phone] http://www.midea.com/th
Myanmar +09260367229 https://www.gbs.com.mm/en/about/vsk/
Cambodia [phone] http://bluemidea.com
Vietnam [phone] http;//vn.midea.com
Philippines [phone] http://www.mideaph.com
Indonesian [phone] http://id.midea.com
Malaysia [phone] https://www.midea.com/my/
Singapore
[phone]
https://www.midea.com/sg/
Country

16238000A *****
V1.0
注:1.说明书版本号从V1.0开始计，每变更一次自动+1
2.虚线框内印刷物料编码,由供应商按照订单需求自行添加,字体:Arial,
大小:8pt,相对位置参照图号右对齐
3.此注意内容及虚线框无需印刷
