Midea MFW-701S User manual

Please do not let children climb the
machine or peer into the rotating
spin barrel to avoid accidents.
It is prohibited to wash the clothes
touching with kerosene, gasoline,
alcohol and other flammable materials.
Please do not damage power flexible
cord and power plug to avoid electric
shocking, short circuit and catching
fire.
Regularly clean the power plug to
remove dust and dirt to avoid contact
failure.
Please pull out plug from the socket
if the machine is not in use.
Please well connect the earth line of
socket to avoid electric shocking by
accidental leakage.
（earthing）
Please insert the power plug tightly.
！
!
!
小天鹅
Prohibited
Prohibited
Prohibited
Smoke and fire prohibited
Earthing
Pull out the plug
Warning
Please do not place on the washer
burning candle, mosquito-repellent
incense, cigarette and other
flammable things, as well
as electric stove, air
heating fan and other
heating
sources.
3
Please use correct power source. Please do not pull out or insert the
plug with wet hands to avoid electric
shocking.
Please ensure that the water inlet pipe
is connected and the tap is opened
before washing
clothes.
Customers are not allowed to change
the power line without permission.
It is strictly prohibited to place and sit
children or lay
weights on the
washer.
Please do not pull the electric cord
when pulling out the
plug.
Please do not wash down jacket,
raincoat, fishing coat and similar
clothes in the
washer.
！
!
!
!
Wet hands are
prohibited
+
+
小天鹅
>50 C
小天鹅
The water temperature shall not exceed
50℃ when washing
with warm water.
Prohibited
Prohibited Prohibited
Prohibited
Caution
4

6

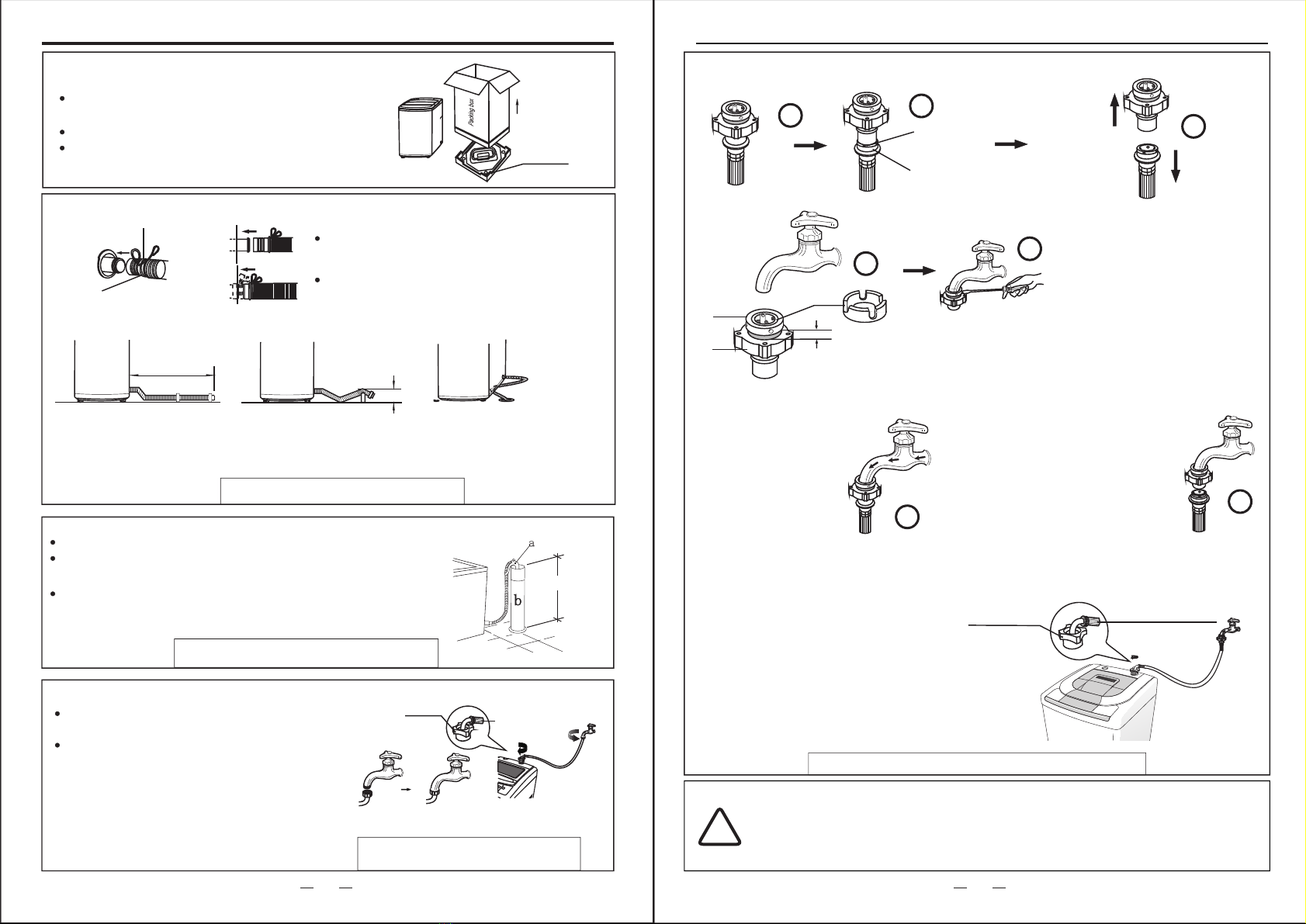

Installation of the washer
555
Remove package
Installation of drain hose
Remove package and take out the bottom board of
the cabinet on the foam cover.
Open the lid of washer's door and take out accessories.
A trial operation or washing on the foamed cushion is
strictly forbidden.
Completely sleeve the drain
hose over the sewer.
Fix and tighten it with a hoop.
( As shown in the figure )
Base foamed cushion
FOR LOWER DRAIN SYSTEM ONLY
Placement of water drain hose
Under3m
Under 15cm
If the water drain hose shall
be extended, its length shall
not exceed 3 meters,
otherwise it will affect the
water discharging time.
The placed height of water
drain hose shall not exceed
15cm.
Do not bend the water
drain hose and place
it under the washer.
The height of drain hose (“a”)should between 86-100 cm.
Diameter of “b”shuld not less than 3 cm, and flow capacity
not less than 40 L/Min.
FOR UPPER DRAIN SYSTEM ONLY
86~100 cm
Placement of upper water drain hose
Installation of water inlet pipe(
Before washing machine starts, user should hang up the
drain pipe 86-100cm height from the floor.
Put the water inlet pipe(which has
metallic filtering bag) screw on to the tap.
Tightly screw another end of water
inlet hose on water inlet valve .
(with rubber seal ring inside).
Note: When tightening the
clamping nut, evenly apply the
force and do not twist the water
inlet valve to avoid breaking of
water inlet valve joint.
Water inlet hose
Clamping nut
Only for model with double
screw thread water inlet pipe
Installation of the washer
Clamping nut Water inlet hose
++
++
++
++
++
++
++
Small ball
Junk ring
Connect: Push down the slide jacket of
speedy connector ( 4 small
balls must be exposed ),
insert it into the connection
socket and then push upward
Release the connection of
water tap with speedy connector
completely.If it is required to feed
water, simply open the water tap.
Separate: Close the water tap, push down the
slide jacket of speedy connector
and pull out the speedy connector.
Unscrew four screws of part
A and sleeve part A horizontally
over the mouth at the end of
water tap (the mouth at the end
of water tap must be flat and
smooth. Flatten it by filing if it is
not flat) and push it upward with
force making the rubber washer
firmly press the plane center of
water tap mouth. Then tighten
the screw sequentially.
After that, tightly screw on part B.
Connect Separate
The connection socket
consists of A and B two
parts. Before installation,
A and B two parts must
be unscrewed about
5mm, or directly
disconnected. If the
bore of water tap is
larger, remove the
plastic junk ring of
part A.
Push down the slide jacket
to expose the small balls and
enable separation of connector
socket from speedy connector.
5mm
++
++
A
B
++
++
++
++
1
6
++
++
7
5
4
3
2
Installation of water inlet pipe
Tightly screw another end of water inlet
hose on water inlet valve . (with rubber
seal ring inside).
Note: When tightening the clamping nut,
evenly apply the force and do not twist
the water inlet valve to avoid breaking of
water inlet valve joint.
Only for model with single screw thread water inlet pipe
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
The instructions for appliances connected to the water mains by detachable hose-
sets shall state that the new hose-sets supplied with the appliance are to be used
and that old hose-sets should not be reused.
！

78
Preparation before washing Parts identification of the washer
Water inlet valve
Door
Control panel
Cabinet
Adjustable foot knob
Top cover
Accessories
Water inlet hose assembly Base cover
Only for lower drain hose
Fixing ring (1) is used
for the fixing in time of
the installation of the
lower drain hose.
Universal connector
Water inlet hose assembly
Self-tapping screw
Only for models including base cover
Only for model with double
screw thread water inlet pipe
Only for model with single
screw thread water inlet pipe
Before washing, please do take out coins,
keys and other hard goods, and zip up clothes
and barrel from damage.
！
NOTICE
Adjust the adjustable foot to make
the washer be placed stable.
1
Adjustable foot (extend when
clockwise rotating and shorten
when counterclockwise rotating)
(Slightly incline the washer first and loosen the
adjustable foot knob. Adjust the adjustable foot so
as to ensure four corners of washer be steadily
contacted with the ground. Then tighten the
adjustable foot knob and lock it. If the ground is
obviously not flat, correction should be made on
the ground surface, otherwise the washer barrel
will incline and knock the cabinet)
Connect with to
power source.
3
4
+
+
Put down the drain
house.
5
Gravity drain
Upper drain
Note:
The water
will overflow
when the
height of
the drain
hose under
860mm.
86~100cm
Put in
clothes
and
suitable
amount of
washing
powder.
6
Install the water
inlet hose.
2
+
+
For one inlet hose
For two inlet hoses
+
+
+
+
tightly to prevent them
Turn on the
water supply.
Please refer to the real material as the attachment

Function

The wash stops
Programme selection
1 Install the washing
machine
3 measure out the
detergent 7 Plug the power supply
6 Turn on the water tap
8 Select the desired
programme
5 Put down (hang up)
the drain pipe
4 Close the
machine door
9 Press the
[start/pause] key
11
When the wash stops, the buzzer will buzz continuously for 6 times and
then the power will be automatically cut off.
Turn off the water tap.
Although the power can be cut off automatically, the power plug must be pull
out for the safety.
1Press the POWER button.
3Press the start/pause key.
2 Select the proper water level and other attached functions.
2 Load the laundry
12
Quick start The main wash
Instruction of the NORMAL program
Instruction to single wash procedure
Steps in details
1.Press the power switch.
2.According to the washing amount choose the proper water level.
3.Press Start/Pause button.
! [Normal] wash program is the easiest, most convenient and most common washing
program. When the user press the power switch and then press [Start/Pause] button,
the normal washing program will start to work.
Normal program, suitable to wash clothes in spring, autumn, and winter.
! User may freely select any single procedure, or any combination of procedures
among Wash, Rinse and Spin according to the actual requirements. It is only
required to turn off any one or two of these three indicators that not needed by the
user. And keep the indicator be on showing the process needed by the user.
! Single wash -- after switching on the power, turn off Rinse and Spin two indicators
by pressing these two keys. The operation for single rinse and single spin is similar.
! Single wash-spin – after switching on the power, turn off Rinse indicator by pressing
that key. The operation for single rinse-spin and single wash-rinse is similar.

WASH
BLANKET

Wash
Blanket
MFW-701S
2 13

No
washing
Abnormal
draining
Abnormal
spin
Identify usual trouble of washer
List of faults and inspection
Faults Inspection Items
No water
flows in
! If the power is off or the fuse is burned out.
! If the water supply is cut off or the water pressure is too low.
! If the inlet hose is properly connected and the water tap is opened.
! If the filtering screen of inlet valve is blocked by dirt.
! If the coil of inlet valve is damaged. (The slight electromagnetic
sound is normal phenomenon when the inlet valve is switched on)
! If the "Start / Pause" button is pressed after the power
switch is pressed.
! If the door lid is closed.
! If all clothing piled largely at one side of barrel or the clothing
is excessively placed.
! If the washer is not placed in stable condition or it is placed in
inclination state. (The ground is not flat).
! If the motor belt is loosened.
Note: During the de spin process, if washing are piled at one side of the spin barrel,
it will cause unbalance of spin barrel resulting in striking. At this moment, the
computer inside the washer will feel this unbalance phenomenon and will automatically
correct it ( fill in water Washing ). However, if unbalance situation is not removed after
continuous three corrections, which means the computer auto-correction can not
resolve the problem. Then the user has to manually and evenly place the clothing
inside the barrel to solve the problem.
When the washer is in trouble, please contact local service office or the sales service
department of our company and the customer should not dismantle the machine without
permission.
If the washer can not work normally, or appear abnormity or alarms, please check and
correct asfollows.
! If the water drain hose is placed very high.
! If the end of water drain hose is sealed in pond.
! If the internal rubber ring of drain valve is blocked by dirt.
! If the power is off or the fuse is burned out.
! If the power supply voltage is too low.
! If the water amount reaches to the required water level.
(The washer will not work if the water amount does not reach the
required water level)
! If it is set to "Delay" washing mode. (It will only start to work
until the reservation time reached)
17
Malfunction display and solutions
When the washer is in trouble, please contact local service office or the sales service
department of our company and the customer should not dismantle the machine
without permission.
If the washer can not work normally, and the abnormal indication is shown in the nixie
tube window or the machine alarms, please check and correct as follows.
18
Technical specifications
The lights of
Normal,Jeans
Soak and
44L,48L flare.
The lights of
Quick,Delicate,
Wash and
34L,39L flare.
The lights of
Bulky,Mini
wash,Rinse and
24L,29L flare.
The lights of Tub
clean,Air dry
,Spin and
15L,19L flare.
240V / 50Hz
Rated power supply
340W
Input power of motor
7.0kg
Rated washing capacity
7.0kg
Rated spin capacity
515x525x900
Overall dimensions
Application water pressure
29kg
Weight of whole machine
0.1MPa~0.6MPa
Open the lid when the
washer is spinning.
6
6
