OWNER’S MANUAL
Washing Machine
MODEL:
MA100W75
MA100W75/WK/E
MA100W85
MA100W85/WK/E
MA100W95
MA100W95/WK/E
Washing Machine
FULLY AUTOMATIC

1
CONTENTS
SAFETY INSTRUCTIONS
Safety instructions .................................. ............ ... ..... . .
INSTALLATION
Product description .............................................. .....
Installation area ......................................... ........ ........... ..
Unpacking the washing machine ...................
Levelling the washing machine ..........................
Selection of tap ................................................... . .......... .
Connection of inlet hose, tap and washing machine...
Preparation before washing...................................
Washing .......................................................... . .......... ............
After washing................................................. ....................
Washing matters needing attention .............
The usage of detergent and washing powder.............
Control panel ................................................... ..................
Option...................................................... ...... ........................ ...
Personalized setting of washing program.........
Operations of washing process..........................
Washing program table .............................. ..............
MAINTENANCE
Cleaning and care ....................................... ....... .......... .
Cleaning the cabinet............................................ ........
Cleaning drain pump filter .....................................
Troubleshooting.......................................... ........... ....... ..
Technical information ...................................... ...........
Energy efficiency test program.........................
2
8
9
9
10
1 1
1 1
12
12
12
13
13
14
15
16
16
17
18
18
19
20
2 1
22
OPERATIONS

SAFETY INSTRUCTIONS
For your safety, the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
2
SAFETY INSTRUCTIONS
• This appliance is not intended for use by persons(including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge unless they have
been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•
•
•
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household and similar
applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- areas for communal use in blocks of flats or in launderettes.
Children should be supervised to ensure that they do not
play with the appliance.
The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.

SAFETY INSTRUCTIONS
3
Model Washing Capacity
Standard Water Pressure
Warning!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Explanation of the symbols:
Caution!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
0.03MPa~0.8MPa
0.03MPa~0.8MPa
8.5kg
7.5kg
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
MA100W75
MA100W75/WK/E
MA100W85
MA100W85/WK/E
0.03MPa~0.8MPa
9.5kg
MA100W95
MA100W95/WK/E

4
SAFETY INSTRUCTIONS
The electric shock!
Warning!
•
•
• Hands shall not be inserted into running spin-dry tub .
• If the spin-dry tub does not stop within 15 seconds after
opening the cover , please stop using the machine and
have it repaired.
• Before any maintenance the device, unplug the appliance
from the mains.
• Always unplug the machine and turn off the water supply
after use. The max. inlet water pressure, in pascals. The
min. inlet water pressure, in pascals.
• To ensure your safety, power plug must be inserted into
an earthed three-pole socket. Check carefully and make sure
that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must be
connected by a qualified technician in accordance with the
manufacturer's instructions and local safety regulations.
Do not put washing machine at humid place.
This appliance is for indoor use only.

• EN countries: the appliance can be used by children aged
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
• Animals and children may climb into the machine. Check
the machine before every operation.
• Young children should be supervised that they do not play
with the appliance.
• Machine may be very hot during the operation. Keep kids
and pets far away from the machine during the operation
• Plug must be accessible after installation.
very wet rooms as well as in the rooms with explosive or
caustic gas.
•
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product
inlet valves should be correctly connected to the hot water
and cold water supply.
with double
Remove all packages before using the appliance. Otherwise,
serious damage may result.
Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
Before hand thoroughly rinse items of washing by hand.
5
SAFETY INSTRUCTIONS
Risk to children!

• This washing machine is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product with
double inlet valves should be correctly connected to the
hot water and cold water supply.
• Plug must be accessible after installation.
Risk of damaging appliance!
6
SAFETY INSTRUCTIONS
Caution
Installing the product!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by
a specialized person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.

Operating the appliance!
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin, brooch, nail, screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door.Please do not open
the door if there is any water visible.
• Be careful of burning when the product drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.
This marking indicates that this product should not be disposed
with other household wastes throughout the EU.To prevent
possible harm to the environment or human health from
uncontrolled waste disposal,recycle it responsibly to promote
the sustainable reuse of material resources.To return your used
device,please use the collection systems or contact the retailer
where the product was purchased. They return and can take this
product for environmental safe recycling.
Packaging/Old appliance
7
SAFETY INSTRUCTIONS
• Please do not close the door with excessive forces.
• It is forbidden to wash carpets.

INSTALLATION
Product description
• The product line chart is for reference only, please refer to real product as
standard.
Note!
8
Accessories
spring clamper drain loose ass Inlet hose ass manual screw cabinet baseboard
• Note: if the drain hose is already installed on the machine, then there is no
spring clamper and drain hose in the accessories.
Note!
Or
Frame
Top lid
Drain hose
Handle
Power case and plug
Control panel
Cabinet
Adjustable foot knob
Water inlet valve
Or

Installation area
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0 C
5.Keep far away from the heat resources such as coal or gas.
as

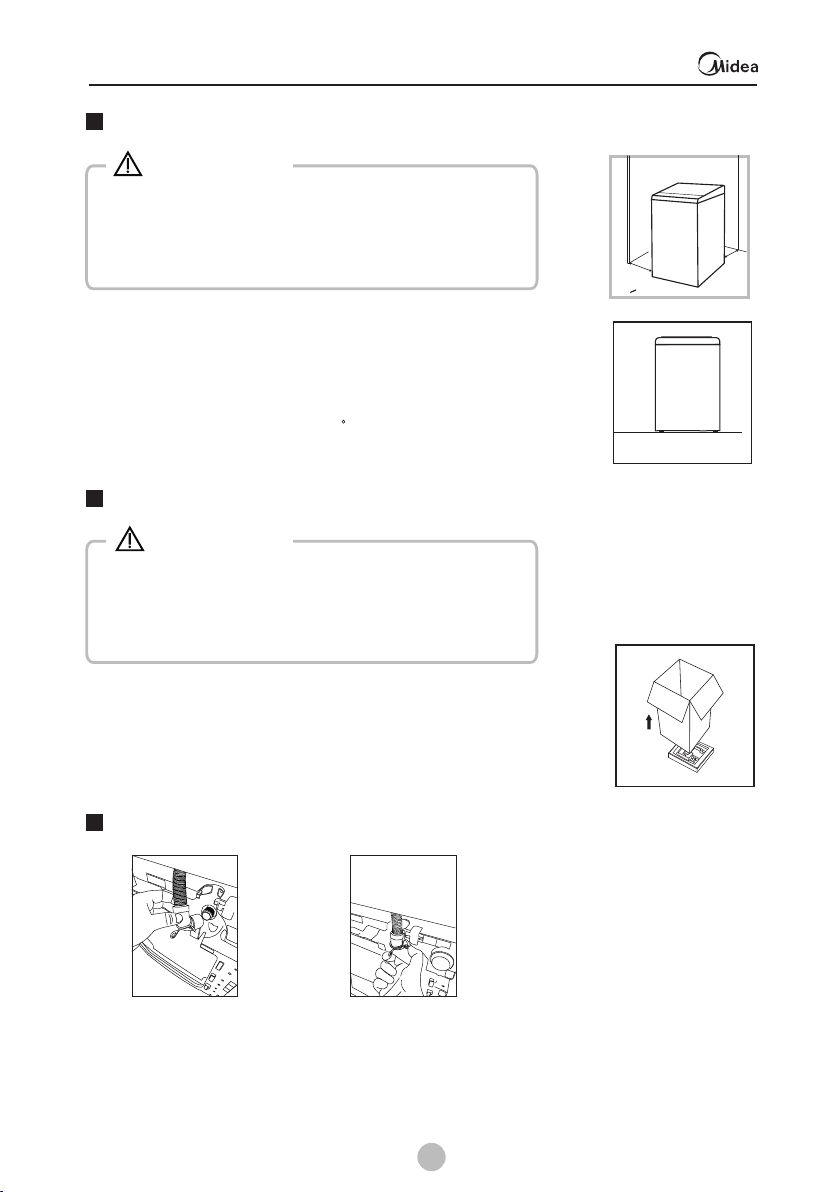

Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and
drain hose.
4. Remove the inlet hose from the drum.
•
•
Stability is important to prevent the product from
wandering!
Make sure that the product should not stand on
the power cord.
Warning!
•
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
9
INSTALLATION
w
w
W> 20mm
The installation of drain hose
Clamping spring Drain inserted
into the drain
hose

9
10

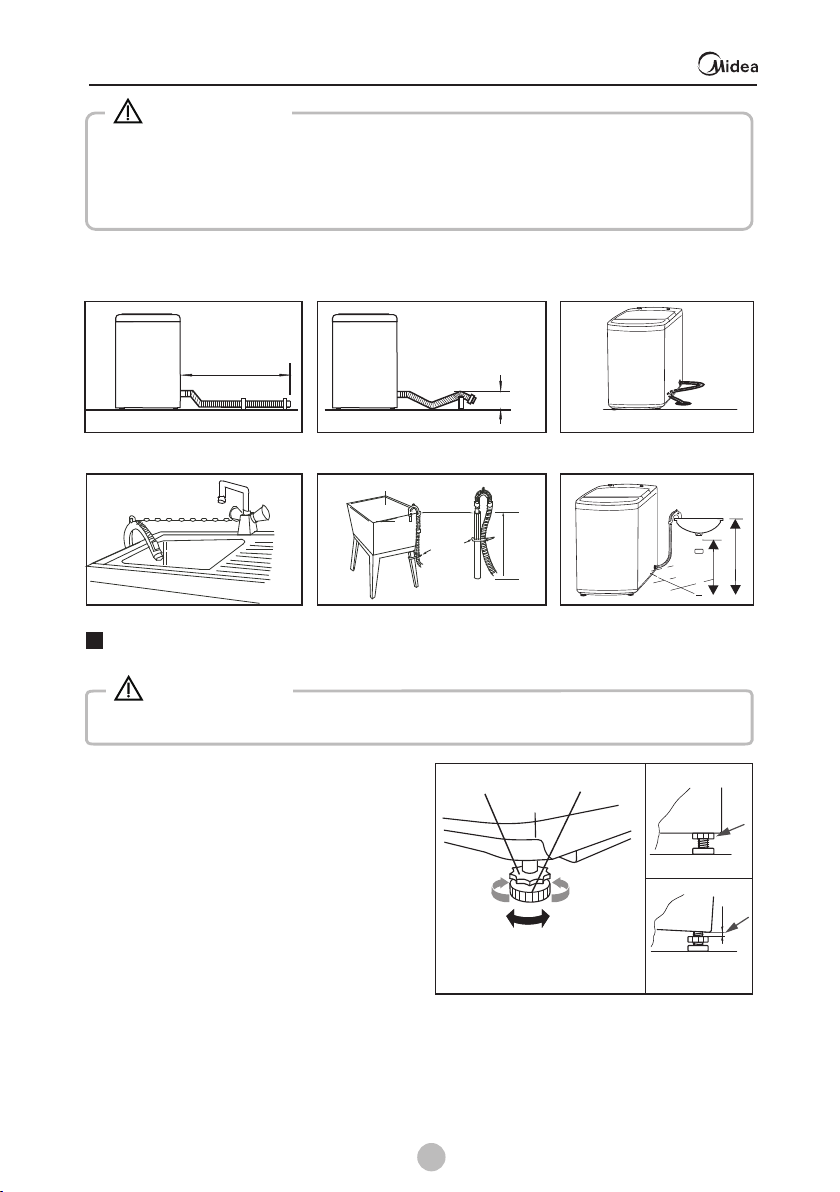

There are two ways to place the end of drain hose:
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
Trough
Hose
Retainer
Bind
Min.86cm
Max.100cm
Warning!
water
trough
Under3m
Under 15cm
Min.86cm
100cm
Max.
1.For lower drain system
2.For upper drain system
1.Check if the legs are closely attached
the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Check alignment of the product with a
spirit level and if required, correct.
3.Loosen the lock nut and turn the feet
until it closely contacts with
to
the floor.
4.After being locked properly, press four
corners again to make sure that they has
been adjusted properly.
• The lock nuts on all four feet must be screwed tightly against the housing.
Levelling the washing machine
Warning!
Lock nut foot
Raise
Lower
lock loosen
right
wrong
INSTALLATION

10
11
Wall
1:Connection between ordinary tap and inlet hose.
2:connection between screw tap and inlet hose.
• To prevent leakage or water damage, follow the instructions in this chapter
Do not kink, crush, modify or sever .
!
• water inlet hose
Warning!
Selection of tap
Please select
tap.
appropriate
Connection of inlet hose, tap and washing machine
clamp nut
tap
1.Loosen clamp nut to
show 5mm thread
2.Loosen four bolts 3.Set connecting base
on tap and tighten
bolts evenly
4.Tighten clamp nut
inlet valve
inlet hose
slide bushing
5.Press slide bushing,
insert inlet hose into
connecting base
6.connection finished 7.After connection and installation,
check if there is water leakage
tap with threads and inlet hose
special tap for washing machine
Screw tap
Special washing
machine tap
Ordinary faucet
INSTALLATION

Caution!
Before washing, please make sure it’s installed properly.
Before washing it at first time, the washing machine shall be operated in one
of the whole procedures without clothes in as follows.
•
•
round
Open tap
Plug in Add detergent
After washing
1 2 3 4
Washing
Power On
Start up
1 2
• , If default is selected, step 2 3 can be skipped.
Note!
10
12
Load and Close door
Buzzer will beep after washing finished and the power supply will be cut off automatically
Then unload the laundry.
.
3 4
Select Programme Select Level

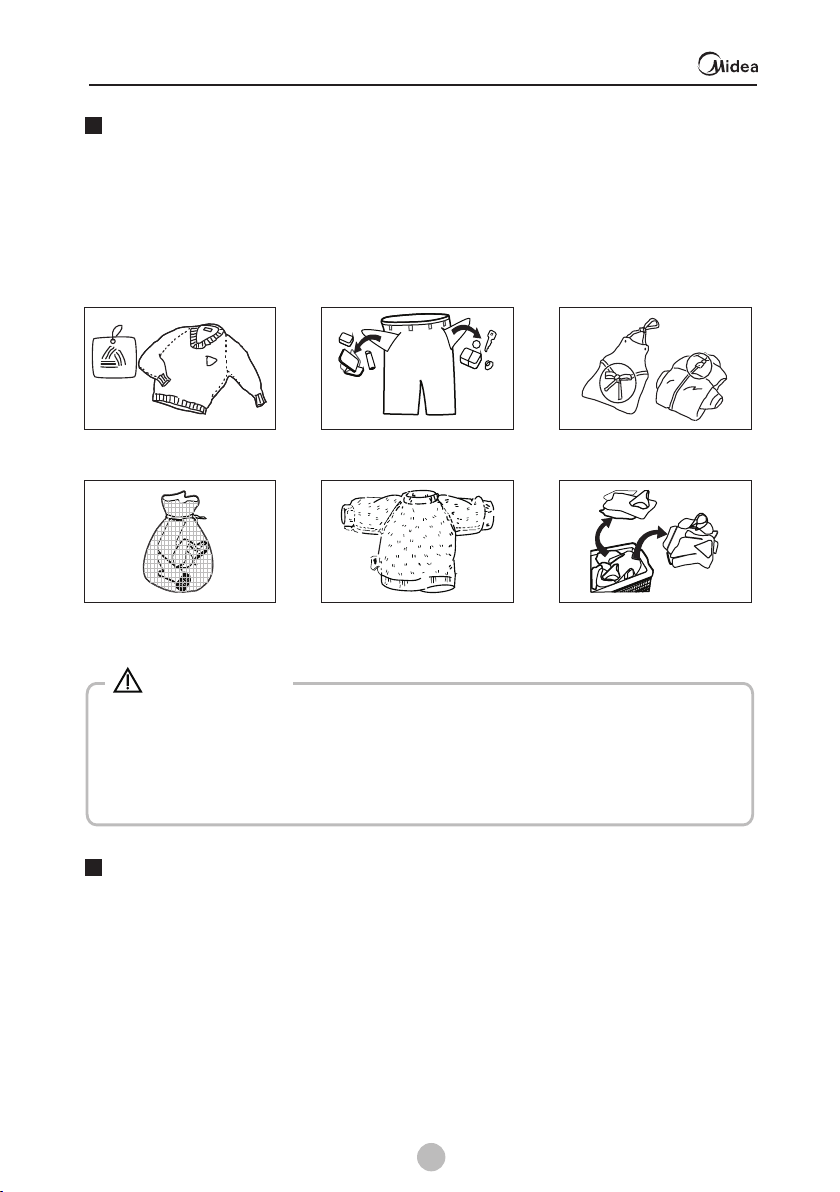

Preparation before washing
OPERATIONS

Knot the long strips,zip or
button
• When washing a single clothes, it may easily cause great eccentricity and give
alarm due to great unbalance. Therefore it is suggested to add one or two
more clothes to be washed together so that draining can be done smoothly.
• Don’t washing the clothes touching with kerosene, gasoline, alcohol and
other flammable materials.
• The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet
valve and draining system may be damaged. If the machine is placed under condition
of 0℃or less, then it should be transferred to normal ambient temperature to ensure
the water supply hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label
Washing matters needing attention
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
10
13
• As for the agglomerated or ropy detergent or additive, before they are
poured the detergent box, it is suggested to use some water for
dilution to prevent inlet of detergent box from being blocked and
overflowing while filling water.
•
into
the
Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumption.
The usage of detergent and washing powder
OPERATIONS

Control panel
10
14
OPERATIONS
On/Off
Product is switched on or off.
Start/Pause
Press the button to start or pause the
washing cycle.
Program
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
Note!
The chart is for reference only, Please refer to real product as standard.•
1
1
4
1
2
3
51
2
4
Display
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
5
When LED flashing it means the time that delay to start the machine. When LED lighting it means
the program time that remaining
, ,
.
33
End

Option
15
OPERATIONS
select water level according to clothing categories, degree of soiling and washing
habits of customers
Delay
1. Select a program
2.Press the Delay button to choose the time
3.Press [Start/Pause] to commence the delay operation
Choose the Program Start
On Setting time
It should be pressed before
starting the program. If the program already started, should press the [On/Off]
button to reset the program.
Press the [Delay] button until the Delay light is off .
Caution!
•
.
If there is any break in the power supply while the machine is operating, a
special memory stores the selected program and when the power is restarted
Only for washers having these function.
Water level
Delay

OPERATIONS
Water Level
Program
Personalized setting of washing program
Customers can select washing program according to actual demand, and set water
volume and appointment time
Note: other process combinations are just like above.
Operations of washing process
StartOn
Delay
Spin only
keep pressing key untilProgram
disply
On Start
One Touch Smart Wash
On Start
16
Program
Note!

Washing program table
10
17
OPERATIONS
Program
Normal
Standard fabric washing program, suitable to wash ramie cotton fabric.
Wash for once, rinsing for twice, the spin time is a little long.
Quick
Suitable to wash light stained clothes and clothes in summer.
Soft:
the tempo is soft, slow washing and spinning speed, to make the lightest
wear and deformation.
Program are available according to the laundry type.
Only for washers having these function
Hygiene
Soak
Spin only
This program is able to effectively remove mites in clothes.
Select this program if .clothes need to be soaked before washing
Select this program .to Spin and drain only

• Before your maintenance starts, please unplug the machine and close the tap.
Cleaning the cabinet
Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use the wet cloth to wipe it off immediately.
No sharp items are allowed.
Formic acid and its diluted solvents or equivalent are forbidden, such as
solvents or chemical products,etc.
•
alcohol,
Warning!
Note!
10
18
Cleaning and care
Cleaning the inlet filter
• Inlet filter must be cleaned if there is less water.
Washing the filter in washing machine:
1.Screw off the inlet pipe from the backside
of the machine.
2.Pull out the filter with long nose pliers
and reinstall it back after being washed.
3.Use to clean the filter.
4.Reconnect the inlet pipe.
the brush
Note!
1.There is a built-in lint filter in your washer. It
can help to collect lint during washing cycle.
2.It is suggested to clean the lint filter every
10 cycles.
3.Take it out and clean the filter with water.
Then place it back into the washer.
Lint filter clean
magic filter
normal filter
MAINTENANCE

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap
plates should be inserted aligning to hole plates otherwise water may leak;
• When the appliance is in use and depending on the program selected there can
be hot water in the pump. Never remove the pump cover during a wash cycle, always
wait until the appliance has finished the cycle, and is empty. When replacing the
cover, ensure it is securely re-tightened.

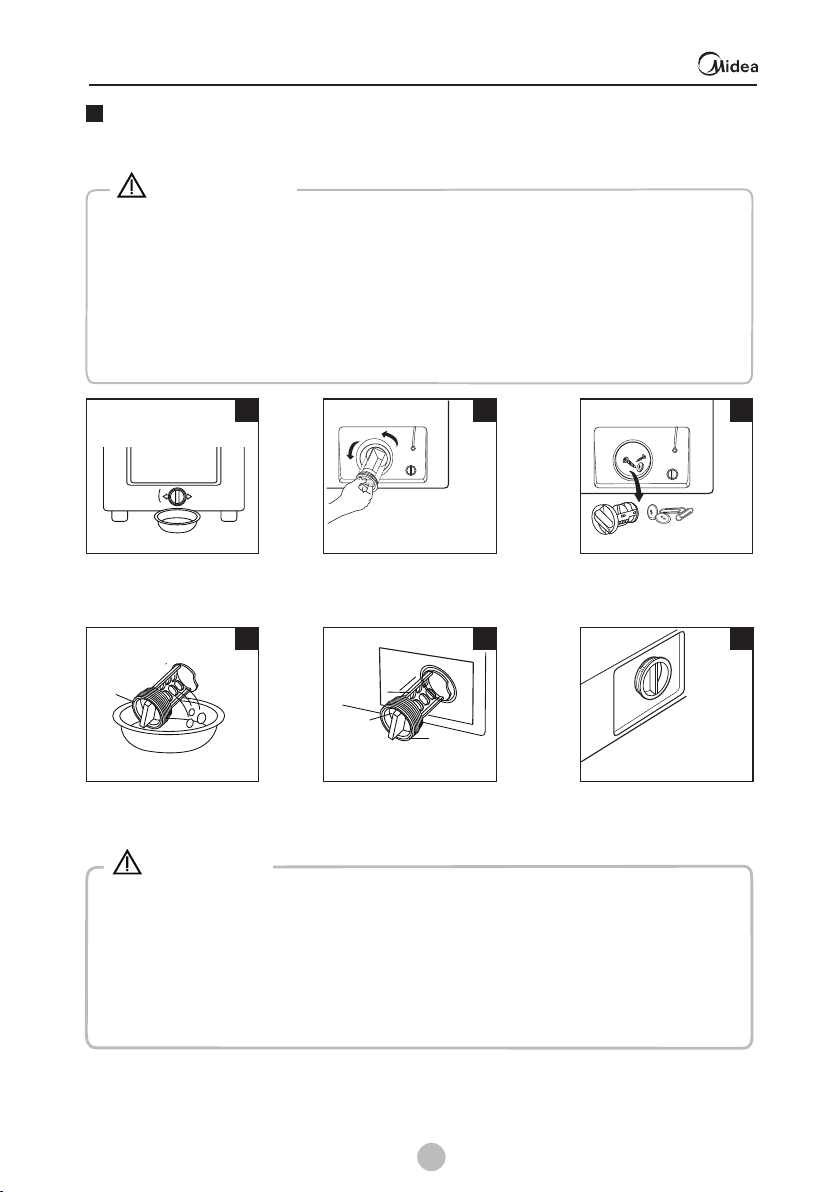

Cleaning drain pump filter
Be careful of the hot water!
Allow detergent solution to cool down.
•
•
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the
washing.
• Clean the filter periodically to ensure the normal operation of washing
machine.
123
5
4
Warning!
10
19
Caution!
Open the filter by turning
to the counter clockwise
Remove extraneous matter
Drain the water out of the
pump, under which use a
container to collect.
Restore it and adjust the convex
place to align at the pump hole.
Clean the filter. Tighten the pump
cover clockwise.
6
Only for washers having these function.
MAINTENANCE
