For your safety, the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
2
SAFETY INSTRUCTIONS
• This appliance is not intended for use by persons(including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge unless they have
been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•
•
•
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household and similar
applications such as:
− staff kitchen areas in shops, offices and other working environments;
− farm houses;
− by clients in hotels, motels and other residential type environments;
− bed and breakfast type environments;
− areas for communal use in blocks of flats or in launderettes.
Children should be supervised to ensure that they do not
play with the appliance.
The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
SAFETY INSTRUCTIONS
Model Washing Capacity Standard Water Pressure
0.03MPa~0.8MPa 360111
10.0kg

SAFETY INSTRUCTIONS
！Warning!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Explanation of the symbols:
3
Caution!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.

4
SAFETY INSTRUCTIONS
The electric shock!
•
•
• Hands shall not be inserted into running spin-dry tub .
• If the spin-dry tub does not stop within 15 seconds after
opening the cover , please stop using the machine and
have it repaired.
• Before any maintenance the device, unplug the appliance
from the mains.
• Always unplug the machine and turn off the water supply
after The max. inlet water pressure, in pascals. The use.
min. inlet water pressure, in pascals.
• To ensure your safety, power plug must be inserted into
an earthed three-pole socket. Check carefully and make sure
that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must be
connected by a qualified technician in accordance with the
manufacturer's instructions and local safety regulations.
Do not put washing machine at humid place.
This appliance is for indoor use only.
Warning!
！

• EN countries: the appliance can be used by children aged
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
• Animals and children may climb into the machine. Check
the machine before every operation.
• Young children should be supervised that they do not play
with the appliance.
• Machine may be very hot during the operation. Keep kids
and pets far away from the machine during the operation
• Plug must be accessible after installation.
very wet rooms as well as in the rooms with explosive or
caustic gas.
•
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product
inlet valves should be correctly connected to the hot water
and cold water supply.
with double
Remove all packages before using the appliance. Otherwise,
serious damage may result.
Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
Before hand thoroughly rinse items of washing by hand.
5
SAFETY INSTRUCTIONS
Risk to children !

• This washing machine is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product with
double inlet valves should be correctly connected to the
hot water and cold water supply.
• Plug must be accessible after installation.
Risk of damaging appliance!
6
SAFETY INSTRUCTIONS
Caution
Installing the product!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by
a specialized person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.

Operating the appliance!
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin, brooch, nail, screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door.Please do not open
the door if there is any water visible.
• Be careful of burning when the product drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.
This marking indicates that this product should not be disposed
with other household wastes throughout the EU To prevent .
possible harm to the environment or human health from
uncontrolled waste disposal,recycle it responsibly to promote
.the sustainable reuse of material resources To return your used
device,please use the collection systems or contact the retailer
where the product was purchased. They return and can take this
product for environmental safe recycling.
Packaging Old appliance/
7
SAFETY INSTRUCTIONS
• Please do not close the door with excessive forces.
• It is forbidden to wash carpets.

INSTALLATION
Product description
8
•
spring clamper and drain hose in the accessories.
Note: if the drain hose is already installed on the machine, then there is no
Note!
• The product line chart is for reference only, please refer to real product as
standard.
Note!
Accessories
Drain
(optional)
hose
or
Top lid
Water inlet valve
Drain hose
Power Cord
Handle
Cabinet
Cabinet handle
Adjustable foot knob
Wash·Spin barrel
Filter Holder
Control panel
Impeller
Powder and liquid
detergent box
Upper drain hose
(optional)
Supply hose hot
water (optional)
Supply hose
cold water
Cabinet baseboard
(optional)
Owner’s manual
knob

Installation area
Before installing the machine, the location characterized
as follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0 C
5.Keep far away from the heat resources such as coal or gas.

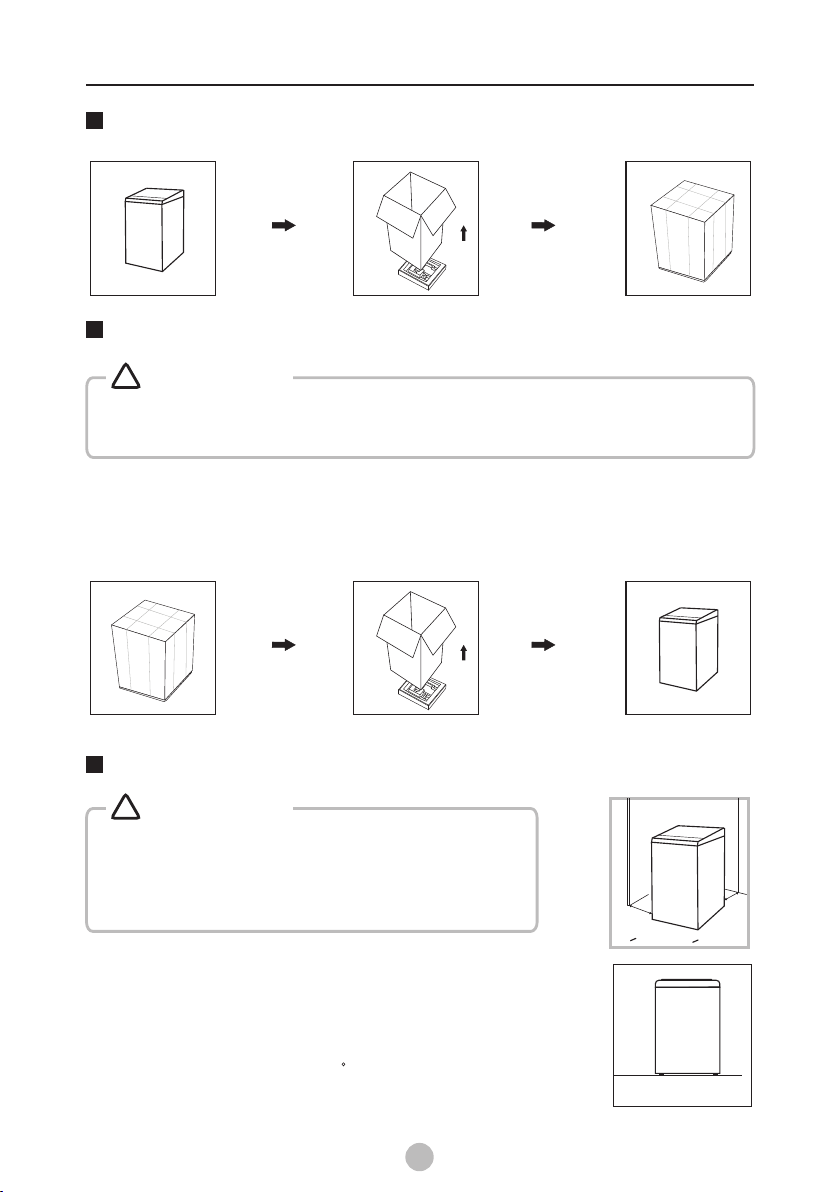

Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
• Stability is important to prevent the product from
wandering!
• Make sure that the product should not stand on
the power cord.
Warning!
！
• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation ! Keep all packaging well away from children.
Warning!
！
9
INSTALLATION
L
w
W 20mm>L 45mm>
Packing the washing machine

9
10
There are two ways to place the end of drain hose:
•
• Position drain hose properly ,otherwise damage might result of water leakage.
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
Do not kink or protract the drain hose.
Trough
Hose
Retainer
Bind
Min.86cm
Max.100cm
Warning!
！
water trough
Under3m
Under 15cm
Min 86cm
.
100cm
Max.
1.For lower drain system
2.For upper drain system
1.Check if the legs are closely attached to
the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Check alignment of the product with a
spirit level and if required, correct.
3.Loosen the lock nut and turn the feet
until it closely contacts with the floor.
4.After being locked properly, press four
corners again to make sure that they has
been adjusted properly.
• The lock nuts on all four feet must be screwed tightly against the housing.
Levelling the washing machine
Warning!
！
Lock nut foot
Raise Lower
lockloosen
right
wrong
INSTALLATION
Installation of drain hose
1.Completely sleeve the drain hose over the sewer.
2.Fix and tighten it with a hoop.( As shown in the figure )
• Note: The drain hose of the machine with upper drain system has already been
assembled before leaving the factory. This picture is suitable for lower drain system.
Note!

10
11
Wall
1:Connection between ordinary tap and inlet hose.
2:connection between screw tap and inlet hose.
• To prevent leakage or water damage, follow the instructions in this chapter
• Do not kink, crush, modify or sever water inlet hose.
!
Warning!
！
Selection of Tap
Please select
tap.
appropriate
Connection of inlet hose, tap and washing machine
Clamp nut
Tap
1.Loosen clamp nut to
show 5mm thread 2.Loosen four bolts 3.Set connecting base
on tap and tighten
bolts evenly
4.Tighten clamp nut
Inlet valve
Inlet hose
Slide bushing
5.Press slide bushing,
insert inlet hose into
connecting base
6.connection finished 7.After connection and installation,
check if there is water leakage
Tap with threads and inlet hose Special tap for washing machine
Screw tap Special washing
machine tap
Ordinary faucet
INSTALLATION

Caution!
• Before washing, please make sure it’s installed properly.
• Before washing it at first time, the washing machine shall be operated in one
round of the whole procedures without clothes in as follows.
Open tap
Plug in Add detergent
After Washing
1 2 3 4
Washing
Power On Start up
1 2
• If default is selected, step 2 3 can be skipped.,
Note!
10
12
Load and Close door
Buzzer will beep after washing finished and the power supply will be cut off automatically
Then unload the laundry .
.
3 4
Select Programme Select Level
Preparation Before Washing
OPERATIONS

Knot the long strips,zip or
button
• When washing a single clothes, it may easily cause great eccentricity and give
alarm due to great unbalance. Therefore it is suggested to add one or two
more clothes to be washed together so that draining can be done smoothly.
• Don’t washing the clothes touching with kerosene, gasoline, alcohol and
other flammable materials.
• The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet
valve and draining system may be damaged. If the machine is placed under condition
of 0℃or less, then it should be transferred to normal ambient temperature to ensure
the water supply hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.

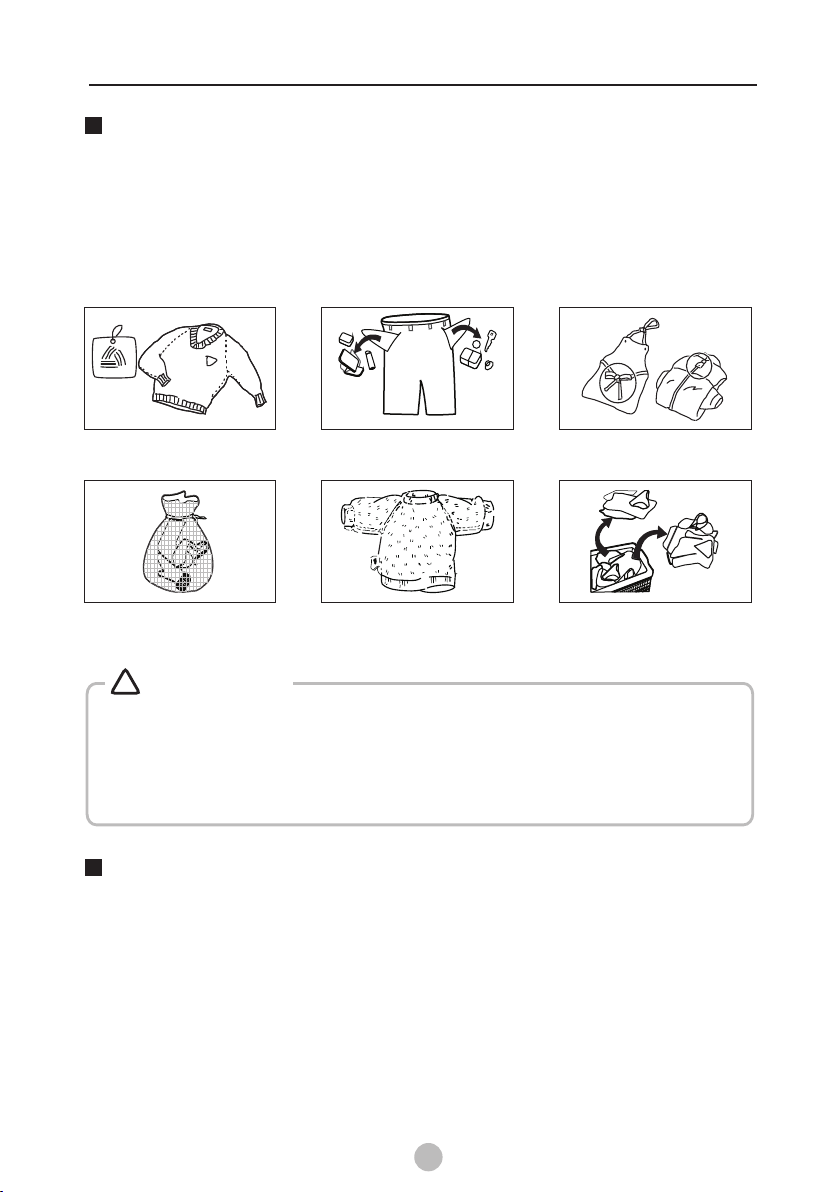

Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label
Washing matters needing attention
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
！
10
13
• As for the agglomerated or ropy detergent or additive, before they are
poured into the detergent box, it is suggested to use some water for
dilution to prevent the inlet of detergent box from being blocked and
overflowing while filling water.
• Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumption.
The uasage of detergent and Washing powder
OPERATIONS

Control Panel
10
14
OPERATIONS
On/Off
Product is switched on or off.
Start/Pause
Press the button to start or pause the
washing cycle.
Program
Available according to the laundry type.
Note!
• The chart is for reference only, Please refer to real product as standard.
1
1
3
1
2
4
5
Press the button to regulate the hot 、warm、
cold water for wash .
Press the Rinse button & the Spin
button to select rinse times & spin time
respectively youwant to store.
After choosing a program, the user can press
Rapid button (the light up) to start the
function, making the program shorter and
good washing performance. Press the Rapid
button again to cancel this function.
Rinse&Spin
Delay
Press the button to preset delay time.
6Temp.
7
Water Level
After program selection, press the water level
button to select the proper water level for
wash.
8
Press the button ,the function will turn
on ,the machine will wait for the user to
release the water when the last rinse end
and before draining water.
Use ECO to reduce energy consumption
it will increase the program duration time.
ECO
1
2
4678
5
Rapid
Water Reuse
9
31
2
4679
5
or
ECO
3

Option
15
OPERATIONS
Child Lock
Caution!
When the lid is opened during machine operation, the buzzer will beep
continuously. If the opening lasts more than1 hour, the machine will shut
down automatically .
If you want to lock all the buttons to prevent settings from being changed by
you can activate the Child Lock function.
children,
How to Lock
1. Press the Power button to turn power on.
2. Press the Start/Pause button to start washing.
3.Press both the Rinse and the Spin button simultaneously.
How to Unlock
If you want to unlock during wash, press both the Rinse and the Wash button
simultaneously again.
1. Press the Power button to turn power on.
2. Turn the Program Knob to select “Normal＂, “Jeas＂,“Mix＂
or “Black clothes＂ program.
3.
4. Press the Start/Pause button, Rapid function starts up.
,“White clothes ＂
Caution!
If there is any break in the power supply while the machine is operating a
special memory stores the selected program and when the power is restarted.
，
Caution!
The 3 functions Water Reuse, Rapid and ECO are intended to the 5 programs:
Normal, Jeans, MIX , White clothes , Black clothes
Rapid (Fast Clean System)
Press the (Rapid) button.

10
16
Personalized setting of washing program
OPERATIONS
Rinse+Spin
On
On
Start
Start
Customers can select washing program according to actual demand, and set rinsing
times, spinning time, water volume and appointment time
Customers can set single process or combinations of rinsing and spinning
freely according to demand. Detailed operations as follows for different models:
Press Rinse Spin separately,
set parameters
、
Other process combinations are just like above.
Operations of washing process
Spin Only Function
Select time of spin
On Start
Water Level
Program
Delay
Spin
Rinse
Temp.
water Reuse
Select Rinse&Spin

Washing programmes table
10
17
OPERATIONS
Programmes
Tub clean
Strong
Heavy
Programmes are available according to the laundry type.
Delicate
Soft
The water flow is infirmly. It is used for washing woollens, thin clothes
or cleaner clothes.
Use this program when washing heavy duty clothes like Jeans
and blanket.
Quick To wash light dirty cloths with only one rinsing cycle.
It will be adhere to wash powder's residue inside and outside the
barrel because of the pollution and the problem of the water quality.
It will take smelly and the drain will not be flowing. Otherwise, the
adhering residue will take off during the wash process. And the
clothing will be dirty. User should clean the tub monthly.
To wash synthetic articles, for example: shirts coats
blending .
、 、
Suitable to wash the children's clothes.
Synthetic
Baby care
Normal
Standard
Standard fabric washing program suitable to wash ramie cotton fabric
wash for once ,rinsing for twice , the spin time is a little long .
，
Jeans Suitable to wash Jeans.
Mix
Suitable to wash mixed load consisting of textiles made of cotton
and synthetics.
White To wash white clothes.
Black clothes
To wash black clothes , it can protect the color better.
Tennis To wash tennis.
Suitable to wash sheet.
Sheet
Towel To wash towel.
Extra rinse and spin.
Rinse+spin
Soak program is with strong water flow similar to normal washing
program .However , there is a motional soak process lasting about
30 minutes just before the washing process . Thus it is used for washing
more dirty clothes.
Soak
For hand-washable textiles, Especially gentle wash programme
to protect clothes.
Handwash
clothes

• Before your maintenance starts, please unplug the machine and close the tap.
Cleaning the cabinet
Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use the wet cloth to wipe it off immediately.
No sharp items are allowed.
• Formic acid and its diluted solvents or equivalent are forbidden, such as
alcohol, solvents or chemical products,etc.
Warning!
！
Note!
10
18
Cleaning and care
Cleaning the inlet filter
• Inlet filter must be cleaned if there is less water.
Washing the filter in washing machine:
1.
2.Pull out the filter with long nose pliers
and reinstall it back after being washed.
3.Use to clean the filter.
4.Reconnect the inlet pipe.
Screw off the inlet pipe from the backside
of the machine.
the brush
Note!
1.There is a built-in lint filter in your washer. It
can help to collect lint during washing cycle.
2.It is suggested to clean the lint filter every
10 cycles.
3.Take it out and clean the filter with water.
Then place it back into the washer.
Lint filter clean
magic filter
normal filter
MAINTENANCES

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap
plates should be inserted aligning to hole plates otherwise water may leak;
• Some machines don’t have emergency drain hose, so step 2 and step 3 can be skipped.
Rotate lower cover cap directly to make water run into basin.
• When the appliance is in use and depending on the programme selected there can
be hot water in the pump. Never remove the pump cover during a wash cycle, always
wait until the appliance has finished the cycle, and is empty. When replacing the
cover, ensure it is securely re-tightened.
Cleaning drain pump filter
•
• Allow detergent solution to cool down.
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the
washing.
• Clean the filter periodically to ensure the normal operation of washing
machine.
Be careful of the hot water!
123
5
4
Warning!
！
10
19
Caution!
Open the filter by turning
to the counter clockwise
Remove extraneous matter
Drain the water out of the
pump, under which use a
container to collect.
Restore it and adjust the convex
place to align at the pump hole.
Clean the filter. Tighten the pump
cover clockwise.
6
MAINTENANCES
