Midea MFW-1655CV User manual

OWNER’S MANUAL
Washing Machine
Read This Manual
Use all instructions and explanations of
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
application is sold or passed on then ensure
that the new owner always receives those
operation instructions.
MFW-1655CV

1
CONTENTS
SAFETY INSTRUCTIONS
Safety Instructions ....................................................
INSTALLATION
Product Description ..................................................
Installation area ......................................................
Unpacking the washing machine ...............................
Installation of drain hose ..........................................
Levelling the washing machine ...................................
Selection of Tap .........................................................
OPERATIONS

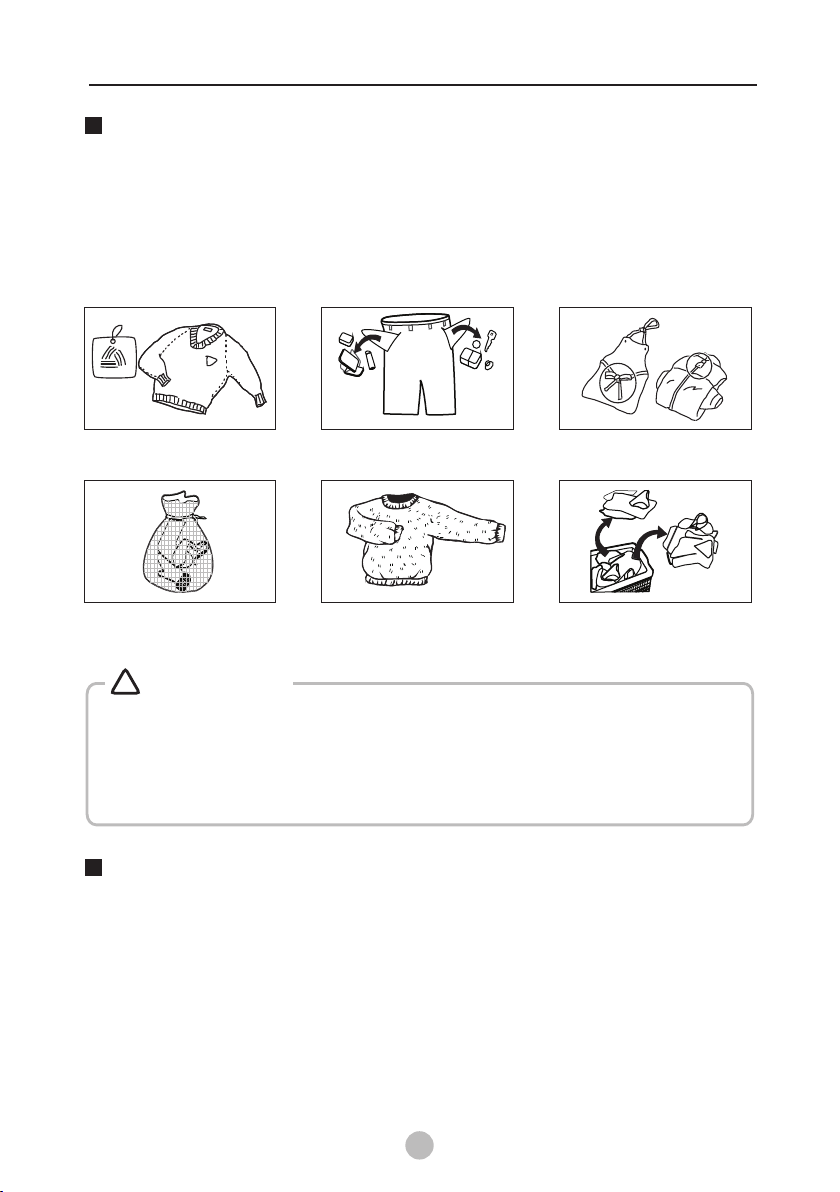

Preparation Before Washing.......................................
Washing ...................................................................
After Washing............................................................
Washing matters needing attention ...........................
The usage of detergent and Washing powder.............
Control Pane .............................................................
Option......................................................................
personalized setting of washing program....................
operations of washing process....................................
Washing Programmes Table ........................................
Maintenances
Cleaning And Care .....................................................
Cleaning the inlet filter...............................................
Cleaning drain pump filter .........................................
Trouble Shooting........................................................
Technical Information ................................................
2
7
8
8
8
8
10
11
11
11
12
12
13
14
15
15
16
17
17
18
19
20

SAFETY INSTRUCTIONS
！Warning!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
For your safety, the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
Caution!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• If the supply cord is damaged, it must be replaced by the
The electric shock!
Warning!
！
2
SAFETY INSTRUCTIONS

• The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
• Before any maintenance the device, unplug the
appliance from the mains.
• Always unplug the machine and turn off the water
supply after use. The max. inlet water pressure, in
pascals. The min. inlet water pressure, in pascals.
• To ensure your safety, power plug must be inserted into
an earthed three-pole socket. Check carefully and make
sure that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must
be connected by a qualified technician in accordance
with the manufacturer's instructions and local safety
regulations.
Risk to children!
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
IEC countries: This appliance is not intended for use by
persons(including children) with reduced
•
•
physical,
sensory or mental capabilities or lack of experience and
knowledge unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
EN countries: the appliance can be used by children aged
3
SAFETY INSTRUCTIONS

• Children should be supervised to ensure that they do not
play with appliance.
• Animals and children may climb into the machine. Check
the machine before every operation.
• Young children should be supervised that they do not play
with the appliance.
• Machine may be very hot during the operation. Keep kids
and pets far away from the machine during the operation
very wet rooms as well as in the rooms with explosive or
caustic gas.
• Remove all packages before using the appliance. Otherwise,
serious damage may result.
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product with double
inlet valves should be correctly connected to the hot water
and cold water supply.
• Plug must be accessible after installation.
Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
Before hand thoroughly rinse items of washing by hand.
Caution
• This washing machine is for indoor use only.
Installing the product!
4
SAFETY INSTRUCTIONS

• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product with
double inlet valves should be correctly connected to the
hot water and cold water supply.
• Plug must be accessible after installation.
Risk of damaging appliance!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by
a specialized person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.
• Please do not close the door with excessive forces.
• It is forbidden to wash carpets.
5
SAFETY INSTRUCTIONS

Operating the appliance!
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc. Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin, brooch, nail, screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door. Please do not open
the door if there is any water visible.
• Be careful of burning when the product drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.
This marking indicates that this product should not be disposed
with other household wastes throughout the EU . To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your used
device, please use the collection systems or contact the retailer
where the product was purchased. They return and can take this
product for environmental safe recycling.
Packaging/Old appliance
6
SAFETY INSTRUCTIONS

INSTALLATION
Product Description
• The product line chart is for reference only, please refer to real product as
standard.
Note!
7
Accessories
Drain
hose
(optional)
or
Top lid
Water inlet valve
Drain hose
Power Cord
Handle
Cabinet
Cabinet handle
Adjustable foot knob
Wash·Spin barrel
Filter Holder
Control panel
Impeller
powder and liquid
detergent box
Upper drain hose
(optional)
Supply hose hot
water (optional)
Supply hose
cold water
Cabinet baseboard
(optional)
Owner’s manual

Installation area
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0 C
5.Keep far away from the heat resources such as coal or gas.
as
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and
drain hose.
4. Remove the inlet hose from the drum.
•
•
Stability is important to prevent the product from
wandering!
Make sure that the product should not stand on
the power cord.
Warning!
！
•
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
8
Installation of drain hose
1.Completely sleeve the drain hose over the sewer.
2.Fix and tighten it with a hoop.( As shown in the figure )
• Note:The drain hose of the machine with upper drain system has already been
assembled before leaving the factory. This picture is suitable for lower drain system.
Note!
INSTALLATION
w
w
W> 20mm

9

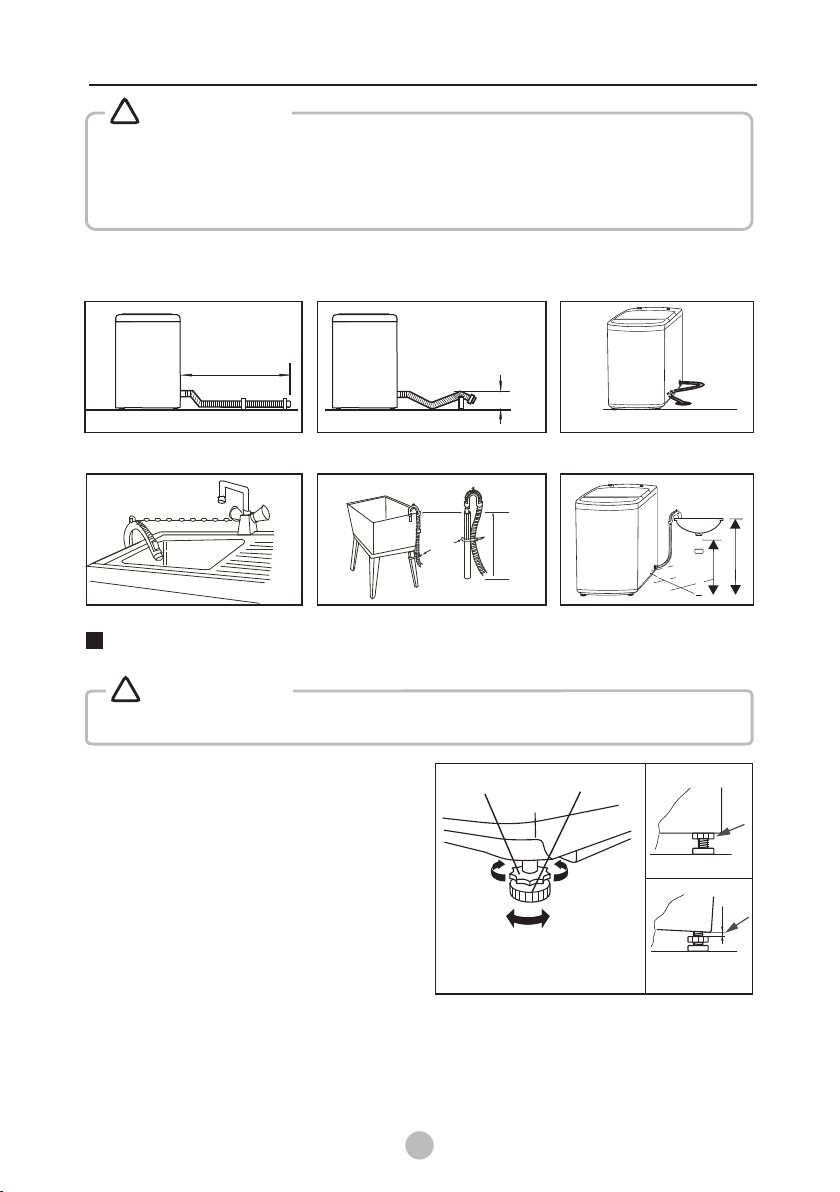

There are two ways to place the end of drain hose:
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
Trough
Hose
Retainer
Bind
Min.75cm
Max.120cm
Warning!
！Warning! ！
water trough
Under3m
Under 15cm
Min.75cm
120cm
Max.
1.For lower drain system
2.For upper drain system
1.Check if the legs are closely attached
the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Check alignment of the product with a
spirit level and if required, correct.
3.Loosen the lock nut and turn the feet
until it closely contacts with
to
the floor.
4.After being locked properly, press four
corners again to make sure that they has
been adjusted properly.
• The lock nuts on all four feet must be screwed tightly against the housing.
Levelling the washing machine
Warning!
！
Lock nut foot
Raise Lower
lockloosen
right
wrong
INSTALLATION

1010
Wall
1:Connection between ordinary tap and inlet hose.
2:connection between screw tap and inlet hose.
• To prevent leakage or water damage, follow the instructions in this chapter
Do not kink, crush, modify or sever .
!
• water inlet hose
Warning!
！
Selection of Tap
Please select
tap.
appropriate
Connection of inlet hose, tap and washing machine
clamp nut
tap
1.Loosen clamp nut to
show 5mm thread
2.Loosen four bolts 3.Set connecting base
on tap and tighten
bolts evenly
4.Tighten clamp nut
inlet valve
inlet hose
slide bushing
5.Press slide bushing,
insert inlet hose into
connecting base
6.connection finished 7.After connection and installation,
check if there is water leakage
tap with threads and inlet hose special tap for washing machine
Screw tap Special washing
machine tap
Ordinary faucet
INSTALLATION

Caution!
Before washing, please make sure it’s installed properly.
Before washing it at first time, the washing machine shall be operated in one
of the whole procedures without clothes in as follows.
•
•
round
Open tap
Plug in Add detergent
After Washing
1 2 3 4
Washing
Power On Start up
1 2
• If default is selected, step 2,3 can be skipped.
Note!
11
load and Close door
Buzzer will beep after washing finished and the power supply will be cut off automatically
Then unload the laundry.
.
3 4
Select Program Select Level
Preparation Before Washing
OPERATIONS

Knot the long strips, zip or
button
• When washing a single clothes, it may easily cause great eccentricity and give
alarm due to great unbalance. Therefore it is suggested to add one or two
more clothes to be washed together so that draining can be done smoothly.
• Don’t washing the clothes touching with kerosene, gasoline, alcohol and
other flammable materials.
• The working condition of the washer should be(0-40)°C.If used under 0°C,the inlet
valve and draining system may be damaged. If the machine is placed under condition
of 0°C or less, then it should be transferred to normal ambient temperature to ensure
the water supply hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label
Washing matters needing attention
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
！
12
• As for the agglomerated or ropy detergent or additive, before they are
the detergent box, it is suggested to use some water for
inlet of detergent box from being blocked and
•
poured
into dilution to prevent
the overflowing while filling water.
Please choose suitable type of detergent for the various washing temperature to
get the best washing performance with less water and energy consumption.
The usage of detergent and Washing powder
OPERATIONS

Control Panel
On/Off
Product is switched on or off.
Start/Pause
Press the button to start or pause the
washing cycle.
Program
Available according to the laundry type.
Note!
The chart is for reference only, Please refer to real product as standard.•
1
1
3
1
2
4
5
13
5678 31
2
4
OPERATIONS
Check levelness of washer
Level Not Level
Select clothes soil level. There are 4 levels
to choose from, Extra Heavy, Heavy, Medium
and Light.
Press the Wash button, the Rinse button
& the Spin button to select wash time,
rinse times & spin time respectively you
want to store.
After choosing a program, the user can press
FCS button (the FCS light up) to start the
function, making the program shorter and
good washing performance. Press the FCS
button again to cancel this function.
Wash Rinse Spin
Delay
Press the button to preset delay time.
6Soil Level
7
Water Level
After program selection, press the water
level button to select the proper water
level for wash.
8FCS
Press the Temp. button to select wash
water temperature.
*
Temp
Select soaking time 0.5hour, 1.0hour,
or 2.0hour by pressing the Soak button
repeatedly.
*
Soak

Option
14
Child Lock
Caution!
OPERATIONS
When the lid is opened during machine operation, the buzzer will beep
continuously. If the opening lasts more than 20 seconds, the machine will
drain out water automatically to prevent child safety accident.
If you want to lock all the buttons to prevent settings from being changed by
you can activate the Child Lock function.
children,
How to Lock
1. Press the Power button to turn power on.
2. Press the Start/Pause button to start washing.
3.Press both the Rinse and the Wash button simultaneously.
How to Unlock
If you want to unlock during wash, press both the Rinse and the Wash button
simultaneously again.
FCS (Fast Clean System)
1. Press the Power button to turn power on.
2. Press the Program button to select “Normal”, “Soft”,“Soak” or “Strong”
program.
3. Press the FCS button.
4. Press the Start/Pause button, FCS function starts up.
The FCS function will be cancelled by pressing any button except “Temp”,“Water level”,
“Delay”.
,“Baby Care ”
Memory Function
1. Press the Power button to turn power on.
2. Press the Program button to select “Memory” program.
3. Press Wash, Rinse, Spin, Temp, Water Lever buttons respectively to
4. Press the Start/Pause button
When you select “Memory” program at your next wash after Power is on, the machine will
run according to the parameters you stored last time.
select desired
parameters.
.

15
Wash Spin+Rinse+
One Touch Smart Wash
On Start
On
On
Start
Start
personalized setting of washing program
Customers can select washing program according to actual demand, and set washing
time, rinsing times, spinning time,water volume and appointment time
customers can set single process or combinations of washing、rinsing and spinning
freely according to demand. Detailed operations as follows for different models:
press Wash、Rinse、Spin
separately, set parameters
Other process combinations are just like above.
operations of washing process
OPERATIONS
Spin Only Function
Select time of spin
Function
On Start
Water Level
Program
Delay Soil Level

Washing Programmes Table
Programmes
TUB CLEAN
MEMORY
STRONG
HEAVY
16
Programmes are available according to the laundry type.
OPERATIONS
SOFT
DELICATE
The water flow is infirmly. It is used for washing woollens, thin clothes
or cleaner clothes.
SOAK
Soak program is with strong water flow similar to normal
washing program .However , there is a motional soak
process lasting about 30 minutes just before the washing
process . Thus it is used for washing more dirty clothes.
Use this program when washing heavy duty clothes like Jeans
and blanket.
QUICK To wash light dirty cloths with only one rinsing cycle.
Memory procedure can remember all the washing parameters which
users have set up.
AIR DRY
Air dry program is that the formation of the swing of the wind
within the barrel through high-speed rotation, which can dry the
clothes barrel, and user can select different stage you need.
It will be adhere to wash powder's residue inside and outside the
barrel because of the pollution and the problem of the water
quality. It will take smelly and the drain will not be flowing.
Otherwise, the adhering residue will take off during the wash
process. And the clothing will be dirty. User should clean the
tub monthly.
Eco course consumes less water and electricity to wash normal
clothes.
Baby Care program suitable for wash the children's clothes.
ECO
BABY CARE

• Before your maintenance starts, please unplug the machine and close the tap.
Cleaning the cabinet
Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use the wet cloth to wipe it off immediately.
No sharp items are allowed.
Formic acid and its diluted solvents or equivalent are forbidden, such as
solvents or chemical products,etc.
•
alcohol,
Warning!
！
Note!
17
Cleaning And Care
Cleaning the inlet filter
• Inlet filter must be cleaned if there is less water.
Washing the filter in washing machine:
1.Screw off the inlet pipe from the backside
of the machine.
2.Pull out the filter with long nose pliers
and reinstall it back after being washed.
3.Use the brush to clean the filter.
4.Reconnect the inlet pipe.
Note!
1.There is a built-in lint filter in your washer. It
can help to collect lint during washing cycle.
2.It is suggested to clean the lint filter every
10 cycles.
3.Take it out and clean the filter with water.
Then place it back into the washer.
Lint filter clean
magic filter
normal filter
MAINTENANCES

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap
plates should be inserted aligning to hole plates otherwise water may leak;
• Some machines don’t have emergency drain hose, so step 2 and step 3 can be skipped.
Rotate lower cover cap directly to make water run into basin.
• When the appliance is in use and depending on the programme selected there can
be hot water in the pump. Never remove the pump cover during a wash cycle, always
wait until the appliance has finished the cycle, and is empty. When replacing the
cover, ensure it is securely re-tightened.
Cleaning drain pump filter
Be careful of the hot water!
Allow detergent solution to cool down.
•
•
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the
washing.
• Clean the filter periodically to ensure the normal operation of washing
machine.
123
5
4
Warning!
！
18
Caution!
Open the filter by turning
to the counter clockwise
Remove extraneous matter
Drain the water out of the
pump, under which use a
container to collect.
Restore it and adjust the convex
place to align at the pump hole.
Clean the filter. Tighten the pump
cover clockwise.
6
MAINTENANCES

Trouble Shooting
• or the display
shows other alarm codes
After the check, activate the appliance. If the problem occurs
again, contact the service.
The start of the appliance does not work or it stops during operation.
First try to find a solution to the problem, If not, contact the service centre.
Note!
Description
Description Reason Solution
Please try again first, call up service
line if there are still troubles
Others
19
No washing
Inspection Items
If the power is off or the fuse is burned out.
If the power supply voltage is too low.
If the water amount reaches to the required water level.(The washer will
not work if the water amount does not reach the required water level)
If it is set to "Delay" washing mode. (It will only start to work until the
reservation time reached)
No water flows in
If the power is off or the fuse is burned out.
If the water supply is cut off or the water pressure is too low.
If the inlet hose is properly connected and the water tap is opened.
If the filtering screen of inlet valve is blocked by dirt.
If the coil of inlet valve is damaged. (The slight electromagnetic sound is
normal phenomenon when the inlet valve is switched on)
If the "Start / Pause" button is pressed after the power switch is pressed.
Abnormal draining
If the water drain hose is placed very high.
If the end of water drain hose is sealed in pond.
If the internal rubber ring of drain valve is blocked by dirt.
Abnormal spin
If the door lid is closed.
If all clothing piled largely at one side of barrel or the clothing is excessively
placed.
If the washer is not placed in stable condition or it is placed in inclination
state. (The ground is not flat).
If the motor belt is loosened.
E1
E2
Check the water tap is
opened or not.
Check the water level
sensor and drain pump.
Alarm for abnormal
water intaking.
Alarm for water drain
has not finished.
Alarm for lid not closed
before wash and spin.
E3
Closed the lid.
E4
Manually balance clothes
in the barrel by hands.
Alarm for washing stay
at one side.
MAINTENANCES
Any other abnormal
