Midland BIZTALK BR200 User manual

Model BR200
midlandusa.com Page 2
INTRODUCTION ........................................................................................................................3
FEATURES...................................................................................................................................3
FCC NOTICE...............................................................................................................................3
EXPOSURE TO RADIO FREQUENCY ENERGY .....................................................................4
BODY WORN OPERATION ....................................................................................................... 4
GETTING TO KNOW YOUR RADIO-QUICK START ............................................................5
CONTROLS..................................................................................................................................5
INSTALLING THE ANTENNA ....................................................................................................6
INSTALLING THE BATTERY ......................................................................................................6
INSTALLING THE BELT CLIP..................................................................................................... 7
INSTALLING EXTERNAL ACCESSORIES................................................................................. 7
CHARGING THE BATTERY PACK ............................................................................................ 7
USE AND CARE ..........................................................................................................................9
ABOUT RANGE..........................................................................................................................9
OPERATING YOUR RADIO......................................................................................................9
POWER ON/OFF AND VOLUME ..............................................................................................9
CHANNEL SELECTION..............................................................................................................9
TRANSMITTING AND RECEIVING A CALL........................................................................... 10
CHANNEL SCAN ...................................................................................................................... 10
MONITOR................................................................................................................................... 10
PROGRAMMING SOFTWARE ............................................................................................... 10
PRIVACY CODES...................................................................................................................... 11
TROUBLESHOOTING GUIDE................................................................................................. 11
SPECIFICATIONS..................................................................................................................... 12
DEFAULT FREQUENCIES CHART ........................................................................................ 12
AVAILABLE FREQUENCIES CHART (Channel Bank) .......................................................... 13
CTCSS PRIVACY CODES CHART.......................................................................................... 14
DCS PRIVACY CODE CHART................................................................................................. 15
LIMITED WARRANTY.............................................................................................................. 16
ACCESSORIES ..........................................................................................................................17
TABLE OF CONTENTS

Model BR200
midlandusa.com Page 3
INTRODUCTION
For over half a century, Midland Radio has been providing radio communication
with superior quality, reliability, and strong value. With these core values in mind,
the Midland BR200 provides a communication solution for manufacturing, retail,
hospitality, construction, warehousing, maintenance, and other business uses.
FEATURES
• 2 Watts Transmit Power
• 16 Channels
• 142 Privacy Codes
• 99 Frequency Channel Bank
• Monitor
• Scan
• Battery Save Mode
• Time Out Timer
• Bilingual Voice Announcements (English and Spanish)
• 10 Level Squelch Settings
• Low Battery Alert
• Accessory (Headset) Jack
• PC Programming
• Desktop Charger
FCC NOTICE
The radio operates on UHF frequencies which require an FCC (Federal
Communications Commission) license. You must be licensed prior to operating
on these frequencies. Serious penalties could result from unlicensed use of these
frequencies, in violation of FCC rules, as stipulated in the Communications Act’s
Sections 501 and 502 (amended).
You will be issued a call sign by the FCC which should be used for station
identification when operating the radio on these channels. You should also
cooperate by engaging in permissible transmissions only, avoiding channel
interference with other users, and being prudent with the length of your
transmission time.
To obtain a license or ask questions about the license application, contact the
FCC at 1-888-CALL FCC or go to the FCC’s website: http://www.fcc.gov and
request form 601.

Model BR200
midlandusa.com Page 4
EXPOSURE TO RADIO FREQUENCY ENERGY
Your Midland radio is designed to comply with the following national and inter-
national standards and guidelines regarding exposure of human beings to radio
frequency electromagnetic energy:
• United States Federal Communications Commission, Code of Federal
Regulations: 47 CFR part 2 sub-part J
• American National Standards Institute (ANSI)/Institute of Electrical &
Electronics Engineers (IEEE) C95.1-1992
• Institute of Electrical and Electronics Engineers (IEEE) C95.1-1999 Edition
• National Council on Radiation Protection and Measurements (NCRP) of the
United States, Report 86, 1986
• International Commission on Non-Ionizing Radiation Protection
(ICNIRP) 1998
To control your exposure and ensure compliance with the general population or
uncontrolled environment exposure limits, transmit no more than 50% of the time.
The radio generates measurable RF energy exposure only when transmitting.
BODY WORN OPERATION
If you wear the radio on your body when transmitting, always use Midland
supplied or approved belt clip, holster, case, or body harness for this product.
Use of any accessories not supplied or approved by Midland may exceed FCC/
Health Canada RF exposure guidelines. If you do not use accessories supplied
or approved by Midland, ensure the radio and its antenna are at least 1 inch
(2.5cm) from your body when transmitting.
IMPORTANT: Changes or modifications to this unit not expressly approved by MIDLAND
RADIO CORP could void your right to operate this unit. Your radio is set up to transmit a
regulated signal on an assigned frequency. It is against the law to alter or adjust the settings
inside the COMMUNICATOR to exceed those limitations. Any adjustment to your radio must
be made by qualified technicians.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device does not cause harmful interference, and (2) this radio must accept
any interference that may cause undesired operation.
To maintain compliance with FCC’s RF exposure guidelines for body-worn operation, this
radio has been tested and meets the FCC RF exposure guidelines when used with Midland
Radio Corp. accessories supplied or designated for this product. Use of other accessories
may not ensure compliance with FCC RF exposure guidelines.

Model BR200
midlandusa.com Page 5
GETTING TO KNOW YOUR RADIO-QUICK START CONTROL
A. Antenna
Install the antenna per instructions below
before operating the radio.
B. LED Indicator
The LED is green when receiving signals.
Red when transmitting.
C. Speaker.
D. Channel Selection
Rotate to the desired channel setting.
E. Power/Volume
Turn clockwise to turn the power on
and increase the volume level.
Turn counter-clockwise to decrease the
volume level and turn the power off.
F. Microphone
G. PTT (Push To Talk)
Press and hold to transmit voice
communication.
H. Monitor On/Off
I. Scan On/Off
J. Accessory Speaker/Mic Jack
K. Rechargeable Battery Pack
J
K
H
G
I
F
B
A
C
E
D

Model BR200
midlandusa.com Page 6
INSTALLING THE BATTERY
Your radio operates with a Lithium-Ion battery. Care should be taken when
installing or removing the battery as not to short circuit the battery contacts
causing damage to the battery pack.
To install the battery:
With the back of the radio facing you, install the battery by siding the pack
along the back of the radio until the latch on the radio locks.
To remove the battery:
Release the battery latch and slide the battery down and away from the radio.
INSTALLING THE ANTENNA
Align the antenna with the threaded connector located on the top of the radio.
Holding the antenna at the base, rotate the antenna clockwise until secure.
Antenna
• Be careful not to over tighten to avoid damaging the
antenna mount.
• Do not operate the radio without the antenna installed
as it may cause damage to the radio.

Model BR200
midlandusa.com Page 7

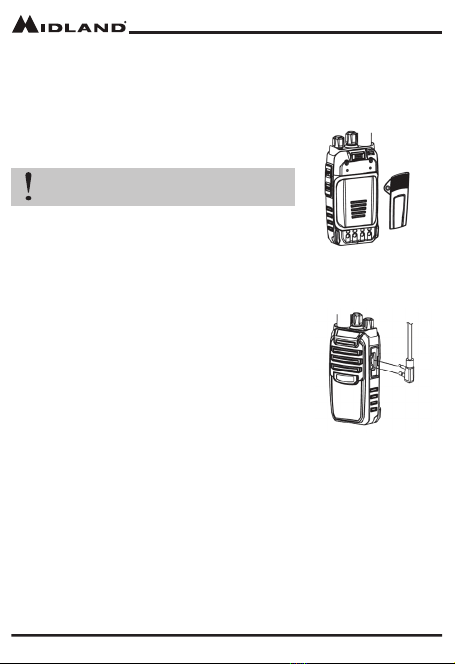

INSTALLING EXTERNAL ACCESSORIES
Pull the accessory jack cover to the side exposing the speaker/mic jacks.
Insert the accessory plug into the speaker/mic jack, making sure it is securely in
place and has made a good connection.
1. Plug the DC barrel plug on the adaptor cord into the connector on the
back of the charging base.
2. Plug the AC adaptor into a 120V AC wall outlet, making sure the AC outlet
has power.
• The charger’s LEDs turns green when power is present.
3. Make sure the battery contacts and charge terminals are clean and in good
condition.
INSTALLING THE BELT CLIP
With the back of the radio facing you, align the BELT CLIP with the screw holes
on the radio. Attach the BELT CLIP with the Phillips-Head screws that came
with the belt clip.
Be careful not to over tighten screws to avoid
damaging radio chassis.
CHARGING THE BATTERY PACK
Your radio is equipped with a Lithium-Ion battery pack which can be recharged
by inserting the radio or battery into the desktop charger (as described below).
You should charge the battery pack when the Charge Battery Alert comes on,
and remove the radio from the charger when the charging is finished.
To charge using the Desktop Charger:

Model BR200
midlandusa.com Page 8
To charge using the BGC200 Multi-Unit Charger Accessory:
The (optional) Multi-Unit Charger (MUC) allows the drop-in charging of 6 radios
and 6 batteries from a single AC outlet.
It is recommended that the battery pack be charged with the radio turned off to
ensure it fully charges.
• Only use the Midland Lithium-Ion battery pack.
• Do not attempt to charge any battery packs other than the one
indicated in the manual. This may cause leakage and damage to
the radio or charger and void your warranty.
• For long term storage of the radio, turn the radio OFF and remove the
batteries from the radio.
1. Plug the barrel plug on the adaptor cord into the connector on the back of the
charging base.
2. Plug the AC adaptor into a 120V AC wall outlet. Make sure the AC outlet
has power.
3. The charger’s LEDs turns green when power is present.
4. Make sure the battery contacts and charge terminals are clean and in good
condition.
5. Slide the radio with installed battery, or a spare battery without radio, into the
charger being careful to align the slots on the battery with the tabs inside the
charger opening.
6. The charger LEDs will turn red and begin charging the unit.
7. Charging time depends on the charge level of the battery.
8. After charging is complete, the LED will turn green.
4. Slide the radio with installed battery, or a spare battery without radio, into the
charger being careful to align the slots on the battery with the tabs inside the
charger base.
5. The charger LED’s will turn red and begin charging the battery.
6. Charging time depends on the charge level of the battery.
7. After charging is complete the LED will turn green.
8. Remove the radio from the charger.

Model BR200
midlandusa.com Page 9
ABOUT RANGE
Your BR200 is designed to give you maximum range under optimum conditions.
Optimum conditions are:
• Open warehouse floor plan or area.
• Open rural areas without obstructions.
• Flat areas where you can see the other person to ensure you get maximum
range.
• You are using fully charged batteries - a low battery will cause low power
conditions.
• Your radio is set to use its highest transmit power level.
OPERATING YOUR RADIO
POWER ON/OFF AND VOLUME
1. Rotate the POWER/VOLUME knob clockwise to turn the radio on and
increase the volume level.
2. Rotate the control counter-clockwise to reduce the volume level and to turn
the radio off.
CHANNEL SELECTION
1. Rotate the channel section knob to the desired setting.
2. The radio will announce the channel numbers as you rotate the knob.
Industrial Multi-Level
Inside Steel-Concrete Building
Up to 250,000 sq. ft. Up to 20 floors
Inside a Multi-level Building
USE AND CARE
• Use only a soft, damp cloth to clean the radio.
• Do not use alcohol or cleaning solutions to clean the radio.
• Do not immerse the radio in water.
• Dry the radio with a dry lint-free cloth should it get wet.
• Turn off the radio and remove the batteries during long-term storage.
Make sure you are using the same channel/frequencies as others in your
communications group or you will not be able to hear or talk to them.

Model BR200
midlandusa.com Page 10
TRANSMITTING AND RECEIVING A CALL
For maximum clarity, hold the radio at least 1 inch (2.5 cm) from your mouth.
1. Press and hold the PTT button and speak in a normal voice into the
microphone. The RX/TX LED will glow red while transmitting.
2. To receive a call, release the PTT button. The RX/TX LED will glow
green when your radio is receiving a transmission.
CHANNEL SCAN
Press the bottom side key for 3 seconds to turn scanning on or off.
The radio will rapidly scan through all available channels stopping briefly on
a channel in use to hear the conversation. You may join the conversation by
pressing your PTT button and using the radio normally. The radio will return to
scan mode after 5 seconds of inactivity.
MONITOR
Press the top side key to turn Monitor on or off.
Monitor is used to check for channel traffic before you transmit.
RADIO CONFIGURATION
Your BR200 radio comes configured with 16 commonly used authorized
frequencies. You can custom configure your radio by selecting any of the 99
authorized frequencies listed in the “Available Frequencies Chart” listed in this
manual. A PC software application to configure your radio is available at
www.midlandusa.com.
The BA1 programing cable is required to configure your radio. It is listed in the
back of this manual and available at www.midlandusa.com.

Model BR200
midlandusa.com Page 11
TROUBLESHOOTING GUIDE
Problem Solution
No Power
Can’t Receive
Messages
Charger Not
Functioning
1. Make sure the battery is fully charged and correctly installed.
2. Check the On/O Volume Control to make sure the radio
is turned on.
1. Confirm the radios are set to the same channel frequency
and privacy code setting.
2. Make sure you are within range of the other radio (see About Range).
3. Make sure there are not any major obstructions between you
and the other radio (see About Range).
1. Make sure the contacts on the bottom of the radio are clean, nothing in the
way of making connection with the charger contacts.
2. Make sure the charger is plugged in and the outlet has power.
3. Make sure the battery pack is installed properly.
For further assistance, contact the Midland Customer Service Team at [phone]. Most
problems can be remedied over the phone without returning the radio for service.
SPECIFICATIONS
Channels: 16
Privacy Codes: 142
Operating Frequency: UHF Band, 450~470MHz
Power Source: 3.7VDC Li-ion Battery Pack
PRIVACY CODES
CTCSS (Continuous Tone Coded Squelch) and DCS (Digitally Coded Squelch)
allow several users to share the same channel frequency without disturbing
each other. With CTCSS or DCS enabled, the channel is muted to all incoming
signals unless they carry the same CTCSS or DCS tone. When a transmission
with the same tone is received, the channel un-mutes and the voice audio
can be heard. When the transmission ends the channel becomes muted
again. Transmissions that do not have the same tone will not be heard.
Your BR200 radio has 142 privacy codes, which can be used on any channel.
The selected privacy code may be different for each channel, but must be
the same for a channel on all radios you wish to talk to. Programming a new
privacy code overwrites any previous code programmed.
privacy codes can be set using the FREE programming software that can be
downloaded from www.midlandusa.com.
You will not be able to hear or talk to other radios that do not match your
frequency and Privacy Code by channel and frequency.

Model BR200
midlandusa.com Page 12
DEFAULT FREQUENCIES CHART
CH No. Freq. (MHz) Code CH No. Freq. (MHz) Code
1 464.5500 1 9 464.5500 29
2 467.9250 1 10 467.9250 29
3 467.8500 1 11 467.8500 29
4 467.8750 1 12 467.8750 29
5 464.5500 6 13 464.5500 -
6 467.9250 6 14 467.9250 -
7 467.8500 6 15 467.8500 -
8 467.8750 6 16 467.8750 -

Model BR200
midlandusa.com Page 13
AVAILABLE FREQUENCIES CHART
464.5000
464.5500
467.7625
467.8125
467.8500
467.8750
467.9000
467.9250
461.0375
461.0625
461.0875
461.1125
461.1375
461.1625
461.1875
461.2125
461.2375
461.2625
461.2875
461.3125
461.3375
461.3625
462.7625
462.7875
462.8125
452.7625
452.8625
456.1875
456.2375
456.2875
468.2125
468.2625
468.3125
468.3625
468.4125
468.4625
468.5125
468.5625
468.6125
468.6625
456.3375
456.4375
456.5375
456.6375
457.3125
457.4125
457.5125
457.7625
457.8625
462.8375
462.8625
462.8875
462.9125
464.4875
464.5125
464.5375
464.5625
466.0375
466.0625
466.0875
466.1125
466.1375
466.1625
466.1875
466.2125
466.2375
466.2625
466.2875
466.3125
466.3375
466 3625
467.7875
467.8375
467.8625
467.8875
467 9125
469.4875
469.5125
469.5375
469.5625
462.1875
462.4625
462.4875
462.5125
467.1875
467.4625
467.4875
467.5125
451.1875
451.2375
451.2875
451.3375
451.4375
451.5375
451.6375
452.3125
452.5375
452.4125
452.5125
Freq. (MHz) Freq. (MHz) Freq. (MHz) Freq. (MHz)

Model BR200
midlandusa.com
Page 14
CTCSS PRIVACY CODES CHART
Code No. Freq. (Hz) Code No. Freq. (Hz)
1 67.0 20 131.8
2 71.9 21 136.5
3 74.4 22 141.3
4 77.0 23 146.2
5 79.7 24 151.4
6 82.5 25 156.7
7 85.4 26 162.2
8 88.5 27 167.9
9 91.5 28 173.8
10 94.8 29 179.9
11 97.4 30 186.2
12 100.0 31 192.4
13 103.5 32 203.5
14 107.2 33 210.7
15 110.9 34 218.1
16 114.8 35 225.7
17 118.8 36 233.6
18 123.0 37 241.8
19 127.3 38 250.3

Model BR200
midlandusa.com Page 15
DCS PRIVACY CODE CHART
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
23
25
26
31
32
43
47
51
54
65
71
72
73
74
114
115
116
125
131
132
134
143
152
155
156
162
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
165
172
174
205
223
226
243
244
245
251
261
263
265
271
306
311
315
331
343
346
351
364
365
371
411
412
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
413
423
431
432
445
464
465
466
503
506
516
532
546
565
606
612
624
627
631
632
654
662
664
703
712
723
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
731
732
734
743
754
36
53
122
145
212
225
246
252
255
266
274
325
332
356
446
452
454
455
462
523
526
N. N.N. N.
Code Code Code Code

Model BR200
midlandusa.com
Page 16
LIMITED WARRANTY
Midland Radio Corporation will repair or replace, at its option without charge, any
Midland UHF transceiver which fails due to a defect in material or workmanship
within one year following the initial consumer purchase.
This warranty does not apply to water damage, battery leak or abuse. Acces-
sories have a 90-day warranty from date of purchase, including any antennas,
batteries, chargers, or headsets/earphones.
This warranty does not include the cost of labor for removal or re-installation of
the product in a vehicle or other mounting.
For product purchased in the USA:
Performance of any obligation under this warranty may be obtained by returning
the warranted product, prepaid freight, along with proof of purchase to:
Midland Radio Corporation
Warranty Service Department
5900 Parretta Drive
Kansas City, MO 64120
This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state.
Note: The above warranty applies only to merchandise purchased in the United
States of America or any of the territories or possessions thereof, or from a U.S.
Military exchange.
For Product Purchased in Canada:
Performance of any obligation under this warranty may be obtained by returning
the warranted product, along with proof of purchase, to your dealer in Canada.
This warranty gives you specified legal rights. Additional warranty rights may be
provided by law in some areas.
This warranty gives you specified legal rights. Additional warranty rights may be
provided by law in some areas.
NOTE: Features & specifications are subject to change without notice.
MIDLAND is not responsible for unintentional errors or omissions
on its packaging or owner’s manual.

Model BR200
midlandusa.com Page 17
ACCESSORIES
Accessories can be purchased from your local dealer or at www.midlandusa.com.
BGC200
Multi-Unit
Charger
$99.99
Programming
Cable for BR200
$9.99
Over the Ear
Headset
$29.99
Li-Ion
Spare Battery
$29.99
Concealed
Headset
$39.99
D-ring
Headset
$29.99
BA1
BA3
BA2
BRB200
BA9
Speaker
Microphone
$39.99
BA4

5900 Parretta Drive
Kansas City, MO 64120
Call 816.241.8500
We’d love to hear from you! Let us know what you
think of your new Midland product at
or by visiting us at
midlandusa.com
Note: Features & Specifications are subject to change without
notice. MIDLAND is not responsible for unintentional errors or
omissions on its packaging.
