Midland X-Tra Talk LXT360 Series User manual

LXT360/365 Series
OWNER'S MANUAL
www.midlandradio.com
GMRS/FRS Radio

Welcome to the world of Midland electronics
Congratulations on your purchase of a high quality MIDLAND
product. Your 2-way radio represents the state-of-the-art in high-tech
engineering. Designed for GMRS (General Mobile Radio Service)
operation, this compact package is big in performance. It is a quality
piece of electronic equipment, skillfully constructed with the finest
components. The circuitry is all solid-state and mounted on a rugged
printed circuit board. Your two-way radio is designed for reliable and
trouble-free performance for years to come.
Features
- 22 GMRS/FRS Channel
- Call Alert
- Scan Function
- Roger Beep Tone
- Silent Operation
- Keypad Lock
- Power HI/LO Settings
- Auto Squelch
- Speaker / Microphone Jacks
- Battery Life Extender
- Battery Low Indicator
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions : (1) this device does not
cause harmful interference, and (2) this radio must accept any
interference that may cause undesired operation.
To maintain compliance with FCC’s RF exposure guidelines, for
body-worn operation, this radio has been tested and meets the
FCC RF exposure guidelines when used with Midland Radio
Corp. accessories supplied or designated for this product. Use of
other accessories may not ensure compliance with FCC RF
exposure guidelines.

IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION
(Only Applicable for GMRS Radio Use in the United States)
The LXT360/365 Series operates on GMRS (General Mobile Radio Service)
frequencies which require an FCC (Federal Communications Commission)
license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22,
which comprise the GMRS channels of the LXT360/365 Series. Serious
penalties could result for unlicensed use of GMRS channels, in violation of FCC
rules, as stipulated in the Communications Act's Sections 501 and 502
(amended).
You will be issued a call sign by the FCC which should be used for station
identification when operating the radio on GMRS channels. You should also
cooperate by engaging in permissible transmissions only, avoiding channel
interference with other GMRS users, and being prudent with the length of their
transmission time.
To obtain a license or ask questions about the license application, contact the
FCC at 1-888-CALL FCC or go to the FCC's website:
http://www.fcc.gov and request form 605.
Exposure To Radio Frequency Energy
Your Midland radio is designed to comply with the following national and
international standards and guidelines regarding exposure of human being to
radio frequency electromagnetic energy:
- United States Federal Communications Commission, Code of Federal
Regulations: 47 CFR part 2 sub-part J
- American National Standards Institute (ANSI)/Institute of Electrical &
Electronic Engineers (IEEE) C95. 1-1992
- Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition
- National Council on Radiation Protection and Measurements (NCRP) of the
United States, Report 86, 1986
- International Commission on Non-lonizing Radiation Protection (ICNIRP)
1998
To control your exposure and ensure compliance with the general population or
uncontrolled environment exposure limits, transmit no more than 50% of the
time. The radio generates measurable RF energy exposure only when
transmitting.
IMPORTANT: Changes or modifications to this unit not expressly approved by
MIDLAND RADIO CORP. could void your right to operate this unit. Your radio
is set up to transmit a regulated signal on an assigned frequency. It is against
the law to alter or adjust the settings inside the COMMUNICATOR to exceed
those limitations. Any adjustment to your radio must be made by qualified
technicians.

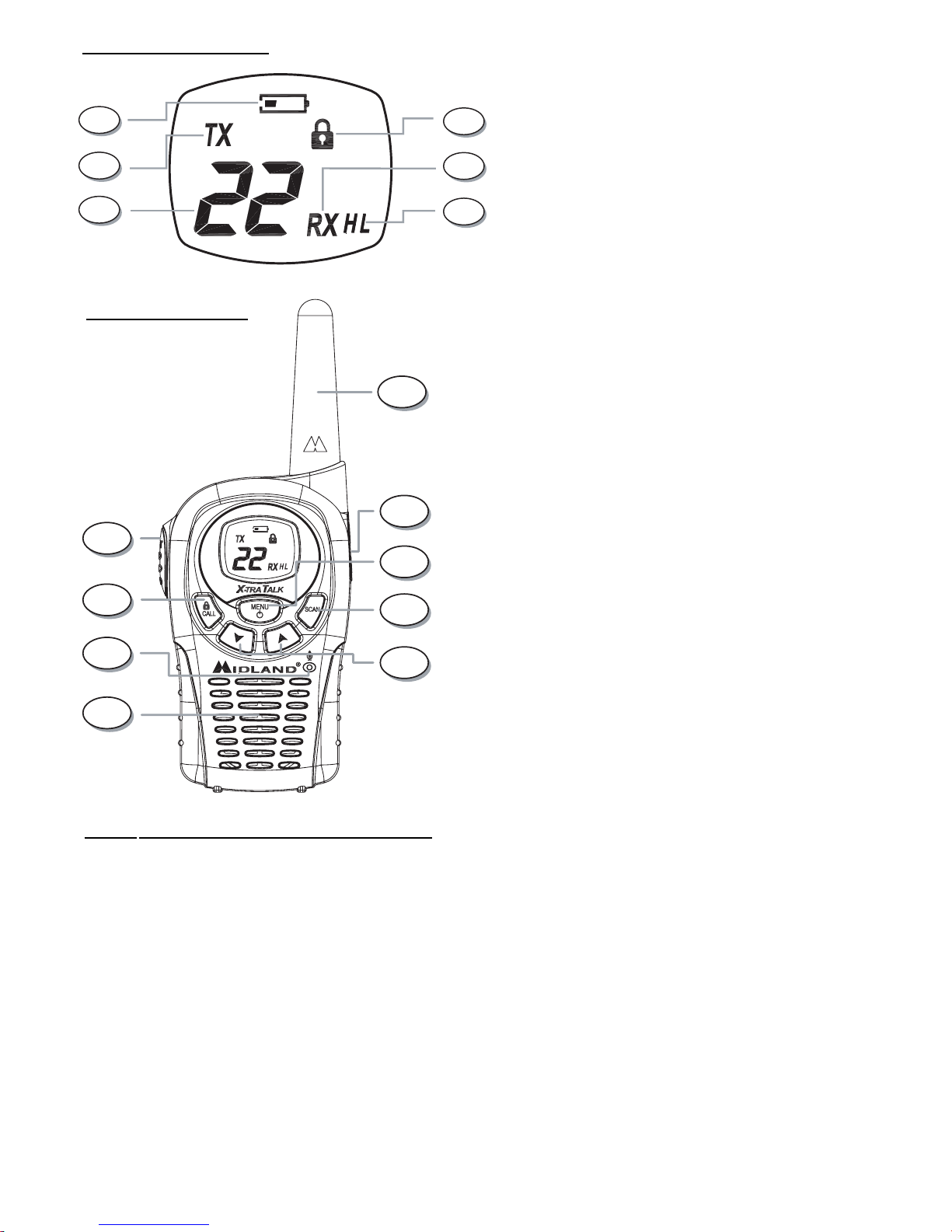

LCD DISPLAY1. LOW BATTERY ICON – Indicates the
battery level is low.
2. TRANSMIT (TX) ICON – Indicates
radio is transmitting a signal.
3. CHANNEL NUMBER – Changes from
1~22 on GMRS/FRS band.
4. KEY LOCK ICON – Indicates KEY
LOCK mode is on.
5. RECEIVE (RX) ICON – Indicates
radio is receiving a transmission.
6. TRANSMIT POWER LEVEL ICON –
Indicates TX Power setting (H/L)
1
CONTROLS
7. PTT Button – Press and hold to trans-
mit voice communication.
8. CALL/LOCK Button – Press to send
a CALL Alert signal. Press and hold to
turn KEY LOCK on/off.
9. MIC – Built-in microphone.
10. SPEAKER – Built-in speaker.
11. ANTENNA
12. EXTERNAL SPEAKER/MIC/CHG.
JACK
13. POWER / MENU Button – Press and
hold for at least 3 seconds to turn the
radio on/off. Press momentarily to
access Menu mode.
14. SCAN Button – Press to enter SCAN
mode.
15. UP ssand DOWN ttButton – Make
adjustments in MENU mode.
14
13
12
10
9
8
7
6
5
4
3
2
11

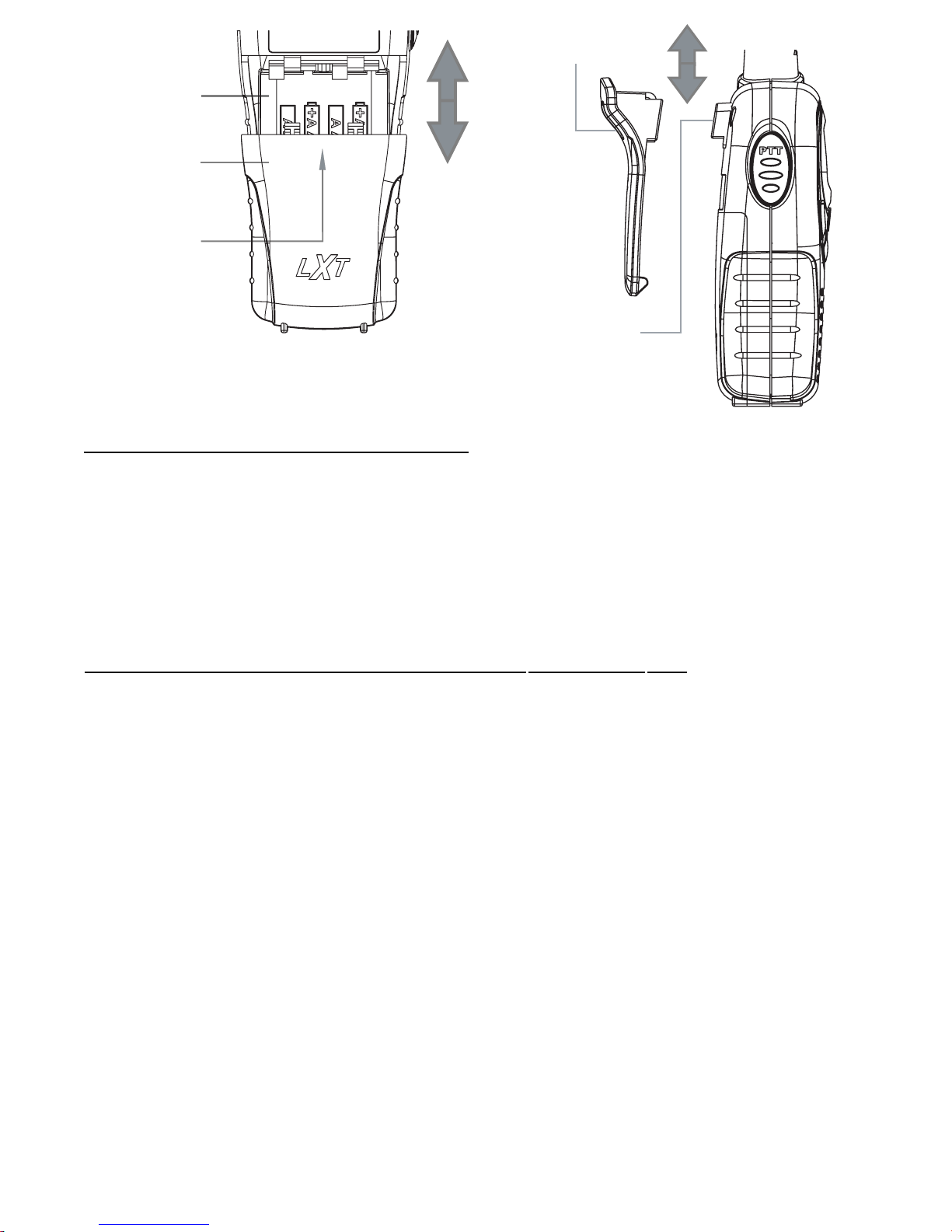

BATTERY INSTALLATION
Your LXT360/365 Series radio operates with either 4 AAA alkaline
batteries or an optional NiMH battery pack. The belt clip should be
removed (see below) to ease installation or removal of the batteries.
To install the batteries:
1. With the back of the radio facing you, remove the belt clip (see
diagram below) for easy access, then remove the Battery Cover by
pressing down on the top center and sliding it down from the radio.
2. Insert 4 AAA batteries observing the polarity as shown. Installing
the batteries incorrectly will prevent the unit from operating or may
damage the unit.
3. Return the Battery Cover by sliding it up on the radio. Replace the
belt clip, making sure it locks into place.
15

BATTERY
COMPARTMENT
BATTERY
COMPARTMENT
COVER
Press here and
push down to open
BELT CLIP
LOCK TAB
BELT CLIP
LATCH
INSTALLING THE BELT CLIP
To install the BELT CLIP, slide the clip up into the slot on the back of
the radio until the BELT CLIP LATCH clicks. To remove the BELT
CLIP, press the LOCK TAB up, then gently pull the belt clip down
toward the bottom of the radio.
CHARGING THE OPTIONAL BATTERY PACK
Your LXT360/365 Series is equipped for using an optional recharge-
able NiMH battery pack which can be recharged with the optional
desktop charger (as described below). The LXT360/365 can also be
charged by inserting the AC adapter into the radio charge jack. Initial
charge time is 24 hours. Charge time is about 12 hours thereafter. For
maximum battery life, we recommend charging the battery pack when
the low battery icon comes on. Remove the radios from the charger
when the charge time expires.
To charge using a Desktop Charger:
1. Place the rechargeable battery packs in the radios.
2. Connect the AC adapter into an AC wall outlet.
3. Insert the AC adapter plug (or DC Cigarette Lighter adapter if
charging in vehicle) into the desktop charger jack.
4. Place the units into the desktop charger slot and note that the LED
indicator with RED color will light up, indicating charging function.

In order to ensure that the battery pack is fully charged, it is
recommended that the battery pack be charged for at least 12
hours with the radio turned OFF.
1. Only use our NiMH battery pack.
2. Do not attempt to charge alkaline batteries or any batteries
or battery packs other than the one indicated in the manual.
This may cause leakage and damage to the radio.
3. For long term storage of the radio, turn the radio OFF and
remove the batteries from the radio.
LOW BATTERY LEVEL INDICATOR
Your LXT360/365 Series has a LOW BATTERY ICON which
will only appear on the LCD display if the battery voltage level is low.
At this point, the battery needs to be charged for at least 12hrs.
!
POWER ON/OFF AND VOLUME
Press the POWER/MENU button for at least 3 seconds to turn the
radio on/off. During Power On, the radio will beep 3 times with
different tones, the LCD will display all icons for 1 second and the
LCD display will indicate the last channel selected.
To increase/decrease the volume level, press the s\tbutton during
RX or STANDBY mode.
TRANSMITTING AND RECEIVING A CALL
To communicate, all radios in your group must be set to the same
channel.
1. For maximum clarity, hold the radio 2 to 3 inches from your
mouth.
2. Press and hold the PTT button and speak in a normal voice
into the microphone. The TX icon will appear continuously on
the LCD Display while transmitting.
3. To receive a call, release the PTT button. The RX icon will
appear on the display when your radio is receiving a transmis-
sion.
OPERATING YOUR RADIO

ABOUT RANGE
Your LXT Series radios are designed to give you maximum range
under optimum conditions.
Optimum Conditions are:
lOver water
lOpen rural areas without obstructions
lFlat areas where you can see the other person
To ensure you get maximum range:
lBe sure to use fresh or fully charged batteries - low batteries will
cause low power conditions
lBe sure you are on a GMRS channel - FRS channels are
restricted by the FCC to low power
lBe sure to set your radio to use Hi power.
LXT360/365 Series QUICK REFERENCE CHART
SCAN
Your LXT360/365 Series can scan all 22 channels for activity. To
enter, quickly press the SCAN button. Repeat the same procedure to
exit. Your radio will rapidly scan each of the 22 channels and stop on
any active channel for 4 seconds before resuming scan.
When you press the PTT button to transmit on an active channel, the
scanning function will stop and remain on the active channel. To
resume scanning, quickly press the SCAN button.
MENU Channel
1~22
Roger Beep
On/Off
Power
H/L
Silent Operation
On/Off

CALL ALERT
Your LXT360/365 Series can transmit a call alert for a fixed length of
time. To send a call alert, press the CALL button. The TX icon will
appear while transmitting a call alert and a tone can be heard on the
speaker for confirmation.
KEYPAD LOCK
To avoid accidentally changing the radio setting, press the LOCK
button for 4 seconds. The KEY LOCK icon will appear on the display.
PTT and CALL will still be active. Repeat the same procedure to
unlock the keypad.
CHANNEL SELECTION (GMRS/FRS BAND)
Press the MENU button once, and then the s\tbuttons to select
one of the 22 GMRS/FRS channels. To confirm the selection, press
the PTT button or press the MENU button again to move to the next
feature setting.
Note : To communicate between two LXT360/365 Series radios,
all radios in your group must be set to the same channel.
!
TRANSMIT (TX) POWER LEVEL SELECTION
Your LXT360/365 Series has 2 power level settings. To select the
power level on channels 1~7 and 15~22, press the MENU button until
a “Pr” icon will appear blinking on the display. Then press the s\t
buttons to select TRANSMIT POWER LEVEL icon (H: Hi/L: Lo). To
confirm, press the PTT button or press MENU button again to move
to the next feature setting.
Note : You cannot adjust the power setting on the FRS
channels (8~14). They are set to Low power per
FCC regulations.
!

ROGER BEEP (end of transmission) TONE
When the PTT button is released, the radio will beep to confirm to
other users that your transmission has finished.
To turn the ROGER BEEP tone on, press the MENU button until the
display shows an “rb” icon while on the right of the “rb” display, an
“oF” icon appears. Select “on” by pressing the s\tbuttons and
push the PTT key, or press MENU button to move to the next feature
setting.
To turn the ROGER BEEP tone off, press the MENU button until the
display shows an “rb” icon while on the right of the “rb” display, an
“on” icon appears. Select “oF” by pressing the s\tbuttons and
push the PTT key, or press MENU button to move to the next feature
setting.
SILENT OPERATION
Your LXT360/365 Series has a SILENT OPERATION mode. In this
mode, all “beeps” and “tones” are disabled.
To turn the SILENT OPERATION mode on, press the MENU button
until the display shows an “bP” icon while on the right of the “bP”
display, an “on” icon appears. Select “oF” by pressing the s\t
buttons and push the PTT key or MENU button.
To turn the SILENT OPERATION mode off, press the MENU button
until the display shows an “bP” icon while on the right of the “bP”
display, an “oF” icon appears. Select “on” by pressing the s\t
buttons and push the PTT key or MENU button.
EXTERNAL SPEAKER/MICROPHONE JACK
Your LXT360/365 Series can be used with an optional
external speaker/ microphone or headset, freeing your
hands for other tasks. To use an optional speaker /
microphone or headset:
l Insert the plug(s) into the SPK/MIC jacks
lPlace the earbud into your ear, and adjust the
mic into your desired position.
Note : You can charge a rechargeable NiMH
battery pack thru the CHG Jack

PROBLEM SOLUTION
No Power - Check battery installation and/or replace batteries
Cannot Receive
Messages - Confirm the radios have the same channel settings.
- Make sure that you are within range of the other
transceivers.
- Buildings and other structures may interfere with
your communication.
Radio is not responding
to button presses - Make sure key lock is not on. See "Keypad Lock" - Radio might need to be reset. Turn radio off then
on.
Display is dim - Recharge or replace batteries.
Charger not functioning - Contacts on the bottom of the radio may require
cleaning.
- Ensure the outlet where the charger is plugged
into is functioning properly.
- Check that the battery pack is installed in the radio
properly.
USE AND CARE
1. Use a soft damp cloth to clean the radio
2. Do not use alcohol or cleaning solutions to clean the radio.
3. Do not immerse the radio in water.
4. Dry the radio with dry lint-free cloth should it get wet.
5. Turn off the radio and remove the batteries during long-term
storage.
If you have a problem which you believe requires
service, please call first and speak with a service
technician. Many problems can be remedied over the
phone without returning the unit for service.
TROUBLESHOOTING GUIDE

SPECIFICATIONS
Channels 22 GMRS/FRS Channels
Operating Frequency UHF 462.5500 ~ 467.7125 MHz
Power Source 4 AAAAlkaline or 4.8V Rechargeable Ni-MH
battery pack
GMRS/FRS FREQUENCY CHART (MHz)
CH. No CH. Freq. CH. No CH. Freq. CH. No CH. Freq.
1 462.5625 9 467.5875 17 462.6000
2 462.5875 10 467.6125 18 462.6250
3 462.6125 11 467.6375 19 462.6500
4 462.6375 12 467.6625 20 462.6750
5 462.6625 13 467.6875 21 462.7000
6 462.6875 14 467.7125 22 462.7250
7 462.7125 15 462.5500
8 467.5625 16 462.5750
* Channels 8~14 are low-power FRS license free channels

LIMITED WARRANTY
Midland Radio Corporation will repair or replace, at its option
without charge, any Midland FRS/GMRS transceiver which fails
due to a defect in material or workmanship within Three Years
following the initial consumer purchase. This warranty does not
apply to water damage, battery leak or abuse.
Accessories have a 90 day warranty from date of purchase,
including any antennas, chargers, or earphones. This warranty
does not include the cost of labor for removal or re-installation of
the product in a vehicle or other mounting. Performance of any
obligation under this warranty may be obtained by returning the
warranted product, prepaid freight, along with proof of purchase
to:
Midland Radio Corporation
Warranty Service Department
5900 Parretta Drive
Kansas City, MO 64120
This warranty gives you specific legal rights, and you may also
have other rights, which vary from state to state.
Note : The above warranty applies only to merchandise purchased in
the United States of America or any of the territories or possessions
thereof, or from a U.S. Military exchange.
Midland Radio Corporation
5900 Parretta Drive
Kansas City, MO 64120
Tel: [phone]
E-mail: [email protected]
URL: www.midlandradio.com

AVP-11
AVP-HH1
AVP-HH2
AVP-HH3
- 1 Open Face Helmet
Microphone Kit
- $49.99
- 1 Closed Face
Helmet Microphone
Kit
- $49.99
- 2 Over the Ear Mic.
Headsets w/ PTT
- $19.99
ACCESSORIES
Accessories can be purchased at www.midlandradio.com or fill in
the form on the following page and mail it to our address.

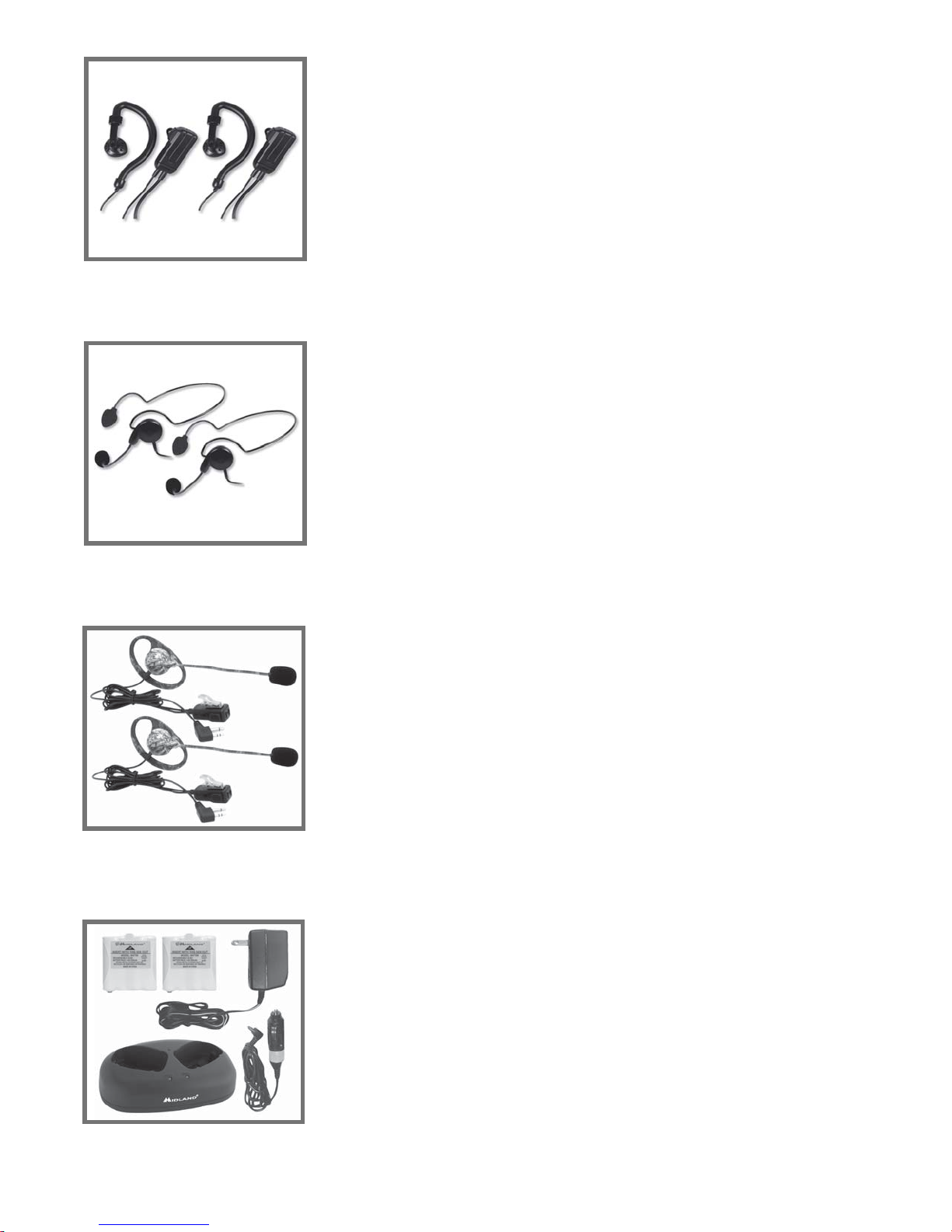

- 2 Surveillance
Headset
- $39.99

AVP-HH4
AVP-HH5
AVP-HH7
AVP-66
- 2 Behind the Head
Headset
- $39.99
- 2 Ear Wrap
Headset
- $39.99
- 1 Dual Desk
Charger
- 2 Rechargeable
battery packs
- 1 AC Adapter
- 1 DC Cigarette
lighter adapter
- $39.99
- 2 Mossy Oak
Around the Ear
Headsets with
Boom Mic
- $39.99

Please send Money Order or fill in Visa/MasterCard information and
mail to the address below. Please DO NOT send cash or checks.
Make Money Order to Midland Radio Corporation.
Name: _____________________________________________________
Address: ___________________________________________________
City: _____________________ State _____Zip Code _____________
Tel: ______________________ email: ___________________________
CC# _____________________ Type: __________ Exp. ____________
ACCESSORIES ORDER FORM
Mail To:
Midland Radio Corporation
Consumer Dept.
5900 Parretta Drive
Kansas City, MO 64120
----------------
Or Call 816.241.8500.
----------------
To order online go to
www.midlandradio.com
Sub-Total ___________
Tax (MO, CO, IL, FL only) ___________
S & H _____ $14.95
(Applies to Domestic U.S. only.
For Hawaii, Alaska, and Puerto
Rico S&H will be $36.25 for 1lb
and $64.25 for 2lbs or more).
Total $___________
Qty Item Price Total
AVP-1 $19.99
AVP-6 $39.99
AVP-H1 $49.99
AVP-H2 $49.99
AVP-H3 $39.99
AVP-H4 $39.99
AVP-H5 $39.99
AVP-H7 $39.99

MMIIDDLLAANNDDRRAADDIIOOCCOORRPPOORRAATTIIOONN
5900 Parretta Drive
Kansas City, MO 64120
Call 816.241.8500
visit us at http://www.midlandradio.com
Note: Features & Specifications are subject to change without
notice. MIDLAND is not responsible for unintentional errors or
omissions on its packaging.
