Midwest Industries ShoreStation SSV30120MS User manual

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 1 of 41 9/16/2009
ACCESSORY
Your SHORESTATION Aluminum Boat Lift is designed to give years of dependable service. Following the
enclosed instructions will insure you that your lift is properly assembled.
SSV30120MS, SSV30120MSDW, SSPV30120MS, &
SSPV30120MSDW
ATTENTION: This Boat Lift uses
stainless steel fasteners. ALWAYS apply
anti-seize to fastener threads before
assembly to prevent galling or seizing.
SSV30120MS
SSPV30120MS

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 2 of 41 9/16/2009
Manual 3000# 120” Aluminum Cradle with Stainless Steel Fasteners
Table of Contents
SSV30120MS STANDARD LIFT
63401 Lower Frame Bundle V30/40120
62929 Leg Bundle V30/40/108/120 SS
65023 Winch Tube Bundle V30/40 SS
70223 Platform Bundle Alum V30/40120SS
7035701 Wheel Big Lift ShoreStation SS
7035901 Winch Assy Lift 1500/3000 SS
70388 Lit Packet SSV30120MS/DW/PV
70395 Hdwe Box V30/40/108/120MS & E
HA0085 Bunk Poly V30/40 Lift Alum SS
HA0087 Motor Stop Bundle 5.75 Alum V
SSV30120MSDW STANDARD DEEP WATER LIFT
63401 Lower Frame Bundle V30/40120
65023 Winch Tube Bundle V30/40 SS
70223 Platform Bundle Alum V30/40120SS
7035701 Wheel Big Lift ShoreStation SS
7035901 Winch Assy Lift 1500/3000 SS
70388 Lit Packet SSV30120MS/DW/PV
70391 Leg Bundle V30/40 DW SS
70395 Hdwe Box V30/40/108/120MS & E
HA0085 Bunk Poly V30/40 Lift Alum SS
HA0087 Motor Stop Bundle 5.75 Alum V
You and Your ShoreStation………………….3
Using Your Lift…………………………………3 & 4
Detail Drawings & BOM………………………4 thru 19
Base Pad…………………….5
Lift Arm……………………….6
Leg-Winch……………………7
Leg-1, 2, 3……………………8
Lower Frame…………………9
Platform………………………10
Spacer Tube…………………11
Cable Connections………….11
Winch Tube…………………..12 & 13
Winch Attachments………….14
Bunk Attachment & Assy…...15
Pontoon Assembly…..………16
Motor Stop……………………17
Lift Wheel……………………..18
Winch Assembly……………..19
For more detailed information regarding the
Installation, Transporting, Operation, Safety,
Maintenance, and additional accessories available
for your lift see your SHORESTATION Operators
Manual.
Assembly Instructions……………………20 Thru 35
Tools Required……………………………20
Pads………………………….20
Pad-Leg-Lift Arm……….......21
Lower Frame………………..22 Thru 24
Platform………………………25 Thru 27
Spacer Tube…………………28
Level Cable Connections…..29
Winch Tube…………………..29
Winch………………………….30
Wheel Stop Assy & Brkt…….31
Winch & Lift Cable Connect...32
Bunks……………………….....33
Motor Stop…………………….34
Leg Caps………………………35
Adjustments & Operators Info…………....36 Thru 41
SSPV30120MSDW PONTOON DEEP WATER LIFT
63401 Lower Frame Bundle V30/40120
65023 Winch Tube Bundle V30/40 SS
70223 Platform Bundle Alum V30/40120SS
7035701 Wheel Big Lift ShoreStation SS
7035901 Winch Assy Lift 1500/3000 SS
70388 Lit Packet SSV30120MS/DW/PV
70391 Leg Bundle V30/40 DW SS
70395 Hdwe Box V30/40/108/120MS & E
HA0096 Pontoon Kit V Alum Cradle Lifts
SSPV30120MS PONTOON LIFT
63401 Lower Frame Bundle V30/40120
62929 Leg Bundle V30/40/108/120 SS
65023 Winch Tube Bundle V30/40 SS
70223 Platform Bundle Alum V30/40120SS
7035701 Wheel Big Lift ShoreStation SS
7035901 Winch Assy Lift 1500/3000 SS
70388 Lit Packet SSV30120MS/DW/PV
70395 Hdwe Box V30/40/108/120MS & E
HA0096 Pontoon Kit V Alum Cradle Lifts

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 5 of 41 9/16/2009

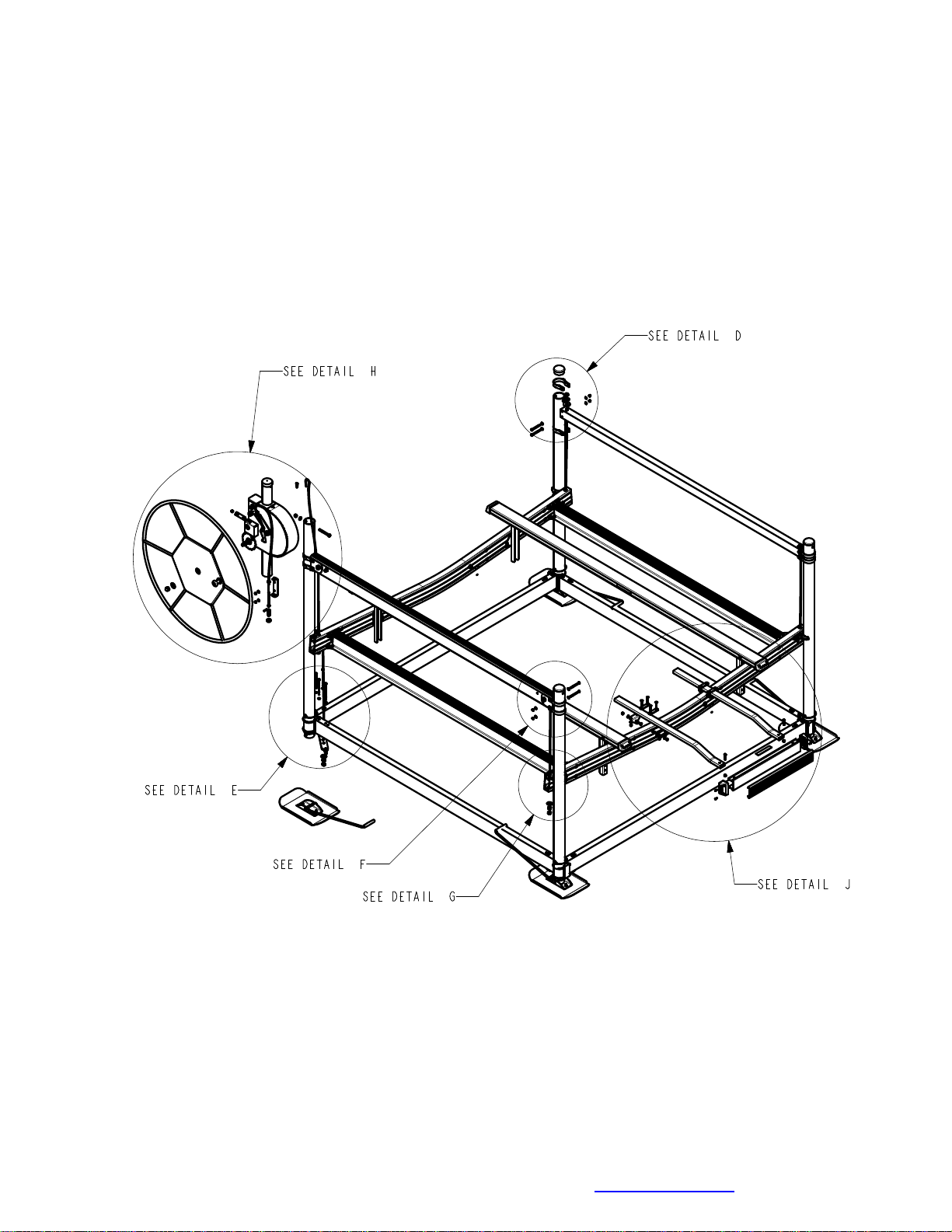

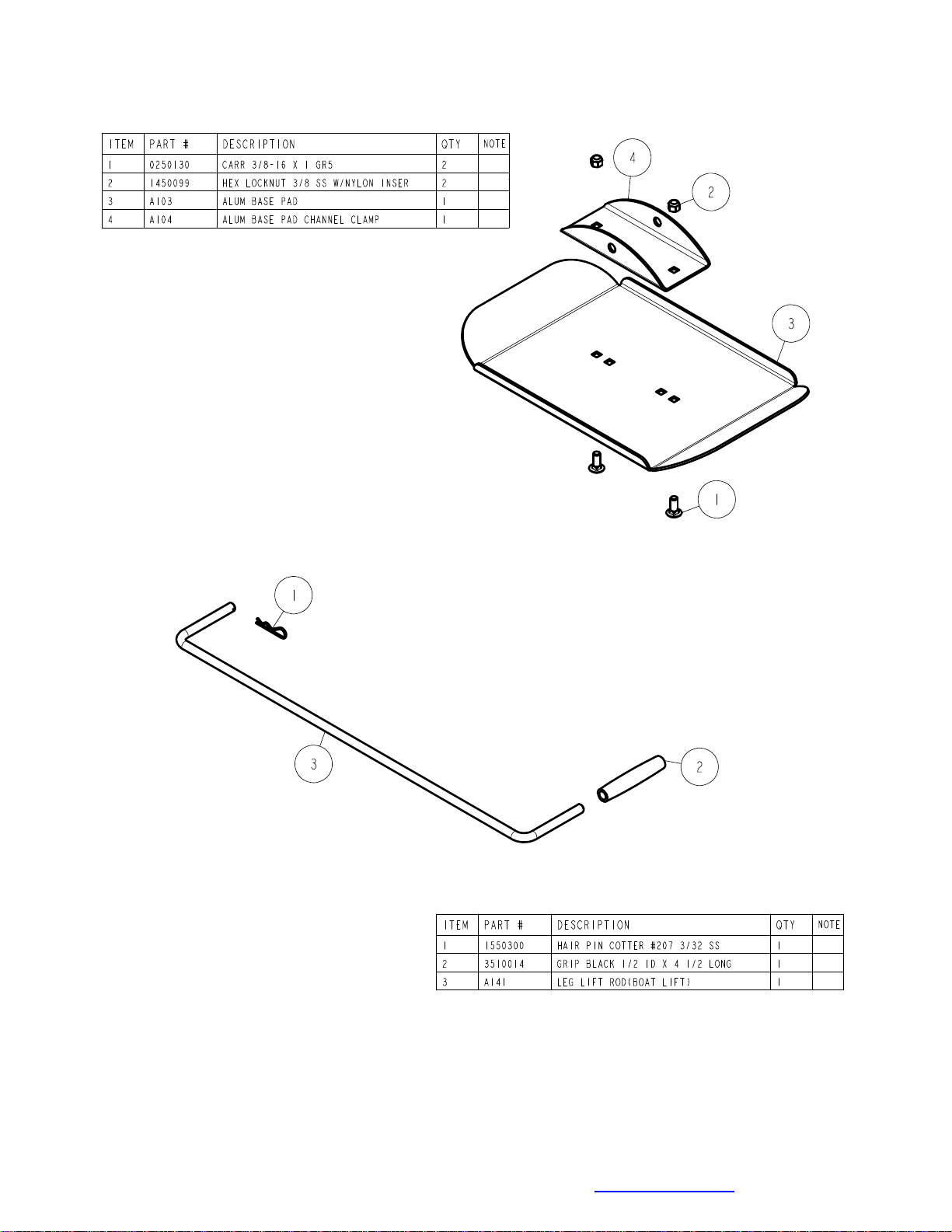

The diagram below and the line art drawings on the following pages are there to give you information on where
parts are used and if needed the part numbers you will need if replacement parts are needed.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 6 of 41 9/16/2009
.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 7 of 41 9/16/2009
Standard and Deep Water Winch Tube Leg Assemblies

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 8 of 41 9/16/2009

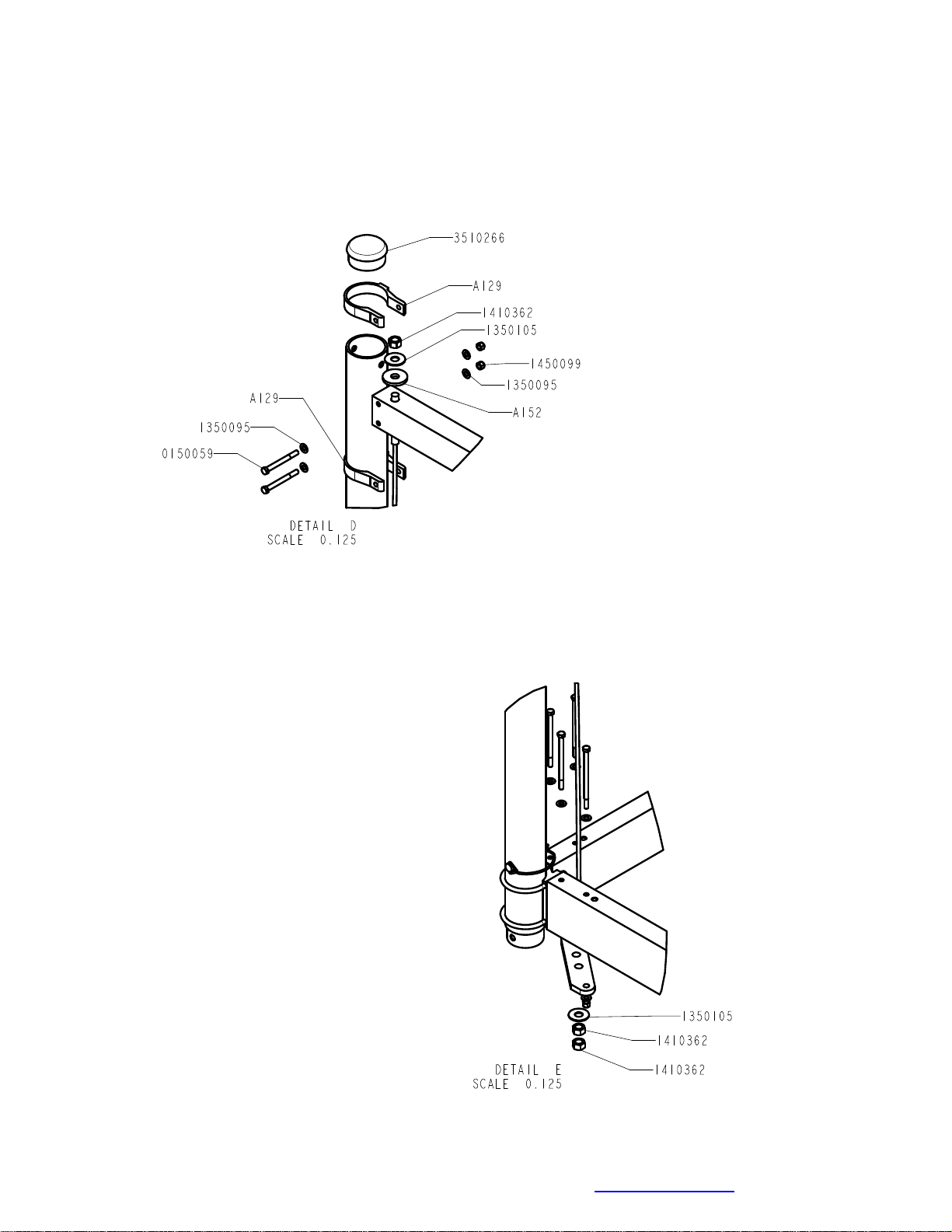

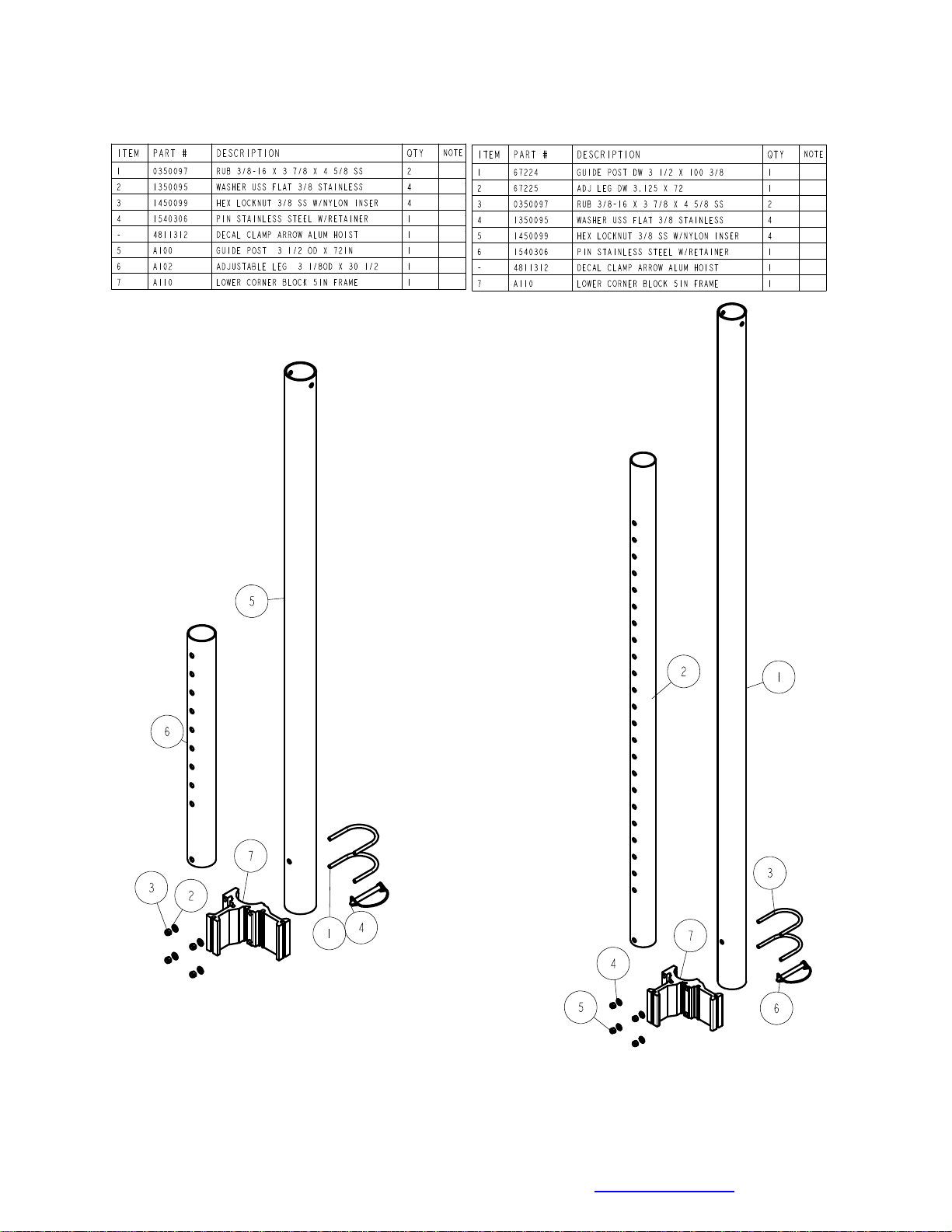

Standard and Deep Water Leg Assemblies

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 9 of 41 9/16/2009
Lower Frame Assembly

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 10 of 41 9/16/2009
Aluminum Platform Assembly

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 11 of 41 9/16/2009

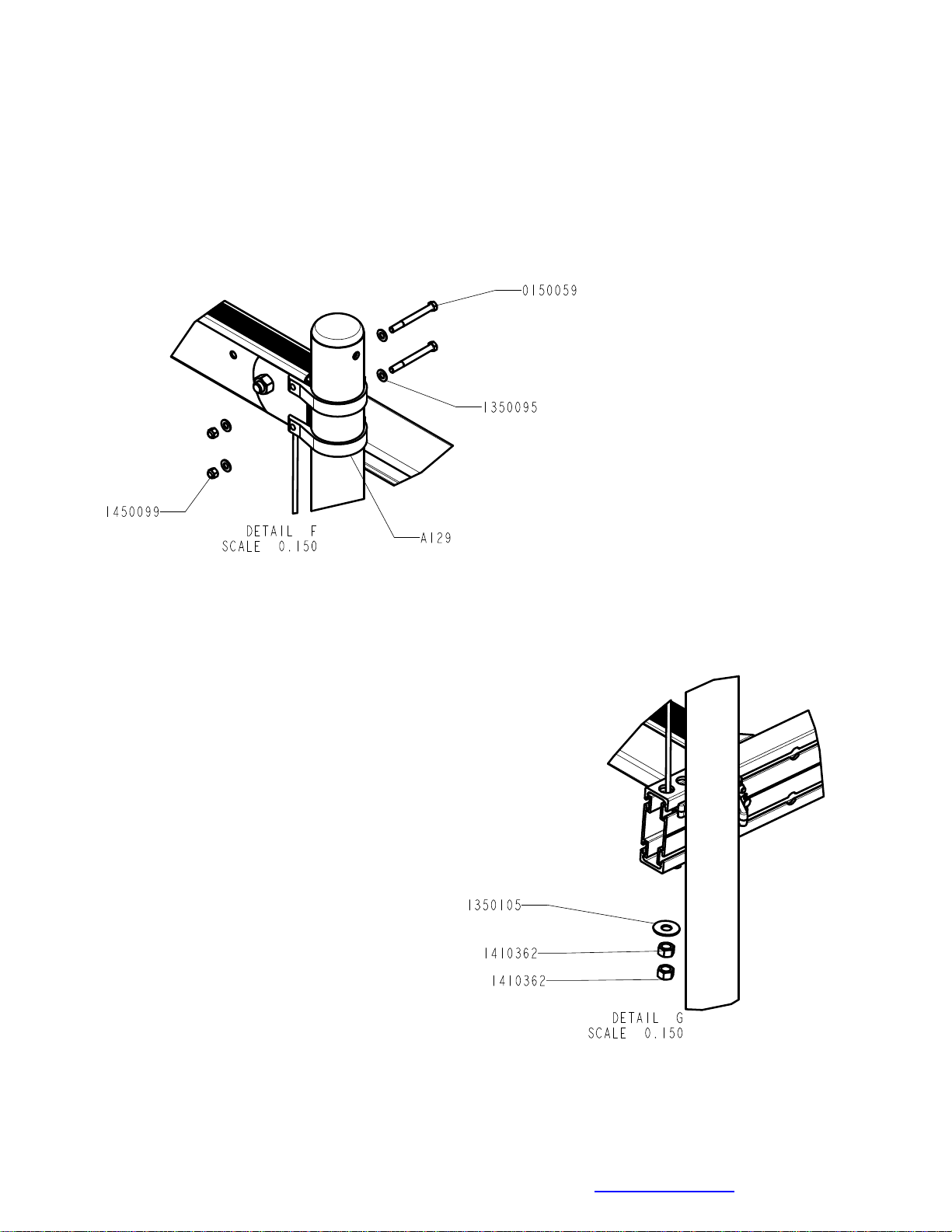

Brace Tube Mounting/Level Cable Mounting Hardware and Leg Tube Cap
Bottom Level Cable Mounting Hardware

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 12 of 41 9/16/2009

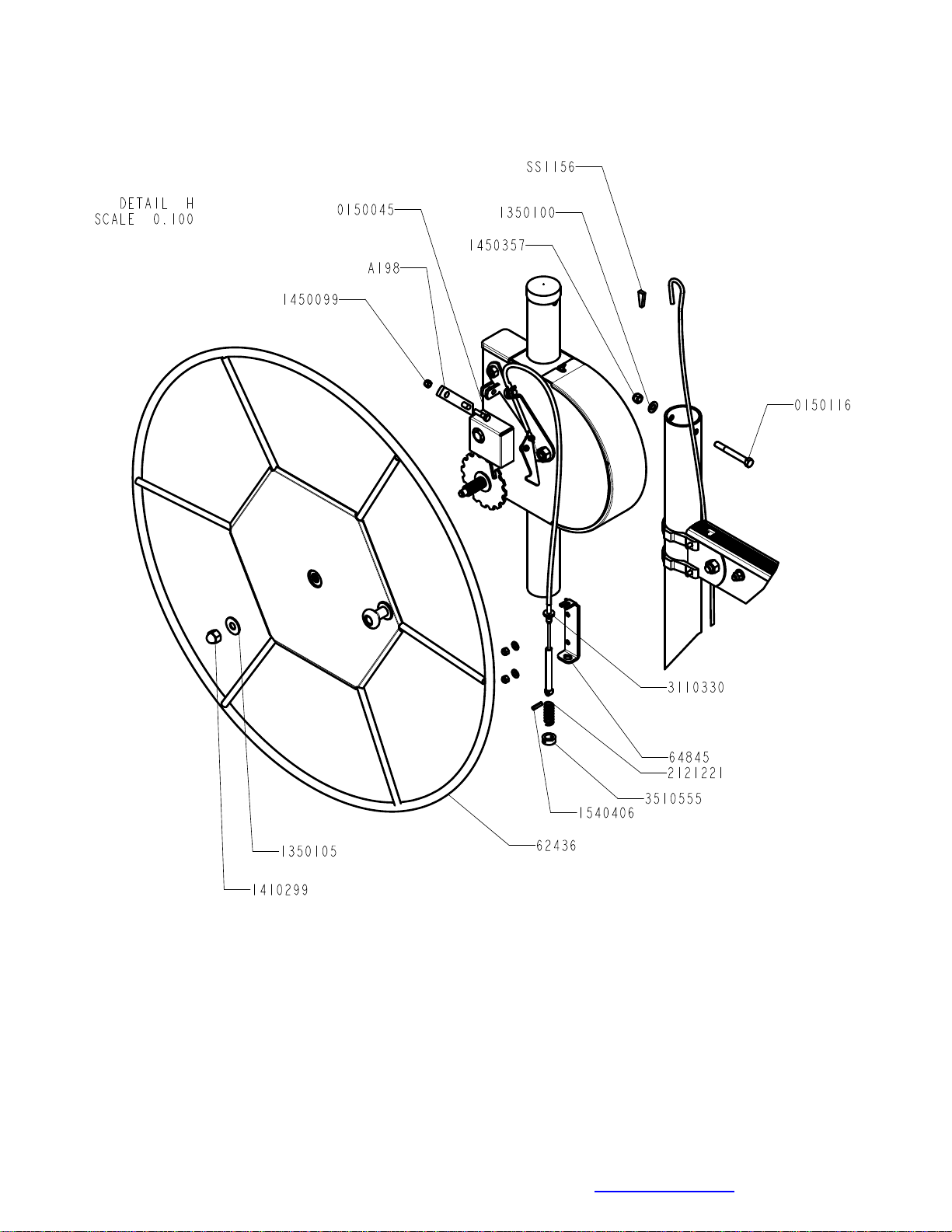

Winch Tube Assembly

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 13 of 41 9/16/2009
Lift Cable Mounting Hardware
Winch Tube Mounting Components

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 14 of 41 9/16/2009
Winch, Wheel, and Platform Stop Mounting Hardware and Cable Wedge

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 15 of 41 9/16/2009

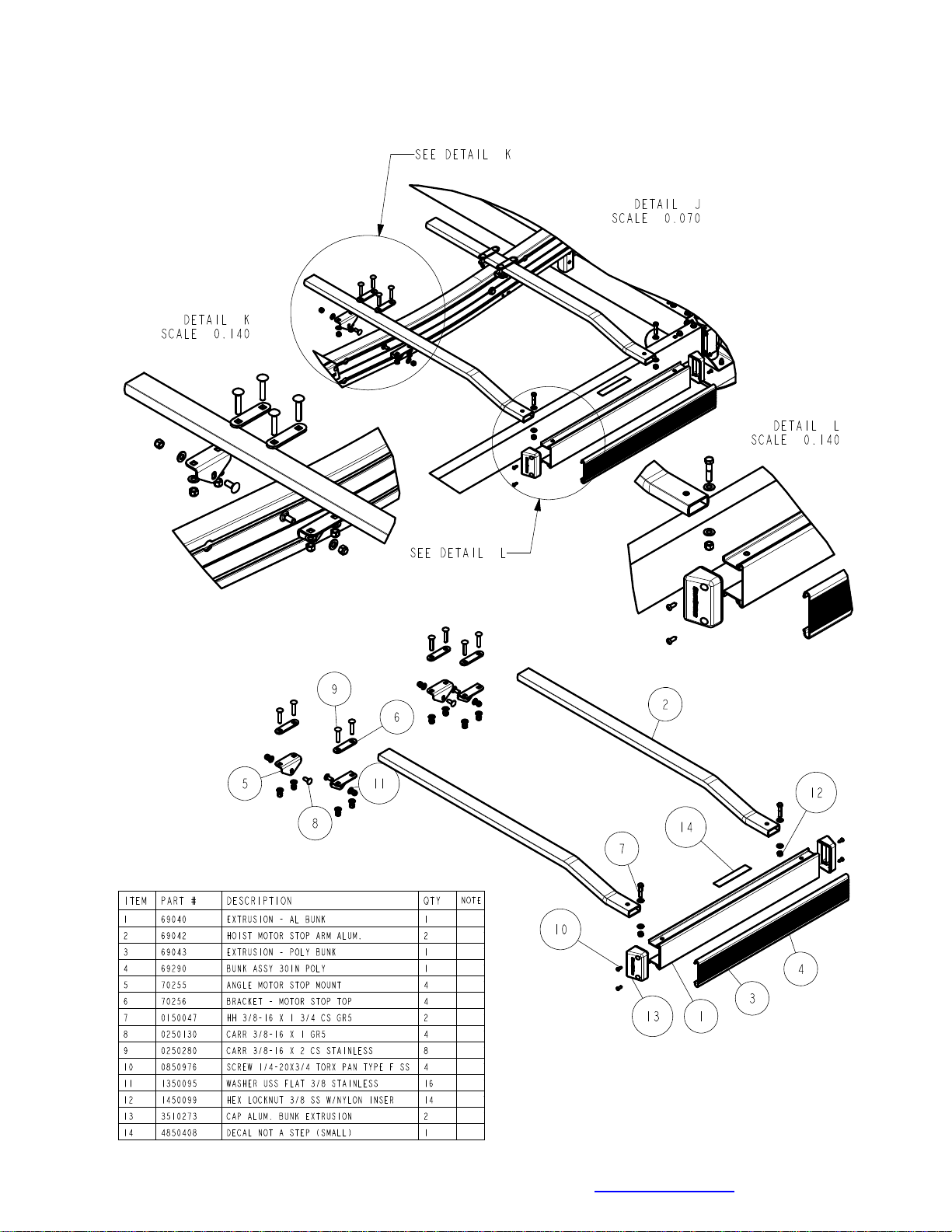

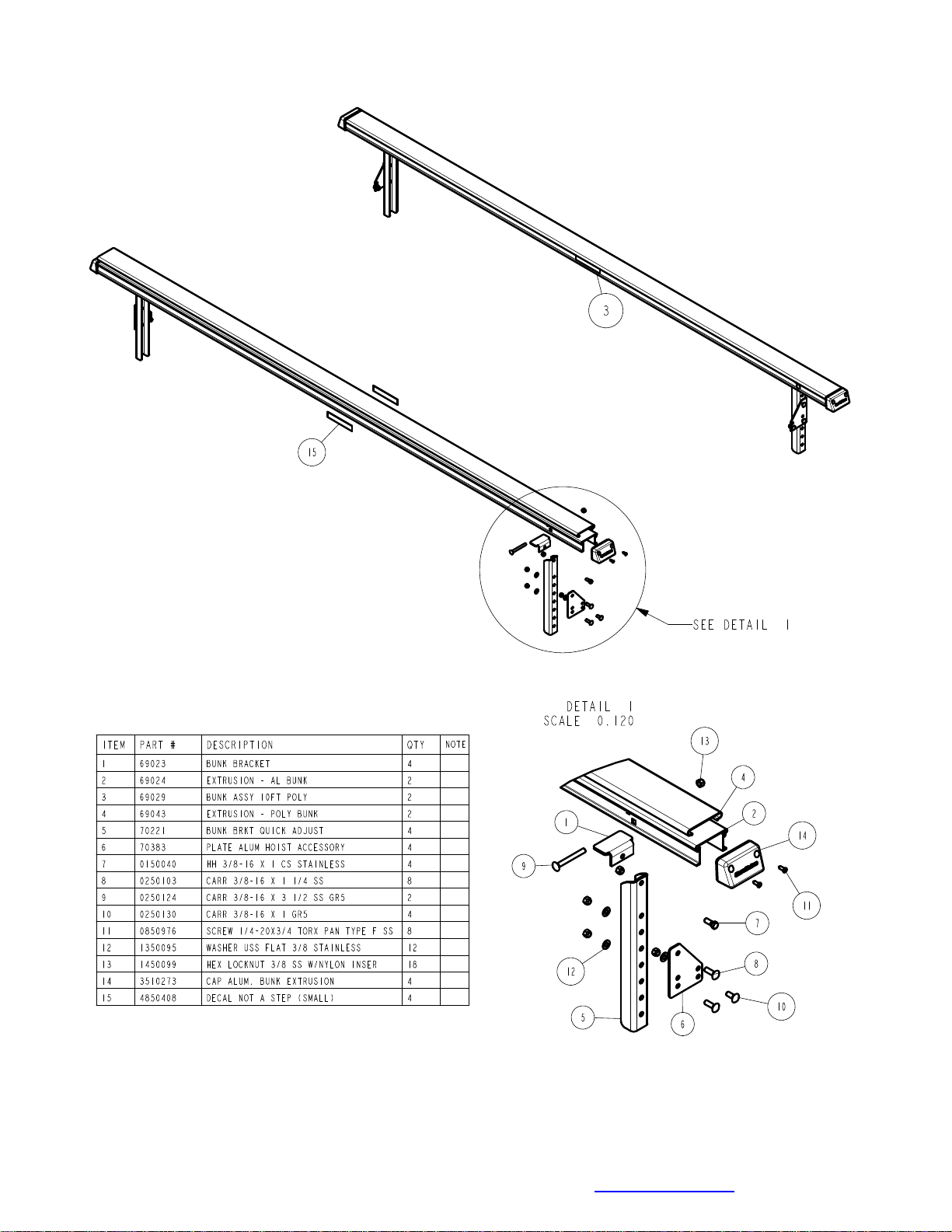

Bunk Mounting Hardware
Bunk Assembly

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 16 of 41 9/16/2009

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 17 of 41 9/16/2009
Motor Stop and Mounting
Hardware

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 18 of 41 9/16/2009

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004119
Page 19 of 41 9/16/2009

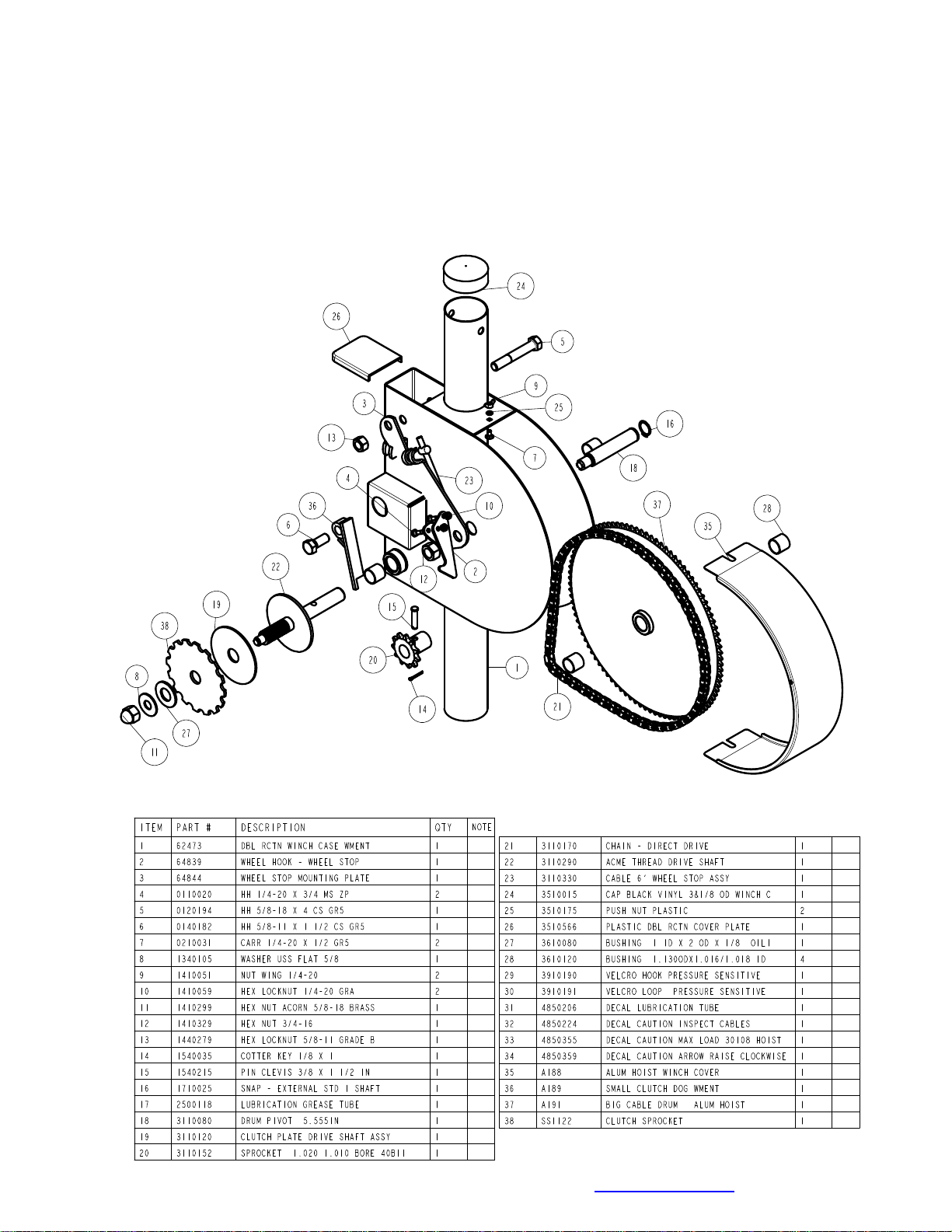

Winch Assembly
