Avanti SHARK L AECO User manual

AVANTI SERVICE LIFT
User’s, Installation and Maintenance Manual
Model SHARK L AECO
Original instructions
AT00016288 Shark L AECO EN update.indd 1 11/14/2018 4:02:34 PM

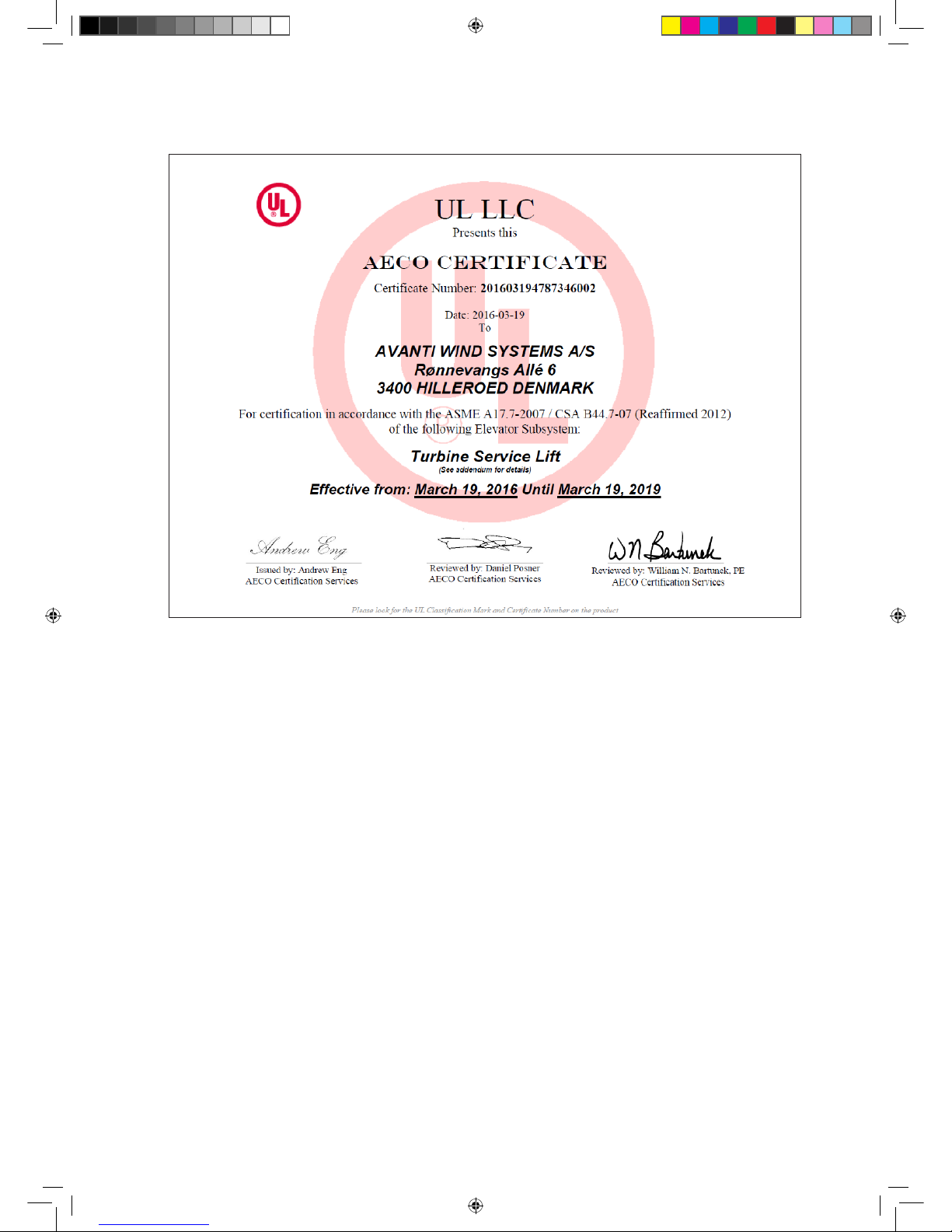

AECO certificate for Shark L equipped with M508 hoist:
AT00016288 Shark L AECO EN update.indd 2 11/14/2018 4:02:34 PM

Manufactured Under Process Patent NO.8,499,896.
® Registered in Europe
Date of publication:
1st Edition: October 2018
Revision 1: 26/10/2018
Manufacturer:
AVANTI Wind Systems A/S
Rønnevangs Allé 6
3400 Hillerød Denmark
P: [phone]
F: [phone]
E: [email protected]
I: www.avanti-online.com
Sales & Service:
Australia Avanti Wind Systems P/L P: [phone]
China Avanti Wind Systems P: [phone]
Denmark Avanti Wind Systems A/S P: [phone]
Germany Avanti Wind Systems GmbH P: [phone] – 0
Spain Avanti Wind Systems SL P: [phone]
UK Avanti Wind Systems Limited P: [phone]
USA Avanti Wind Systems, Inc P: [phone]
India Avanti Wind Systems India (P) Ltd P: [phone]
Brazil Avanti Brasil Sistema Eólicos LTDA P: [phone]
AT00016288 Shark L AECO EN update.indd 3 11/14/2018 4:02:34 PM

4
AVANTI Service Lift for Wind Turbines
Page
User’s manual
1. Limited warranty .....................................................6
2. Introduction .........................................................7
2.1 Symbols .........................................................7
2.2 Terms and definitions .................................................7
3. Cautions ...........................................................8
4. Instructions .........................................................9
5. Description of equipment............................................... 10
5.1 Purpose ........................................................ 10
5.2 Function........................................................ 10
5.3 Service lift models ................................................. 10
5.4 Temperature ..................................................... 10
5.5 Accessories ..................................................... 10
5.6 Components..................................................... 11
5.6.1 Cabin overview .............................................. 11
5.6.2 Technical data for the service lift SHARK L ............................ 12
5.6.3 Drive system, fall arrest device and controls ........................... 13
5.7 Cabin safety devices ............................................... 14
5.7.1 Electromagnetic motor brake .................................... 14
5.7.2 EMERGENCY STOP ........................................... 14
5.7.3 EMERGENCY STOP fixed (Optional) ................................ 14
5.7.4 Automatic operation switch ...................................... 14
5.7.5 Overload limiter .............................................. 14
5.7.6 Fall arrest device ............................................. 14
5.7.7 Yellow flash (Optional).......................................... 14
5.7.8 Emergency light (Optional) ....................................... 14
5.7.9 Door stop switch ............................................. 15
5.7.9.1 Sliding door: ........................................... 15
5.7.10 Trapped-Key interlock system (Optional): ............................. 15
5.7.11 Limit stop switch ............................................. 15
5.7.11.1 Top limit stop switch ..................................... 15
5.7.11.2 EMERGENCY top limit switch............................... 15
5.7.11.3 Bottom obstruction detection device .......................... 15
5.7.11.4 Top obstruction detection device ............................ 15
5.8 Safety devices for fences with doors (optional) .............................. 15
5.8.1 Guard Locking System .......................................... 15
5.8.2 Trapped-key Interlock System ..................................... 16
5.9 Slack rope sensor ................................................. 16
5.10 Anchor points .................................................... 16
6. Daily inspection by the supervisor ........................................ 17
6.1 Service lift ...................................................... 17
6.2 Operating area ................................................... 17
6.3 Control functions .................................................. 17
6.4 Automatic operation test ............................................. 18
6.5 Fall arrest device .................................................. 18
6.6 Wires ropes ..................................................... 18
6.7 Wires ropes after an unusual event ...................................... 19
7. Use of the service lift.................................................. 20
7.1 Prohibited uses ................................................... 20
7.2 Entry and exit .................................................... 20
7.3 Stop/EMERGENCY STOP ............................................ 20
7.4 Normal operation.................................................. 20
7.5 Automatic operation................................................ 20
7.6 Overload limiter ................................................... 21
7.7 Override of the bottom obstruction detection device .......................... 21
8. Manual operation (EMERGENCY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.1 EMERGENCY descent .............................................. 22
9. Fall arrest device ASL508............................................... 23
Contents
AT00016288 Shark L AECO EN update.indd 4 11/14/2018 4:02:35 PM

5
User’s Manual
10. Troubleshooting ..................................................... 24
11. Out of service ....................................................... 27
12. Removing wires for replacement ......................................... 27
12.1 Parking the service lift .............................................. 27
12.2 Wire rope ends ................................................... 27
12.3 Removing the traction wire rope ........................................ 27
12.4 Removing the safety wire rope ......................................... 27
13. Maintenance........................................................ 27
13.1 Recommended planning ............................................. 27
13.2 Alternative planning ................................................ 28
13.3 Cautions ....................................................... 28
13.4 Annual inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
13.4.1 Cabin ..................................................... 28
13.4.2 Traction hoist ................................................ 29
13.4.3 Fall arrest device ............................................. 29
13.4.4 Traction, safety and guiding wire ropes............................... 30
13.4.5 Electrical cables .............................................. 30
13.4.6 Overload check and adjustment ................................... 30
13.4.7 Information signs and documents .................................. 30
13.5 Repairs ........................................................ 30
13.6 Ordering spare parts................................................ 31
14. Transport and storage ................................................. 31
Installation manual
1. Fitting of wires........................................................ 32
1.1 Tower top ....................................................... 32
1.2 Wire ropes positioning measurements ................................... 33
1.3 Securing the guide wire ropes - ground level................................ 34
1.3.1 Method 1: Wedge anchor ........................................ 34
1.3.2 Method 2: Tripod .............................................. 34
1.3.3 Method 3: Graduated tensioner .................................... 35
1.3.4 Tensioning the guide wire ropes Ø0.47 in (12 mm) ........................ 35
1.4 Electrical connections ............................................... 35
1.4.1 Power supply ................................................ 35
1.4.2 Supply cable ................................................. 36
1.4.3 Power connection ............................................. 36
1.4.4 Bottom platform control box ...................................... 36
1.5 Installation of traction and safety wire ropes through lift ........................ 37
1.6 Securing the traction and safety wire rope ................................. 38
1.7 Wire rope fix alignment .............................................. 39
1.8 Adjustment of the safe-zone plates ...................................... 40
1.9 Adjustment of top limit device (bar) ...................................... 40
2. Danger zone! sticker ................................................... 40
3. Disassembling........................................................ 40
4. Inspection before initial use .............................................. 40
Appendix A: Regulation of overload limiter ..................................... 41
Appendix B: Safety measures............................................... 42
Appendix C: Inspection Checklist ............................................ 44
Appendix D: AVANTI lift anchor.............................................. 48
Appendix E: Inspection log sheet ............................................ 52
Appendix F: Stomp-test Instruction........................................... 55
AT00016288 Shark L AECO EN update.indd 5 11/14/2018 4:02:35 PM

6
AVANTI Service Lift for Wind Turbines
1) Avanti service lift (“Product”)
Avanti Wind Systems A/S warrants that com-
mencing from the date of shipment to the
Customer and continuing for a period of the
longer of 365 days thereafter, or the period set
forth in the standard AVANTI warranty, the
Product1) described in this Manual will be free
from defects in material and workmanship
under normal use and service when installed
and operated in accordance with the provisions
of this Manual.
This warranty is made only to the original user
of the Product. The sole and exclusive remedy
and the entire liability of Avanti under this
limited warranty, shall be, at the option of
Avanti, a replacement of the Product (including
incidental and freight charges paid by the
Customer) with a similar new or reconditioned
Product of equivalent value, or a refund of the
purchase price if the Product is returned to
Avanti, freight and insurance prepaid. The
obligations of Avanti are expressly conditioned
upon return of the Product in strict accordance
with the return procedures of Avanti.
This warranty does not apply if the Product (i)
has been altered without the authorization of
Avanti or its authorized representative; (ii) has
not been installed, operated, repaired, or
maintained in accordance with this Manual or
other instructions from Avanti; (iii) has been
subjected to abuse, neglect, casualty, or
negligence; (iv) has been furnished by Avanti to
Customer without charge; or (v) has been sold
on an “AS-IS” basis.
Except as specifically set forth in this Limited
Warranty,
ALL EXPRESS OR IMPLIED CONDITIONS,
REPRESENTATIONS AND WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, ANY
IMPLIED WARRANTY OR CONDITION OF
MERCHANTABILITY, FITNESS FOR A PAR-
TICULAR PURPOSE, NON-INFRINGEMENT,
SATISFACTORY QUALITY, COURSE OF DEAL-
ING, LAW, USAGE OR TRADE PRACTICE ARE
HEREBY EXCLUDED TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW
AND ARE EXPRESSLY DISCLAIMED BY
AVANTI. IF, PURSUANT TO ANY APPLICABLE
LAW, TO THE EXTENT AN IMPLIED WARRAN-
TY CANNOT BE EXCLUDED AS PROVIDED IN
THIS LIMITED WARRANTY, ANY IMPLIED
WARRANTY IS LIMITED IN TIME TO THE SAME
DURATION AS THE EXPRESS WARRANTY
PERIOD SET FORTH ABOVE. BECAUSE SOME
STATES DO NOT PERMIT LIMITATIONS ON
THE DURATION OF IMPLIED WARRANTIES,
THIS MAY NOT APPLY TO A GIVEN CUSTOM-
ER. THIS LIMITED WARRANTY GIVES CUS-
TOMER SPECIFIC LEGAL RIGHTS, AND
CUSTOMER MAY HAVE OTHER LEGAL
RIGHTS UNDER APPLICABLE LAWS.
This disclaimer shall apply even if the express
warranty fails of its essential purpose.
In any cases of dispute the English original shall
be taken as authoritative.
1. Limited Warranty
AT00016288 Shark L AECO EN update.indd 6 11/14/2018 4:02:35 PM

7
STOP
!
!

User’s Manual
2. Introduction
Only trained people may use this lift.
This manual must be available to staff at all times during installation, maintenance and operation.
Additional copies are available from the manufacturer upon request.
This manual, including, but not limited to, measurements, procedures, components, descriptions,
instructions, recommendations and requirements, is subject to change without prior notice. Please
check Avanti website/manuals for the latest revisions of the manuals.
Any additional cost related to or arising from any changes in the manuals does not entitle Customer to
any form of compensation or other legal remedies.
The pictures and sketches in this manual may not reflect the product aesthetics, colours,
arrangement precisely. This has no impact on the function or safety.
2.1 Symbols
Symbol Signal word Meaning Possible injury if not observed
Safety instructions
DANGER!
IMMEDIATE or
possibly imminent
danger:
Death or severe injury!
DANGER!
IMMEDIATE or
possibly imminent
danger of hazardous
voltage:
Death or severe injury!
CAUTION! Potentially hazardous
situation:
Light injury or material damage.
Additional instructions
ATTENTION! Potentially dangerous
situation:
Damage to equipment or workplace
IMPORTANT!
Useful tips for optimum
working procedure
None
Order
Reference to written
specification/documentation
AT00016288 Shark L AECO EN update.indd 7 11/14/2018 4:02:35 PM

8

AVANTI Service Lift for Wind Turbines
3. Cautions
Use and daily inspection of the service lift shall only be
performed by person who has gone through the relevant
training associated with the Avanti service lift use and daily
inspection and is in possession of a valid (non expired)
certificate for the task. Installation and maintenance of the
service lift shall only be performed by Certified technicians.
The personnel must be at least 18 years of age.
The staff must be familiar with the relevant accident preven-
tion instructions and must have received proper training in
these.
Personnel are obliged to read and understand this manual.
Personnel shall wear PPE (safety helmet, full body har-
ness, shock absorber, lanyard and slider) at all times.
A copy of the Manual must be handed out to the personnel
and must always be available for reference.
If more than one person is entrusted with one of the above
tasks, the employer shall appoint a supervisor in charge of
the operation.
Electrical connection of the system must be made in ac-
cordance with EN 60204-1.
Self-locking nuts must be used at all times. The screw must
extend from the nut by at least half of the thread diameter.
The nut may not be used once it has become possible to
loosen by hand!
If any damage or faults are found during operation, or if
circumstances arise which may jeopardize safety: immedi-
ately interrupt the work in progress and notify the supervisor
or employer! All tests/repairs of electrical installations may
only be performed by a certified technician.
All repairs to the traction, braking and supporting sys- tems
may only be performed by a certified technician.
If any supporting parts are repaired or replaced,
If any supporting parts are repaired or replaced, the opera-
tional safety of the system must be tested and verified by a
certified technician.
Only original fault-free parts may be used.
Use of non-original parts will render the manufacturer’s war-
ranty void and any type approval invalid.
No modification, extension or reconstruction of the service
lift is allowed without the manufacturer’s prior written con-
sent.
No warranty is provided against damage resulting from
reconstruction or modification of equipment or use of non-
original parts which are not approved by the manufacturer.
Before using the service lift an inspection by the authorized
inspection organisation must be carried out. The service lift
must be inspected at least once a year by a certified techni-
cian. In case of high operating frequency or severe condi-
tions of use, more frequent inspection is required.
Service lift is designed for a lifetime of 20 years with an
operating frequency of approximately 12.5 h/year (250 h in
total).
Service lift may not be used by persons who are under the
influence of alcohol or drugs which may jeopardize working
safety.
Service lift lift shall not be used in case of fire in the tower.
Service lift shall ONLY be used when the turbine is not
generating power.
All wind farm site specific rules must be followed. Service
lift shall not be used during inclement weather, including
wind speeds over 25 m/s (55.5 mph).
AECO service lift personnel shall be equipped with a wired
or wireless two way communication device connected to a
location staffed by authorized personnel.
Avoid injury – follow all instructions!
Owner must verify the need for third
party service lift inspections with the local
authority and comply with the standards
specified.
Terms Definitions
Certified technician Person who has gone through the relevant training associated with the scheduled task from Avanti or
from a certified trainer and is in possession of a valid (non expired) certificate for the task.
User Person who has gone through the relevant training associated with the Avanti service lift use and daily
inspection and is in possession of a valid (non expired) certificate for the task.
Manual descent Action performed to descend the lift at a controlled speed without power supply by manually opening
the hoist electromagnetic brake. (Also manual no-power descent)
2.2 Terms and definitions
Equivalences of terminology
British English terms North American English terms
Service lift / cabin Elevator
AT00016288 Shark L AECO EN update.indd 8 11/14/2018 4:02:35 PM

9
User’s Manual
a) Before and after using, check all parts for proper
function and damage to component parts. Do not use a
damaged or improperly functioning product.
b) Any parts that have been exposed to excessive heat,
as in the case of fire, should be immediately removed
from service and destroyed due to loss of structural
strength.
c) Do not permit oil, grease, or slippery material to accu
mulate on climbing or gripping surfaces.
d) Planks and stages are designed with rated working
loads of 533 lbs (240 kg). The total combined weight of
each worker and all materials should not exceed the
rated working load. Do not overload.
e) Erect the plank or platform so that the working or
standing surface is level.
f) Support plank or platform ends by stirrups, scaffold
bearer members, trusses or other equipment intended
for this purpose.
g) Use guardrails, midrails, and toe boards as required
by local, state, and federal regulations. Their use is
recommended in all cases.
h) Do not allow unstable objects, such as barrels, boxes,
loose brick, tools, and debris to accumulate on the work
surface.
i) Do not use a ladder or other device to gain greater
heights.
j) Never climb onto a stage from a ladder unless both
the stage and the ladder are secured from movement in
all directions.
k) Do not ride on top of a moving work cage. Tools,
materials, and equipment should not be stored on
planks or platforms that are being moved.
l) Do not apply impact loads to any parts.
m) Do not use acids or other corrosive sub- stances on
a plank or platform without consulting the plank or
platform manufacturer for specific instructions.
n) Before using, refer to manufacturer’s instructions.
4. Instructions
AT00016288 Shark L AECO EN update.indd 9 11/14/2018 4:02:35 PM

10
AVANTI Service Lift for Wind Turbines
The service lift purpose is to transport persons
plus their tools and equipment to the most con-
venient height for performing work in wind turbine
generators (WTG).
Its use is limited to authorized users.
The access to the WTG and consequently to the
service lift is controlled and forbidden to public
access.
The service lift is used primarily to transport
technicians, their tools and spare parts from the
bottom platform (or lowest accessible point) to the
top platform (or highest accessible point).
It is also used to access intermediate platforms
where inspection and service of WTG connecting
bolts and other equipment is made.
5.2 Function
The service lift uses a traction hoist to ascend and
descend a wire rope suspended from a beam
within the wind turbine along a defined travel path.
A fall arrest device is attached to the service lift and
ascends and descends with it on a second
suspended wire rope, called the safety wire rope.
Ascent and descent of the service lift is controlled
from within the service lift via a manual mode or
from outside the service lift in an automatic send
mode.
An overload limiter prevents ascent of the service
lift in the event of an overload of the traction hoist.
Two tensioned wire ropes act as guiding means
along the travel path of the service lift.
5.3 Service lift models
This User’s Manual and Installation Manual
describe the following models:
• SHARK L AECO sliding door with 533 Lbs
(240kg) lifting capacity, AECO control box,
traveling cable (optional) and slack rope sensor.
5.4 Temperature
Operating temperature
5ºF to +140ºF (-15ºC to +60ºC).
Survival temperature
-13ºF to +176ºF (-25ºC to +80ºC).
Low temperature kit is also available. Operational
temperature for low temperature kit
-13ºF to +104ºF (-25ºC to +40ºC).
5.5 Accessories
In order to fulfil the essential health and safety
requirements from the regulations the design of
the wind turbine and its components shall comple-
ment the safety systems supplied on the service
lift making the ensemble safe as a whole.
A detailed evaluation of compliance to the EHSR
and a risk assessment shall be completed. Avanti
shall verify the compliance to such requirements
prior to installation. Systems that may be consid-
ered to complement the service lifts are:
5.5.1 Fences & guards
The service lift hole must be adequately protected
to prevent people from falling or being injured by
the movement of the service lift. The fences and
guards design shall comply with the relevant
standards and local regulations.
5.5.2 Safety system for landing access doors
The service lift hole must be adequately protected
to prevent risk of falling. When the service lift is not
at the landing, access doors shall not be able to
open. Such function may be achieved by using
interlock systems on access doors linked to the
position of the service lift.
5. Description of equipment
5.1 Purpose
AT00016288 Shark L AECO EN update.indd 10 11/14/2018 4:02:35 PM

11
User’s Manual
5.6 Components

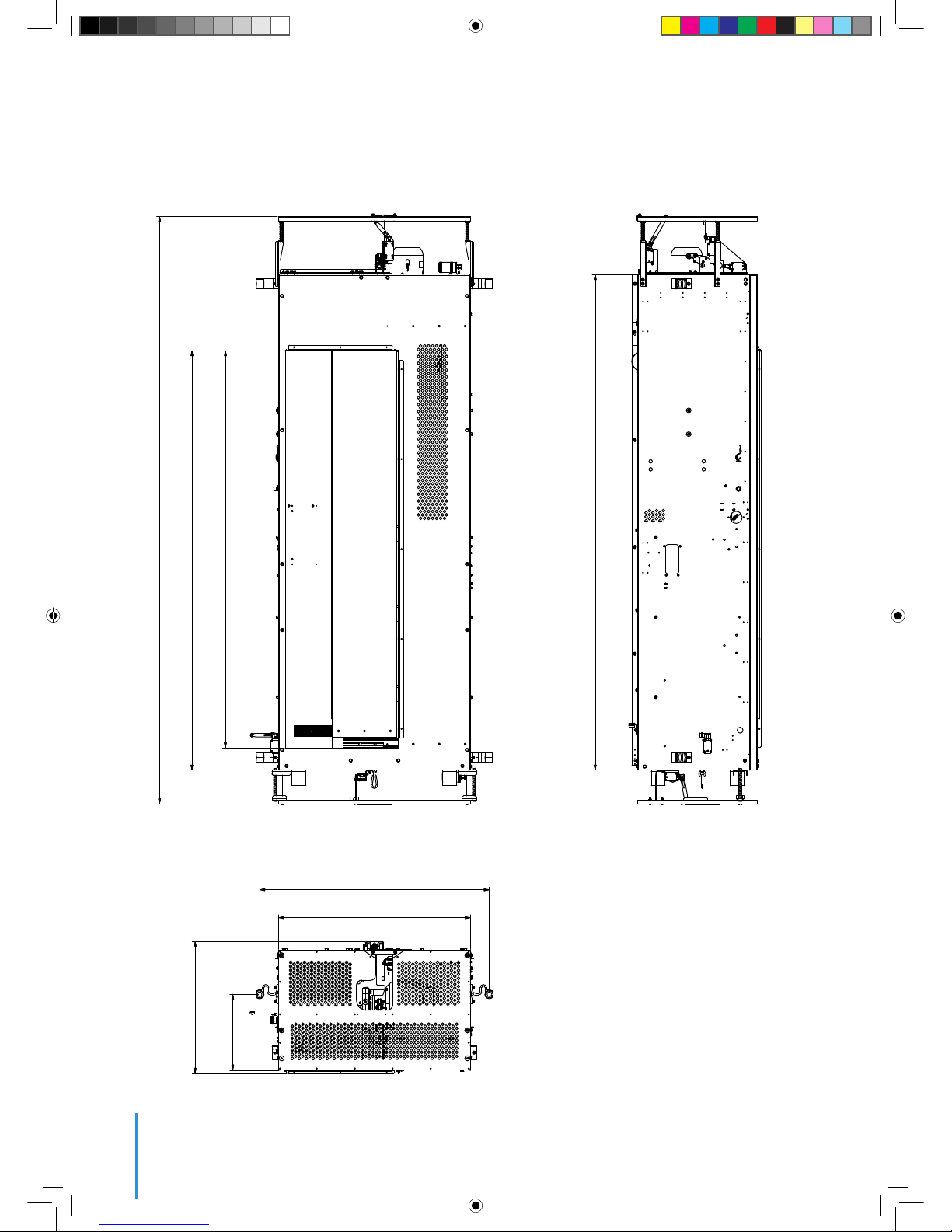

5.6.1 Cabin overview
Fig. 1 SHARK L sliding door
1 Top hatch
2 Fall arrest device
3 Cabin control box
4 Anchor points
5 Interlock switch
6 Trapped-key switch
7 Pendant control
8 Full sliding door
9 Bottom obstruction detection device
10 Traction hoist
11 Top obstruction detection device
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
Denmark
Rønnevangs Allé6
DK-3400 Hillerød
AIP ApS
Format:
A2
ISO 2768-mK
1 / 1
Sheet no.
Title:Tolerances:
Scale:
1:10
DateRev. Appr. Release Change Description
Treatment:
Proj.
Material:
Edge:
Dwg No.: Rev.Weight:
Mat. format.:
THIS DOCUMENT AND ITS CONTENTS ARE PROPRIETARY TO AIP ApS AND PROTECTED BY COPYRIGHT. THEY ARE CONFIDENTIAL AND MAY CONTAIN LEGALLY PRIVILEGED INFORMATION.
COPYING, SUBMITTING TO THIRD PARTIES OR USE IN ANY FORM AND FOR ANY PURPOSE OTHER THAN THAT ORIGINALLY INTENDED IS PROHIBITED WITHOUT THE EXPRESS PREVIOUS WRITTEN CONSENT OF AIP ApS.
N/A
No treatment
Not applicable
TREATMENT NOTE:
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
Denmark
Rønnevangs Allé6
DK-3400 Hillerød
AIP ApS
Format:
A2
ISO 2768-mK
1 / 1
Sheet no.
Title:Tolerances:
Scale:
1:10
DateRev. Appr. Release Change Description
Treatment:
Proj.
Material:
Edge:
Dwg No.: Rev.Weight:
Mat. format.:
THIS DOCUMENT AND ITS CONTENTS ARE PROPRIETARY TO AIP ApS AND PROTECTED BY COPYRIGHT. THEY ARE CONFIDENTIAL AND MAY CONTAIN LEGALLY PRIVILEGED INFORMATION.
COPYING, SUBMITTING TO THIRD PARTIES OR USE IN ANY FORM AND FOR ANY PURPOSE OTHER THAN THAT ORIGINALLY INTENDED IS PROHIBITED WITHOUT THE EXPRESS PREVIOUS WRITTEN CONSENT OF AIP ApS.
N/A
No treatment
Not applicable
TREATMENT NOTE:
11
10
2
3
4
7
9
5
1
6
8
AT00016288 Shark L AECO EN update.indd 11 11/14/2018 4:02:41 PM

12
AVANTI Service Lift for Wind Turbines
5.6.2 Technical data for the service lift SHARK L
Fig. 2 Dimensions, sliding door
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
Denmark
Rønnevangs Allé6
DK-3400 Hillerød
AIP ApS
Format:
A2
ISO 2768-mK
1 / 1
Sheet no.
Title:Tolerances:
Scale:
1:15
DateRev. Appr. Release Change Description
Treatment:
Proj.
Material:
Edge:
Dwg No.: Rev.Weight:
Mat. format.:
THIS DOCUMENT AND ITS CONTENTS ARE PROPRIETARY TO AIP ApS AND PROTECTED BY COPYRIGHT. THEY ARE CONFIDENTIAL AND MAY CONTAIN LEGALLY PRIVILEGED INFORMATION.
COPYING, SUBMITTING TO THIRD PARTIES OR USE IN ANY FORM AND FOR ANY PURPOSE OTHER THAN THAT ORIGINALLY INTENDED IS PROHIBITED WITHOUT THE EXPRESS PREVIOUS WRITTEN CONSENT OF AIP ApS.
160,22 kg
No treatment
Not applicable
TREATMENT NOTE:
2940
2099
1988
2480
1150
960
661
380
AT00016288 Shark L AECO EN update.indd 12 11/14/2018 4:02:42 PM

13
8
7
9
10
11
12
13
5
6
14
15
16
1
2
3
4
M508
User’s Manual
5.6.3 Drive system, fall arrest device and controls
Fig. 3 Traction hoist Fig. 4 Fall arrest device
Table 1. Traction hoist
Table 2. Fall arrest device
1 Insertion point for
brake lever
2 Motor
3 Wire rope traction
w/overload protection
4 Drive system/gearbox
5 Unlock lever
6 Lock lever
7 ASL Lamp
8 Automatic/Manual
9 Ready lamp
10 Override switch bottom
obstruction detection device
11 Main switch
12 Hour counter
13 Platform level light (optional)
14 EMERGENCY STOP button
15 UP
16 DOWN
Fig. 5 Electrical control box
For M508
ASL508
Fig. 6 a
Pendant control
Hoist Lifting
capacity Wire rope speed Effect Rated current
Traction wire
rope Ø
Unit weight
approx.
Traction hoist type Lbs (Kg) Feet/min (m/min) kW Ain (mm) Lbs (Kg)1)
M508/400V 60Hz 1100 (500) 66 (21) 1.8 4.9 0.33 (8.4) 110 (50)
M508/480V 60Hz 1100 (500) 66 (21) 1.8 4.1 0.33 (8.4) 110 (50)
1) Weight without wire rope.
Installed with a properly sized, listed GFCI in accordance with NFPA 70 or CSA 22.1 as required.
Fall arrest device Lifting capacity To max.
wire rope speed
Traction
wire rope Ø
Unit weight
approx.
Fall arrest type Lbs (kg) Feet/min (m/min) in (mm) Lbs (kg)
ASL508 1100 (500) 105 (30) 0.33 (8.4) 15.4 (7)
Wire rope type Wire rope
diameter
Surface
treatment
Mark/
feature
Min. break
resistance
Attached
with Anchoring Tighten to
Guiding wire rope 0.47 in (12mm) galvanised -55 kN Shackle,2t Min. every
115 ft (35 m) 2 to 4 kN
M508/ASL508 0.33 in, 5x19
(8.4mm, 5x19) galvanised none 55 kN 2 t shackle, Form C - -
Table 3. Drive wire, safety wire and guide wire
AT00016288 Shark L AECO EN update.indd 13 11/14/2018 4:02:44 PM

14
AVANTI Service Lift for Wind Turbines
5.7 Service lift safety devices
5.7.1 Electromagnetic motor brake
Electromagnetic spring-loaded brake which
engages automatically
– on releasing the up/down push button and
– following a power failure.
5.7.2 EMERGENCY STOP
When the red EMERGENCY STOP (pendant
control) switch is pushed in an emergency, all
control is interrupted. After remedying the fault,
control is reactivated by turning the switch clock-
wise, until it pops out again.
5.7.3 EMERGENCY STOP fixed (optional)
Only in service lifts with an AUTOMATIC function
installed. A backup switch to the pendant control
EMERGENCY STOP switch is situated on one of
the side panels inside the lift (Fig. 8).
5.7.4 Automatic operation switch
A switch situated inside the pendant control
holder. It prevents the lift from being controlled
from the inside when the control is in automatic
mode.
5.7.5 Overload limiter
The overload limiter is built into the wire rope
traction system and will prevent upward travel in
the event of an overload. A warning signal
(buzzer) is triggered which will stop only when the
cause of the overload has been removed.
Possible reasons for activation of the limiter:
- The service lift is overloaded or
- the service lift encounters an obstacle during
upward travel.
Operator intervention:
- Reduce the load to below the overload limit, or
- lower the lift until it is free of the obstacle and
remove the obstacle before using the lift again.
5.7.6 Fall arrest device
Service lifts for personnel transportation must be
equipped with a fall arrest device which will
prevent the load from falling.
Fall arrest device type ASL.The fall arrest devices
ASL are opened manually (Fig. 7).
The speed of the safety wire rope passing
through the device is continuously monitored,
and the jaws automatically close in the event of
sudden excessive speed.
This protects the service lift from
a) Traction wire rope breaks and
b) Hoist failures.
The fall arrest device can also be engaged
manually in an emergency by pressing the
Emergency stop button. The window is used to
monitor the function of the centrifugal force
mechanism during operation.
5.7.7 Yellow flash (optional)
An optional set of flashes can be mounted on the
top and at the base of the lift. The flashes indicate
when the lift is in movement (Fig 9a).
4.7.8 Emergency light (optional)
An emergency light can be installed to provide
illumination inside the lift with and without electric
supply. The operation modes can be selected
by means of a switch (Fig. 9b).

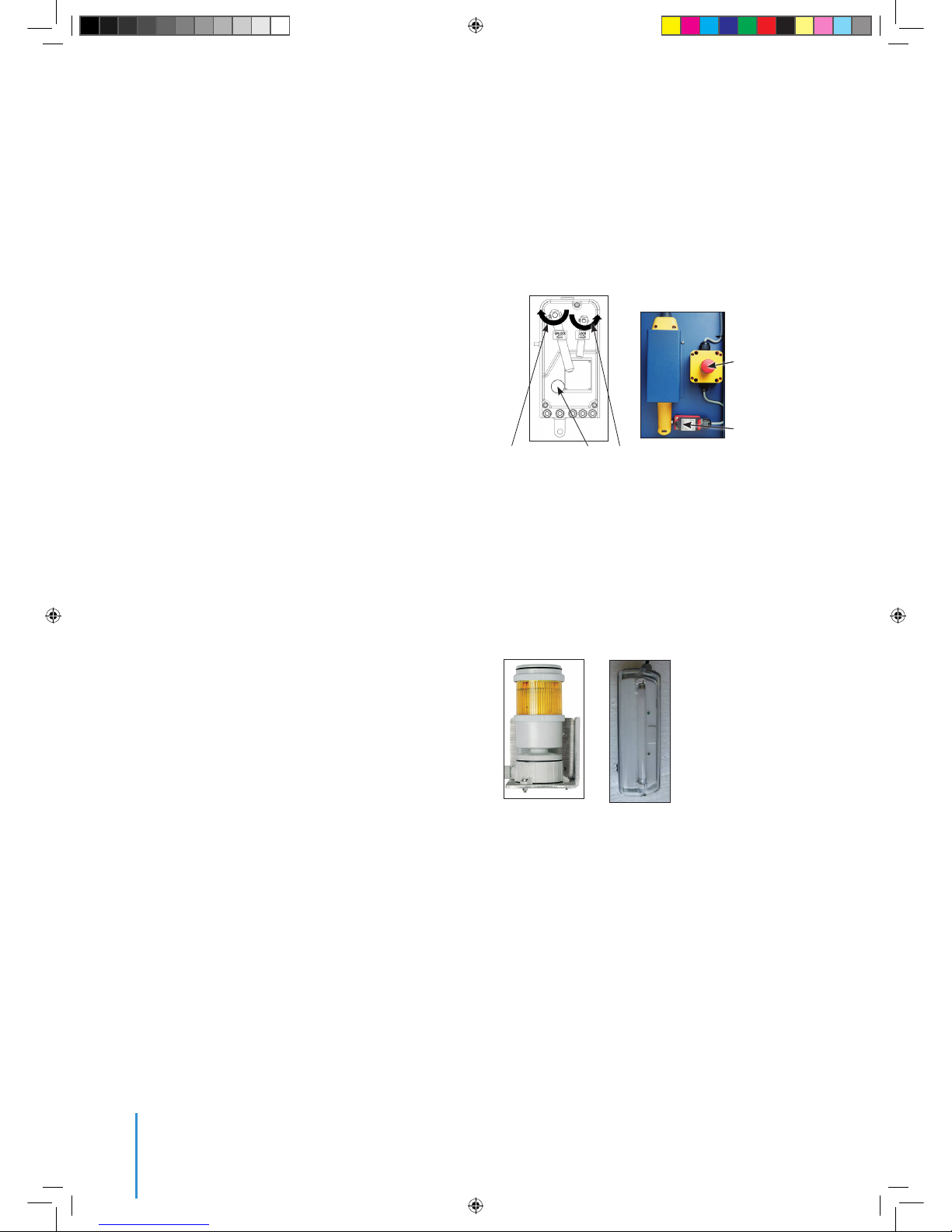

Fig. 7
Fall arrest device
ASL508
LockedUnlocked Window
Fig. 8
Emergency stop
and automatic
operation switch
Fig. 9a
Fixed
Emergency
stop button
Fig. 9b
Automatic
operation
switch
AT00016288 Shark L AECO EN update.indd 14 11/14/2018 4:02:44 PM

15
!
1
23
User’s Manual
5.7.9 Door stop switch
5.7.9.1 Sliding door:
The sliding door is closed by pushing the actuator into
the door guard locking switch (Fig. 10). The switch is
unlocked by pushing the green button if the cabin is
located at a height corresponding to a platform. In
case of an emergency evacuation between platforms,
the interlock is unlocked by pushing its emergency
release red button from outside the cabin as well as
using an M5 triangular key from inside the cabin.
5.7.10 Trapped-key interlock system (optional):
Control is interrupted by turning the trapped-key
switch to OFF. The key can then be removed. The key
allows the user to open the platform fence doors. See
the Trapped-Key Interlock System Manual for further
information.
5.7.11 Limit stop switch
5.7.11.1 Top limit stop switch
At the top of the cabin frame a top obstruction
detection device switch (works as a top limit stop
switch) will stop upward travel when activated (Fig. 11).
Downward travel will still be possible. A top stop bar
which activates the top obstruction detection device
switch is installed below the traction wire rope
attachment.
ATTENTION!
When the top obstruction detection
device switch is engaged, activate the
DOWN switch until the top obstruction
detection device switch is released.
5.7.12.2 EMERGENCY top limit switch
Deactivates control if the top obstruction detection
device switch fails (Fig. 11). Manual downward travel is
possible.
CAUTION!
Do not use the service lift until the top
limit stop switch fault has been rectified.
5.7.11.3 Bottom obstruction detection device
The bottom obstruction detection device switch (Fig.
12) stops downward travel if the service lift
encounters an obstacle or t o uches the ground.
Upward travel will be possible, for instance to remove
the obstacle. In order to put the service lift on the
ground, the contact plate’s operation can be bypassed
with the key switch in the control box.
5.7.11.4 Top obstruction detection device
The top obstruction detection device switch stops
upward travel in case the service lift:
- Type 1: encounters an obstacle.
- Type 2: the switch also works as a top limit stop
switch. A top stop end bar is installed bellow the
guiding wire rope attachment and activates the top
obstruction detection device switch.
Downward travel will be possible, for example, to
remove the obstacle.
5.8 Safety devices for fences with
doors (optional)
Safety devices for fences include devices to prevent
people from accessing the service lift area, unless the
service lift is safe to be accessed. The device also
guarantees that the service lift does not when the
protective fence doors are open. There are two types
of safety devices for fences:
5.8.1 Guard Locking System
The Guard Locking System uses a system of security
locking switches installed on the fences. Another
position switch detects the correct position of the
service lift on the protected platform. The service lift
cannot operate until all the protected fences are
closed and locked.
Fig. 10
1 Green push button
2 Emergency release red push button
3 Emergency release M5 triangular key
Top obstruction detection devide
switch
Bottom obstruction
detection device
Bottom obstruction
detection device switch
Main Switch Disconnector
Emergency top
limit switch
TREATMENT NOTE:
Fig. 13
AT00016288 Shark L AECO EN update.indd 15 11/14/2018 4:02:45 PM

16
AVANTI Service Lift for Wind Turbines
The fences remain closed and locked until the service
lift is stopped and properly positioned on the platform,
actuating the position switch of the platform. In this
position, the guard locking can be unlocked while
pressing the green light button.
The interlock control box has a main switch. Turn the
switch to the OFF position to cut the power to the
service lift. The main switch must be set to OFF when
the lift is not in use, when leaving the wind turbine and
while the wind turbine is running. It must be set to OFF
before starting an electrical generator.
Consult the AVANTI Guard Locking System Manual
for further information.
5.8.2 Trapped-key Interlock System
The Trapped-key Interlock System uses a system of
security locks installed on the fences. These locks can
be opened by using a key placed into the lift.
The key also activates the On/Off general switch
placed into the service lift cabin. The key is linked to
the lift by means of a wire rope, and cannot be
detached from it except using cutting tools.
The key cannot be taken out from the On/Off general
switch in the lift, unless it is in Off position, and
therefore, the lift is stopped. In the same way, the key
cannot be taken out from the fence lock unless the
fence door is closed, and the door actuator is put into
the door lock.
The fences remain closed and locked until the service
lift is stopped on the platform, and the key is trans-
ferred from the lift cabin to the fence lock.
Consult the AVANTI Trapped-key Interlock System
Manual for further information.
5.9 Slack rope sensor
Installed on the top of the service lift, over the
traction hoist, when engaged it will remove power
from service lift. It detects slack traction wire rope.
5.10 Anchor points
AVANTI work cage is equipped with an anchor
point for each user in the cabin. During operation
user should hook up to the Anchor point. Further
an optional safety bar can be mounted.
Trapped-key switch
Key Security lock on fence
Actuator
Fig. 14
AT00016288 Shark L AECO EN update.indd 16 11/14/2018 4:02:45 PM

17
!
STOP
User’s Manual
If a safety device for fence doors is installed (see
chapter 4.7 of the User’s manual), every platform
fence door must be closed to be able to drive the
cabin.
6.1 Service lift
a) Before each operation, ensure that the traction
hoist, the Fall arrest device and all auxiliary
components (stoppers, wire rope guide wheels,
etc.) are mounted in accordance with the
specifications and without any noticeable defects.
b) Check whether the drive, and safety wire ropes are
fed correctly around the two wire rope guide
wheels.
c) Wire rope ends (of 9 ft (3 m) or more in length)
must be coiled separately at the floor and tied with
strips in at least 3 places.
d) Check lifting capacity: (see the rating plate or
section 4.6.2) – the extra load (persons and
materials!) must not exceed the maximum rated
lifting capacity.
6.2 Operating area
a) Ensure that there are no obstacles within the
service lift’s operating area which may obstruct
the travel of the cabin or cause the cabin to hit the
ground.
b) Ensure that all relevant and required protection
measures below the cabin are in place. Such
measures could include pent roofs or barriers to
protect the staff from falling objects.
6.3 Control function
a) Close the doors. Press the EMERGENCY STOP
button. The lift should remain still when the UP/
DOWN button is pressed. To restart, turn the
EMERGENCY STOP button clockwise. If a FIXED
EMERGENCY STOP button is installed (Fig. 8)
test as above.
b) Test the top obstruction detection device switch:
During upward travel, press the top obstruction
detection device switch manually, and the service
lift should stop immediately. Pressing the top
obstruction detection device switch should enable
the lift to travel down again.
c) Test the EMERGENCY top limit switch: During
upward travel, press the EMERGENCY top limit
switch manually, and the service lift should stop
immediately. Neither upward nor downward travel
should now be possible.
d) Bottom obstruction detection device. Lower the
lift; it should stop before the rubber feet of the
cabin reach the tower ground level. When the
“bypass switch” is activated, it should be possible
to lower the lift all the way to the ground.
e) Door stop switch:
Open the door - it should not be possible to move
the lift upwards or downwards.
Sliding door service lift: Move the cabin at a height
no corresponding to a platform - it
should not be possible to open the door. The door
will be only able to be opened by pushing the
emergency release red button from outside the
cabin as well as using a M5 triangular key from
inside the cabin.
f) If the optional AUTOMATIC function is installed.
Set the AUTOMATIC/MANUAL selector to
AUTOMATIC. When holding the handle, the lift
should remain still when the UP or DOWN buttons
are activated.
g) If the Trapped-Key interlock system is installed.
Turn the trapped-key switch to OFF - it should be
not possible to move the lift upwards or
downwards. See the Trapped-Key Interlock
System Manual for further information.
Warning!
If any faults occur during work,
- stop working,
- if required secure the workplace and
- rectify the fault!
DANGER!
Make sure that nobody is exposed to danger
below the service lift, for instance from falling
parts. Suitable measures: Pent roof or barriers.
Fig. 15
Electrical control box M508
6. Daily inspection by the supervisor
EMERGENCY STOP
UP
DOWN
Pendant control
Hour counter
Main switch
Override switch
bottom obstruction
detection device
Ready lamp
Automatic/Manual
ASL Lamp
Platform level
light (optional)
AT00016288 Shark L AECO EN update.indd 17 11/14/2018 4:02:45 PM

18
AVANTI Service Lift for Wind Turbines
6.4 Automatic operation test
Perform this inspection only if the AUTOMATIC
function is installed.
a) Press EMERGENCY STOP button on the
pendant control. Turn the AUTOMATIC/
MANUAL. switch on the electrical control box
to the right to activate automatic operation.
b) Deactivate the EMERGENCY STOP button by
turning the button clockwise. (Check the
EMERGENCY STOP button fixed is deacti
vated.)The service lift should stand still.
c) DO NOT try to activate the “automatic opera-
tion” switch.
d) If the trapped-Key interlock system is installed,
turn the trapped-key switch to ON. With the
doors closed, press the UP and DOWN
buttons. Neither upward nor downward
travel should be possible (Switch in pendant
control holder blocks the operation).
e) Press the EMERGENCY STOP button on the
pendant control.
f) Place the pendant control in its holder so it is
operational from the outside.
g) Leave the cabin and close the door.
h) Deactivate the EMERGENCY STOP button.
The service lift should stand still.
i) Press the UP button. The lift should travel
upwards.
j) Press the EMERGENCY STOP button. The lift
stops.
k) Turn the EMERGENCY STOP button clockwise
and press the DOWN button. The service lift
should travel downwards until the EMERGEN-
CY STOP bottom stops the service lift.
l) Remove the pendant control from holder.
m) Return the AUTOMATIC/MANUAL. button to
HAND.
n) Check that the UP and DOWN buttons work
again.
6.5 Fall arrest device
a) Ascend electrically approx. 50 centimeters and
observe centrifugal weight during this process.
Activate the fall arrest device by turning the
lock lever counter clockwise (Fig. 7 section 5.7).
b) Verify the engagement with no-power descent
and observe centrifugal weight during this
process. The FAD must hold the load (if this is
not the case, leave the lift and tag it out).
Ascend electrically again to unload the FAD.
Unlock the fall arrest device by turning the
unlock lever clockwise.
c) During operation, regularly (at least once per
each travel up and down) monitor the
centrifugal force regulator relay’s rotation by
looking through the window.
d) There is an alternative method to check the
FAD functionality, called ‘Stomp Test’. The
procedure is explained in the ‘Stomp-test
Instruction’.
6.6 Wire ropes
a) Follow the 3 steps below to check that the
traction and safety wire ropes are not tangled
with tower internals.
a.1) Open the top hatch and look upwards in
search of any unusual trajectory deviation of
the traction and safety wire ropes.
a.2) Close the top hatch and ascend with the
service lift to the following platform.
a.3) Repeat steps a.1) and a.2) until the
complete length of the wire ropes is inspected.
a.4) If any wire rope is found tangled, climb up
the ladder and untangle the wire rope by hand.
Then, inform AVANTI.
Fig. 16
Emergency
stop button
Automatic
operation
switch
AT00016288 Shark L AECO EN update.indd 18 11/14/2018 4:02:45 PM

19
User’s Manual
b) During operation, check that the traction and
safety wire ropes pass freely through the traction
hoist and the fall arrest device.
c) Once the lift is at the top platform, inspect the top
tower beam and the wire rope attachments.

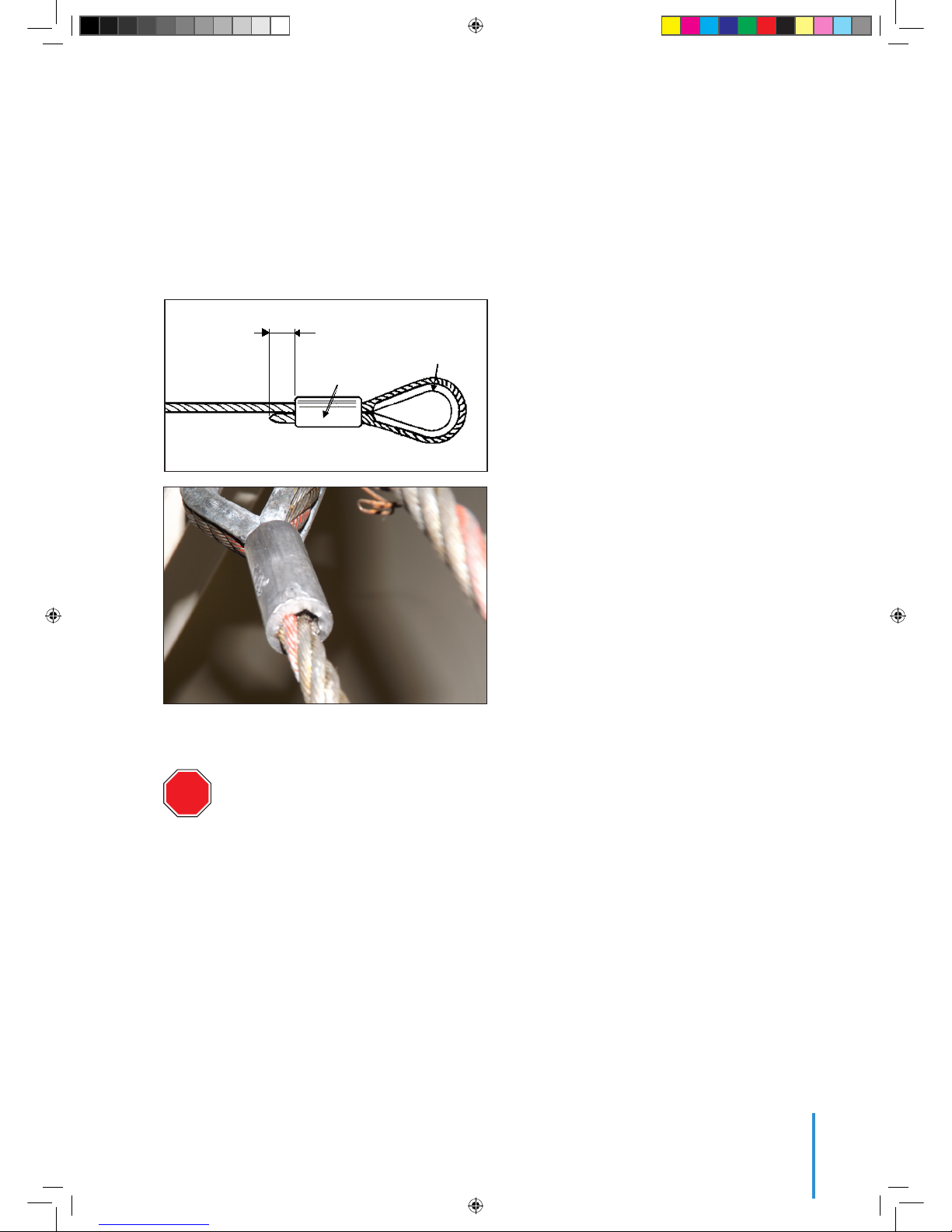

d) Check that the length (L) between the top end
of each wire rope and its ferrule is equal to or
more than 0 mm.
6.7 Wire ropes after an unusual event
After any unusual event (such as a tower jerk
due to the wind turbine going into emergency
mode) check that the traction and safety wire
ropes have not got tangled with tower
internals.
6.7.1 At the bottom platform
If the service lift is placed at the bottom platform
when the unusual event occurs, follow the steps
below.
a.1) Open the top hatch and look upwards in search
of any unusual trajectory deviation of the traction and
safety wire ropes.
a.2) Close the top hatch and ascend with the service
lift to the following platform.
a.3) Repeat steps a.1) and a.2) until the complete
length of the wire ropes is inspected.
a.4) If any wire rope is found tangled, climb up the
ladder and untangle the wire rope by hand. Then,
inform AVANTI.
6.7.2 At the top platform
If the service lift is at the top platform when the
unusual event occurs, follow the steps below.
a) From the platform look downwards through the
platform hole in search of any unusual trajectory
deviation of the traction and the safety wire ropes.
b) Enter the lift and descend to the following
platform.
c) Exit the lift and repeat steps a) and b) until the
complete length of the wire ropes is inspected.
e) If any wire rope is found tangled, climb down the
ladder and untangle the wire rope by hand. Then,
contact AVANTI.
L ≥ 0 mm

X
STOP
Thimble
Ferrule
AT00016288 Shark L AECO EN update.indd 19 11/14/2018 4:02:46 PM

20
AVANTI Service Lift for Wind Turbines
If a safety device for fence doors is installed (see
chapter 5.8 of the User’s manual), every platform fence
door must be closed to be able to operate the cabin.
Transportation of persons in AUTOMATIC mode is
forbidden.
7.1 Prohibited uses
The consequences of not following below
prohibitions are extremely hazardous to the
physical integrity of the users.
When using the service lift it is prohibited to:
• Use the service lift beyond its intended purpose.
• Operate the service lift without following the safety
warnings and operating instructions.
• Overload the service lift
• Try to repair machine components. Only certified
technicians are allowed to perform service on the
machine.
• To manipulate switches and safeties.
• To place objects on service lift roof.
• To descend on service lift roof.
7.2 Entry and exit
To ensure safe entry and exit:
a) Lower the service lift onto the access platform until
the contact plate is activated and the cabin stops,
or: bring the lift to a height corresponding to the
correct level for exiting from the wind turbine’s
platform.
b) Open the door and exit/enter the lift through the
door/over the cabin railing.
7.3 Stop/EMERGENCY STOP
a) Release the UP/DOWN push button; the service lift
should stop
If it does not:
b) Push the EMERGENCY STOP switch, and all
controls should be disabled. Open the door and
enter/exit the lift through the door/over the cabin
railing.
7.4 Normal operation
7.4.1 Without trapped key system
If the trapped key system is not provided, follow the
steps below.
a) Close the platform and lift doors.
b) Turn the emergency stop button of the pendant
control clockwise until it pops out.
c) Do likewise with the emergency stop button fixed in
the cabin (Fig. 8).
d) Press and hold the UP or DOWN button to ascend
or descend respectively.
7.4.2 With trapped key system
If the trapped key system is provided, follow the steps
below.
a) Extract the trapped key from key hole of the
platform fence.
b) Insert the trapped key in the key hole of the cabin
control box.
c) Turn the trapped key to ON position.
d) Close the platform and lift doors.
e) Turn the emergency stop button of the pendant
control clockwise until it pops out.
f) Do likewise with the emergency stop button fixed in
the cabin (Fig. 8).
g) Press and hold the UP or DOWN button to ascend
or descend respectively.
7.5 Automatic operation
Only in service lifts with the AUTOMATIC function installed.
a) If the trapped-key interlock system is installed, the
trapped-key switch should be ON in order to drive
the lift.
b) Press the EMERGENCY STOP switch on the
pendant control.
Turn the AUTOMATIC/MANUAL switch on the
electrical control box to activate the automatic
operation.
c) Put the pendant control inside the holder. It should
engage the automatic operation switch (fig.8).
d) Close the door
e) Turn the EMERGENCY STOP switch on the
pendant control clockwise and the switch should
pop out.
f) Press the UP or DOWN button respectively and the
cabin starts ascending/descending.
7. Use of the service lift
STOP
AT00016288 Shark L AECO EN update.indd 20 11/14/2018 4:02:46 PM
