Miele CVA 4070 EN-CA User manual

Operating and Installation
Instructions
Coffee System
CVA 4070
To prevent accidents
and machine damage
read these instructions
before
installation or use. M.-Nr. 07 194 170
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
First steps to use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Filling water, beans or ground coffee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Filling the water tank ...............................................10
Filling the beans container...........................................11
Filling ground coffee ...............................................11
Making coffee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Turning on .......................................................12
Prewarming cups..................................................13
Adjust the dispenser height..........................................13
Espresso and coffee made from coffee beans ...........................14
Espresso and coffee made from ground coffee ..........................15

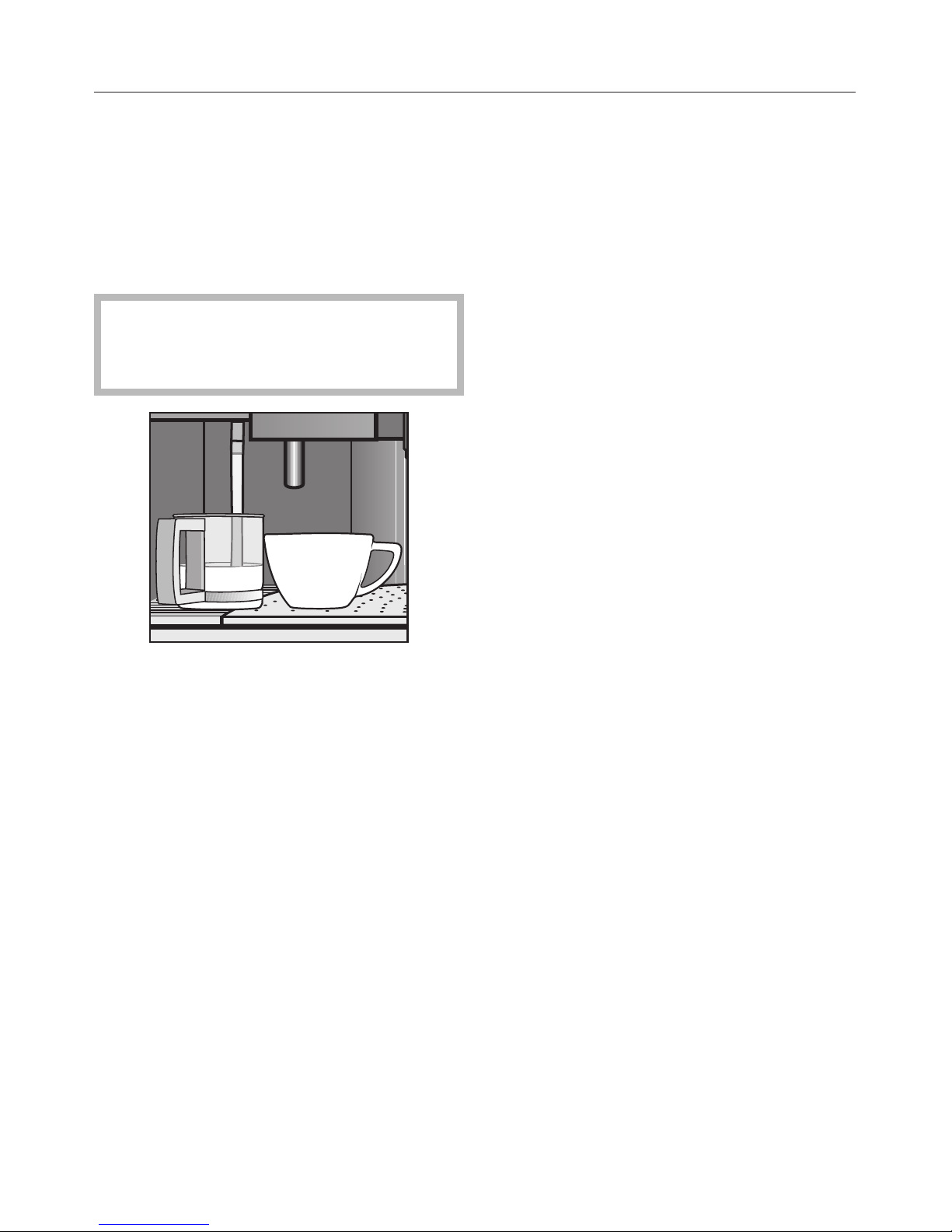

Cappuccino and milk froth ..........................................16

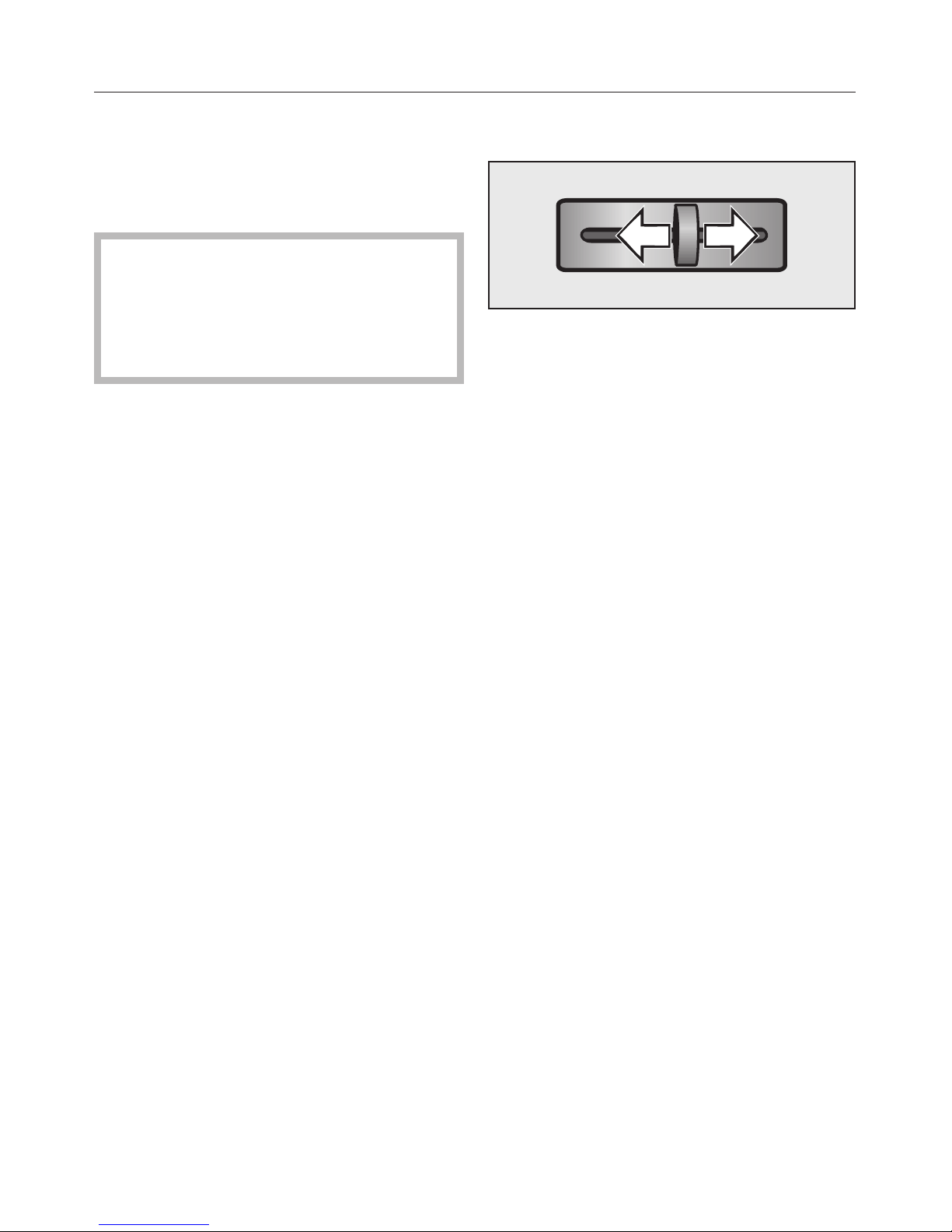

Adjusting the coffee grinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Language........................................................19
Clock ...........................................................20
Timer ...........................................................21
Grind amount .....................................................24
Pre-brewing ......................................................24
Temperature .....................................................25
Rinse automatic ...................................................25
Steam system ....................................................26
Lighting .........................................................26
Total no. coffees ..................................................27
System Lock .....................................................27
Water hardness ...................................................28
User profiles......................................................29
Display ..........................................................31
Tone options .....................................................31
Reset ...........................................................32
Setting the serving sizes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Contents
2

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Descaling the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Adjusting the door hinges ...........................................60
Contents
3

When using electrical appliances basic safety precautions should always be
followed, including the following:
Read all instructions before installation or use of the coffee system.
Please read these instructions
carefully to prevent accidents and
machine damage.
This appliance complies with current
safety requirements. Improper use
of the appliance can cause personal
injury and material damage.
This appliance is for household use
only, to prepare espresso,
cappuccino and coffee.
Do not use this appliance other than
for its intended use. Any other use
could be dangerous.
The manufacturer cannot be held
responsible for damage caused by
improper use of the appliance.
Electrical safety
~Before connecting the appliance to
the electrical supply make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply. If in doubt,
consult a qualified technician.
~The appliance must be properly
installed before operation to ensure that
no electrical components are
accessible. Ensure that power is not
supplied to the appliance while
installation work, repairs or
maintenance is performed.
~Be certain your appliance is
properly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance,
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician. The manufacturer cannot be
held responsible for damages caused
by the lack, or inadequacy, of an
effective grounding system.
~Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance
(danger of overheating).
~Before service or maintenance
disconnect the power supply by either
removing the fuse, "tripping" the circuit
breaker or unplugging the unit.
~Install or locate this appliance only
in accordance with the provided
installation instructions.
IMPORTANT SAFETY INSTRUCTIONS
4

~Installation work and repairs must
only be performed by a trained
technician in accordance with national
and local safety regulations. Repairs
and other work by unauthorized
persons could be dangerous and may
void the warranty.
~Only use Miele original spare parts.
Only then can the manufacturer
guarantee the safety of this machine.
~Never open the outer casing of the
appliance. Tampering with electrical
connections or components and
mechanical parts is dangerous and
may cause machine damage.
~If the machine is installed in
combination with other appliances, a
protective base should be installed
between the appliance and the unit.
~Do not install or use outdoors even if
installed in the display cabinet.
~To protect against fire, electric
shock and injury to persons do not
submerge the cord or plugs in water or
other liquids.
~Do not let the cord hang over the
edge of a table or counter, or touch hot
surfaces.
~Do not operate any appliance with a
damaged cord or plug, or after the
appliance malfunctions or has been
damaged in any manner. Contact
Miele.
~Always attach the cord to the
appliance first, then plug it into the wall
outlet. To disconnect, turn the machine
off, then remove the plug from the wall
outlet.
Use
The coffee system must be
maintained daily to prevent the
growth of harmful bacteria and
mold. Please read the "Cleaning and
care" section of this booklet. All
parts are dishwasher safe except
the brew unit and bean container.
Caution! Do not look directly or with
an optical instrument into the
lighting - laser radiation.
Caution! Risk of burns when
dispensing hot beverages, they are
extremely hot.
~Persons which lack physical,
sensory or mental abilities or
experience with the machine should not
use it without supervision or instruction
by a responsible person.
~Close supervision is necessary
when any appliance is used by or near
children.
~Do not touch hot surfaces. Use
handles or knobs.
~Rinse the lines and the froth
dispenser, and clean the unit before the
first use.
~To avoid injuries allow the coffee
system to cool before cleaning or
putting on and taking off parts. Turn the
machine off at the main switch when
not in use and before cleaning.
IMPORTANT SAFETY INSTRUCTIONS
5

~Only fill the water tank with cold,
fresh tap water. Warm or hot water, or
any other liquids may damage the
machine. The water should be changed
daily to prevent bacteria or mold
growth.
~Do not use mineral water. Mineral
water leads to heavy calcium buildup in
the machine that can damage the unit.
~Do not put anything but coffee
beans into the beans container. Do not
put ground coffee in the beans
container, it will damage the grinding
unit.
~Do not fill anything but ground
coffee or a cleaning tablet (for the brew
unit) in the funnel for ground coffee,
otherwise it will get damaged.
~Sugar can damage the appliance!
Caramelized or otherwise pre-treated
coffee beans or other sugar containing
beverages must not be put in the
machine.
~Never place a cup with an
alcohol-coffee mixture underneath the
coffee dispenser. Plastic parts of the
unit could catch fire!
~The hot water and steam dispensed
could cause scalding. These functions
must be used carefully. Never hold any
parts of the body under the steam
nozzle or the hot water dispenser. The
machine must never be used to clean
objects.
~Do not use the machine when the
froth dispenser is removed. Danger of
scalding with hot steam!
~Never use a steam cleaner to clean
the appliance. Pressurized steam could
damage electrical components and
cause a short circuit.
~The appliance must be descaled
regularly with the supplied descaling
tablets. In areas with very hard water
the machine may need to be descaled
more often. The manufacturer cannot
be held responsible for damages
resulting from insufficient descaling.
~Only use the descaling tablets
provided by Miele. Take care to use the
correct mixture of water and descaler,
otherwise it may cause damage.
~Depending on the fat content of the
coffee, the brew unit may clog. Clean
the brew unit every 200 cups with a
cleaning tablet. The display shows a
respective request.
~Dispose of the coffee waste in a
trash can, not in the sink. The sink
could get clogged.
~Do not hang, lean, sit or place heavy
items on the door. The machine could
be damaged.
~The use of accessory attachments
not recommended by the appliance
manufacturer may result in fire, electric
shock or injury to persons.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
6

Front view
aTouch controls
(lowest control "On/Off" button)
bDisplay
cTouch controls
(lowest control "Clear" button)
dTop lighting
eDoor grip
fHot water spout
gBottom lighting
hPlastic drip tray
iMetal drip tray
jCoffee dispenser
(height adjustable)
kFroth dispenser
(removable for better cleaning)
lIntake hose
(removable together with dispenser)
Guide to the machine
7

Interior view
aMain switch
bCover for ground coffee funnel
cFunnel for ground coffee
dGrind control lever
eCoffee bean container
fDrip tray with no-spill grid for transport
gWater tank
hBrew unit
iWaste unit
Guide to the machine
8

Touch controls
Select a touch control with your
fingertip to use the machine.
Display
To select a menu, select the touch
control next to the respective menu
point.
If more features can be selected under
one menu point, the menu has three
dots (e.g. "Settings...").
"more" / "back": If there are more
menus which are not immediately
shown, select "more" or "back" to see
further options.
"Clear": to go back to the previous
screen.
"Stop": to cancel coffee preparation.
"OK": to save a setting.
Before the first use
The appliance must be correctly
installed and connected before the
first use.
Clean the appliance and remove
protective foils before the first use.
Turning on
^Select "On/Off" to turn the coffee
system on.
The display shows the clock. See
"Settings - Clock - Setting the time of
day" to set the time.
During the very first use, you will be
prompted to select a language.
^Select the desired language touch
control and then "OK".
The Jsymbol indicates the "Language"
setting. If you accidentally select an
unfamiliar language, simply look for the
Jsymbol. Touch the control next to the
flag symbol and select your language
of choice.
^Customize the coffee system to your
desired settings.
Prepare two cups of coffee and
dispose of them, this will clean any
coffee residues from the brew unit
left from the quality control tests at
the factory.
Turning off
^Select "On/Off".
The display shows the time of day. After
60 seconds the display turns off
(depending on the setting). See
"Settings - Clock".
If the rinse automatic feature is
turned on the machine will begin
rinsing if a coffee was prepared that
day.
First steps to use
9

Before using the coffee system for
the first time, clean the appliance.
See "Cleaning and Care".
Filling the water tank
The beans and the water quality is
important for a good espresso or
coffee. The water tank must be washed
and filled with fresh cold drinking water
before each day of use. The unit
displays a reminder when turned on.
Never add hot water or any other
liquids except cold water to the
water tank.
Do not use mineral water. Mineral
water leads to heavy calcium
built-up in the machine that can
damage the unit.
^Open the appliance door by
grasping the recess next to the hot
water spout and pulling the door
towards you.
^Pull the water tank out.
^Fill the container with fresh, cold tap
water to the "Max." mark.
A valve at the front of the tank prevents
leaks.
^Close the lid and push the water tank
into the unit until it clicks into place.
The water tank must be positioned
correctly or the valve will leak. If the
water tank has not clicked into
place, pull the tank out, check and
clean the niche.
Filling water, beans or ground coffee
10

Filling the beans container
Only fill espresso or coffee beans in
the beans container. Anything else -
including ground coffee - will
damage the grinding unit.
Caramelized or otherwise
pre-treated beans or sugar
containing beverages must not be
filled into the appliance. It will
damage the coffee system.
^Pull the bean container out.
^Push the lid back and fill the
container with roasted coffee beans.
^Push the lid back into place and put
the beans container back into the
appliance.
^Close the door.
Filling ground coffee
A funnel for ground coffee is provided
in case you would like to prepare a
different coffee type, e.g. decaffeinated
coffee.
^Pull the cover for the ground coffee
funnel out of the appliance and lift the
funnel lid, a.
^Place one spoonful of ground coffee
into the funnel, b, (using the
supplied spoon) and close the lid.
^Push the cover into the appliance
and close the door.
See "Making Coffee - Espresso and
coffee made from ground coffee".
Filling water, beans or ground coffee
11

The lines must be rinsed daily
before the first use. This will happen
automatically if "Rinse automatic" is
set to "On" (see "Settings - Rinse
Automatic") and the machine is cold.
After heating, hot water runs out of
the two spouts into the drip tray. If
"Rinse automatic" was set to "Off",
use "Care" to rinse the lines. See
"Cleaning and Care - Rinse".
Turning on
^Select the "On/Off" touch control.
A reminder to fill the water tank with
fresh water is displayed.
iPlease fill and reinsert
the water tank
Then the upper line in the display
shows:
Preheating
+DESCALING
+USER PROFILE: STANDARD
+SETTINGS F...
If "Rinse automatic" is set to "On"
(default), the machine rinses after the
heating phase and the main menu is
displayed.
Making coffee
12

Prewarming cups
All beverages should be made in a
warm cup, to develop the aroma. The
smaller the amount of coffee or
espresso and the thicker the cups, the
more important it is to prewarm the
cups.
^Set the cup under the hot water
spout.
+ESPRESSO HOT WATER ~
+COFFEE MILK FROTH ~
+CAPPUCCINO more ~
^Select "Hot water" from the main
menu.
^Hot water is dispensed. Select "Stop"
to stop the flow.
^Let the hot water sit for a moment to
prewarm the cup, then empty the
cup.
Adjust the dispenser height
Depending on the cup height, the
coffee dispensers can be adjusted so
that the coffee and espresso have a
shorter distance to the cup, do not cool
and have a better crema.
^Pull the coffee dispenser slowly up or
down.
Making coffee
13

Espresso and coffee made
from coffee beans
^Set a cup under the coffee
dispenser.
The drink is dispensed through both
dispensers at the same time.
^Select "Espresso" or "Coffee".
The machine grinds the beans and
pre-brews the coffee (if "On" is selected
under "Pre-brewing"). The selected
beverage is dispensed.
Do not open the door during
brewing. The machine will be
damaged.
Canceling
^Select "Stop" to cancel the process.
The portion sizes for espresso, coffee
and cappuccino can be set
individually. See "Setting the serving
sizes".
Preparing two cups at the same time
^Set a cup under each coffee
dispenser.
^Select "Espresso" or "Coffee".
^Select "2 portions" when displayed.
The coffee system makes two portions
of espresso or coffee with a few
seconds in between.
Keep the cups under the dispenser
until the main menu shows in the
display.
Making coffee
14

Espresso and coffee made
from ground coffee
After filling the funnel with ground
coffee (see "Filling water, beans or
ground coffee - Filling ground coffee"),
the display shows:
iDid you fill ground coffee and
do you want to prepare it?
+No Yes ~
^Select "Yes".
Select "No" if no ground coffee is filled
in the funnel. Otherwise the coffee
system assumes that ground coffee is
in the machine and dispenses only
water next time coffee is made.
^Set a cup under the coffee
dispenser.
The drink is dispensed through both
dispensers at the same time.
^Select "Espresso" or "Coffee".
The coffee system brews the espresso
or coffee and the drink is dispensed.
Do not open the door during the
brewing process. It will damage the
machine. The unit will switch
automatically back to brewing with
beans after preparation.
Canceling
^Select "Stop" to cancel the process.
Preparing two cups at the same time
When using ground coffee, only one
portion at a time can be prepared. The
unit uses the whole portion of ground
coffee which was filled in the funnel to
prepare one drink.
Making coffee
15

Cappuccino and milk froth
When using for the first time or using
after descaling
The lines were completely drained
before the unit left the factory. They will
also be drained when the machine is
descaled. Before preparing
cappuccino or froth, the lines must be
filled with water. ^Set a cup under the cappuccino
dispenser.
^Select "Milk froth".
The intake hose takes in water from the
tank and fills the lines with water. A
small amount of water runs from the
froth dispenser.
Prompts to clean the froth dispenser
appear in the display.
^Confirm by selecting "OK".
^Once the machine stops, select "Milk
froth" again.
The froth dispenser dispenses steam
and the lines are filled with water.
^Select "Clear" to get back to the main
menu.
The coffee system is ready to use.
Making coffee
16

Cappuccino
To prepare a cappuccino you need a
large ceramic or porcelain cup and a
small mug (supplied) of milk.
The best milk froth is achieved with
cold milk.
Only one cup of cappuccino can be
prepared at a time because of the
milk frothing process.
^Set the mug of milk under the intake
hose and the cup under the froth
dispenser.
^Select "Cappuccino".
The milk is frothed into the cup. At the
same time the beans are ground.
Select "Stop" to cancel the milk frothing.
^Once the milk is frothed, set the
cappuccino cup under both
dispensers and select "OK".
The cappuccino will be prepared.
^Select "Stop" when enough espresso
has been prepared.
Milk froth
If you need additional milk froth,
prepare cold skim milk in a stainless
steel mug which narrows towards the
top.
^Set the supplied glass mug with milk
under the intake hose and the
stainless steel mug under the froth
dispenser.
^Select "Milk froth".
The milk is frothed into the stainless
steel mug.
^Select "Stop" to cancel the milk
frothing.
After preparing milk froth and
cappuccino
Clean the froth dispenser and intake
hose immediately after use. If the milk is
allowed to dry, the parts may get
clogged and difficult to clean. See
"Cleaning and Care".
Making coffee
17

The finer the coffee beans are ground
determines the strength of the coffee
and the quality of the crema.
To prevent machine damage adjust
the coffee grinder one notch at a
time and let the beans grind before
adjusting another notch. Otherwise
the machine will be damaged.
The grinder should be adjusted:
–If the espresso flows too quickly into
the cup, the pressure cannot be built
up because the beans have been
ground too coarsely. The grinder
should be adjusted to a finer setting.
– If the espresso only trickles into the
cup, the beans have been ground
too fine and the coffee will be bitter.
The grinder should be adjusted to a
coarser setting.
– If the crema is evenly colored but
pale, the ground coffee is too
coarse.
–If the crema is very dark brown on
one side, graduating almost to white
on the other, the ground coffee is too
fine.
To adjust the grinder setting
^Push the slide control to the left for a
finer grind or to the right for a coarser
grind.
You should be able to feel the notches
when moving the slide control.
If the slide control will not move:
^Close the machine and dispense a
cup of coffee.
Then try to move the slide control
again.
Adjusting the coffee grinder
18

The coffee system can be customized
to suit individual preferences.
Language
To show the displays in the desired
language, select the language before
the first use.
Preheating
+DESCALING
+USER PROFILES: STANDARD
+SETTINGS F...
^Select "Settings" from the main menu
during the pre-heating phase or,
+back SETTINGS F... ~
+CARE ...
+USER PROFILES
^in the main menu.
SETTINGS
+LANGUAGE F... GRIND AMOUNT ... ~
+CLOCK PRE-BREWING ~
+TIMER ... more ~
^Select "Language".
LANGUAGE english
+english français ~
+deutsch more ~
+español OK ~
^Select the desired language.
To see more language options, select
"more".
The language options are:
English, German, Español, Français,
Italiano, Polski and Portugués.
^Select "OK" to save the selection.
All displays are shown in the selected
language.
^To go back to the main menu, select
"Clear".
Settings
19

Clock
+back SETTINGS F... ~
+CARE ...
+USER PROFILES
^Select "Settings".
SETTINGS
+LANGUAGE F... GRIND AMOUNT ... ~
+CLOCK PRE-BREWING ~
+TIMER ... more ~
^Select "Clock".
Setting the time of day
^Select "Enter Time".
^Select "+" or "-" with the right touch
controls to select the hours.
^Set the minutes by selecting
"Minutes".
^Select "+" or "-" with the right touch
controls to select the minutes.
^Select "OK".
The time of day is saved.
Clock display size
The size of the clock display can be
adjusted. The options are "normal" or
"large".
^Select "Size".
The selected size is highlighted in the
display.
^Select "Size" until the desired size is
highlighted.
^Select "OK" to save the selection.
12 or 24 hour clock
The clock display can be set to the 12
or 24 hour clock.
^Select the respective touch control.
The selected display is highlighted.
^Select "OK" to save the selection.
Clock display on/off
The clock can be displayed or turned
off.
If the display is turned on, the time of
day is displayed when the machine is
turned off.
If the option is set to off, the display
turns off after 60 seconds.
^Select "Clock display".
The selected display is highlighted.
^Select "OK" to save the selection.
Settings
20
