Miele ADVANTA G 2170 User manual

Operating instructions
Advanta Series
G 2170
Inspira Series
G 1180
G 2180
To prevent accidents
and machine damage
read these instructions
before
installation or use.
UV
M.-Nr. 06 696 040

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Guide to the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Adjusting the dosage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Items not recommended for dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cutlery tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cutlery basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Basket accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Turning on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Selecting a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Starting a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Program guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
At the end of a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Interrupting a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Changing a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Contents
2

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Technical faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Problems water intake/drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
General problems with the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Sounds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Poor cleaning results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
User Maintenance Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cleaning the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cleaning the exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Triple filter system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Help to protect the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Contents
3

Guide to the dishwasher
aUpper spray arm (not visible)
bCutlery tray (depending on model)
cUpper basket
dMiddle spray arm
eAir inlet for drying (depending on
model)
fLower spray arm
gFilter combination
hData plate
iRinse aid reservoir
jDetergent dispenser
Guide to the dishwasher
7

Control panel
aCheck / Refill indicators
bProgram selection
cProgram button
dOn button g/ Indicator
eOff button o
Guide to the dishwasher
8

Energy saving washing
This dishwasher is exceptionally
economical in the use of water and
electricity. For best results follow these
tips:
^For lowest energy consumption and
the gentlest washing of china and
crystal, connect the dishwasher to a
cold water source.
^For fastest possible wash times, yet
higher energy consumption, connect
the dishwasher to a hot water source.
^Make full use of the baskets without
overloading for the most economical
washing.
^Use the correct amount of detergent
and rinse aid.
^When using powder or gel detergent,
reduce the amount to 2/3of the
normal amount when washing a small
load.
^Choose a program that best suits the
degree of soiling and the type of
dishes being washed.
^For small loads select "Short".
Caring for the environment
9

To open the door
^Pull the handle to open the door.
If the door is opened during operation,
the dishwasher will stop running. Once
the door is closed the program will
continue.
To close the door
^Push the baskets in.
^Lift the door and push until it clicks
into position.
Before using for the first time
10

Rinse aid
Rinse aid is needed to prevent spotting
on dishes and glassware.
The rinse aid is filled in the reservoir
and the set amount will be
automatically dosed.
,Filling the rinse aid reservoir with
detergent will damage the reservoir.
Only pour rinse aid formulated for
residential dishwashers into the
reservoir.
When using "2 in 1" detergents, no
rinse aid is needed.
Adding rinse aid
^Press the button in the direction of
the arrow until the flap springs open.
^Pour liquid rinse aid into the reservoir
until it its visible on the surface of the
screen.
The rinse aid reservoir holds approx.
3.7 oz (110 ml).
^Press on the flap until you hear it
click shut. Failure to close it all the
way allows water to enter the
reservoir during the wash program.
^Clean any spilled rinse aid. The flap
will remain closed during normal
operation.
Before using for the first time
11

Rinse aid indicator
When the Rinse aid indicator first
comes on, there will be enough rinse
aid left for 2 - 3 washes.
^The rinse aid indicator on the control
panel will light when the rinse aid
reservoir needs refilling.
Adjusting the dosage
The dosage selector is preset to 3. This
dispenses approximately 3 ml of rinse
aid per program. It can be adjusted
from 1 to 6.
– Use a higher setting if spots appear
on dry glassware.
– Use a lower setting if streaking
appears on dishes or glasses.
^Turn the dishwasher off o.
^Press and hold the program button
and turn the dishwasher on with g.
Hold the program button until the
lower right program indicator lights.
If it does not come on, start over.
^Press the program button briefly
three times.
The "Intake/Drain" indicator flashes
three times in intervals.
A rinse aid amount of 3 ml is set by
default.
Before using for the first time
12

The amount set can be recognized by
the flashing rhythm of the upper right
indicator (see table).
Rinse aid amount
in ml
Flashing rhythm
0–
1 Once
2 Twice
3 Three times
4 Four times
5 Five times
6 Six times
^Press the program button until the
upper right program indicator lights.
^Select the desired setting with the
program button. Every touch of the
button increases the level.
The programmed dosage is saved.
^Turn the dishwasher off o.
Before using for the first time
13

,Do not wash items soiled with
ash, sand, wax, grease or paint in
the dishwasher.
Ash and sand do not dissolve and
will be distributed throughout the
inside of the dishwasher.
Wax, grease and paint will cause
permanent discoloration and
damage to the dishwasher.
^Scrape food from dishes before
placing them in the dishwasher,
rinsing is not necessary.
^Some foods contain natural dyes,
e.g. carrots or tomatoes. Plastic items
may discolor permanently if they
come in contact with food dyes.
^All items can be placed anywhere in
the baskets.
^Load dishes so that water can reach
all surfaces. Do not place dishes or
cutlery inside other pieces.
^Make sure that all items are securely
positioned.
^Hollow items such as cups and
glasses should be placed upside
down in the baskets.
^To ensure good water coverage,
tall, narrow and hollow items,
i.e. vases or champagne glasses,
should be placed in the center of the
basket rather than in the corners.
^Concave based items such as mugs
or bowls, should be placed at an
angle so that water does not pool.
^The spray arms must not be blocked
by items that are too tall or hang
through the baskets. Check
clearance by manually rotating the
spray arms.
^Place very small items in the cutlery
tray or basket so they do not fall to
the bottom of the wash cabinet.
^Food residue and spilled liquids
should be cleaned from the sides of
the dishwasher door. These are
outside of the wash cabinet and are
not cleaned by water from the spray
arms.
Loading the dishwasher
14

Items not recommended for
dishwashing
– Cutlery with wooden handles
– Wooden cutting boards
– Glued items such as old knives with
handles glued together around the
shank of the blade
– Handmade craft items, antique,
metal trimmed or decorative
glassware
– Plastic items that are not heat
resistant
– Copper, brass, tin or aluminum
– Dishes with color painted over the
glaze. These dishes may fade over
time
– Fine glassware and crystal items
should only be washed using the
"China & Crystal" program*.
Otherwise clouding or etching may
occur after frequent washing.
– Cast iron pots and pans
* depending on model
Glassware:
– There are no standard guidelines for
washing glassware, when in doubt
wash by hand.
– When purchasing new dishes,
glasses and cutlery, make sure they
are dishwasher safe. Only wash
items marked "dishwasher safe" in
the dishwasher.
– If fine glassware is washed in the
dishwasher select the "China &
Crystal" program*. This will reduce
the risk of clouding.
Silver and aluminum:
– Silver or aluminum items may tarnish.
– Silverware previously cleaned with a
silver polish may be damp or spotted
at the end of a program where water
has adhered to the polish. This can
be rubbed off with a soft, dry cloth.
Silver that has been cleaned in an
immersion dip is usually dry at the
end of a program, but may tarnish.
– If left to dry, foods containing sulfur
can discolor silver. These include
egg yolk, onions, mayonnaise,
mustard, fish and marinades.
– Silverware may tarnish or pit if
washed next to stainless steel.
Leave space between these metals.
– Clean aluminum items, e.g. grease
filters, with domestic dishwasher
detergent only.
Loading the dishwasher
15

Cutlery tray
(depending on model)
^Arrange the cutlery as shown in the
cutlery tray.
For easier unloading cutlery should be
grouped in zones, one for knives, one
for forks, one for spoons, etc.
Place knives with the cutting edge
down and forks with the prongs
between the holders. Spoons should be
placed in the opposite direction with
the handles between the holders.
The upper spray arm must not be
blocked by tall cutlery items.
The cutlery tray insert is removable.
Spoons with thick handles may have to
be placed as knives and forks with their
heads in the holders
Loading the dishwasher
16

Cutlery basket
(depending on model)
^For best cleaning results, cutlery
should be placed in the basket with
the handles down. Knives and forks
should be loaded with the pointed
end down to prevent injuries.
^Place small spoons in the individual
slots to either side of the cutlery
basket.
Spoon inserts for the cutlery basket
The supplied insert is designed to wash
heavily soiled spoons. The individual
slots allow the water to better reach the
surface of each spoon.
^Attach the insert when needed to the
cutlery basket.
^Insert the cutlery with the handles
down into the insert. Arrange the
cutlery evenly.
Loading the dishwasher
17

Upper basket
,Always use the dishwasher with
the upper and lower basket inserted.
^Load the upper basket with small,
lightweight, or delicate items such as
cups, saucers, glasses, dessert
bowls and flat pans.
^Long items such as soup ladles,
mixing spoons and long knives
should be placed lying down across
the front of the upper basket.
Cup racks
^Raise the rack to make room for tall
glasses. Lower it to double stack
smaller pieces.
Coffee bar
(depending on model)
Glasses can be leaned against the
coffee bar for a secure stand.
^The bar can also be used to separate
two rows of glasses.
To stack wide items, flip the bar to the
right.
Loading the dishwasher
18

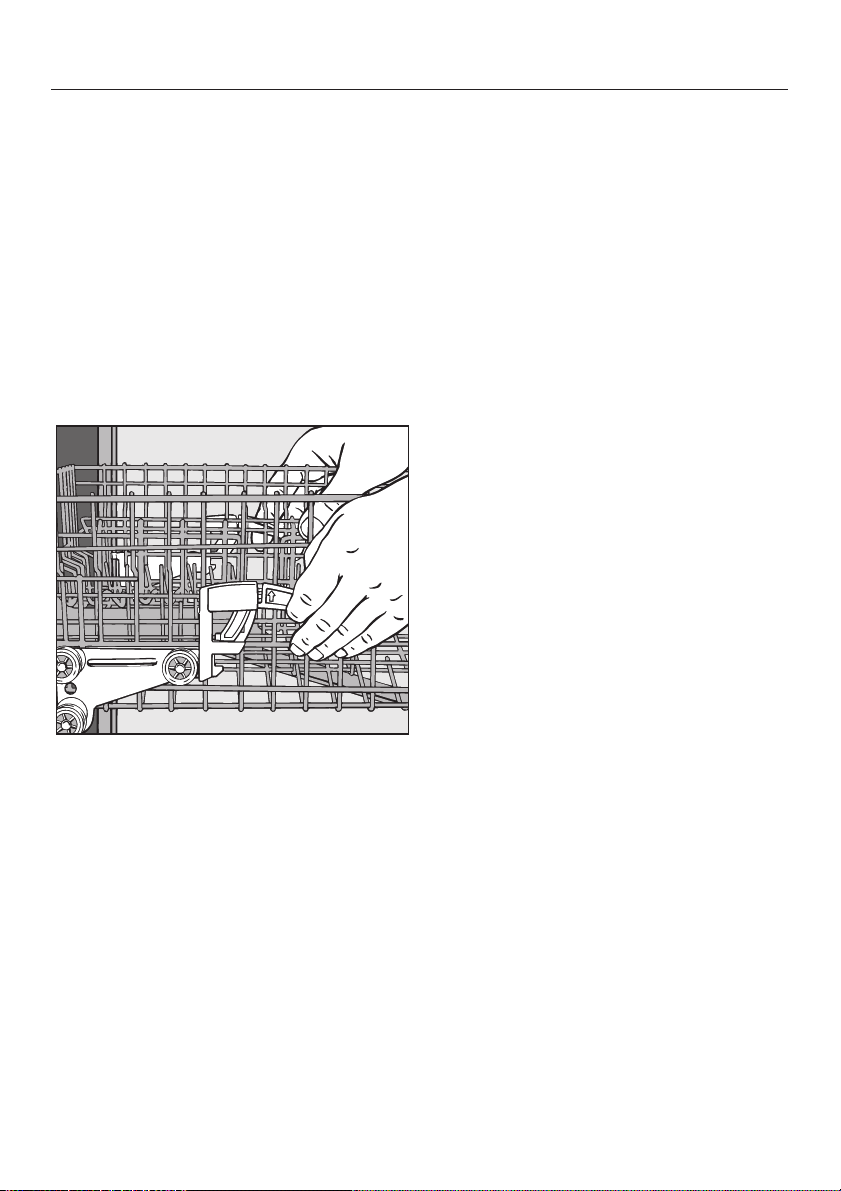

Adjusting the upper basket
The upper basket can be raised or
lowered to accommodate tall items.
The basket can also be angled to fit tall
items in both, the upper and lower
baskets. The angles should not be set
to opposite extremes. This will block the
middle spray arm. Take care when
sliding the basket in and out in this
position.
^Slide out the upper basket.
^Pull up the levers at the sides of the
upper basket and adjust the basket
height.
^Release the levers and the basket will
lock in place.
Depending on the setting of the upper
basket, a variety of plate dimensions
can be accommodated.
For example: If the upper basket is in
its highest position a plate with a
diameter of 12 3/16" (31 cm) can be fit in
the lower basket.
Loading the dishwasher
19

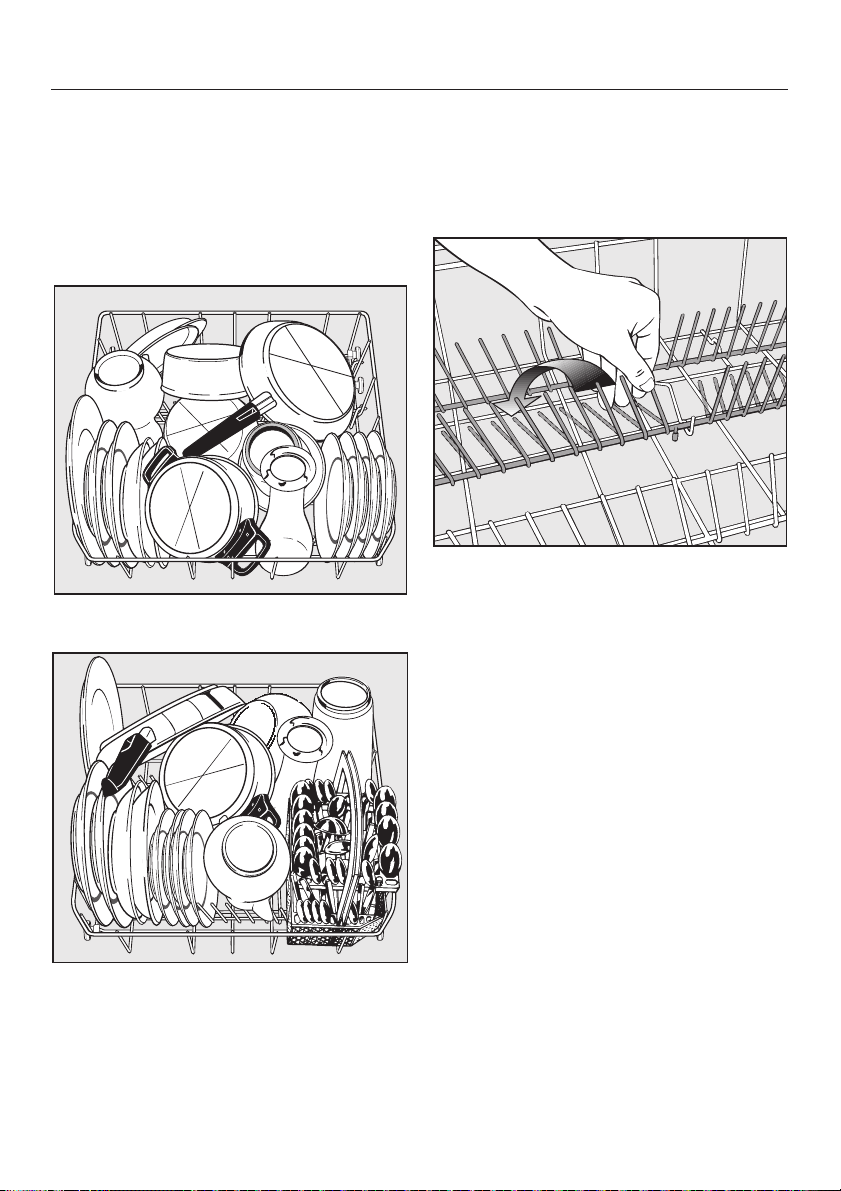

Lower basket
^For larger and heavier items such as
plates, serving platters, saucepans,
bowls, etc.
Dishwashers with cutlery tray
Dishwashers with cutlery basket
Foldable spikes
Two rows of spikes can be folded
down, to create more room for larger
dishware, e.g. pots, pans and bowls.
^Lift the spike rows and fold them
down on one another.
Loading the dishwasher
20

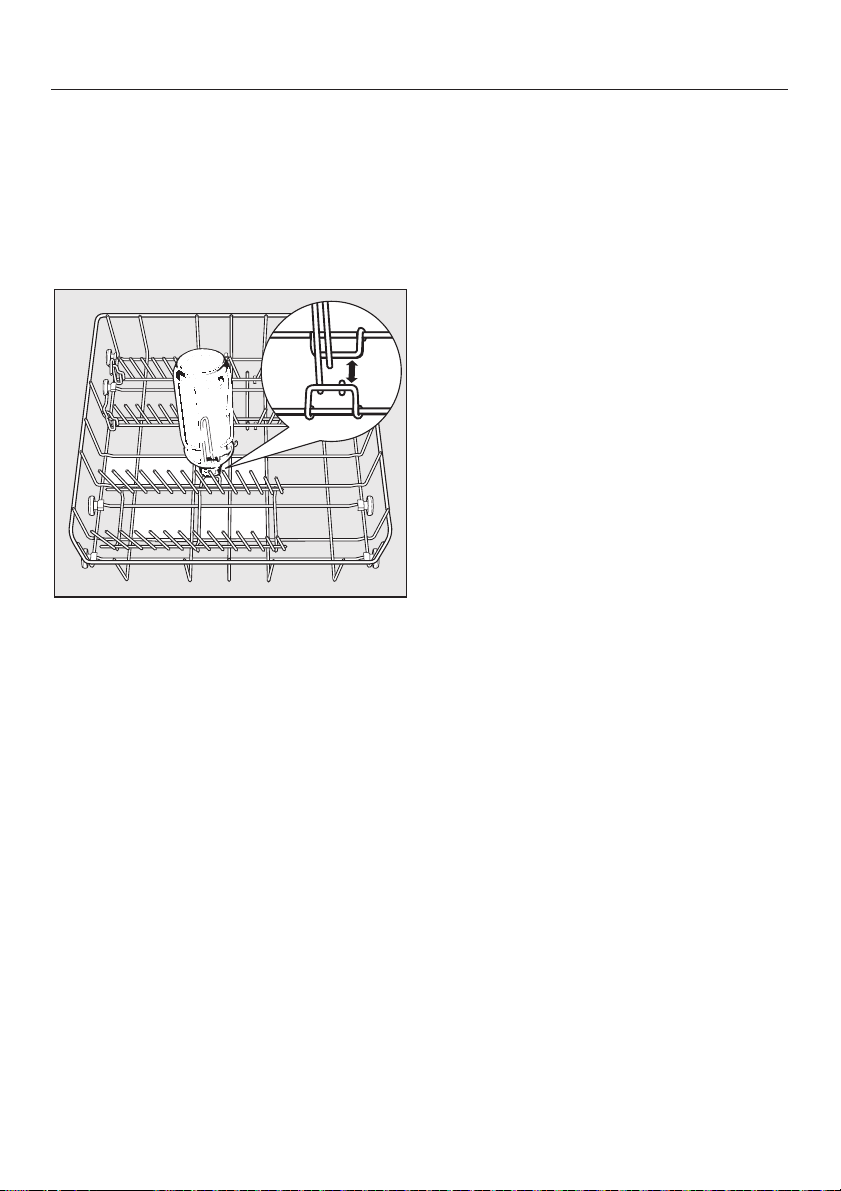

Vase/Bottle holder
(depending on model)
The vase/bottle holder, e.g. for vases
and baby bottles, can be inserted into
the lower basket as shown in the
illustration.
If placed anywhere else, water will not
reach all surfaces. The bottle will not be
properly cleaned.
Loading the dishwasher
21

Additional inserts for the upper and lower baskets may be purchased from your
Miele dealer or Miele. Depending on the model some accessories come standard
with the machine.
Glassware insert GGO To wash long stemmed glassware
attaches to the upper basket
Vase / Bottle holder GF To wash baby bottles or vases
Cappuccinatore insert GCEO To wash the parts of the
Cappuccinatore
Basket accessories
22

Detergent
,Dishwasher detergents contain
irritant and corrosive ingredients.
Avoid inhaling or swallowing
dishwasher detergent.
Keep children away from detergent.
Fill the detergent dispenser only
when you are ready to start the
dishwasher.
,Only use detergents formulated
for domestic dishwashers.
Use only the recommended amount
of detergent. Continued use of too
much detergent may cause machine
damage.
You can use powder, gel or tab
detergents. Follow the dosage
information on the detergent
packaging.
Detergent tabs are not recommended
for use with the program "Short". The
tabs may not dissolve completely.
Use
23
