Miele PG 8527 User manual

Operating and Installation
Instructions
Laboratory
Glassware Washer
PG 8527 / PG 8528
To prevent accidents
and machine damage
read these instructions
before
installation or use. M.-Nr. 06 749 640
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS.................................4

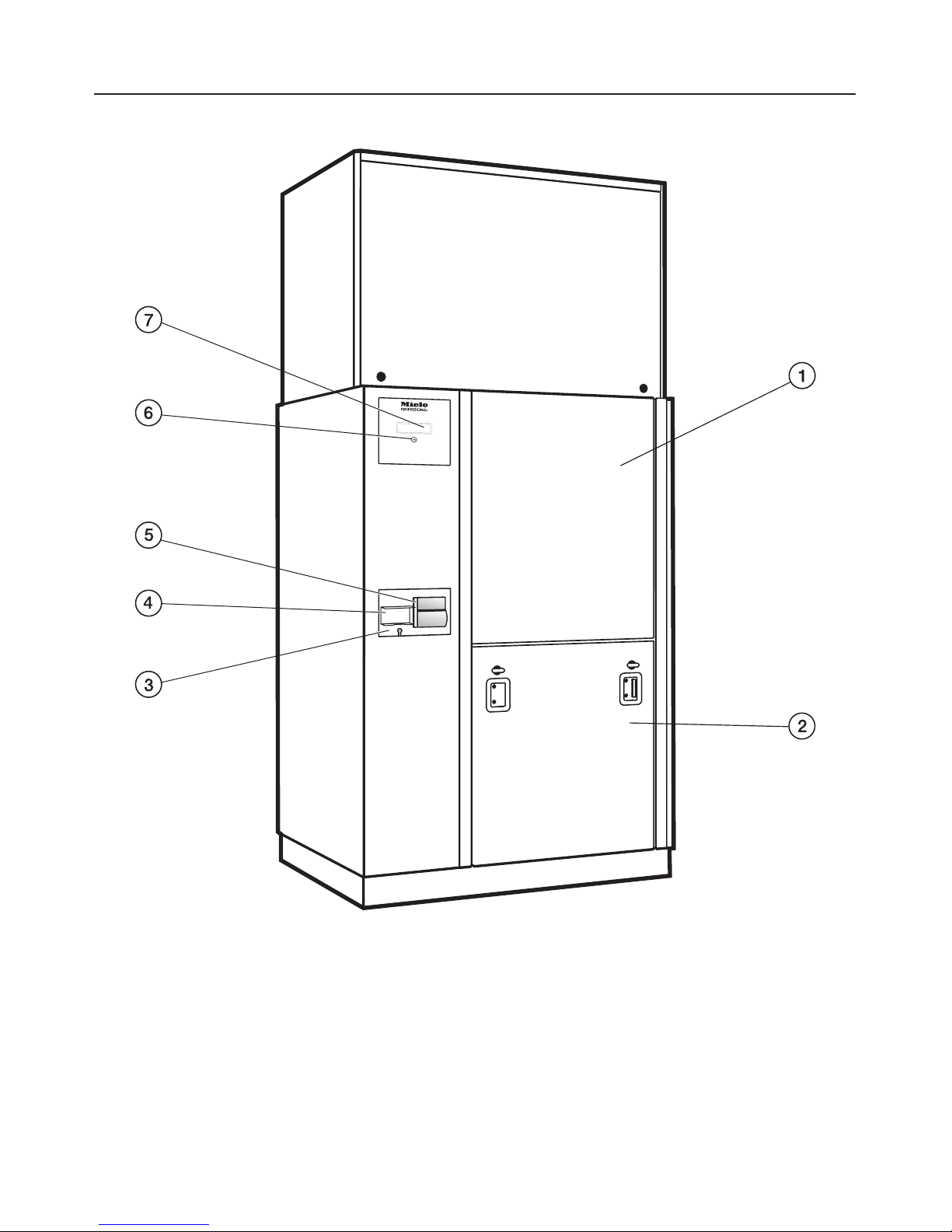

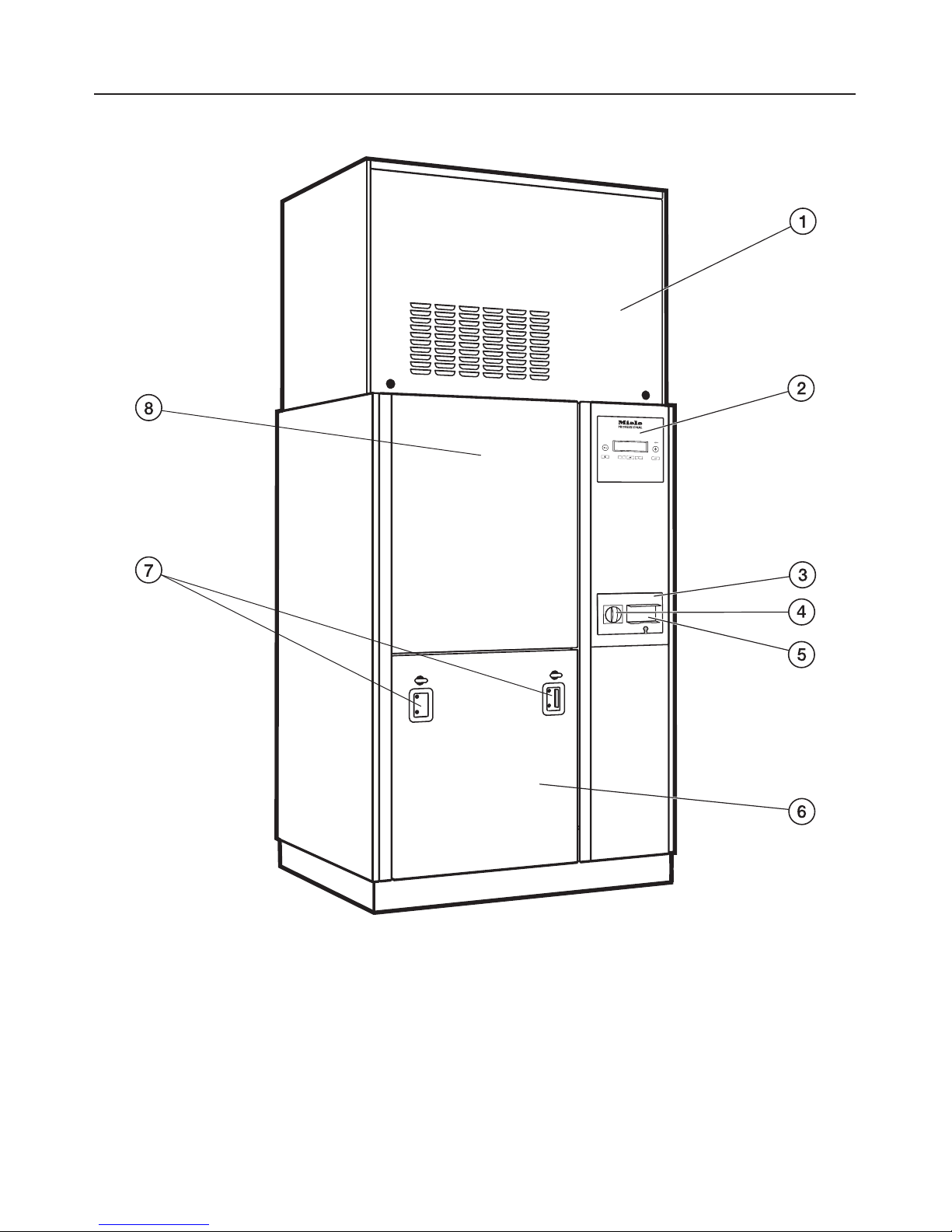

Description of the machine..........................................8
Electronic controls .................................................12
Optional equipment ...............................................14
Context menu ....................................................15
Change the display language ........................................16
Change the heating type ............................................21
Current faults .....................................................21
Automatic mobile unit recognition (AWK).............................22
Mobile unit coding .................................................22
Setting mobile unit coding ........................................23
Application ......................................................25
Adding liquid detergents and neutralizers ............................28
Dispensing systems................................................29
Operation .......................................................31
Main Switch - On/Off ...............................................31
Switching On .....................................................31
Starting a program.................................................32
Program sequence ................................................34
End of program ...................................................34
Turning off .......................................................34
Canceling a program...............................................34
Interrupting a program..............................................35
Barcode scanner (optional) ........................................36
Serial interface (data transfer) ......................................37
Contents
2

Maintenance .....................................................38
Process validation .................................................39
Routine checks ...................................................39
Cleaning the filters in the wash cabinet.................................40
Cleaning the fine filter ............................................40
Cleaning the flat filter ............................................40
Cleaning the filter system for the circulation pump .....................41
Cleaning the spray arms ............................................42
Cleaning the control panel and glass door (Optional) .....................43
Cleaning the exterior ...............................................43
Cleaning the wash cabinet ..........................................43
Cleaning the door seal..............................................43
Baskets and inserts ................................................44
Report printer (Option)..............................................45
Replacing the print paper.........................................45
Replacing the ribbon cartridge.....................................45
After sales service ................................................46
INSTALLATION INSTRUCTIONS.....................................47
Electrical connection..............................................48
Plumbing........................................................49
Technical data ...................................................51
Caring for the environment.........................................52
Contents
3

This machine conforms to current
safety requirements. However,
inappropriate use can lead to
personal injury and property
damage. Read the operating
instructions carefully before using
this machine.
The manufacturer cannot be held
responsible for damage caused by
non-observance of these Important
Safety Instructions.
Use
~This machine is designed for
commercial use and for specialized
applications only, as described in these
Operating Instructions. Do not use for
purposes other than those for which it
was designed, as this could be
dangerous. Miele is not responsible for
damages caused by improper use.
~The installation of this unit in non
stationary locations (e.g. ships) must be
performed by a qualified installer or
service agency in strict accordance
with national and local safety
regulations and standards.
Please pay attention to the following
notes to maintain safe procedures.
~The machine should be
commissioned and maintained only by
a Miele Service Technician. Repairs by
unqualified persons could be
dangerous.
~Do not install the machine in an area
where a danger of explosion or freezing
may be present.
~Be certain this appliance is properly
installed and grounded by an
authorized technician. To guarantee the
electrical safety of this appliance,
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system
checked by a qualified technician. The
manufacturer cannot be held
responsible for damage or injury
caused by the lack, or inadequacy, of
an effective grounding system
(e.g. electric shock).
~A damaged machine is dangerous.
Turn off the machine immediately at the
power switch and call the Miele Service
Department.
~Personnel operating the machine
should be trained regularly. Children
and untrained personnel must not be
allowed access to the machine or its
controls.
IMPORTANT SAFETY INSTRUCTIONS
4

~Take care when handling liquids
such as detergents, neutralizing
agents, wetting agents and rinse aids.
These may contain irritant or corrosive
ingredients, acids or alkalis. Never use
any organic solvents, as the danger of
explosion exists. Wear protective
gloves and goggles. The
manufacturer’s safety conditions must
be observed at all times.
~The water in the machine must not
be used as drinking water.
~Be careful when sorting items with
sharp pointed ends. Position them in
the machine so that you do not hurt
yourself or create a danger for others.
~When using this machine regard the
high temperatures and be especially
careful not to scald or burn yourself.
When opening the door bypassing the
electrical lock, a danger of burning,
scalding and corrosion exist. Let mobile
units, inserts and cleaned items cool
before touching them. Any water which
may remain in containers will be very
hot and must be emptied into the wash
cabinet.
~If you are exposed to toxic vapors or
processing chemicals, consult the
manufacturer's material safety data
sheets for emergency procedures.
~Always allow mobile units, modules,
inserts, and loads to cool before
removing. Be sure to empty any water
from concave items into the wash
cabinet before removing.
~After drying with the drying unit
open the door to allow the items and
inserts to cool.
~If the pre-heater has been
programmed to "Pre-heater standby",
be particularly careful of hot water and
steam when opening the door. Danger
of burning or scalding. The water inlet
pipe to the wash cabinet is located, as
viewed from the loading side,
underneath the basket runner on the
left hand side.
~Steam heating is permissible up to a
pressure of 145 psi. This corresponds
to a water steam temperature of 354°F
(179 °C).
~Never clean the machine near or
with a water or high pressure hose.
~Before servicing, disconnect the
power supply by either removing the
fuse, unplugging the unit or manually
"tripping" the circuit breaker.
,Mount on non-combustible floors
only!
IMPORTANT SAFETY INSTRUCTIONS
5

The following points should be
observed to assist in maintaining
quality standards for critical labware
and to avoid damage to the loads
being cleaned.
~Only use process chemicals that are
approved by their manufacturer for the
application involved. Any negative
effects on labware and the washer itself
are the liability of the chemical
manufacturer.
~If toxic chemicals may be present in
the wash cabinet, beware of this risk
when interrupting a program and
opening the washer. The door seal and
steam condensor must always be
checked for soundness.
~Use only Miele approved cleaning
agents with this machine. Use of
unsuitable cleaning agents could
adversely affect the components of the
machine. Damages resulting from using
unsuitable cleaning agents are not
covered by the warranty.
~Pre-treating (e.g. with cleaning
agents), certain soiling and cleaning
agents with a chemical interaction, can
cause foam. For pre-treatment and/or
cleaning only use low-sudsing
detergents which have been approved
by Miele. Suds can have an adverse
effect on the operation of the machine.
~When a chemical additive is
recommended, the manufacturer of the
machine takes no responsibility for the
effect of the chemical on the items
being cleaned.
~The machine must only be operated
with water and the recommended
cleaning agents. Organic solvents must
not be used in the machine as there is
the danger, under certain
circumstances, of explosion and
damage to rubber and synthetic
materials. Follow the dosage
recommendations of the cleaning
agent’s manufacturer.
~In critical applications where very
high requirements have to be met, it is
strongly recommended that all the
relevant factors for the process, such
as cleaning agent, quality of water, etc.
are discussed with the Miele
Applications Specialists.
~If the cleaning result is subject to
particularly stringent requirements (e.g.
chemical analysis, specialized
processes), a regular quality control
test should be carried out by the user to
ensure that the required standards of
cleanliness are being achieved.
~The mobile units and special inserts
should only be used for their specific
application.
~Empty any containers or utensils
before arranging them in the machine.
~Do not allow any remains of acids,
solvents or corroding ferrous material,
and in particular hydrochloric acid or
chloride solutions to get into the wash
cabinet. Similarly avoid any materials
with a corrosive effect. The presence in
compounds of any solvents should be
minimal, (especially those in hazard
class A1).
IMPORTANT SAFETY INSTRUCTIONS
6

~To avoid any corrosion damage
ensure that solutions or steam
containing hydrochloric acid do not
come in contact with the stainless steel
casing of the machine.
~Please follow the installation advice
in these instructions and the separate
Installation Instructions.
Using accessories
~Only specific additional equipment
made by Miele should be connected to
this machine. Consult a Miele
Application Specialist on the type and
application of such equipment.
~Only Miele mobile units, modules
and inserts should be used. If
equipment from another manufacturer
is used, Miele cannot ensure the
cleaning results. Damage or injury
caused by this are excluded from the
warranty.
Disposal of an old appliance
~When discarding a lab washer,
disconnect it from the power supply
and cut off the power cord.
For environmental and safety reasons
ensure the machine is completely
drained of any residual water and
cleaning agent. (Observe safety
regulations and wear safety goggles
and gloves). Make the door lock
inoperative or remove the door
completely, so that children cannot
accidentally shut themselves in. Make
appropriate arrangements for the safe
disposal of the machine.
Machines with a tank system: remove
the water from the tank before
disposing the machine.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
7

The Miele PG 8527/ 8528 Laboratory
Glassware Washer is designed for
high-throughput, centralized wash
areas. This unit is ideal for cleaning
both large volumes of small items, and
difficult to clean large items.
Typical applications include:
–laboratory equipment for research
and production,
–laboratory equipment for analytical
and preparation applications,
–microbiology and biotechnology
labware,
Labware can include anything from
evaporation dishes to centrifuge tubes.
In this operating manual, the general
terms labware and glassware are used
to cover a range of laboratory
equipment and medical items.
For standardized results, it is preferable
to machine-wash lab instruments and
equipment.
The cleaning parameters should always
be optimally matched to the type of
soiling and labware involved.
The processing chemicals used also
should be matched to the particular
cleaning needs / analysis / analytical
methods involved.
Description of the machine
8

Loading side
aHousing unit for Drying System DS
and/or Steam Condensor SC
b"Profitronic" electronic control system
(see "Programming manual")
cMultiport
dMain Switch "On/Off"
eBarcode scanner mount (optional)
fService panel
gDocking station for transfer cart
MF 27/28
hLift door (closed)
Description of the machine
9

Loading side
aLift door (open)
bConnection for transfer cart and
modules
cLower spray arm
dFilter combination
eContainer for dispensing systems
DOS 1 - DOS 4
Description of the machine
10

Unloading side (PG 8528 only)
aLift door (closed)
bService panel with docking station
for transfer cart MF 27/28
cMultiport
dBarcode scanner mount (optional)
ePrinter (optional)
f"Door" button
gDisplay
Description of the machine
11

Electronic controls
Description of the machine
12

aOn/Off button s
turn washer on and off
bDoor button a
open and close the door
cDisplay
If the washer is not in use, the
display automatically switches off
after approx. 10 min.
^To turn the display back on, touch
any button.
Fault messages are shown in the
display, together with a corresponding
number. See the "Programming manual"
for more information.
dOptical Interface #
used by Miele Service Technicians
eStart button h
start a program
fClear button +C
– return to the previous level
– discard entry
– cancel a program
gand iSelection buttons - e
– shift position of marking in display
– changed marked value
– scroll
– retrieve menu
– display user-defined operating
parameters during program
operation
hOK Button
- confirm marked menu item or
selected value,
- erase fault messages,
- erase dialogue messages,
- access A0-Graph during program
operation.
Description of the machine
13

Optional modules:
–Drying unit
–Steam condensor
–Boiler
–Conductivity meter
–Report printer
–Barcode scanner connection
–up to 3 additional internal dispensing
systems
–Glass doors and wash cabinet
lighting
– combination steam/electric wash
cabinet heating
Optional equipment
14

Certain functions are available through the context menu at
any time, regardless of the operating level:
–change display language
–change operating level,
–enter Delay Start
–for convertible washers:
change heating type,
–show current fault(s), (if applicable).
^To enter the context menu, press and hold the buttons - e
at the same time.
The context menu appears in the display:
Context menu B
Current fault
Change display lang. F
Change operating level #
Use the buttons - e to move through the menu items.
Context menu
15

Change the display language
You can use the context menu to
change the language used in the
display.
This setting is stored until the washer is
switched off with the sbutton or the
main switch.
The language set under
Settings / Language Jdoes not
change. All reports and print-outs
will continue to be completed in the
system language.
^To select the menu item Display
language use -e, confirm with OK.
^Select the desired language and
confirm with OK.
The selected language appears in the
display.
^To leave the context menu, select
+C.
The Jsymbol indicates the Display
language setting.
If you accidently select an unfamiliar
language, simply select the menu
item with the Jand select the
desired language.
Context menu
16

Change the operating level
Four operating levels are available for selection.
Operating
levels
Authorized access for :
A and B selecting from a list of approved
programs.
C automatic program assignment by mobile
unit code.
D open program selection through the
Program overview, Programming and
Settings Jmenus.
The context menu can be used to switch between operating
levels.
To help prevent unauthorized access to the settings, a code
is required to change operating levels.
To change the codes for existing users, or to enter new
users, you must be a registered administrator. The
administrator can be registered by Miele.
^Press and hold the - e buttons for at least 2 seconds.
The context menu appears in the display:
Context menu B
Current fault
Change display lang. F
Change operating level #
Context menu
17

^Select the menu item Change operating level, confirm
with OK.
Change operating level B
Operating level D
Operating level A
Operating level B
^Select the desired level and confirm with OK.
Select the user B
User ABC
Administrator
Technical Service
^Select the user group and confirm with OK.
^Enter the required code.
Change operating level B
0FFF
Enter code
^Select - e to change the numbers.
^Select with OK.
Repeat same process for each number.
Once complete the display will switch to the selected
operating level.
If an incorrect entry is made, Code invalid will appear in the
display.
^The message can be cancelled with OK.
Repeat the process to change the operating level.
Context menu
18

Delay start
The start time for a program can be pre-selected.
^Select Delay start and confirm.
^To activate the Start Delay option, go to the menu item
Activate and select Yes .
Delay start B
Activate Yes
Delay start
^To use this feature, select Delay start and confirm.
The start time menu will appear.
Delay start B
5:48
Enter time of day
^Select - e to enter the desired start time, then confirm.
^Press and hold the +Cuntil the Main menu appears in the
display.
Main menu B
CHANGE DS-COARSE
LAB-STANDARD
LAB-UNIVERSAL #
^Select a program.
^Start with h.
Context menu
19

The selected program, the delay start time, the current time of
day, and the time remaining until the program starts are
displayed.
LAB-STANDARD B
Start time 5:15 3:20
Remaining time 1:55 h
The selected program automatically starts at the delay start
time.
^To cancel the automatic program start, press +C.
Cancel start time?
Yes No
^Select Yes and confirm.
The automatic program start is canceled. The display reverts
to the program overview. The Delay Start option is
canceled.
If you select No, the Delay Start option will continue.
Once the program has run through, the function Delay Start
is automatically de-activated.
The function Delay Start can also be de-activated
independent of a program start. To do so, go to the Delay
Start menu, and set the parameter Activate to No.
Context menu
20
