Miele G 975 SC User manual

Operating instructions
for dishwashers
It is essential to read the operating and
installation instructions before
installing, commissioning or using the
machine, to avoid the risk of accidents
or damage to the machine.
G
M.-Nr. 07 028 590

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Appliance overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before using the appliance for the first time you require: . . . . . . . . . . . . . . . . . . . 12
To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Programming the water hardness level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Checking the programmed water hardness level. . . . . . . . . . . . . . . . . . . . . . . 16
Filling the salt reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Salt indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Setting the rinse aid dosage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Flap up rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Positioning rail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Hinged spikes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Removable spiked insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Dishwashers with a cutlery basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Dishwashers with a cutlery tray (SC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Items not suitable for dishwashers: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Contents
2

Operating the dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Programme selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Programme sequence indicator lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Changing a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Additional option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Drying fan running time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Unloading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Cleaning the filters in the wash cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cleaning the control panel and door front panel. . . . . . . . . . . . . . . . . . . . . . . . . . 42
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Solving problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 54
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Comparison tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Contents
3

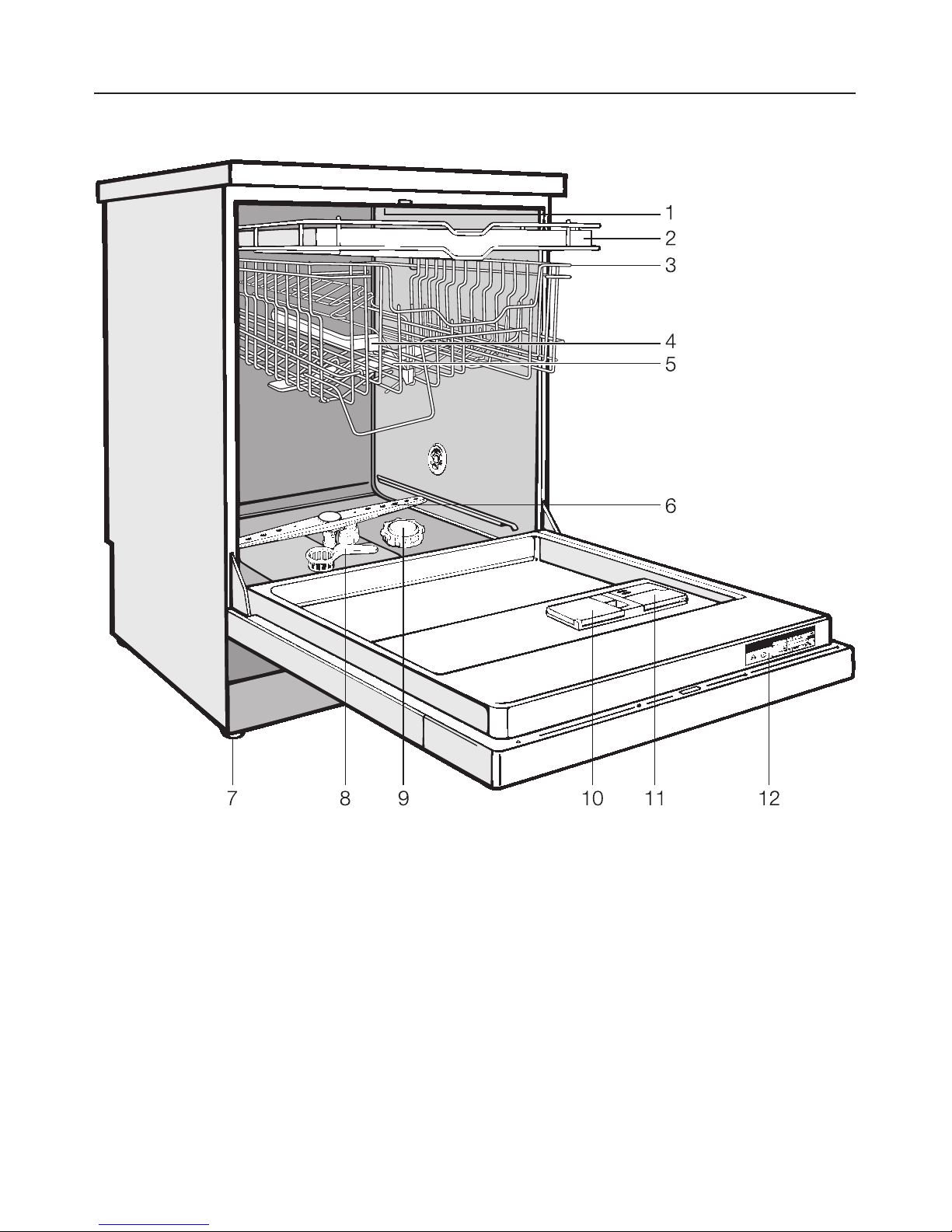

Appliance overview
1 Upper spray arm (not visible)
2 Cutlery tray
(depending on model)
3 Upper basket
4 Water feed for middle spray arm
5 Middle spray arm
6 Lower spray arm
7 Four height adjustable screw feet
8 Filter combination
9 Salt reservoir
10 Dual compartment detergent
dispenser
11 Rinse aid reservoir
(with dosage selector)
12 Data Plate
Description of the appliance
4

Control panel
13 "On/Off" button
14 Programme sequence display
15 "Start" button
16 Programme selector
17 Check/Refill indicators
18 Child safety lock
19 Door release
20 Ventilation outlet for drying fan
Description of the appliance
5

This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important information
on its safety, use and maintenance.
Keep these instructions in a safe
place and pass them on to any
future owner.
Correct application
This dishwasher is intended
exclusively for cleaning domestic
crockery and cutlery in a domestic
household. Using it for purposes other
than those for which it was designed,
as well as any alterations or
conversions to the appliance, would be
unauthorised and could cause harm.
The manufacturer cannot be held liable
for damage resulting from improper or
incorrect use of the appliance.
This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless they
have been given supervision or
instruction concerning use of the
appliance by a person responsible for
their safety.
Safety with children
This appliance is not a toy! To
avoid the risk of injury, keep
children well away and do not allow
them to play in or around the
dishwasher, or to use the controls. They
will not understand the potential
dangers posed by it. They should be
supervised whenever you are working
in the kitchen. There is also a danger
that children playing might shut
themselves in the dishwasher.
Older children may only use the
appliance if its operation has been
clearly explained to them and they are
able to use it safely, recognising the
dangers of misuse.
Keep children away from
detergents. Dishwasher detergents
contain irritant and corrosive
ingredients which can cause burning
in the mouth, nose and throat if
swallowed, or inhibit breathing. Keep
children away from the dishwasher
when the door is open. There could still
be detergent residues in the cabinet.
Consult a doctor immediately if your
child has swallowed or inhaled
detergent.
Warning and Safety instructions
6

Technical safety
Before setting up the appliance,
check it for any externally visible
damage. Under no circumstances
should you use a damaged appliance.
A damaged appliance could be
dangerous.
The dishwasher must only be
plugged into the electricity supply
via a suitable switched socket. The
electrical socket must be easily
accessible after the dishwasher is
installed so that it can be disconnected
from the electricity supply at any time.
(See "Electrical connection").
There must be no electrical
sockets behind the dishwasher.
Danger of overheating and fire risk if
the dishwasher were to be pushed up
against a plug.
The dishwasher must not be
installed under a hob. The high
radiant temperatures which are
sometimes generated by a hob could
damage the dishwasher. For the same
reason it should not be installed next to
open fires or other appliances which
give off heat, such as heaters etc.
Do not connect the dishwasher to
the mains supply until it has been
fully installed.
Before connecting the appliance,
check that the connection data on
the data plate (voltage and connected
load) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system. It is
most important that this basic safety
requirement is present and regularly
tested and where there is any doubt the
electrical system in the house should
be checked by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
This equipment may only be
installed in mobile installations
such as ships if a risk assessment of
the installation has been carried out by
a suitably qualified engineer.
Warning and Safety instructions
7

The plastic housing of the water
connection contains an electrical
component. The housing must not be
dipped in water.
There are live wires in the water
inlet hose. Never cut the water inlet
hose, even if it is too long.
Do not connect the appliance to
the mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
The integrated Waterproof System
offers protection from water
damage, provided the following
conditions are met:
– The dishwasher is correctly installed
and plumbed in.
– The dishwasher is properly
maintained and parts are replaced
where it can be seen that this is
necessary.
–The stopcock has been turned off
when the appliance is not used for a
longer period of time (e.g. during
holidays).
The Waterproof system will work even if
the appliance is switched off. However,
the appliance must remain connected
to the electricity supply.
A damaged dishwasher may be
dangerous. If the dishwasher gets
damaged, switch it off at the mains and
call your Miele Dealer or the Miele Ser-
vice Department.
Repairs may only be carried out by
suitably qualified and competent
technicians in strict accordance with
local and national safety requirements.
Repairs and other work by unqualified
persons could be dangerous.
Always disconnect the dishwasher
from the electrical supply for
maintenance work (switch off at the wall
socket and remove the plug).
If the connection cable is damaged
it must be replaced with a Miele
cable by a Miele approved service
technician only.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Warning and Safety instructions
8

Installation
The dishwasher must be installed
and connected in compliance with
the installation instructions.
The dishwasher must be correctly
aligned to ensure problem-free
operation.
In order to ensure stability,
built-under and integrated
dishwashers must only be installed
under a continuous worktop which is
secured to adjacent cabinetry.
If you want to convert your
freestanding dishwasher to a
built-under ("U") model, you will need to
order the appropriate conversion kit. If
you remove the existing plinth, you
must replace it with a U-model plinth.
This is necessary to avoid the risk of
injury caused by protruding metal
parts.
Correct use
Do not use solvents in the
dishwasher. Danger of explosion.
Do not inhale or ingest dishwasher
detergent. Dishwasher detergents
contain irritant or corrosive ingredients
which can cause burning in the nose,
mouth and throat if swallowed, or inhibit
breathing. Consult a doctor immediate-
ly if detergent has been swallowed or
inhaled.
Avoid leaving the door open
unnecessarily, as you could trip
over it.
Do not sit or lean on the opened
door. This could cause the
dishwasher to tip and be damaged,
and you could get injured.
Only use detergent and rinse aid
formulated for domestic
dishwashers. Do not use washing-up
liquid.
Do not use commercial or industrial
detergents as these may cause
damage, and there is a risk of severe
chemical reaction.
Do not fill the rinse aid reservoir
with powder or liquid detergent.
This will cause serious damage to the
reservoir.
Warning and Safety instructions
9

Inadvertently filling the salt
reservoir with powder or liquid
dishwasher detergent always leads to
serious damage to the water softener.
Make sure you have picked up the
correct packet of dishwasher salt
before filling the salt reservoir!
Please only use special coarse
grained dishwasher salt for
reactivation, as other salts may contain
insoluble additives which can impair
the functioning of the softener.
In an appliance with a cutlery
basket (depending on model)
cutlery is cleaned and dried more
efficiently if placed in the basket with
the handles downwards. However, to
avoid the risk of injury, place knives and
forks etc. with the handles upwards.
Plastic items which cannot
withstand being washed in hot
water, such as disposable plastic
containers, or plastic cutlery and
crockery should not be cleaned in the
dishwasher. The high temperatures in
the dishwasher may cause them to melt
or lose shape.
On models with "Delay start", make
sure that the dispenser is dry before
adding detergent. Wipe dry if necessary.
Detergent will clog if poured into a damp
dispenser and may not be thoroughly
dispersed.
Disposal of your old
dishwasher
When disposing of an old
dishwasher, first make it unusable.
Disconnect, cut off the cable and the
plug from the cable.
Make the door lock inoperative, so that
children cannot accidentally shut
themselves in. Make appropriate
arrangements for the disposal of the
appliance.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
10

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled. Ensure
that any plastic wrappings, bags etc.
are disposed of safely and kept out of
the reach of babies and young
children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure that they
are recycled.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person. The
plug must be rendered useless and the
cable cut off directly behind it to
prevent misuse. See the "Warning and
Safety" section of this booklet for further
details.
Energy saving washing
This dishwasher is exceptionally
economical in its use of water and
electricity. You can make the most of
your appliance by following these tips:
^If your household water system is
suitable, this dishwasher can be
connected to a hot water supply, for
further economies. If the water is
heated by for example, solar panels,
this would be energy efficient.
However, if your water is heated by
electricity we would recommend
connection to cold water.
^For most economical dishwashing
make full use of the baskets without
overloading the dishwasher.
^Choose the programme to suit the
type of crockery being washed and
the degree of soiling.
^Select the Economy programme for
energy-saving dishwashing.
^Follow the detergent manufacturer’s
recommendations on detergent
dosage.
^When using powder or liquid
detergent you can use 1/3less
detergent if baskets are only half full.
Caring for the environment
11

Before using the appliance for
the first time you require:
–approx. 2 litres of water,
–approx. 2 kg dishwasher reactivation
salt,
–domestic dishwasher detergent,
–rinse aid formulated for domestic
dishwashers.
Every dishwasher is tested at the
factory.
There will be residual water in the
appliance from this test. It is not an
indication that it has been previously
used.
Before using for the first time
12

To open the door
^Press the release catch inside the
door grip and pull forward.
If the door is opened during operation
all functions are automatically
interrupted.
To close the door
^Push the baskets right in, lift the door
and push until it clicks into position.
Child safety lock
The yellow key for the child safety
lock is on one of the spikes at the
front of the upper basket.
Remove the key before switching on
the dishwasher and keep it in a safe
place away from the dishwasher.
To prevent children opening the
dishwasher door during operation, use
the key to lock the door:
Horizontal setting:
The door is locked.
Vertical setting:
The door can be opened.
Before using for the first time
13

Water softener
In order to achieve good cleaning
results, the dishwasher needs to
operate with soft water. Hard water
results in the build-up of calcium
deposits on crockery and in the
dishwasher.
Mains water with a hardness level
higher than 0.7 mmol/l (4 °d - German
scale) needs to be softened. This takes
place automatically in the integrated
water softener.
–The water softener must be filled with
dishwasher salt for reactivation.
– The dishwasher must be
programmed to correspond to the
water hardness in your area.
– Your local water authority will be able
to advise you of the water hardness
level in your area.
Where the water hardness fluctuates
e.g. between 1.4 - 3.1 mmol/l (8 - 17 °d
German scale) always programme the
dishwasher to the higher value
(3.1 mmol/l in this example).
In the event of a fault, it will help the
service technician if you know the
hardness of your local water supply.
^Enter the water hardness below:
mmol/l or °d
Before using for the first time
14

Programming the water hardness
level
^Switch the dishwasher off using the
"On/Off" button.
^Turn the programme selector to the
"Stop" position.
^Press the "Start" button in and whilst
holding it in switch the dishwasher
on using the "On/Off" button. Release
the "Start" button within two seconds.
The "Salt" indicator light will flash.
Warning:
If a different indicator light comes on or
flashes, the process must be repeated.
Exception:
The "Rinse aid" indicator light will come
on if you have not yet added rinse aid
or if rinse aid needs replenishing.
^Turn the programme selector to the
position that corresponds to your wa-
ter hardness level (see chart below).
°d
German
scale
mmol/l Programme selector
setting
1 - 4 0.2 - 0.7 "1 o’clock"position
5 - 7 0.9 - 1.3 "2 o’clock"position
8 - 10 1.4 - 1.8 "3 o’clock" position
11 - 13 2.0 - 2.3 "4 o’clock" position
14 - 16 2.5 - 2.9 "5 o’clock" position
17 - 22 3.1 - 4.0 "6 o’clock" position
23 - 35 4.1 - 6.3 "7 o’clock" position
36 - 70 6.5 -12.6 "8 o’clock" position
The dishwasher is set at the factory
for a hardness level of 2.5 -2.9 mmol/l
(14 -16 °d ).
Example:
For a water hardnesss of 3.5 mmol/l,
turn the programme selector to the
"6 o’clock" position.
Before using for the first time
15

^Press the "Start" button.
The "Start" indicator light will come on.
^Turn the programme selector to the
"Stop" position.
^Switch the dishwasher off using the
"On/Off" button.
The water hardness level is now stored
in memory.
Checking the programmed water
hardness level
^Switch the dishwasher off using the
"On/Off" button.
^Turn the programme selector to the
"Stop" position.
^Press the "Start" button in and whilst
holding it in switch the dishwasher
on using the "On/Off" button. Release
the "Start" button within two seconds.
The "Salt" indicator light will flash.
Warning:
If a different indicator light comes on or
flashes, the process must be repeated.
Exception:
The "Rinse aid" indicator light will come
on if you have not yet added rinse aid
or if rinse aid needs replenishing.
^Click the programme selector from
the "1 o’clock" position as far as the
"8 o’clock" position.
When the programme selector is at the
position which corresponds to the water
hardness setting already programmed,
the "Start" indicator light will come on
(see chart "Programming and setting
the water hardness level").
^Turn the programme selector to the
"Stop" position.
^Switch the dishwasher off using the
"On/Off" button.
Before using for the first time
16

Filling the salt reservoir
If the water in your area is very soft
and constantly lower than 0.7 mmol/l
(4 °d) you do not need to add
dishwasher salt.
The water softener must, however,
still be programmed to correspond
to the water hardness level in your
area. (The salt indicator light will still
come on, but should be ignored).
Important: Before filling the salt
reservoir with dishwasher salt for the
first time, you must fill it with approx.
2 litres of water to enable the salt to
dissolve. Once the dishwasher has
been used, there is always sufficient
water in the reservoir.
,Inadvertently filling the salt
reservoir with powder or liquid
dishwasher detergent always leads
to serious damage to the water
softener. Make sure you have picked
up the correct packet of dishwasher
salt before filling the salt reservoir!
,Only use special coarse grained
dishwasher salt for reactivation. Do
not use other salts such as cooking
salt, agricultural grade or gritting
salt. These may contain insoluble
additives which can impair the
functioning of the water softener.
^Remove the lower basket and
unscrew the salt reservoir cap.
^Fill the reservoir with approx. 2 litres
of water (first use).
^Place the funnel provided over the
salt reservoir and carefully fill with salt
until the reservoir is full. The salt
reservoir holds approx. 2 kg of salt
depending on the brand used.
As the salt reservoir is filled, displaced
water will overflow.
^Clean any excess salt from around
the reservoir opening and then screw
the cap on again firmly.
^Run the "Pre-wash" programme im-
mediately to remove any traces of
salt water from the cabinet.
Before using for the first time
17

Salt indicator
The salt indicator light comes on to
notify you that the reservoir is empty.
^The reservoir should then be refilled
with dishwasher salt for reactivation.
(See: Filling the salt reservoir).
After the reservoir has been filled, the
water softener is automatically
reactivated the next time the
dishwasher is run. The salt indicator
light may still be illuminated during this
process. It will go out once the salt
concentration has reached the correct
level.
Note
If the water in your area is very soft and
constantly lower than 0.7 mmol (4 °d)
you do not need to add salt to the
reservoir. The salt indicator light,
however, will still come on, but should
be ignored.
(See "After sales service" for definition
of "PC").
Before using for the first time
18

Rinse aid
Rinse aid is necessary to ensure water
does not cling and leave marks on
crockery during the drying phase.
Rinse aid is poured into the storage
reservoir and the amount set is
dispensed automatically.
,Inadvertently filling the rinse aid
reservoir with powder or liquid
dishwasher detergent always
causes serious damage to the
reservoir. Only pour rinse aid
formulated for domestic
dishwashers into the reservoir.
Alternatively, it is possible to use
– Household vinegar with a max. 5%
acid content
or
– Liquid citric acid up to 10% acid
content.
The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.
,Do not use vinegar with a higher
acid content (e.g. vinegar essence
25% acid). This must not be used as
its use would damage the
dishwasher.
Adding rinse aid
^Press the button in the direction of
the arrow until the flap springs open.
Before using for the first time
19

^Add rinse aid only until it is visible on
the surface of the filter in the
opening.
The rinse aid reservoir holds approx.
130 ml.
^Close the flap firmly so that it clicks
into place. Otherwise water would
enter the rinse aid reservoir during a
programme.
^Wipe up any spilled rinse aid. This
prevents over-foaming occurring
during the next programme.
Rinse aid indicator
The Rinse aid indicator light on the
fascia comes on when the rinse aid
reservoir needs to be replenished.
When the light comes on the reservoir
still contains sufficient rinse aid for 2 - 3
programmes.
^Add rinse aid in plenty of time.
Before using for the first time
20
