Miele PG 8056 User manual

Operating instructions
Commercial dishwasher
PG 8056
To prevent accidents and machine
damage, you absolutely must read these
instructions before installation or use.
en - US
M.-Nr. 10 437 990

Contents
2
Guide to the manual ............................................................................................................5
Operating steps..................................................................................................................... 5
Proper use............................................................................................................................6
IMPORTANT SAFETY INSTRUCTIONS ..............................................................................8
Proper installation.................................................................................................................. 8
Technical safety..................................................................................................................... 8
Proper use ........................................................................................................................... 11
Children in the vicinity ......................................................................................................... 12
Accessories ......................................................................................................................... 12
Symbols attached to the commercial dishwasher .............................................................. 13
Disposal of the commercial dishwasher ............................................................................ 13
Appliance description .......................................................................................................14
Appliance overview ............................................................................................................. 14

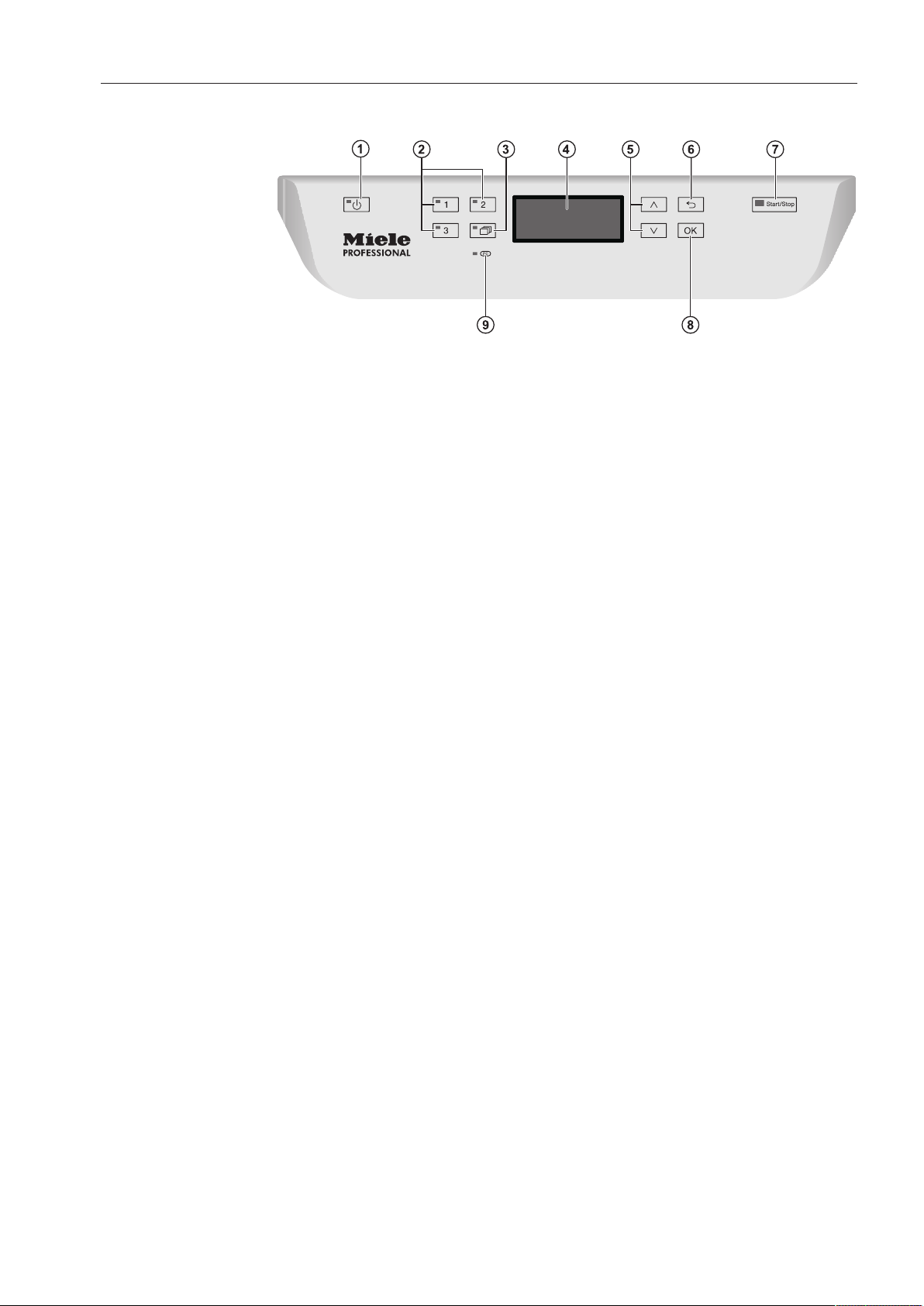

Control panel....................................................................................................................... 15
User profiles.......................................................................................................................16
User groups......................................................................................................................... 16
Daily operators ............................................................................................................... 16
Experienced operators ................................................................................................... 16
Operation tips ....................................................................................................................17
Display functions................................................................................................................. 17
Menus.................................................................................................................................. 18
Symbols in the display ....................................................................................................... 20
Commissioning..................................................................................................................21
Opening and closing the door..........................................................................................25
Opening the door ................................................................................................................ 25
Closing the door.................................................................................................................. 25
Filling the salt container ...................................................................................................26
Reactivation......................................................................................................................... 26
Setting the water hardness level ......................................................................................... 27
Salt refill reminder................................................................................................................ 29
Appliance lockdown due to low salt ................................................................................... 29
Filling the salt compartment................................................................................................ 30
Adding rinse aid.................................................................................................................32
Rinse aid.............................................................................................................................. 32
Rinse aid indicator.......................................................................................................... 32
Adding rinse aid ............................................................................................................. 33
Application technology .....................................................................................................34
Preparing the load ............................................................................................................... 34
Upper basket....................................................................................................................... 36
Adjusting the upper basket ................................................................................................. 37
Lower basket....................................................................................................................... 39
Use of plastic trays.............................................................................................................. 41
Operation............................................................................................................................43
Adding detergent................................................................................................................. 43
Tips for the Rapid program ................................................................................................. 44

Contents
3
DOS module........................................................................................................................ 45
Turning on the dishwasher .................................................................................................. 49
Selecting a program ............................................................................................................ 49
Starting a program .............................................................................................................. 51
Program end........................................................................................................................ 52
Turning off the dishwasher .................................................................................................. 52
Unloading the dishwasher................................................................................................... 52
Interrupting a program......................................................................................................... 53
Cancelling a program .......................................................................................................... 54
Additional functions ..........................................................................................................55
Delay Start........................................................................................................................... 55
Program chart....................................................................................................................56
Settings ...........................................................................................................................60
Menu structure .................................................................................................................... 61
Delay Start........................................................................................................................... 62
Setting the language ........................................................................................................ 63
Venting DOS modules ......................................................................................................... 64
Setting the date................................................................................................................... 65
Date format..................................................................................................................... 65
Setting the date.............................................................................................................. 65
Setting the time of day ........................................................................................................ 66
Setting the time .............................................................................................................. 66
Display............................................................................................................................ 67
Clock format................................................................................................................... 67
Adjusting the volume........................................................................................................... 68
Keypad ........................................................................................................................... 68
Buzzer............................................................................................................................. 68
Setting the volume ......................................................................................................... 69
Additional settings ............................................................................................................70
Accessing the "Additional settings" menu .......................................................................... 70
Menu structure .................................................................................................................... 72
CODE .................................................................................................................................. 74
Access............................................................................................................................ 74
Changing the PIN code .................................................................................................. 74
Log book ............................................................................................................................. 76
Temperature unit.................................................................................................................. 77
Moving a program ............................................................................................................... 78
Additional functions............................................................................................................. 79
Resetting ........................................................................................................................ 79
Increased amount of water............................................................................................. 80
Interim rinse.................................................................................................................... 80
DOS dispensing systems ............................................................................................... 81
Temperature / Time ........................................................................................................ 84
Program access................................................................................................................... 87
Water hardness ................................................................................................................... 88
Display view ........................................................................................................................ 88
Display................................................................................................................................. 89
Contrast.......................................................................................................................... 89
Brightness ...................................................................................................................... 89

Contents
4
Switch off after .................................................................................................................... 90
Factory default setting......................................................................................................... 91
Software version.................................................................................................................. 92
Cleaning and care .............................................................................................................93
Maintenance........................................................................................................................ 93
Cleaning the control panel .................................................................................................. 94
Cleaning the front of the dishwasher .................................................................................. 94
Cleaning the wash cabinet .................................................................................................. 94
Cleaning the door and the door seal................................................................................... 95
Cleaning the filters in the wash cabinet .............................................................................. 95
Cleaning the spray arms...................................................................................................... 97
Frequently asked questions .............................................................................................99
Technical problems ............................................................................................................. 99
Unusual behavior of the dishwasher ................................................................................. 101
Noises................................................................................................................................ 102
Poor cleaning results ......................................................................................................... 103
Frequently asked questions ...........................................................................................105
Cleaning the filters in the water inlet ................................................................................. 105
Cleaning the drain pump and non-return valve................................................................. 106
After sales service...........................................................................................................108
Installation instructions ..................................................................................................109
Caring for the environment ............................................................................................110
Disposal of packaging material ........................................................................................ 110
Disposal of your old appliance.......................................................................................... 110
Installation........................................................................................................................111
Installation ......................................................................................................................... 111
Undercounter installation ............................................................................................. 111
Leveling and securing the dishwasher ......................................................................... 112
Floor mounting ............................................................................................................. 113
Moving the dishwasher ..................................................................................................... 113
Electrical connection ......................................................................................................114
Plumbing ..........................................................................................................................115
Connecting the water supply ............................................................................................ 115
Connection to the drainage system .................................................................................. 117
Technical details..............................................................................................................118

Guide to the manual
5
Warnings
Information which is important for safety is highlighted by a
thickly framed box with a warning symbol. This alerts you to a
potential risk of personal injury or property damage.
Read these warning notes carefully and follow any procedural
instructions and operating prompts.
Notes
Notes contain information that requires particular attention.
They are highlighted by a thickly framed box.
Additional information and comments
Additional information and comments are marked by a box with thin
line.
They are not necessarily critical to the operation of the commercial
dishwasher.
Operating steps
Additional instructions on how to operate the dishwasher are
described step-by-step in a logical sequence.
Each new step is marked by a black square bullet point.
Example:
 Open the dishwasher door.
Display
In this manual, information that is shown in the dishwasher display
appears in a special font similar to the display text.
Example:
Select Delay start and confirm your choice with theOKbutton.

Proper use
6
Proper use
This commercial dishwasher complies with current safety
requirements. Inappropriate use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and damage to the dishwasher,
please read these instructions carefully before using it for the first
time. They contain important information on its safety, installation,
use and maintenance. Keep these instructions in a safe place and
pass them on to any future owner.
 With its short program running times and powerful cleaning
performance, this Miele commercial dishwasher is intended for
commercial use in commercial environments.
 This appliance is designed exclusively for use as a "dishwasher"
for cleaning cookware, glassware and cutlery only, as described in
these instructions. Alterations or conversions to the dishwasher, or
using it for purposes other than those for which it is designed, are not
permitted and could be dangerous.
Miele cannot be held liable for damage caused by improper or
incorrect use or operation.
 This commercial dishwasher is intended only for stationary indoor
use.
 The special inserts are to be used for their specific purpose only.
 This commercial dishwasher is not suitable for the cleaning of
medical products or devices.
 Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision or
instruction by a responsible person.

Proper use
7
 The commercial dishwasher may only be operated when:
– The hull length of the ship is more than 91ft (28m)
– The ship does not list more than 2 degrees.
– Any externally-induced vibration is not more than 150Hz with an
amplitude of 0.35mm.
Safe operation and proper functioning of the commercial dishwasher
is not assured when the above is ignored.
 The commercial dishwasher must not be operated on open decks.

IMPORTANT SAFETY INSTRUCTIONS
8
Proper installation
 The installation and operation of this commercial dishwasher in
non-stationary locations (for example, aboard ships) should only be
performed by professional operations or individuals, if they ensure
that the preconditions for safe use of this appliance have been met.
 When installing the commercial dishwasher, ensure it is properly
secured.
Failure to observe the above could cause injuries and damage to the
commercial dishwasher and other equipment or installations.
 The commercial dishwasher must be fastened to the floor using
the BBF80 floor fastening kit.
 Do not install the commercial dishwasher in areas at risk of
explosion or freezing.
 In order to reduce the risk of damage from condensation, the
furniture in the area around the commercial dishwasher should be
designed for commercial use.
Technical safety
 The commercial dishwasher must only be installed, commissioned,
repaired and then maintained by the Miele Service Department or an
authorized Miele Service dealer. Installation, repair and other work by
unqualified persons could be dangerous and Miele will not be held
liable.
 This commercial dishwasher must only be operated by
appropriately trained personnel. They must be instructed and trained
regularly.
 Before using the commercial dishwasher, check it for any
externally visible damage. Under no circumstances should you use it
if it has been damaged. It could be dangerous.
 In the event of a damaged or leaking commercial dishwasher, turn
it off immediately and contact Miele or an authorized Miele Service
dealer.
 Faulty components may only be replaced by genuine Miele original
parts. Only when these parts are fitted can Miele guarantee the safety
standards of the appliance.
 The electrical safety of this commercial dishwasher can only be
guaranteed when it is connected to a correctly installed grounding
conductor system. If in any doubt, please have the electrical
installation tested by a qualified electrician. Miele cannot be held
liable for the consequences for the lack or interruption of a grounding
conductor (e.g. electric shock).
 Be sure to follow the installation instructions in this manual and in
the installation diagram.

IMPORTANT SAFETY INSTRUCTIONS
9
 Ensure that the connection data on the data plate (voltage,
frequency, and fuse rating) match those of your electrical supply.
 There must be no electrical sockets behind the commercial
dishwasher since the depth of the installation niche may be too small
and there is a danger of overheating if the dishwasher is pushed up
against a plug (see the "Electrical connection" chapter for more
information).
 Do not connect the dishwasher to the electrical supply by a
multiple outlet box or an extension cable since they do not guarantee
the required safety of the appliance (e.g. danger of overheating).
 Do not open the commercial dishwasher casing under any
circumstances. Tampering with electrical connections or components
and mechanical parts is highly dangerous to the user and can cause
operational faults.
 The commercial dishwasher must not be used if the connecting
cable is damaged. If the cable is damaged, it must be replaced with a
special connecting cable available from Miele. For safety reasons, this
may only be performed by the Miele Service Department or an
authorized Miele Service dealer.
 Before maintenance, disconnect the commercial dishwasher from
the electrical supply.
 The plastic housing of the water connection contains electrical
components. It must not be dipped in water.
 There are live wires in the water intake hose. Do not shorten the
water intake hose, even if it is too long.

IMPORTANT SAFETY INSTRUCTIONS
10
 The built-in waterproof system offers reliable protection against
water damage if the following conditions are met:
– proper installation
– proper maintenance of the dishwasher or exchange of parts in
case of visible damage
– closing of the water valve during longer absences (for example
vacation)
The waterproof system will work even if the dishwasher is turned off.
However, the commercial dishwasher must remain connected to the
electrical supply.

IMPORTANT SAFETY INSTRUCTIONS
11
Proper use
 This commercial dishwasher is designed for operation with water
and detergents suitable for use in commercial or residential
dishwashers only. Organic solvents and flammable liquid agents must
not be used.
This could cause an explosion, property damage due to the
destruction of rubber or plastic, and the resulting leakage of liquids.
 Do not sit or lean on the opened door. This could cause the
commercial dishwasher to tip or become damaged.
 After any plumbing work on the water supply, to the dishwasher
will need to be vented. If this is not done, components can be
damaged.
 Please be aware that the dishwasher may be operating at high
temperatures. If the door is opened, there is a danger of burning or
scalding. Dishes, cutlery, baskets, and inserts must be allowed to
cool down before they are unloaded. Any water remaining in
containers could still be very hot. Empty them into the wash cabinet
before taking them out.
 The water in the wash cabinet is NOT safe to drink!
 The pretreatment of items (for example with dishwashing liquid and
other detergents), but also some types of soiling and some
detergents, can cause a build-up of foam in the wash cabinet. Foam
can have an adverse effect on the cleaning result.
 Foam escaping from the wash cabinet can cause damage to the
dishwasher. If foam escapes, the program must be cancelled
immediately.
 When using detergents and specialized products, it is essential
that the manufacturer's instructions are followed. Detergents must
only be used for the purpose they are designed for and in the
situation specified, to avoid material damage and serious chemical
reactions (e.g. oxyhydrogen explosion).
 Do not inhale or ingest powder detergent. Dishwasher detergents
contain irritant or corrosive ingredients which can cause burning in
the nose, mouth and throat if swallowed, or inhibit breathing. Seek
medical attention immediately if detergent has been swallowed or
inhaled.
 Miele cannot be held liable for any effect chemical detergents may
have on the material of the items being cleaned. Observe the
detergent manufacturer's instructions with regard to storage
conditions, use, and dosage.
 To avoid material damage and corrosion, do not allow any acids or
solutions containing chloride to get into the wash cabinet. Similarly
avoid any materials with a corrosive effect.

IMPORTANT SAFETY INSTRUCTIONS
12
 Do not wash items soiled with ash, sand, wax, lubricants, or paint
in the dishwasher. These substances could damage the dishwasher.
 Do not hose down the dishwasher or its direct vicinity to clean it,
e.g. with a water hose or high-pressure cleaner.
 Ensure that the stainless steel outer casing of the appliance does
not come into contact with solutions or steam containing acid to
avoid any corrosion damage.
 Be careful when sorting items with sharp pointed ends and
positioning them in the dishwasher so that you do not hurt yourself or
create a danger for others. Cutlery should be placed in baskets in
such a way that no injuries can occur.
 Remove any coarse food deposits from the items being cleaned
before loading them in the dishwasher.
Children in the vicinity
 Supervise children when they are anywhere near this dishwasher.
Do not let them play with it. There is a danger that children may lock
themselves in the dishwasher.
 Children must not be allowed to operate this dishwasher.
 Keep children away from chemical agents. These contain irritant
and corrosive ingredients which can cause burning in the mouth,
nose and throat if swallowed, or inhibit breathing. Keep children away
from the dishwasher when the door is open. There could still be
residual chemical agent in the cabinet. Seek medical advice
immediately if a child has swallowed or inhaled chemical agent.
Accessories
 Only use genuine Miele original spare parts and accessories with
this dishwasher. Miele will provide you with the article designations of
the accessories.
 Only use Miele baskets and inserts with this dishwasher. Using
baskets and inserts made by other manufacturers, or making
modifications to Miele accessories can cause unsatisfactory cleaning
results, for which Miele cannot be held liable. Any resultant damage
would not be covered by the guarantee.

IMPORTANT SAFETY INSTRUCTIONS
13
Symbols attached to the commercial dishwasher
Attention:
Observe the operating instructions
Attention:
Danger of electric shock!
Disposal of the commercial dishwasher
 For safety and environmental reasons, dispose of all process
chemicals according to the manufacturer's instructions and to safety
regulations. Safety goggles and protective gloves should be worn.
 Remove or disable the door lock prior to disposal of the
dishwasher, so that children cannot become trapped inside (see
"Caring for the environment").
Miele cannot be held liable for damage caused by failure to comply
with these safety instructions and warnings.

Appliance description
14
Appliance overview
aDoor lock
bUpper spray arm (not visible)
cRunner for upper basket
dConnection for upper basket spray arm
eLower spray arm
fRunner for lower basket
gData plate
hRinse aid reservoir
iDoor lock barrel
jReservoir for reactivation salt
kDispenser for powder detergent
lFilter combination
mBack:
Connection for DOS modules
External dispensing pump for liquid detergent (DOS1)
External dispensing pump for rinse aid (DOS4)

Appliance description
15
Control panel
a (On/Off) Button
Turns the dishwasher on and off
bButtons 1 - 3 (program selection buttons)
Shortcut buttons for storing favorite programs
c button (additional programs)
For selecting additional programs
dDisplay
User interface
e and  button (arrow buttons)
Navigation in user interface
f button (cancel or back)
Cancels a process in the user interface
(not for canceling programs)
gStart/Stop button
Starts or cancels a program
hOK button (confirmation)
Selects options or confirms entries in the user interface
iOptical interface 
Testing and transmission point for Miele service technicians

User profiles
16
User groups
Users can be divided into two groups:
– Daily operators
– Experienced operators
When entering a code, the "Additional settings" for general use can
be blocked (see "Additional settings, Code").
Daily operators Daily operators must be instructed in operating and loading the
dishwasher and trained regularly to guarantee safe daily use.
Experienced
operators
Experienced operators can additionally block access to programs,
modify temperature and holding times within program cycles, and
alter water levels.

Operation tips
17
Display functions
The display is not a touch screen.
The following functions can be selected or set with the display:
– The program
– The delay start time
– The settings
The following appears in the display while a program is running:
– The program name
– The program stage / target temperature / actual temperature
– The estimated time left for the program to run
– Any relevant fault messages and information
Menu operation This dishwasher is operated exclusively via buttons on the control
panel. Arranged to the side of the display, the buttons (button fields)
are printed on the stainless steel control panel. They are operated by
pressing gently.
Menu operation is via the keypad to the right of the display.
– button
For navigating upwards by row within a menu, or increasing the
value highlighted.
– button (Cancel or back)
For ending a menu early. Any changes to settings are not saved
and the display reverts to the previous menu.
– button
For navigating downwards by row within a menu, or decreasing the
value highlighted.
–OK button
For confirming a selection or for saving input. The display moves to
the next menu or, when entering values, to the next input position.
The procedure for entering the values is described in the respective
chapter.

Operation tips
18
Menus
The dishwasher's user interface is divided into different menus. These
menus are displayed in a 3-line display on the control panel.
Example:
Language 
,
;
(
english (GB)
deutsch
The name of the menu and a maximum of two menu options are
shown. The currently selected option is highlighted.
Single selection
Delay start
Yes
No (
The  and  arrow buttons are used to navigate within the menu.
The highlighted option is selected by pressing the OK button. Once
selected, the option will have a checkmark  beside it. Other options
are automatically deselected.
Press the OK button to move to the next higher menu, or to the next
entry position when confirming values. The procedure for entering
values is described in the corresponding chapter. Press the  button
to return to the previous menu without saving the entry.
Multiple selection
Release program
Normal
Normal plus ,
;
9
9
The  and  arrow buttons are used to navigate within the menu.
Several options can be selected within the menu in succession using
the OK button. Once selected, an option will have a checkmark 
beside it.
To save your chosen options, select Accept and confirm with the OK
button.

Operation tips
19
System messages The  symbol indicates a system message. These messages provide
information about current processes and the status of the
dishwasher. System messages are displayed individually at the end of
the program. If there are multiple system messages, the additional
messages can be displayed by pressing the OKbutton. A system
message can be accessed again during a program cycle by pressing
OK.
Example:

OK
Refill salt
Automatic switch-off
The dishwasher has an automatic switch-off function. The
dishwasher switches itself off automatically once the set time has
expired. The display and all other LEDs are switched off. To switch
the dishwasher on press the (On/Off) button.
The automatic switch-off function can be disabled (see "Additional
settings, Switch off after"). The display will then remain active in
standby mode.

Operation tips
20
Symbols in the display
Navigation arrows

If a menu contains more than two options, two navigation arrows are
shown beside the options. The arrow buttons  and  can be used
to scroll through the options.
Dotted line ------- If a menu contains more than two options, the end of the option list is
marked by a dotted line. The last entry appears above the line, the
first entry below it.
Tick If there are several options available, the current setting is marked
with a tick .
Example:
Delay start
Yes
No (
System messages

The  symbol denotes system messages. If OK appears in the bottom
right of the display, the system message must be confirmed using the
OK button. If OK does not appear in the display, after a few seconds
the display skips to the next level up.
Fault messages

In the event of a fault, a warning triangle is shown in place of the 
symbol. See "Frequently asked questions" for more information.
