Miele PT 5136 OS Specification sheet

Operating and Installation manual
Vented Dryer
PT 5136
To prevent accidents
and machine damage
read these instructions
before
installation or use. M.-Nr. 09 758 410
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Guide to the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control panel ......................................................6
Display function ....................................................7
Description of the machine ...........................................7
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Fabric care labels ..................................................9
Drying tips ........................................................9
Coin mechanism ..................................................14
Changing a running program ........................................14
Canceling a program...............................................14
Adding/removing laundry during a drying program .......................14
Program guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Delay Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cleaning the lint filter ...............................................19
Cleaning the grid filter ..............................................20
Cleaning the exterior and the control panel .............................20
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Optional accessories ...............................................27
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Electrical connection ...............................................35
Installation of exhaust venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
General notes ....................................................36
How to calculate the effective duct length ..............................37
Determining the position of the exhaust connection .......................40
Exhaust connection with a flexible exhaust hose or rigid pipe ...............41
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Settings J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Menu Settings - Supervisor level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Contents
2

Keep these operating instructions in
a safe place and pass them on to
any future user.
Read all instructions before
installation or use of the dryer to
prevent injury and machine damage.
Installation, repair and maintenance
work should be performed by a
Miele authorized service technician.
Work by unqualified persons could
be dangerous
This appliance complies with current
safety requirements. Improper use
of the appliance can lead to
personal injury and material
damage.
READ AND SAVE THESE
INSTRUCTIONS
WARNING - To reduce the risk
of fire, electric shock or injury:
~The dryer is intended for drying
clothes washed in water. Only dry
clothes with a fabric care label stating it
is safe for tumble drying.
Other uses may be dangerous.
Technical Safety
~Check the packaging, the dryer and
accessories for any signs of damage.
Do not use a damaged appliance.
~Before connecting the machine,
ensure that the connection data on the
data plate (fusing, voltage and
frequency) matches the mains
electrical supply. If in doubt contact an
electrician.
~The electrical safety of this
appliance can only be guaranteed
when continuity exists between the
machine and an effective grounding
system which complies with local and
national regulations. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified technician.
~Do not connect the appliance to the
mains electrical supply by an extension
cord. Extension cords do not guarantee
the required safety of the appliance
(e.g. danger of overheating).
~The machine is built in accordance
with current safety requirements.
Incorrectly repaired machines may
pose a considerable risk to the user.
Repairs should only be performed by a
Miele approved technician.
~Faulty components must only be
replaced with genuine Miele spare
parts. Only genuine Miele spare parts
can guarantee the safe operation of this
machine.
~A faulty power cord must be
replaced by a genuine Miele power
cord.
~Before maintenance or cleaning and
care disconnect the dryer from the
electrical supply pulling the plug or
tripping the circuit breaker.
IMPORTANT SAFETY INSTRUCTIONS
3

Use
~Do not install a clothes dryer with
flexible plastic venting materials. If
flexible metal (foil type) duct is
installed, it must be of a specific type
identified by the manufacturer as
suitable for use with clothes dryers.
Flexible venting materials are known to
collapse, be easily crushed, and trap
lint. These conditions will obstruct
clothes dryer airflow and increase the
risk of fire.
~Use flexible or rigid metal pipe for
venting. Non-metallic flexible hose
should not be used, it is a potential fire
hazard.
~The appliance shall not be
exhausted into a chimney, a wall, a
ceiling, an attic, a crawl space, or a
concealed space of a building.
~The installation of this unit at non
stationary locations (e.g. ships) must be
performed by a qualified installer or
service agency, in strict accordance
with national and local safety
regulations and standards.
~The dryer must not be used without
an exhaust duct.
~The dryer must not used without the
lint filter in place or with a damaged lint
filter.
~Check regularly on the exhaust
parts (e.g. wall vent duct, louvered wall
vent, bends etc.) for air permeability.
Lint can collect and block the air flow.
If an exhaust hose is already installed, it
should be checked before connected
to the dryer.
~Danger of suffocation or
toxication Adequate ventilation is
essential, especially when another
appliance which also uses the room air
(e.g. gas, oil or coal fired heater,
continuous flow or other water heater) is
installed in the same or an adjacent
room. Allow sufficient room ventilation
by unlockable ventilation openings in
the wall.
Check with your building inspector for a
riskless use to avoid a low pressure of
4 Pa or more.
~Never connect an exhaust duct to
an active chimney, vent flue or room
venting ductwork. Danger of toxication
by draw back of exhaust fumes.
~When installing multiple dryers to
one collective exhaust duct, a
non-return flap per dryer must be
installed directly to the collective duct.
Otherwise the dryers could be
damaged and the electrical safety
affected.
~Keep the area where the dryer is
installed free from lint, dust and dirt.
~Do not install the machine in rooms
where temperatures below freezing
may occur.
,WARNING - Risk of Fire
~To reduce the risk of severe injury or
death, follow all installation instructions.
~Clothes dryer installation must be
performed by a qualified installer.
IMPORTANT SAFETY INSTRUCTIONS
4

~Install the clothes dryer according to
the manufacturer's instructions and
local codes.
~To prevent the risk of fire, the
following textiles must not be dried in
this dryer:
–items which have not been washed.
–items, such as work-wear, exposed
to grease, oils, or other deposits
(such as lotions or cosmetics) in your
dryer. If these items have not been
thoroughly cleaned there is a danger
that they may contribute to a
chemical reaction that could cause
the laundry to ignite when heated
even after being removed from the
dryer.
– items that have been previously
cleaned, washed, soaked or spotted
with gasoline, dry-cleaning solvents
or other flammable or explosive
substances. They may give off
vapors that could ignite or explode.
–items treated with flammable
cleaning agents or items containing
acetone, alcohol, petrol, stain
remover, wax or chemicals from
buffing, etc.
–items which have been splashed with
hair spray, nail polish remover, etc.
When washing heavily soiled items
ensure that sufficient detergent is
used with a high temperature. If in
doubt wash the item several times.
–items containing foam rubber or
similarly textured rubber-like
materials.
–items with padding or filling (e.g.
pillows or jackets) which have been
damaged. Loose filling could catch
fire.
~Do not lean on the door. The dryer
may tip over.
~Always close the door after use. to
prevent hazards. For example:
–children trying to climb into the dryer
or hide items in it.
–small pets climbing into the dryer.
~To protect the machine from rust
only use chloride-free cleaning and
disinfecting agents. Chloride may
cause corrosion.
Do not store chloride agents in close
proximity to the dryer. Fumes could
lead to rust damage.
Children
~Close supervision is necessary
when the appliance is used near
children. Do not allow children to play
on or in the appliance.
Using accessories
~Only use genuine Miele accessories
and replacement parts. If other parts
are used, guarantee, performance and
product liability claims may become
void.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
5

Control panel
aDisplay*
See the following pages for more
information.
bStart button
Starts the selected wash program.
c+/ – and OK buttons
See next page for more information.
dm
Delay Start button, Time of day
display.
eOptical Interface PC
Allows a service technician to check
and update the drying programs.
f"Low temperature" button
gProgram selector
To select a wash program.
The program selector can be turned
clockwise or counterclockwise.
hDoor button
To open the drum door.
Guide to the dryer
6

Display function
The display shows several functions on:
–the program selection
–the program duration and the time of
day at program start and end.
When selecting the program several
features may be adjusted or selected in
the display:
–the drying level (i.e. "Hand iron",
"Normal")
–a Delay Start.
The menu "Settings" Jcan be selected
in the menu.
Buttons+/–
To change the component highlighted
in the display.
–decreases the value or moves the
marker up
+increases the value or moves the
marker down.
OK button
To confirm the selected value and to
select the next component.
Delay Start and Time button m
to start the program at a later time.
Press this button during drying to get
the approximate program end time or
the current time of day.
Remaining time
When a program is selected, the
approximate duration is displayed. This
is the "remaining time".
The program duration can vary due to
some factors: Residual moisture after
spinning, fabric, load size, room
temperature or voltage fluctuations.
The adaptive electronic adjusts to the
individual load to display the accurate
remaining time. The remaining time is
constantly modified and can lead to
jumps in time.
The "Woolens handcare" and
"Smoothing" programs can be ended
ahead of time once a certain
temperature has been reached. This
may be the case with fine fabrics or if
the dryer was used before.
Description of the machine
The dryer is suitable for use in
laundromats or apartment laundry
facilities for large amounts of laundry.
Guide to the dryer
7

When the dryer is used for the very first
time, the Welcome screen shows.
"Miele Professional Welcome" will not
show again once the language and
the time of day is set and the first
program runs longer than one hour.
The display shows the language
setting.
Setting the display language
Cdansk -
Fenglish B
français H
^Set the desired language with the +/–
buttons and confirm with OK.
The selected language is marked with a
check.
Setting time of day
10 :00
Set the time of day
^Set the time of day with the buttons
+/– the hours and confirm with OK.
^Set the minutes and confirm.
Basic menu
The basic menus with the current time
of day shows as long as no program is
selected.
The display shows "Settings" J.
10:00
Please select
Settings F...
The information to the settings can be
found at the end of this manual.
The dryer is ready for use.
Before using for the first time
8

Fabric care labels
Before drying, check fabric care labels
for special drying instructions.
q= Drying with normal temperature
r= Drying with low temperature
s= Do not dry in a tumble dryer
Drying tips
–Observe the maximum loads, see the
"Programs guide".
Overloading the dryer will result in
poor drying and wrinkling.
– Do not place dripping wet items in
the dryer! Spin the laundry after the
wash for at least 30 seconds.
– Dry delicate fabrics with the fabric
care symbol rwith the "Low
temperature" option.
–Open jackets to allow even drying.
–Starched laundry can be dried in
the tumble dryer. The amount of
starch must be doubled during the
wash.
–Wash new, colored items before
drying for the first time and do not
dry with light-colored items. These
fabrics can "bleed" (also on plastic
parts of the dryer). Colored fluff may
also get on the light colored items.
–Wool and wool blends tend to felt
and shrink. Dry wool and wool
blends in the "Woollen handcare"
program.
–The fine fabric of down filled items
tend to shrink. Dry these items in the
"Smoothing" program.
–Dry pure linen items only if it is
recommended on the fabric care
label. The surface of the fabric may
become "rough". Dry these items in
the "Smoothing" program.
–Knitted fabrics (e.g. T-Shirts and
underwear) tend to shrink when
washed and dried for the first time.
Do not overdry these fabrics.
–Permanent press and delicate
fabrics tend to crease more the
bigger the load size.
For better drying results reduce the
load size or select the "Shirts"
program.
Use
9

1. Sort the laundry
Loosen the washed laundry and sort by
desired dryness, fiber / fabric, size and
similar residual moisture after spinning
for even drying results.
,Do not dry items that may melt or
ignite in the dryer such as plastics,
rubber or sneakers. They could melt
and damage the laundry.
–Check hems and seams, so that no
filling can drop out.
–Comforter covers and pillowcases
should be fastened in order to
prevent small items from getting
trapped inside of them.
– Close zippers, hooks and eyelets.
– Tie fabric belts and apron ties.
– Remove or sew released bra
underwires.
2. Load the laundry
^Use the "Door" button to open the
drum door.
^Load the laundry loosely into the
drum.

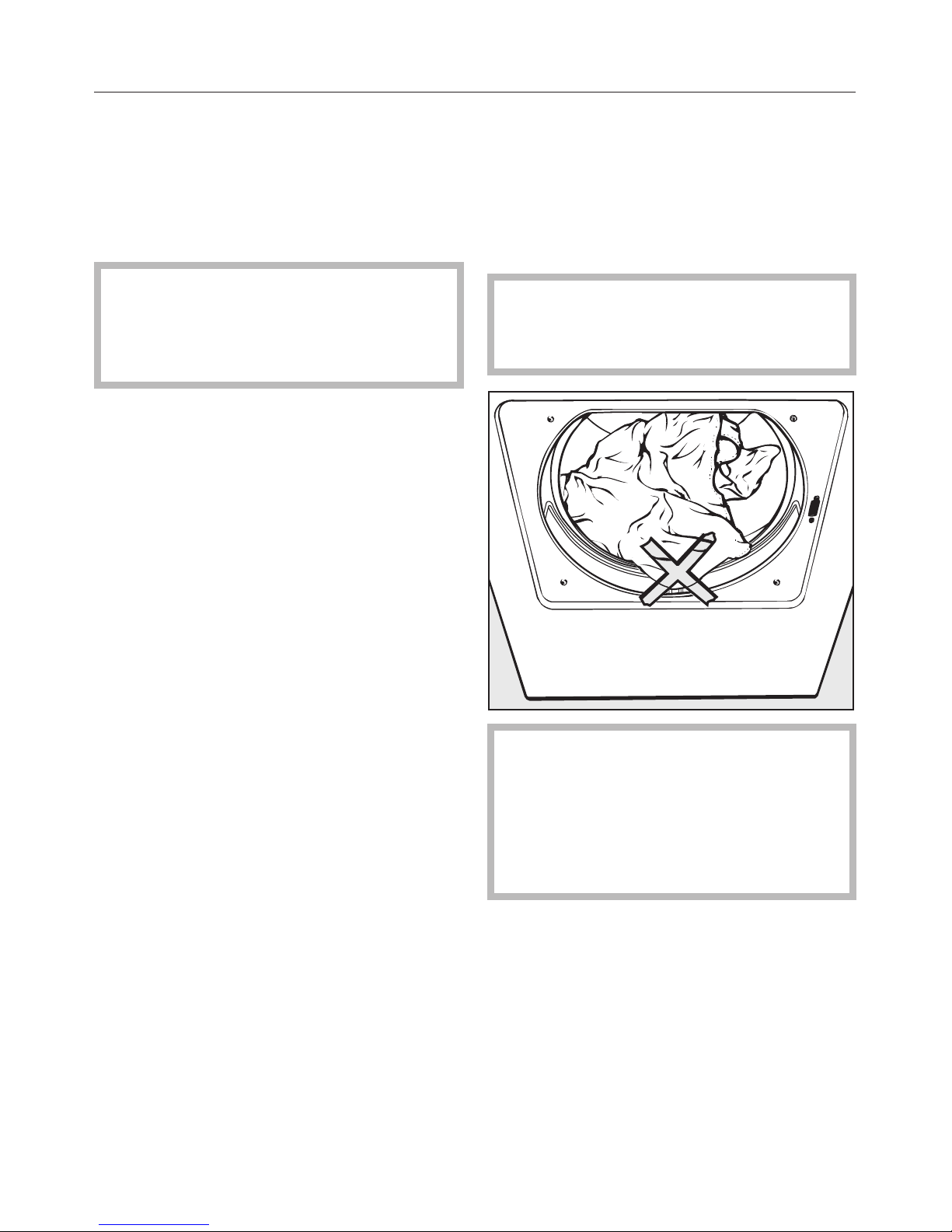

Do not overload the drum.
Overloading strains the fabrics and
results in poor drying results.
To prevent fabric damage, check
that laundry is not caught in the
closed door. Do not use dryer
sheets in this dryer. Silicates
contained in these sheets could
cause the dryer to overheat.
^Close the door with a firm swing or
lean against the dryer and push it
closed.
Use
10

3. Select a program
^Select the desired program with the
program selector.
See the "Program guide" for
information on the programs.
Depending on the selection the display
shows different messages. The
program name is shown.
Cottons
Important: The displayed duration
varies with every program selection!
Cottons, Minimum iron
Normal
Duration: 1:16 h
Different drying levels can be selected.
Towelling, Woollen handcare,
Smoothing
The drying level and duration are fixed.
Cool / Warm air
1:00 h Warm air
Duration: 1:00 h
^The duration can be extended or
shortened with the +/- button (up to
2 hours cold air, 1 hour warm air).
Use
11

Special programs
When selecting "Special programs" the
display shows the list.
EDenim
Shirts
Outerwear H
^Mark the desired program with the
+/- button. The arrow Hin the
display shows that additionally
selections can be made.
^Confirm with "OK".
Shirts
Normal
Duration: 0:36 h
^Use the +/– buttons to change the
drying level (except "Proofing").
Low temperature
To dry delicate items (fabric care
symbol r) e.g. made from acrylic,
press the "Low temperature" button.
The temperature is reduced and the
program duration is extended.
4. Select Delay Start
(if desired)
See "Delay Start".
5. Insert coins (if operated by
coin mechanism)
If a coin mechanism operates the
machine, please regard the displayed
request to pay.
If the door is opened after a
program start or if the program is
canceled the credit is lost.
Use
12

6. Start a program
During the program selection the "Start"
indicator flashes meaning that the
program can be started.
^Press the "Start" button.
The "Start" indicator lights.
"Program start" is displayed, then
"Drying" and the program duration.
The drying levels in the drying level
programs are displayed, e.g. machine
iron, hand iron, etc.
Before the end of a program
After drying with hot air, the cool down
phase finishes the program. "Cooling
down" is displayed. Only after the
cooling down phase has ended the
program is finished.
These programs do not have a cooling
down phase: "Woollen handcare",
"Smoothing".
7. At the end of a program
"Anti-crease" (if selected) and "End"
mark the end of a program in the
display. During the anti-crease phase
the drum will turn in intervals if the
laundry is not immediately removed
from the dryer. This will prevent the
laundry from wrinkling. Run time 1 h.
^Use the "Door" button to open the
drum door.
^Remove the laundry.
Check the drum for any missed
pieces of laundry. Any items left in
the dryer can be damaged because
of over-drying.
If the door stays open, the light goes off
after a few minutes (energy saving).
^Close the door.
Cleaning and care hints
^See maintenance instructions.
Use
13

Coin mechanism
For coin mechanism operated
machines: Money or tokens will be
lost when the door is opened after
program start or when canceling a
program.
Technical Service can allow a time
frame where a program can be
changed.
Changing a running program
A running program cannot be changed
(protection of accidental changes). If
the program selector is turned, the
display shows "Program change not
possible" until the selector is set back
to the original program.
To select a different program, the
running program must be canceled.
Canceling a program
^Turn the program selector to "Finish".
If "Finish" shows in the display, the
program was canceled.
^Open and close the door.
^Select the new program.
^Press the "Start" button.
Adding/removing laundry
during a drying program
^Press the "Door" button.
^Open the door.
,Do not touch the rear of the
drum while adding or removing
items! Danger of burns due to high
temperatures in the drum.
^Add or remove items.
^Close the door.
Continue drying
^Press the "Start" button.
Note
When the program cycle is changed
the displayed remaining time may differ
from the actual drying time.
Use
14

Cottons Load size: 14.3 lbs (6.5 kg)
Normal+, Normal
Items Single and multilayered cotton and linen laundry e.g. Terry towels, -
beach towels, bath robes, T-Shirts, underwear, cottons bed linens,
baby clothing, etc.
Note Select Low temperature for items with the fabric care symbol r
Hand iron r, Machine iron
Items Cotton or linen fabrics to be left damp for easier ironing. e.g. table
cloths, bed linen, starched laundry, etc.
Note –Select Low temperature for items with the fabric care symbol r
–Roll up items until they are machine ironed, to keep them moist.
Minimum iron Load size: 7.7 lbs (3.5 kg)
Normal+, Normal, Hand iron r
Items Minimum Iron items of cotton, mixed fabrics or synthetics.
e.g. sweaters, dresses, pants, table cloths, etc.
Note – Select Low temperature for items with the fabric care symbol r
– Select "Hand iron r" and reduce the load size to 1.5 kg*, for
particularly crease free drying .
– Items will be dried wrinkle-free, depending on fabric and load.
The load size is the weight of the dry laundry.
Program guide
15

Cool air Load size: 14.3 lbs (6.5 kg)
Items To air dry items
Warm air Load size: 14.3 lbs (6.5 kg)
Items –Final drying of multi-layer fabrics, with unique drying
characteristics. e.g. jackets, pillows and large textiles.
–Drying of single items: beach towels, bathing suits, etc.
Note –Select Low temperature for items with the fabric care symbol
r.
–Do not select the longest drying for the first time. Check by
testing, which time is most suitable.
Woollen handcare Load size: 5.5 lbs (2.5 kg)
Items Woolen fabrics
Note –Woolen items will be loosened up and fluffed in a short time,
but not completely dried.
– Remove the items immediately after the program end and
allow to air dry.
–Low temperature cannot be deselected.
Smoothing Load size: 6.6 lbs (3 kg)
Items – Cotton or linen fabrics
– Minimum iron items of cotton, mixed fabrics or synthetics.
e.g. khakis, dress shirts, etc.
Note – Program for reducing creases after previous spinning in the
washer.
–Remove the items immediately after the program end and
allow to air dry.
Program guide
16

Towelling Load size: 14.3 lbs (6.5 kg)
Normal+
Items Terry laundry, e.g. towels, beach towels, bath robes.
Denim Load size: 7.7 lbs (3.5 kg)
Normal, Hand iron r
Items Denim fabric items, pants, jackets, skirts, shirts, etc.
Shirts Load size: 5.5 lbs (2.5 kg)
Normal, Hand iron r
Items Shirts and dress shirts.
Outerwear Load size: 7.7 lbs (3.5 kg)
Normal, Hand iron r
Items Outdoor clothing suitable to dry in a tumble dyer
Proofing Load size: 5.5 lbs (2.5 kg)
Items For dryer suitable items, e.g. ski and outdoor clothing, table cloths
and poplin items
Note – This program has an additional step for the water proofing.
–Water proofed items must only be treated with water repellant
that is "Suitable for membrane textiles". These chemicals are
based on flourochemicals.
– Do not dry items which were treated with agents containing
paraffin! This is a fire hazard.
Program guide
17

The program end time can be selected.
The program start can be delayed for
up to 24 hours.
Selecting the Delay Start
^Press the mbutton.
10:00
Start: 10:00
Finish: 11:45
The display shows the current time of
day at the top, the program start time in
the middle and the end of program time
on the bottom.
10:00
Start: 10:45
Finish: 12:30
^Select the desired program end time
with +.
The delay start is shown in
30-minute-increments. The first push of
the button delays the program end to
the next possible full or half hour. The
program start time changes
accordingly.
^Press the –button to select an earlier
program end time.
^Confirm with "OK".
Starting the Delay Start
^Press the "Start" button.
Normal
Begin in: 0:45 h
The time elapses in minutes until the
program start.
The drum turns briefly every hour to
prevent creases.
Changing a program
As long as the program has not yet
started, the "Low temperature" option or
drying level can be adjusted.
^Press the "Door" button to add or
remove laundry.
^Close the door and press "Start".
Changing the Delay Start
^Press the mbutton.
^Select the desired program end time
with +/–.
^Confirm with "OK".
^Press the "Start" button.
Deleting the Delay Start
^Press the mbutton.
^Press and hold the –button until the
program start time is the current time
of day.
^Confirm with "OK".
The programs starts.
Delay Start
18

Cleaning the lint filter

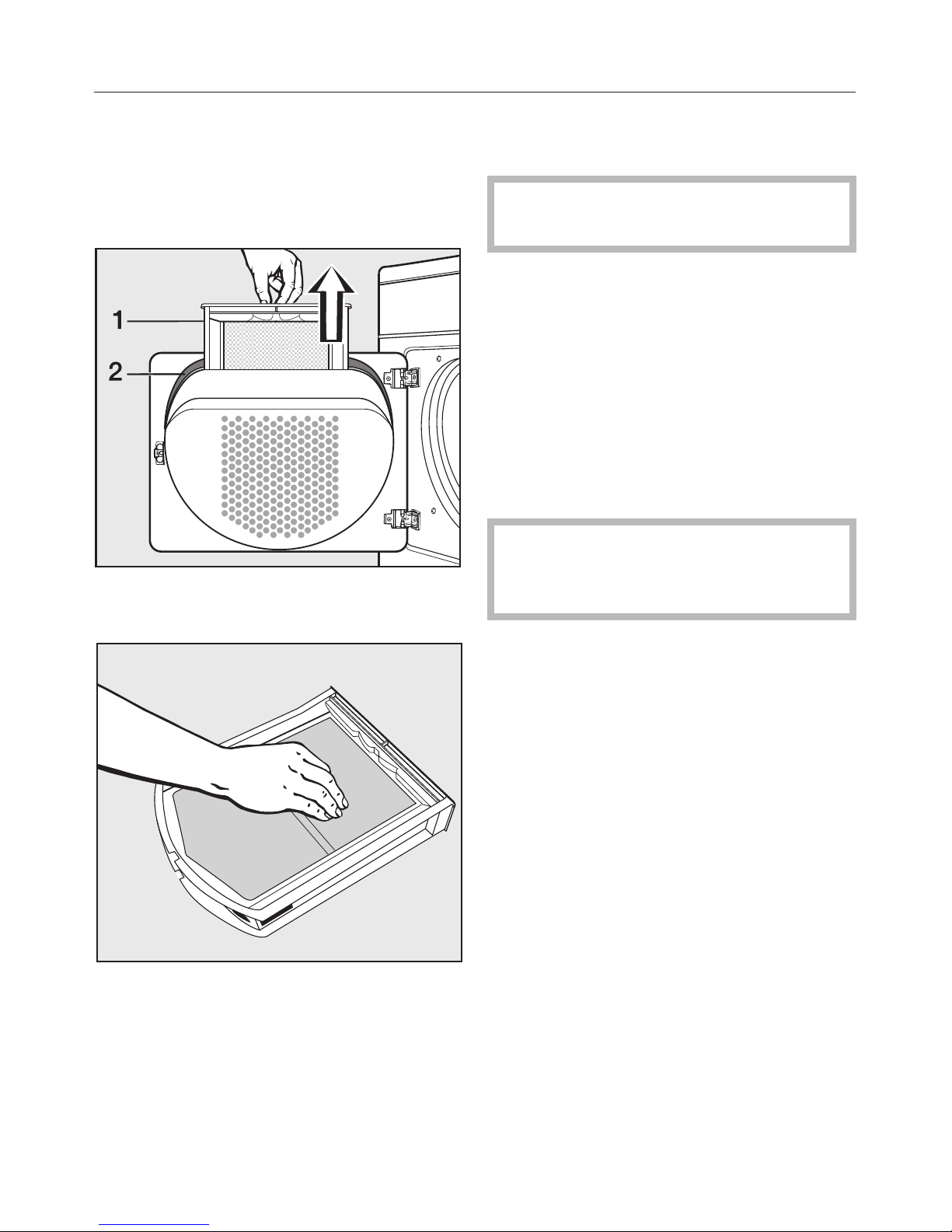

The lint is collected by the lint filter in
the door. The lint filter must be cleaned
after every program.
^Pull the lint filter out its filter frame in
the door (1).
^Wipe or vacuum the lint off the filter.
Do not use sharp objects.
^Any lint remaining in the hollow part
of the door can be removed through
the gap at the bottom with a dust
brush or vacuum.
^Clean the door gasket (2) with a
damp cloth.
The lint filter can be rinsed with hot
water if clogged or clotted.
^Rinse the filter with hot water.
^Dry the lint filter before putting it back
in place.
Inserting the lint filter
^Return the cleaned lint filter.
^Close the door.
,Check and clean the lint filter
when the following message shows:
"Clean out airways".
Cleaning and Care
19

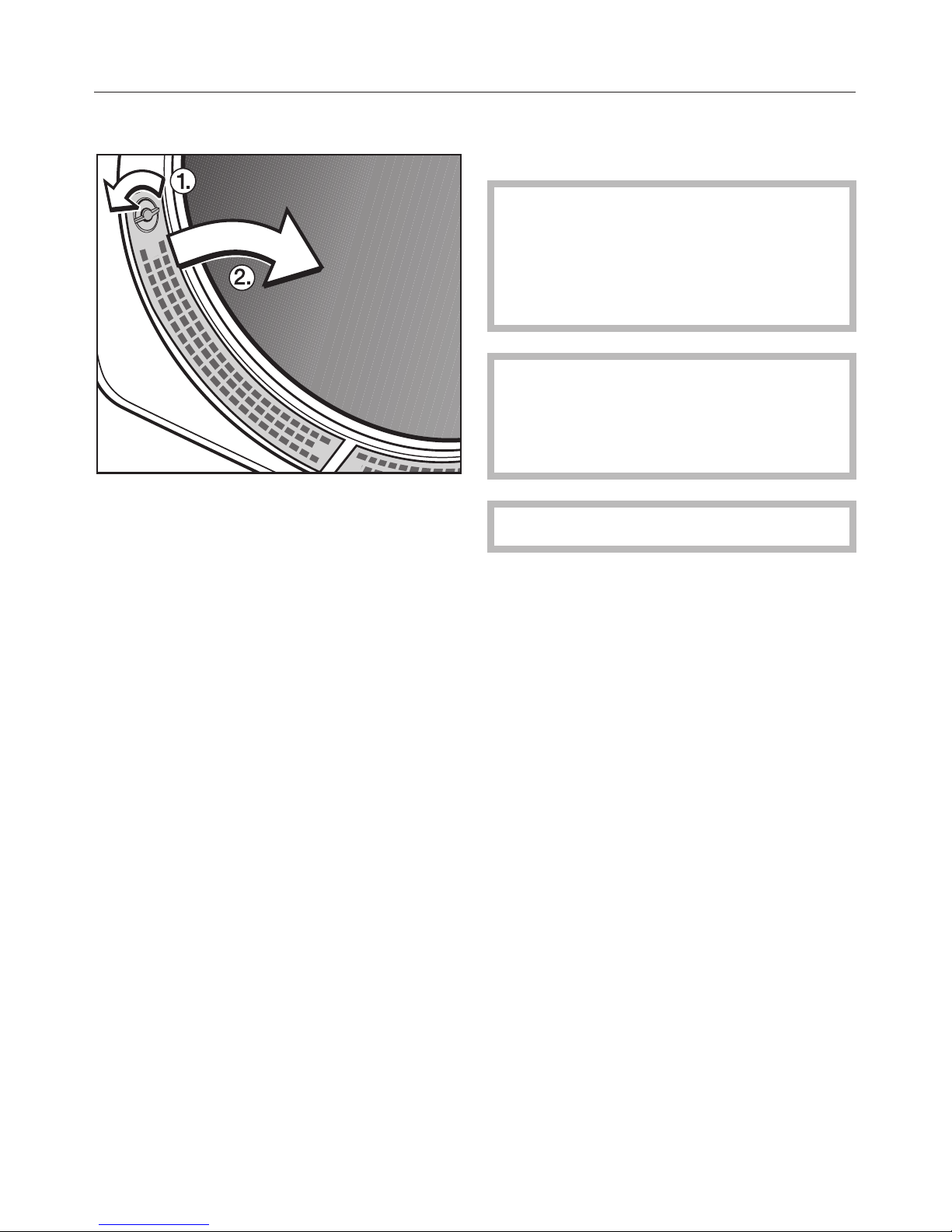

Cleaning the grid filter
Clean the grid filter in the door opening
and the hollow part below the filters
once a month.
^Turn the knobs, a of the left and right
grid filter until a click is heard.
^Holding the knobs pull the filters up
and clean.
^Clean the filters with hot water and
dry thoroughly.
^Clean the hollow part below the filters
with a brush or a vacuum cleaner.
^Reinsert the filters.
^Lock the filters into place by turning
the knobs until a click is heard.
Cleaning the exterior and the
control panel
,To reduce the risk of electric
shock, disconnect this appliance
from the power supply by
unplugging or tripping the circuit
breaker.
,Do not use abrasive cleaners,
glass cleaners or all-purpose
cleaners. They will damage the
dryer.
,Do not hose the dryer down.
^The exterior and the control panel
can be cleaned with warm water and
liquid dish soap applied with a soft
sponge. Wipe dry using a soft cloth.
^Stainless steel parts can be cleaned
with a non-abrasive stainless steel
cleaner.
^Wipe clean with a soft cloth.
Cleaning and Care
20
