Miele T 8903 C User manual

Operating instructions
for condenser tumble dryer
T 8903 C
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 07 869 350
en - AU, NZ

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Therefore,
please do not dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse.
Energy saving tips
To avoid unnecessarily long drying
times and high consumption of energy:
–Make sure that your laundry is
thoroughly spun before drying.
The higher the spin, the greater the
savings that can be made in energy
and time during drying.
– Load according to the optimum
amount of laundry recommended for
the programme being used (see
Programme chart).
Underloading is uneconomical.
Overloading gives a poorer quality of
drying and may cause unnecessary
creasing.
– Make sure the room in which the
dryer is located is well ventilated.
–Make sure the fluff filters are clean
before using the dryer.
–Check the condenser unit from time
to time and clean it when necessary.
Caring for the environment
2

Caring for the environment..........................................2
Warning and Safety instructions .....................................5
Operating the tumble dryer.........................................10
Control panel .....................................................10
Programmable functions ............................................10
Interior drum lighting ...............................................10
Notes on laundry care .............................................11
Care symbols.....................................................11
Tips on drying ....................................................11
How to dry correctly ..............................................12
Brief instructions ..................................................12
Changing the programme sequence .................................14
Once a programme has started ......................................14
- changing the programme........................................14
- cancelling the programme and then selecting a different programme .....14
- cancelling the programme and then removing the laundry ..............14
Adding or removing laundry after a programme has started ................14
Programme chart .................................................15
Cottons .......................................................15
Minimum iron ..................................................15
Delicates ......................................................16
Airing.........................................................16
Woollens handcare ..............................................16
Smoothing.....................................................16
Cleaning and care ................................................17
Emptying the condensed water container...............................17
Cleaning the fluff filters .............................................18
Cleaning them whilst dry .........................................18
Cleaning them with water .........................................19
Cleaning the tumble dryer ...........................................19
Cleaning the condenser unit .........................................20
Removing the condenser unit......................................20
Checking the condenser unit ......................................21
Cleaning the condenser unit.......................................21
Replacing the condenser unit......................................22
Contents
3

Problem solving guide ............................................23
General problems .................................................23
Check and fault messages ..........................................26
Changing the lamp ................................................28
After Sales service................................................29
Future updates (PC) ...............................................29
Optional accessories ...............................................29
Installation ......................................................30
Front view........................................................30
Rear view ........................................................31
Installation site ....................................................31
Transporting the machine to its installation site ........................31
Building under a continous worktop / in a kitchen run ...................31
Levelling the machine............................................32
Room in which the dryer is located .................................33
Washer-dryer stack..............................................33
Before moving the machine again
(e.g. when moving house) ........................................33
External condensed water outlet ......................................34
Arranging the drain hose .........................................34
External drainage via a sink or gully ................................35
Installation conditions requiring a non-return valve .....................35
Electrical connection ...............................................37
Consumption data ................................................38
Technical data ...................................................39
Programmable functions...........................................40
Changing the residual moisture of the "Cottons" programme ................40
Extending the drying level for the "Minimum iron" programme ...............41
Anti-crease setting.................................................42
Switching the buzzer on/off ..........................................43
Changing the "Delicates" programme selection ..........................44
Extending the cooling down time .....................................45
Set Standby ......................................................46
Contents
4

~It is essential to read these
instructions.
This tumble dryer conforms to
current safety requirements.
Inappropriate use can, however,
lead to personal injury and damage
to property.
To avoid the risk of accidents and
damage to the tumble dryer, please
read these instructions carefully
before using it for the first time. They
contain important information on its
safety, installation, use and
maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.
Correct application
~This tumble dryer must only be used
for domestic purposes to dry items
which have been washed in a water
solution and which are marked on the
manufacturer's care label as being
suitable for tumble drying. "Dry
cleaning kits" for freshening up
garments in a tumble dryer are
increasingly available on the market. If
using, do so at your own risk, and
follow the instructions provided on the
packaging.
Any other usage is not supported by
the manufacturer and could be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation of the tumble
dryer.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
are supervised whilst using it or have
been shown how to use it correctly by a
person responsible for their safety.
Safety with children
~Keep children away from the tumble
dryer at all times. It is not a toy! To
avoid the risk of injury do not allow
them to play on or near it or to play with
its controls. Supervise children whilst
you are using it.
~Older children may only use it if its
operation has been clearly explained to
them, and they are able to use it safely,
recognising the dangers of incorrect
use.
Warning and Safety instructions
5

Technical safety
~Before setting up the tumble dryer,
check it for any externally visible
damage.
Do not install or use a damaged tumble
dryer.
~Before connecting the tumble dryer,
ensure that the connection data on the
data plate (voltage and connected
load) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.
~The electrical safety of this tumble
dryer can only be guaranteed when
continuity is complete between it and
an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and regularly tested, and
where there is any doubt, the
household wiring system should be
inspected by a qualified electrician.
Miele cannot be held liable for the
consequences of an inadequate
earthing system (e.g. electric shock).
~Do not connect the tumble dryer to
the mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
tumble dryer (e.g. danger of
overheating).
~Unauthorised repairs could result in
unforeseen dangers for the user, for
which Miele cannot accept liability.
Repairs should only be undertaken by a
Miele approved service technician.
Ensure current is not supplied to the
tumble dryer until after maintenance or
repair work has been carried out.
~Faulty components must only be
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
tumble dryer be guaranteed.
~If the connection cable is faulty, it
must only be replaced by a Miele
approved service technician to protect
the user from danger.
~In the event of a fault or for cleaning
purposes, the tumble dryer is only
completely isolated from the electricity
supply when:
– it is switched off at the wall socket
and the plug is withdrawn, or
– it is switched off at the mains, or
– the mains fuse is disconnected, or
the screw-out fuse is removed (in
countries where this is applicable).
~This tumble dryer may only be used
in mobile installations such as ships if a
risk assessment of the installation has
been carried out by a suitably qualified
engineer.
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the tumble dryer and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the warranty.
~Do not make any alterations to the
tumble dryer, unless authorised to do
so by Miele.
Warning and Safety instructions
6

Correct use

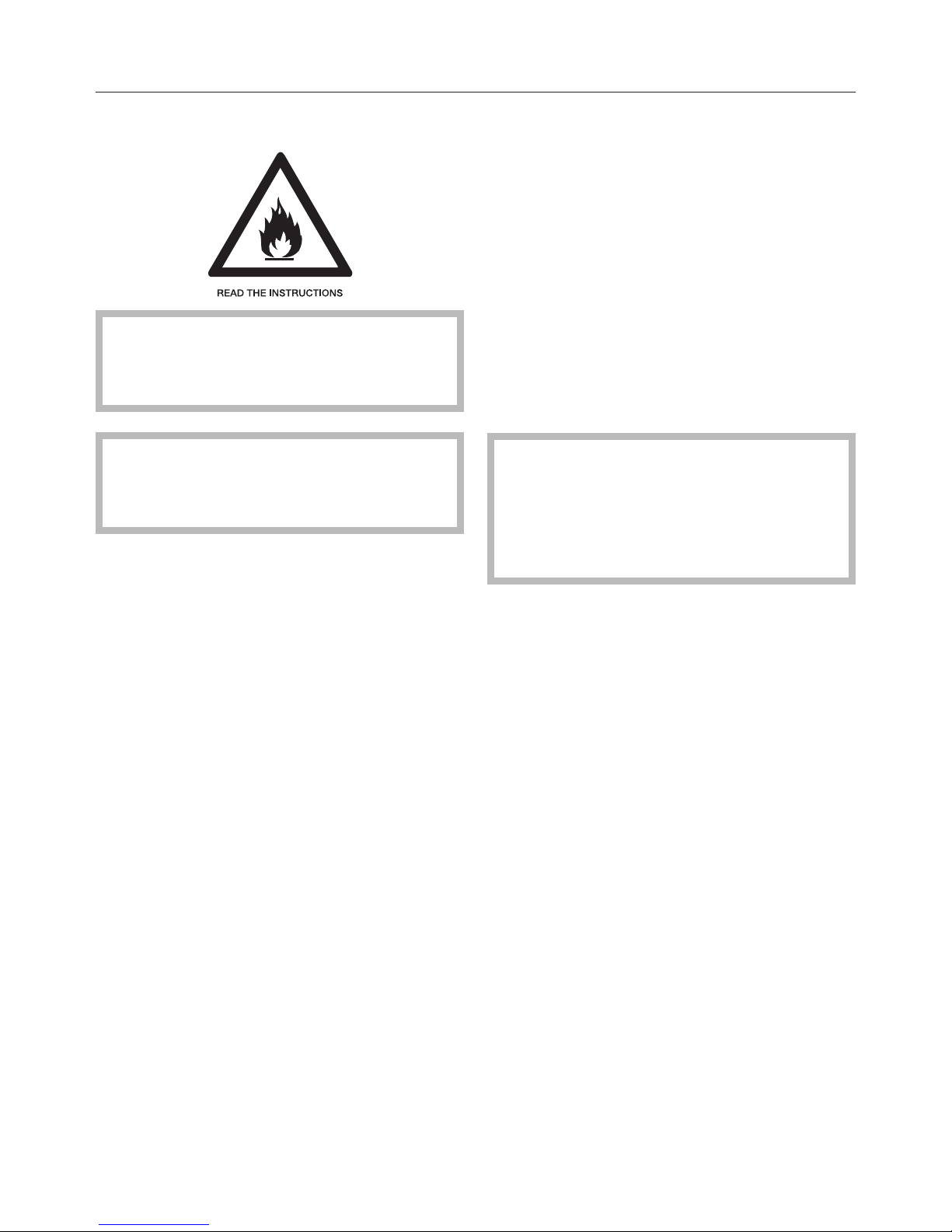

,To avoid the possible danger of
fire, please read these warnings
carefully.
,A clogged filter is a fire hazard!
The fluff filter must be cleaned after
every programme.
~Remove all objects from pockets
such as lighters and matches.
~To prevent the risk of fire, the
following textiles must not be dried in
this tumble dryer:
– Items which have not been washed.
– Items, such as workwear, which have
not been thoroughly cleaned and
which are still soiled with grease, oil
or other desposits (such as
cosmetics, lotions etc).
If items have not been thoroughly
cleaned, there is a danger that these
might ignite when heated, even after
they have been removed from the
dryer at the end of the programme.
–Items that have been soiled with
substances such as cooking oil,
acetone, petrol, kerosene, spot
removers, turpentine, waxes, wax
removers and other chemicals (e.g.
mops and floor cloths) should be
washed in hot water with extra
detergent before being dried in the
tumble dryer.
–Items which have been splashed
with hair lacquer, hair spray, nail
polish remover or similar substances.
When washing such heavily soiled
items ensure that you use sufficient
detergent and select a high
temperature. If in doubt, wash the
items several times.
~Oil-affected items can ignite
spontaneously, especially when
exposed to heat sources such as in a
tumble dryer.
The items become warm, causing an
oxidation reaction in the oil. Oxidation
creates heat.
If the heat cannot escape, the items
can become hot enough to catch fire.
Piling, stacking or storing oil-affected
items can prevent heat from escaping
and so create a fire hazard.
If it is unavoidable that fabrics
contaminated with vegetable or
cooking oil, or hair care products, be
placed in a tumble dryer, they should
first be washed in hot water with extra
detergent - this will reduce, but not
eliminate, the hazard.
Warning and Safety instructions
7

~To prevent the risk of fire, the
following textiles or products must not
be dried in this tumble dryer:
–Items which have been dry-cleaned
(for example with a chemical
treatment).
–Fabrics which contain a large
proportion of rubber, foam rubber or
rubber-like materials. For example,
products made from latex foam
rubber, shower caps, waterproof
textiles, rubberised articles and items
of clothing and pillows with foam
rubber filling.
– Fabrics which contain padding or
fillings (e.g. pillows, jackets). If these
were damaged, the filling could get
out with the risk of igniting in the
dryer.
~In many programmes, the heating
phase is followed by a cooling down
phase to ensure that the items are not
too hot to handle when you remove
them (this also avoids the danger of the
laundry self-igniting). The programme is
not finished until the cooling down
phase is complete.
Ensure that you always wait until the
end of the programme before removing
the laundry.
~Warning: Do not switch the tumble
dryer off before the end of the drying
programme. If this was done and the
laundry was then removed immediately,
it could give off a great amount of heat.
~Fabric conditioner and similar
products must be used according to
the instructions on the manufacturer's
packaging.
Warning and Safety instructions
8

~The dryer must not be used without
the fluff filters in place or if the fluff
filters are damaged in any way.
~The fluff filters must be cleaned
regularly.
~The dryer must not be used without
the condenser unit in place.
~The fluff filters must be thoroughly
dried after cleaning. Damp or wet filters
could cause operational faults.
~Do not install the tumble dryer in a
room where there is a risk of frost
occurring. At temperatures around
freezing point the tumble dryer may not
be able to operate properly.
There is a risk of damage if the
condensed water is allowed to freeze in
the pump, hoses and / or condensed
water container.
The ambient room temperature should
be between +2°C and +35°C.
~If the water is drained externally
through the drain hose instead of being
collected in the condensed water
container, make sure the drain hose is
securely attached if you hang it in a
sink or basin to avoid the hose slipping
and the water causing damage.
~Condensed water is not drinking
water.
It can cause health problems in both
people and animals.
~Always keep the area around the
tumble dryer free of dust and fluff. Dust
drawn into the tumble dryer can cause
blockages in the condenser unit over
time.
~Do not let anyone sit or lean on the
door, as this can cause the tumble
dryer to tip up.
~Always close the door after use. This
way you will avoid the danger of:
–Children climbing onto or into the
dryer or hiding things in it.
– Pets or other small animals climbing
into it.
~The tumble dryer must not be hosed
down.
Accessories
~Only use genuine Miele spare parts
and accessories with this appliance.
If non-Miele parts are used, warranty,
performance and product liability
claims may be invalidated.
Miele cannot be held liable for
damage caused by non-compliance
with these Warning and Safety
instructions.
Warning and Safety instructions
9

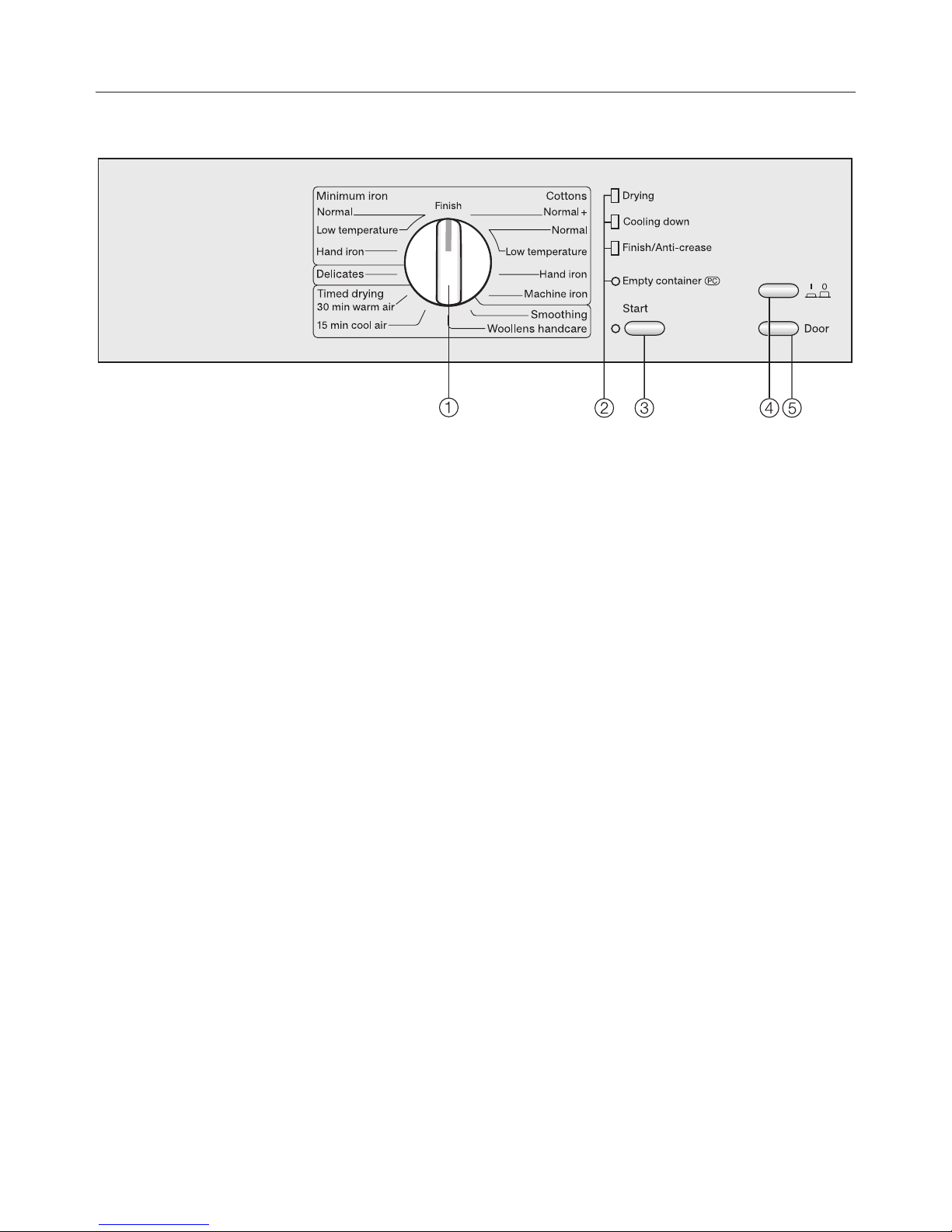

Control panel
aProgramme selector
For setting the drying programme.
The programme selector can be turned clockwise or anti-clockwise.
bProgramme sequence / Check lights
cStart button
For starting a drying programme.
The indicator light flashes while a programme is being selected and then lights
up constantly after the programme has started.
dOn/Off button jk
For switching the dryer on and off.
The Finish/Anti-crease indicator light lights up after switching the tumble dryer
on for confirmation.
eDoor button
For opening the door and cancelling a programme.
Pressing this button will open the door even when the dryer is switched off at
the mains.
Programmable functions
The programmable functions are used to alter the machine's electronics to suit
changing requirements. Programmable functions are explained at the end of
these Operating instructions.
Interior drum lighting
If the dryer is switched on at the mains and the door is opened, the drum lighting
will come on. It will go out a few minutes later to save energy.
Operating the tumble dryer
10

Care symbols
Drying
qNormal/higher temperature.
rReduced temperature:
Select Low temperature for
sensitive fabrics.
sDo not tumble dry
Ironing
IVery hot.
HHot.
GWarm.
JDo not iron.
Tips on drying
– See the "Programme chart" for
maximum recommended loads for
each programme.
Overloading can cause unnecessary
wear and tear to the laundry, give a
disappointing drying result and
cause more creasing.
–Do not tumble dry loopknit garments!
Spin garments for at least 30
seconds after washing.
–Open jackets so that they can dry
evenly.
–Woollen fabrics and wool blends
tend to shrink and become matted if
dried in a tumble dryer. These
fabrics should only be dried using
the Woollens handcare programme.
–Down-filled fabrics have linings
which have a tendency to shrink,
depending on the quality of the item.
These fabrics should only be dried in
the Smoothing programme.
–Pure linen should only be machine
dried if specified as suitable by the
manufacturer on the care label.
Otherwise the surface of the fabric
may become rough.
–Loopknit garments (e.g. T-shirts,
underwear) have a tendency to
shrink after the first wash. Therefore:
To avoid further shrinking, do not
overdry these fabrics. When buying
loopknit garments, it is advisable to
take their shrinkage properties into
account.
– Creasing in minimum iron fabrics
increases with the size of the load.
This applies in particular to very
sensitive fabrics (e.g. shirts,
blouses).
Use the Delicates programme.
If in doubt, reduce the size of the
load.
– Starched laundry can be dried in the
tumble dryer. To achieve the usual
finish, double the amount of starch
should be used.
–New dark coloured garments should
be washed separately from light
coloured garments. Do not dry these
together with light garments as they
may bleed onto them (also onto
plastic components in the tumble
dryer). Dark coloured fibres can also
settle on light coloured garments and
vice versa.
Notes on laundry care
11

Brief instructions
The headings numbered (A,B,C...)
show the operating sequence and can
be used as a brief guide to using your
machine.
ASort the laundry
Separate the washed laundry and sort it
according to...
. . . the drying level required,
. . . the type of fibre or weave,
. . . size,
. . . the moisture content after spinning.
In this way an even drying result will be
achieved.
,Make sure that objects, e.g.
detergent dispensing balls, have
been removed from the laundry.
They could melt and cause damage
to the dryer or the laundry.
– Check seams and stitching to ensure
that padding and linings are intact.
–Remove all objects from pockets
such as lighters and matches.
–Fasten duvet covers and pillow
cases to prevent small items from
being rolled up inside them.
–Fasten zips, hooks and eyes etc.
–Tie fabric belts and apron strings.
–Sew in or remove underwiring from
bras.
BTurn on the tumble dryer
The tumble dryer may be switched on
after loading, saving energy as the light
will not come on.
^Switch on the dryer by pressing the
jk button.
CLoad the tumble dryer
^Press the Door button to open the
door.
^Load the laundry loosely into the
drum.
Do not overload the drum. See the
"Programme chart" for
recommended loads for each
programme.
Overloading can cause unnecessary
wear and tear to the laundry and
give a disappointing drying result.
^Before closing the door, make sure
the fluff filter is correctly positioned in
the door.
Check the laundry is right inside the
drum so that it cannot get trapped or
damaged when the door is shut.
^Shut the door either with a gentle
swing, or lean against it and push it
shut.
How to dry correctly
12

DSelect a programme
^Turn the programme selector to the
required programme.
Tip: You can individually modify the
residual moisture or programme
selection for some programmes (see
"Programmable functions").
EStart the programme
^Press the Start button.
The indicator light for the Start button
will go from flashing to constantly
lighting up.
The heating phase begins.
Before the end of a programme
The heating phase is followed by a
cooling down phase (Cool air lights up).
The programme is not finished until the
cooling down phase has been
completed.
There is no cooling down phase with:
Woollens handcare, Smoothing.
FRemove the laundry when the
programme has finished
The Finish/Anti-crease indicator light
comes on.
After the programme has finished, the
drum will continue to rotate in a certain
rhythm, depending on the selected
programme. This "Anti-crease rhythm"
helps to prevent creasing if the laundry
is not removed immediately after the
end of a programme (not with Woollens
handcare).
Duration: changeable, see
"Programmable functions".
^Press the Door button.
^Open the door.
^Remove the laundry.
Check that all items have been
removed from the drum. If items are
left in the dryer, they could be
damaged by overdrying when the
dryer is next used.
^Switch the dryer off by pressing the
On/Off button jk.
^Clean the fluff filters.
^Close the door.
^Empty the condensed water
container (unless the dryer has been
connected for external drainage).
^Check the condendser unit
intermittently and clean if necessary
(see "Cleaning and care").
Using the Cottons Normal +
programme is recommended for a
mixed cotton load and is the
programme used in energy
consumption tests to AS/NZS 2442
(Refer to www.energyrating.gov.au
website for consumption data).
How to dry correctly
13

Once a programme has started
- changing the programme
You cannot change to another
programme once a programme has
started (this prevents unintentional
alterations).
Once a selection has been made, the
Finish/Anti-crease indicator light will
flash.
You will need to cancel the current
programme before you can select a
new one.
- cancelling the programme and then
selecting a different programme
^Turn the programme selector to
Finish.
^Press the Door button.
^Close the door.
^Select and start a new programme.
- cancelling the programme and then
removing the laundry
^Refer to the following: "Adding or
removing laundry after a programme
has started".
^Switch the dryer off after closing the
door.
Adding or removing laundry
after a programme has started
^Press the Door button.
^Open the door.
,Danger of burning:
Do not touch the back of the drum
when adding or removing items. The
drum and the items can get very hot.
^Add or remove items as required.
^Close the door.
^Press the Start button.
Changing the programme sequence
14

Cottons Max. load: 7 kg*
Normal+, Normal
Fabric type Single and multi-layered cotton fabrics such as
towelling, jerseywear, T-shirts, underwear.
Normal Low temperature
Fabric type All fabrics with the rsymbol on the care label for the Cottons
programme.
Note Delicate fabrics are dried at a low temperature in this programme.
Hand iron, Machine iron
Fabric type Cotton and linen fabrics. For example: table linen, bed linen,
starched laundry.
Note To prevent laundry from drying out, it should be rolled up until you
are ready for ironing.
Minimum iron Max. load: 3.5 kg*
Normal, Hand iron
Fabric type Minimum iron items made of cotton, synthetic or mixed fibres. For
example: dresses, trousers, skirts or table cloths.
Note Depending on fabric type and amount of laundry, items are dried
with very little creasing with the Hand iron drying level.
Normal Low temperature
Fabric type All fabrics with the rsymbol on the care label for the Minimum iron
programme.
Note Delicate fabrics are dried at a low temperature in this programme.
* Weight of dry laundry
Programme chart
15

Delicates Max. load: 2.5 kg*
Fabric type Delicate items made of synthetic fibres, easy care cotton, blended
fabrics or rayon, e.g. shirts, blouses and evening wear with sequins
and beading.
Notes –For fabrics with the rsymbol on the care label.
–Reduce the load for delicate fabrics to reduce creasing even
more.
Airing Max. load: 7 kg*
Warm air
Fabric type – "Voluminous" and multi-layered fabrics whose layers have
different drying characteristics: e.g. jackets, pillows.
– For drying individual items, e.g. bath towels, swimwear, tea
towels and small loads.
Cool air
Fabric type Any item which only needs airing.
Woollens handcare Max. load: 2 kg*
Fabric type Woollen fabrics.
Notes – This programme only fluffs up woollen garments. They are not
dried completely by this programme.
–Remove garments as soon as the programme has finished and
leave to finish drying at room temperature.
Smoothing Max. load: 3 kg*
Fabric type –Cotton and linen fabrics.
–Minimum iron items made of cotton, synthetic or mixed fibres.
For example: trousers, anoraks, shirts.
Notes –Smoothes out creasing caused during the spin cycle in the
washing machine.
–Fabrics are not completely dried by this programme.
–Remove garments as soon as the programme has finished so
that they are easy to iron.
* Weight of dry laundry
Programme chart
16

Emptying the condensed water
container

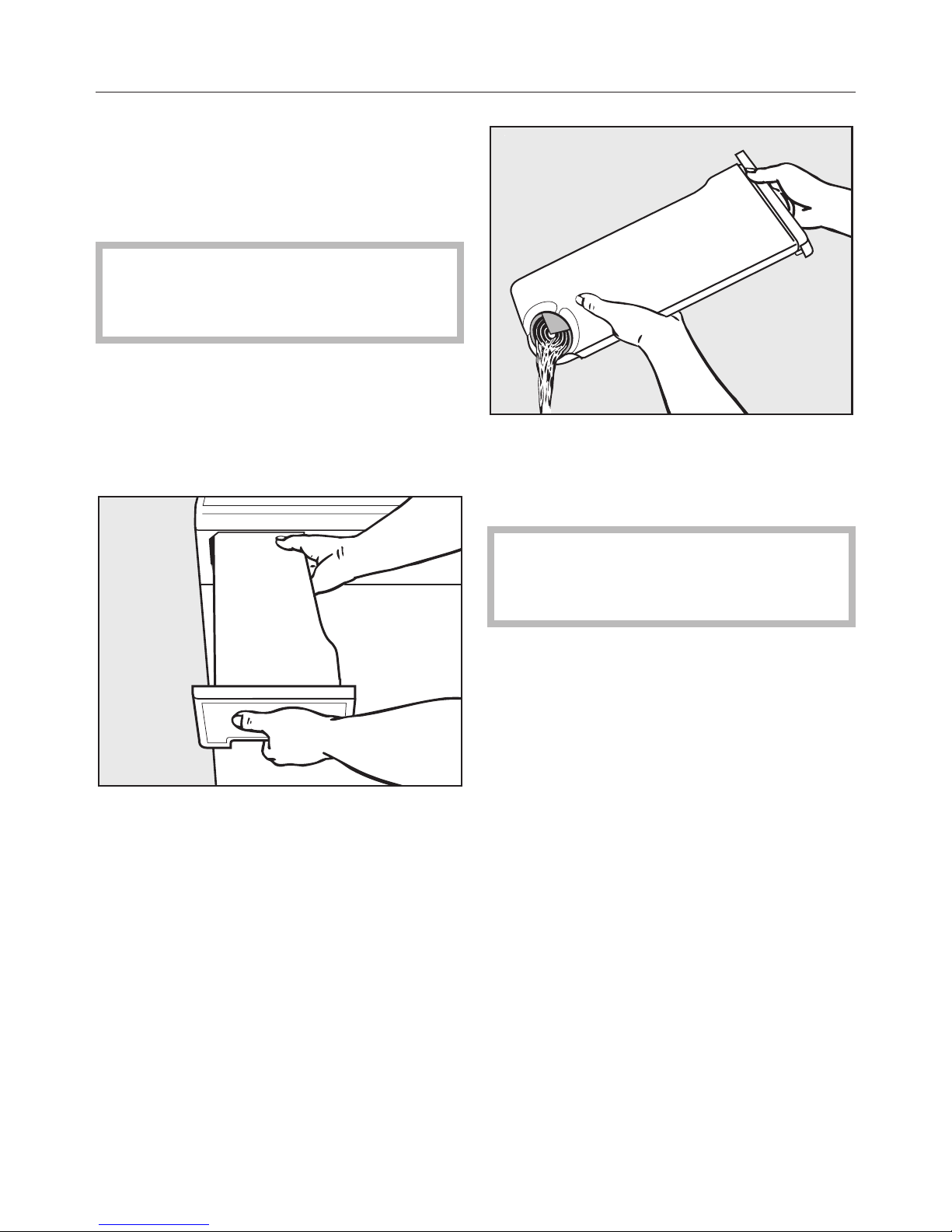

Condensate is collected in the
condensed water container.
Empty the condensed water
container after every drying
programme.
The Empty container indicator light will
come on if the maximum level of the
condensed water container is reached.
The indicator light will go out when the
door is opened and closed again.
^Pull out the container.
^Hold it at the front and towards the
back and keep it in a horizontal
position when carrying it.
^Empty the container.
^Slide the container back into the
dryer.
,Condensed water should not be
consumed. It could lead to health
problems for people and animals.
Condensed water can be put to
household use (e.g. used in a steam
iron or humidifier). To ensure that any
residual particles of fluff in the
condensed water are removed before
use, pass it through a fine sieve or
paper filter first.
Cleaning and care
17

Cleaning the fluff filters
The fluff which is created by the drying
process is collected by the fluff filters in
the door and the door opening. Clean
the filters after each drying programme.
Cleaning them whilst dry

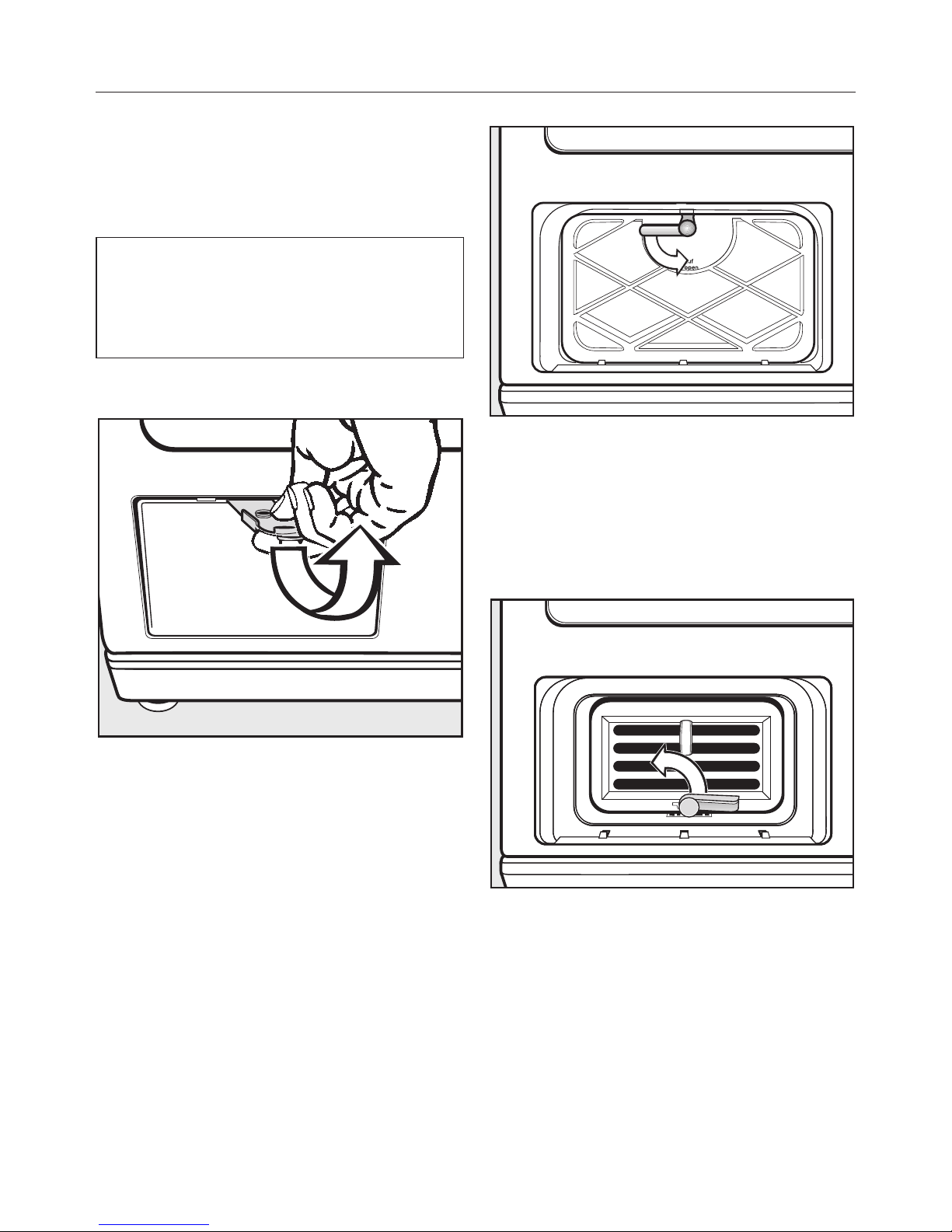

^Open the door and pull the fluff filter
(1) out of the door as illustrated.
^Use your fingers to remove the fluff
from the surface of the filter.
^Remove any fluff from the hollow part
of the door opening. You could also
use a cleaning brush which is
available as an optional extra from
your Miele Chartered Agent or from
Miele, or use a vacuum cleaner.
^Once clean, push the filter back into
the door holder until it clicks into
position. Ensure it is facing the
correct way.
^Also clean the door seal (2) with a
damp cloth.
^Use your fingers to remove the fluff
from the two fluff filters in the door
opening.
^Close the door.
Cleaning and care
18

Cleaning them with water
If there is a great deal of compacted
fluff on any of the filters, they can be
removed and cleaned under hot
running water.
^Open the door and pull the fluff filter
out of the door as described
previously.
The two filters in the door opening can
also be removed if you need to clean
them with water.
^Turn dial aand pull the filter by the
dial out of the door opening as shown
b. Do the same on the other side.
^Rinse all the filters under hot, running
water.
^Then shake the filters until no more
water droplets are visible.
^Dry the filters thoroughly with care.
^Clean the area underneath these
filters, e.g. with a vacuum cleaner.
,Do not replace them if they are
damp or wet. Damp or wet filters
could cause operational faults.
^Push the large filter back into the
door holder until it clicks into position.
Ensure it is facing the correct way.
^Replace the filters in the door
opening by first inserting them at the
bottom and then pressing them into
place at the top.
^Lock both dials.
Cleaning the tumble dryer
Disconnect the machine from the
mains electricity supply.
^Clean the housing and control panel
with a slightly damp cloth and a mild
detergent or soapy water.
^The drum and other stainless steel
parts can be cleaned with a suitable
propietary stainless steel cleaner
following the manufacturer's
instructions.
Do not use solvents, abrasive
cleaners, glass cleaners or
all-purpose cleaners. These could
damage plastic sufaces and other
parts. The machine must never be
hosed down.
^Dry all parts with a soft cloth.
Cleaning and care
19

Cleaning the condenser unit
Detergent residue, hair and fine fluff
from the dryer can get through the fluff
filters and block the condenser unit.
Check the condenser unit at least
twice a year. If the dryer is used
frequently, then clean the condenser
unit after approx. 100 drying cycles.
Removing the condenser unit
^Open the service panel.
The hooks at the side will prevent the
panel from falling off.
^Now remove the panel in an upwards
direction
^and place it to one side.
^Turn the lever on the inner cover
downwards to the vertical position.
^Pull the cover forwards
^and remove it by pulling it diagonally
upwards.
^Turn the lever on the condenser unit
to the vertical position.
Cleaning and care
20
