Miele PT 5136 OS User manual

Operating and installation instructions
for vented tumble dryer
PT 5136 OS
To avoid the risk of accidents or
damage to the machine, it is
essential to read these instructions
before it is installed, commissioned
and used for the first time. M.-Nr. 09 870 340
en - EXP

Disposing of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and should be recycled.
Ensure that any plastic wrappings,
bags, etc are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Disposal of your old machine
Electrical and electronic machines
often contain materials which, if
handled or disposed of incorrectly
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your machine.
Please do not therefore dispose it with
your household waste.
Please dispose of it at your local
community waste recycling centre or
contact your dealer for advice. Ensure
that it presents no danger to children
while being stored for disposal.
Energy saving tips
To avoid unnecessarily long drying
times and high consumption of energy:
–Make sure that your laundry is
thoroughly spun before drying.
The higher the spin, the greater the
savings that can be made in energy
and time during drying.
–Load according to the optimum
amount of laundry recommended for
the programme being used.
Underloading is uneconomical.
Overloading gives a poorer quality of
drying, and may cause unnecessary
creasing.
– Make sure the room in which the
dryer is located is well ventilated.
– Remove the fluff from the filter when
necessary (see "Cleaning and Care").
– Check all parts of the ventilation
system on a regular basis, and
remove any build-up of fluff etc.
–The vent ducting should be as short,
straight and smooth as possible to
minimise any resistance to the air
throughflow.
Caring for the environment
2

Caring for the environment..........................................2
Warning and Safety instructions .....................................6
Operating the tumble dryer.........................................18
Control panel .....................................................18
Before using for the first time.........................................18

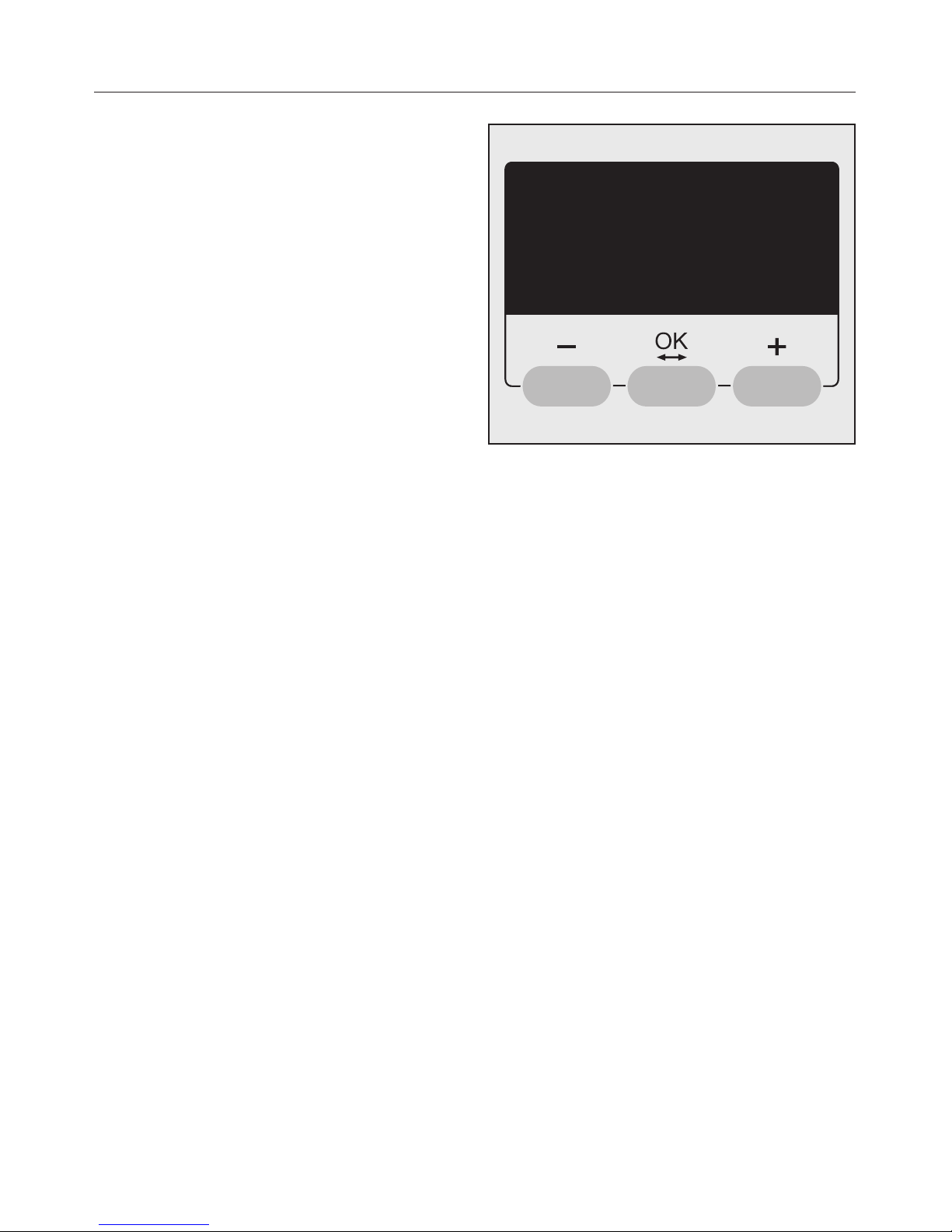

Display ..........................................................19
Before using for the first time.......................................20
Notes and tips on laundry care .....................................21
1. Sort the laundry .................................................21
2. Load the tumble dryer ............................................22
3. Select a programme .............................................22
Short instructions ................................................23
Delay start.......................................................27
Programme chart .................................................28
Basic programmes ................................................28
Special programmes ...............................................30
Changing the programme sequence .................................34
Payment system...................................................34
Changing a programme once it has started .............................34
Cancelling the current programme ....................................34
Adding or removing laundry after a programme has started ................34
Power cuts .......................................................34
Time remaining ...................................................34
Cleaning and care ................................................35
Cleaning the fluff filter ..............................................35
Cleaning the grilles in the drum aperture ...............................36
Cleaning the tumble dryer ...........................................36
Contents
3

Problem solving guide ............................................37
Problem solving guide ..............................................37
Fault messages in the display ........................................37
An unsatisfactory drying result .......................................39
Other problems ...................................................40
Changing the lamp ................................................43
After sales service ................................................44
Repairs..........................................................44
PC / Optical interface...............................................44
Optional accessories ...............................................44
Installation and connection ........................................45
Front view .....................................................45
Side view......................................................46
Rear view .....................................................46
View from above ................................................46
Washer-dryer stack..............................................46
Installing the tumble dryer ...........................................47
Transporting the dryer to its installation site ...........................47
Levelling the machine............................................47
Securing the tumble dryer against slippage ..........................48
Payment system ................................................48
Electrical connection ...............................................49
Single phase AC 230 V - country variant .............................50
Installation - extraction ducting .....................................51
General .........................................................51
To calculate the total duct length .....................................52
To calculate the total duct length ...................................52
Calculation example .............................................53
Installation to the rear, left or right hand side of the machine ................53
Venting system with plastic piping ....................................54
Venting system with flexible ducting ...................................55
Main venting duct .................................................57
Technical data ...................................................58
Contents
4

Settings menu ...................................................60
Opening the Settings menu via the Supervisor level.......................60
Language J......................................................61
Supervisor level ...................................................61
Anti-crease.......................................................62
Buzzer ..........................................................62
Time of day ......................................................62
Display contrast ...................................................62
Display brightness .................................................62
Standby .........................................................63
Extended cool down ...............................................63
Drying levels .....................................................63
Cottons .......................................................63
Minimum iron ..................................................63
Machine iron ...................................................63
Clean out airways .................................................64
Delay start .......................................................64
Contents
5

~It is essential to read these instructions.
This tumble dryer complies with current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the tumble dryer,
please read these instructions carefully before using it for the first
time. They contain important information on its safety, installation,
use and maintenance.
Keep these instructions in a safe place and ensure that they are
made available to new users. They must be made aware of these
Warning and Safety instructions.
Pass these instructions on to any future users/owners.
Correct application
~This tumble dryer is only intended for drying fabrics which have
been washed in a water solution, and marked on the manufacturer's
care label as being suitable for tumble drying.
If using dry cleaning kits, do so at your own risk, and follow the
instructions provided on the packaging.
Any other applications may be dangerous. Miele cannot be held
liable for damage resulting from incorrect or improper use or
operation.
~The tumble dryer is not intended for outdoor use.
Warning and Safety instructions
6

~The tumble dryer can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience or
knowledge, if they are are supervised whilst using it or have been
shown how to use it in a safe way and recognise and understand the
consequences of incorrect use.
~Children under 8 years of age must be kept away from the tumble
dryer unless they are constantly supervised.
~Children 8 years and older may only use the tumble dryer
unsupervised if they have been shown how to use it in a safe way
and recognise and understand the consequences of incorrect
operation.
~Children must not be allowed to clean or maintain the tumble
dryer unsupervised.
~Please supervise children in the vicinity of the tumble dryer and
do not let them play with it.
Technical safety
~Before setting up the tumble dryer, check it for any externally
visible damage.
Do not install or use a damaged tumble dryer.
~Do not make any alterations to the tumble dryer, unless
authorised to do so by Miele.
~Do not connect the tumble dryer to the mains electricity supply by
an extension lead. Extension leads are a fire hazard and do not
guarantee the required safety of the tumble dryer.
Warning and Safety instructions
7

~The tumble dryer may only be operated when the following
conditions are met:
–the list of the vessel is not more than 2°.
–any external vibration is no more than 150 Hz at an amplitude of
0.35 mm.
The safe operation and correct functioning of the tumble dryer can
only be guaranteed if the above conditions are met.
~The tumble dryer may not be operated on an open deck.
~Appliances not marked with the CSA C/US Safety Label comply with
European safety regulations. These tumble dryers must not be
operated in the USA.
~A risk assessment of the installation must be carried out by a
suitably qualified engineer before this appliance is installed or used.
Installation must only be carried out by a suitably qualified engineer.
~The tumble dryer must be fixed in position when it is installed.
Failure to do this could result in personal injury and damage to
property.
Warning and Safety instructions
8
–the ship’s hull is longer than 28 metres.

~The electrical safety of this tumble dryer can only be guaranteed
when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt, please have the electrical
installation tested by a qualified electrician. Miele cannot be held
liable for the consequences of an inadequate earthing system (e.g.
electric shock).
~Unauthorised repairs could result in unforeseen dangers for the
user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele authorised service technician, otherwise any
subsequent damage will not be covered by the guarantee. Ensure
current is not supplied to the tumble dryer until after maintenance or
repair work has been carried out.
~Faulty components must only be replaced by genuine Miele
original spare parts. Only when these parts are fitted can the safety
standards of the tumble dryer be guaranteed.
~To ensure the correct performance of the tumble dryer and to
prevent the risk of faults and fire, it is important to check it and carry
out maintenance on a regular basis.
~The tumble dryer must be isolated from the electricity supply in
the event of a fault and during cleaning and maintenance.
Please also read the "Installation and connection" and the "Electrical
connection" sections.
Warning and Safety instructions
9

~Please observe the instructions in "Installation and connection"
and "Technical data".
~The socket must be easily accessible after installation in order to
disconnect the tumble dryer from the electricity supply.
~For hard-wired machines, the all-pole isolator provided on-site
must be easily accessible after installation in order to disconnect the
tumble dryer from the electricity supply.
~Do not block the gap between the base of the dryer and the floor
with plinth facings, deep pile carpet etc. as this would hinder a
sufficient intake of air.
~Make sure the dryer door can be opened without hindrance after
installation.
~In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the tumble dryer
and its surroundings in a clean condition at all times. Any damage
which may be caused by cockroaches or other vermin will not be
covered by the appliance guarantee.
Warning and Safety instructions
10

Correct use
~The maximum load of dry laundry for this tumble dryer is 6.5 kg.
See the Programme chart for the maximum recommended loads in
individual programmes.
~Do not let anyone sit or lean on the door, as this can cause the
tumble dryer to tip up. Danger of injury.
~Always close the door after use. This way you will avoid the
danger of:
–children climbing into the dryer or hiding things in it.
– pets or other small animals climbing into it.
~Do not use a pressure washer or hose to clean the tumble dryer.
~Always keep the area around the tumble dryer free of dust and
fluff. Dust and dirt drawn into the tumble dryer can cause blockages.
Faults can then occur as well as the risk of fire.
Warning and Safety instructions
11

~The tumble dryer must only be used when it is connected to a
suitable ducting system. The installation site must be adequately
ventilated.
~The ducting must not be connected to
–a chimney or vent flue which is in use,
–or to ducting which ventilates rooms with fireplaces,
–or to chimneys being used by other appliances.
Smoke or exhaust fumes can cause poisoning.
~Check all parts of the extraction system on a regular basis (e.g.
wall vent, external grille, bends in the ducting etc.) and make sure
they are all free of any hindrance. A build-up of fluff will prevent a
free flow of air through the system. If the dryer is to be connected to
an existing ducting system, this must be checked for suitability
beforehand.
~Adequate ventilation is essential to avoid the danger of
asphyxia and toxic fumes where another appliance which also
uses the room air (e.g. gas, oil or coal fired heater, continuous flow
or other water heater) is installed in the same or an adjacent room.
To ensure safe operation, and to prevent gases given off by these
appliances being drawn back into the room, an underpressure of
4 Pa is the maximum permissible.
Ventilation can be maintained by:
–air inlets in the external wall which cannot be closed or blocked,
or
–by fitting a window contact switch which ensures that the
appliance can only be operated when the window is open.
To ensure safe operation of your tumble dryer and to avoid an
underpressure of 4 Pa or more, please seek professional advice.
Warning and Safety instructions
12

~If more than one tumble dryer is being installed using a joint
ducting system, each dryer must have its own non-return flap to the
joint ducting system.
Otherwise the dryers could be damaged, endangering their
electrical safety.
~The fluff filter must be cleaned regularly.
~The dryer must not be used without the fluff filter in place or if the
fluff filter is damaged in any way. A damaged filter can cause
operational faults and blockages in the airways, the heating
elements and in the ducting. Fire hazard.
In the event of a damaged filter, switch the dryer off and replace the
filter with a new one.
~Do not install the tumble dryer in a room where there is a risk of
frost occurring. At temperatures around freezing point the tumble
dryer may not be able to operate properly.
The ambient room temperature should be between +2°C and
+35°C.
Warning and Safety instructions
13

~To prevent the risk of fire, the following textiles must not be dried
in this tumble dryer:
–items which have not been washed.
–items, such as workwear, which have not been thoroughly
cleaned and which are still soiled with grease, oil or other
deposits (such as cosmetics, lotions etc).
If items have not been thoroughly cleaned there is a danger that
these might self-ignite when heated, even after they have been
removed from the dryer at the end of the programme.
–items (e.g. mops and floor cloths) which have been treated with
inflammable cleaning agents or which contain residues of
acetone, alcohol, benzine, petrol, kerosene, stain remover,
turpentine, wax, wax remover or other chemicals.
– items which have been splashed with hair lacquer, hair spray, nail
varnish remover or similar substances.
When washing such heavily soiled items ensure that you use
sufficient detergent and select a high temperature. If in doubt,
wash the items several times.
~Remove all items such as lighters and matches from pockets.
~Warning: Do not switch the tumble dryer off before the drying
programme has finished. If this is done, the laundry must be hung
up or spread out to cool it down.
Warning and Safety instructions
14

~Danger.
This tumble dryer must not be connected to a controllable socket
(e.g. a timer switch or a peak load shut-off device).
If the dryer programme were to be interrupted before the end of the
cooling down phase, the laundry could self-combust.
~To prevent the risk of fire, the following must not be tumble dried:
–items which have been cleaned using chemicals (e.g.
professional dry-cleaning agents).
–fabrics which contain a large proportion of rubber, foam rubber or
rubber-like materials. For example, products made from latex
foam rubber, shower caps, waterproof textiles, rubberised articles
and items of clothing and pillows with foam rubber filling.
– damaged items which contain padding or fillings (e.g. pillows,
jackets). When damaged, the filling can get out with the risk of
igniting in the dryer.
~In many programmes, the heating phase is followed by a cooling
down phase to ensure that the items are not too hot to handle when
you remove them (this also avoids the danger of the laundry
self-igniting). The programme is not finished until the cooling down
phase has been completed.
As soon as the programme has finished, remove all laundry from the
drum.
~Fabric conditioner and similar products must be used according
to the instructions on the manufacturer's packaging.
Warning and Safety instructions
15

~Benzine, petrol, paraffin or any easily flammable liquid must not
be stored or used near the tumble dryer. Danger of fire and
explosion.
~Do not allow air contaminated with chlorine, fluorine or other
vapours containing solvents to get into the tumble dryer. Fire
hazard.
~For tumble dryers with stainless steel surfaces:
The stainless steel surfaces must not come into contact with liquid
cleaning and disinfecting agents which contain chlorine or sodium
hypochlorite. These agents can have a corrosive effect on stainless
steel.
Aggressive vapours containing chlorine can also be corrosive.
Do not, therefore, store containers of these agents near the tumble
dryer.
Warning and Safety instructions
16

Accessories
~Only use genuine Miele original spare parts and accessories with
this tumble dryer.
If non-Miele parts are used, guarantee, performance and product
liability claims may be invalidated.
~A Miele tumble dryer can be stacked on top of a Miele washing
machine using the appropriate stacking kit (available as an optional
accessory). Please make sure you order the correct one for the
Miele tumble dryer and Miele washing machine.
~If installing the machine on a Miele plinth, (available as an
optional accessory), please make sure you order the correct one for
this tumble dryer.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
Warning and Safety instructions
17

Control panel
aDisplay
The display lights up when the
machine is switched on.
As soon as the dryer is ready to use,
the Entry menu appears in the
display.
bStart button
The indicator light flashes while a
programme is being selected, and
lights up when the programme starts.
c–, OK, + buttons
See the following pages for more
information.
d+button
For selecting Delay start; Time of day
display
ePC/Optical interface
This is used by Miele service
technicians during servicing work for
testing purposes.
fLow temperature button
For drying delicate fabrics
(Care label symbol r).
gProgramme selector
The programme selector can be
turned clockwise or anti-clockwise.
hOn/Off button s
For switching the dryer on and off.
To save energy the dryer will switch
off automatically 15 minutes after the
end of the programme/anti-crease
phase or 15 minutes after the dryer is
switched on if it is not operated.
iDoor button
Opens the machine door
independently of the electricity
supply.
Before using for the first time
Before using the machine for the first
time, ensure that it is correctly
installed and connected. See
"Installation and connection".
Operating the tumble dryer
18

Display
The following are shown in the display:
–Programme selection
–Programme duration and the
programme start and end time
The following are selected via the
display
–Special programmes
Denim
Shirts
Outerwear
Proofing
Automatic (if activated)
Smoothing
Pillows
Delicates
Basket - Std. temp.
Basket - Low temp.
Silks handcare
Reactivate
– Delay start
–The Settings menu
Default settings can be altered to
adapt the dryer to different
requirements. See the end of this
booklet for further information.
–/+ buttons
For altering the values shown in the
display:
–decreases the value or moves the
highlighting upwards.
+increases the value or moves the
highlighting downwards.
OK button
For confirming the value selected and
choosing the next element.
+button
For selecting Delay start.
You can also press this button during a
drying programme to check the
estimated programme end time or the
current time of day.
Operating the tumble dryer
19

^Press the On/Off button sbriefly to
switch on.
As soon as the dryer is ready to use,
the Entry menu appears.
When the tumble dryer is switched on
for the first time, the Miele Professional
welcome screen will appear.
The Miele Professional welcome
screen will not appear again after you
have entered the language and the
time of day, and run an initial
programme through to the end.
The display for setting the language will
then appear.
Setting the language
Cdansk -
FdeutschB
english H
^Use the +and –buttons to select the
language you want, and confirm your
choice by pressing the OK button.
A tick Lwill appear beside the
language to show that it has been set.
Setting the time (of day) (if necessary)
It is possible to alter the time at any
stage via the Settings menu.
10 :00
Set the time of day
^Set the hour with the -and +buttons,
and confirm your setting by pressing
the OK button.
^Now set the minutes and confirm
your selection.
Entry menu
The Entry menu will always appear after
the machine has been switched on,
until you select an option.
10:00
Select a programme
Settings F...
See "Settings menu" at the end of this
booklet for more information.
^You can now load the laundry into the
dryer and select a programme as
described in "Short instructions".
Before using for the first time
20
