Miele T 8000 WP SUPERTRONIC User manual

Operating instructions
for heat pump tumble dryer
T 8000 WP SUPERTRONIC
To avoid the risk of accidents or
damage to the appliance it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 09 264 690
en-GB

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and should be recycled.
Ensure that any plastic wrappings,
bags, etc are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose it with
your household waste.
Please dispose of it at your local
community waste recycling centre or
contact your dealer for advice. Ensure
that it presents no danger to children
while being stored for disposal.
Energy saving tips
To avoid unnecessarily long drying
times and high consumption of energy:
–Make sure that your laundry is
thoroughly spun before drying.
The higher the spin, the greater the
savings that can be made in energy
and time during drying.
–Load according to the optimum
amount of laundry recommended for
the programme being used.
Underloading is uneconomical.
Overloading gives a poorer quality of
drying and may cause unnecessary
creasing.
– Make sure that the room temperature
is not too high. If there are other heat
producing appliances in the room in
which the dryer is located, make sure
the room is well ventilated and switch
the other appliances off, if possible.
– After every cycle remove the fluff
from the surfaces of the fluff filters
(see "Cleaning and Care").
–Clean the fine filters when prompted
to do so.
Caring for the environment
2

Caring for the environment..........................................2
Warning and Safety instructions .....................................6
Operating the tumble dryer.........................................14

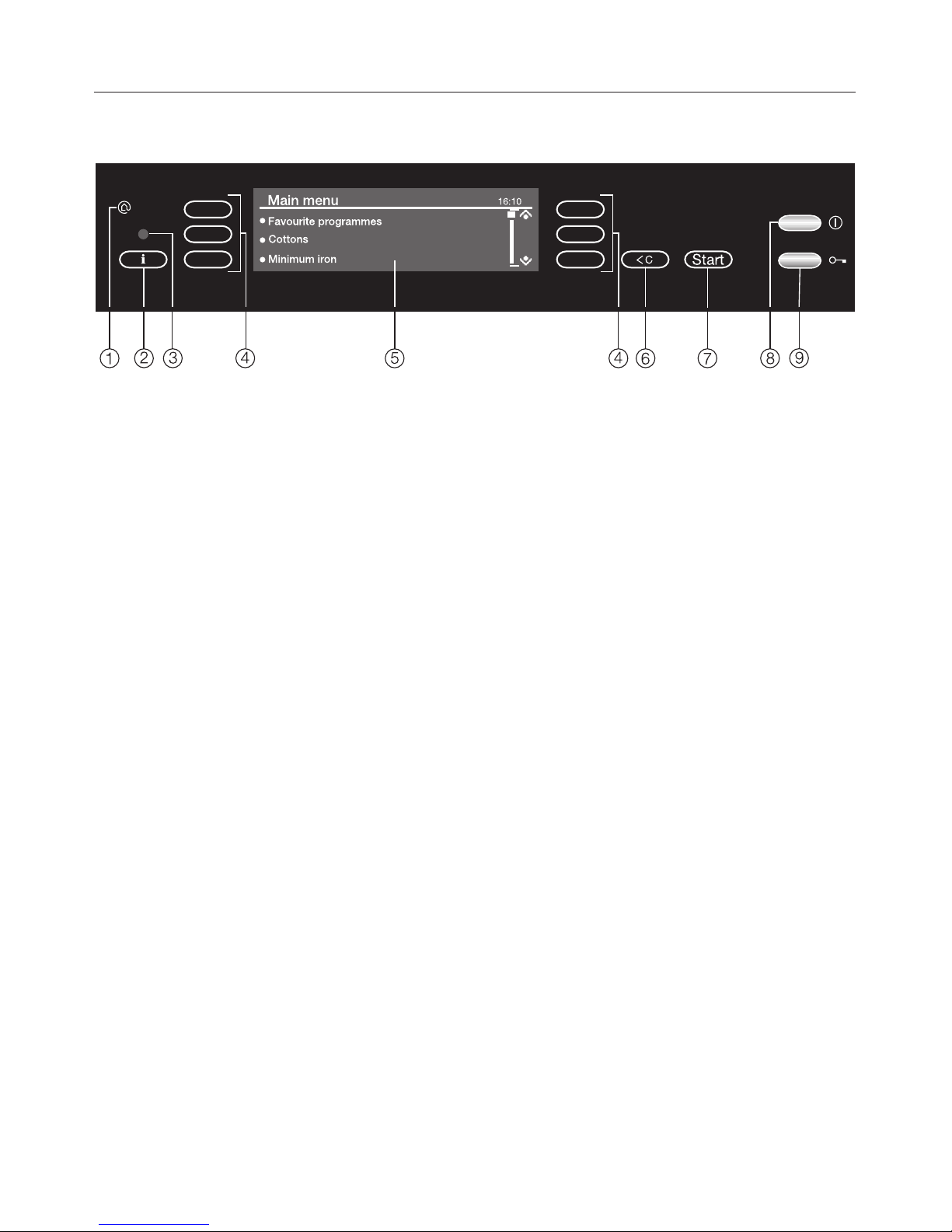

Control panel .....................................................14
Selector sensors ..................................................15
Structure of the main menu ..........................................17
Miele{home .....................................................19
Before using for the first time.......................................20
Notes on laundry care .............................................22
Garment care label symbols .........................................22
Tips on drying ....................................................22
1. Sort the laundry and loading the drum .............................23
2. Select a programme.............................................24
3. Start the programme ............................................27
4. Programme end - unload the drum ................................29
Extra options ....................................................30
Freshen up.......................................................30
Gentle tumble ....................................................30
Favourite programmes ............................................31
Programme chart .................................................33
Contents
3

Cleaning and care ................................................37
Emptying the condensed water container...............................37
Make sure you clean all the filters at the correct intervals...................38
Cleaning the surfaces of the fluff filters .................................39
1. In the door...................................................39
2. In the door opening ...........................................39
Cleaning the fine filters .............................................40
1. Cleaning the fine filter in the door.................................40
2. Cleaning the fine filters in the door opening. ........................42
3. Cleaning the fine filter in front of the heat exchanger unit ..............43
Cleaning the tumble dryer ...........................................44
Problem solving guide ............................................45
Check and fault messages in the display ...............................45
An unsatisfactory drying result .......................................47
Other problems ...................................................48
Cleaning the cooling fins (bottom right grille) ............................50
Changing the lamp ................................................51
After Sales service................................................52
Repairs..........................................................52
Future updates (PC) ...............................................52
Appliance guarantee ...............................................52
Optional accessories ...............................................52
Installation ......................................................53
Front view........................................................53
Rear view ........................................................54
Transporting the dryer ..............................................54
Installation site ....................................................55
Building under a continuous worktop/ in a row of kitchen units .............55
Levelling the appliance...........................................56
Washer-dryer stack..............................................56
Contents
4

External condensed water outlet ......................................57
Arranging the drain hose .........................................57
External drainage via a sink or gully ................................58
Installation conditions requiring a non-return valve .....................58
Electrical connection .............................................60
Electrical connection U.K. ...........................................60
Consumption data ................................................61
Technical data ...................................................62
Settings menu ...................................................63
Open the Settings menu ............................................63
Language J......................................................63
Time ............................................................64
Drying levels .....................................................64
Code ...........................................................65
Buzzer ..........................................................67
Keypad tone .....................................................67
Brightness .......................................................67
Contrast .........................................................67
Display / keypad illumination .........................................67
Memory .........................................................68
Anti-crease.......................................................68
Contents
5

~It is essential to read these instructions.
This tumble dryer conforms to current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the tumble dryer,
please read these instructions carefully before using it for the first
time. They contain important information on its safety, installation,
use and maintenance.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Correct application
~This tumble dryer is not designed for commercial use. It is
intended for use in domestic households and similar working and
residential environments.
~The tumble dryer is not intended for outdoor use.
~It must only be used as a domestic appliance to dry items which
have been washed in a water solution and which are marked on the
manufacturer's care label as being suitable for tumble drying. If
using dry cleaning kits, do so at your own risk, and follow the
instructions provided on the packaging.
Any other usage is not supported by the manufacturer and could be
dangerous. Miele cannot be held liable for damage resulting from
incorrect or improper use or operation.
Warning and Safety instructions
6

~The tumble dryer can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience or
knowledge, if they are are supervised whilst using it or have been
shown how to use it in a safe way and understand the hazards
involved.
Safety with children
~Children under 8 years of age must be kept away from the tumble
dryer unless they are constantly supervised.
~Children 8 years and older may only use, clean or maintain the
tumble dryer without supervision if they have been shown how to do
so in a safe way and understand the hazards involved.
~The tumble dryer is not a toy! To prevent the risk of injury, do not
allow children to play with it or near it, or to play with the controls.
Warning and Safety instructions
7

Technical safety
~Before setting up the tumble dryer, check it for any externally
visible damage.
Do not install or use a damaged tumble dryer.
~Before connecting the tumble dryer, ensure that the connection
data on the data plate (voltage and frequency) match the mains
electricity supply. If in any doubt, consult a qualified electrician.
~The electrical safety of this tumble dryer can only be guaranteed
when correctly earthed. It is most important that this basic safety
requirement is observed and regularly tested, and where there is
any doubt, the household wiring system should be inspected by a
qualified electrician. Miele cannot be held liable for the
consequences of an inadequate earthing system (e.g. electric
shock).
~Do not connect the tumble dryer to the mains electricity supply by
an extension lead. Extension leads do not guarantee the required
safety of the tumble dryer (e.g. danger of overheating).
~If the electrical connection cable is faulty it must only be replaced
by a Miele approved service technician to protect the user from
danger.
~Unauthorised repairs could result in unforeseen dangers for the
user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele approved service technician, otherwise any
subsequent damage will not be covered by the guarantee. Ensure
current is not supplied to the tumble dryer until after maintenance or
repair work has been carried out.
~Faulty components must only be replaced by genuine Miele
original spare parts. Only when these parts are fitted can the safety
standards of the tumble dryer be guaranteed.
Warning and Safety instructions
8

~The tumble dryer must be isolated from the electricity supply in
the event of a fault and during cleaning and maintenance.
~The tumble dryer must not be used in a non-stationary location
(e.g. on a ship).
~Do not make any alterations to the tumble dryer, unless
authorised to do so by Miele.
~Heat pump technology and refrigerant:
The heat pump in this tumble dyer uses a refrigerant which is
condensed by the compressor and led in a closed circuit through
the heat exchanger unit where heat exchange with the circulating
drying air takes place.
– The humming noises caused by the heat pump are normal and do
not impair the efficient functioning of the dryer.
– The refrigerant is not flammable or explosive.
– In general it is not necessary to leave the dryer standing for any
length of time before it is put into operation provided it has been
transported correctly (see "Installation").
However, if it has not been transported as described, ensure that
the recommended standing time prior to first operation is
observed. Otherwise the heat pump can be damaged.
~In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the tumble dryer
and its surroundings in a clean condition at all times. Any damage
which may be caused by cockroaches or other vermin will not be
covered by the guarantee.
Warning and Safety instructions
9

Correct use
~To prevent the risk of fire, the following textiles must not be dried
in this appliance:
–items which have not been washed.
–items, such as workwear, which have not been thoroughly
cleaned and which are still soiled with grease, oil or other
deposits (such as cosmetics, lotions etc).
If items have not been thoroughly cleaned there is a danger that
these might self-ignite when heated, even after they have been
removed from the dryer at the end of the programme.
– items (e.g. mops and floor cloths) which have been treated with
inflammable cleaning agents or which contain residues of
acetone, alcohol, benzine, petrol, kerosene, stain remover,
turpentine, wax and wax remover or other chemicals.
– items which have been splashed with hair lacquer, hair spray, nail
varnish remover or similar substances.
When washing such heavily soiled items, ensure that you use
additional detergent and select a high temperature. If in doubt,
wash the items several times.
~Remove all items such as lighters and matches from pockets.
~Warning: Do not switch the tumble dryer off before the drying
programme has finished. If this is done, the laundry must be hung
up or spread out to cool it down.
Warning and Safety instructions
10

~To prevent the risk of fire, the following must not be tumble dried:
–items which have been cleaned using chemicals (e.g.
professional dry-cleaning agents).
–fabrics which contain a large proportion of rubber, foam rubber or
rubber-like materials. For example, products made from latex
foam rubber, shower caps, waterproof textiles, rubberised articles
and items of clothing and pillows with foam rubber filling.
–damaged items which contain padding or fillings (e.g. pillows,
jackets). When damaged, the filling can get out with the risk of
igniting in the dryer.
~In many programmes, the heating phase is followed by a cooling
down phase to ensure that the items are not too hot to handle when
you remove them (this also avoids the danger of the laundry
self-igniting). The programme is not finished until the cooling down
phase has been completed.
As soon as the programme has finished, remove all laundry from the
drum.
~Fabric conditioner and similar products must be used according
to the instructions on the manufacturer's packaging.
~Do not let anyone sit or lean on the door, as this can cause the
tumble dryer to tip up.
~Always close the door after use. This way you will avoid the
danger of:
–children climbing into the dryer or hiding things in it.
–pets or other small animals climbing into it.
Warning and Safety instructions
11

~The tumble dryer must not be used:
–without the fluff filters in place or if the fluff filters are damaged in
any way.
–without the fine filters in place of if the fine filters are damaged in
any way.
This would cause an excessive build-up of fluff which in turn would
cause a fault.
~After every cycle remove fluff from the surfaces of the fluff filters.
~The fluff filters and the fine filters must be thoroughly dried after
cleaning. Damp or wet filters could cause operational faults.
~Do not install the tumble dryer in a room where there is a risk of
frost occurring. At temperatures around freezing point the tumble
dryer may not be able to operate properly. There is a risk of damage
if the condensed water is allowed to freeze in the pump and in the
drain hose.
~If the water is drained externally instead of being collected in the
condensed water container, make sure the drain hose is securely
attached if you hang it in a sink or basin to avoid the hose slipping
and the water causing damage.
~Condensed water is not drinking water. It can cause health
problems in both people and animals.
~Always keep the area around the tumble dryer free of dust and
fluff. Dust drawn into the tumble dryer can cause blockages in the
heat exchanger unit over time.
~The tumble dryer must not be hosed down.
Warning and Safety instructions
12

Accessories
~Only use genuine Miele original spare parts and accessories with
this tumble dryer.
If non-Miele parts are used, guarantee, performance and product
liability claims may be invalidated.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
Warning and Safety instructions
13

Control panel
aMiele{home
Symbol for Miele|home enabled
appliance
bInformation sensor :
The sensor lights up when
information about the menu in the
display is available.
cService interface
This is used by service technicians
to run diagnostic checks on your
machine, or to update programming
data in the future.
dSelector sensors
A sensor is active when it is lit up.
See next page for more information.
eDisplay
For showing:
–the functions selected
–the programme sequence
–information
–error messages
–the time of day
–the position of an entry using the
scroll bar
fClear sensor U
–For returning to the previous menu.
–For returning to the main menu when
touched twice.
– For deleting the values set
previously.
– For cancelling the programme.
gStart sensor
The programme selected is started
by touching this sensor when it is
illuminated green.
hKbutton
For switching the dryer on and off.
To save energy the dryer will switch
off automatically 15 minutes after the
end of the programme/anti-crease
phase or 15 minutes after the dryer is
switched on if it is not operated.
i/button
For opening the door. The dryer
does not need to be switched on at
the mains.
Operating the tumble dryer
14

Selector sensors
The selector sensors are on the left and right of the display.
They light up when they are active. The selector sensors are
used for the following:
Selecting an option
A dot (#) next to an option indicates that it can be selected.
The selector sensor on the left is active when the dot (#)isin
front of the word, the selector sensor on the right is active
when the dot (#) is behind the word or symbol.
Scrolling through the menus
If the menu lists more options than are visible in the display, a
scroll bar will appear on the right to show the position in the
list:
\
\
\
Main menu 10:21 [
[
$Favourite programmes
#Cottons
!Minimum iron m
The sensors on the right can be used to scroll up or down the
list. Each touch of the sensor will move the list up or down
one line.
A dotted line will appear under the last option in the list.
Changing a value in the display
Time [
[
[
+$
10 :21 –#
OK !
Use the +and -sensors on the right to alter the value
highlighted. Once altered confirm the value with the lOK
sensor at the bottom right hand side.
Operating the tumble dryer
15

Favourite programmes
You can save up to ten of your own
customised programmes under names
of your choice.
Drying assistant
This helps you find the correct wash
programme. The drying assistant
guides you step by step so that you
can select the best programme for the
fabrics and garments you want to dry.
Settings menu
The Settings menu !is used to alter the
tumble dryer's electronics to suit
different requirements. See "Settings
menu" for more details.
Information sensor :
The Information sensor :will light up if
information about an option is available.
Touch the sensor if you want to read
the information.
Programme sequence display
Symbols in the display show which
section of the programme has been
reached.
Symbol Programme sequence
RStart at / Finish at
GDrying
IMachine iron
GHand iron rr
HHand iron r
ENormal
FNormal+
7Cooling down / Cancel
CCool air
DWarm air
OAnti-crease/Finish
Operating the tumble dryer
16

Structure of the main menu
Favourite programmes
–Favourite programmes
(listed alphabetically)
–Create
–Change
–Delete
Cottons
– Minimum iron
– Delicates
– .... – Drying level: (depending on programme)
– .... – Duration (depending on programme)
– Extras (depending on programme)
– Start at
– Finish at
Drying tips
– Cottons*
–Delicates*
–Cotton + synthetic*
–Woollens
–Silks
–Microfibre*
–Linen*
* This option has further choices.
Operating the tumble dryer
17

Settings !
–Language !
–Time*
–Buzzer
–Drying levels*
–Code
–Keypad tone
–Brightness
–Contrast
– Display / keypad illumination
– Memory
– Anti-crease
– Miele|home**
– Remote control**
* This option has further sub-menus.
** Appears if the dryer has been fitted with the optional communication module.
Operating the tumble dryer
18

Miele|home enabled appliances send information via the household wiring
network cto the master appliance d/eabout the operational status of the
appliances, as well as information about the progress of the programme.
This dryer is communication enabled
and can be linked into the Miele|home
system via a communication module a
(optional accessory).
Information is displayed via:
– The SuperVision appliance d
The status of other appliances in the
system can be shown in the display
of the SuperVision appliance.
–InfoControl XIC 2100 e
Information transmitted from the
appliances can be displayed
accoustically and optically in a
mobile master unit in the vicinity of
the house.
You can use both the SuperVision
appliance and the InfoControl unit at
the same time.
Optional accessories required
– Communication module
This must be fitted by a Miele service
technician.
– Mobile InfoControl unit
Both of these are supplied with their
own installation and operating
instructions.
The home of the future
The Miele|home system is capable of
expansion. In the future,
communication enabled appliances will
be able to be operated via a PC or a
mobile phone.
Miele{home
19

Before using the dryer for the first time ensure that it is
correctly installed and connected. See "Installation".
,If the tumble dryer has not been transported as
described in "Installation" then it must be left to stand for at
least 1 hour before it is connected to the electricity supply.
Otherwise the heat pump may become damaged.
Preparing the dryer for use is done in five steps. The dryer
guides you automatically through steps 1. to 5.
1. Welcome screen
^Switch the dryer on with the Kbutton.
The welcome screen will appear in the display for 3 seconds.
The display for setting the language will then appear.
2. Set the language
\
\
\
Sprache 10:21 [
[
[
$deutsch (
#english p
!español OK !
^Select the language you want.
^The sensors on the right can be used to scroll up or down
the list.
^Confirm the language you have selected with OK.
Before using for the first time
20
