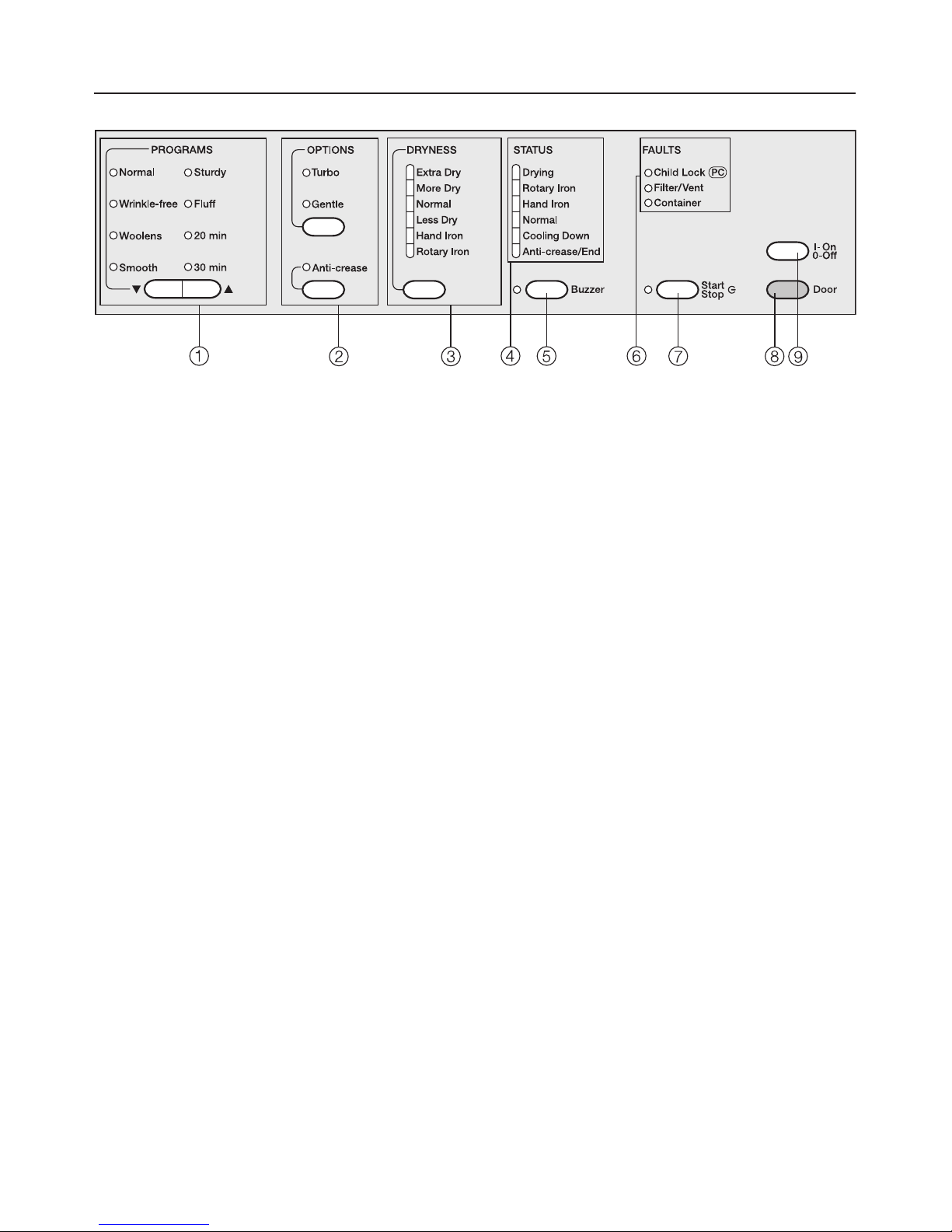

ae- "PROGRAMS" button
For selecting a drying program.
b"OPTIONS" button
For selecting a drying option.
c"DRYNESS" button
For selecting the dryness level of
finished laundry.
d"STATUS" di play
Shows the current cycle of the drying
program.
e"Buzzer" button
When selected, a buzzer will sound
at the end of a program.
f"FAULT" indicator
An illuminated indicator will alert you
if the child lock has been activated
or if a fault occurred.
g"Start/Stop" button T
Starts and stops a program.
Interrupts a program when pressed.
Flashes during program selection
and lights once the program starts.
h"Door" button
Opens the door when the program
has finished. If the dryer is on, the
drum interior will light when the door
is opened. If the door is left open, the
light will go off after a few minutes to
save energy.
i"On/Off" button
Turns power to the machine on and
off.
Control panel
5

The dryer must be correctly installed
and connected before the first use.
Please refer to the "Installation
Instructions".
^Before using for the first time clean
the drum with a cloth.
Before drying, check fabric care
labels for special drying instructions.
qDry with normal temperature
rDry with low temperature
(select "Gentle" option)
sDo not dry in a tumble dryer
– Do not overload the drum!
Overloading the dryer will result in
poor drying results and wrinkling.
–Knitted fabric and flannel tend to
shrink when washed and dried for
the first time. Do not overdry these
fabrics.
–To prevent discoloration, do not dry
new, dark-colored fabric with
light-colored items.
–Close zippers and tie up fabric belts
and apron ties to prevent tangles
and damage to clothing.
–Do not dry items that may melt or
ignite in the dryer, such as plastics,
rubber or sneakers.
Program recommendation
Normal
–Cottons and Permanent Press blends
Wrinkle-free
–Permanent Press:
select the Hand Iron dryness and
reduce the load size for best drying
results
–Delicate fabrics, such as polyester:
select the Gentle option to reduce
creasing
– Pure linen and down filled items
Woolen
– Wool and wool blends
Smooth
– Linen
– Permanent Press (cottons, blends
and synthetics)
Sturdy
–Durable Cottons and Permanent
Press
Fluff / 20 min / 30 min
–All fabric types
Before loading the dryer
6

1. Turn on the dryer and load
the laundry
^Press the "On/Off" button to turn on
the dryer.
^Press the "Door" button to open the
door.
^Load the laundry loosely into the
drum.
^Make sure the lint filters are in place.
^Close the door with a firm swing - do
not push it shut.
For best results use liquid fabric
softener when washing laundry.
Fabric softener sheet may clog the
filters and cause the dryer to
overheat.
To prevent fabric damage, check
that laundry will not be caught in the
closed door.

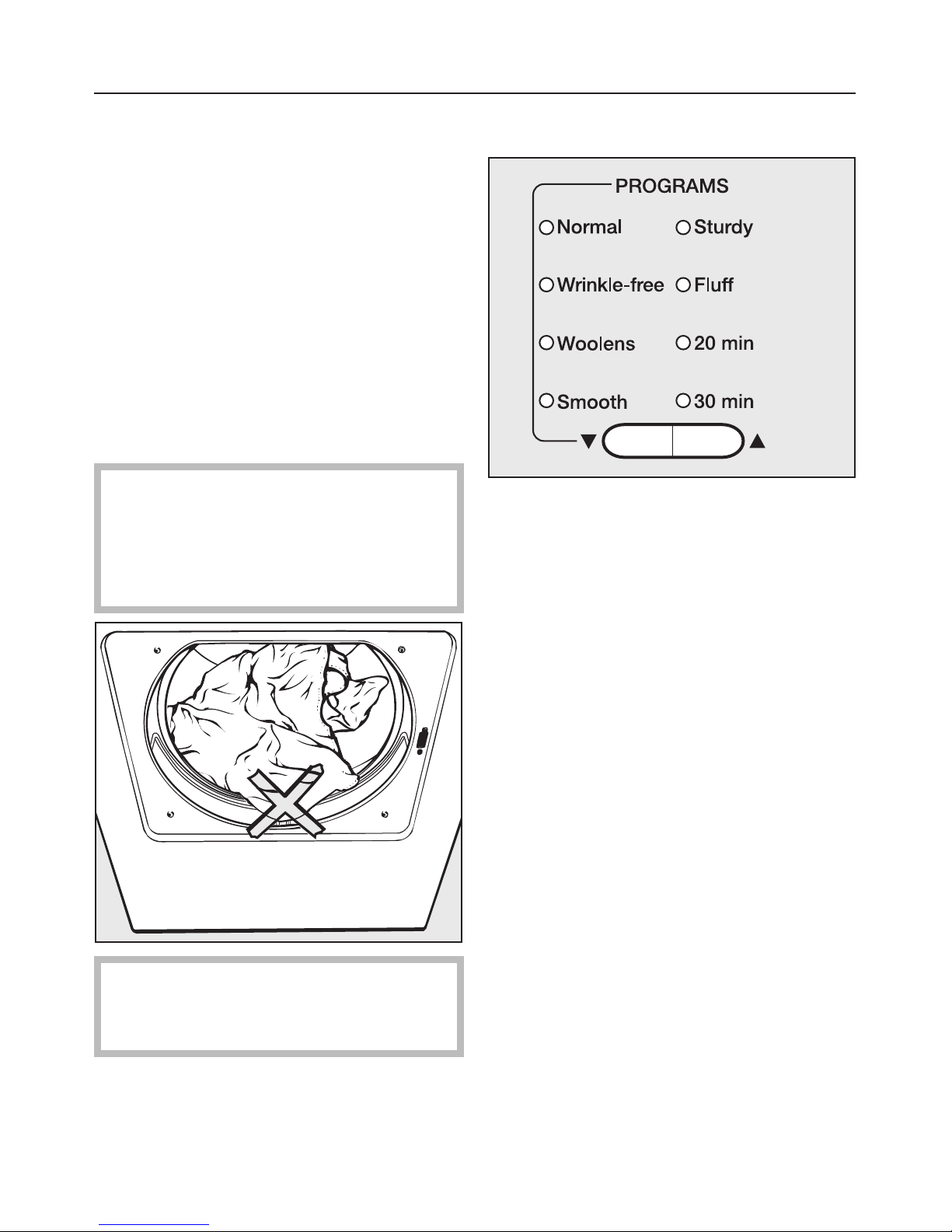

2. Select a program
^Press the eor -button until the
desired program indicator lights.
U ing the dryer
7

Program Fabric Note
Normal Available drying option : Turbo, Gentle, Anti-crea e
Extra Dry Multi-layer fabrics, mixed loads of
sturdy cottons, e.g. jeans, towels.
The "Extra dry" program should not be
selected for jersey materials.
Item may hrink.
More Dry Uniform loads of cotton, e.g. sheets,
underwear, socks. -
Normal Knitted cotton fabrics that may shrink,
e.g. jersey material or lightweight
cottons.
If items are still damp, dry again using
"More Dry".
Le Dry Cotton or linen fabrics to be left damp
for ironing. -
Hand Iron If fabrics are too damp for ironing, dry
again using "Less Dry".
Rotary Iron Cotton or linen fabrics which will be
ironed with a rotary iron.
To prevent moisture loss, roll up the
laundry until ironing.
Wrinkle-free Available drying option : Turbo, Gentle, Anti-crea e
More Dry Synthetic permanent press items,
e.g. pants and shirts. -
Normal Permanent press and blended fabrics,
e.g. cotton/synthetic.
Le Dry Permanent press and blended fabrics
requiring an ironed finish.
Reduce load size for fabrics that wrinkle
easily.
Special Program Available drying option : Anti-crea e only available in
Fluff, Sturdy
Woolen Delicate items which allow machine
drying.
Remove items immediately after the end
of the program while still slightly damp.
Allow items to air dry.
Smooth Program for reducing creasing of
cotton, linen or permanent press
fabrics made of cotton, blends or
synthetics.
-
Sturdy For mixed loads of cotton and
permanent press items. -
Fluff Individual items to be freshened and
fluffed with cool air.
Reduce load size.
TIMED CYCLES Available drying option : Gentle, Anti-crea e
20 min Individual items or very small loads,
e.g. beach towels, swimsuits. -
30 min
U ing the dryer
8

3. Select a drying option
(if needed)
^A drying option can be selected or
deselected with each press of the
button.
OPTIONS
Turbo
Fast drying for sturdy fabrics with
increased temperature and a reduced
program length.
Gentle
For drying delicate fabrics slowly at a
lower temperature.
Anti-crea e
Prevents wrinkles if laundry is not
removed immediately after the end of a
program. The drum periodically rotates
for about 1 hour.
U ing the dryer
9

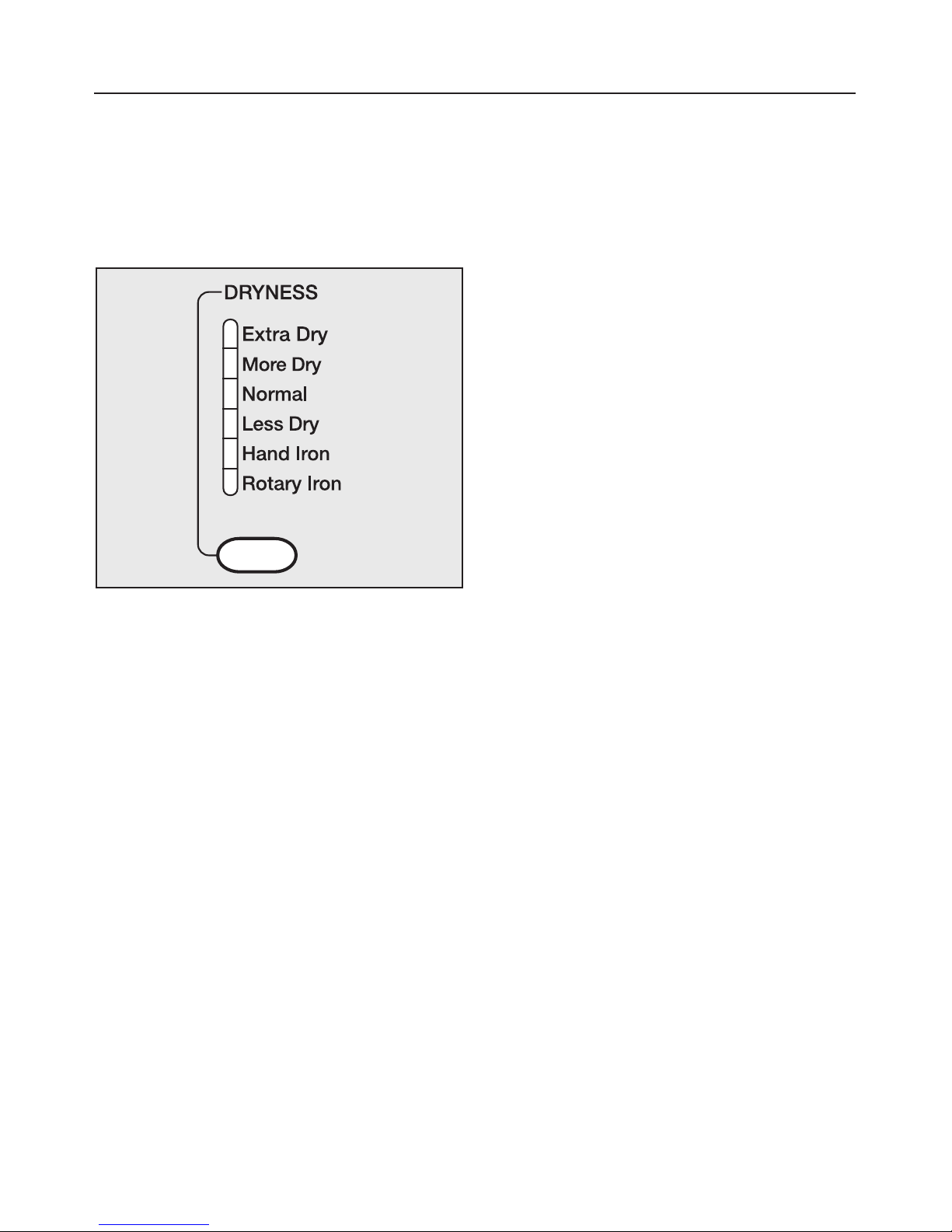

4. Select the dryne level
The dryness level can be selected in
the "Normal" and "Wrinkle-free"
programs. (The dryness level of the
other programs cannot be adjusted.)
^Press the selection button until the
desired indicator illuminates.
In the "Wrinkle-free" program, only
"More Dry", "Normal" and "Less Dry" can
be selected.
5. Select the buzzer (if de ired)
^Press the "Buzzer" button to have a
tone beep at the end of the program.
Indicator light:
on = buzzer selected
off = buzzer not selected
Adju ting the buzzer volume:
–the dryer must be on
–the door closed
– a program selected
– if the "Buzzer" indicator is lit, press
the "Buzzer" button so its indicator
light goes out.
^Press and hold the "Buzzer" button
until its indicator lights and you hear
the desired volume and tone.
U ing the dryer
10

6. Start the program
^Press the "Start/Stop" button.
Once the program starts, the current
cycle of the program will be indicated
in the "STATUS" display.
7. At the end of a program
The "Anti-crease/End" indicator will light
at the end of a program and the buzzer
will sound if it was selected.
If a fault occurred, a "FAULT" indicator
will light. See "Frequently asked
questions" for details.
^Press the "Door" button.
^Open the door.
^Remove the laundry.
^Check that the drum is empty.
^Clean the lint filter after each use
(see "Dryer care").
^Close the door.
^Press the "On/Off" button to turn off
the dryer.
^Empty the condensed water
container weekly (if not connected to
a drain).
U ing the dryer
11

Canceling or changing a
program
^Press and release the "Start/Stop T"
button to stop the drying program.
To continue drying:
^Select the new program by pressing
the eor -button.
^Select any desired options.
^Select a dryness level (available in
the "Normal" and "Wrinkle-free"
programs).
^Press and release the "Start/Stop T"
button to start the new program.
Adding or removing laundry
during a program
^Turn off the dryer using the "On/Off"
button.
^Press the "Door" button.
^Open the door.
,CAUTION - Do not touch the rear
of the drum while adding or
removing items! There is a danger of
burns due to high temperatures in
the drum.
^Add or remove items.
^Close the door.
^Turn the dryer back on with the
"On/Off" button.
U ing the dryer
12

Child lock
When activated, the child lock prevents
the dryer from being operated by
locking the control panel functions.
The dryer can be turned on but not
started. The "Child lock" indicator will
flash.
The door can be opened.
To activate the child lock
1. Make sure the dryer is turned off and
the door is closed.
2. Press and hold the "Anti-crease" and
"DRYNESS" buttons at the same time,
hold until step 5.
3. Turn on the dryer with the "On/Off"
button.
4. Press the "OPTIONS" button 3 times.
5. Release the "Anti-crease" and
"DRYNESS" buttons.
The "Child lock" indicator will flash and
the dryer is now locked.
6. Turn off the dryer using the "On/Off"
button.
To deactivate the child lock
Repeat steps 1. to 5.
The "Child lock" indicator will go out.
The control panel is now unlocked.
6. Turn off the dryer using the "On/Off"
button.
Child lock
13

Cleaning the lint filter
The lint filter must be cleaned after
every program.
^Open the door and remove the lint
filter by gently lifting it upwards.
^Wipe the lint off the filter with your
hand (do not use any sharp objects!)
^Remove the lint from the door frame
lint filter with your fingers.
^Any lint remaining in the hollow
casing of the door can be removed
through the gap at the bottom with a
dust brush or vacuum.
^Return the lint filter and close the
door.
The lint filters (once removed from
the dryer) can be rinsed with hot
water if necessary. The filters must
be dried thoroughly before being
returned to the dryer.
^Take the door lint filters out by turning
the knob at the filter top.
Dryer care
14

Cleaning the exterior and the
control panel
,To reduce the risk of electric
shock, disconnect the dryer from the
power supply by shutting off the
power main, tripping the circuit
breaker or unplugging the power
cord before performing
maintenance.
Never use abrasive cleaners,
scouring pads, steel wool or caustic
(oven) cleaners on the dryer. They
will damage the surface.
^The exterior and the control panel
can be cleaned with warm water and
liquid dish soap applied with a soft
sponge.
^Wipe dry.
Cleaning the drum
^The stainless steel surfaces of the
drum can be cleaned using a
non-abrasive stainless steel cleaner.
^Wipe clean with a soft cloth.
Dryer care
15

Emptying the conden ed water
container
Depending on the installation, the
condensed water will either be pumped
to a drain or collected in the condensed
water container, located in the upper
left corner of the machine.
The container holds approximately
1 gallon of water.
The container should be emptied
weekly.
Should the container be full when the
tumble dryer is started, or if it becomes
full during normal operation:
– The "Container" indicator will light.
– The buzzer will sound.
^Pull out the container slightly to the
right with both hands.
^Hold the cap open while emptying
the container.
^When the container is empty, push it
back into its opening until it clicks
into place.
^Restart the drying program if needed.
Do not drink the condensed water!
Dryer care
16

Cleaning the conden er
,To reduce the risk of electric
shock, disconnect the dryer from the
power supply by shutting off the
power main, tripping the circuit
breaker or unplugging the power
cord before performing
maintenance.
Detergent residues, hair and lint in the
drying air can penetrate filters and clog
the condenser. Particles from the cool
air sucked in from the install location
can cause blockages.
^Check the condenser at least twice a
year. If used often, check every 100
loads.
^Clean if necessary.
Removing the conden er
^Open the door.
^Open the access panel, located on
the lower left corner of the machine,
using the yellow tool supplied with
the machine.
Hold the panel when opening it.
^Remove the panel up and out of the
condenser access area.

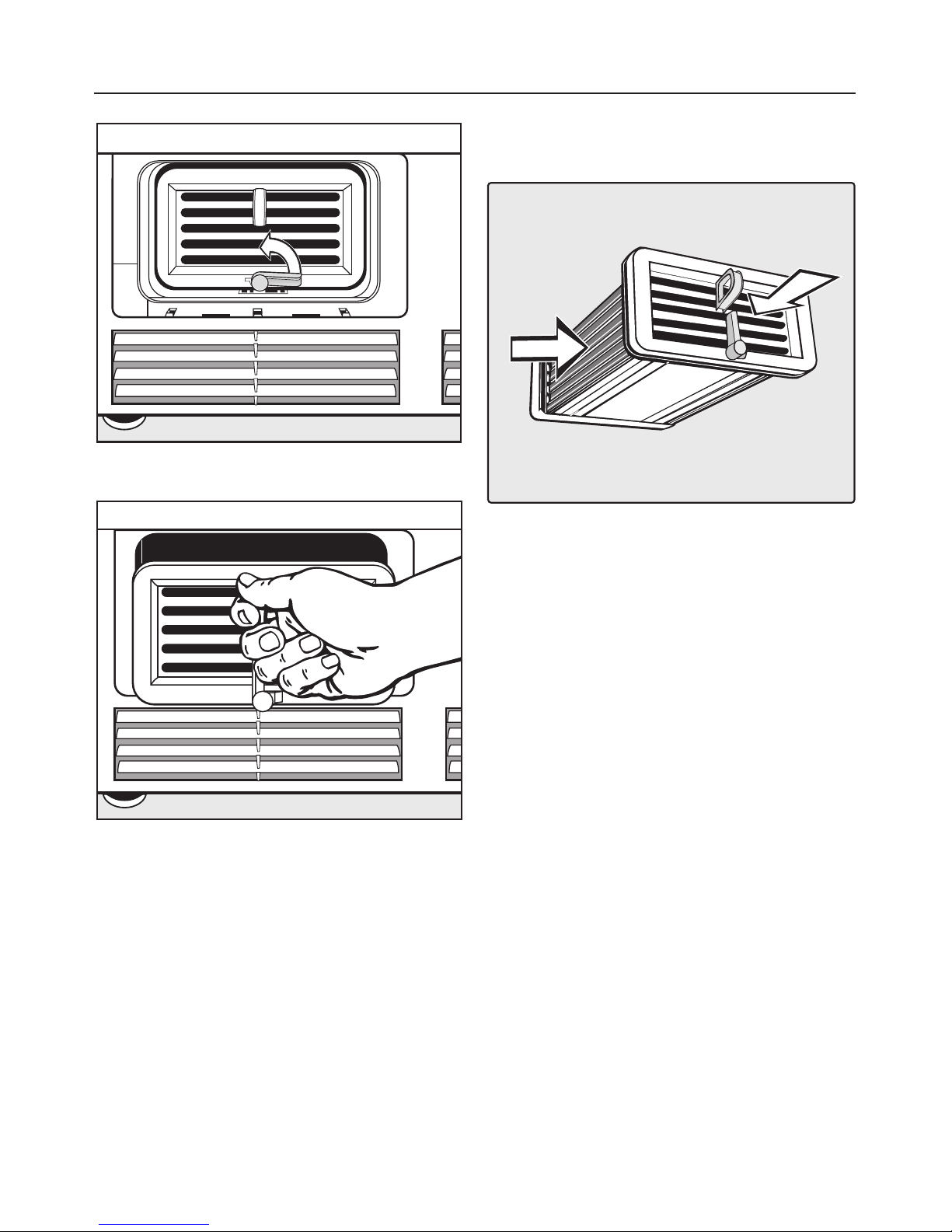

^Turn the condenser door lock down
and remove the door.
Dryer care
17

^Turn the condenser lock up.
^Pull out the condenser.
Checking the conden er
^Hold the condenser against the light.
^Look through the front and left side
(as illustrated above) of the
condenser to check for lint.
If no lint is visible:
^Return the condenser.
If lint is visible:
^Clean the condenser as described.
Dryer care
18

Cleaning the conden er
^Rinse the condenser along all sides
with warm water as shown in pictures
below.
^Check the condenser for visible
soiling. Continue rinsing until the
condenser until clean.
^Check the condenser gasket for
soiling.
Do not remove or kink the gasket!
^Place the condenser lengthwise on a
towel to air dry.
Returning the conden er
^Put the condenser back in place in
the reverse order.
Check the gasket around the front of
the condenser is flush and not
crimped.
^To prevent leaks, make certain the
condenser is pushed in all the way
and locked in place.
^Restore power.
Dryer care
19

Changing the light bulb
,To reduce the risk of electric
shock, disconnect the dryer from the
power supply by shutting off the
power main, tripping the circuit
breaker or unplugging the power
cord before performing
maintenance.
^Open the door.
The bulb cover is located along the
upper rim of the drum opening.
^Slide a screwdriver with a wide head
underneath the side edge of the bulb
cover and twist (see illustration).
^Flip down the bulb cover.
^Replace the light bulb with a
temperature proof bulb, available
from Miele.
The light bulb must not exceed the
maximum wattage listed on the data
plate.
^Flip up the light bulb cover and press
it firmly until it clicks into place.
,Make sure the bulb cover is
securely closed to prevent a short
circuit or penetrating moisture.
^Restore power.
Dryer care
20
