Miele DG 4060 User manual

Operating and Installation instructions
Steam oven
DG 4050
DG 4060
To avoid the risk of accidents or
damage to the appliance it is
essential to read these
instructions before it is installed
and used for the first time.
GHirZ
M.-Nr. 06 159 580

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Accessories supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setting the water hardness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cleaning and heating up for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Night dimming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Operating sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Changing the time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Minute minder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Recommended temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Before each use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Selecting a steam oven function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Selecting a temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Setting a cooking duration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Saving settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Changing the settings during operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
At the end of the cooking duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
After use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Automatic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
User programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Delay start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Safety features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Lock (LOCK $) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
System lock (SYSTEM LOCK $) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Solo Programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Contents
2

Changing settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Language J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Keeping warm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Temperatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Water hardness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Buzzer tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Demo mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Factory default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Practical tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Suitable containers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Steaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Reheating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Defrosting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Bottling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Cooking whole meals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Blanching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Preparing yoghurt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Disinfecting baby bottles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
The appliance front and housing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Removing the steam oven door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Oven interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Condensate tray, rack and cooking containers. . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Automatic door release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Side runners. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Steam generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Coupling seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Descaling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Contents
3

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
After sales service, data plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Safety instructions for installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Appliance and building-in dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Miele{home. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Installing and logging onto Miele{home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Signing off Miele{home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Contents
4

Front view
aOn/Off switch (retractable)
bMulti-function selector with turn and
press mechanism (retractable)
cDisplay
dAutomatic door release for reducing
steam
eVentilation outlet
fDoor seal
gSteam channel
hCompartment for steam generator
iSteam generator (with insert)
jContact point
kSide runners with 4 shelf levels
lSteam inlet
mDrip channel in the oven
nFloor heater
oTemperature sensor
pOutlet for air from oven interior
Guide to the appliance
5

Accessories supplied
Additional accessories can be ordered at extra cost. See back page for contact
details.

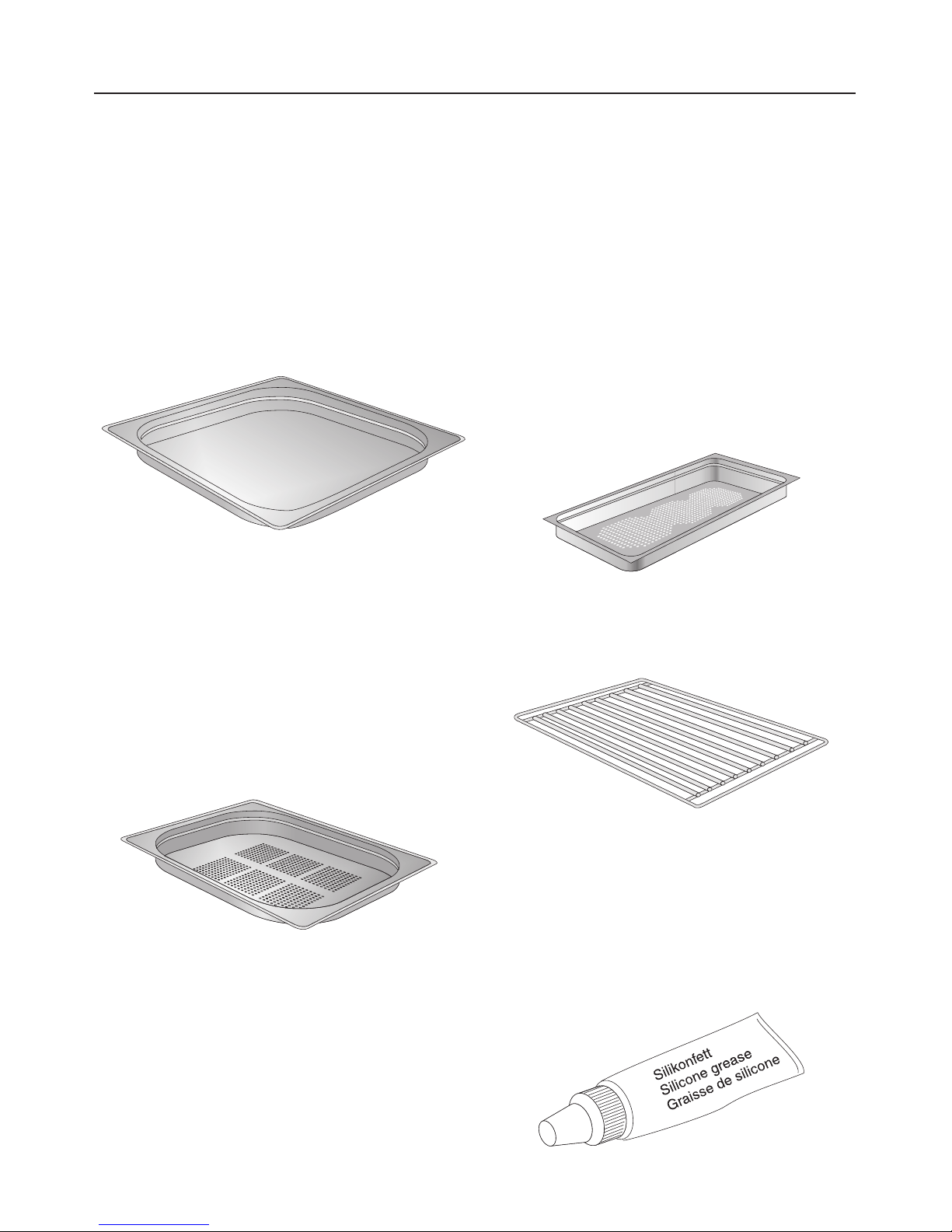

Condensate tray
To catch excess moisture
Gastronorm size GN 2/3
325x350x40 mm (WxDxH)
1 cooking container DGGL 8,
perforated
(gross capacity 2.0 litres /
usable capacity 1.7 litres)
For steaming
Gastronorm size GN 1/2
325x265x40 mm (WxDxH)
Miele steam oven cookbook
A selection of the best recipes from the
Miele test kitchen.
2 cooking containers DGGL 1,
perforated
(gross capacity 1.5 litres/
usable capacity 0.9 litres)
For steaming
Gastronorm size GN 1/3
325x175x40 mm (WxDxH)
Rack
For placing cooking containers on
Silicone grease
For lubricating the coupling seal
Please read the relevant instructions in
"Cleaning and care".
Guide to the appliance
6

Optional accessories
Stainless steel containers
Description Use Gross /
usable
capacity in
litres
Height
in mm
Width x
Depth
in mm
DGG 2
solid
(GN 1/3)*
For dishes in sauces and for
cooking dried foods like pasta
and rice in liquid
2.5 / 2.0 65 325 x 175
DGG 3
solid
(GN 1/2)
as DGG 2,
but deeper 4.0 / 3.1 65 325 x 265
DGGL 4
perforated
(GN 1/2)
For steaming vegetables, fish
and meat which is not being
cooked in a sauce
4.0 / 3.1 65 325 x 265
DGGL 5
perforated
(GN 1/3)
For cooking vegetables, fish,
meat and potatoes 2.5 / 2.0 65 325 x 175
DGGL 6
perforated
(GN 1/3)
For blanching or cooking
vegetables 4.0 / 2.8 100 325 x 175
DGG 7
solid
(GN 1/3)
For cooking a medium sized
quantity of soup or a medium
sized casserole
4.0 / 2.8 100 325 x 175
DGD Lid for solid cooking containers
DGG 2 and DGG 7
---
* Gastro-Norm sizes (Example GN 1/3)
1/3 or 1/2 is the width and depth of the cooking containers as shown below.
Guide to the appliance
7

Other accessories
Description Use
Miele descaling
tablets
(6 tablets)
For descaling Miele steam ovens and
coffee machines
Neoblank stainless
steel conditioning
agent
250 ml
Helps prevent re-soiling, water marks and
finger prints on stainless steel surfaces
Miele ceramic hob
cleaner
250 ml
For removing discolouration on the floor
heater caused by drops of liquid
Microfibre "E-Cloth"
(Miele UK only)
For cleaning surfaces such as stainless
steel, glass, plastic and chrome without
the use of chemicals
Miele{home
The Miele|home system gives you the
ability to call up your appliance at any
time to check information about your
appliance.
You will need a Miele|home master
appliance, and your appliance must be
fitted with the Communication module
(XKM 2000) to benefit from this feature.
Please refer to "Miele|home" later on in
these instructions for details on how to
install and sign on to the
Communication module.
The Miele|home master appliance is
supplied with its own operating
instructions.
Contact details:
Miele accessories are available from
- your Miele dealer or
- the Miele Spare Parts Department
(see back cover for contact details).
Guide to the appliance
8

To avoid the risk of accidents to the
appliance please read these
instructions carefully before using it
for the first time. They contain
important information on its
installation, safety, use and
maintenance.
The use of the appliance by the
elderly or infirm or those who have
not used the appliance before
should be supervised by a
competent and responsible person
to avoid the risk of injury.
Please stick the extra data plate for
the appliance supplied with this
documentation in the space
provided in the "After sales service"
section of this booklet.
Keep these instructions in a safe
place and pass them on to any
future user.
Technical safety
Before connecting the appliance to
the mains supply make sure that
the voltage and frequency correspond
to the rating on the data plate.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.
This appliance may be connected
via a plug and fused socket. If you
wish to connect it to an isolator switch,
or if the appliance is supplied without a
plug, it must be installed and
connected by a suitably qualified and
competent person in strict accordance
with local and national safety
regulations. The manufacturer cannot
be held liable for damage caused by
incorrect installation or connection.
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national safety regulations. It is most
important that this basic safety
requirement is tested regularly, and if
there is any doubt, the electrical wiring
in the home should be inspected by a
qualified electrician. The manufacturer
cannot be held liable for the
consequences of an inadequate
earthing system (e.g. electric shock).
Do not connect the appliance to
the mains electrical supply by an
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
Never open the casing of the
appliance.
Tampering with electrical connections
or components is highly dangerous to
the user and can cause operational
faults.
Warning and Safety instructions
9

Correct usage
Built-in appliances must not be
used until after they have been
correctly installed. This is necessary to
ensure that all electrical components
are shielded.
This appliance is intended for
domestic use only and is not to be
used for commercial purposes.
This appliance must only be used
as described in these instructions.
Any other usage is at the owner's risk
and could be dangerous. The
manufacturer cannot be held liable for
damage caused by incorrect or
improper use of the appliance.
Do not immerse the steam
generator in water, or clean it in a
dishwasher. Connecting the steam
generator into the appliance when wet
could cause an electric shock.
For reasons of hygiene and to
prevent the build-up of moisture in
the appliance, the steam generator
should be emptied after each use.
The drip channel should be wiped
dry with a soft cloth after each
programme.
After use, leave the door open until
the cooking compartment is
completely dry.
If the appliance is not going to be
used for a longer period of time,
e.g. whilst on holiday, it should be
thoroughly cleaned beforehand to
prevent the build-up of odours etc.
Refer to "Cleaning and heating up for
the first time" and carry out the
procedure as described. Leave the
door open afterwards.
Warning and Safety instructions
10
