Miele H4880BP User manual

Operating and Installation
Instructions
Oven
H 4880 BP
To prevent accidents
and machine damage,
read these instructions
before installation or use.
UV
M.-Nr. 06 426 290

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Guide to the display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Oven accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wire rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Roasting pan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Grease filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Roast probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Rotisserie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Slide opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Locking the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using the system lock: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using the oven display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Language J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Temperatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Oven Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Temperature °F / °C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Tone Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
System lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Before using the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Selecting a function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Adjusting the oven temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Delay Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Start time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
End time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Canceling a process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Turning off the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
At the end of cooking: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Contents
2

Setting the timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Guide to the functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
BAKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Baking tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
ROAST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Roasting tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Using the roast probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
MASTER CHEF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
BROIL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Broiling tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
FAVORITES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
SABBATH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
DEHYDRATE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
PROOF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
DEFROST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Defrosting tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
PerfectClean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Removing the oven door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Removing the runners. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Lowering the upper heating element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Self Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Changing the light bulb. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Technical Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Disposal of the packing materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Disposal of an old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Appliance and Cut-out Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Installing the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Contents
3

This appliance is intended for
residential use only.
Only use the appliance for its
intended purpose. The manufacturer
cannot be held responsible for
damages caused by improper use
of this oven.
This appliance complies with current
safety requirements. Improper use of
the appliance can lead to personal
injury and material damage.
Read all instructions before installing
or using the oven for the first time.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Installation
Before installation make sure that
the voltage and frequency listed on
the data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
Be certain your appliance is
installed and grounded by a
qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
The manufacturer cannot be held
responsible for damages caused by the
lack, or inadequacy, of an effective
grounding system or the failure to
adhere to national and local electrical
codes.
The oven is not to be operated until
it has been properly installed within
cabinetry.
Installation, maintenance and
repair work should be performed
by an authorized service technician.
Work by unqualified persons could be
dangerous and may void the warranty.
Before installation or service,
disconnect the power supply to the
work area by removing the fuse,
"tripping" the circuit breaker, or shutting
off the power main.
IMPORTANT SAFETY INSTRUCTIONS
4

Oven use
,WARNING: Ovens produce high
internal temperatures that can cause
burns.
Prevent children from touching the
appliance when in use.
Use heat-resistant potholders when
placing items in the oven, turning
them, or removing them from the oven.
The upper heating element and oven
racks can become very hot and cause
burns.
To prevent burns, always place
oven racks in their desired height
while the oven is cool.
Open the door carefully to allow
hot air or steam to escape before
placing or removing food.
To prevent burns, allow the heating
element to cool before cleaning by
hand.
During the self cleaning function
the oven will become very warm.
Prevent children form coming in contact
with the oven.
Remove all accessories from the
oven before starting the self
cleaning function. The high
temperatures needed for this program
will damage the accessories.
The door gasket is essential for a
good seal. Care should be taken
not to rub, damage or move the gasket.
The door gasket should only be
cleaned with a solution of warm water
and soap.
Only clean parts listed in this
manual.
Caution: Heating elements may be
hot even if they are not glowing.
During and after use, do not let clothing
or other flammable materials come in
contact with heating elements or interior
surfaces of the oven until they have had
sufficient time to cool. External parts of
the oven such as the door glass, vents,
and the control panel can become hot.
Do not block any vent
openings.
Do not let metal objects (aluminum
foil, pans) or the meat probe come
in contact with the heating element.
Do not slide pots or pans on the
oven floor. This could scratch and
damage the surface.
Do not lean, sit, or place heavy
items on the open oven door.
Only use the Miele roast probe
supplied with the oven. Contact
Miele if you need to purchase a new
probe.
To prevent damage, remove the
roast probe from the oven when it
is not being used.
Do not heat unopened containers
of food in the oven, pressure may
build up and cause them to explode.
Never add water to food on a hot
tray or pan or directly onto food in
a hot oven. The steam created could
cause serious burns or scalds.
IMPORTANT SAFETY INSTRUCTIONS
5

This oven must only be used for
cooking. Do not use it as a dryer,
kiln, dehumidifier, etc. Fumes or vapors
given off by glues, plastics or
flammable liquids and materials could
be hazardous.
Never store flammable liquids and
materials in, above or under an
oven, or near cooking surfaces.
When baking frozen pizzas or pies,
place them on the rack lined with
parchment paper. Do not use the
baking tray or the roasting pan for
frozen foods with a large surface area.
The tray or pan could become warped
and difficult to remove from the oven
when hot. Frozen food like french fries,
fish sticks, chicken fingers etc. can be
baked on the baking tray.
General notes
Do not use a steam cleaner to
clean the oven. Steam could
penetrate electrical components and
cause a short circuit.
Children should not be left alone or
unattended in an area where an
oven is in use. Never allow children to
sit or stand on any part of the oven.
Caution: Do not store items of interest
to children in cabinets above an oven.
Children climbing on the oven to reach
these items could be injured.
Do not leave the oven unattended
when cooking with oils or fats, they
are a fire hazard if overheated.
Do not use water on grease fires!
Smother the fire with a properly
rated dry chemical or foam fire
extinguisher.
Be aware of loose fitting or hanging
garments while operating the
cooktop, they present a fire hazard.
Do not use the oven to heat the
room.
Make certain that the power cords
of small appliances do not come in
contact with or get caught in the oven
door.
Use only dry, heat resistant
potholders. Moist or damp
potholders used on hot surfaces may
result in steam burns. Do not let
potholders come in contact with oils.
Do not substitute towels or other bulky
items for potholders.
It is recommended to cover all
cooked food that is left in the oven
to be kept warm. This will prevent
moisture from condensing on the
interior of the oven.
Be careful when using alcoholic
beverages like rum, whiskey, wine
etc. for baking or roasting. The alcohol
evaporates at high temperatures but
may in rare circumstances combust on
the hot heating elements.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
6

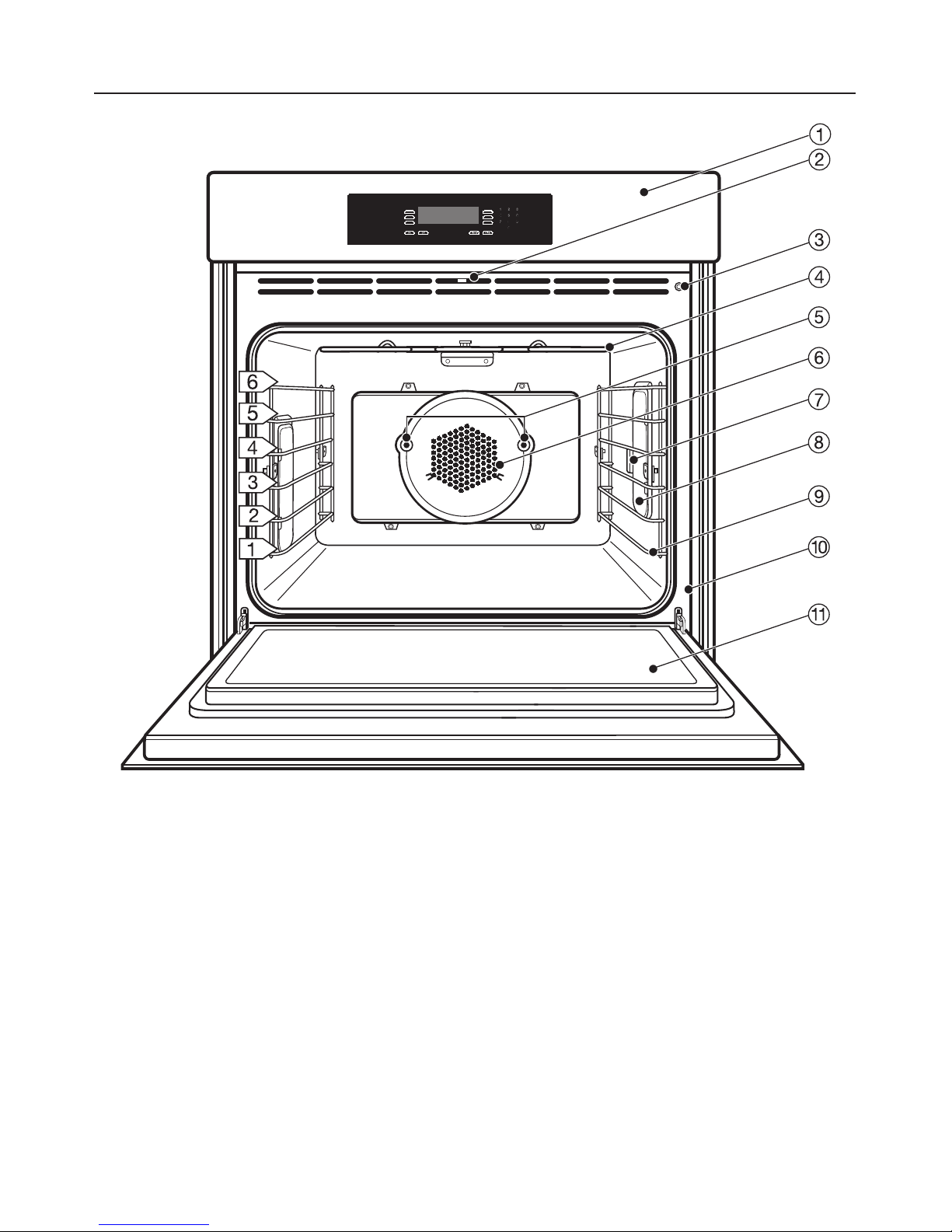

aControl panel
bSELF CLEAN door lock
cDoor contact switch *
dUpper heating element
eRotisserie motors
fConvection fan
gRoast probe socket
hLight
iNon-tip, six level runners
jData plate
kOven door
* This switch shuts off the heating
element and convection fan when
the door is opened during use.
Guide to the oven
7

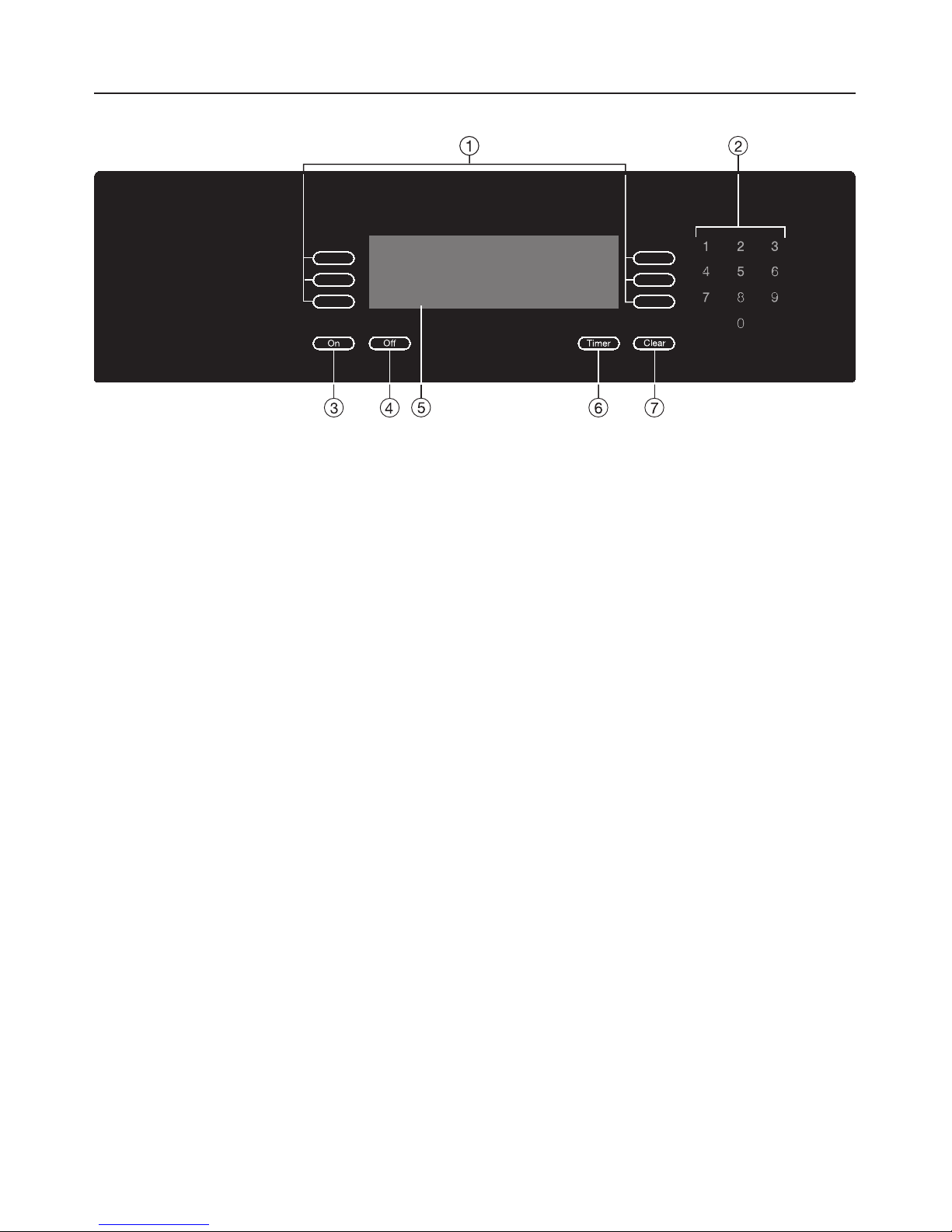

aTouch controls
to select or set a function.
bKeypad
to enter times or temperatures.
c"On" touch control
to turn the oven on.
d"Off" touch control
to turn the oven off.
eDisplay
shows the time or the functions.
f"Timer" touch control
to set a timer independent of an oven
function.
g"Clear" touch control
to delete the last entry or to clear
menu items.
Guide to the display
8

Wire rack
The racks are to be slid into the runners
on either side of the oven. They have
non-tip safety notches which prevent
them from being pulled out completely
while the oven is in use.
When inserting a rack, always check
that the safety notches are at the
rear of the oven.
The rack can only be removed by
raising it upwards and then pulling out.
The wire racks are coated with
PerfectClean and can be easily
cleaned with a sponge and dish soap.
Roasting pan
The roasting pan is ideal for catching
drippings from meat or poultry roasted
or broiled directly on the rack.
Slide the roasting pan onto the rail
below the wire rack. See illustration.
It can also be used as a baking tray.
The roasting pan is coated with
PerfectClean enamel and can be easily
cleaned with a sponge and dish soap.
Oven accessories
9

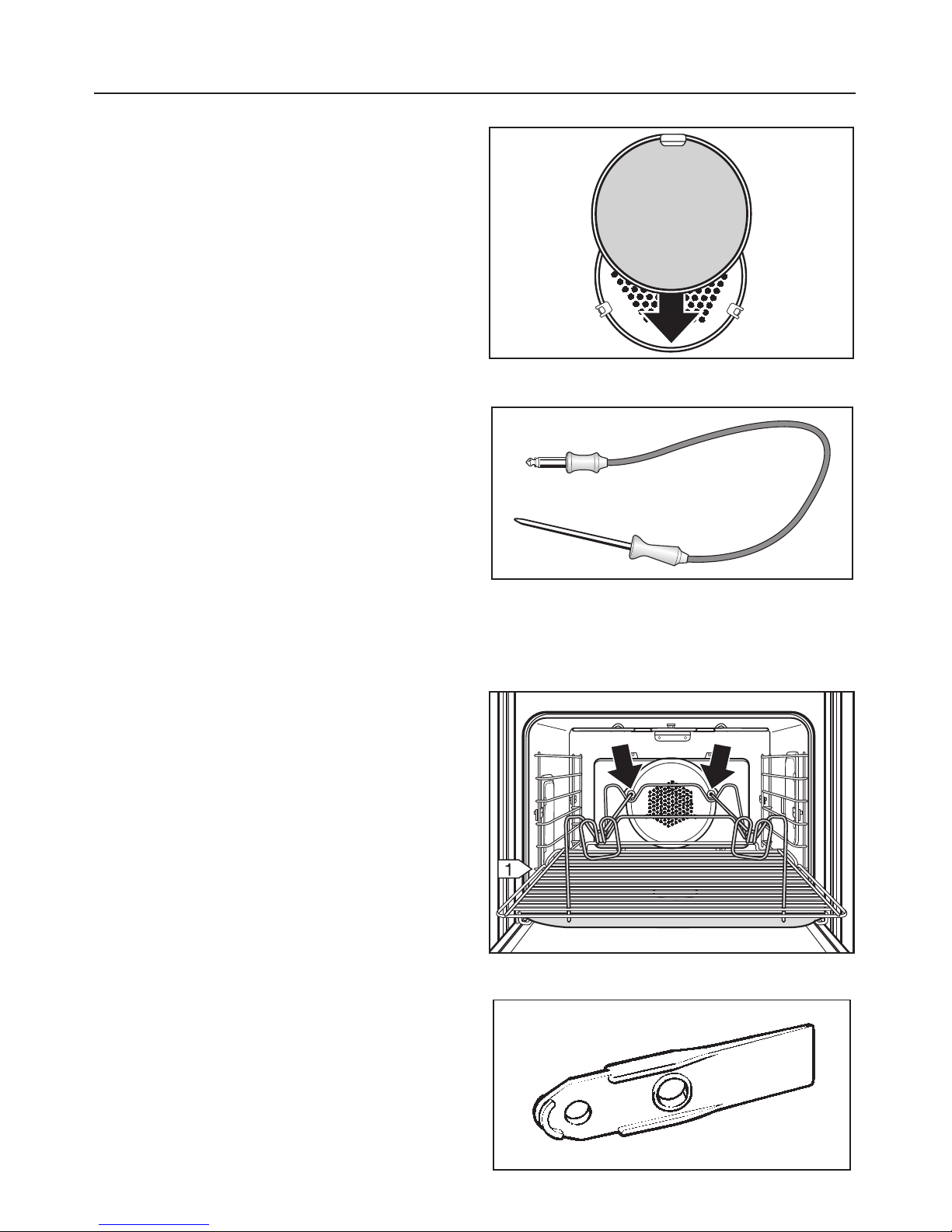

Grease filter
The filter helps to keep the oven fan
clean from moisture and grease.
Anytime meat or poultry is prepared
insert the grease filter in front of the fan
opening.
Roast probe
The roast probe reliably monitors the
core temperature of meat and poultry
during a roasting function.
The long pointed end of the probe is
inserted into the thickest portion of the
meat while the short end of the probe is
inserted into the roast probe socket.
Rotisserie
The rotisserie evenly broils and adds a
finishing touch to items such as stuffed
meat, ties roasts, poultry, and kabobs
by gently turning the skewers during
the broiling function.
The skewers are inserted into the
rotisserie motors in the back panel.
Slide opener
The slide opener is used to remove the
light cover when changing a light bulb.
The flat end of the slide opener is
wedged beneath the light cover to pry it
off.
Oven accessories
10
