Miele H 5240 BP Specification sheet

Operating and installation instructions
Oven
H 5140 BP, H 5240 BP
To avoid the risk of accidents or
damage to the appliance it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 07 336 120
en-GB

Warning and safety instructions .....................................5
Caring for the environment.........................................11

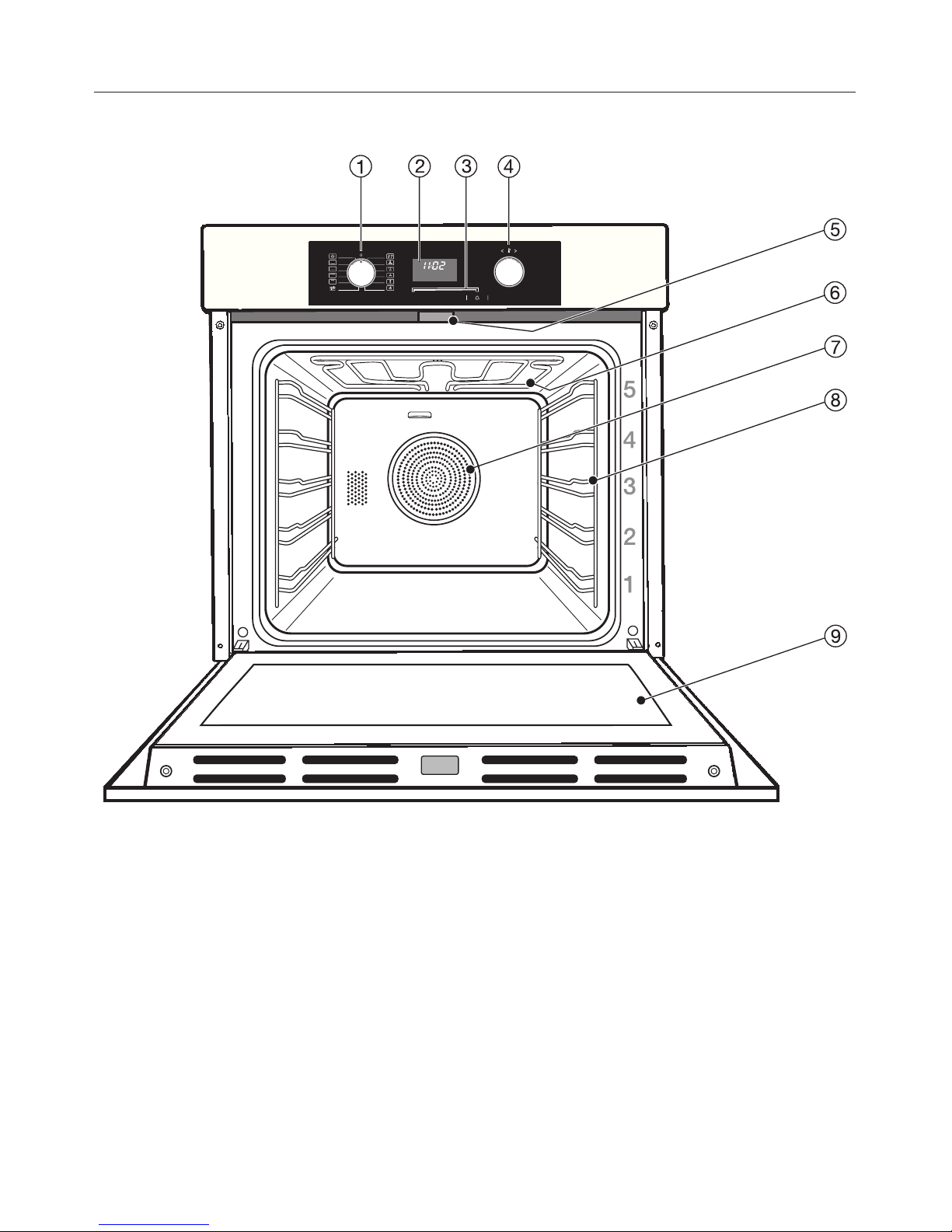

Guide to the appliance ............................................12
H 5140 BP, H 5240 BP..............................................12
Features ........................................................13
Oven controls.....................................................13
Safety features ....................................................13
System lock....................................................13
Safety switch-off ................................................13
Cooling system .................................................13
Vented oven door ...............................................13
Door lock for pyrolytic operation....................................13
Pyrolytic cleaning..................................................14
PerfectClean treated surfaces ........................................14
Energy saving features .............................................14
Time of day display..............................................14
Energy efficiency rating according to EN 50304..........................14
Accessories ......................................................14
Baking tray, universal tray and rack with non-tip notches ................15
Anti-splash insert (depending on model) .............................15
Handle (depending on model) .....................................15
Controls ........................................................16
Function selector ..................................................16
Temperature selector ..............................................17
Sensors .........................................................17
Symbols in the display..............................................18
Triangle Vin the display .........................................19
Functions .......................................................20
Before using for the first time.......................................22
To set the time of day for the first time..................................22
Changing the time of day .........................................22
Cleaning and heating up for the first time ...............................23
Operation .......................................................24
Using the oven....................................................24
Cooling system .................................................24
Recommended temperature .........................................24
Changing the temperature ........................................25
Contents
2

Temperature indicator ...........................................25
Pre-heating ......................................................25
Switching on and off automatically ....................................26
Entering a cooking duration .......................................26
Entering a cooking duration and delaying the finish time ................27
The end of a cooking programme ..................................28
To check and change an entered time...............................28
To delete an entered time.........................................28
Minute minder (egg timer)..........................................29
%Settings ......................................................30
To change the "status" of a setting ....................................31
System lock .....................................................32
Baking tips ......................................................33
Bakeware ........................................................33
Baking parchment ..............................................33
Universal tray ..................................................33
Retangular tins .................................................33
Notes about the charts .............................................34
Temperature, baking duration .....................................34
Shelf level .....................................................34
Frozen food ......................................................34
Baking chart .....................................................35
Fan plus .........................................................35
Conventional heat .................................................36
Intensive bake ....................................................37
Roasting tips ....................................................38
Useful tips .......................................................39
Browning......................................................39
Standing time ..................................................39
Roasting poultry ................................................39
Frozen meat ...................................................39
Roasting chart ...................................................40
Grilling tips ......................................................41
Preparing food for grilling ...........................................43
Grilling ..........................................................43
Useful tips .......................................................43
Grilling chart.....................................................44
Contents
3

Defrost .........................................................45
Cooking ready meals..............................................46
Cleaning and care ................................................47
Appliance front ...................................................47
Accessories ......................................................48
Baking tray, universal tray, anti-splash insert (if applicable) ..............48
Rack, runners ..................................................48
PerfectClean .....................................................49
Oven interior .....................................................51
Manual cleaning of the oven interior.................................51
Pyrolytic cleaning of the oven interior................................52
To remove the oven door............................................55
To dismantle the oven door .......................................56
To refit the door ...................................................59
To remove the runners..............................................60
To lower the top heat/grill element.....................................61
Problem solving guide ............................................62
After sales service ................................................65
Optional accessories..............................................66
Electrical connection..............................................68
Building-in diagrams ..............................................69
Appliance dimensions and unit cut-out .................................69
Front dimensions ..................................................70
Installing the oven ................................................71
Contents
4

This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important notes on
installation, safety, use and
maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the contents. Pass them
on to any future owner.
Correct application
~The appliance is intended for
domestic use to cook food, and in
particular to bake, roast, grill, cook,
defrost and dry fruit. Any other usage is
at the owner's risk and could be
dangerous. The manufacturer cannot
be held liable for damage resulting
from incorrect or improper use or
operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless they
are supervised whilst using it, or have
been shown how to use it correctly by a
person responsible for their safety.
Warning and safety instructions
5

Safety with children
~This appliance is not toy! To prevent
the risk of injury do not let children play
with the appliance or its controls.
~Older children may only use the
oven when its operation has been
clearly explained to them and they are
able to use it safely, recognising the
dangers of misuse.
~Great care should be taken to
ensure that children do not touch the
appliance when it is being used.
Children's skin is far more sensitive to
high temperatures than that of adults.
External parts of the oven such as the
door glass, control panel and the vent
become quite hot.
~The oven door gets much hotter
during pyrolytic operation than during
normal use.
Make sure children cannot touch the
oven whilst a pyrolytic programme is
running. Danger of burning.
Technical safety
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~Before installation, check the
appliance for visible signs of damage.
Do not install and use a damaged
appliance. A damaged appliance could
be dangerous.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system. It is
most important that this basic safety
requirement is present and tested
regularly, and where there is any doubt
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
Warning and safety instructions
6

~Before connecting the appliance,
make sure that the connection data on
the data plate (voltage and connected
load) match the mains electricity
supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a competent person
if in doubt.
~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~For safety reasons, this appliance
may only be used when it has been
built in.
~Never open the housing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
~While the appliance is under
guarantee, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the guarantee will be
invalidated.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
–the mains fuse is disconnected,
–the screw-out fuse is removed (in
countries where this is applicable),
–it is switched off at the isolator.
Ensure that current is not supplied to
the appliance until after maintenance
or repair work has been carried out.
~Faulty components must only be
replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~If the supply cord is damaged, it
must be replaced by a Miele approved
service technician to avoid a hazard.
~This appliance may only be used in
mobile installations such as ships,
caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Warning and safety instructions
7

Correct use
Caution. Danger of burning.
High temperatures are produced by
the oven.
~Use oven gloves when placing food
in the oven, turning or removing it and
when adjusting oven shelves etc. in a
hot oven. Be very careful that you do
not burn yourself on the top heating /
grill element.
~Never leave the appliance
unattended when cooking with oil or
fats, as these are a fire hazard if
allowed to overheat.
~Do not exceed the recommended
grilling times when using the "Full
grill Y", "Economy grill Z" and "Fan
grill \" functions. Excessively long
grilling times can lead to food drying
out and burning, or could even cause it
to catch fire.
~Do not use the "Full grill Y",
"Economy grill Z" or "Fan grill \"" to
finish baking par-cooked rolls or bread
or to dry flowers or herbs. Fire hazard.
Use "Fan plus U" or "Conventional V"
instead.
~If using alcohol in your recipes, high
temperatures can cause the alcohol to
vaporise and even to ignite on the hot
heating elements.
Alcohol should be burnt off before the
dish is placed in the oven to avoid this
danger.
~Cover any food which is left in the
oven to be kept hot. Any moisture in the
food could lead to corrosion damage in
the oven. This also prevents the food
from drying out.
~If you wish to complete a cooking
process using the residual heat in the
oven, leave the function selector at the
position set and turn the temperature
selector to the lowest setting. Do not
switch the appliance off until the food
has been removed. Increased moisture
in the oven could cause condensation
to form which could lead to
– corrosion in the oven compartment.
– damage to the control panel, worktop
and surrounding kitchen furniture.
Warning and safety instructions
8

~Do not line the floor of the oven with
aluminium foil when using
"Conventional V"/"Bottom
heat X"/"Intensive bake O"/"Rapid
heat-up S".
This would cause a build-up of heat
which could cause damage to the floor
of the oven.
For this reason do not place a dish, tin
or baking tray directly on the oven floor.
If using a tray made by a different
manufacturer, make sure that there is a
gap of at least 6 cm between the
bottom of the tray and the floor of the
oven.
~Never add cold water to food on a
hot universal tray or baking tray or
directly onto food in a hot oven. The
steam created could cause serious
burns or scalding and the sudden
change in temperature can damage the
enamel.
~Always ensure that food is suitably
cooked or reheated.
Some foods may contain
micro-organisms which are only
destroyed by thorough cooking at
temperatures over 70 °C for a minimum
of 10 minutes. Therefore when cooking
or reheating foods, e.g. poultry, it is
particularly important that food is fully
cooked through. If in doubt select a
longer cooking or reheating time.
It is important that the heat is allowed to
spread evenly throughout the food
being cooked. This can be achieved
by stirring and/or turning the food
during cooking.
~If using plastic containers for
cooking, these must be declared by the
manufacturer as being suitable for use
in an oven. Other types of plastic
containers melt at high temperatures,
and could damage the oven.
~Do not heat up unopened tins or jars
of food in the oven. Pressure can build
up and they may explode, resulting in
injury or damage.
~Do not push pots and pans around
on the oven floor, as this could damage
the surface.
~Do not lean or sit on an open oven
door, or place heavy items on it. Make
sure that nothing gets trapped between
the door and the oven compartment.
This could damage the oven.
The oven door can support a maximum
load of 15 kg.
~Do not use the appliance to heat up
the room. Due to the high temperatures
radiated, objects near the appliance
could catch fire.
Warning and safety instructions
9

Accessories
~Only use genuine Miele spare parts
and accessories with this appliance. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the guarantee, and Miele
cannot accept liability.
~Remove all accessories as well as
the runners and any extra accessories
such as Flexi-Clip runners from the
oven interior before starting the
pyrolytic cleaning process. The high
temperatures needed for pyrolysis will
damage the accessories.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and safety instructions
10
