Miele H 5961 B User manual

Operating and installation instructions
Oven
H 5961 B
To avoid the risk of accidents or
damage to the appliance it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 07 649 830
en-GB

Warning and Safety instructions .....................................6
Caring for the environment.........................................11
Guide to the appliance ............................................12
Features ........................................................13
Oven controls.....................................................13
Safety features ....................................................13
System lock....................................................13
In operation lock ................................................13
Safety switch-off ................................................13
Cooling fans ...................................................13
Vented oven door ...............................................13
Energy saving features .............................................14
User instructions ..................................................15
Moisture plus .....................................................15
"Moisture plus" recipe booklet .....................................15
PerfectClean treated surfaces ........................................15
Catalytic enamelled surfaces ........................................15
Energy efficiency rating according to EN 50304..........................15
Accessories ......................................................16
Universal tray and rack with anti-tip safety notches .....................16
FlexiClip telescopic runners ......................................17
Fitting the FlexiClip telescopic runners ................................17
Changing the position of the FlexiClip telescopic runners ...............18
Anti-splash insert ...............................................18
Food probe ....................................................18
Opener .......................................................18
Descaling tablets, plastic tube with clip ..............................18

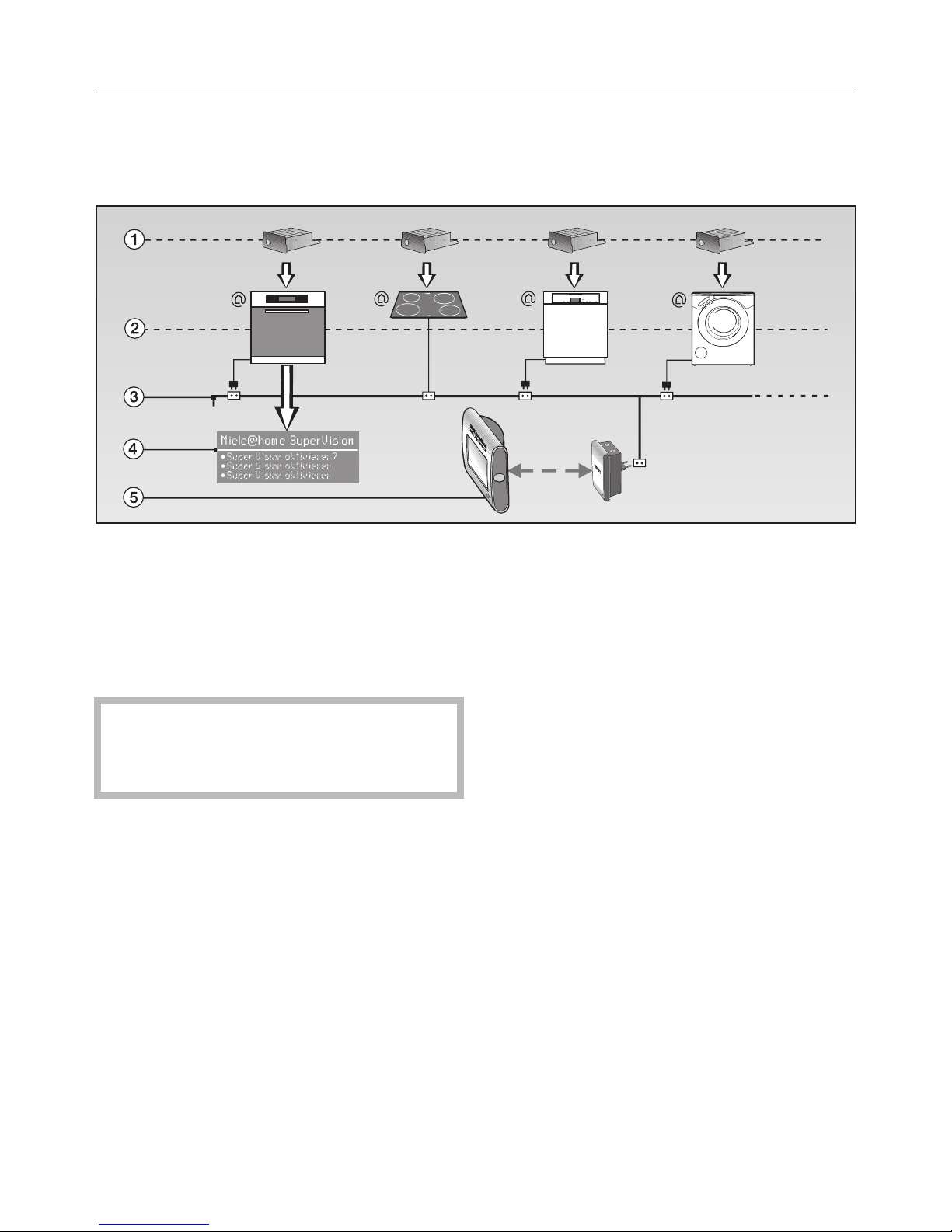

Miele@home .....................................................19
Optional accessories ............................................19

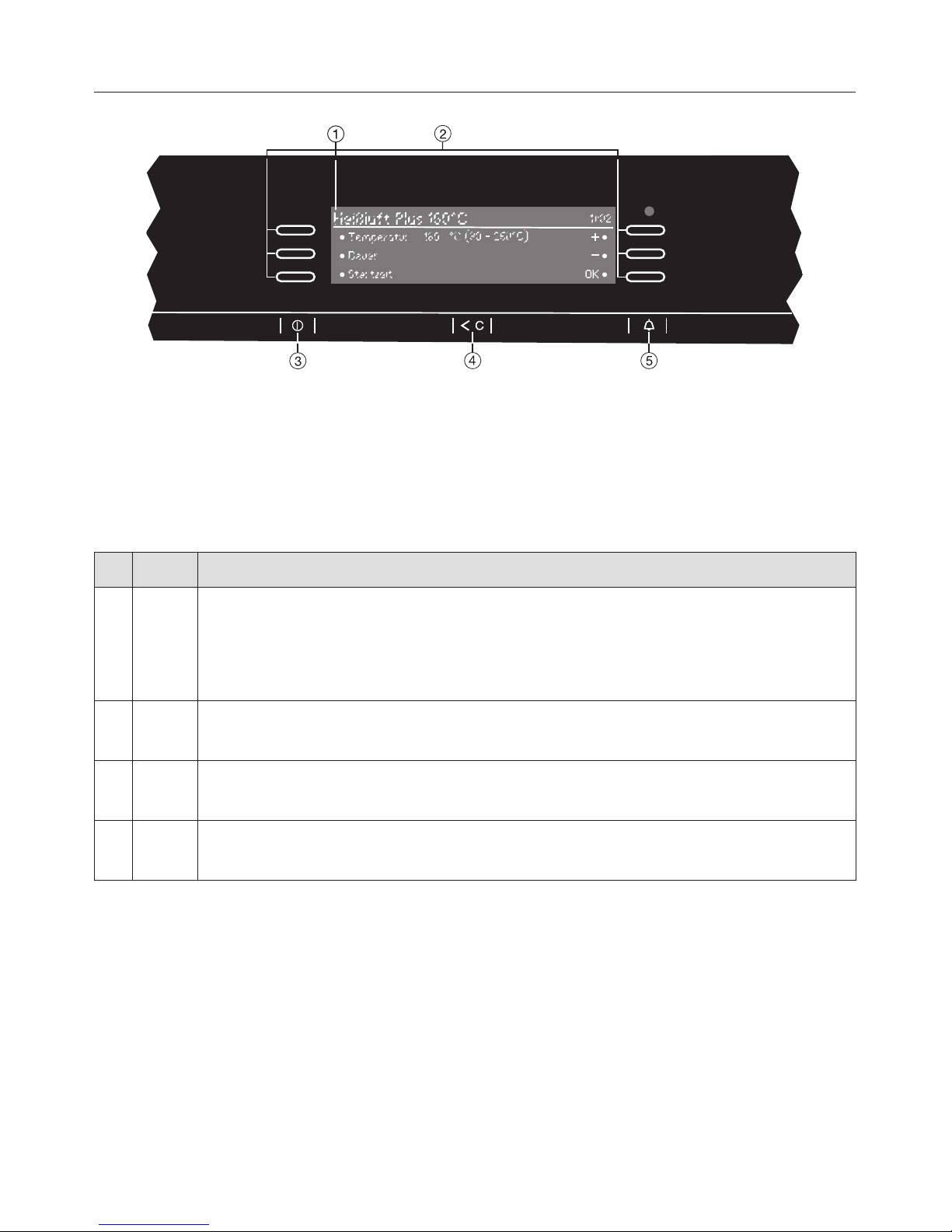

Controls ........................................................20
Sensors .........................................................20
Display ..........................................................21
Main menu ....................................................21
Symbols ......................................................22
Functions .......................................................24
Before using for the first time.......................................26
To enter basic settings .............................................26
Contents
2

Cleaning and heating up for the first time ...............................27
Operation .......................................................28
Automatic programmes .............................................28
Manual operation ..................................................29
Selecting a function ................................................29
Recommended temperature, Selecting the temperature ...................30
Entering the Duration, a Start time or Finish time .........................30
To use Automatic switch-off .......................................31
Delaying the start with Automatic switch-off...........................31
Sequence of the cooking programme when using Automatic switch-off .....32
The following will appear in the display:..............................32
Changing or deleting an entered cooking time ........................32
Changing the heating-up phase ......................................33
Pre-heating the oven.............................................33
Activating moisture reduction ........................................34
Change function ..................................................34
User programmes .................................................34
The User programmes menu ......................................34
To create a User programme ......................................35
To call up an existing User programme ..............................35
Food probe ......................................................36
How it works......................................................36
When to use it ....................................................36
Important notes about using the food probe .............................36
To use the food probe ..............................................37
Time left display ................................................38
Making use of residual heat .......................................38
Moisture plus ....................................................39
Automatic programmes .............................................40
Night baking ...................................................40
Moisture plus d..................................................41
Number of bursts of steam and when they are injected..................41
Using Moisture plus d..........................................42
To evaporate residual moisture .......................................43
The residual moisture evaporation process ...........................43
To start the residual moisture evaporation process .....................43
To cancel the residual moisture evaporation process ...................44
Contents
3

Descaling........................................................44
Minute minder (egg timer) N........................................45
Settings.........................................................46
Language J......................................................46
Time ............................................................47
Time (of day) display ............................................47
Clock format ...................................................47
To set the time .................................................47
Lighting .........................................................47
Main menu .......................................................48
Catalyser ........................................................48
Cooling fan run-on .................................................48
Heating-up phase .................................................49
Start ............................................................49
Recommended temperatures ........................................49
Display ..........................................................49
Contrast ......................................................49
Brightness.....................................................49
Volume ..........................................................50
Buzzer tones ...................................................50
Frequency.....................................................50
Keypad tone ...................................................50
Safety ...........................................................51
System lock 0.................................................51
In operation lock ................................................51
Units............................................................52
Temperature ...................................................52
Showroom programme .............................................52
Factory default ....................................................52
Cleaning and care ................................................53
Appliance front ...................................................53
Accessories ......................................................54
Universal tray, anti-splash insert (if present) ..........................54
Rack, runners ..................................................54
Food probe ....................................................54
FlexiClip telescopic runners ......................................54
Contents
4

Oven interior .....................................................56
Seal and inside of the oven door ...................................56
PerfectClean .....................................................57
Catalytic enamel surfaces ...........................................59
To remove the oven door............................................60
To dismantle the oven door .......................................61
To refit the door ...................................................64
To remove the FlexiClip telescopic runners .............................65
To remove the side runners ..........................................65
To remove the back panel ...........................................66
To lower the top heat/grill element.....................................66
Descaling........................................................67
When to run the descaling programme ..............................67
Descaling process (overview) .....................................67
Preparation ....................................................68
Start the descaling process........................................68
Problem solving guide ............................................70
After sales service ................................................73
Optional accessories..............................................74
Electrical connection..............................................76
Building-in diagrams ..............................................78
Installing the oven ................................................81
Contents
5

This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important notes on
installation, safety, use and
maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the contents. Pass them
on to any future owner.
Correct application
~This oven is not designed for
commercial use. It is intended for use in
domestic households and for use in
similar working and residential
environments such as:
–Shops
–Offices and showrooms
and by residents in establishments
such as:
–Hostels and guest houses
It is intended for domestic use only to
cook food, and in particular to bake,
roast, grill, defrost and dry food.
Any other use is not supported by the
manufacturer and could be dangerous.
Miele cannot be held liable for damage
resulting from incorrect or improper use
or operation of the appliance.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless they
are supervised whilst using it, or have
been shown how to use it correctly by a
person responsible for their safety.
Safety with children
~This appliance is not a toy! To
prevent the risk of injury or damage do
not let children play with the appliance
or its controls.
~Older children may only use the
oven when its operation has been
clearly explained to them and they are
able to use it safely, recognising the
dangers of misuse.
~Great care should be taken to
ensure that children do not touch the
appliance when it is being used.
Children's skin is far more sensitive to
high temperatures than that of adults.
External parts of the oven such as the
door glass, control panel and the vent
become quite hot.
Warning and Safety instructions
6

Technical safety
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~Before installation, check the
appliance for visible signs of damage.
Do not install and use a damaged
appliance. A damaged appliance could
be dangerous.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system. It is
most important that this basic safety
requirement is present and tested
regularly, and where there is any doubt
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~Before connecting the appliance,
make sure that the connection data on
the data plate (voltage and connected
load) match the mains electricity
supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a competent person
if in doubt.
~Do not connect the appliance to the
mains electricity supply by a multi-
socket unit or an extension lead. These
do not guarantee the required safety of
the appliance (e.g. danger of
overheating).
~For safety reasons, this appliance
may only be used when it has been
built in.
~Never open the housing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
~While the appliance is under
guarantee, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the guarantee will be
invalidated.
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Warning and Safety instructions
7

~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
–the mains fuse is disconnected,
–the screw-out fuse is removed (in
countries where this is applicable),
–it is switched off at the isolator.
Ensure that current is not supplied to
the appliance until after maintenance or
repair work has been carried out.
~Faulty components must only be
replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~If the supply cord is damaged, it
must be replaced by a Miele approved
service technician to avoid a hazard.
~This appliance may only be used in
mobile installations such as ships,
caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Correct use
Caution. Danger of burning.
High temperatures are produced by
the oven.
~Use oven gloves when placing food
in the oven, turning or removing it and
when adjusting oven shelves etc. in a
hot oven. Be very careful that you do
not burn yourself on the top heating/grill
element.
~Never leave the appliance
unattended when cooking with oil or
fats, as these are a fire hazard if
allowed to overheat.
~Do not exceed the recommended
grilling times when using the Full grill,
Economy grill and Fan grill functions.
Excessively long grilling times can lead
to food drying out and burning, or could
even cause it to catch fire.
~Do not use the Full grill, Economy
grill or Fan grill to finish baking par-
cooked rolls or bread or to dry flowers
or herbs. Fire hazard.
Use Fan plus or Conventional heat
instead.
Warning and Safety instructions
8

~If using alcohol in your recipes, high
temperatures can cause the alcohol to
vaporise and even to ignite on the hot
heating elements.
Alcohol should be burnt off before the
dish is placed in the oven to avoid this
danger.
~Cover any food which is left in the
oven to be kept hot. Any moisture in the
food could lead to corrosion damage in
the oven. This also prevents the food
from drying out.
~If you wish to complete a cooking
process using the residual heat in the
oven, leave the oven at the function
selected and select the lowest
temperature for that function. Do not
switch the appliance off until the food
has been removed. Increased moisture
in the oven could cause condensation
to form which could lead to
– corrosion inside the oven
compartment.
– damage to the control panel, worktop
and surrounding kitchen furniture.
~Do not line the floor of the oven with
aluminium foil when using Conventional
heat, Bottom heat or Intensive bake.
This would cause a build-up of heat
which could cause damage to the floor
of the oven.
For this reason do not place a dish, tin
or baking tray directly on the oven floor.
If using a tray made by a different
manufacturer, make sure that there is a
gap of at least 6 cm between the
bottom of the tray and the floor of the
oven.
~Never pour cold water onto a hot
universal tray or add directly onto food
in a hot oven. The steam created could
cause serious burns or scalding and
the sudden change in temperature can
damage the enamel.
~Always ensure that food is suitably
cooked or reheated.
Some foods may contain micro-
organisms which are only destroyed by
thorough cooking at temperatures over
70°C for a minimum of 10 minutes.
Therefore when cooking or reheating
foods, e.g. poultry, it is particularly
important that food is fully cooked
through. If in doubt select a longer
cooking or reheating time.
It is important that the heat is allowed to
spread evenly throughout the food
being cooked. This can be achieved
by stirring and/or turning the food
during cooking.
~If using plastic containers for
cooking, they must be declared by the
manufacturer as being suitable for use
in an oven. Other types of plastic
containers melt at high temperatures,
and could damage the oven.
Warning and Safety instructions
9

~Do not heat up unopened tins or jars
of food in the oven. Pressure can build
up and they may explode, resulting in
injury or damage.
~Do not push pots and pans around
on the oven floor, as this could damage
the surface.
~Do not lean or sit on an open oven
door, or place heavy items on it. Make
sure that nothing gets trapped between
the door and the oven compartment.
This could damage the oven.
The oven door can support a maximum
load of 15 kg.
~Do not use the appliance to heat up
the room. Due to the high temperatures
radiated, objects near the appliance
could catch fire.
Accessories
~Only use genuine Miele spare parts
and accessories with this appliance. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the guarantee, and Miele
cannot accept liability.
~Only use the Miele food probe
supplied with this oven.
If a replacement is necessary it can be
obtained from the Miele Spare Parts
Department or your Miele dealer.
The manufacturer cannot be held
liable for damage caused by non-
compliance with these Warning and
safety instructions.
Warning and Safety instructions
10

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Caring for the environment
11

H 5961 B
aControl panel
bTop heat/grill element
cSteam inlet openings for Moisture plus
dBack panel with air inlets for the fan
eSide runners with three shelf levels
fWater intake tube for the steam injection system
gDoor
Guide to the appliance
12

Oven controls
In addition to operating the various
cooking programmes to bake, roast
and grill, the controls also offer the
following:
–a time of day display,
–a minute minder,
–a timer for programming cooking
durations,
–user programmes,
–automatic programmes,
–settings that can be customised.
Safety features
System lock
The system lock 0prevents the oven
from being used unintentionally by
children, for example. See "Settings -
Safety".
In operation lock
The reaction time when the sensors are
touched can be extended in order, for
example, to prevent the appliance
being switched off unintentionally. See
"Settings – Safety".
Safety switch-off
Safety switch-off is triggered
automatically if the oven is operated for
an unusually long period of time. The
period of time will depend on the oven
function selected.
Cooling fans
The cooling fans will come on
automatically when a cooking
programme is started. The cooling fans
mix hot air from the oven cavity with
cool room air before venting it out into
the kitchen through vents located
between the appliance door and the
control panel.
The cooling fans will continue to run for
a while after the oven has been
switched off to prevent any humidity
building up in the oven, on the control
panel or on the oven housing unit.
Vented oven door
The oven door is an open system and
some of the door panes have a heat-
reflecting coating. During operation,
cool air is passed through the oven
door to keep the outer pane cool.
If necessary, the oven door can be
dismantled for cleaning.
Features
13

Energy saving features
Lighting
The oven lighting is set to switch off
15 seconds after the start of a cooking
programme (default setting). See
"Settings - Lighting".
Door contact switch
If the oven door is opened during
operation, the door contact switch
automatically switches off the heating
elements and the fan, if a "Fan" setting
is being used. This helps reduce the
amount of heat lost from the oven
interior, e.g. when basting roast meat.
At the same time, the oven lighting is
switched on.
Using residual heat
The oven heating switches off
automatically shortly before the end of a
cooking programme where the cooking
duration has been programmed or the
food probe is being used. The residual
heat in the oven is sufficient to complete
the cooking process.
"Energy save" will appear in the display.
The cooling fans continue to run, as
does the hot air fan if a "Fan" setting
has been chosen.
Energy save mode
The oven switches off automatically to
save energy if, at the end of an Auto-
matic programme or a cooking
programme with Automatic switch-off,
no other cooking function is selected
within a certain time period.
This time period depends on the
settings selected (cooking function,
temperature, cooking duration).
Either the time of day is displayed or
the display is dark: see "Settings - Time
- Display".
Features
14

User instructions
The User instructions supplied with
your appliance in addition to these
Operating and installation instructions
contain detailed information about the
following:
–Automatic programmes
–Baking
–Roasting
–Slow cooking
–Grilling
–Defrosting
–Cooking ready meals
–Automatic programme recipes
Moisture plus
This function injects moisture during the
cooking process, giving excellent
results when cooking various types of
food, such as bread or meat.
Moisture plus is activated during some
Automatic programmes, and can also
be used as a separate function for
manually injecting bursts of steam.
"Moisture plus" recipe booklet
This separate booklet supplied with
your oven in addition to these
Operating and installation instructions
contains recipes and information on
using Automatic programmes with
Moisture plus and the Moisture plus
function.
PerfectClean treated surfaces
The following surfaces are all treated
with a special PerfectClean finish:
–Oven interior,
–Runners,
–Universal tray,
–Rack,
–Anti-splash insert (if present)
PerfectClean surfaces have very good
anti-stick properties and are much
easier to keep clean than conventional
enamel, if cleaned regularly.
The FlexiClip telescopic runners also
have a PerfectClean finish.
PerfectClean surfaces have an
iridescent appearance.
See "Cleaning and care" for more
information.
Catalytic enamelled surfaces
The back panel is coated with dark
grey catalytic enamel. Soiling from oil
and fat is burnt off these surfaces when
very high temperatures are used in the
oven.
See "Cleaning and care" for more
information.
Energy efficiency rating
according to EN 50304
This appliance is rated energy
efficiency class Bin accordance with
EN 50304.
Tests were carried out using "Fan
plus U" with the FlexiClip telescopic
runners removed. The catalyser should
be switched off during testing, see
"Settings - Catalyser - Off next
programme only".
Features
15

Accessories
The following accessories are supplied
with this oven.
These and other accessories are also
available to order from the Miele Spare
Parts Department, your Dealer or via
the internet on www.miele-shop.com.
Universal tray and rack with anti-tip
safety notches
The universal tray and rack are inserted
into the oven between the two rails of a
shelf runner.
The universal tray and rack have non-
tip safety notches which prevent them
being pulled right out when they only
need to be partially pulled out.
When pushing the rack back in,
always ensure that the safety
notches are at the rear of the oven
(see illustration).
They can then only be taken out of the
oven by raising them upwards and then
pulling them out.
If you are using a tray with the rack on
top, insert the tray between the rails of
a shelf runner and the rack will sit on
top of it.
Features
16

FlexiClip telescopic runners
The FlexiClip telescopic runners can be
clipped into any of the existing shelf
runners and pulled out of the oven to
their fullest extent.
Push the telescopic runners right in
before placing a tray or rack on
them.
To prevent the risk of a rack or tray
sliding off the runners, make sure that
they are sitting securely on their
runners in between the stoppers at
either end of each runner.
The FlexiClip runners can support a
maximum load of 15 kg.
Fitting the FlexiClip telescopic runners
Make sure that the oven has cooled
down before moving the FlexiClip
runners.
Take care not to burn yourself on them.
The FlexiClip runners are fitted in between
the two rails that make up a shelf level.
The telescopic runner with the Miele
logo is fitted on the right.
When fitting the FlexiClip runners do
not extend them.
^Fit the FlexiClip runner in between the
two rails at the front (1) and then push
it into the oven compartment (2).
^Then secure the FlexiClip runner to the
bottom of the two rails as illustrated (3).
If the FlexiClip runners are difficult to
pull out after fitting, you may need to
pull firmly on them once to release
them.
Features
17

Changing the position of the
FlexiClip telescopic runners
Make sure that the oven has cooled
down before moving the FlexiClip
runners.
Take care not to burn yourself on
them.
To change the position of the FlexiClip
runners:
^Remove the FlexiClip runners from
their original position by raising them
at the front, then pulling them
forwards and out.
^Insert them at the required shelf level;
see "Features - Fitting the FlexiClip
telescopic runners".
Anti-splash insert
(depending on model)
The anti-splash insert should be placed
in the universal tray when grilling or
roasting.
The juices from the food being cooked
collect under the anti-splash tray. This
prevents them from spitting and making
the oven dirty. The juices can then be
used for making gravy and sauces.
Food probe
The food probe enables the roasting
process to be monitored simply and
reliably.
See "Food probe" for detailed
information on how to use it.
Opener
This opener is used to remove the
cover of the lighting in the sides of the
oven.
Descaling tablets, plastic tube with
clip
These are required for descaling the
appliance.
Features
18

Miele@home enabled appliances send information via the household wiring
network cto the master appliance d/eabout the operational status of the
appliances, as well as information about the progress of the programme.
These instructions are for a
communication enabled oven bthat
can be linked into the Miele@home
system via a Miele@home installation kit
and a communication module a
(optional accessories).
The Miele@home installation kit has
to be fitted by a Miele service
technician.
Information is displayed via:
–SuperVision appliance d
The status of other appliances in the
system can be shown in the display
of the SuperVision appliance.
–InfoControl XIC 2100 e
Information transmitted from the
appliances can be displayed audibly
and visually in a mobile master unit in
the vicinity of the house.
You can use both of these at the same
time.
Optional accessories
– Required:
Miele@home installation kit + com-
munication module XKM 2000 SV a
– Optional: Mobile master unit
InfoControl XIC 2100 e
Both of these are supplied with their
own installation and operating
instructions.
The home of the future
The Miele@home system is capable of
expansion. In the future,
communication enabled appliances b
will be able to be operated via a PC or
a mobile phone.
Miele@home
19

The appliance is operated via the display aand the electronic sensors next to
and below the display. These react to finger contact. A keypad tone will sound
each time a sensor is touched. The volume of the keypad tone can be adjusted or
switched off altogether (see "Settings - Volume - Keypad tone").
Sensors
Meaning
bCSensors
When the appliance is switched on, the allocations for these sensors
appear in the display.
Sensors which can be used in a programme are lit up.
cKON/OFF sensor
For switching the appliance on and off.
dUClear sensor
To delete the latest entry.
eNMinute minder (egg timer) sensor
For entering a time for the minute minder, e.g. for boiling eggs.
Controls
20
