Miele H 4810 B User manual

Operating and installation instructions
Oven
H 4710 B, H 4810 B
To avoid the risk of accidents or
damage to the appliance it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 09 000 750
en-GB

Warning and Safety instructions .....................................5
Caring for the environment.........................................10
Guide to the appliance ............................................11
H 4710 B, H 4810 B ................................................11
Features ........................................................12
Oven controls.....................................................12
Safety features ....................................................12
Cooling fan ....................................................12
Vented oven door ...............................................12
PerfectClean treated surfaces ........................................12
Catalytic enamelled surfaces ........................................12
Energy efficiency rating according to EN 50304..........................12
Accessories ......................................................13
Baking tray, universal tray and rack with non-tip notches ................13
Anti-splash insert ...............................................13
Handle .......................................................14
Controls ........................................................15
Function selector ..................................................15
Temperature selector ..............................................15
Temperature indicator light ....................................15
Oven functions...................................................16
Before using for the first time.......................................18
To set the time of day for the first time..................................18
Cleaning and heating up for the first time ...............................18
Clock/Timer .....................................................20
Sensor controls ...................................................20
Operation ........................................................20
The time shown in the display .....................................21
Changing the time of day ...........................................21
Changing the audible tone ..........................................22
Using the minute minder lfunction ...................................22
Setting the minute minder.........................................23
Altering the time set for the minute minder............................23
Cancelling the time set for the minute minder .........................23
Operation .......................................................24
Using the oven....................................................24
Pre-heating ......................................................24
Contents
2

Switching on and off automatically ....................................25
Entering a duration ..............................................25
Entering a duration and a finish time ................................26
At the end of the duration .........................................27
Checking and changing an entered duration..........................27
Deleting a duration ..............................................27
Baking tips ......................................................28
Bakeware ........................................................28
Baking parchment ..............................................28
Universal tray ..................................................28
Rectangular tins ................................................28
Notes about the charts .............................................29
Temperature, baking duration .....................................29
Shelf level .....................................................29
Frozen food ......................................................29
Baking chart .....................................................30
Roasting tips ....................................................34
Useful tips .......................................................35
Browning......................................................35
Standing time ..................................................35
Roasting poultry ................................................35
Frozen meat ...................................................35
Roasting chart ...................................................36
Notes on Slow cooking ............................................37
Proceed as follows: ................................................37
Cooking duration/Core temperatures ..................................38
Grilling tips ......................................................39
Preparing food for grilling ...........................................41
Grilling ..........................................................41
Useful tips .......................................................41
Grilling chart.....................................................42
Defrost .........................................................43
Cooking ready meals..............................................44
Cleaning and care ................................................45
Appliance front ...................................................45
Accessories ......................................................46
Universal tray, baking tray , anti-splash insert .........................46
Contents
3

Rack, runners ..................................................46
Oven interior .....................................................46
Seal and inside of the oven door ...................................46
PerfectClean .....................................................47
Catalytic enamel surfaces ...........................................49
To remove the oven door............................................50
To dismantle the oven door .......................................51
To refit the door ...................................................53
To remove the runners..............................................54
To remove the catalytic enamelled back panel, side panels and roof liner .....54
Back panel ....................................................54
Roof liner (if fitted)...............................................55
Side panels (if fitted) .............................................55
Problem solving guide ............................................56
After Sales / Guarantee ............................................58
Optional accessories..............................................59
Electrical connection..............................................61
Building-in diagrams ..............................................62
Appliance and niche dimensions .....................................62
Front dimensions ..................................................63
Installing the oven ................................................64
Contents
4

This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important notes on
installation, safety, use and
maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.
Correct application
~This oven is not designed for
commercial use. It is intended for use in
domestic households and for use in
similar working and residential
environments such as:
–Shops
–Offices and showrooms
and by residents in establishments
such as:
–Hostels and guest houses
~It is intended for domestic use only
to cook food, and in particular to bake,
roast, grill, defrost and dry food.
Any other use is not supported by the
manufacturer and could be dangerous.
Miele cannot be held liable for damage
resulting from incorrect or improper use
or operation of the appliance.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless they
are supervised whilst using it, or have
been shown how to use it correctly by a
person responsible for their safety.
Warning and Safety instructions
5

Safety with children
~This appliance is not a toy! To
prevent the risk of injury or damage, do
not let children play with the appliance
or its controls.
~Older children may only use the
oven when its operation has been
clearly explained to them and they are
able to use it safely, recognising the
dangers of misuse.
~Great care should be taken to
ensure that children do not touch the
appliance when it is being used.
Children's skin is far more sensitive to
high temperatures than that of adults.
External parts of the oven such as the
door glass, control panel and the vent
become quite hot.
Technical safety
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~Before installation, check the
appliance for visible signs of damage.
Do not install and use a damaged
appliance. A damaged appliance could
be dangerous.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system. It is
most important that this basic safety
requirement is present and tested
regularly, and where there is any doubt
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
Warning and Safety instructions
6

~Before connecting the appliance,
make sure that the connection data on
the data plate (voltage and connected
load) match the mains electricity
supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a competent person
if in doubt.
~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~For safety reasons, this appliance
may only be used when it has been
built in.
~Never open the housing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
~While the appliance is under
guarantee, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the guarantee will be
invalidated.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
–the mains fuse is disconnected,
–the screw-out fuse is removed (in
countries where this is applicable),
–it is switched off at the isolator.
Ensure that current is not supplied to
the appliance until after maintenance
or repair work has been carried out.
~Faulty components must only be
replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~If the supply cord is damaged, it
must be replaced by a Miele approved
service technician to avoid a hazard.
~This appliance may only be used in
mobile installations such as ships if a
risk assessment of the installation has
been carried out by a suitably qualified
engineer.
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Warning and Safety instructions
7

Correct use
Caution. Danger of burning.
High temperatures are produced by
the oven.
~Use oven gloves when placing food
in the oven, turning or removing it and
when adjusting oven shelves etc. in a
hot oven. Be very careful that you do
not burn yourself on the top heating /
grill element.
~Never leave the appliance
unattended when cooking with oil or
fats, as these are a fire hazard if
allowed to overheat.
~Do not exceed the recommended
grilling times when using the "Full
grill Y", "Economy grill Z" and "Fan
grill \" functions. Excessively long
grilling times can lead to food drying
out and burning, or could even cause it
to catch fire.
~Do not use the "Full grill Y",
"Economy grill Z" or "Fan grill \"to
finish baking part-cooked rolls or bread
or to dry flowers or herbs. Fire hazard.
Use "Fan plus U" or "Conventional
heat V" instead.
~If using alcohol in your recipes, high
temperatures can cause the alcohol to
vaporise and even to ignite on the hot
heating elements.
Alcohol should be burnt off before the
dish is placed in the oven to avoid this
danger.
~Cover any food which is left in the
oven to be kept hot. Any moisture in the
food could lead to corrosion damage in
the oven. This also prevents the food
from drying out.
~If you wish to complete a cooking
process using the residual heat in the
oven, leave the function selector at the
position set and turn the temperature
selector to the lowest setting. Do not
switch the appliance off until the food
has been removed. Increased moisture
in the oven could cause condensation
to form which could lead to
– corrosion in the oven compartment.
– damage to the control panel, worktop
and surrounding kitchen furniture.
~Do not line the floor of the oven with
aluminium foil when using "Conventional
heat V"/"Bottom heat X"/ "Intensive
bake O"/"Rapid heat-up S".
This would cause a build-up of heat
which could cause damage to the floor
of the oven.
For this reason do not place a dish, tin or
baking tray directly on the oven floor.
Warning and Safety instructions
8

If using a tray made by a different
manufacturer, make sure that there is a
gap of at least 6 cm between the
bottom of the tray and the floor of the
oven.
~Never add cold water to food on a
hot universal tray or baking tray or
directly onto food in a hot oven. The
steam created could cause serious
burns or scalding and the sudden
change in temperature can damage the
enamel.
~Always ensure that food is suitably
cooked or reheated.
Some foods may contain
micro-organisms which are only
destroyed by thorough cooking at
temperatures over 70 °C for a minimum
of 10 minutes. Therefore when cooking
or reheating foods, e.g. poultry, it is
particularly important that food is fully
cooked through. If in doubt select a
longer cooking or reheating time.
It is important that the heat is allowed to
spread evenly throughout the food
being cooked. This can be achieved by
stirring and/or turning the food during
cooking.
~If using plastic containers for
cooking, they must be declared by the
manufacturer as being suitable for use
in an oven. Other types of plastic
containers melt at high temperatures,
and could damage the oven.
~Do not heat up unopened tins or jars
of food in the oven. Pressure can build
up and they may explode, resulting in
injury or damage.
~Do not push pots and pans around
on the oven floor, as this could damage
the surface.
~Do not lean or sit on an open oven
door, or place heavy items on it. Make
sure that nothing gets trapped between
the door and the oven compartment.
This could damage the oven.
The oven door can support a maximum
load of 15 kg.
~Do not use the appliance to heat up
the room. Due to the high temperatures
radiated, objects near the appliance
could catch fire.
Accessories
~Only use genuine Miele original
spare parts and accessories with this
appliance. Using spare parts or
accessories from other manufacturers
will invalidate the guarantee, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
9

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not dispose of it with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Caring for the environment
10

H 4710 B, H 4810 B
aFunction selector, retractable when it is at "0"
bClock/timer with sensors ?, OK, ;
dTemperature selector, retractable when it is at "0"
dTemperature indicator light 
eHeating element for top heat and grilling
fCatalytic enamelled back panel with air inlet for the fan
gSide runners with five shelf levels
hDoor
Guide to the appliance
11

Oven controls
In addition to operating the various
cooking programmes to bake, roast
and grill, the controls on ovens with a
clock/timer also offer the following:
–a time of day display,
–a minute minder,
–a timer to automatically switch
cooking programmes on and off,
–settings that can be customised.
Safety features
Cooling fan
A cooling fan will come on
automatically when a cooking
programme is started. The cooling fan
mixes hot air from the oven cavity with
cool room air before venting it out into
the kitchen through vents located
between the appliance door and the
control panel.
The cooling fan will continue to run after
the oven has been switched off to
prevent any humidity building up in the
oven, on the control panel or on the
oven housing unit.
When the temperature in the oven has
fallen sufficiently, the cooling fan will
switch off automatically.
Vented oven door
The oven door is an open system and
one of the door panes has a
heat-reflecting coating. During
operation, cool air is passed through
the oven door to keep the outer pane
cool.
If necessary, the oven door can be
dismantled for cleaning.
See "Cleaning and care" for more
information.
PerfectClean treated surfaces
The following surfaces are all treated
with a special PerfectClean finish:
–Oven interior
–Universal tray
–Baking tray (if applicable)
–The anti-splash insert (if applicable).
PerfectClean surfaces have very good
anti-stick properties and are much
easier to keep clean than conventional
enamel, if cleaned regularly.
See "Cleaning and care" for more
information.
Catalytic enamelled surfaces
The back panel is coated with dark
grey catalytic enamel. Soiling from oil
and fat is burnt off this enamel when
very high temperatures are used in the
oven.
See "Cleaning and care" for more
information.
Energy efficiency rating
according to EN 50304
This appliance is rated energy
efficiency class Ain accordance with
EN 50304.
Tests were carried out using Fan
plus Uwith any FlexiClip telescopic
runners removed.
Features
12

Accessories
Depending on model, your
appliance will be supplied with some
of the following accessories.
These and other accessories are also
available to order from the Miele Spare
Parts Department, your Dealer or via
the internet at www.miele-shop.com.
Baking tray, universal tray and rack
with non-tip notches
(depending on model)
Baking tray:
Universal tray:
Rack:
The baking tray, universal tray and rack
are inserted into the oven between the
two rails of a shelf runner.
The short sides of the trays and rack
have a safety notch in the middle. This
notch prevents the tray or rack from
sliding completely out of the oven when
it is partially pulled out.
To remove the trays or rack, they need
to be lifted out.
Always place the rack in the oven with
the slats facing downwards, as
illustrated.
If you are using a tray with the rack on
top, insert the tray between the rails of
a shelf runner and the rack will sit on
top of it.
Anti-splash insert
(depending on model)
The anti-splash insert should be placed
in the universal tray when grilling or
roasting.
The juices from the food being cooked
collect under the anti-splash insert. This
prevents them from spitting and making
the oven dirty. The juices can then be
used for making gravy and sauces.
Features
13

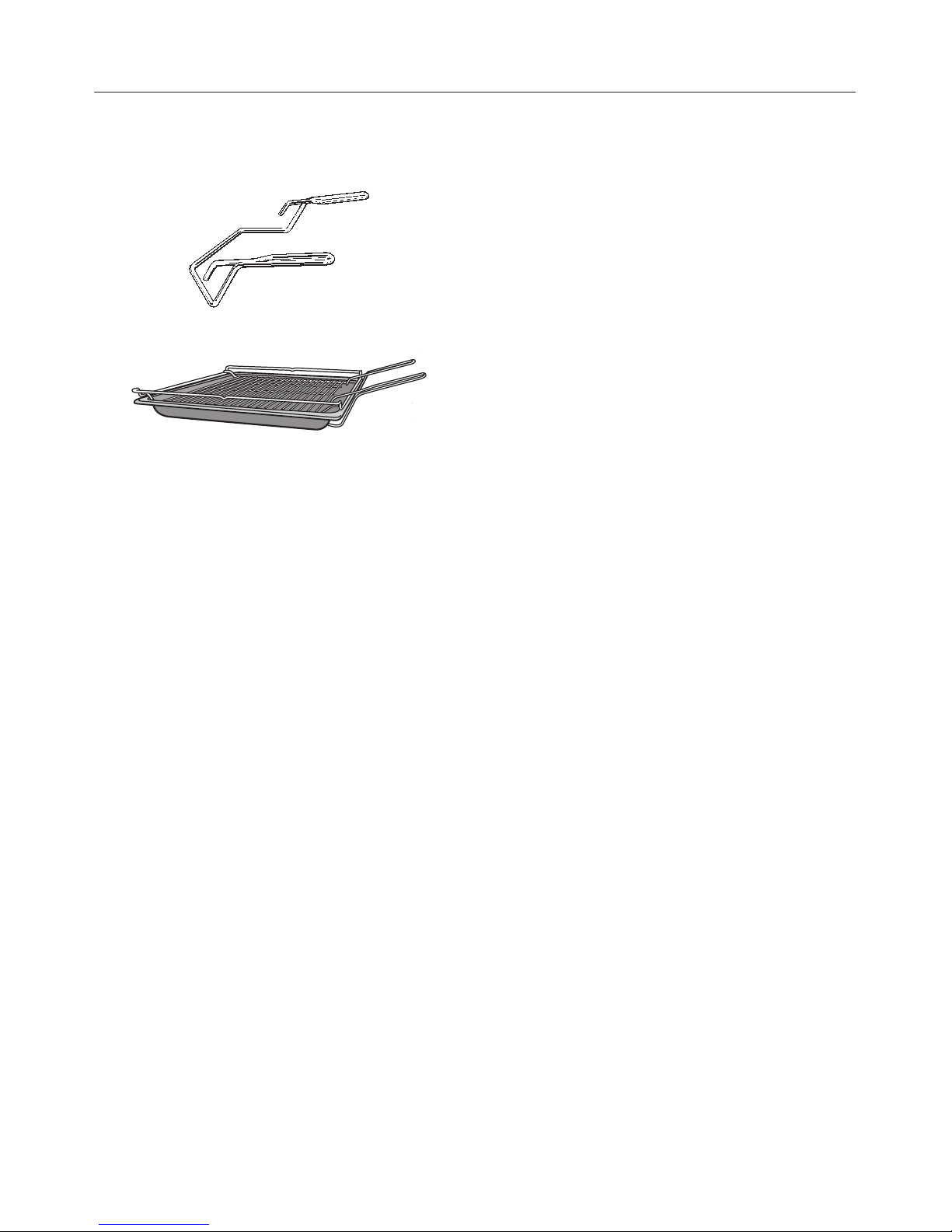

Handle
(depending on model)
The handle makes it easier to take the
universal tray, baking tray and rack out
of the oven, or to put them into it. The
two prongs at the top go inside the tray
or above the rack, and the U-shaped
supports underneath.
Features
14

Function selector
The left-hand control is used to select
the function.
The function selector can be turned
clockwise or anti-clockwise.
It can only be retracted when it is at "0".
SRapid heat-up
UFan plus
\Fan grill
OIntensive bake
PDefrost
VConventional heat
XBottom heat
YFull grill
ZEconomy grill
TLighting:
For switching on the oven light
independently. This can be
useful when cleaning the oven.
Temperature selector
The right-hand control is used to select
the temperature.
The temperature selector must only be
turned in a clockwise direction as far as
it will go, and then back again.
It can only be retracted when it is at "0".
Temperature indicator light 
The temperature indicator light is
next to the temperature selector.
The indicator light is always on when
the oven heating is on.
When the set temperature is reached,
– the oven heating switches off.
–the temperature indicator light goes
out.
As soon as the temperature falls below
the set temperature, the oven heating
and the temperature indicator light will
switch on again.
Controls
15

Your oven has a range of oven functions for preparing a wide variety of recipes.
Heat is created in the oven by means of different elements and components:
aTop heat/grill element (under the roof of the oven)
bBottom heating element (under the floor of the oven)
cRing heating element (behind the intake vent for the fan)
dFan (behind the intake vent for the fan)
These elements and components are combined in various ways, depending on
the oven function selected. See the letters given in brackets for each function.
Oven function Notes
VConventional
heat
[a+b]
–For baking traditional recipes, e.g. fruit cake, casseroles.
–Also ideal for soufflés.
– If using an older recipe or cookbook, set the oven
temperature for Conventional heat 10°C lower than that
recommended.
The cooking duration does not need to be changed.
XBottom heat
[b]
– Use this setting towards the end of baking to brown the
base of a cake, quiche or pizza.
YFull grill
[a]
– The whole grill element is switched on and glows red in
order to create the heat required.
– For grilling larger quantities of thin cuts (e.g. steaks).
–For browning food in larger dishes.
ZEconomy
grill
[a]
–The inner part of the grill element is switched on and glows
red in order to create the heat required.
–For grilling smaller quantities of thin cuts (e.g. steaks).
–For browning food in smaller dishes.
Oven functions
16

Oven function Notes
SRapid
heat-up
[a+c+d]
–For pre-heating the oven compartment.
The oven function required must then be selected.
UFan plus
[c+d]
–For baking and roasting.
–You can bake and roast on different levels at the same
time.
–Lower temperatures can be used than with Conventional
heat Vas the Fan plus system distributes the heated air
around the food.
\Fan grill
[a+d]
–For grilling larger items, e.g. rolled meat, poultry.
– The hot air from the grill is distributed over the food by the
fan. This enables a lower temperature to be selected than
when using Full grill Y/Economy grill Z.
OIntensive
bake
[b+c+d]
– For cooking dishes which require a moist topping and a
crisp base such as pizza and quiche lorraine.
– Intensive bake is not suitable for baking thin biscuits etc.
or for roasting as the juices will become too dark.
PDefrost
[d]
– For the gentle defrosting of frozen food.
Oven functions
17

Before the oven can be used, you
will need to
– release the controls by pressing
them in, if they are pushed in
when the oven is delivered.
– set the time of day
(on ovens with a clock/timer).
To set the time of day for the
first time
The clock/timer has a 24 hour display.
000
ß
After connecting the appliance and
switching it on, a dot ßwill light up and
000will flash in the display.
^Press the OK sensor.
000will light up in the display and the
dot ßwill flash.
^Enter the time of day using the ?or
;sensors whilst the dot ßis flashing
in the display.
^Press the OK sensor.
The time of day is saved and the dot ß
now lights up continuously.
The time then counts in minutes.
Cleaning and heating up for
the first time
Before use, please remove
– any stickers from the oven and
from any accessories.
– any protective foil from the
oven front.
See "Cleaning and care" for more
information.
Before using the oven for the first time
–take all accessories out of the oven
and wash them.
– then heat the oven up once with
nothing in it. New ovens have a
slight smell on first use and this will
dissipate the smells before you use it
to cook food.
^Wipe the oven interior out with a
damp cloth to remove any dust or
bits of packaging that may have
accumulated in the oven cavity
during storage and unpacking.
^Press and release the function
selector and the temperature
selector.
^Select Fan plus Uwith the function
selector.
^Set the highest temperature (250 °C)
with the temperature selector.
Before using for the first time
18

The oven will start heating up as soon
as this entry has been accepted.
^Heat the empty oven for at least an
hour.
Please ensure the kitchen is well
ventilated during this operation.
Close doors to other rooms to
prevent the smell spreading
throughout the house.
The oven can be set to switch off
automatically at the end of the heating
up process. See "Operation – Entering
a duration.
^Leave the appliance to cool down to
room temperature.
^Then wipe the oven interior out with a
solution of hot water and a mild
detergent, and dry it thoroughly with
a soft clean cloth.
Leave the oven door open until the
oven interior is completely dry.
Before using for the first time
19

The clock/timer (depending on model)
can:
–display the time of day.
–be used as a minute minder.
–switch the oven off, or on and off,
automatically.
Sensor controls
The oven has sensors which react to
touch.
A keypad tone sounds each time a
sensor is touched.
Operation
SI3 T00
ß
l
The clock/timer is operated using the
OK,;and ?sensors together with
the display.
Sensor Use
OK –To select the minute
minder lfunction
–To select the duration
Tfunction
– To select the finish
time Sfunction
– To save an entry
?and ;at
the same
time
– To select the time of
day ßfunction
– To delete a time
;– To increase a time
– To change the
audible tone
?–To reduce a time
–To call up the Audible
tone option function
–To change the
audible tone
Clock/Timer
20
