Miele DA 269-4 Assembly instructions

Operating and installation instructions
Cooker hood
DA 269-4
To avoid the risk of accidents
or damage to this appliance
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 07 259 020
en-GB

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Modes of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
To switch the fan on................................................13
To select a power level .............................................13
To switch the fan off................................................13
To switch the lighting on and off .......................................13
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Housing .........................................................15
Grease filters .....................................................16
Fitting and replacing the charcoal filter .................................17
Changing a halogen lamp ...........................................18
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Safety distance between hob and cooker hood (S) .....................19
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Assembly parts ...................................................20
Installation instructions .............................................22
Protective foil .....................................................22
Dismantling ......................................................22
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Condensate trap ..................................................24
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Operation with Control module DSM 400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Connection to a window contact switch ..............................26
Potential free connection .........................................26
Connection to a light switch .......................................27
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Contents
2

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Packaging e.g. cling film, polystyrene
and plastic wrappings must be kept out
of the reach of babies and young
children. Danger of suffocation!
Dispose of or recycle all packaging
materials safely as soon as possible.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your Dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
Caring for the environment
3

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important information
on the safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This appliance is intended for
domestic use only.
Any other usage is at the owner's risk
and could be dangerous. The
manufacturer cannot be held liable for
damage resulting from incorrect or
improper use or operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
have been given supervision or
instruction concerning its use by a
person responsible for their safety.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions.
~This appliance is not a toy! To avoid
the risk of injury, keep children well
away and do not allow them to play with
it or to use the controls. They will not
understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may use the cooker
hood only when its operation has been
clearly explained to them and they are
able to use it safely, recognising the
dangers of misuse.
~Please be aware that on cooker
hoods with halogen lighting, the lamps
will get very hot during use and remain
hot for some time after switching off. To
safeguard against burning, keep
children well away from the lamps at all
times.
Technical safety
~Before installation, check the cooker
hood for visible signs of damage.
Under no circumstances should you
use a damaged appliance. A damaged
appliance is dangerous.
Warning and Safety instructions
4

~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond with the
on-site electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly, and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~For safety reasons, this appliance
may only be used when it has been
fully installed.
~Only open the housing as described
in the instructions given in the
installation sheet and in the Cleaning
and care section of this booklet. Under
no circumstances should any other
parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
Miele authorised person in accordance
with current national and local safety
regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
– it is switched off at the isolator, or
– the screw-out fuse is removed (in
countries where this is applicable), or
–the mains fuse is disconnected, or
–it is switched off at the wall socket
and the plug withdrawn, or
–the fuse to the fused spur connection
unit is withdrawn.
Warning and Safety instructions
5

~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~This appliance may only be used in
mobile installations such as ships,
caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.

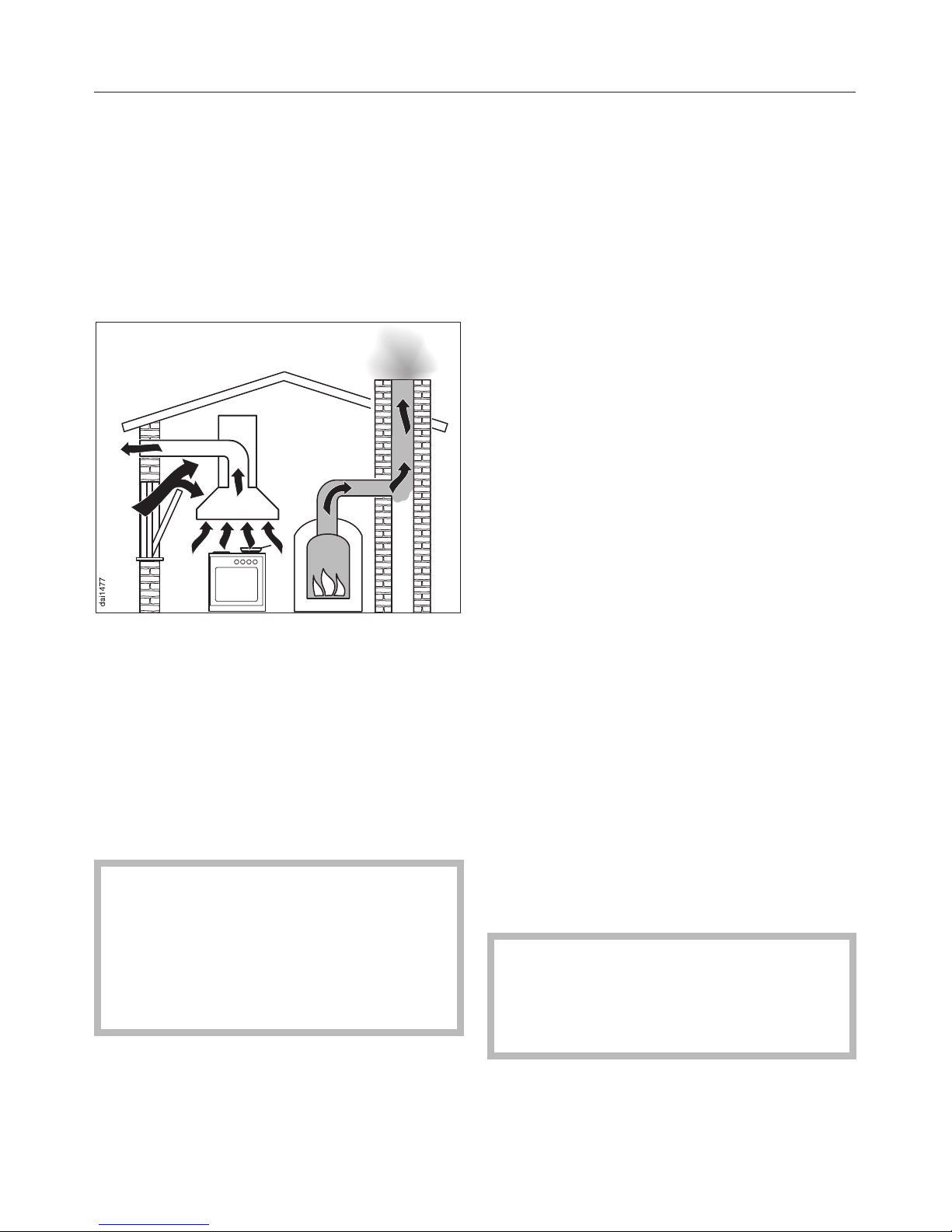

Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
~Great care should be taken when
using the cooker hood at the same time
and in the same room or area of the
house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas hobs, cookers or ovens which draw
air in from the room and duct exhaust
gases out through a chimney or
extraction ducting.
When used in extraction mode, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases could be drawn out of
the chimney or extraction ducting back
into the room, with potentially fatal
consequences.
Warning and Safety instructions
6

In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the cooker
hood and the heater are in operation
simultaneously, an underpressure in the
room of 0.04 mbar (4 pa) is the
maximum permissible.
Ventilation can be maintained by air
inlets which cannot be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the cooker hood can
only be switched on when the heating
appliance is switched off or vice versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
,The overall ventilation condition
of the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder or, for gas, a
qualified gas fitter (Corgi registered
in the UK) must be sought.
One of the following technical
measures may be necessary to ensure
safe operation.
–If the only way of ensuring adequate
ventilation is via an open window, a
window contact switch should be
fitted to ensure that the cooker hood
can only operate when the window is
opened sufficiently. A window
contact switch kit is available from
good builders' merchants.
Take care when ventilating the room
through an open window that
ventilation is not impaired by a
closed blind or curtain.
– The cooker hood can be set up to
automatically switch on an air intake
fan or open a motorised inlet flap
when it is switched on.
– The cooker hood can be set up to
automatically switch off a heating
appliance which also depends on
the air from the room when it is
switched on.
The Miele DSM 400 control module
offers the possibility of combining other
components with the cooker hood (see
"Operation with Control module DSM
400").
It is available to purchase as an
optional extra.
If in any doubt , the advice of a
qualified builder, gas fitter (Corgi
registered in the UK) or electrician
must be sought.
If the hood is being operated in
recirculation mode, the above
restrictions do not apply.
Warning and Safety instructions
7

Correct use
~Never use an open flame beneath
the cooker hood. To avoid the danger
of fire, do not flambé or grill over an
open flame under the cooker hood.
When switched on, the cooker hood
could draw flames into the filter. Fat
particles drawn into the cooker hood
present a fire hazard.
~When using the cooker hood over a
gas hob, ensure that any burners in use
are always covered by a pan. Switch
the cooking zone off when a pan is
removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The cooker hood can become
damaged when exposed to excessive
heat.
~Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
~When cooking with oil or fat, chip
pans and deep fat fryers etc, do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
~Do not use the cooker hood without
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
~The filters should be regularly
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
~Do not use a steam-cleaner to clean
this appliance. Pressurised steam
could reach the electrical components
and cause a short circuit.
Correct installation
~Refer to the cooker or hob
manufacturer's instructions as to
whether a cooker hood may be
operated above the cooker/hob.
~The minimum safety distances
between the top of the cooker or hob
and the bottom of the cooker hood
given in the "Appliance dimensions"
section of this booklet must be
maintained, unless the hob
manufacturer states that a greater
safety distance is required.
If more than one appliance is fitted
beneath the cooker hood, and they
have different minimum safety
distances to the cooker hood, select
the greater distance.
Warning and Safety instructions
8

~Safety regulations prohibit the fitting
of a cooker hood over solid fuel stoves.
~All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from the Miele
Spare Parts department or from
builders' merchants.
~The appliance must not be
connected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
~If exhaust air is to be extracted into
a chimney or ventilation duct no longer
used for other purposes, seek
professional advice.
Accessories
~Only use genuine Miele spare parts
and accessories with this appliance. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the guarantee, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
9

Guide to the appliance
10

aExtension piece
bTower
cCanopy
dTouch controls
eGrease filters
fRecirculation grille
(only for recirculation mode)
gHob lighting
hCharcoal filter
(special accessory for recirculation
mode)
iOn/Off touch control for the fan
jControls to select fan power level
kOn/Off touch control for hob
lighting
Guide to the appliance
11

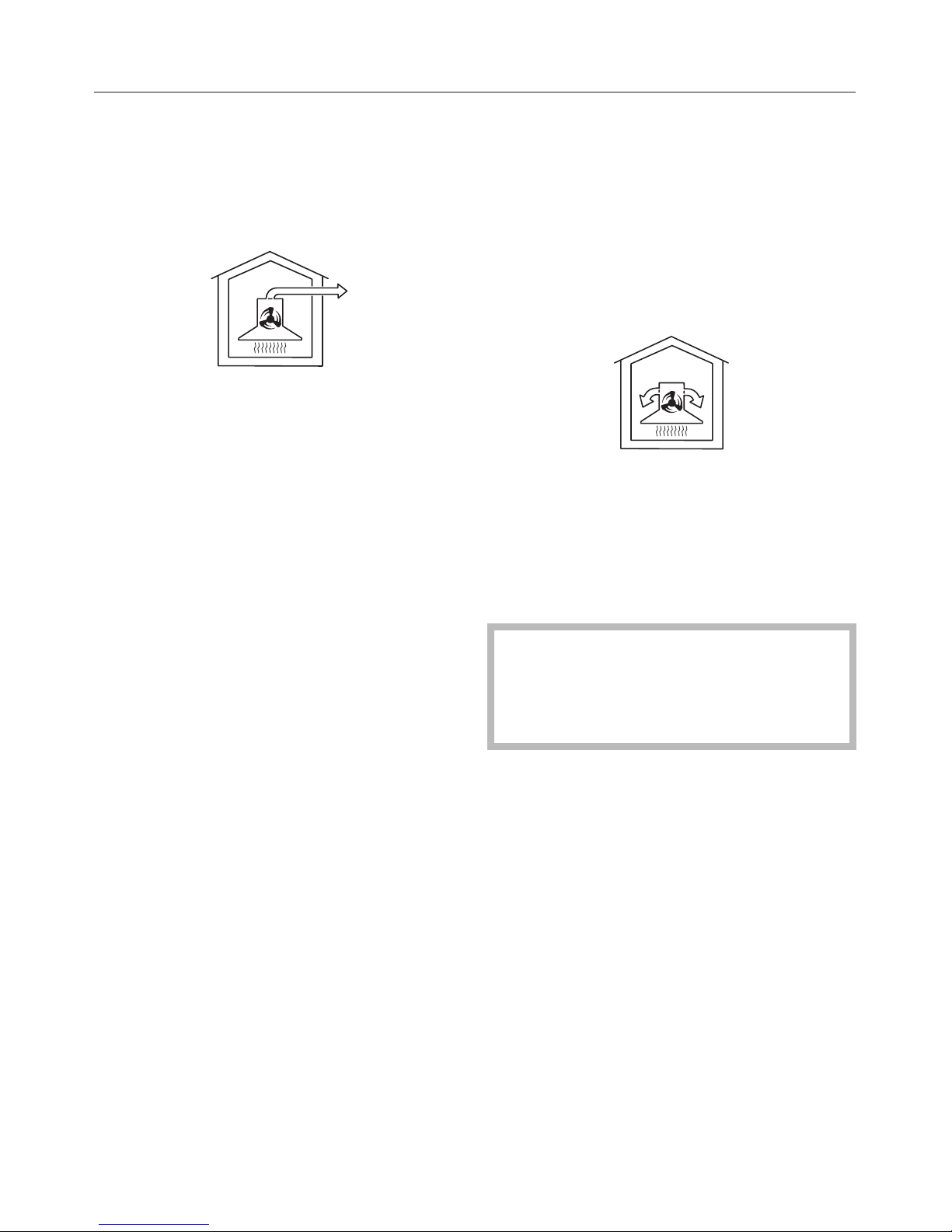

The cooker hood works with
. . . air extraction:
The air is drawn in and cleaned by the
grease filters and directed outside.
If the on-site ventilation system does
not have a non-return flap, the
non-return flap supplied with the
appliance must be fitted in the exhaust
socket in the motor unit.
Having a non-return flap fitted in the
ducting ensures that air, once ducted
to the outside, cannot get back into the
room again.
The flap is closed when the cooker
hood is switched off.
When the cooker hood is switched on,
the non-return flap opens for the
cooking vapours to be ducted away.
. . . air recirculation:
(available as an optional extra with a
conversion kit and charcoal filter: see
"Technical Data")
The air is drawn in and cleaned first by
the grease filters and then by a
charcoal filter. The cleaned air is then
recirculated back into the kitchen
through grilles in the top of the cooker
hood extension piece.
Before using the cooker hood in
recirculation mode, ensure that the
charcoal filter is in place. See
"Cleaning and care".
Modes of operation
12

To switch the fan on
^Press the On/Off control.
The fan will come on at power level lI.
If the cooker hood has been
connected to a window contact
switch via the Miele DSM 400 control
module, then the fan cannot be
switched on if the window is shut.
The indicator lamp will flash.
To select a power level
^Use the –/+controls to select the
power level required.
+control = higher setting
–control = lower setting
Depending on the intensity of the
cooking vapours, levels I to III (green
indicator lamps) are usually sufficient
for normal cooking.
Intensive setting
When frying or cooking food with a
strong aroma, you may wish to select
the Intensive setting, level IV (yellow
indicator lamp) for a short period.
To switch the fan off
^Press the On/Off control to switch the
fan off.
It is advisable to run the fan for a few
minutes after cooking is finished to
neutralise any lingering odours in the
air, whether you are using air extraction
or recirculation mode.
To switch the lighting on and off
The hob lighting can be switched on
and off independently of the fan.
^Press the control for the hob lighting.
Safety cut-out
Should the cooker hood be left on, the
fan will switch off automatically after 10
hours. The lighting will remain on.
^Pressing the On/Off control will
switch the fan back on again.
Operation
13

Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it only runs for 10 minutes before
reverting automatically to level III.
^To set this option, both the fan and
the hob lighting must be switched off.
^Press the –and +controls at the
same time for approximately 10
seconds until the first power level
indicator lamp lights up in the
display.
^Then press in turn,
– the hob lighting control,
–the –control, and
–the hob lighting control again.
The indicator lamps for fan power levels
I and IV will flash if the automatic
switch-off for the Intensive setting is not
activated.
^Press the +control to activate the
automatic switch-off.
The indicator lamps for fan power
levels I and IV will now light up
constantly.
Press the –control to deactivate the
automatic switch-off function.
^Press the On/Off control to confirm.
Operation
14

Before any cleaning or maintenance
work is carried out, disconnect the
cooker hood from the mains supply.
Ensure that:
– it is switched off at the wall
socket and the plug removed, or
– the fuse is withdrawn from the
fused spur connection unit, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed
(in countries where this is
applicable).
E-Cloth
^A microfibre "E-Cloth" is available
from the Miele UK Spare Parts
Department, which is suitable for
cleaning surfaces such as stainless
steel, glass, plastic and chrome
without the use of chemicals. It can
be washed 300 times.
Housing
General notes
The surfaces and controls are
susceptible to scratches and
abrasions. Please observe the
following cleaning instructions.
^All external surfaces and controls can
be cleaned using a Miele E-Cloth, or
with warm water and a little
washing-up liquid applied with a well
wrung-out soft sponge or cloth.
^Wipe the surfaces dry using a soft
cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
Do not use:
–cleaning agents containing soda,
acids, chlorides or solvents,
–abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents.
These will damage the surface
material.
Important for appliances with
stainless steel housing
(This infomation does not apply to the
controls).
Stainless steel surfaces can be cleaned
using the Miele E-Cloth, or with a
proprietary non-abrasive cleaning
agent designed specifically for use on
stainless steel.
To help prevent re-soiling, a proprietary
conditioning agent for stainless steel
such as Neoblank (available from the
Miele UK Spare Parts Department) can
also be used. Follow the manufacturer's
instructions, and apply sparingly with
an even pressure in the direction of the
"grain".
Cleaning and care
15

Important for appliances with
lacquered housing
(special order finish)
It is very difficult to clean this type of
surface without causing minor marks to
the surface material. This can become
particularly noticeable with darker
colours and if there is halogen lighting
in the kitchen.
Controls
The controls may suffer
discolouration or damage if soiling is
left on them for too long.
Remove soiling straight away.
Observe the General notes on cleaning
earlier in this section.
Do not use stainless steel cleaning
agents on the controls.
Grease filters
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the
cooker hood.
The grease filters should be cleaned
regularly (at least every 3-4 weeks) to
avoid a build-up of grease.
An oversaturated filter is a fire
hazard.

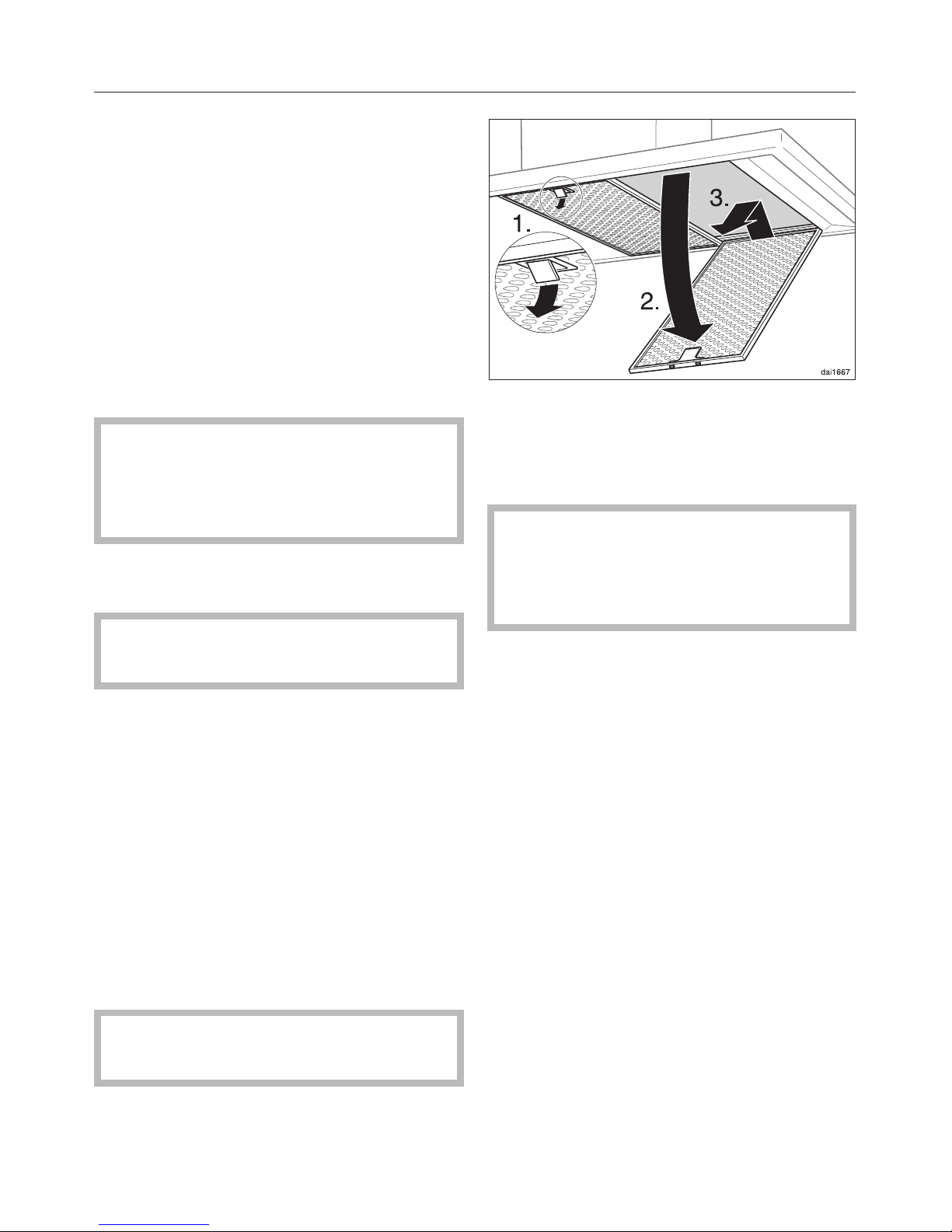

^To take out the grease filters, release
the locking clip on the filter, lower the
filter 45°, unhook it at the back and
remove it.
To avoid damaging the filters or the
hob below, make sure you hold the
filters securely at all times when
handling them.
Cleaning the grease filters by hand
^Clean the filters with a soft nylon
brush in a mild solution of hot water
and a little washing-up liquid.
Do not use "neat" washing up liquid.
Do not use:
–cleaning agents containing
descaling agents,
–powder cleaners, cream cleaners or
abrasive all-purpose cleaning
agents,
–oven sprays.
Cleaning and care
16

Cleaning the grease filters in the
dishwasher
^Place the filters with the short side
upright in the lower basket, and wash
on a 65° programme using a mild
dishwasher detergent, ensuring the
spray arm is not obstructed.
Depending on the cleaning agent
used, cleaning the filters in a
dishwasher can cause permanent
discolouration to the surface.
However, this will not affect the
functioning of the filters in any way.
After cleaning, leave the filters to dry on
an absorbent surface before replacing
them.
When removing the filters for cleaning,
also clean off any residues of oil or fat
from the now accessible housing to
prevent the risk of these catching fire.
When putting the grease filters back in
position, ensure that the locking clips
are facing down towards the hob.

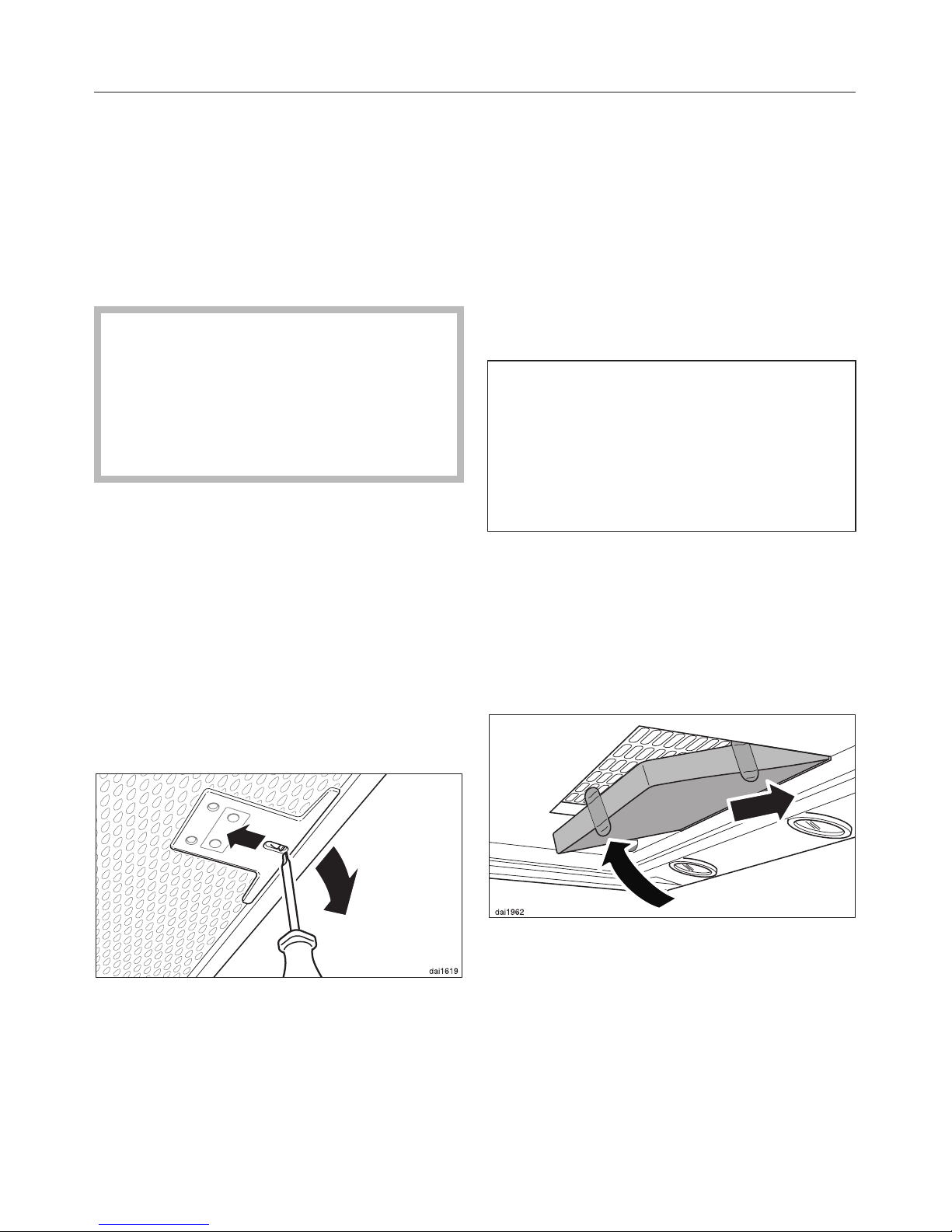

If the grease filters are inadvertently
replaced upside down, insert a small
screwdriver blade into the slits to
disengage the clip.
Fitting and replacing the
charcoal filter
If the cooker hood is connected for
recirculation, a charcoal filter must be
inserted in addition to the grease filters.
It is designed to absorb cooking
odours.
It is fitted in the canopy above the
grease filters.
New filters can be purchased from
your Miele dealer or from the Miele
Spare Parts Department.
See back cover for contact details,
and "Technical data" for the model
number of the filter.
^Before fitting or replacing a charcoal
filter, the grease filters must first be
taken out (see previous section for
instructions on how to do this).
^Take the charcoal filter out of its
packaging.
^Insert the charcoal filter into the canopy.
Replace the charcoal filter when it no
longer absorbs kitchen odours
effectively.
It should, however, be replaced at least
every 6 months.
Used charcoal filters can be disposed
of with the normal household waste.
Cleaning and care
17

Changing a halogen lamp
^Before any cleaning or maintenance
work, disconnect the cooker hood
from the mains supply. Ensure that–
–it is switched off at the wall socket
and the plug removed, or–
–it is switched off at the isolator, or-
–the screw-out fuse is removed (in
countries where this is applicable).
,Exercise caution when changing
halogen lamps. They get very hot
during use and remain hot for some
time after being switched off. Let
them cool down before you change
them.
Do not touch the surface directly
when changing a lamp, as grease
particles from your fingers will
adhere to the surface and damage
it. Please follow the manufacturer's
instructions.

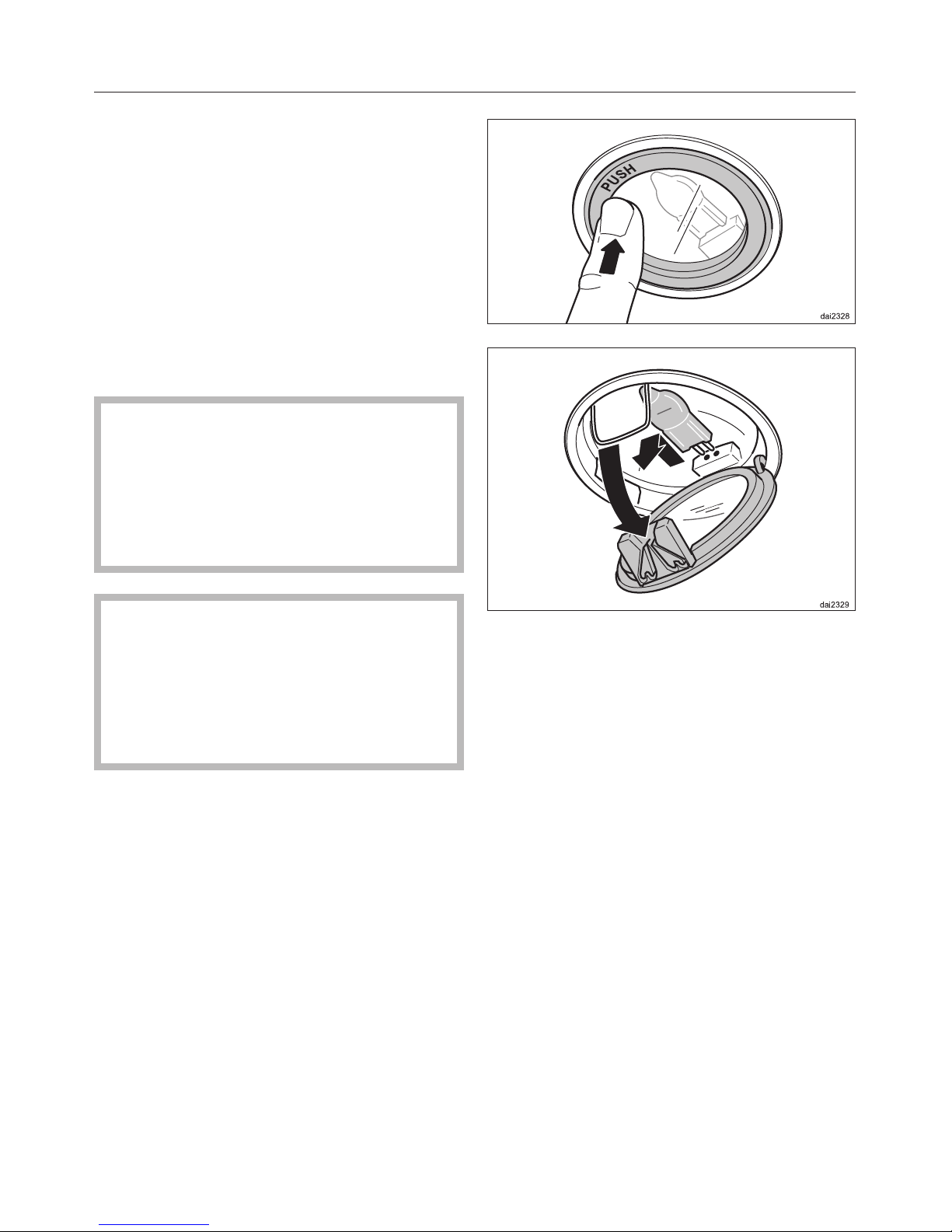

^To access the halogen lamp, push
the lamp cover gently upwards. The
cover will open and can be pulled
down.
^Pull the old halogen lamp out of the
connection socket and replace it with
a new one (20 W, G 4 fitting).
^Push the cover back up and make
sure it clicks into place.
Cleaning and care
18

1) Extraction
2) Recirculation
3) Ventilation grille positioned at the top
for recirculation
4) and 5)
The shaded areas represent the wall or
ceiling area for the vent cut-out and for
fitting the connection socket.
For recirculation mode, you only require
cut-out area 4) and a connection
socket.
Connection for air extraction
C150 mm, or C125 mm with reducing
collar.
Safety distance between hob and
cooker hood (S)
When planning the installation height
of your cooker hood, the minimum
safety distances between the top of
a cooker or hob and the bottom of
the cooker hood are as follows,
unless a greater distance is
specified by the manufacturer of
your cooking appliance:
– 450 mm above electric hobs
and cookers.
– 650 mm above gas hobs
and cookers
– 650 mm above an open grill or
deep fat fryer.
See "Warning and Safety" instructions
for further information.
– When deciding on the safety distance
between the hob and cooker hood,
please note that a distance of
650 mm above electric cookers/hobs
may be preferable to give more
working space under the hood.
–Account should also be taken of the
height of the person who will be
using the hood most often. The
person should have sufficient space
to work comfortably at the hob, and
also be able to reach the hood
controls with ease.
–If positioned too high, extraction will
be inefficient.
–The height of the cooking appliance
must be taken into account when
planning the installation height of the
cooker hood.
Appliance dimensions
19

Assembly parts
Installation
20
