Miele DA2210 User manual

Installation Instructions
DA 2210
DA 2280 en-CA
Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation instructions.

READ AND SAVE THESE
INSTRUCTIONS
Keep these instructions in a safe
place and pass them on to any future
user.
Read these instructions carefully
before installing or using the
Ventilation System.
~This appliance is intended for
residential use only. Use the appliance
only for its intended purpose.
~This appliance complies with current
safety requirements. Improper use of
the appliance can lead to personal
injury and material damage.
,CAUTION
For General Ventilating Use
Only. Do Not Use To Exhaust
Hazardous Or Explosive
Materials And Vapors.
~This appliance is designed to vent
cooking smoke and odors only.
~This appliance is suitable for
installation above gas or electric
cooking surfaces.
~This appliance is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions installation in these
applications may be possible. Please
contact your Miele dealer or the Miele
Technical Service Department with
specific requirements.
,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
~a) Use this appliance only in the
manner intended by the manufacturer.
If you have questions, contact Miele.
~b) Before servicing or cleaning the
appliance, switch power off at the
service panel and lock the service
disconnecting means to prevent power
from being switched on accidentally. If
the service disconnecting means
cannot be locked, securely fasten a
prominent warning device, such as a
tag, to the service panel.
~c) Be certain your appliance is
properly installed and grounded by a
qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
IMPORTANT SAFETY INSTRUCTIONS
3

~d) Before connecting the appliance
to the power supply make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply.
This data must correspond to prevent
appliance damage. If in doubt consult a
qualified electrician.
~e) Installation work and repairs
should only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and other work by unqualified
persons could be dangerous.
~f) Only open the housing as
described in the enclosed "Installation
diagram" and in the "Cleaning and care"
section of this manual. Under no
circumstances should any other parts
of the housing be opened. Tampering
with electrical connections or
components and mechanical parts is
highly dangerous to the user and can
cause operation faults.
~g) Before discarding an old
appliance, disconnect it from the power
supply and remove the power cord to
prevent hazards.
Use
,WARNING
TO REDUCE THE RISK OF A
COOKTOP GREASE FIRE:
~a) Never leave surface units
unattended at high settings. Boilovers
cause smoking and greasy spillovers
may ignite. Heat oils slowly on low or
medium settings.
~b) Always turn the hood on when
cooking at a high heat.
~c) Clean the ventilation hood
frequently. Grease should not be
allowed to accumulate on the fan or
filter.
~d) Use the proper pan size. Always
use cookware appropriate for the size
of the cooking area.
~e) Do not flambé or grill with an
open flame beneath the hood.
Flames could be drawn up into the
hood by the suction and the grease
filters may catch fire.
IMPORTANT SAFETY INSTRUCTIONS
4

,WARNING
TO REDUCE THE RISK OF
INJURY TO PERSONS IN THE
EVENT OF A COOKTOP
GREASE FIRE, OBSERVE THE
FOLLOWING*:
~a) SMOTHER FLAMES with a close
fitting lid, cookie sheet, or metal tray
then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE
DEPARTMENT.
~b) NEVER PICK UP A FLAMING
PAN - You may be burned.
~c) DO NOT USE WATER, including
wet dishcloths or towels - a violent
steam explosion will result.
~d) Use a fire extinguisher ONLY if:
1) You have a class ABC
extinguisher, and you know how to
operate it.
2) The fire is small and contained in
the area where it started.
3) The fire department is being
called.
4)You can fight the fire with your
back to an exit.
*Based on "Kitchen Firesafety Tips"
published by NAFTA
~Do not allow children to play with or
operate the appliance or its controls.
Supervise its use by the elderly or
infirm.
~Always turn on the hood when using
the cooktop to prevent damage from
condensation.
~Never operate gas burners without
cookware. Turn the burner off when not
in use. Adjust the burner so that the
flames do not extend beneath the
cookware. Do not overheat the
cookware, e.g. when using a wok. The
hood can be damaged due to
excessive heat from the burners and
the cookware.
~Do not use the hood without the
grease filters in place.
~Do not use a steam cleaner to clean
the hood. Steam could penetrate
electrical components and cause a
short circuit.
IMPORTANT SAFETY INSTRUCTIONS
5

Installation
,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
~a) Installation work and electrical
wiring must be done by qualified
person(s) in accordance with all
applicable codes and standards,
including fire-rated construction.
~b) Sufficient air is needed for
combustion and exhausting of gases
through the flue (chimney of fuel
burning equipment to prevent back
drafting. Follow the heating equipment
manufacturer’s guideline and safety
standards such as those published by
the National Fire Protection Association
(NFPA) and the American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and
the local code authorities.
~c) When cutting or drilling into the
wall or ceiling, do not damage electrical
wiring and other hidden utilities.
~d) Ducted hoods must always be
vented to the outdoors.
~e) Do not use this hood with any
solid-state speed control device.
~f) Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance,
(e.g. danger of overheating).
~g) Do not install this hood over
cooktops that burn solid fuel.
~h) Provided a larger distance is not
given by the manufacturer of the
cooktop, follow the minimum safety
distances between a cooktop and the
bottom of the hood given in the
"Appliance dimensions" section of this
manual.
If local building codes require a greater
safety distance, follow their
requirement.
If there is more than one appliance
beneath the hood and they have
different minimum safety distances
always select the greater distance.

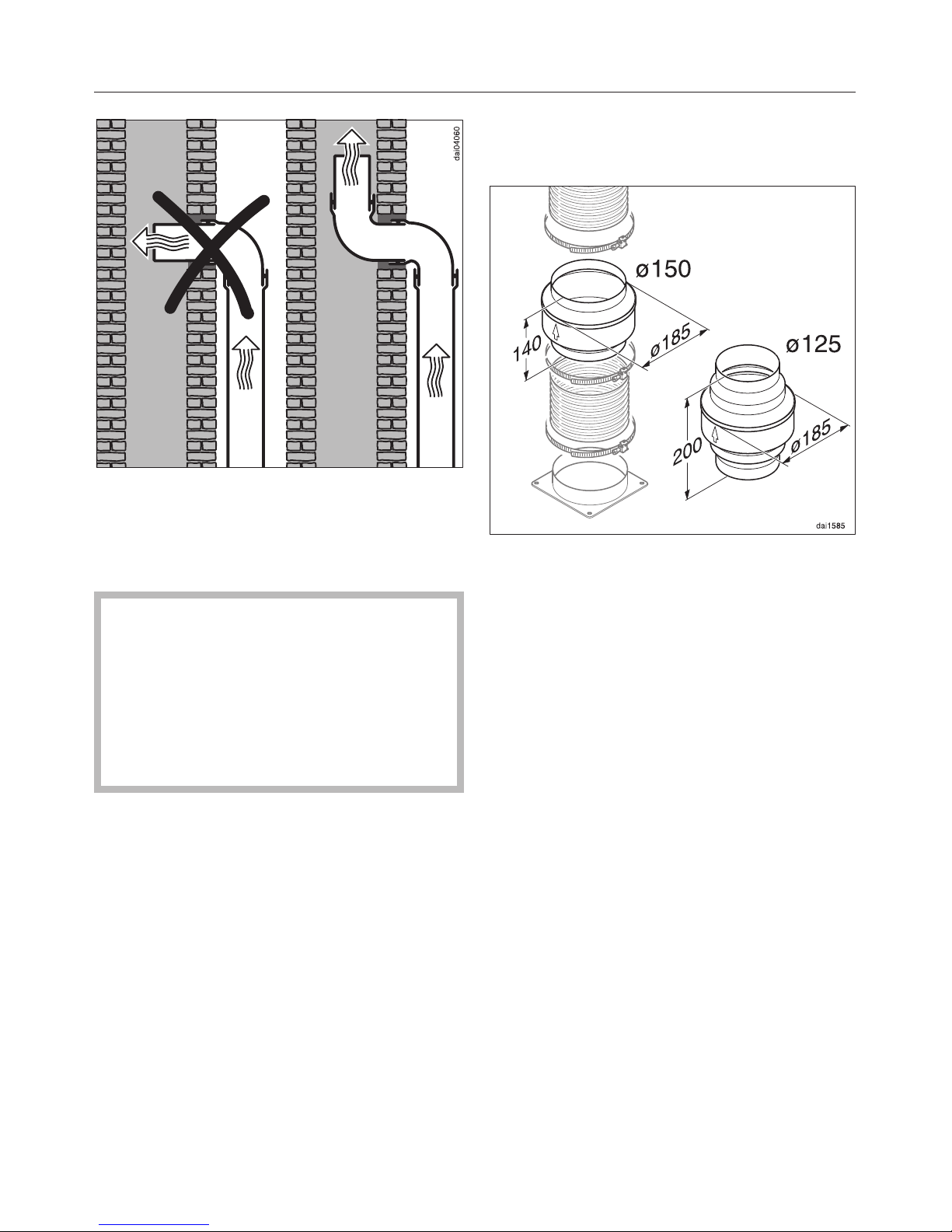

~i) Never connect an exhaust hood to
an active chimney, dryer vent, vent flue,
or room ventilating ductwork.
~j) Seek professional advice before
connecting an exhaust hood vent to an
existing, inactive chimney or vent flue.
~k) Any fittings, sealant, or materials
used to install the ductwork must be
made of approved non-flammable
materials.
,WARNING
TO REDUCE THE RISK OF
FIRE USE ONLY METAL
DUCTWORK.
IMPORTANT SAFETY INSTRUCTIONS
6

DA 2280
Appliance dimensions
25

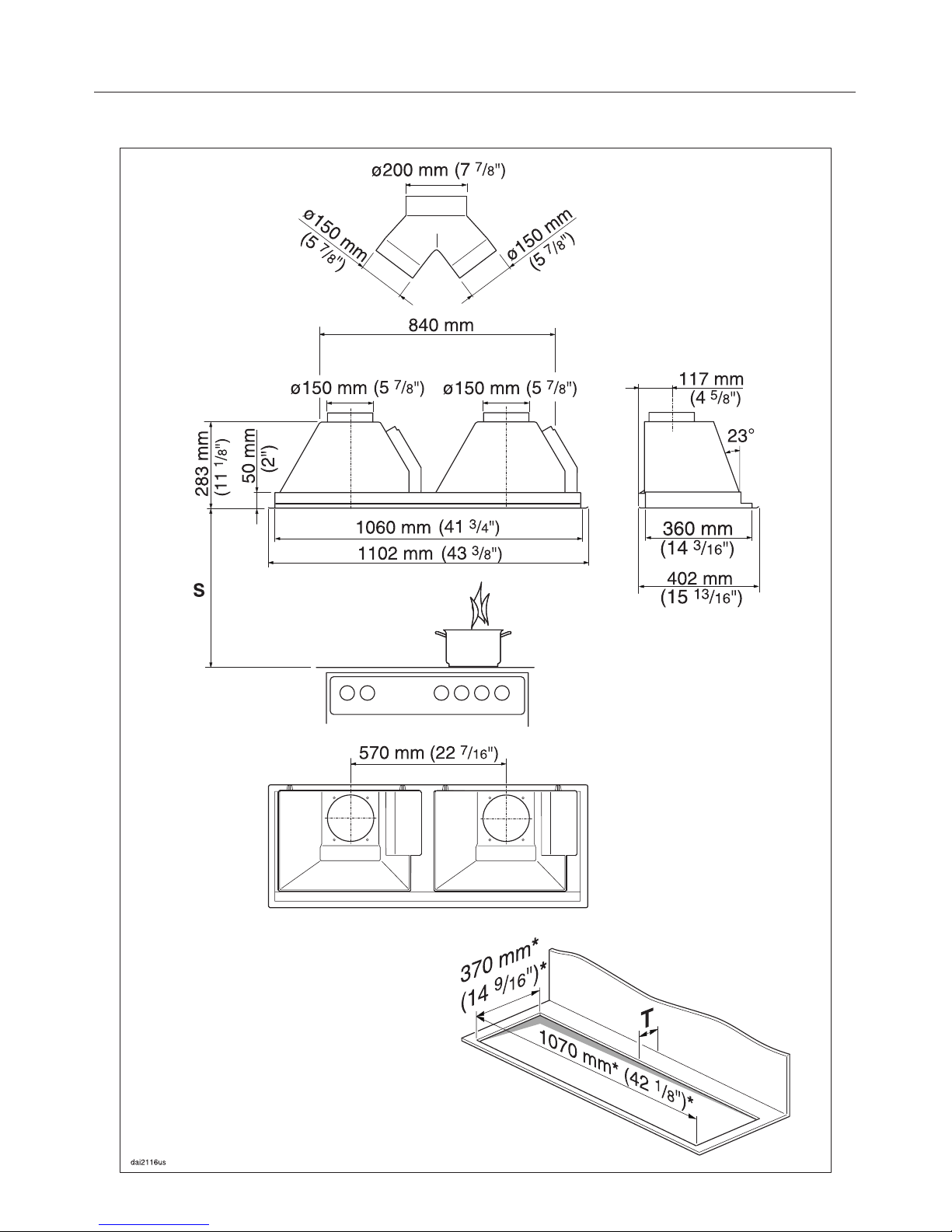

DA 2210
Appliance dimensions
26

*Cut out dimensions
A depth T, min. 1" (25 mm), is necessary in the rear of the cabinet.
Distance between cooktop and hood (S)
Do not install this exhaust hood over cooktops burning solid fuel.
Provided a larger distance is not given by the manufacturer of the cooktop,
follow the minimum safety distances between a cooktop and the bottom of the
hood:
Miele Cooktops Non-Miele
Cooktops
Electric Cooktops 24" (610 mm)
Electric Barbeques and Fryers 26" (660 mm)
Multiburner Gas cooktops
<43,000 BTU (12.6 KW)
and no burner > 15,000 BTU (4.5 KW)
26" (660 mm) 30" (760 mm)
Single burner (Wok) < 20,500 BTU (6 KW) 26" (660 mm) 30" (760 mm)
All other gas cooktops 30" (760 mm)
–If several gas surfaces are installed under the hood, the total output must be
considered when determining the minimum safety distance.
–If installing the exhaust hood in an overhead cabinet, observe the instructions of
the manufacturer of the gas cooktop regarding the use of very flammable
materials above the cooktop. If not otherwise specified in the instructions,
ensure a distance of at least 30” (762 mm) from the gas cooktop.
–If local building codes require a greater safety distance, follow their
requirement.
–If there is more than one appliance beneath the hood and they have different
minimum safety distances always select the greater distance.
See "Important Safety Instructions" for further information.
Appliance dimensions
27

^Please read the "Important Safety
Instructions" and Installation
instructions before installing this
hood.
Non-return flap
The hood comes equipped with a
non-return flap. This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur.
Uninstall the non-return flap when your
exhaust system is equipped with a
non-return flap or if the hood is used in
recirculation mode.
^Holding the non-return flap at the
wire, pull it out of the bracket.
The DA 2280 is equipped with one, the
DA 2210 with two non-return flaps.
,CAUTION
To avoid risk of hand or other injury,
avoid contact with sharp edges
during the assembly and installation
process.
Installation
The hood is designed to be installed
within cabinetry and kitchen islands.
The top half (motor and fan assembly)
should be accessible after installation.
If the motor and fan assembly are not
accessible, assemble the ductwork and
the electrical connection before the
installation.
^Insert and align the hood from the
bottom up in the cut out.
^Secure the hood through the frame
with the screws (3.5 x 16 mm).
Installation
28

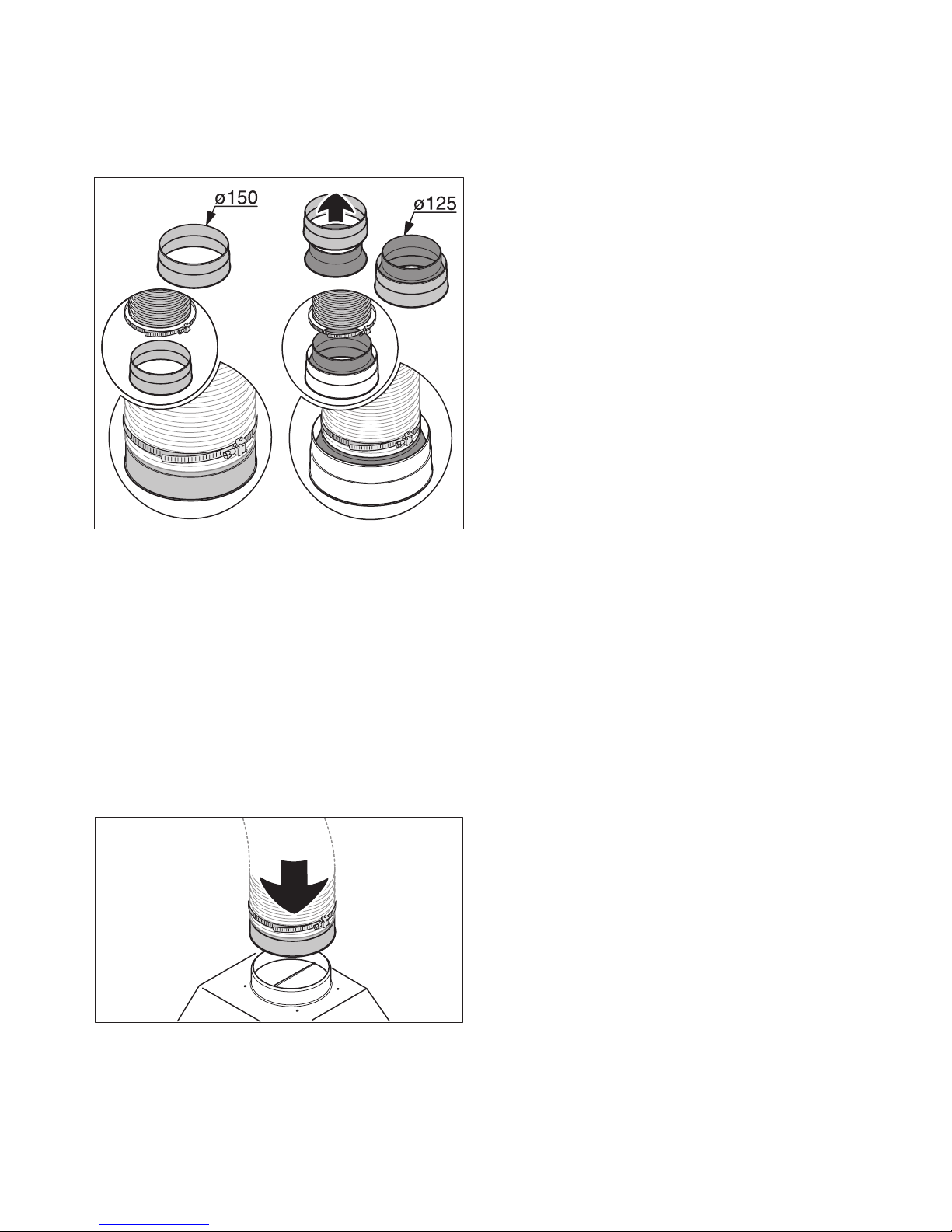

Preparation for air extraction
mode
^If using a 6" (150 mm) diameter
exhaust hose, attach the supplied
vent collar to the exhaust hose with a
hose clamp.
^If using a 5" (125 mm) diameter
exhaust hose, place the supplied
reducing collar into the vent collar
and attach the exhaust hose to the
reducing collar with a hose clamp.
(see "Air extraction").
^Place the exhaust hose onto the vent
collar of the hood.
^See "Air extraction" for further
information on installing the exhaust
hose.
^DA 2210: The hood has two vent
collars for two 6" (150 mm) diameter
exhaust hoses. The supplied Y-
adapter can be used to feed the
exhaust from both connections into
an 8" (200 mm) diameter common
duct.
Installation
29
dai2717
dai2699

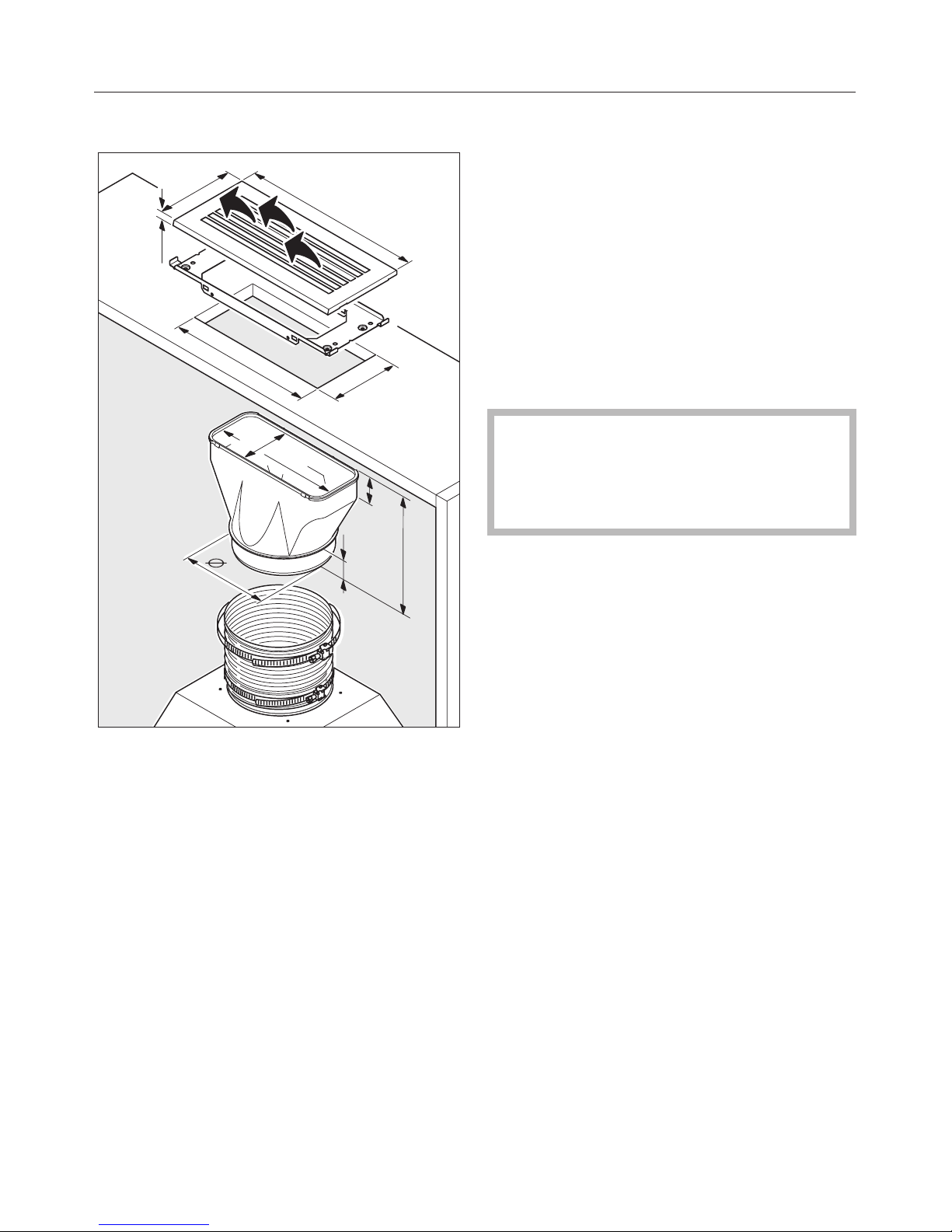

Recirculation mode
If site conditions are not suitable for the
hood to be used for air extraction, the
appliance must be converted for
recirculation using the following
installation kit. It can be ordered from
your Miele dealer or the Technical
Service Dept.
It contains a 6" (150 mm) diameter
hose, a grille and a hose clamp to
secure the hose at the exhaust
connection of the hood.
DA 2280 installation needs
one installation kit and two active
charcoal filters
DA 2210 installation needs
two installation kits and four active
charcoal filters
A non-return flap is not needed in
recirculation mode.
^Install the installation kit according to
the installation situation.
When installing the recirculation
vents make sure that the slats point
towards the center of the room and
not to a wall or the ceiling.
^Install the active charcoal filters (see
"Cleaning and Care") and reprogram
the charcoal filter timer.
Installation
30
110
240
90
223
160
33
40
dai2453
319
143
10
150

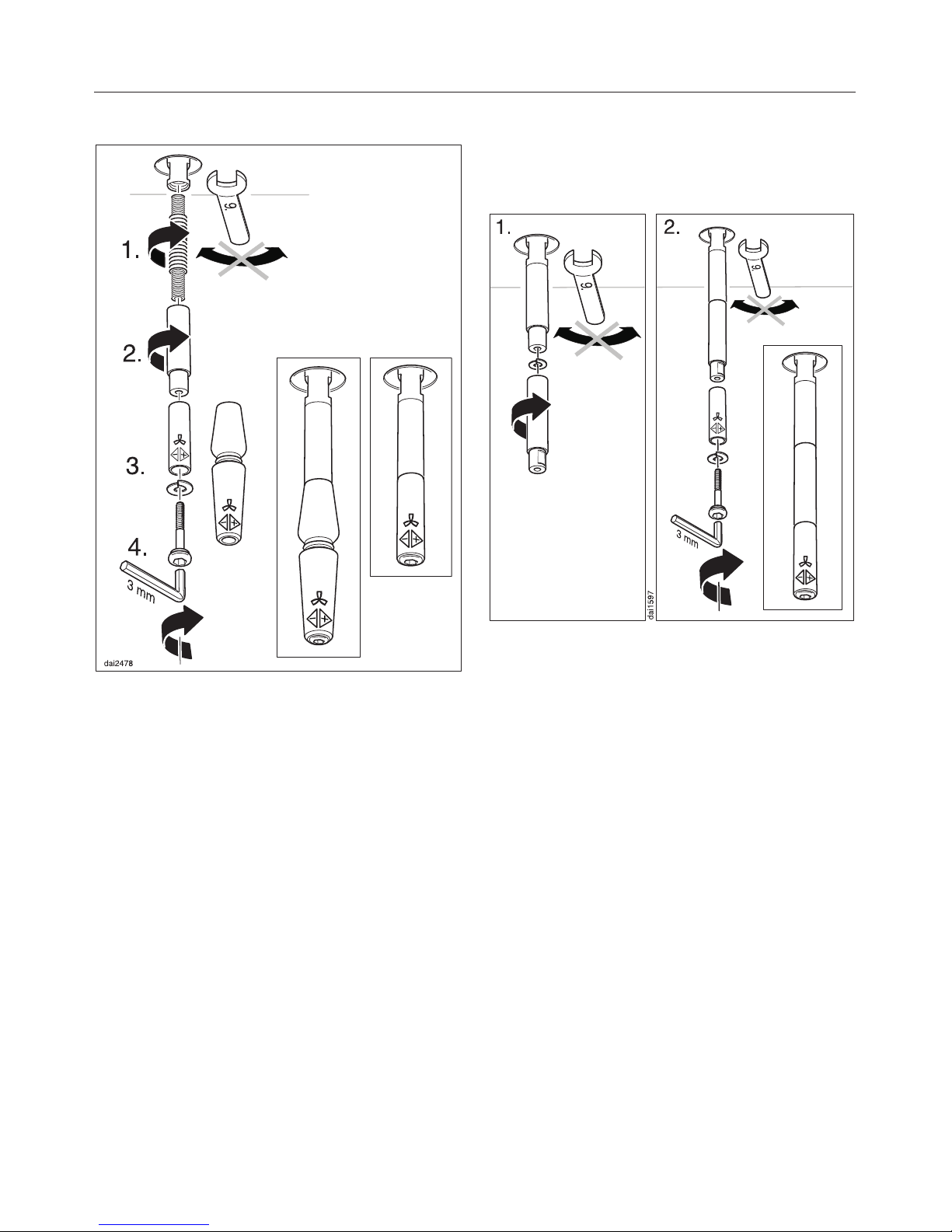

Installing the joystick
^Screw the spring into the socket and
tighten by hand. At the same time
hold the socket using a SW 9 wrench,
do not rotate.
^Screw the base onto the spring and
tighten by hand. Again, hold the
socket with the wrench, do not rotate.
^Place the bottom section of the
joystick onto the base and loosely
secure it in place with the included
screw and spring washer. Turn the
printing on the bottom section so that
the m-symbol faces the front.
^Tighten the screw witha3mmAllen
wrench. At the same time hold the
socket with the wrench, do not rotate.
Joystick extension
The joystick can be extended for an
easier reach.
^Place a spring washer between the
joystick base and the extension.
Tighten the extension by hand while
holding the joystick base with a
wrench.
^Attach the lower part of the joystick to
the extension with a spring washer.
Turn the m-symbol to the front and
screw in place with an allen wrench
while using a wrench to hold the
joystick base.
Installation
31

Electrical connection
Before connecting the appliance to
power read the "Important Safety
Instructions".
^Plug in the power cord.

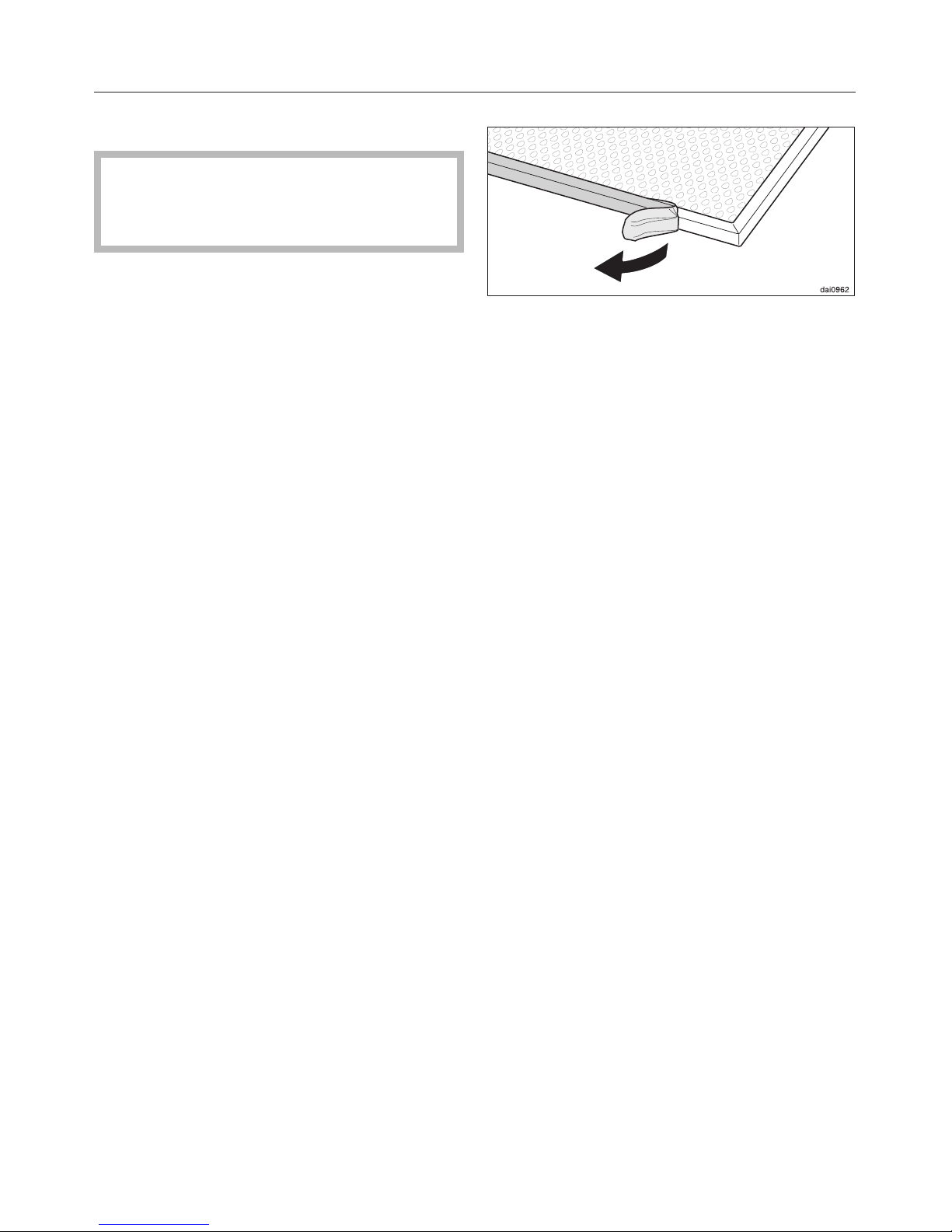

Before using the appliance remove the
grease filters and remove the protective
foil from the filter frame. Insert the
grease filters back into place.
Installation
32

,WARNING
Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood
should be vented outside of the
building only.
Do not vent exhaust air into
spaces within walls or ceilings or
in attics, crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
"IMPORTANT SAFETY
INSTRUCTIONS" to reduce the risk of
personal injury. Follow all local building
codes when installing the hood.
Exhaust ducting and connections
Use smooth or flexible pipework made
from approved non-flammable
materials for exhaust ducting.
To achieve the most efficient air
extraction and quietest noise levels,
consider the following:
–The diameter of the ductwork should
not be less than 6" (150 mm).
–If flat ducting is used, the cross
section must not be smaller than the
cross section of the ventilation
exhaust.
– The ducting should be as short and
straight as possible.
– Use ductwork with a wide radius.
– The exhaust duct must not be bent
or compressed.
– Make sure all connections are
secure.
– Where the ductwork is horizontal, it
must slope away from the hood at
least 1/8" per foot (1 cm per meter) to
prevent condensation dripping into
the appliance.
–If the exhaust is ducted through an
outside wall, a Telescopic Wall Vent
can be used.
Air extraction
33

– If the exhaust is ducted into an
inactive flue, the air must be expelled
parallel to the flow direction of the
flue.
Never connect an exhaust hood to
an active chimney, dryer vent, flue,
or room venting ductwork. Seek
professional advice before
connecting an exhaust hood vent to
an existing, inactive chimney or vent
flue.
Important
If the ductwork runs through rooms,
ceilings, garages, etc. where
temperature variations exist, it may
need to be insulated to reduce
condensation.
Condensate trap
optional accessory
In some cases, a condensate trap may
also be required to collect and
evaporate any condensate which may
occur. This optional accessory is
available for ducts 5" (125 mm) and 6"
(150 mm) in diameter.
^When installing a condensate trap,
ensure that it is positioned vertically
and if possible directly above the
exhaust outlet.
Air extraction
34

,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance
is off while installation or repair work
is performed.
^Verify that the voltage, load and
circuit rating information found on the
data plate (located behind the
grease filters), match the household
electrical supply before installing the
hood.
,WARNING! In Canada, the
ventilation hood should be plugged
into a outlet which is not enclosed in
a cupboard, cabinet or similar
enclosure per the Canadian
Electrical Code.
If there is any question concerning the
electrical connection of this appliance
to your power supply, please consult a
licensed electrician or call Miele’s
Technical Service Department. See
back cover for contact information.
,WARNING:
THIS APPLIANCE MUST BE
GROUNDED
Grounding Instructions
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing a path of least
resistance. This appliance is equipped
with a cord having a grounding wire
with a grounding plug. The plug must
be plugged into an outlet that is
properly installed and grounded.
WARNING - Improper grounding can
result in a risk of electric shock.
If there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician install an outlet
near the appliance.
Important
The hood comes equipped witha4ft
(1.2 m) power cord with a NEMA 5-15
molded plug for connection to a
120 VAC, 60 Hz, 15 A power outlet.
Electrical connection
35

DA 2280
Maximum load ...............450W
Fan.......................350W
Light....................2x50W
DA 2210
Maximum load ...............900W
Fan ...................2X350W
Light....................4x50W
Voltage .....................120V
Frequency ..................60Hz
Circuit rating..................15A
Weight
DA 2280 ...........23.1 lb (10.5 kg)
DA 2210 ...........35.3 lb (23.1 kg)
Technical data
36

Alteration rights reserved / 0910
INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE TO OBTAIN THE MOST
CURRENT PRODUCT SPECIFICATIONS, TECHNICAL & WARRANTY INFORMATION.
M.-Nr. 07 773 240 / 01
