Miele G 7827 User manual

Operating and Installation
Instructions
Laboratory Glassware
Washer
G 7827 / G 7828
To prevent accidents
and machine damage
read these instructions
before
installation or use.
UV
M.-Nr. 06 190 411

2

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

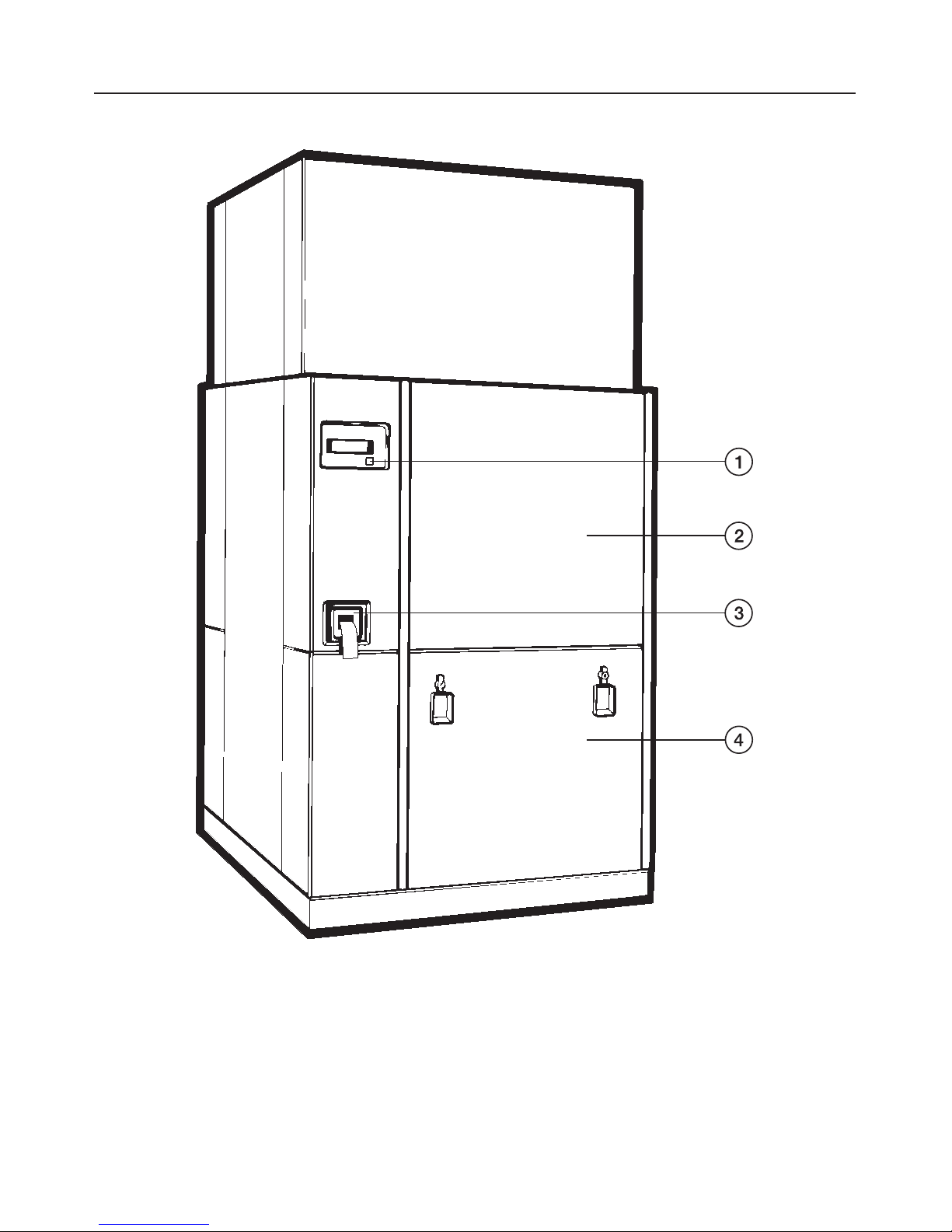

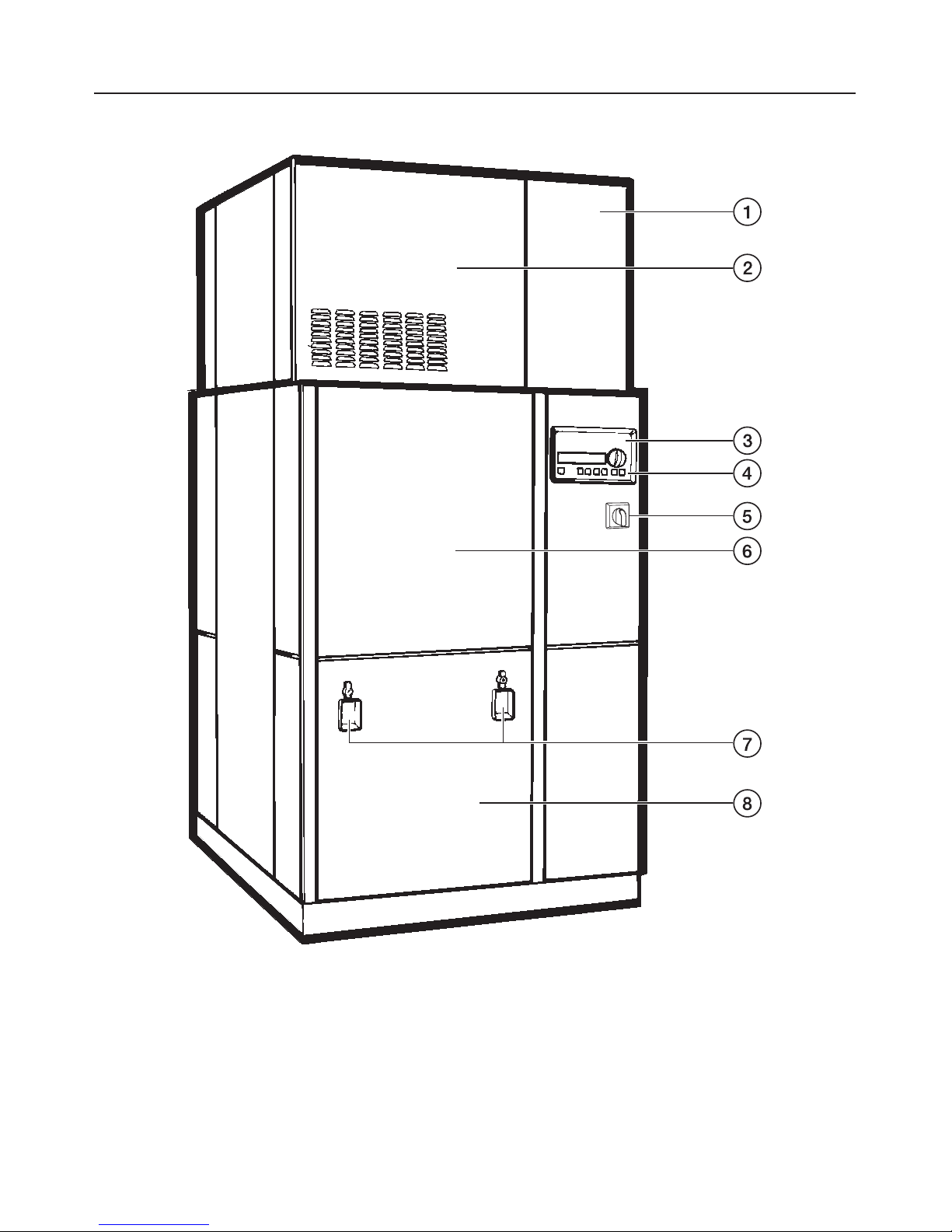

Description of the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Opening and closing the lift door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Automatic mobile unit recognition (AWK). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

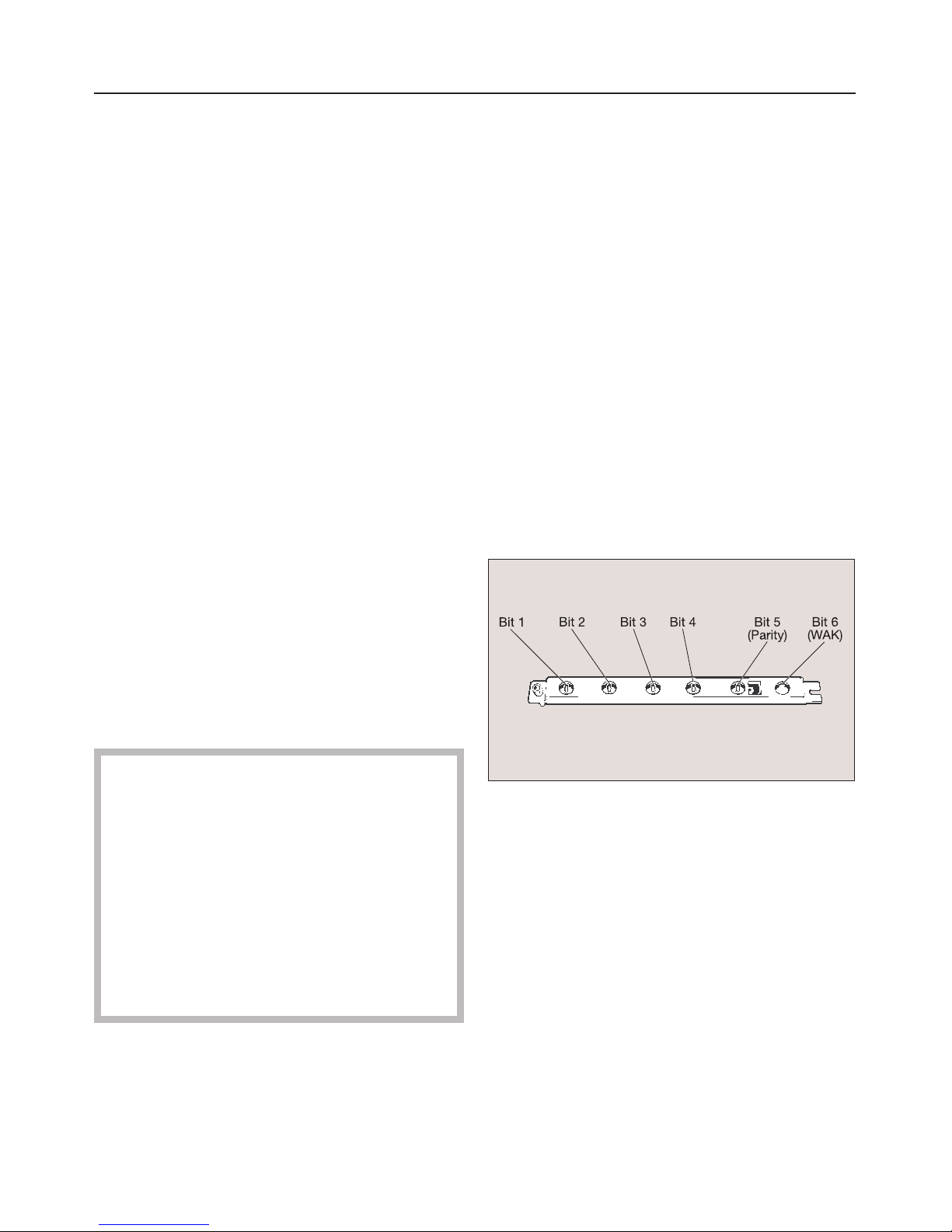

Mobile unit coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setting mobile unit coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Laboratory glassware (LG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Adding liquid detergents and neutralizers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Preparing the DOS dispensers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Filling the containers with liquid agents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Priming the liquid dispensing systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Dispensing system maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
External Dispensing systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Turning on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Changing the operating level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Starting a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Program sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Turning off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cancelling a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Interrupting a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Serial interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Contents
3

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Maintenance and care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Process validation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Routine checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cleaning the filters in the wash cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Cleaning the fine filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Cleaning the flat filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Cleaning the filter system of the circulation pump . . . . . . . . . . . . . . . . . . . . . . 33
Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cleaning the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Cleaning the exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Cleaning the door seal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Mobile units, baskets and inserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Report printer (Option). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Replacing the print paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Replacing the ribbon cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Steam/Electro or Electro/Steam conversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Water connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Contents
4

This machine conforms to current
safety requirements. However,
inappropriate use can lead to
personal injury and property
damage. Read the operating
instructions carefully before using
this machine.
The manufacturer cannot be held
responsible for damage caused by
non-observance of these Important
Safety Instructions.
Use
This machine is designed for
commercial use and for
specialized applications only, as
described in these Operating
Instructions. Do not use for purposes
other than those for which it was
designed, as this could be dangerous.
Miele is not responsible for damages
caused by improper use.
The installation of this unit in non
stationary locations (e.g. ships)
must be performed by a qualified
installer or service agency in strict
accordance with national and local
safety regulations and standards.
Please pay attention to the following
notes to maintain safe procedures.
The machine should be
commissioned and maintained only
by a Miele Service Technician. Repairs
by unqualified persons could be
dangerous.
Do not install the machine in an
area where a danger of explosion
or freezing may be present.
Be certain this appliance is
properly installed and grounded by
an authorized technician. To guarantee
the electrical safety of this appliance,
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system
checked by a qualified technician. The
manufacturer cannot be held
responsible for damage or injury
caused by the lack, or inadequacy, of
an effective grounding system
(e.g. electric shock).
A damaged machine is dangerous.
Turn off the machine immediately at
the power switch and call the Miele
Service Department.
Personnel operating the machine
should be trained regularly.
Children and untrained personnel must
not be allowed access to the machine
or its controls.
IMPORTANT SAFETY INSTRUCTIONS
5

Take care when handling liquids
such as detergents, neutralizing
agents, wetting agents and rinse aids.
These may contain irritant or corrosive
ingredients, acids or alkalis. Never use
any organic solvents, as the danger of
explosion exists. Wear protective
gloves and goggles. The
manufacturer’s safety conditions must
be observed at all times.
The water in the machine must not
be used as drinking water.
Be careful when sorting items with
sharp pointed ends. Position them
in the machine so that you do not hurt
yourself or create a danger for others.
When using this machine regard
the high temperatures and be
especially careful not to scald or burn
yourself. When opening the door
bypassing the electrical lock, a danger
of burning, scalding and corrosion
exist. Let mobile units, inserts and
cleaned items cool before touching
them. Any water which may remain in
containers will be very hot and must be
emptied into the wash cabinet.
After drying with the TA drying unit
open the door to allow the items
and inserts to cool.
Do not touch the heating elements
(under the wide area filter) during
or directly after the end of a program,
you could burn yourself. They remain
hot for some time after the program
end.
If the boiler has been programmed
to "BOILER READY", be particularly
careful of hot water and steam when
opening the door. Danger of burning or
scalding. The water inlet pipe to the
wash cabinet is located, as viewed
from the unclean side, underneath the
basket runner on the left hand side.
Steam heating is permissible up to
a pressure of 145 psi. This
corresponds to a water steam
temperature of 354°F (179 °C).
Never clean the machine near or
with a water or high pressure hose.
Before servicing, disconnect the
power supply by either removing
the fuse, unplugging the unit or
manually "tripping" the circuit breaker.
,Mount on non-combustible floors
only!
IMPORTANT SAFETY INSTRUCTIONS
6

The following points should be
observed to assist in maintaining
quality standards, for critical lab
glassware, to protect patients, and to
avoid damage to the loads being
cleaned.
Use only Miele approved cleaning
agents with this machine. Use of
unsuitable cleaning agents could
adversely affect the components of the
machine. Damages resulting from using
unsuitable cleaning agents are not
covered by the warranty.
Pre-treating (e.g. with cleaning
agents), certain soiling and
cleaning agents with a chemical
interaction, can cause foam. For
pre-treatment and/or cleaning only use
low-sudsing detergents which have
been approved by Miele. Suds can
have an adverse effect on the operation
of the machine.
After START has been pressed the
program must not be interrupted
by pressing the I-0 button. A program
should not be interrupted since the
result may be effected. Otherwise the
program must be repeated.
When a chemical additive is
recommended, the manufacturer of
the machine takes no responsibility for
the effect of the chemical on the items
being cleaned.
The machine must only be
operated with water and the
recommended cleaning agents.
Organic solvents must not be used in
the machine as there is the danger,
under certain circumstances, of
explosion and damage to rubber and
synthetic materials. Follow the dosage
recommendations of the cleaning
agent’s manufacturer.
In critical applications where very
high requirements have to be met,
it is strongly recommended that all the
relevant factors for the process, such
as cleaning agent, quality of water, etc.
are discussed with the Miele
Applications Specialists.
If the cleaning result is subject to
particularly stringent requirements
(e.g. chemical analysis, specialized
processes), a regular quality control
test should be carried out by the user to
ensure that the required standards of
cleanliness are being achieved.
The cleaning standard in the
routine use must be verified by the
user. The process should be checked
regularly using thermoelectric and
documented results.
IMPORTANT SAFETY INSTRUCTIONS
7

The mobile units and special
inserts should only be used for
their specific application.
Empty any containers or utensils
before arranging them in the
machine.
Do not allow any remains of acids,
solvents or corroding ferrous
material, and in particular hydrochloric
acid or chloride solutions to get into the
wash cabinet. Similarly avoid any
materials with a corrosive effect. The
presence in compounds of any solvents
should be minimal, (especially those in
hazard class A1).
To avoid any corrosion damage
ensure that solutions or steam
containing hydrochloric acid do not
come in contact with the stainless steel
casing of the machine.
Please follow the installation advice
in these instructions and the
separate Installation Instructions.
Using accessories
Only specific additional equipment
made by Miele should be
connected to this machine. Consult a
Miele Application Specialist on the type
and application of such equipment.
Only Miele mobile units, modules
and inserts should be used. If
equipment from another manufacturer
is used, Miele cannot ensure the
cleaning and disinfection results.
Damage or injury caused by this are
excluded from the warranty.
Disposal of an old appliance
When discarding a lab washer,
disconnect it from the power
supply and cut off the power cord.
The old appliance may be
contaminated by blood or other body
fluids and must be disinfected before
disposal.
For environmental and safety reasons
ensure the machine is completely
drained of any residual water and
cleaning agent. (Observe safety
regulations and wear safety goggles
and gloves). Make the door lock
inoperative or remove the door
completely, so that children cannot
accidentally shut themselves in. Make
appropriate arrangements for the safe
disposal of the machine.
Machines with a tank system: remove
the water from the tank before
disposing the machine.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
8

The Miele G 7827/G 7828 Large
Capacity Glassware Washer is
designed for high-throughput,
centralized wash areas. This unit is
ideal for cleaning both large volumes of
small items, and difficult to clean large
items.
Optional peripheric machines
–Drying unit (TA)
–Steam condensor (DK)
–Report printer (PRT)
Description of the machine
9

Electronic controls
Description of the machine
10

aDisplay
with screen saver
The background light turns off
automatically after 15 minutes.
^Press any key to turn the background
light on again.
bOn/Off button (I-0)
cCursor left 1
moves the cursor to the left:
– to the previous menu
– to the previous parameter
– to the previous input position
dCursor right 2
moves the cursor to the right:
– to the next menu
– to the next parameter
– to the next input position
eMinus button 3
– program selection for programs
over 24
– scrolling back pagewise in menus
– entering numbers and letters
– changing default settings,
e.g. service parameter
fPlus button 4
– program selection for programs
over 24
– scrolling forward pagewise in
menus
– entering numbers and letters
– changing default settings,
e.g. service parameter
gDoor button 5
hStart button 6
– Starting a program
– Activating insert mode
– Confirming settings
– Confirming menu points,
to get to the respective submenu
iStop button 7
– Canceling a program
– Leaving the input screen
without saving
– Leaving a menu
jOptical interface 8
(for service technician)
kProgram selector
Selecting programs 1-23
Description of the machine
11

Unclean side
aDrying unit (TA)
bSteam condensor (DK)
behind top housing (Optional)
cElectronic circuit board "Profitronic"
(see "Programming manual")
dControls
ePower switch (with "Emergency
cut-off" function for Service)
fLift door (closed)
gAdapter for the "Miele transfer" cart
hService panel
Description of the machine
12

Unclean side
aLift door (open)
bFilter combination
cContainers for dosage system DOS 1 - DOS 4
Description of the machine
13

Clean side (G 7828 only )
a"Door" button
bLift door (closed)
cPrinter (optional)
G 7827 on the unclean side
dService panel
with adapter for "Miele transfer" cart
Description of the machine
14

The lift door can only be opened when:
–the lab glassware washer is
connected to the electrical supply,
–the red ("emergency cut off") switch
is in the I-ON position,
–the I-0 On-Off button is pressed in,
and
–no program is running.
The lift door on the clean side (G 7828)
can only be opened when:
– DESIN (disinfection) programs have
been correctly completed,
or
– the Door interlock has been
activated, i.e. DOOR MECH. has
been set to one of the following
parameters:
- INTERLOCK,
- DOOR CLEAN+INTERLOCK,
- DOOR UNCL.+INT.LOCK.
(see "Machine function - Door
mechanism..." in the Programming
manual).
To open the lift door
^Press the 5door button. The lift door
rises.
,Do not touch the heating
elements (under the wide area filter)
during or directly after the end of a
program, you could burn yourself.
If the boiler has been programmed
to "BOILER READY", be particularly
careful of hot water and steam when
opening the door. Danger of burning
or scalding. The water inlet pipe to
the wash cabinet is located, as
viewed from the unclean side,
underneath the basket runner on the
left hand side.
To close the lift door
^Press the 5door button. The lift door
lowers.
Opening and closing the lift door
15

In operating level C the AWK (optional)
attributes a fixed program place to a
mobile unit with valid coding.
Program places 1-15 are reserved for
the AWK automatic mobile unit
recognition.
The unit coding (on the mobile unit) and
the program place with the
corresponding program (in the
"Profitronic" electronic control unit) must
match.
^Each mobile unit must be coded
before being used for the first time.
See "Mobile unit coding".
^The wash program through which the
mobile unit is coded has to be
assigned to the relevant program
place.
Program place changes, see the
"System function - Selector switch
organization" section in the
Programming Manual.
Important!
Before starting the program with the
"Start" button 6, check that the
program needed for this mobile unit
is displayed.
Otherwise insufficient wash results
may occur!
Always check that programs for
mobile units with AWK (on fixed
program places) are not exchanged.
Mobile unit coding
The automatic mobile unit recognition
feature assigns a program place to a
mobile unit. The mobile units must be
coded with a magnetic strip, via a bit
combination. In operating level C the
only program available for a coded
mobile unit is the one assigned to the
corresponding program place.
When a coded mobile unit is inserted in
the machine and the door closes, the
automatic mobile unit recognition
selects the assigned program. Be sure
no small items connect to the magnetic
strip.
^Press 6to start the program.
The coding is made up of 5 bits:
–Bits 1 to 4 define the mobile unit
code,
–Bit 5 serves as a control (Parity-Bit).
Bit 6 controls the volume of water intake
and the circulation pump for mobile
units with side coupling. This setting
cannot be changed!
Mobile units without side coupling are
coded with tracks which do not contain
Bit 6!
Automatic mobile unit recognition (AWK)
16

Mobile unit coding strip
15 different codes can be set. They are
assigned to program places 1 to 15.
Under "System function - Selector
switch organization" the matching
programs have to be put into the first
15 program places.
Prog.-
place
Bit 1 Bit 2 Bit 3 Bit 4 Bit 5
Parity-
Bit
-00000
1 l 000 l
20l00l
3l l000
400l0l
5l0l00
60 l l 00
7l l l0l
8000 l l
9l00l0
100l0l0
11l l0l l
12 0 0 l l 0
13l0lll
140llll
15llll0
The coded total must be an even
number. Bit 6 is not included in this
calculation.
If the coded total equals an odd number
the message CHECK MOBILE UNIT
RECOGNITION will appear. If the mobile
unit code equals 0, the message NO
MOBILE UNIT RECOGNITION will
appear. In both cases the program
cannot be started. The mobile unit
recognition must be reset.
Setting mobile unit coding
To set or alter the coding of a mobile
unit with automatic recognition (AWK)
proceed as follows:
^Unscrew the track with an AWK (allen
wrench) and remove it from the
retainer.
^Remove the magnetic strip from the
track.
Automatic mobile unit recognition (AWK)
17

^Set the program place coding.
^Put the magnetic strip back in the
track.
Important:
The magnetic strip must be placed
in the track so that the Bit coding,
set according to the chart, is visible
through the round windows of the
track.
^Place the track in the holder of the
mobile unit and screw firmly in place.
Bit 6 is not an integral part of the
modifiable magnetic strip.
Make sure that you code mobile
units with side coupling to a track
where Bit 6 is set to I.
Mobile units without side coupling
must be coded with a track that
does not have Bit 6.
The magnetic strips on the G 7825 /
G 7826 must have gray magnets.
The magnetic strips on the G 7827 /
G 7828 must have black magnets.
Automatic mobile unit recognition (AWK)
18

The machine can be fitted with a variety
of mobile units, baskets and inserts,
depending on the cleaning application
desired.
Check before cleaning
–Are the items to clean correctly
sorted, loaded and connected?
–Are the spray arms clean and can
they rotate freely?
–Is the filter combination free of
coarse soiling? Clean if necessary.
–Is the adapter to the water inlet in
place? The spray arms correctly
connected?
–Are the detergent and neutralizer
containers full?
Check after cleaning
– Check the cleaning results visually.
– Perform protein analytical checks,
e.g. with the Miele test kit.
– Are the jets and connections
securely connected with the mobile
unit / inserts?
Application
19

Loading tips
Select mobile units, baskets and
inserts appropriate for the
application.
^Load the items to be washed so that
water can access all surfaces. This
ensures that they will be properly
cleaned.
^Do not place items to be cleaned
inside other pieces where they may
be concealed.
^Hollow vessels such as beakers,
measuring cylinders, flasks, etc.
should be inverted and placed in the
correct inserts so that water can flow
in and out unrestricted. A cover net
can be used to reduce the risk of
movement during the wash process.
^Use a cover net (e.g. an A 2) or
mesh tray to secure small and/or
lightweight items to prevent them
from blocking the spray arms or
being caught in the magnetic strip on
the automatic mobile unit recognition
system.
^Deep based items should be placed
at an angle to allow water to run off
easily.
^Tall, narrow pieces should be placed
in the center of the baskets. This
ensures good water coverage.
^Mobile units with an adapter must
engage correctly.
^Engage inserts correctly into the
module carts.
^The spray arms must not be blocked
by tall items or items which hang
down in their path. If necessary,
manually rotate the arms to test.
^Petri dishes and the similar should be
placed in the correct insert with the
soiled side facing the center.
^Insert pipettes with the pointed end
downwards.
^Quarter inserts should be placed as
close to the middle of the unit as
possible.
^Glassware should not stick out of the
door area.
Application
20
