Millennium T3669-80A Setup guide

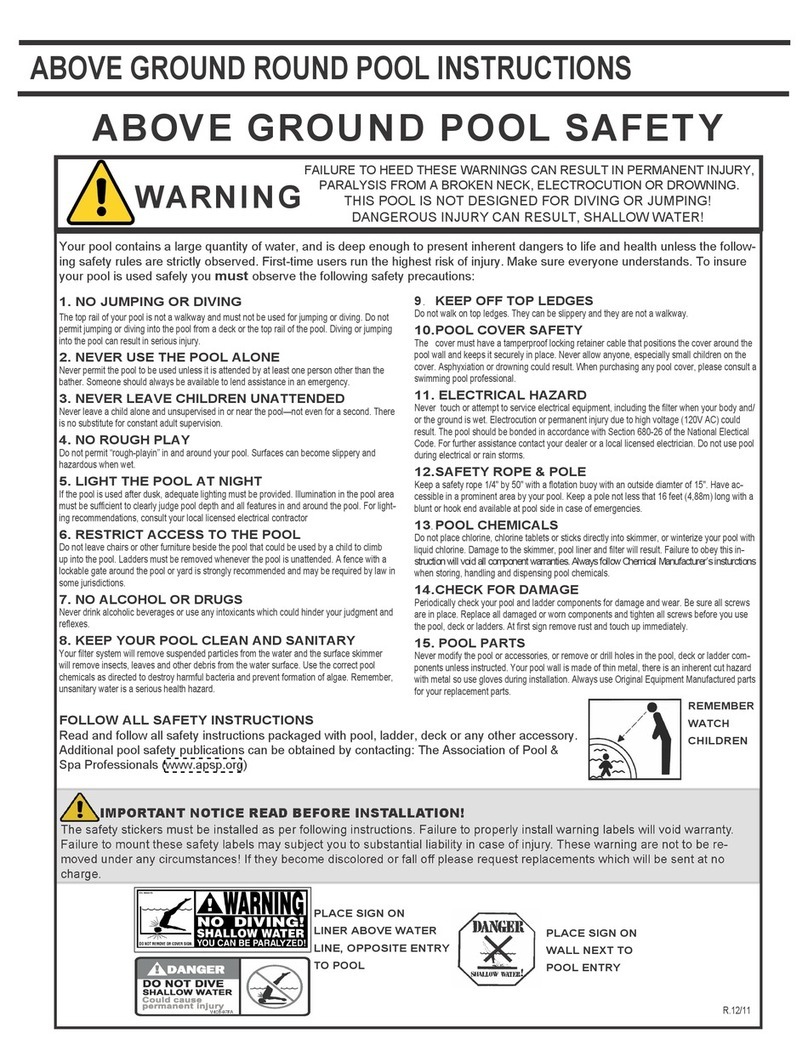

$%29(*5281'322/6$)(7<
:$51,1*
FAILURE TO HEED THESE WARNINGS CAN RESULT IN PERMANENT INJURY,
PARALYSIS FROM A BROKEN NECK, ELECTROCUTION OR DROWNING.
THIS POOL IS NOT DESIGNED FOR DIVING OR JUMPING!
DANGEROUS INJURY CAN RESULT, SHALLOW WATER!
Your pool contains a large quantity of water, and is deep enough to present inherent dangers to lif e and health unless the follow -
ing safety rules are strictly observed. First-time users run the highest risk of injury. Make sure everyone understands. To insure
your pool is used safely you PXVW observe the following safety precautions:
 12-803,1*25',9,1* 
The top rail of your pool is not a walkway and must not be used for jumping or diving. Do not
permit jumping or diving into the pool from a deck or the top rail of the pool. Diving or jumping
into the pool can result in serious injury.
 1(9(586(7+(322/$/21(
Never permit the pool to be used unless it is attended by at least one person other than the
bather. Someone should always be available to lend assistance in an emergency.
 1(9(5/($9(&+,/'5(181$77(1'('
Never leave a child alone and unsupervised in or near the pool—not even for a second. There
is no substitute for constant adult supervision.
 12528*+3/$<
Do not permit “rough-playin” in and around your pool. Surfaces can become slippery and
hazardous when wet.
 /,*+77+(322/$71,*+7
If the pool is used after dusk, adequate lighting must be provided. Illumination in the pool area
must be sufficient to clearly judge pool depth and all features in and around the pool. For light -
ing recommendations, consult your local licensed electrical contractor
 5(675,&7$&&(66727+(322/
Do not leave chairs or other furniture beside the pool that could be used by a child to climb
up into the pool. Ladders must be removed whenever the pool is unattended. A fence with a
lockable gate around the pool or yard is strongly recommended and may be required by law in
some jurisdictions.
 12$/&2+2/25'58*6
Never drink alcoholic beverages or use any intoxicants which could hinder your judgment and
reflexes.
 .((3<285322/&/($1$1'6$1,7$5<
Your filter system will remove suspended particles from the water and the surface skimmer
will remove insects, leaves and other debris from the water surface. Use the correct pool
chemicals as directed to destroy harmful bacteria and prevent formation of algae. Remember,
unsanitary water is a serious health hazard.
The safety stickers must be installed as per following instructions. Failure to properly install wa rning labels will void warranty.
Failure to mount these safety labels may subject you to substantial liability in case of injury. Th ese warning are not to be re -
moved under any circumstances! If they become discolored or fall off please request replacements wh ich will be sent at no
charge.
)2//2:$//6$)(7<,16758&7,216
Read and follow all safety instructions packaged with pool, ladder, deck or any other accessory.
Additional pool safety publications can be obtained by contacting: The Association of Pool &
Spa Professionals (www.apsp.org)
,03257$17127,&(5($'%()25(,167$//$7,21
. .((32))723/('*(6
Do not walk on top ledges. They can be slippery and they are not a walkway.
 322/&29(56$)(7<
The cover must have a tamperproof locking retainer cable that positions the cover around the
pool wall and keeps it securely in place. Never allow anyone, especially small children on the
cover. Asphyxiation or drowning could result. When purchasing any pool cover, please consult a
swimming pool professional.
 (/(&75,&$/+$=$5'
Never touch or attempt to service electrical equipment, including the filter when your body and/
or the ground is wet. Electrocution or permanent injury due to high voltage (120V AC) could
result. The pool should be bonded in accordance with Section 680-26 of the National Electical
Code. For further assistance contact your dealer or a local licensed electrician. Do not use pool
during electrical or rain storms.
 6$)(7<523(32/(
Keep a safety rope 1/4" by 50" with a flotation buoy with an outside diamter of 15". Have ac -
cessible in a prominent area by your pool . Keep a pole not less that 16 feet (4,88m) long with a
blunt or hook end available at pool side in case of emergencies.
 . 322/&+(0,&$/6
Do not place chlorine, chlorine tablets or sticks directly into skimmer, or winterize your pool wit h
liquid chlorine. Damage to the skimmer, pool liner and filter will result. Failure to obey this in -
struction will void all component warranties. Always follow Chemical Manufacturer’s insturctions
when storing, handling and dispensing pool chemicals.
 &+(&.)25'$0$*(
Periodically check your pool and ladder components for damage and wear. Be sure all screws
are in place. Replace all damaged or worn components and tighten all screws before you use
the pool, deck or ladders. At first sign remove rust and touch up immediately.
 322/3$576
Never modify the pool or accessories, or remove or drill holes in the pool, deck or ladder com -
ponents unless instructed. Your pool wall is made of thin metal, there is an inherent cut hazard
with metal so use gloves during installation. Always use Original Equipment Manufactured parts
for your replacement parts.
5(0(0%(5
:$7&+
&+,/'5(1
3/$&(6,*121
/,1(5$%29(:$7(5
/,1(23326,7((175<
72322/
3/$&(6,*121
:$//1(;772
322/(175<
R. 12/11
$%29(*5281'29$/322/,16758&7,216


1
T3669-80A
POOL ASSEMBLY AND INSTALLATION MANUAL
Monument Above Ground Delta Extruded Wall Oval Pools with 7” Frames
THIS MANUAL EXPLAINS THE CO RRECT ME THOD TO ASS EMBLE YOUR NEW SWIMMING POO L. REA D THESE INSTRUCTI ONS AND
STUDY THE ILL USTRATIONS. ALSO READ I NSTRUCTIONS FOR AC CESSORIES SUCH AS FILTERS, LAD DERS, ETC. PA Y PARTICULAR
ATTENTION TO THE CAUTIONS ON THE FOLLOWING PAGES.
THE MANUFAC TURER IS NOT AFFILIATE D WITH ANY PRO FESSIONAL POOL INSTALLER; T HEREFORE TH E MANUFACTU RER CANN OT
ASSUME RESPO NSIBILITY FOR ERRO RS IN THE INSTALLA TION OF YOUR PO OL B Y THE INSTALLER OR THE HO MEOWNER. IF YOU
HAVE THIS POOL INSTALLED BY OTHERS, PLEASE SUPERVISE TO BE SURE YOUR POOL IS INSTALLED PROPERLY AND THAT ALL THE
CAUTIONS LIS TED THRO UGHOUT THIS M ANUAL HAVE BEEN FOLLOWED. PAST EXP ERIENCE OR SHORT CUTS MAY NOT BE
COMPATIBLE WITH OUR POOLS, FOLLOW THE INSTALLATION MANUAL.
THE MAN UFACTURER RESERVES THE RI GHT TO CHANGE OR IMP ROVE AN Y ITEM WI THOUT INCURRING ANY OBLIGATION TO MAK E
ANY CHANGES OR IMPROVEMENTS ON ITE MS PREVIOUSLY SOLD AND TO DISCONTINUE MODELS OR CHANGE SPECIFICATIONS A T
ANY TIME WITHOUT NOTICE.
THIS PRODUCT IS SOLD WITH A "LIMITED WA RRANTY". THE TERMS AND C ONDITIONS ARE SET FORTH I N THE "LIMI TED WARRANTY"
CERTIFICATE PACKED WITH EACH POOL. COPIES OF THE "LIMITED WARRANTY" ARE ALSO AVAILABLE UPON WRITTEN REQUEST.
YOUR LOCAL BUILDING C ODE MA Y REQUIRE OB TAINING A BUIL DING PERMIT AND MAY HAVE RE QUIREMENTS ON SE TBACKS,
BARRIERS, E TC. ANY HOME BUILT OR PRE FABRICATED DECKS SH OULD CONF ORM T O THE LOCAL CODES, A ND B OCA NATI ONAL
BUILDING CO DE. THE E LECTRICAL CODE MAY RE QUIRE A PERMIT AND INSPECTI ON, AND USE OF GFCI DEVICES O R OTHER
CONDITIONS. THE ELECTRICAL INSTALLATION MUST ALSO CONFORM TO ARTICLE 680 OF THE NA TIONAL ELECTRIC CODE. INSTALL
THE FILTER AND PUMP IN ACCORDAN CE WITH THE MANUFACTURERS INSTRUCTIONS. ARTICLE 680 STATES THAT YOU MUST BOND
THE SWIMMING POOL PUMP TO THE SWIMMING POOL. THIS CAN BE DONE BY ATTACHING A #8 COPPER WIRE FROM THE BONDING
LUG ON THE PUMP TO AN UNPAINTED METAL SURFACE ON THE POOL WALL OR BOTTOM CLIP.
THE INSTALLATION OF AN ABOVE GROUND SWIMMING POOL WILL USUALLY REQUIRE THREE PEOPLE TO HELP ASSEMBLE IT.
DANGER: THIS POOL, EVEN IF SUPPLIED WITH A DEEP AREA, CONFORMS TO THE NATIONAL SWIMMING POOL INSTITUTE
STANDARDS FOR A TYPE O, NON-DIVING POOL. DIVING, SLIDING OR JUMPING INTO THE POOL MAY CAUSE PARALYSIS, DEATH OR
PERMANENT INJURY.
Note: Deck and fence accessories shown are optional.

2
DANGER
1. DO N OT DIVE OR JUMP INT O YOUR POOL . DO N OT USE A P OOL SLIDE O N THIS P OOL. YOUR POO L CO NTAINS SHALLOW
WATER AND IS NOT DESI GNED F OR HEAD FIRST ENT RY (D IVING OR S LIDING) O R J UMPING. DIV ING, S LIDING OR J UMPING CA N
RESULT IN A BROKEN NECK IF YOU STRIKE THE POOL. THIS CAN RESULT IN PARALYSIS, DEATH OR PERMANENT INJURY. INFORM
ALL FAMILY AND GUESTS OF THESE RULES AND POINT OUT WARNING LABELS.
2. IT IS NECESSAR Y TO MAIN TAIN A 4’ HIGH BARRIER TO R EDUCE THE CHANCE OF A CHI LD ACCESSING AN UNSUPERVISED POOL .
THE BARRIER MAY BE A FENCE, WALL O R CO MBINATION THER EOF WHICH CO MPLETELY SURROUNDS THE POO L. BARRIERS
MUST COMPL Y WITH THE LOCAL BUILDIN G CODE, BOCA NA TIONAL BUI LDING CODE OR THE “CONSUMER PRO DUCT SAFET Y
COMMISSION” BARRIER STA TEMENT. THE FO UR FOOT HI GH PO OL WALL S USUALL Y PRO VIDE THIS BA RRIER, HO WEVER IF THE
POOL IS LESS THAN 48” AB OVE GRADE, OR HAS BUTTRES SES (OVAL POOLS), YOU MAY NEED ADDITI ONAL FENCING TO PROVIDE
THIS BARRIE R. CO NSULT WI TH YOUR BUILDING OFFICIAL FOR SPECIFIC REQ UIREMENTS. FENCING OPTIONS ARE AVAILABLE
FOR YOUR POOL PLEASE CONTACT YOUR POOL DEALER.
3. YOU M UST MAINTAIN A 5’ WIDE “CL EAR ZONE” AR OUND THE P OOL AND DECK OR FENCI NG. D O N OT AL LOW TOYS, CHAIRS,
TABLES O R SI MILAR CLIMBA BLE O BJECTS IN THIS “CLEA R ZO NE”, ENA BLING CHI LDREN TO CLIMB AND G AIN ACCESS TO THE
POOL. THE FILTER EQUIPMENT MUST ALSO BE LOCATED OUTSIDE OF THE “CLEAR ZONE”.
4. YOU MUST RAISE AND LATCH, OR SECURE YOUR POOL LADDER OR POOL ENTRANCE WHEN THE POOL IS NOT IN USE.
Adherence to the above items will reduce the frequency of preventable child drownings in swimming pools.
WARNING
1. YOUR POOL IS SUPPLIED WITH WARNING SIGNS WHICH MUST BE AFFIXED TO THE POOL AS SPECIFIED. IF YOU BUILD A DECK,
THE TWO AREA SIGNS MUST BE AFFIXED TO THE DECK AT THE POINT OF ENTRY, VISIBLE TO PEOPLE ENTERING THE POOL
AREA. FAILURE TO INSTALL OR IMPROPER LOCATION OF SAFETY INFORMATION WILL SUBJECT YOU AND/OR THE INSTALLER
TO LIABILITY ARISING FROM INJURY CLAIMS.
A. NO DIVING COPING: (TWO SUPPLIED) THESE ARE TO BE INSTALLED ACROSS THE POOL FROM THE POINT OF ENTRY,
AND HAVE ONE SECTION OF REGULAR COPING BETWEEN THEM.
B. COPING WITH INTERNATIONAL LOGO: THIS ONE COPING IS TO BE INSTALLED AT THE POINT OF ENTRY, EITHER ADJACENT
TO THE “A” LADDER, UNDER THE IN POOL LADDER, OR IN THE CENTER OF A DECK.
C: DANGER AREA SIGN WITH LOGO: (T1440) THIS SIGN MUST BE INSTALLED AT THE POINT OF ENTRY, FACING ALL USERS
AS THEY ENTER THE POOL. IF YOUR POOL HAS A FENCE, THE SIGN IS TO BE FASTENED TO THE FENCE, ADJACENT TO THE
LADDER OR ENTRANCE. IF YOUR POOL DOES NOT HAVE A DECK OR FENCE, ATTACH THE SIGN TO THE EDGE OF THE
COPING ADJACENT TO THE LADDER. THE SIGN MUST BE VISIBLE TO ALL USERS AS THEY ENTER THE POOL AREA.
D. CAUTION - SAFETY RULES SIGN: (1445) THIS SIGN MUST BE ATTACHED TO THE FENCE DIRECTLY BELOW THE DANGER
SIGN OR IF YOU DO NOT HAVE POOL FENCING, ON THE COPING NEXT TO THE DANGER SIGN.
If any signs are missing or damaged contact the customer service department for replacements.
CAUTION
1. DECK SURFACES MAY BECOME SLIPPERY WHEN WET. DO NOT RUN OR DIVE INTO THE POOL FROM THE DECK. NOTE: SUNTAN
LOTIONS AND OILS MAY CAUSE POOL COMPONENTS TO BECOME SLIPPERY.
2. EACH MONTH CHECK THE POOL WALL FOR DETERIORATION OR LEAKAGE, ESPECIALLY AT THE SKIMMER AND RETURN
FITTINGS. THE SKIMMER AND RETURN GASKETS SHOULD BE REPLACED EACH SPRING TO PREVENT LEAKAGE.
DETERIORATION CAN WEAKEN THE POOL WALL WHICH COULD RUPTURE, RELEASING THE POOL WATER WHICH COULD CAUSE
BODILY HARM AND PROPERTY DAMAGE.
3. FOR NIGHT TIME USE, YOU MUST PROVIDE LIGHTING TO ILLUMINATE THE POOL, SAFETY SIGNS, AND DECK SURFACES. LIGHTING
MUST COMPL Y WITH ARTICL E 680 OF THE NATIONAL ELECTRIC C ODE. I T IS IMPORTA NT THAT USER S BE ABLE TO SEE THE
SHALLOW DEPTH OF THE POOL AT ALL TIMES.
4. THE FOLLOWING BASIC LIFESAVING EQUIPMENT MUST BE ON HAND AT ALL TIMES:
A. A LIGHT BUT STRONG POLE (SHEPHERD’S CROOK) NOT LESS THAN 12’ LONG.
B. A 1/4” THROWING ROPE, AS LONG AS 1 1/2 TIMES THE MAXIMUM WIDTH OF THE POOL, WHICH IS ATTACHED TO A COAST
GUARD APPROVED FLOTATION DEVICE SUCH AS A RING BUOY.
C. A TELEPHONE SHOULD BE NEARBY WITH A LIST OF EMERGENCY TELEPHONE NUMBERS, SUCH AS POLICE, & AMBULANCE

3
5. ADDITIONAL POOL SAFETY RELATED PUBLICATIONS ARE AVAILABLE FROM THE FOLLOWING:
ASSOCIATION OF POOL & SPA PROFESSIONALS CONSUMER PRODUCT SAFETY COMMISSION
2111 EISENHOWER AVE WASHINGTON, DC 20207
ALEXANDRIA, VA 22314-4695
IMPORTANT INSTALLATION ITEMS
1. LEVELNESS; POOL MUST BE LEVEL WITHIN 3/4”. UNLEVEL POOLS PLACE EXTREME FORCES ON THE POOL WHICH MAY DEFORM.
2. WALL CLOSURE; THE POOL WALL MUST BE FASTENED TOGETHER PROPERLY WITH BOTH BARS AND FASTENERS IN ALL HOLES.
OMITTED BARS OR FASTENERS CAN CAUSE THE WALL TO RUPTURE, DESTROYING THE POOL AND INJURING PEOPLE.
3. SAND COVE; THIS SUPPORTS THE LINER AND MUST BE PACKED SOLID. IF IT COMPRESSES, SHIFTS OR ERODES THE LINER MAY
RUPTURE, RELEASING ALL THE WATER AND DESTROYING THE POOL AND INJURING PEOPLE.
4. THESE POOLS ARE NOT DESIGNED TO BE BURIED. THE GROUND FORCES CAN COLLAPSE THE POOL INWARD. FOR SEMI IN-
GROUND INSTALLATIONS, CONTACT YOUR DEALER FOR DOCUMENT T3964.
5. DO NOT LOCATE YOUR POOL NEAR STRUCTURES SUCH AS A HOUSE, GARAGE, ETC. AS PEOPLE COULD DIVE OR JUMP INTO
THE POOL RESULTING IN DEATH OR PERMANENT INJURY.
6. ALTHOUGH THERE ARE RELATIVELY FEW PARTS IN YOUR POOL, NONE MAY BE OMITTED IN ASSEMBLY. EACH PART SUPPLIED
IS AN IMPORTANT PART AND IF OMITTED, MAY CAUSE POOL FAILURE. CHECK ALL PARTS AGAINST THE PARTS LIST.
WARNING: Do not exceed the following torque values for the noted fasteners:
1/4” - 20 S. S. Fasteners 75 (in. lbs.)
3/8” - 16 S. S. Fasteners 236 (in. lbs.)
3/8” - 16 Aluminum Fasteners 143 (in. lbs.)
TOOLS AND MATERIALS
PHILLIPS SCREWDRIVER #2 HAND TROWEL EXTENSION CORD HAMMER RAKE
SLOTTED SCREWDRIVER #2 GARDEN HOSE & NOZZLE STRING LINE PLIERS
SOCKET WRENCH & SOCKETS 50’ TAPE MEASURE HAND TAMPER TO RQUE WRENCH
TRANSIT OR FARM LEVEL ELECTRIC DRILL & BITS GARDEN SHOVEL WRENCHES
1 LONG STRAIGHT 2 X 4 14’ LONG 1 ROLL DUCT OR FABRIC TAPE WHEELBARROW
25 WOOD STAKES 1 CAN WHITE SPRAY PAINT PLASTIC GROUND COVER
SAND AND BLOCK CHART SAND 2” x 8” x 16” 4” x 8” x 16”
P OOL SIZE TONS YARDS PATIO BLOCKS CAP BLOCKS
12'x18' 2 1 1/4 12 2
12’x21’ 2 1/2 1 3/4 12 4
12’x24’ 3 2 8 6
15'x24' 3 1/2 2 1/4 12 4
15'x30' 4 2 3/4 12 8
18'x33' 5 1/4 3 1/2 14 8
SELECTING THE POOL SITE
1. Check your local building codes and acquire proper building permits. For poor soil conditions consult a
profe ssional engineer.
2. The pool site must be absolutely level and solid. The area must be free from stones and roots.
3. To protect the pool from chemicals and foreign matter in the soil, use a ground cover under the sand base.
Do not install your pool on asphalt, tarpaper, grass, wood, gravel, clay, concrete, or treated soils.
4. Position your pool away from trees, overhead wires, structures such as a house or garage or septic fields.
GROUND PREPARATION
Your pool must be installed on a solid level surface, perform the soil test as illustrated below. Position stakes as shown
on figure 1 a nd use a farm level or transit to level the are a shown. Remove all gra ss, roots and ston es. Start at th e
lowest spot, remove all high spots, do not fill in low spots. The area must be absolutely level. Lines 1 thro ugh 6 of the
following table refers to Figure 1.
NOTE: Sand must be
masons or bar sand and
be free of foreign objects
Soil Test
Dig a hole in the pool area one foot square and one foot deep and fill with water. If at the end of one hour the water has not
completely soaked in, the following steps must be taken:
1. Round Ends: 3 patio blocks must be placed under each bottom clip as shown in figure 8.
2. Oval Midsections: A concrete footing must be placed under the end of each Delta upright along both sides and down
the length of the bottom rail. Consult a local professional engineer to determine the size and type of concrete footing to
be installed. The design load per upright is 4,000 lbs.
OVAL POOLS LINE “1” LINE “2” LINE “3” LINE “4” LINE “5” LINE “6”
12’ X 18’ 7’ - 3” 6’ - 3” 7’ - 0” 6’-0” 17’ - 7” 2’-8”
12’ X 21’ 7’ - 3” 6’ - 3” 10’ - 0” 9’-0” 17’ - 7” 2’-8”
12’ X 24’ 7’ – 6” 6”- 0” 13”- 0” 12’-0” 17’ - 7” 2’-8”
15’ X 24’ 8’ - 6” 7’ - 6” 10’ - 0” 9’-0” 20’ - 1” 2’-8”
15’ X 30’ 8’ - 6” 7’ - 6” 16’ - 0” 15’-0” 20’ - 1” 2’-8”
18’ X 33’ 10’ - 0” 9’ - 0” 16’ - 0” 15’-0” 23’ - 1” 2’-8”

4
LEVEL
LINE 6
POOL OUTLINE
EXCAVATION
OUTLINE
LINE 4 LINE 1
LINE 2
LINE 5
DIAGONALS
LINE 3
FIGURE 1
L00003B
TRANSIT
Step 1: P arts Id entification:
See figures in bill of material
packet. Che ck fo r in stallation
addendums.
Step 2: Ground Layout:
Layout the area to be leveled as
shown in Fi gure 1. Me asure
and ma rk wit h spray pain t the
lines on the ground for your size
pool. Dig 2” deep to remove all
grass from within the pool area,
clear all debris and level this
entire a rea using a tran sit. Be
certain the a rea is smooth and
all grass, stones, roots and any
other foreign objects have been
removed. Do not build up or
fill low areas. Remove all
high spots.
CAUTION: For Oval Hopper Pools: If this pool is
being installed with a deep end refer to instructions
packed with the liner.
FIGURE 2
NOTE: FASTEN TOGETHER ONLY THE CENTER INDICATED BY CIRCLES
L00034C
TIE STRAP LAYOUT
12’ X 18’ 12’ X 21’ 12’ X 24’
15’ X 24’ 15’ X 30’
18’ X 33’
SHORT
TIE STRAP
SHORT
TIE STRAP
SHORT
TIE STRAP
SHORT
TIE STRAP
LONG
TIE STRAP
FIGURE 5
LONG
TIE STRAP FIGURE 5 LONG
TIE STRAP
FIGURE 5
LONG
TIE STRAP
LONG
TIE STRAP
FIGURE 5
LONG
TIE STRAP
LONG
TIE STRAP
FIGURE 5
LONG
TIE STRAP

5
Step 3: Attach t he left and right
sides of the delta uprights to the
bottom beams as shown in Figure 3.
Slide the tee clip through the sl ot in
the bottom rail and attach t o the top
of the bottom beam as shown in
Figure 3A. Bolt the tie straps to the
adapter plate then at tach th e
adapter plate to the bottom beam as
shown in Figure 3. See Figure 2 for
correct tie strap placement. Slide
the delta inte rlock ove r th e left and
right d elta up right pi eces as shown.
Slide the vin yl cap onto the en ds of
the bottom beam s a s sho wn i n
Figure 3.
.
FIGURE 3
A00001A
3/8”-16 X 5/8” S.S.
CAP SCREW
2 PER CONNECTION
TIE STRAPS
3/8”-16 S.S. HEX NUT
NUTS ARE ON BOTTOM
FIGURE 4
L00015C
Step 5: Bolt together the tie straps across the span of the pool as shown in Figure 4. On ce both sides of
your mid-section is assembled, verify that your po ol is squared properly by measuring the diagonal distance
from the two opposite corners of the bottom rail.
Step 6: Dig down and place a 4” X 8” X 16” cap bl ock at the end of each bottom beam as shown in Figure
5. Level the bottom rail with a transit and adjust to be certain it is level
Step 7: Attach the transition uprights to the four corners of the bottom rail as shown in Figure 6.
MUD
SILLS
TEE CLIP
3/8” -16 X
5/8”
BOLT
DELTA
UPRIGHTS
BOTTOM
RAIL
LONG DELTA
INTERLOCK
5/8”-16 X ½” BOLT
BOTTOM
BEAM
5/8” NUT
3/8” NUT
ADAPTER
PLATE
3/8”-16 X
5/8” BOLT
TIE STRAP
¼”– 20 X ½”
NUT
#12 X 1”
SELF TAPPING
SCREWS
¼”-20 ½”
BOLT
DETAIL 4
4” X 8” X 16”
CAP BLOCK
FIGURE 5
A00029
VINYL
END CAP
If your pool is getting a walk deck or pool fence, attach the appropriate post holders or
walk deck supports at this time. See manual supplied with the walk deck or pool fence.
Step 4: Interlock the mud sills
into the bottom rail as sh own in
Figure 3. Bolt the Mud sills to
the bottom rail as shown. Attach
the bottom rail/mud sill assembly
to the tie straps with #12 X 1”
screws as shown in Detail 4.
FIGURE 3A

6
3/8” X 5/8”
BOLTS
L00053
Step 7A: Assemble the adapter to the mud-sill as shown in Figure 6A.
Step 8: Attach the delta stiffeners to t he stiffener bracket as shown in Fi gure 7. You will need to slid e the sho rt
delta interlocks onto the left and right deltas to be just above the stiffener brackets.
Step 9: See Figure 1. Mark line “2” as shown in the table on page 3. Create a circle on line “2” by sliding the wall
channels into the bottom clips, See Figure 8. Place a 2” thick p atio block under each bottom clip. If the bottom
wall channel is on soft ground, place additional blocks under the wall channel where needed. Dig 2” down for each
block. The top on the top block must be at grade level. Place a stake adjacent to each wall channel to keep the
half circle in position during installation. Repeat for other end.
HINT: It may be helpful to crimp the bottom clip over the wall channel to keep it from coming loose.
3/8” NUT
#10 X 1/2” SS SELF TAPPING
SCREW
END STIFFENER
BRACKET
LONG STIFFENERS ON ENDS
SHORT STIFFENERS
BETWEEN DELTA UPRIGHTS
DELTA
STIFFENER
BRACKET
¼” – 20 X ½” SS
MACHINE SCREW
¼” – 20 SS NUT
¼” – 20 X ½” SS
MACHINE SCREW
SLIDE STIFFENER OVER
BRACKET EARS AS SHOWN
DELTA
STIFFENER
BRACKET
FIGURE 7
L00058 L00058B
FIGURE 6
SLIDE SHORT DELTA INTERLOCKS
ON THE DELTAS JUST ABOVE
S
TIFFENER BRA
C
KET
S

7
Step 10: S ee Fig ure 9 and 10.
Place the req uired amount of sand
inside the p ool area. Pla ce the 3’
angles into the slot in the bottom
rail as shown in Detail 8A. Insert
short le g d own. Star ting a t th e
bottom cli p o n the d ownwind si de
of the p ool, attach th e u pright slat
to the bottom c lip. Be s ure the
machine screw i s t o t he insid e of
the pool. Wo rking in a cou nter-
clockwise direction, slide a wall slat
onto the up right slat. The slat
should be h eld abo ut 30 degree s
from the up right slat whil e slidin g
together. Then wh en seated,
rotate the wa ll slat again st the wall
angle. The skimmer slat should be
located between the first two round
side up right slat s as you work
around the pool. Do not locate the
skimmer under the patio. The
return slat mus t be located within
15 panels to the left of the skimmer
as you face the pool.
Be careful not to let the wall fall
over during assembly. The walls
must remain plumb. If the wall falls
over, disassemble fallen section
and start again.
Use figure 11 to determine the
number of slats ne eded on the
straight sid e of an oval p ool. The
count is from upright slat to uprig ht
slat.
BOTTOM RAIL
ADAPTER
2” X 8” X 16”
PATIO BLOCK
STAKE
12X OVALS – SHORT WALL
CHANNEL (43 7/16”)
15X & 18X OVALS – SHORT
WALL CHANNEL (52 13/16”)
WALL CHANNEL
BOTTOM CLIP
LINE 2
FIGURE 8
L00008E
STACKING
PATTERN FOR
POOR SOIL
BOTTOM
RAIL
3’ ANGLE
SHORT LEG DOWN
DETAIL 8A
A00032
FIGURE 10
W00036
SMOOTH SIDE
AGAINST LINER
¼” – 20 SS
HEX NUT
¼” – 20 x ¾” SS
MACHINE SCREW
UPRIGHT
SLAT
FIGURE 9
W00037
WALL SLAT
BOTTOM
CLIP
WALL ANGLE
WALL SLAT
ROTATE INTO
PLACE
BOTTOM CLIP
UPRIGHT
SLAT
CONSTRUCTION NUT. THIS NUT
MUST BE REMOVED AT THE
BEGINNING OF THE FILLING OF
THE POOL TO ALLOW FOR
PROPER EXPANSION.

8
FIGURE 12
W00038
FIGURE 13
W00039
Step 11: See Figure 1 2. On the oval midse ctions hold the wall
slats in place with the 3’ angles as shown
After the pool wall is assembled, check the dimensions of the pool
to insure that it has not shifted during assembly.
PAN HEAD
SCREWS
SKIMMER
THROAT
GASKET
SKIMMER
GASKET
(CORK)
LOW PROFILE / FRONT
ACCESS SKIMMER
WALL
SKIMMER
THROAT
GASKET
NOTE: THE SKIMMER THROAT
GASKET MUST SANDWICH THE WALL.
I.E. ONE FLAP OF THE GASKET MUST
BE ON THE INSIDE OF THE WALL AND
THE OTHER ON THE OUTSIDE.
DETAIL 13A
W00040
Step 12: Se e Figu re 1 3 and Detail 1 3a. Install th e skimme r th roat g asket t o ea ch side of the pool wall and
attach the ski mmer to the wall as shown using h ardware provided with the ski mmer. Moun t the skimme r at the
center with only two (2) pan head screws at this point. Refer to skimmer instruction sheet.
Step 13: See Figures 14. Place the bead receiver on the wall with the ends centered over the uprights. Tape the
joints of the bead receiver using fabric tape to protect the liner.
Step 14: Loosen the nuts from the bottom clip / upright slat attachment. If you are installing a walk
deck on this pool. Do Not completely remove the nut from the bolt. You will need this bolt to
attach the walk deck posts. This allo ws the wall t o expa nd to its prope r shape when filli ng the po ol.
Spread the sand across the entire bottom of the pool. Moisten and tamp the sand to provide a solid base.
The sand base must be 2” deep after tamping. Th e sand should be moistened and troweled to a smooth
finish. Create a 6” radius cove along the wall as shown in Figure 15. This cove must also be tamped solid
to prevent shifting. Clean the inside of the wall prior to installing liner.
WALL SLAT
3’ ANGLE
BOTTOM RAIL
15 x 30 pool size
12 x 18 12 x 21 15 x 24 18 x 33 pool size
A= 34 42 46 61 number of slats
FIGURE 11
W00049
Upright Slat On the round ends there are 11 slats between the upright slats. Except
for the 12x18 & 12x21 which have 9 slats between the upright slats.
TRANSITION
UPRIGHT
MUD SILLS BOTTOM
RAIL
TRANSITION UPRIGHT
MIDSECTION SLAT COUNT

9
FIGURE 14
W00041
WARNING: Failure to
use th e san d or sand
equivalent a nd shape it
as specified will void all
warranties o n the pool
and liner.
FIGURE 16B
#10 CAPTIVE NUT
FIGURE 16A
L00036B
A00017A
WALL
TRANSITION
TOP CLIP
BEAD RECEIVER
#12 X ½” HEX
HEAD SCREW
4 PER
UPRIGHT
TRANSITION
UPRIGHT
UPRIGHT
SLAT
WALL SLAT
#12 X ½” HEX HEAD SCREW
4 PER UPRIGHT SLAT
(USE LOWER SET OF
HOLES IN TOP CLIP)
ROUND
TOP CLIP
BEAD RECEIVER
FIGURE 17
A00031
DIMENSIONS ARE
TO TOP OF WALL
WALL
WALL
CHANNEL
50”
44”
6” RADIUS
2” SAND BASE
W00026B
NOTE: TAPE A 3’ WIDE
PIECE OF PLASTIC TO THE
BASE OF THE POOL WALL
BEFORE SPREADING THE
SAND TO HELP PREVENT
FUTURE WASHOUT OF
THE SAND UNDER THE
POOL WALL.
LONG BEAD
RECEIVER(S)
CURVED BEAD
RECEIVER
SAND
RETURN SLAT SKIMMER SLAT
Step 15: See Figures 16A, 16B and 17. Install captive nuts on the top clips. Mount the top clips on the
transitional uprights and round upright slats.
DUCT TAPE
BEAD
RECEIVER
WALL
SLATS
FIGURE 15
Note: When properly installed, the direction of the hole pattern
on this clip should form an arrow facing out of the pool.

10
BEAD
RECEIVER
DUCT TAPE
BEAD
RECEIVER
LINER
LINER
BEAD
WALL
FIGURE 18
W00023 WARNING: The pool must not be more than 3/4” out of level. If the
pool is not level, drain the water and level the structure. Any non-
compliance with this requirement will void all warranties.
Step 20: See Figure 19, 20, 21 and 22. Locate the safety warning copings as described and as shown at the back of
this manual. Attach all coping as shown.
Step 21: S ee Fig ure 23 A and 2 3B. Assemble th e co ping covers a s sho wn ba sed on t he type of p ool you are
installing.
#10 x ½” SELF
TAPPING HEX
HEADSCREWS
(4 PER TOP CLIP)
#10 x ½” SELF
TAPPING HEX
HEAD SCREWS
ROUND END COPING
UPRIGHT
SLAT
TOP CLIP
FIGU
R
E 20
W00053
FIGURE 19
CO00021A
Step 16: Se e Figu re 1 8. Remove the liner from th e ca rton and unfold into t he po ol. Be ca reful not t o dra g,
abrade o r sn ag the line r. Spread th e liner o ut over t he entire b ottom of the pool. The lin er bottom should b e
centered in the pool using the seam at the perimete r of the bottom as a guide . Locate the triangle shaped tabs
on the u nderside of the li ner. Th ese tabs should be lined up with the four t ransition uprights on the flo or of the
pool. Raise the liner sidewall and place the bead into the bead receiver. Bead must be fully seated in the receiver
to prevent it from coming out later when filling. Check frequently while filling pool with water.
Step 17: S mooth all th e wri nkles out on the bo ttom of the liner. To
remove wrinkles, always pull the liner firmly but gently. No sharp tugs! Be
certain line r is ce ntered. Time sp ent removing wrin kles and ali gning the
liner will give you a neater looking and easily maintained pool.
Step 18: Begin to fill the pool with water. Use a slow stream of water and
fill approximately 1 1/2” deep. Be certai n that the blocks un der the bottom
beams have remained level and that the bottom bea ms are seate d firmly
on those blocks. Make sure the fit of th e liner is correct. Smooth out any
wrinkles in th e pool botto m. Remove the con struction nuts a s previously
shown in figu re 9. If installing a deck, do not fill more than 12” until
the deck is installed.
Step 19: Fill the p ool with 4” to 6” of water. Me asure the distance from
the bead receiver to the water surface at several points around the pool to
be certain that the pool is still level.
NOTE: If the liner i s exposed to the sun for a long time, it will stretch and cause wrinkles. This can be
avoided by waiting until dusk or by spraying cold water on the liner during installation.
ATTACH COPING
TO OUTER SET
OF TOP CLIP
HOLES ON THE
ROUND ENDS

11
Step 22: Fill the pool until the water level is 3 inches below the return hole.
Step 23: Foll ow the in structions for the filtration system, ski mmer and return that are sup plied with th e filter. See
Figure 24 for additional assistance.
Step 24: Attach the remaining safety warning signs as described and shown in Figure 25. If installing a fence or deck
refer to those manuals for proper placement of safety information.
Step 25: Fill the pool up to the center of the skimmer, make sure that all fasteners are tightened properly and your
pool is correctly assembled. Upon completion of the pool it is important to backfill the pool wall to prevent the sand
from washing out from underneath and water from accumulating around the pool which can cause settling or
deterioration. Backfill should be sand or clean well draining soil. Do not use mulch or materials which retain moisture,
or limestone or materials which are corrosive. The backfill should be three to four inches up the wall, be sure to cover
the bottom beams, and slope away to provide runoff. Please read the “Sensible Way to Enjoy Your Pool” booklet and
enjoy years of swimming and relaxation.
#12 x ½” SS TYPE AB
HEX HEAD WASHER
HEAD SELF-TAP
(4 PER TOP CLIP)
FIGURE 22
CO00022
#10-24 X 5/8”
MACHINE SCREW
#12 X 1”
HEX HEAD
SCREWS
ONE PER SIDE
FIGURE 23B
DANGER: When a filter or any other electrical device is added to this pool, it is the responsibility of the purchaser to
take all ne cessary precautions as set forth in arti cle 680 of the National Elect rical Code a nd local ele ctrical codes.
Failure to comply with this requirement may result in a dangerous or hazardous electrical condition which may cause
bodily injury or death.
DELTA TOP CLIP
#10 – 24
HEX NUT
#10 – 24 x 5/8”
CARRIAGE BOLTS
STRAIGHT
SIDE COPING
FIGURE 21
C000012B
COPING
COVER
BEND TABS
TO SECURE
TO COPING
W00028D
#10-24 X 5/8”
MACHINE SCREW
FIGURE 23A
A00028A
Note: Attach the midsection
coping to the delta top clips
first, then attach the coping and
top clips to the delta uprights as
a complete assembly.

12
TEFLON
TAPE
POOL WALL
LINER
HOSE
ADAPTER FACE
PLATE
GASKET
FACE
PLATE
FACE PLATE
SCREW
SKIMMER ASSEMBLY
TELFON TAPE
HOSE
ADAPTER
LOCKNUT
FIBER
WASHER
SANDWICH
GASKET
POOL WALL
RUBBER GASKET
LINER
WALL FITTING
DIRECTIONAL BALL
(POINT OPENING AWAY
FROM SKIMMER) DIRECTIONAL BALL
FITTING
FIGURE 24
W00024
RETURN ASSEMBLY
DANGE
R
DANGE
R
CAUTION:
C
D
B
A
A
B
CD
A
A
C & D
A
AB
C & D
ADDITIONAL
DANGER SIGN (SEE
SIDE DECK MANUAL)
C & D
POINT OF
ENTRY
POINT OF
ENTRY
POINT OF
ENTRY
B
FIGURE 25
SA00003B SA00004 SA00005
WARNING: After
completion of the
pool, the po ol mu st
never be drained to
less than 1 /2 full.
Damage t o the
structure and/or liner
may result.
WATER SIDE
DECK SIDE
Note: Refer to Page 2,
Warning section for Label
Number Designations
