Milwaukee M18 F2LM53 User manual

M18 F2LM53
Original instructions

2 3
24
18
22
20
27
25
16
8
10
START

4 5
26
11
2834
14
15
30
32
12
2
Text section with Technical Data, important Safety and
Working Hints and description of Symbols
36

6 7
Description see text section.
4
3
2
1
9
10
11
12
13
14
15
16
17
18
19
20
5
6
7
8

8 9
1 4
2 5
6
3
1
2
2

10 11
1
2
3
1
2
3
7
6
5
4
3
2
1

12 13
1 4
2 5
3 6
Compost grass clippings or dispose of them
in organic waste.
!

14 15
11
22
33
!
Mulch application - the clippings remain on
the lawn.

16 17
1 1
2 2
3 3
Remove the battery pack before
starting any work on the machine.
The machine only runs with 2 batteries!
click

18 19
75-100 %
50-75 %
30-50 %
10-30 %
< 10 %
65°C
flashing slowly
flashing quickly
< 10 %

20 21
START
START
STOP
1
2
Insulated gripping surface
12
max. 10 sec

22 23
Slow speed is preset. If necessary, the electronic automatically
increase the speed. However, high speed can also be set
permanently.

24 25
0 – 2,5 km/h
0 – 3,5 km/h
0 – 4,5 km/h
0 – 5,5 km/h
0 – 6,5 km/h
1
2
3
4
5

26 27

28 29
1
4
2
5
6
3
STOP
11
18
22
24
20
25
25
max 15°
max 15°

30 31
1 4
2
3 6
5
Standard
4932 4798 18 (682498001)
Performance
4932 4798 19 (682544001)
33

32 33
7
8
9

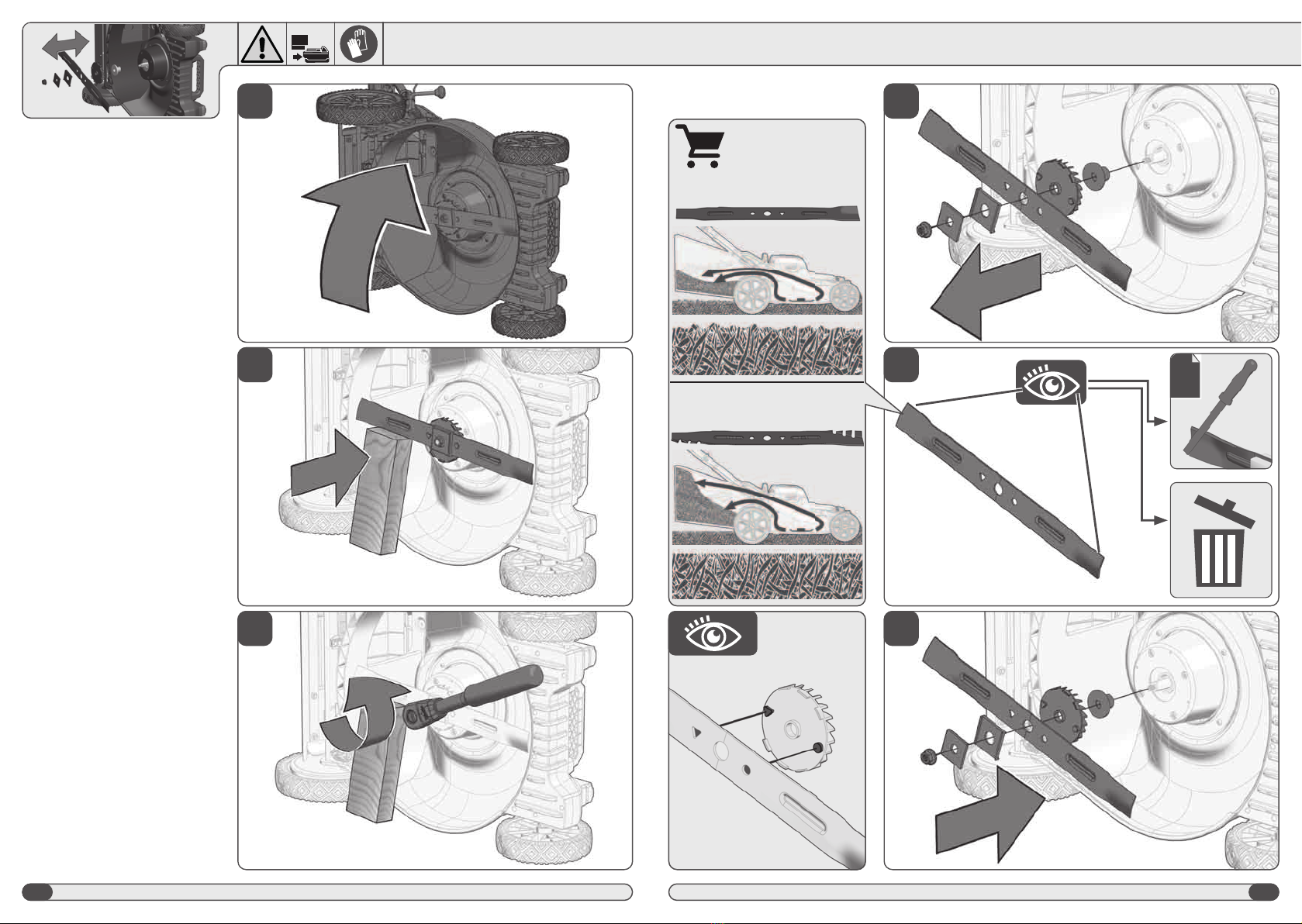

Sharpen cutting edges only by pulling with a file. Grinding angle 30°.
For further information see text section MAINTENANCE.
36-40 Nm

34 35
1
2
3
4
5
6a 6b
2 2
2

36 37
M18 F2LM53
4972 58 01 XXXXXX MJJJJ
36 V (2 x 18 V)
2800 / 3300 min-1
0 – 2,5 km/h
0 – 3,5 km/h
0 – 4,5 km/h
0 – 5,5 km/h
0 – 6,5 km/h
533 mm
25 - 100 mm
70 l
38,5 kg
IPX4
-18...+50 °C
2 x M18 HB12
M12-18…; M1418C6
75,8 dB(A) / 3 dB(A)
93,3 dB(A) / 3 dB(A)
12,7 m/s2 / 1,5 m/s2
ENGLISH
TECHNICAL DATA
Type
Production code
Battery voltage
Blade speed low/high
Self propelled driving speed
Speed 1
Speed 2
Speed 3
Speed 4
Speed 5
Deck size
Cutting height range
Grass catcher capacity
Weight according EPTA-Procedure 01/2014 (2 x 12,0 Ah)
Protection class
Recommended ambient operating temperature
Recommended battery types
Recommended charger
Noise information
Measured values determined according to EN 62841.
Typically, the A-weighted noise levels of the tool are:
Sound pressure level / Uncertainty K
Sound power level / Uncertainty K
Wear ear protectors.
Vibration information: Total vibration values (vector sum in the
three axes) determined according to EN 62841.
Vibration emission value ah/ Uncertainty K
WARNING Read all safety warnings, instructions,
illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
LAWNMOWER SAFETY WARNINGS
Do not use the lawnmower in bad weather conditions,
especially when there is a risk of lightning. This decreases the
risk of being struck by lightning.
Thoroughly inspect the area for wildlife where the lawnmower
is to be used. Wildlife may be injured by the machine during
operation.
Thoroughly inspect the area where the lawnmower is to be
used and remove all stones, sticks, wires, bones, and other
foreign objects.Thrown objects can cause personal injury.
Before using the lawnmower, always visually inspect to
see that the blade and the blade assembly are not worn or
damaged. Worn or damaged parts increase the risk of injury.
Check the grass catcher frequently for wear or deterioration.
A worn or damaged grass catcher may increase the risk of
personal injury.
Keep guards in place. Guards must be in working order and
be properly mounted. A guard that is loose, damaged, or is not
functioning correctly may result in personal injury.
Keep all cooling air inlets clear of debris. Blocked air inlets and
debris may result in overheating or risk of fire.
While operating the lawnmower, always wear non-slip and
protective footwear. Do not operate the lawnmower when
barefoot or wearing open sandals. This reduces the chance of
injury to the feet from contact with the moving blade.
While operating the machine, always wear long trousers.
Exposed skin increases the likelihood of injury from thrown
objects.
Do not operate the lawnmower in wet grass. Walk, never run.
This reduces the risk of slipping and falling which may result in
personal injury.
Do not operate the lawnmower on excessively steep slopes.
This reduces the risk of loss of control, slipping and falling which
may result in personal injury.
When working on slopes, always be sure of your footing,
always work across the face of slopes, never up or down
and exercise extreme caution when changing direction. This
reduces the risk of loss of control, slipping and falling which may
result in personal injury.
Use extreme caution when reversing or pulling the
lawnmower towards you. Always be aware of your surroundings.
This reduces the risk of tripping during operation.
Do not touch blades and other hazardous moving parts while
WARNING!
The vibration and noise emission level given in this information sheet has been measured in accordance with a standardized test given in
EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration and noise emission level represents the main applications of the tool. However if the tool is used for different
applications, with different accessories or poorly maintained, the vibration and noise emission may differ. This may significantly increase
the exposure level over the total working period.
An estimation of the level of exposure to vibration and noise should also take into account the times when the tool is switched offor when
it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration and/or noise such as: maintain the tool and the
accessories, keep the hands warm, organization of work patterns.
Cordless self propelled lawnmower
ENGLISH
they are still in motion. This reduces the risk of injury from
moving parts.
When clearing jammed material or cleaning the lawnmower,
make sure all power switches are offand the battery pack
is disconnected. Unexpected operation of the lawnmower may
result in serious personal injury.
Stop the machine immediately after striking a foreign object or
when the machine starts to vibrate abnormally.
Remove the battery pack(s) and make sure that all moving parts
have come to a complete stop:
• After striking a foreign object inspect the machine for damage
and make repairs before restarting and operating the machine.
• When the machine starts to vibrate abnormally immediately
inspect for damage, replace or repair any damaged parts and
check for and tighten any loose parts.
ADDITIONAL SAFETY AND WORKING INSTRUCTIONS
Do not operate the mower unless the grass bag, mulch plug, or
rearside discharge are correctly installed and functioning properly.
Check frequently for signs of wear or deterioration and replace as
needed.
Keep safety devices (rear door, discharge attachment, bail, etc.) in
place and working.
Inspect area and remove debris before mowing. Remove all
stones, sticks, wires, bones, and other foreign objects. Beware of
thrown objects. Objects struck by the lawn mower blade can be
thrown and cause severe injuries and/or damage to the mower.
Disengage the self propelled mechanism on units so equipped
before starting the motor.
Never attempt to make a wheel height adjustment while the
mower is running.
Do not expose to water or operate on wet ground. Do not use in
rain.
Keep hands and feet away from the blades. Do not reach under
blade guard. Keep clear of the discharge opening at all times.
Do not direct discharge material toward anyone. Avoid discharging
material against a wall or obstruction. Material may ricochet back
toward the operator.
Look down and behind before and while moving backwards. Do
not mow in reverse unless absolutely necessary.
Always be sure of footing; keep a firm hold on the handle and
walk, never run.
Avoid holes, ruts, bumps, rocks, or other hidden hazards. Uneven
terrain could overturn the machine, or cause operator to lose their
balance or footing.
Stop the blade when crossing gravel drives, walks, or roads.
Shut the motor offand wait until the blade comes to a complete
stop before removing the grass catcher or before unclogging the
chute.
Do not leave a running machine unattended. Always park on level
ground and turn offthe mower.
Close battery cover during use.
Do not stare at the operating light when LED headlights are turned
ON.
Never allow children, persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge or
people unfamiliar with these instructions to use the machine, local
regulations may restrict the age of the operator.
Beware of thrown objects; keep all bystanders, children, and pets
at least 30 m away from work area.
Do not operate in poor lighting. The operator requires a clear view
of the work area to identify potential hazards.
Inspect the product before each use. Check for loose fasteners,
etc. Make sure all guards and handles are properly and securely
attached. Replace any damaged parts before use. Check for
battery pack leaks.
Do not modify the product in any way.
Do not allow children or untrained individuals to use the product.
Wear full eye and hearing protection while operating the product.
If working in an area where there is a risk of falling objects, wear
appropiate head protection.
Secure long hair so it is above shoulder level to prevent
entanglement in moving parts.
Do not use the product when you are tired, ill, or under the
influenceof alcohol, drugs, or medication.
Keep firm footing and balance. Do not overreach. Overreaching
can result in loss of balance or exposure to hot surfaces.
Do not tilt the machine when switching on the motor.
Remove the battery pack before starting any work on the
machine.
Do not dispose of used battery packs in the household refuse
or by burning them. Milwaukee Distributors offer to retrieve old
batteries to protect our environment.
Do not store the battery pack together with metal objects (short
circuit risk).
Use only System M18 chargers for charging System M18 battery
packs. Do not use battery packs from other systems.
Battery acid may leak from damaged batteries under extreme
load or extreme temperatures. In case of contact with battery
acid wash it offimmediately with soap and water. In case of eye
contact rinse thoroughly for at least 10 minutes and immediately
seek medical attention.
Warning! To reduce the risk of fire, personal injury, and product
damage due to a short circuit, never immerse your tool, battery
pack or charger in fluid or allow a fluid to flow inside them.
Corrosive or conductive fluids, such as seawater, certain industrial
chemicals, and bleach or bleach containing products, etc., can
cause a short circuit.
Slope Operation
Do not operate on inclines greater than 15°. Mow across slopes,
not up and down.
Operation on slopes increases the risk of slipping and falling which
may result in severe injuries.
Operation on slopes requires extra caution. If you feel uneasy on
a slope, do not mow it.
Always be sure of your footing. A slip and fall can cause serious
personal injury. If you feel you are losing your balance, release the
bail bar immediately.
Exercise extreme caution when changing direction on slopes.
Avoid starting and stopping on slopes. Avoid making sudden
changes in speed or direction. Make turns slowly and gradually.
Use caution while operating near dropoffs.
Do not operate machine under any condition where traction,
steering, or stability is in question. Tires could slide even if the
wheels are stopped.
Always keep the machine in control when going down slopes. Do
not coast downhill.
Use extra care while operating the machine with a grass catcher.
A heavy grass catcher can affect the stability of the machine.
Watch for holes, ruts, rocks, hidden objects, or bumps which can
cause you to slip or trip. Tall grass can hide obstacles. Remove all
objects such as rocks, tree limbs, etc., which could be tripped over
or thrown by the blade.
SPECIFIED CONDITIONS OF USE
The cordless lawnmower is intended for outdoor use only.
The lawn mower is intended for lawn mowing at ground level. It is
a pedestrian-controlled walk-behind mower designed to be used
with the self-propel feature.
The lawn mower should never be operated with the wheels offthe
ground. It should not be pulled or ridden on.
Do not use this product in any other way as stated for normal use.

38 39ENGLISH
RESIDUAL RISK
Even when the product is used as prescribed, it is still impossible
to completely eliminate certain residual risk factors. The following
hazards may arise in use and the operator should pay special
attention to avoid the following:
• Injury caused by vibration
Hold the product by designated handles and restrict working
time and exposure.
• Exposure to noise can cause hearing injury.
Wear ear protection and limit exposure.
• Injury due to flying debris
Wear eye protection, heavy long trousers, gloves and
substancial footwear at all times.
• Inhalation of toxic dusts.
NOTES FOR LI-ION BATTERIES
Use of Li-Ion batteries
Battery packs which have not been used for some time should be
recharged before use.
Temperatures in excess of 50°C (122°F) reduce the performance
of the battery pack. Avoid extended exposure to heat or sunshine
(risk of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, the battery packs have to be fully
charged, after used.
To obtain the longest possible battery life remove the battery pack
from the charger once it is fully charged.
For battery pack storage longer than 30 days:
Store the battery pack where the temperature is below 27°C and
away from moisture
Store the battery packs in a 30% - 50% charged condition
Every six months of storage, charge the pack as normal.
Battery protection for Li-Ion batteries
In extremely high torque, binding, stalling and short circuit
situations that cause high current draw, the tool will vibrate for
about 5 seconds, the fuel gauge will flash,and then the tool will
turn OFF. To reset, release the trigger.
Under extreme circumstances, the internal temperature of the
battery pack could raise too much. If this happens, the fuel gauge
will flash until the battery pack cooled down. After the lights go off,
the work may continue.
Transport of Li-Ion batteries
Lithium-ion batteries are subject to the Dangerous Goods
Legislation requirements.
Transportation of those batteries has to be done in accordance
with local, national and international provisions and regulations.
• The user can transport the batteries by road without further
requirements.
• Commercial transport of Lithium-Ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation
and transport are exclusively to be carried out by appropriately
trained persons and the process has to be accompanied by
corresponding experts.
When transporting batteries:
• Ensure that battery contact terminals are protected and
insulated to prevent short circuit.
• Ensure that battery pack is secured against movement within
packaging.
• Do not transport batteries that are cracked or leak.
Check with forwarding company for further advice
FUNCTIONAL DESCRIPTION
1. Rear door
2. Rear lift handle
3. Fuel Gauge
4. Height adjustment handle
5. Battery compartment
6. Front lift handle
7. LED headlights
8. Blades
9. Blade Start/Power On button
10. Self propel Start/Stop and variable speed paddle
11. Handle
12. Bail bar
13. Self propel speed dial
14. Blade Speed Low/High button
15. LED Headlights On/Offbutton
16. Handle locking knobs
17. Handle adjustment knobs
18. Grass collector bag
19. Rear side discharge chute
20. Mulching plug
GENERAL MOWING TIPS
The run time of the battery depends on the condition, length, and
density of the grass. Adjust the cutting height of the lawnmower to
suit the current condition of the lawn.
For best performance, always cut offone third or less of the total
height of the grass.
• When cutting long grass, reduce speed to allow for more
effective cutting and a proper discharge of the clippings.
• Do not cut wet grass; it will stick to the underside of the deck
and prevent proper collection or discharge of grass clippings.
• New or thick grass may require a higher cutting height.
• If you wish to collect the grass cuttings for disposal, remove the
mulching plug and fit the grass catcher making sure the top flap
is properly closed. Empty the grass catcher regularly; otherwise,
the discharge chute will become blocked with grass cuttings.
• If you are making a light cut and wish for the grass cuttings to
remain on the lawn, fit the mulching plug and close the top flap
to cover the discharge opening. It is not necessary to fit the
grass catcher in this case.
• The lawn mower is designed to operate and cut most effectively
when moving forwards.
• A higher cutting height will extend the run time of the battery.
Clearing Blockages
• Stop the lawn mower and remove the battery. Make sure that all
moving parts have come to a complete stop.
• Always wear heavy-duty gloves when checking or clearing a
blockage.
• The blades are sharp and the blockage itself could be a sharp
object.
• Remove the grass catcher, check for and carefully clear
obstructions.
• Check the grass discharge chute for blockages and carefully
clear.
• Turn the lawn mower on its side, check its underside, and the
area around the blade. If any blockages are found, remove
carefully. Remember the blade may move during cleaning.
ENGLISH

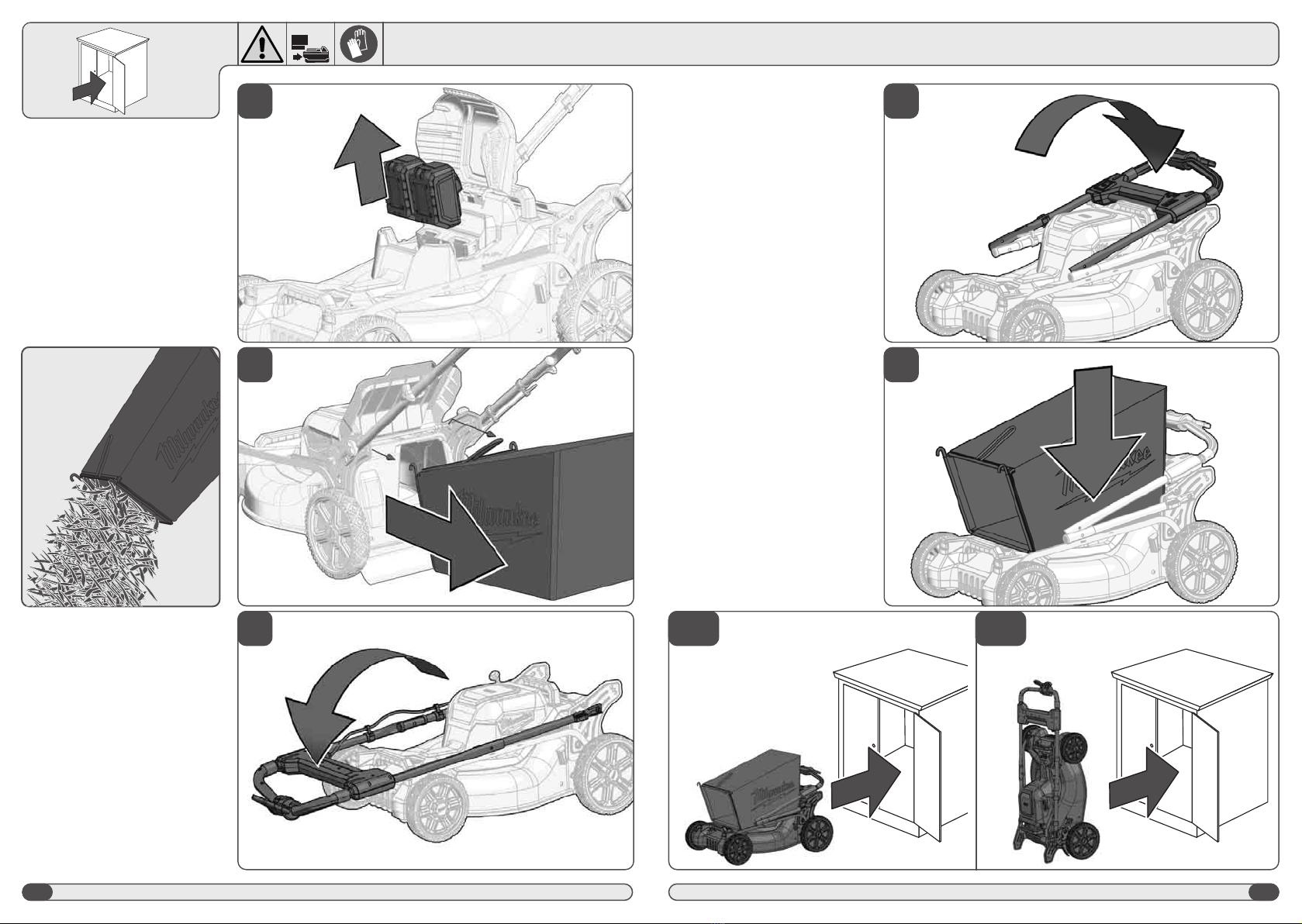

TRANSPORTATION AND STORAGE
Use two people whenever it is necessary to lift or carry the mower.
Mower is heavy. Lift with legs, not back.
Stop the product, remove the battery, and allow it to cool before
storing or transporting.
Clean all foreign material from the product. Store it in a cool dry
and well-ventilated place that is inaccessible to children. Keep
away from corrosive agents such as garden chemicals and
de-icing salts. Do not store outdoors.
For transportation in vehicles, secure the machine against
movement or falling to prevent injury to persons or damage to the
machine.
ACCESSORY
Milwaukee Id.No. Part
4932 4798 18 MOWER BLADE 21IN/ 53 CM
4932 4798 19 MOWER BLADE HP 21IN/ 53 CM
4932 4798 21 LAWN MOWER COVER 21IN/ 53 CM
MAINTENANCE
Check the blade and all assembly and adjustment bolts and
fasteners at frequent intervals for proper tightness.
Inspect grass catcher assembly frequently and replace with
recommended replacement if there are signs of wear or
deterioration.
Do not wash with a hose; avoid getting water in mower and
electrical connections.
Disconnect battery before maintenance, assembling, adjusting,
cleaning, unclogging, or when not in use.
Maintain lawn mower with care. Keep cutting edges sharp and
clean for best and safest performance.
Use identical MILWAUKEE replacement blades only.
Use caution when servicing blades. Wrap the blade(s) or wear
gloves. Replace damaged blades. Do not repair or alter blade(s).
Use only original manufacturer’s replacement parts, accessories
and attachments. Failure to do so can cause possible injury, can
contribute to poor performance, and may void your warranty.
Sharpen a dull blade equally at each end to maintain the balance.
Clean the blade thoroughly and check its balance by supporting it
horizontally on a thin nail through its centre hole. The nail should
also be in a horizontal position. If either end of the blade rotates
downward, remove some metal from the heavy or lower end until
the blade is balanced. It is balanced when neither end drops.
Replace the blade if it is bent or cracked. An unbalanced blade
causes vibration that could damage the mower or cause personal
injury.
Use only Milwaukee accessories and Milwaukee spare parts.
Should components need to be replaced which have not been
described, please contact one of our Milwaukee service agents
(see our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please
state the machine type printed as well as the six-digit No. on
the label and order the drawing at your local service agents or
directly at: Techtronic Industries GmbH, Max-Eyth-Straße 10,
71364 Winnenden, Germany.
SYMBOLS
Please read the instructions carefully before
starting the machine.
CAUTION! WARNING! DANGER!
Remove the battery pack before starting any work
on the machine.
Always wear goggles when using the machine.
Wear ear protectors!
Wear gloves!
Wear long trousers
Wear safety footwear
Read and understand all instructions before ope-
rating the product. Follow all warnings and safety
instructions
WARNING – Beware of thrown objects – keep
bystanders away.
WARNING – Keep hands and feet away from the
blades. Disconnect battery before maintenance.
CAUTION!
Lifting hazard. May result in injury.
Do not stare at oprating lamp.
DANGER – Keep hands and feet
away.
Crush hazard
