Milwaukee 2216-20 Operating instructions

MILWAUKEE ELECTRIC TOOL CORPORATION – TEST & MEASUREMENT PRODUCT
REPAIR SERVICE INSTRUCTIONS — CALIBRATION
2216-20 Light Commercial Digital Multimeter
Environmental
Condition
Perform all calibration at an ambient temperature of 23°C ± 2°C / 73.4°F ± 3.6°F and relative
humidity of 80% - allow the digital multimeter to sit at this temperature for a minimum of 30
minutes before proceeding.
MI ION
13135 WEST LISBON ROAD ●BROOKFIELD, WISCONSIN 53005-2550 ●USA
58-92-2216d1 10/2010
REPAIR SERVICE
INSTRUCTIONS
Calibration
LWAUKEE ELECTRIC TOOL CORPORAT

i
TABLE OF CONTENTS Page
Introduction 1
Precautions and Safety Information 1
Symbols 1
Safety 2
Specifications 3
General Specification 3
Voltage Specification 4
Current Specifications 5
Resistance, Continuity, Capacitance Specifications 6
Frequency, Rotary Switch, Auto Power Off Specification 7
Physical and environment characteristics 8
Certification and compliance 8
Required Equipment 9
Basic Maintenance 10
Opening the Meter Case 10
Replacing the Battery 10
Testing Fuses 11
Replacing Fuses 11
Cleaning 11
Performance Tests 12
Testing the Display 12
Testing the Voltage Function 13
Testing the Resistance Function 14
Testing the Capacitance Function 14
Testing the Ampere Function 15
Testing the Current Function 15
Testing the Frequency Function 15
Calibration 17

1
Introduction
Warning
To avoid shock or injury, do not perform the verification tests or calibration procedures
described in the manual unless you are qualified to do so.
The information provided in this document is for the use of qualified personnel only.
Caution
The 2216-20 contain parts that can be damaged by static discharge.
Follow the standard practices for handling static sensitive devices.
Precautions and Safety Information
Use the Meter only as described in the Users Manual. If you do not do so, the protection provided
by the Meter may be impaired. Read the “Safety Information” page before servicing this product.
In this manual, a Warning identifies conditions and actions that pose hazard (s) to the user; a
Caution identifies conditions and actions that may damage the Meter or the test instruments.
The Symbols
The symbols used on the Meter and in this manual are explained in Table 1.
Table A. The Symbols
Symbol Meaning
Alternating signal
Direct signal
CAT lll IEC overvoltage Category lll
Refer to the manual, Important information.
Take appropriate precautions. Hazardous
voltage may be present.
Battery
Earth ground
Fuse
Double insulated
Do not discard this product or throw away.
++

2
SAFETY
Review the following safety precautions to avoid injury and prevent damage to this product or
any products connected to it. To avoid potential hazards, use the product only as specified.
CAUTION: These statements identify conditions or practices that could result in damage to
the equipment or other property.
WARNING: These statements identify conditions or practices that could result in personal
injury or loss of life.
Specific precautions
Do not operate without covers. To avoid personal injury, do not apply any voltage or current to
the product without covers in place.
Electric overload. Never apply a voltage to a connector on the product that is outside the range
specified for that connector.
Avoid electric shock. To avoid injury or loss of life, do not connect or disconnect probes or test
leads while they are connected to a voltage source.
Do not operate in wet/damp conditions. To avoid electric shock, do not operate this product in
wet or damp conditions.
Use proper Fuse. To avoid fire hazard, use only the fuse type and rating specified for this
product, 10A / 600V Fast-acting (Cat. No. 22-89-0300). For fuse replacement, it is recommended
to return the tool to a factory Service/Sales Support Branch or authorized service station.

3
SPECIFICATIONS
All specifications are warranted unless noted typical and apply to the 2216-20 DMM.
Stated accuracies are at 23°C±5°C at than 80% relative humidity and without the battery
indicator displayed.
General specifications
noitpircseDscitsiretcarahC
stnuoc0006tnuocyalpsiD
ces/semit3etaretadpuciremuN
citamotuAyalpsidytiraloP
Overrange display Display "OL" when the reading exceeds range
by 10%
Low voltage indicator is indicated
setunim02emitffo-rewopcitamotuA
ezisAAro6RLCEI2*V5.1ecruosrewoP
Maximum input voltage 600V CAT lll between V and COM
Maximum floating voltage 600V CAT lll between any terminal and earth
ground
MOCdnaAneewtebA01tnerructupnimumixaM
Maximum open circuit Voltage (current inputs) 600V between A and COM
Overload protection A connector 10A, 600V, Fast action fuse
V connector V, V, , , Hz
C°82>roC°81<,C°/)ycaruccA.cepS(×1.0tneiciffeoCerutarepmeT
)enilakla(lacipytsruoh03efiLyrettaB
++

4
Measurement Characteristics
Accuracy is ±(% reading + number of digits) at 23°C ± 5°C, less than 80% R.H.
Temperature coefficient: 0.1 * (Specified accuracy)/°C, < 18°C, > 28°C
(1) DC Voltage
Range Resolution Accuracy
600.0mV 0.1mV
6.000V 0.001V
60.00V 0.01V
600.0V 0.1V
±(0.5% reading + 2 digits)
Input Impedance: 10MΩ
Response Time: < 1.5 sec.
Overload Protection: AC/DC 720V for 10 second.
(2) AC Voltage
Range Resolution Accuracy (Sine Wave)
600.0mV * 0.1mV
6.000V 0.001V
60.00V 0.01V
600.0V 0.1V
±(1% reading + 3 digits)
for 45Hz ~ 500Hz
±(2% reading + 3 digits)
for 500Hz ~ 1kHz
* LCD displays 0.0mV when measuring < 4.0mV.
Input Impedance: 10MΩ// less than 100pF
Frequency Response: 45 ~ 1kHz (Sine Wave)
AC Conversion Type: RMS sensing, RMS indication
Additional Accuracy by Crest Factor (C.F.): Add 6.0% for C.F. 1.0 ~ 2.0.
Add 7.0% for C.F. 2.0 ~ 2.5.
Add 9.0% for C.F. 2.5 ~ 3.0.
Max. Crest Factor: 1.6 for 6600 ~ 5000 digits
2.0 for 5000 ~ 3000 digits
3.0 for 3000 ~ 0 digits
Response Time: < 2 sec. when the LCD reading is bigger than 1000 digits in each range.
Overload Protection: AC/DC 720V for 10 second.

5
(3) DC Current
Range Resolution Accuracy
6.000A 0.001A
10.00A 0.01A
±(1% reading + 3 digits)
Response Time: < 1.5 sec.
Maximum measurement time: 5 minutes at 10A with at least 20 minutes rest time.
Overload Protection: AC/DC 20A for 10 second.
(4) AC Current
Range Resolution Accuracy (Sine Wave)
6.000A * 0.001A
10.00A 0.01A
±(1.5% reading + 3 digits)
* LCD displays 0.000A when measuring < 0.040A.
Frequency Response: 45 ~ 500Hz (Sine Wave)
AC Conversion Type: RMS sensing, RMS indication
Additional Accuracy by Crest Factor (C.F.): Same as ACV.
Max. Crest Factor: Same as ACV.
Response Time of AC Input: < 2 sec. when the LCD reading is bigger than 1000 digits in each
range.
Maximum measurement time: 5 minutes at 10A with at least 20 minutes rest time.
Overload Protection: AC/DC 20A for 10 second.
(5) Resistance
Range Resolution Accuracy
600.0Ω0.1Ω
6.000kΩ0.001kΩ
60.00kΩ0.01kΩ
600.0kΩ0.1kΩ
6.000MΩ0.001MΩ
±(1% reading + 5 digits)
40.00MΩ* 0.01MΩ±(2% reading + 5 digits)
* There is a little rolling less then ±50 digits when measuring > 10.00 MΩ.
Open Circuit Voltage: Approx. 0.6V
Response Time: < 1.5 sec.
Overload Protection: AC/DC 600V for 10 second.

6
(6) Continuity
Range Resolution Accuracy
600.0Ω0.1Ω±(1% reading + 5 digits)
Open Circuit Voltage: Approx. 0.6V
Continuity: Built-in buzzer sounds when measured resistance is less than 30Ωand sounds off
when measured resistance is more than 200Ω, Between 30Ωto 200Ωthe buzzer
maybe sound or off either.
Continuity Indicator: 2.7KHz Tone Buzzer
Response Time of Buzzer: < 500 μsec.
Response Time of LCD reading: < 1.5 sec.
Overload Protection: AC/DC 600V for 10 second.
(7) Capacitance
Range Resolution Accuracy
100.0µF 0.01µF
1000µF 1µF
±(1.9% reading + 2 digits)
Response Time when measuring 1000µF: < 2.5 sec.
Overload Protection: AC/DC 600V for 10 second.
(8) Frequency
Range Resolution Min. Sensitivity Accuracy
100.00Hz 0.01Hz > 10.0Vp-p
1000.0Hz 0.1Hz > 10.0Vp-p
10.000kHz 0.001Hz > 10.0Vp-p
50.00kHz 0.01Hz > 10.0Vp-p
±(0.1% reading + 2 digits)
Max. Sensitivity: 600V rms
Response Time: < 1.2 sec. when measuring bigger than 2.00Hz signal.
Overload Protection: AC/DC 720V for 10 second.
(9) Over-range Indication
Display “OL” or “-OL” when the reading exceeds 10% of the full scale except the full scale is 10000
counts.
(10) Rotary Switch
In order to prevent a “0” reading, the contacts about the input signal must be made properly
before the contact of the function selection.

7
(11) Auto Power Off
The meter automatically turns the power off after powering up and no operation for 20 ± 5 minutes.
To power up, turn the knob back to OFF first.
(12) Measuring Rate: 3times/sec.
(13) Fuse: 10A/600V Fast Action Fuse
(14) Battery: Alkaline 1.5V Battery * 2
(15) Low Battery Voltage: 2.3V ± 0.1V
(16) Backlight
The meter automatically turns the backlight off after lighting up and no operation for 10 ± 1
minutes.
(17) Battery life (ALKALINE):
Approx. 26 hours with backlight on.
Approx. 360 hours with backlight off.
(18) Overvoltage Category
IEC 61010-1 600V CAT. III
(19) Operating Temperature
-10°C ~ 30°C, 80%RH
30°C ~ 40°C, 75%RH
40°C ~ 50°C, 45%RH
(20) Storage Temperature
-40°C ~ +60°C, 0 ~ 80%RH (No batteries)
<
=
<
=
<
=

8
Physical and Environmental Characteristics
noitpircseDscitsiretcarahC
Dimensions (H×W×D) 170mm×80mm×57mm
gK3.0)yrettabhtiw(thgieW
noitpircseDscitsiretcarahclatnemnorivnE
C°05+ot01-gnitarepoerutarepmeT
Non-Operating -40 to +60°C
.H.R%08<)gnitarepo(ytidimuH
).tf0656(M000,2gnitarepOedutitlA
Non-Operating 12,300M (40354 ft.)
Vibration & shock Operating MIL-PRF-28800F for Class 2 Instrument
esUroodnIesUroodnI
Certifications and compliances
SafetyDesigned to IEC61010-1, UL61010-1 and CSA specifications
Input rating Category lll 600V.
CAT lll : Distribution level mains, fixed installation.
CAT ll : Local level mains, appliances, portable equipment
Over voltage category
CAT l : Signal level, special equipment or parts of equipment,
telecommunication, electronics.
Pollution Degree 2 Do not operate in environments where conductive
Pollutants may be present.

9
Required Equipment
Required equipment is listed in Table B. If the recommended models are not available, equipment
with equivalent specifications may be used.
Repairs or servicing should be performed only by qualified personnel.
Table B. Required Equipment
Equipment Required Characteristics Recommended Model
Calibrator AC Voltage Range: 0 ～ 750V AC
Accuracy: ±0.07% (Basic)
Frequency Range: 40 ～ 1kHz
Accuracy: ±2%
DC Voltage Range: 0 ～1000V DC
Accuracy: ±0.006% (Basic)
Current Range: 0 ～20A
Accuracy: AC (40Hz to 1kHz): ±0.08% (Basic)
DC: ±0.02% (Basic)
Frequency Source: 0.5Hz ～ 100kHz
Accuracy: ±0.001%
Amplitude: 0.5V p-p ～ 600V p-p
Accuracy: ±5%
Resistance Range: 1Ω～100MΩ
Accuracy: ±0.03% (Basic)
Capacitance Range: 0.1uF ～1100uF
Accuracy: ±0.10% (Basic)
Fluke 5500 or Wavetek
9100 Calibrator or
equipment

10
Basic Maintenance
Warning
To avoid shock, remove the test leads and any input signals before opening the case or
replacing the battery or fuses.
Opening the Meter Case
Caution
To avoid unintentional shock circuit, always place the uncovered Meter assembly on a protective
surface. When the case of the Meter is open, circuit connections are exposed.

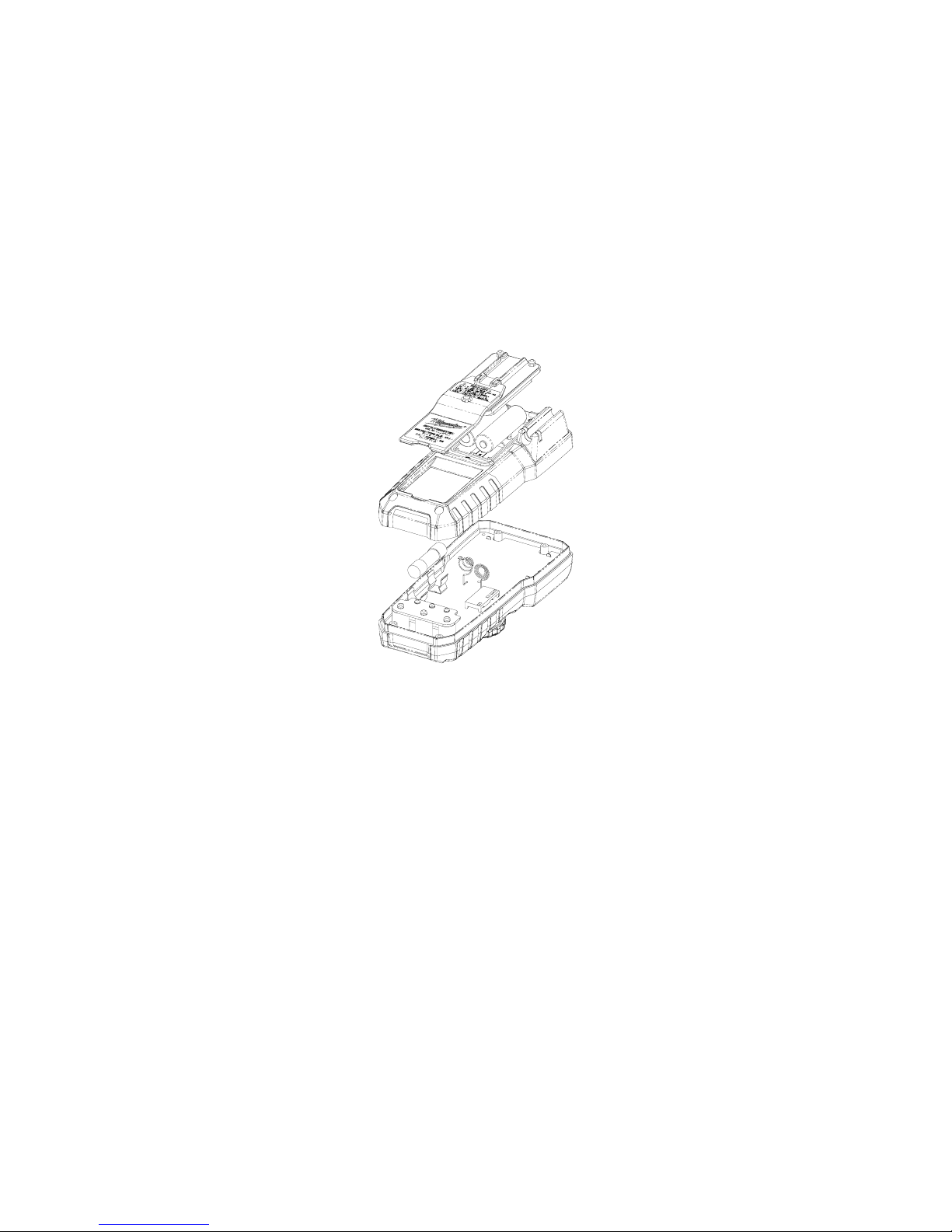

To open the Meter case, refer to Figure 1 and do the following:
1. Disconnect test leads from any live source, turn rotary switch to OFF, and remove the test
leads from the front terminals.
2. Remove the battery door by using a flat-blade screwdriver to turn the battery door screws turn
counter-clockwise.
3. The bottom case is secured to the top case by four screws. Using a phillips-head screwdriver
to remove the four screws.

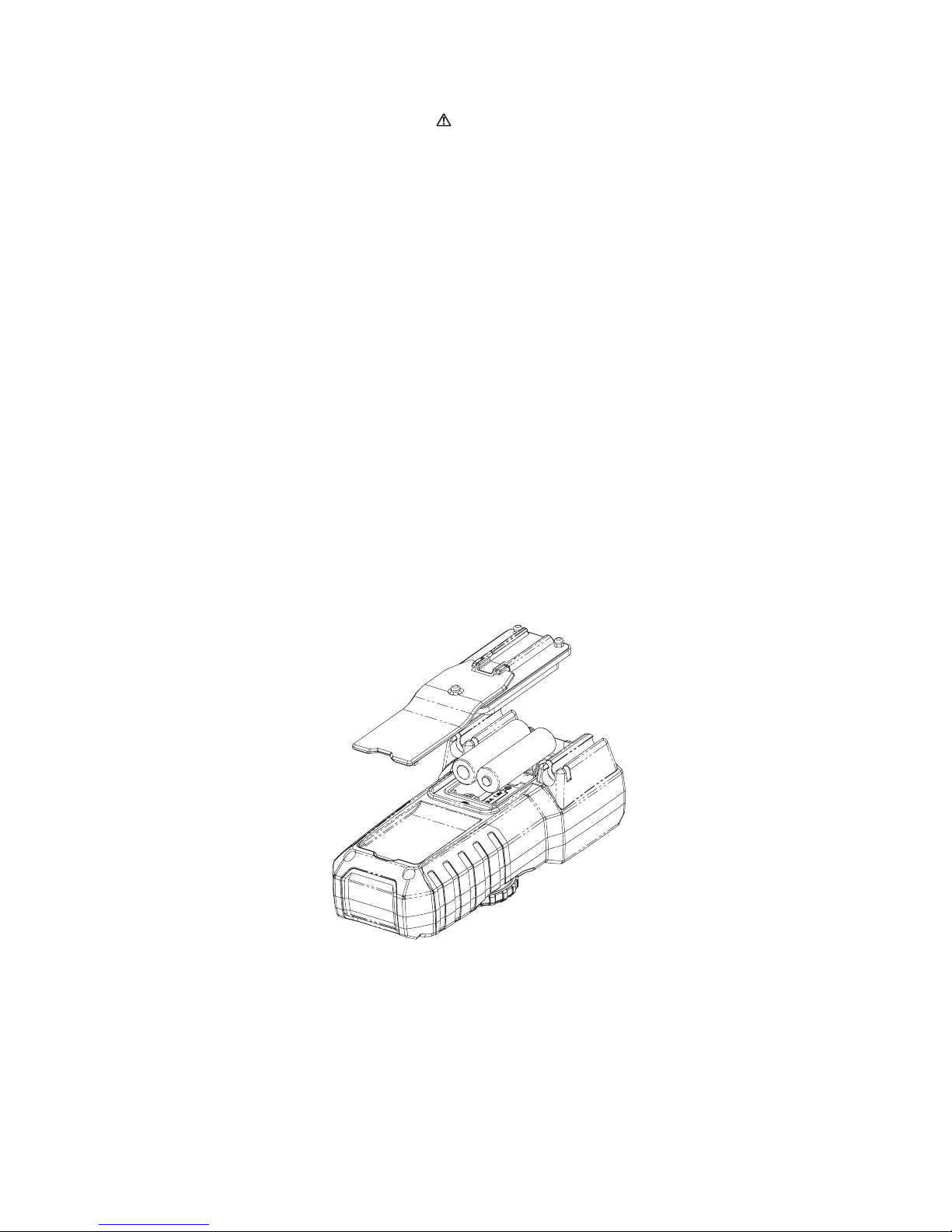

Replacing the Battery
The meter is powered by 2 AA 1.5V batteries.
To replace the battery, refer to Figure

11
Testing Fuses
To test the internal fuses of the meter.
1. Turn the rotary selector switch to the Ωposition.
2. To test FS1, plug a test lead into VΩHz input terminal, and touch the probe to the A input
terminal. The display should indicate between 0.0 to 0.2Ω. (Bussmann KTK-10
recommended). If display reads higher than 0.2Ω, replace the fuse.
Fuse Replacement
Refer to the following figure to replace fuse:
Use only a fuse with the amperage, interrupt, voltage, and speed rating specified.
Fuse rating : 10A , 600V, Fast
Replacing Fuses
Warning
To avoid electrical shock, remove the test leads and any input signals before replacing the
battery or fuses. To prevent damage or injury, INSTALL ONLY quick acting fuses with the
following Amp/Volt current interrupt rating :
Fuse : 10A, 600V, FAST.
Cleaning
Warning
To avoid electrical shock or damage to the Meter, never allow water inside the case. To avoid
damaging the Meter’s housing, never apply solvents to the Meter.

12
Performance Tests
The following performance tests verify the complete operability of the Meter and check the
accuracy of each Meter function against the Meter’s specifications.
Accuracy specifications are valid for a period of one year after calibration, when measured at an
operating temperature of 18°C to 28°C and at A maximum of 80% relative humidity.
To perform the following tests, it is not necessary to open the case, no Adjustments are
necessary. Merely make the required connections, apply the designated inputs, and determine if
the reading on the Meter display falls within the acceptable range indicated.
If the Meter fails any of these tests, it needs calibration adjustment or repair.
Testing the Display
Rotate the dial from the "OFF" position to any other position. Check the LCD display segments
when all segments are displayed. Compare the display with the example in Figure 2.

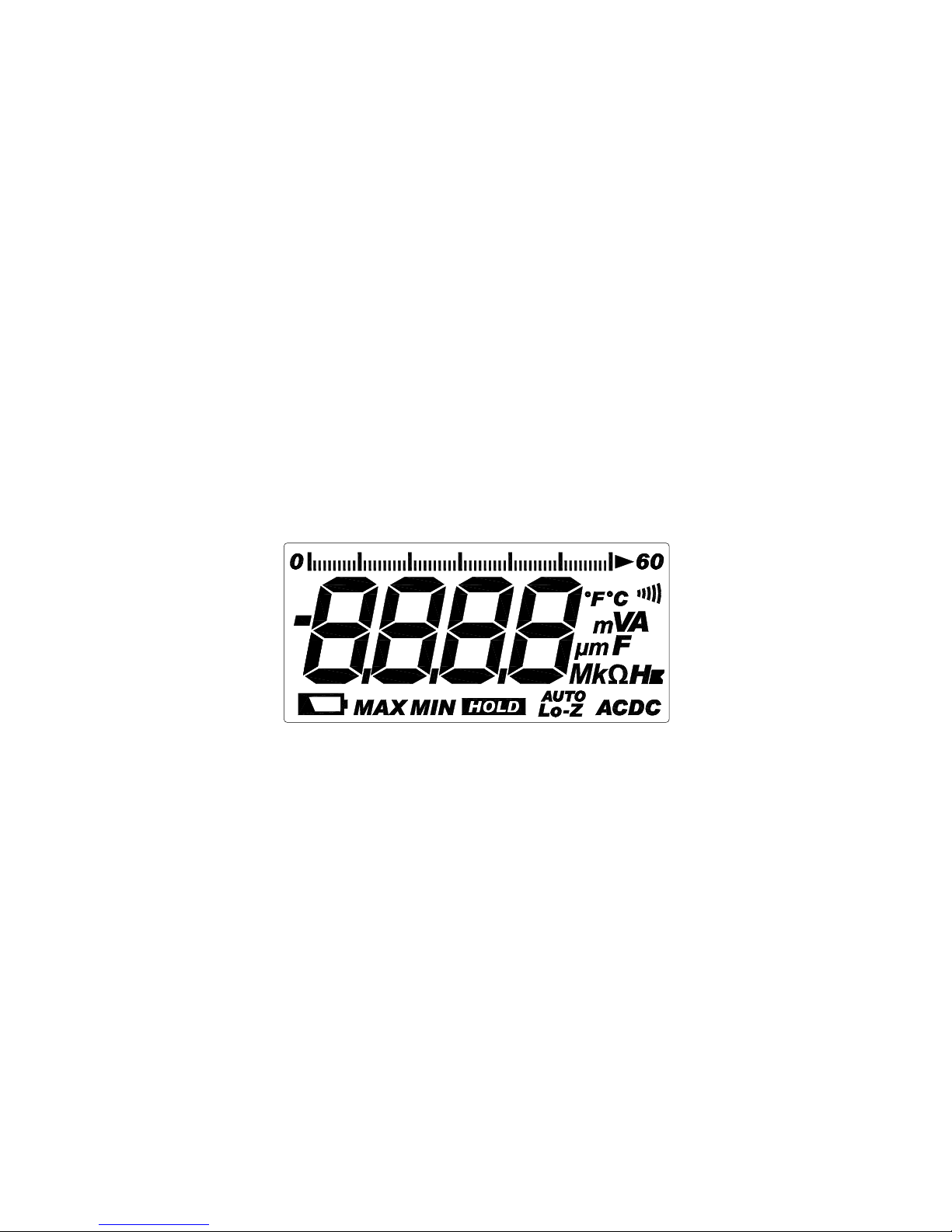

LCD Graphics 2216-20
Figure 2 Display Test

13
Testing the Voltage Function
To verify accuracy in the AC and DC voltage ranges, do the following:
1. Turn the rotary switch to “V” position.
2. Connect the Calibrator to the VΩand COMinputs on the Meter.
3. Set the Calibrator for the voltage and frequency from step 1 to 12 in Table 1.
4. Compare the reading on the Meter display with the display reading shown in Table 1.
5. If the display reading falls outside of the range shown in Table 1, the Meter does not meet
specification.
Table 1 AC Voltage Test:
Step Input Frequency Reading
1 500mV 50Hz 494.7 to 505.3
2 500mV 500Hz 494.7 to 505.3
3 500mV 1kHz 489.7 to 510.3
4 5.000V 50Hz 4.947 to 5.053
5 5.000V 500Hz 4.947 to 5.053
6 5.000V 1kHz 4.897 to 5.103
7 50.00V 50Hz 49.47 to 50.53
8 50.00V 500Hz 49.47 to 50.53
9 50.00V 1kHz 48.97 to 51.03
10 500.0V 50Hz 494.7 to 505.3
11 500.0V 500Hz 494.7 to 505.3
12 500.0V 1kHz 489.7 to 510.3
6. Turn the rotary switch to “V” position.
7. Set the calibration for the voltage from step 1 to 4 in Table 2.
8. Compare the reading on the Meter display with the display reading shown in Table 2.
9. If the display reading falls outside of the range shown in Table 2, the meter does not meet
specification.
Table 2 DC Voltage Test:
Step Input Reading
1 500mV 497.3 to 502.7
2 5.000V 4.973 to 5.027
3 50.00V 49.73 to 50.27
4 500.0V 497.3 to 502.7

14
Testing the Resistance Function
To verify the accuracy of the resistance function, do the following:
1. Connect the Calibrator to VΩHz and COMon the Meter.
2. Turn the rotary switch to Ω.
3. Apply the inputs for step 1-6 in Table 3.
4. Compare the Meter display readings to the display readings in Table 3.
5. If the display reading falls outside of the range shown in Table 3, the Meter does not meet
specification.
Table 3 Resistance Test :
Step Source Reading
1 560.0 553.9 to 566.1
2 5.600k 5.539k to 5.661k
3 56.00k 55.39k to 56.61k
4 560.0k 553.9k to 566.1k
5 5.600M 5.539M to 5.661M
6 36.00M 35.44M to 36.56M
* Lead resistance on the 400Ωrange is not included in error.
Testing the Capacitance Function
The Meter measures capacitance by charging the capacitor with a known Direct current,
measuring the resultant voltage, and calculating the capacitance. If the same capacitance is
measured on an impedance bridge, a different reading may result. This variance is likely to be
Greater at higher frequencies.
To verify the accuracy of the capacitance measuring function, do the Following:
1. Apply the Capacitor to the VΩHz and COMinputs on the Meter. For steps 1-4 in Table 4.
2. Turn the rotary switch to
3. Compare the reading on the Meter display to the reading in Table 4.
4. If the display reading falls outside of the range shown in Table 4, the Meter does not meet
specification.
Table 4 Capacitance Test :
Step Source Reading
13.6uF 3.3uF to 3.9uF
280.0uF 78.3uF to 81.7uF
3320uF 312uF to 328uF
41000uF 979uF to 1021uF

15
Testing the Ampere Function
To verify the accuracy of AC current measurement functions, do the following:
1. Connect the Calibrator to the Aand COMinputs on the Meter.
2. Turn the rotary switch to A~.
3. Apply the inputs for steps 1-4 in Table 5.
4. For each input, compare the readings on the Meter display to the reading in Table 5.
5. If the display reading falls outside of the range shown in the Table 5, the meter does not meet
specification.
Table 5 AC Current Test:
Step Source Frequency Reading
1 5.000A 50Hz 4.922A to 5.078A
2 5.000A 500Hz 4.922A to 5.078A
3 10.00A 50Hz 9.82A to 10.18A
4 10.00A 500Hz 9.82A to 10.18A
6. Turn the rotary switch to A .
7. Apply the inputs for steps 1-4 in Table 6.
8. For each input, compare the reading on the Meter display to the reading in Table 6.
9. If the display reading falls outside of the range shown in Table 6, the meter does not meet
specification.
Table 6 DC Current Test:
Step Source Reading
15.000A 4.922A to 5.078A
25.000A 4.922A to 5.078A
3 10.00A 9.82A to 10.18A
4 10.00A 9.82A to 10.18A
Testing the Frequency Function
To verify the accuracy of the Meter’s frequency function, do the following:
1. Connect the Calibrator to the VΩand COMinputs on the Meter.
Note: The accuracy of the Calibrator’s frequency function must be appropriate for the
specified accuracy of the Meter.
2. Set the rotary switch to Hz.
3. Set Function Generator for the square wave voltage and frequency for steps 1-7 of Table 7.
4. Compare the reading on the Meter display with the display reading shown in Table 7.
5. If the display reading falls outside of the range shown in Table 7, the Meter does not meet
specification.

16
Table 7 Frequency Test:
Step Source Level Waveform Reading
1 8.0Vp-p 2.00Hz Square Wave 1.98Hz to 2.02Hz
2 8.0Vp-p 80.00Hz Square Wave 79.90Hz to 80.10Hz
3 8.0Vp-p 800.0Hz Square Wave 799.0Hz to 801.0Hz
4 8.0Vp-p 8.000kHz Square Wave 7.990kHz to 8.010kHz
5 10.0Vp-p 50.00kHz Square Wave 49.93kHz to 50.07kHz
6 230.0Vp-p 10.00Hz Sine Wave 9.97Hz to 10.03Hz
7 230.0Vp-p 100.0Hz Sine Wave 49.93kHz to 50.07kHz

17
Calibration Procedure
Recalibrate the meter:
It is recommended that the meter may be calibrated once year. Use the following procedure to
calibrate the meter.
Environmental Condition
1. Perform calibration at an ambient temperature and relative humidity (23°C±2°C and R.H. 80%).
Allow the instrument to sit at this temperature for at least thirty minutes.
Calibration Procedure
(A) Open the bottom case
1. Disconnect the test leads from any circuit under test and turn off the meter.
2. Loosen the screw from the bottom case.
3. Remove the bottom case.
4. Supply 3V to the meter.
(B) DCV Calibration (VR2)
1. Rotate the rotary switch to DCV Function.
2. Connect the output of a DCV calibrator to V and COM input terminals of the meter.
3. Output DCV 4.000V from the calibrator.
4. Adjust VR2 until the display shows 4.000V ± 0.001V.
5. Turn off the output of the calibrator and disconnect the meter from the calibrator.
(C) ACV Calibration (VR3)
1. Rotate the rotary switch to ACV Function.
2. Connect the output of an ACV calibrator to V and COM input terminals of the meter.
3. Output ACV 4.000V @ 60Hz from the calibrator.
4. Adjust VR3 until the display shows 4.015V ± 0.001V.
5. Turn off the output of the calibrator and disconnect the meter from the calibrator.
(D) DCV mV Calibration (VR4)
1. Rotate the rotary switch to DCV Function.
2. Connect the output of a DCV calibrator to V and COM input terminals of the meter.
3. Output DCV 400.0mV from the calibrator.
4. Adjust VR4 until the display shows 400.0mV ± 0.1mV.
5. Turn off the output of the calibrator and disconnect the meter from the calibrator.
<
=

18
(E) DCA Calibration (VR7)
1. Rotate the rotary switch to DCA Function.
2. Connect the output of a DCA calibrator to V and COM input terminals of the meter.
3. Output DCA 5.000A from the calibrator.
4. Adjust VR7 until the display shows 5.000A ±0.001A.
5. Turn off the output of the calibrator and disconnect the meter from the calibrator.
(F) Resistance (6kΩRange) Calibration (VR6)
1. Rotate the rotary switch to the resistance function.
2. Connect the output of a resistance calibrator to V and COM input terminals of the meter.
3. Output resistance 5.000kΩfrom the calibrator.
4. Adjust the VR6 until the display shows 5.000kΩ±1Ω.
5. Turn off the output of the calibrator and disconnect the meter from the calibrator.
(G) Capacitance Calibration (VR1)
1. Rotate the rotary switch to Capacitance Function.
2. Connect the output of a capacitance calibrator to V and COM input terminals of the meter.
3. Output capacitance 100.0μF from the calibrator.
4. Adjust VR1 until the display shows 100.0μF ±0.1μF.
5. Turn off the output of the calibrator and disconnect the meter from the calibrator.
(H) Assemble the bottom case
1. Assemble the bottom case.
2. Tighten the screw.
