MIMAKI OPT-J0410 User manual

MIMAKI ENGINEERING CO., LTD.
URL: http://eng.mimaki.co.jp/ D203048-10
3.2m ロールシャフトユニット
3.2m Roll shaft unit
OPT-J0410
Table of Contents
For English For Japanese
Foreword.............................................2
DISCLAIMER OF WARRANTY...............2
On This Operation manual......................2
Requests.................................................2
About installing this machine...............3
Where to Install This Machine.................3
Names of Parts and Functions............3
Rear Side and Right Side of the
Machine...................................................3
Setting a Media...................................4
Adjusting the Head Height.......................4
Setting a roll media..................................4
Setting leaf media....................................5
はじめに .............................................6
ご注意..................................................... 6
取扱説明書について ............................... 6
おねがい ................................................. 6
本機の設置について ...........................7
設置場所について................................... 7
各部の名称とはたらきについて .........7
装置背面 /側面 ....................................... 7
メディアをセットする........................8
ヘッド高さを調整する ........................... 8
ロールメディアをセットする................. 8
リーフメディアをセットする................. 9

Foreword
2
Foreword
Congratulations on your purchase of “3.2m Roll shaft unit” for MIMAKI color ink jet printer SIJ series.
DISCLAIMER OF WARRANTY
THIS LIMITED WARRANTY OF MIMAKI SHALL BE THE SOLE AND EXCLUSIVE WARRANTY AND IS IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS, AND MIMAKI NEITHER ASSUMES NOR AUTHORIZES DEALER TO ASSUME
FOR IT ANY OTHER OBLIGATION OR LIABILITY OR MAKE ANY OTHER WARRANTY OR MAKE ANY OTHER
WARRANTY IN CONNECTION WITH ANY PRODUCT WITHOUT MIMAKI’S PRIOR WRITTEN CONSENT.
IN NO EVENT SHALL MIMAKI BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR FOR
LOSS OF PROFITS OF DEALER OR CUSTOMERS OF ANY PRODUCT.
On This Operation manual
• This Operation manual is describing the operations and maintenance of “3.2m Roll shaft unit” (called as this machine
hereafter)
• Read this Operation manual carefully and understand them thoroughly to use.
• It is also necessary to keep this Operation manual on hand.
• This Operation manual has been carefully prepared for your easy understanding, however, please do not hesitate to
contact a distributor in your district or our office if you have any inquiry.
• Descriptions contained in this Operation manual are subject to change without any notice for improvement.
• You can also download the latest manual from our website.
Requests
• This Operation manual has been carefully prepared for your easy understanding.
However, please do not hesitate to contact a distributor in your district or our office if you have any inquiry.
• Description contained in this Operation manual are subject to change without notice for improvement.
Reproduction of this manual is strictly prohibited.
All Rights Reserved.Copyright
© 2016 MIMAKI ENGINEERING Co., Ltd.

About installing this machine
3
About installing this machine
Where to Install This Machine
This optional kit is used with the Mimaki SIJ Series/UJV55-320 Inkjet Printer to ensure stable feeding of media on the
feeding side, where it is easy for the media to come loose.
The space required to install this optional kit on a Mimaki printer is shown in the following table.
When installing this optional kit, give careful consideration to the total size of the printer as well as the space required to
perform a print job.
Names of Parts and Functions
Rear Side and Right Side of the Machine
Width Depth
The width of the printer The depth of the printer + 70mm (Rear side)

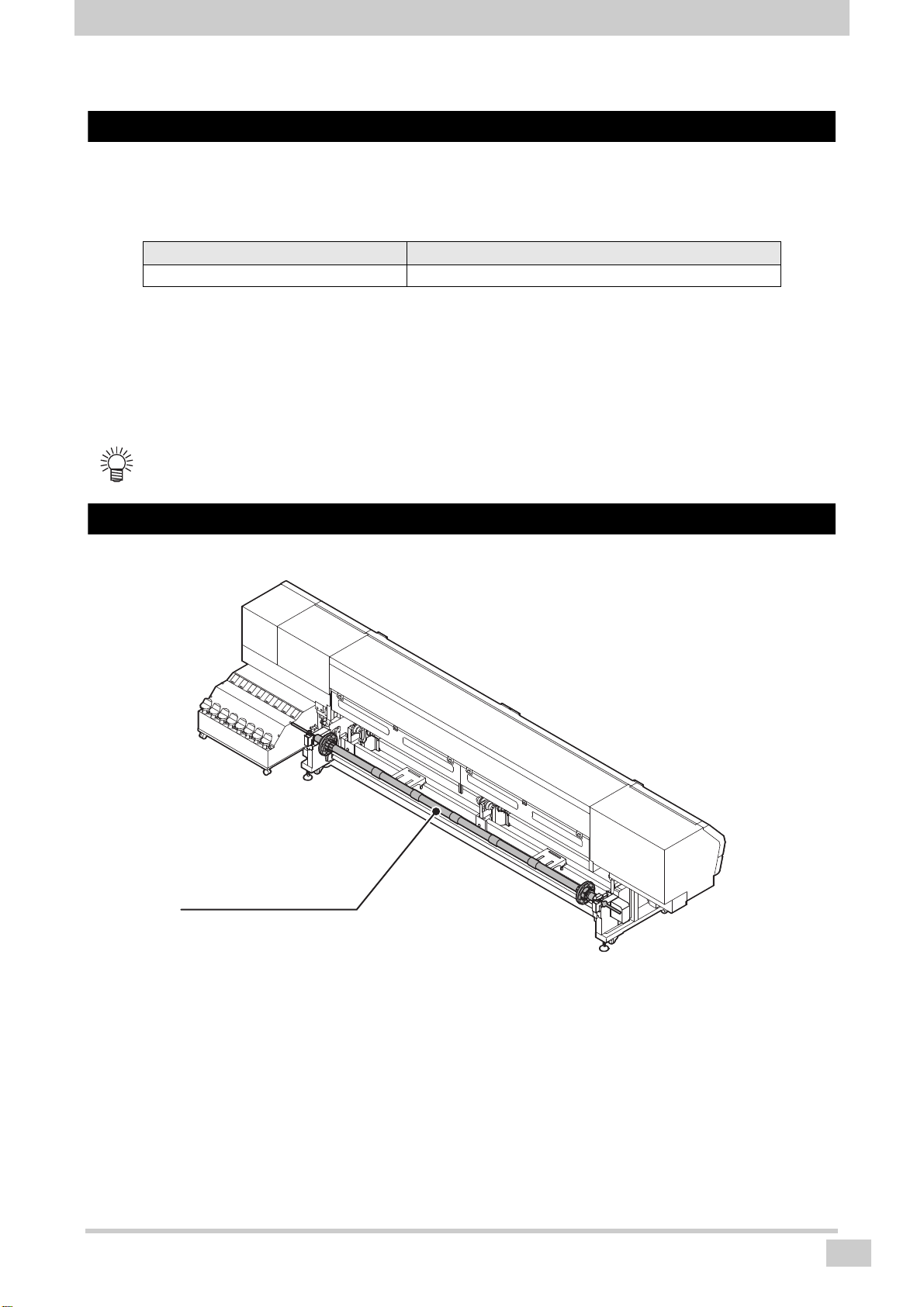

• The 3.2m Roll shaft unit is shown in the figure below installed on a Mimaki UV Inkjet Printer “SIJ-320UV”.
3.2m Roll shaft unit

4

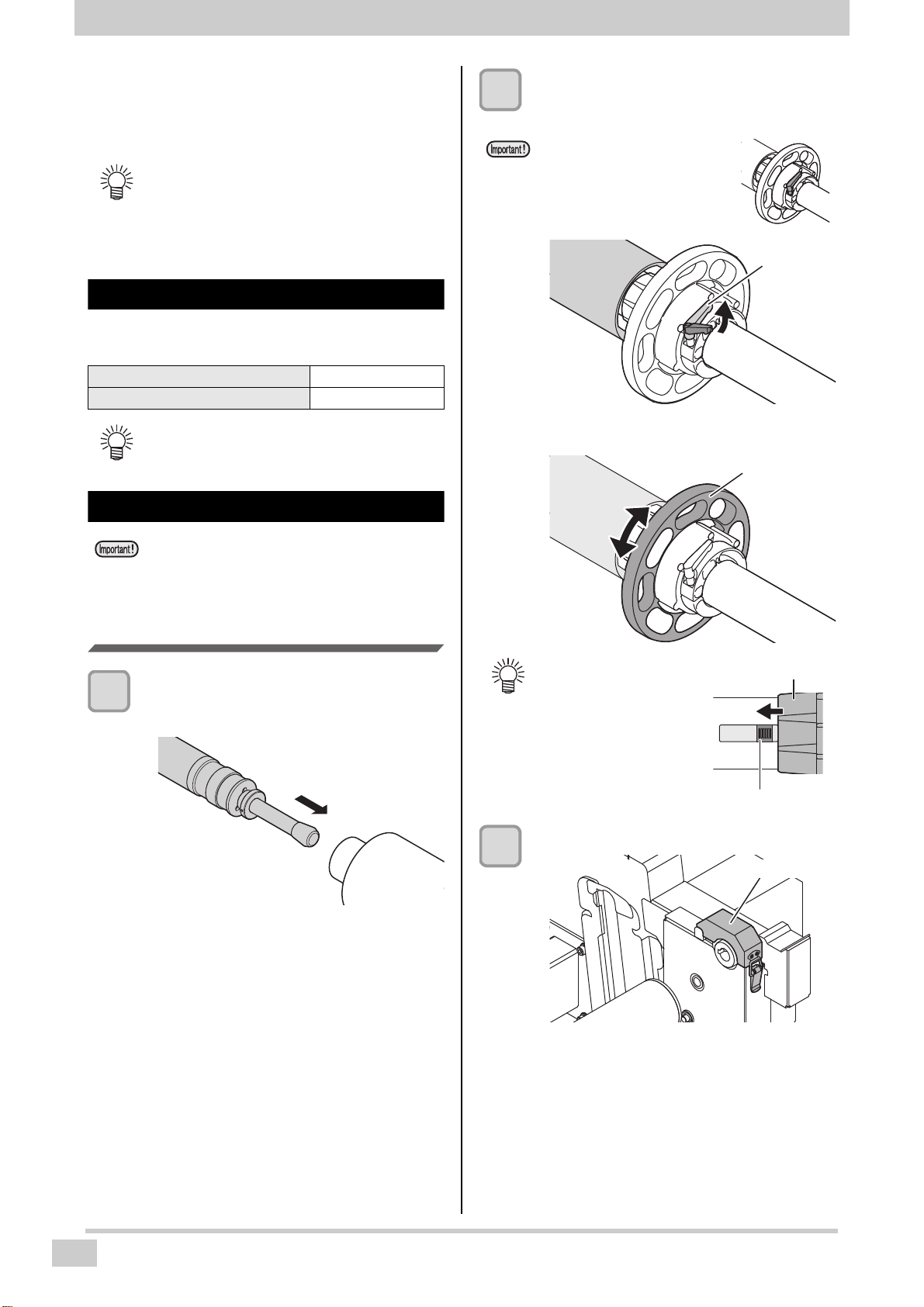

Setting a Media
Setting a Media
The method for setting media when using the 3.2m Roll
shaft unit is explained below.
Adjusting the Head Height
If you use a tarpaulin (Banner), adjust the head height as
follows;
Setting a roll media
Loading the media on the media set
shaft
1Insert the “Media set shaft”, which is
included in the 3.2m Roll shaft unit box,
into the roll media.
2Set the roll holder for right and left.
(1) Insert the roll holder (right and left) in a paper
core and tighten with the ratchet handle.
(2) Turn the handle of the take-up roll holder to
tightly secure the paper core.
3Open the AMF cover.
• In general, this section describes the changes that
should be made in the media setting procedure
when using the 3.2m Roll shaft unit.
• For more information about the basic media
setting procedure, refer to the operation manual
that came with your printer.
Lever position Banner Standard
Distance between platen and head 1.9mm
• Please raise the lever when the media is prone to
gather dust in the head or is often stained with ink
traces.
• When setting roll media, use the “Media set shaft”
and the “Roll holder”.
• After tightening the screw, turn
the ratchet handle in toward the
roll holder. If the ratchet handle
is left sticking out, it could
interfere with the operation of
the unit.
Fixed area of the roll
holder
• Install the unit so that the
roll holder is fixed within
the “green area” of the
sticker on the roll shaft.
Ratchet Handle
Handle
Roll holder
Fixed area
AMF cover

5
Setting a Media
4Install the media set shaft (with the roll
media) on the feeding device, and then
close the AMF cover.
5Regarding the procedure for feeding the
media to the front of the unit, refer to the
operation manual that came with your
printer.
Fixing the media to the media take-up
device
When the printing surface
is the inner side
Fix the media so that the
printing surface is on the
inside.
When the printing surface
is on the outer side
Fix the media so that the
printing surface is on the
outside.
Setting leaf media
• Before fixing the media, be sure to confirm which
side of the media is the printing surface (inner
side/outer side). The printing side will determine
whether the media should be fixed with an inward
winding or an outward winding.
• When using leaf media, no particular operations
are required if the 3.2 Roll shaft unit is installed.
For information on how to set leaf media, refer to
the operation manual that came with your printer.
