MINICRAFT Cessna 172 Skyhawk User manual

Cessna 172
The Cessna 172 Skyhawk is a four-seat, single-engine, high-wing airplane and probably the most popular flight training
aircraft in the world. The first production models were developed in the mid-1950’s with the first aircraft delivered in
1956. Up-dated Cessna 172’s are still in production with more than 43,000 total built to date.
The Skyhawk delivers an excellent blend of characteristics including seating for 4 adults, a modest capacity for
additional luggage or equipment, a cruising speed of 140 knots, plus economic operation and ease of maintenance and
the airplane is easy to fly. The Skyhawk is the aircraft people most visualize when they hear the words “small plane”.
Minicraft Models (US) LLC, 1501 Commerce Drive, Elgin IL 60123
USA
www.minicraftmodels.com
11635

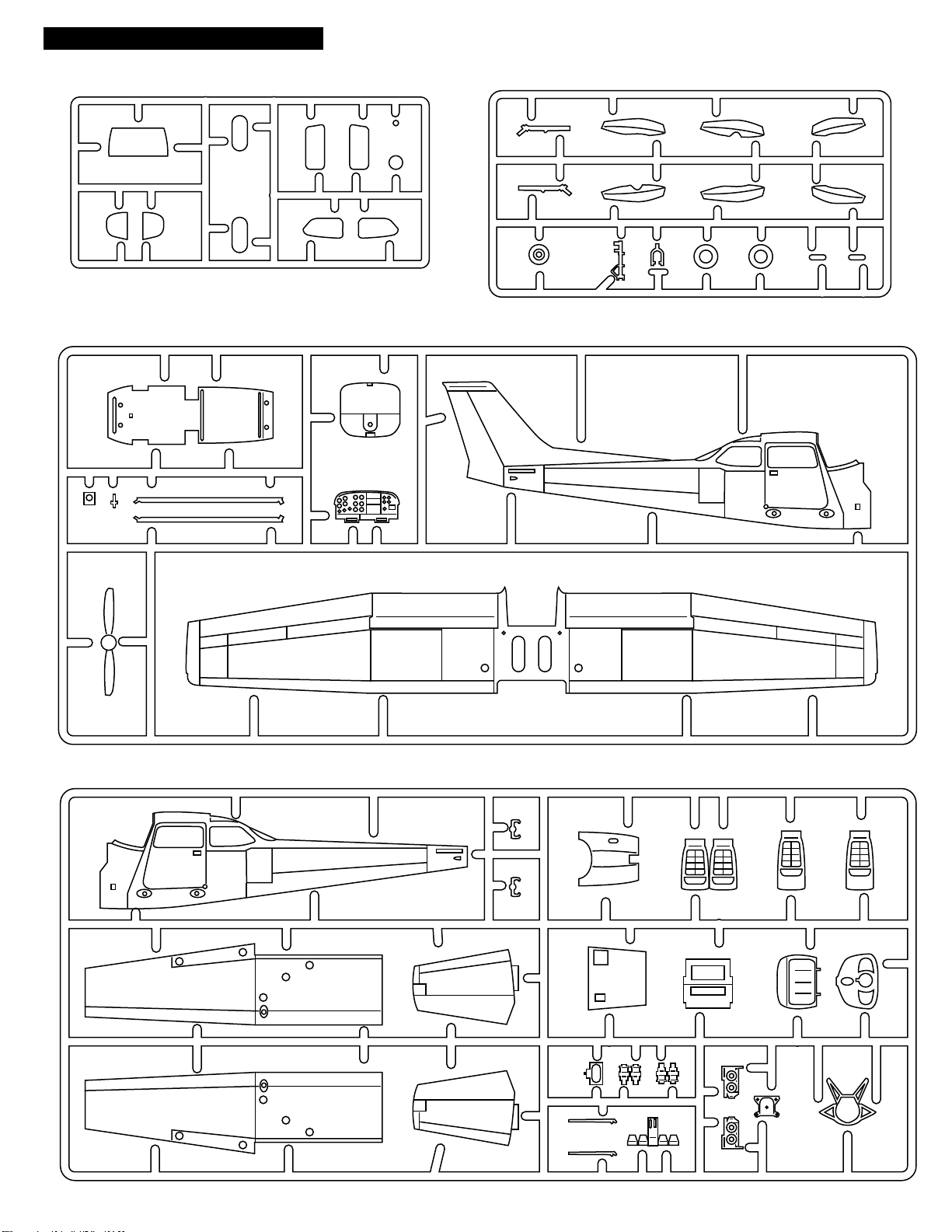

PARTS LOCATING DIAGRAM
CLEAR SPRUE E LANDING GEAR SPRUE C
MAIN COMPONENT SPRUE B
MAIN COMPONENT SPRUE A
57
58 58A
63
64
60 59
66
65
62 61
36
37
40
41
42
43
47
48
38 38
34
34
46
45
44
1
12
24
31A 67
6
7
23
3
2
32 20
27 25 25
22
29
28
21
19
18 17
31
10
15
16
14
13
8
9
5
4
32
30
C.172 Land Version

INTERIOR ASSEMBLY
1
INSTRUMENT PANEL
2
FUSELAGE ASSEMBLY
3
31A
28 29
24
31
32
32
1
30
59
61
1
2
62
60
25
25
27
1 • Right (Starboard) Fuselage / fuselage droite / richtiger rumpf
30 • Instrument panel / tableau de bord / instrumentenbrett
32 • Control yoke / controller le joug / steuerjoch
24 • Floor / plancher / boden
25 / 27 / 28 • Seat / place / sitz
29 • Bulkhead / cloison / bulkhead
31A • Compass / compas / kompass
31 • Rudder pedals / pedales de gouvernail / ruder pedale
2 • Left (Port) Fuselage / fuselage gauche / linker rumpf
1 • Right (Starboard) Fuselage / fuselage droite / richtiger rumpf
59 / 60 / 61 / 62 • Window / window / fenster
Cement
Coller
Kleben
Pegar
Incollare
Colar
Kleven
DO NOT Cement
Ne pas Coller
Nicht Kleben
No Pegar
Non Incollare
Nao Colar
Niet Kleven
Cut away
Couper
Scheiden
Cortar
Tagliere
Cortar
Snijden
Optional parts
Choix
Auswahlmoglichkeit
Eleccion
Scelta
Opaco
Keuze
Repeat operation
Répeeter l' opération
Vorgang wiederholen
Repitir la operacion
Ripetere
Repitir a operaçao
Herhalen
Symmetrical assembly
All Parts
All Parts
All Parts
• Seats / Floor / Bulkhead *
• Rudder pedals FLAT BLACK
• Compass SATIN BLACK
• Instrument panel FLAT BLACK
• Control yokes SATIN BLACK
*NOTE
Many variations exist for interior and upholstery colors
in this airplane, as many were built to custom orders
or have been retrofitted over their service years.
Off-White or Light Tan interior panels and upholstery
in various shades of Tan, Brown and Grey are common.
This note applies to Steps 1, 2, and 3.
C.172 Land Version

• Crankcase ALUMINUM
• Backplate ALUMINUM
• Oil pan STEEL
• Cylinders BLACK
• Engine mount ALUMINUM
• Firewall ALUMINUM
• Strut ALUMINUM
• Tire FLAT BLACK
12 • Firewall / cloisen pare-feu / firewall
45 / 46 • Nose gear strut / train d'atterrissage avant / nase gang strut
44 • Nosewheel / roulette de nez / nase rad
47 / 48 • Nosegear fairing / faire / fairing
FIREWALL & NOSEGEAR
5
ENGINE ASSEMBLY
4
16 15 14
19
18
17
13
12
47
48
45
46
44
NOTE
Remove ejector pin stubs from
parts 17/18 before
proceeding with assembly.
13 • Engine mount / mont de moteur / maschineuntersatz
14 • Backplate / plaque arriere / rückwand
15 / 16 • Crankcase / carter / crankcase
17 / 18 • Cylinders / cylindres / zylinder
19 • Oil pan / huiler la casserole / ölpfanne
All Parts
All Parts
C.172 Land Version

Note wing assembly is shown in place
• Propeller spinner Yellow
• Propeller blades FLAT BLACK
• Cowling interior ALUMINUM
• Antennas WHITE
OPTIONAL
• Windshield and overhead cabin windows
CLEAR GRAY-GREEN
• Light 66 may be left clear (strobe light)
or painted CLEAR RED (rotating beacon)
IMPORTANT NOTE
Please refer to the Decal instructions.
You must apply fuselage stripe decals 1 / 2
before fitting the stabilizers 8 / 9.
• Cowling interior ALUMINUM
• Exhaust BURNT METAL
NOTE
Cowling 21 is removable to allow
display of the engine. If you choose
to, you may omit the engine
assembly, add nose weight in the
cowling, and glue part 21 into place.
This will allow the model to sit on
all three wheels without the
need for a tail support.
LOWER COWL
6
WING ASSEMBLY
7
MAIN COMPONENT ASSEMBLY
8
10
58
58A
10
66
8
9
57
21
3
4
64
63
5
23
All Parts
All Parts
All Parts
3 • Upper Wing / superieur aile / oberen flügel
5 • Left (Port) Lower Wing / bas aile gauche / linker läßt flugel
4 • Right (Starboard) Lower Wing / bas aile droit / richter läßt flugel
63 / 64 • Window / window / fenster
8• Right Stabilizer / stabilisateur droit / richter stabilisator
9 • Left Stabilizer / stabilisateur gauche / linker stabilisator
57 • Windscreen / pare -brise / windschutzscheibe
58 / 58A • Window / window / fenster
66 • Navigation light / lumiere la navigation / navigation lichte
10 • Antenna / l'anttenne / antenne
21 • Cowling / cowling / cowling
23 • Propeller / helice / propeller
65 • Light / lumiere / lichte
22 • Nose / nez / nase
20 • Cowling / cowling / cowling
67 • Exhaust / eschappement / auspumpen
65
67
22
20
C.172 Land Version

•Tires FLAT BLACK
• Steps FLAT BLACK
37 • Left (Port) Main Gear Strut / entretoise principal gauche / linker hauptlandung strut
42 / 43 • Fairing / faire / fairing
34 • Mainwheel / roue prinicpale / hauptrad
6 • Strut / entretoise / strut
23 • Step / etape / schritt
36 • Right (Starboard) Main Gear Strut / entretoise principal droit / richter hauptlandung strut
40 / 41 • Fairing / faire / fairing
34 • Mainwheel / roue prinicpale / hauptrad
7 • Strut / entretoise / strut
23 • Step / etape / schritt

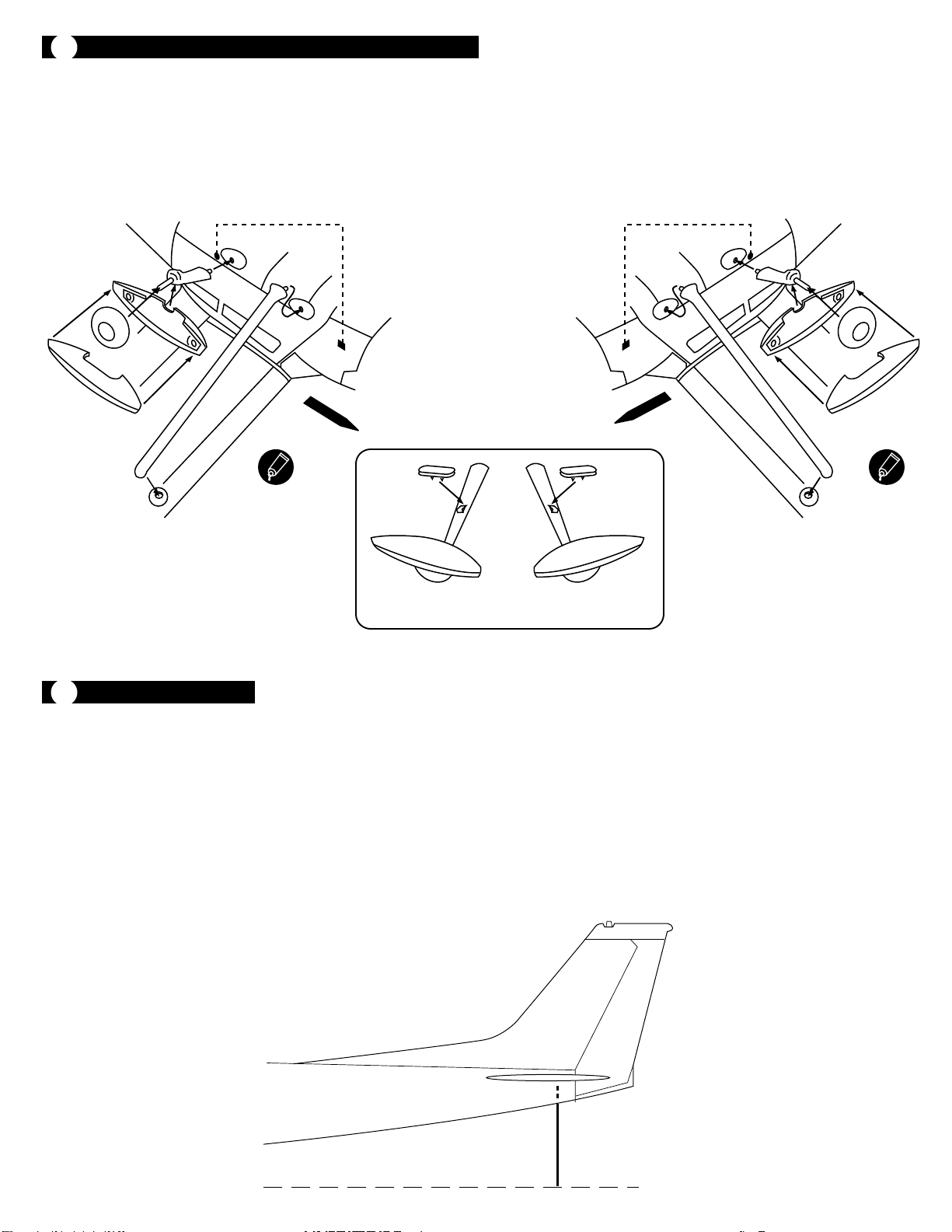

MAIN LANDING GEAR / WING STRUTS
9
TAIL SUPPORT
10
34
43
42
Right main strut Left main strut
37
Fill holes with model putty
and/or small bits of sprue
NOTE
The full-scale Cessna 172 is a delicately balanced machine relying on the weight of the
powerplant and distribution of passengers to maintain a proper center or gravity. When
on the ground, the weight of the engine keeps the aircraft on its nosewheel. This model
provides a detailed engine and removable upper cowling. If you choose to display the
engine, you will need to fashion a tail support rod from fine wire or stretched clear sprue.
Simply drill a small hole in the rear fuselage underside, insert the support, adjust
the support to hold the model with the nosewheel touching, and apply glue.
Fill holes with model putty
and/or small bits of sprue
Note drawings show model upside down
6
38 38
7
36 41
34
40
Port
(Left / gauche / links)
Starboard
(Right / droit / richter)
All Parts All Parts
FORWARD
FORWARD
C.172 Land Version

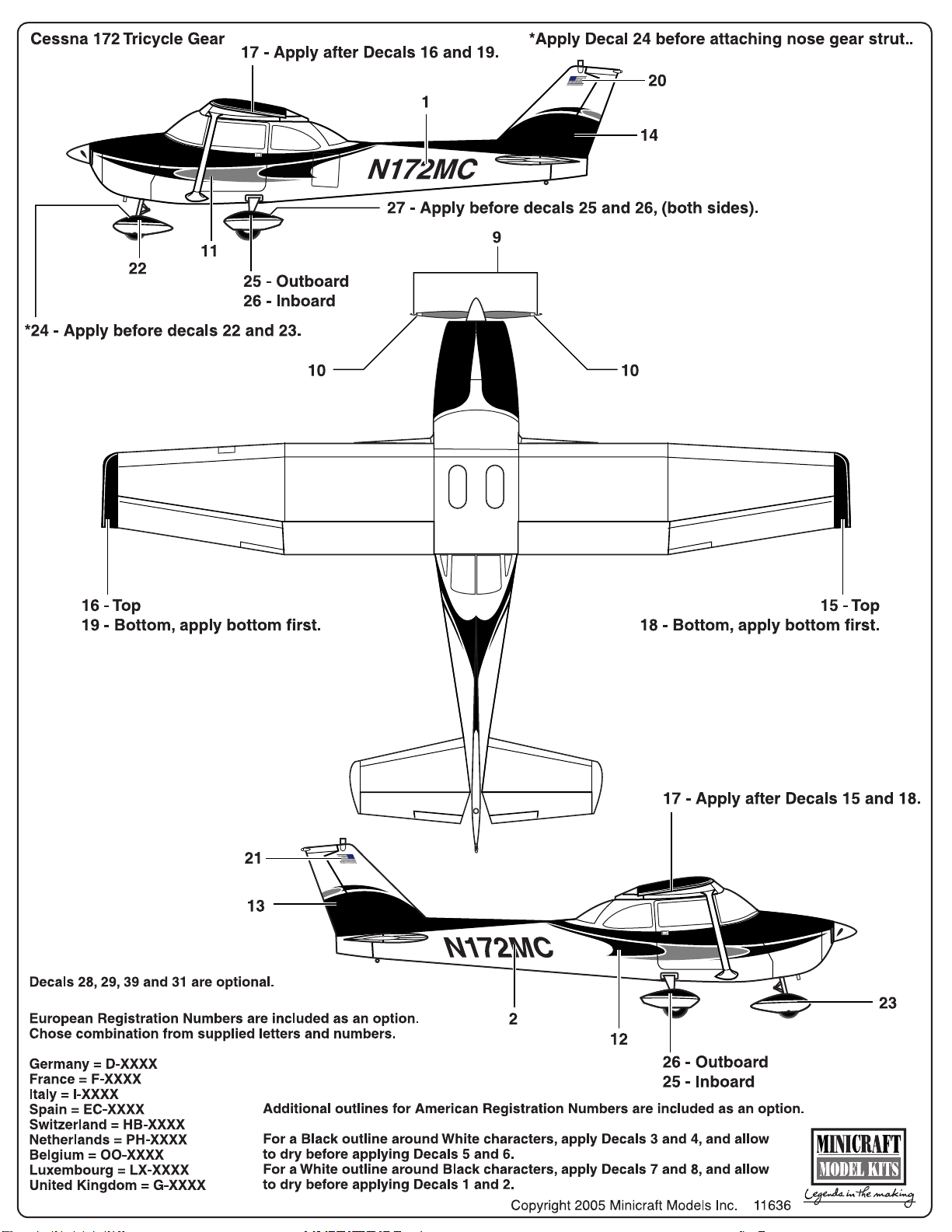

Your Minicraft model includes high-quality waterslide decals. These decals adhere best
to a glossy surface; and it is recommended that you apply a clear gloss coat over your
painted model.
Use a sharp scissors or knife to cut individual decals from the carrier sheet. Do not cut
into the clear film surrounding the individual decals.
* It is recommended that you apply one decal at a time.
* Place the decal section in warm water, when first inserted in the water your decal will
curl, after approximately ten seconds the decal will uncurl. Remove from water and lay
on a paper towel. After approximately 10 - 20 seconds the decal will slide freely from the
backing paper. Use a small brush to help slide the decal from the backing paper and into
position on the model. Carefully blot excess water from the decal, using care not to move
the decal or tear it.
* If you choose to use a setting solution, apply a thin coat over the decal following the
manufacturer’s instruction.
* Allow the decal to dry overnight. Wash any adhesive residue off the model with a small
amount of clean water and dry thoroughly.
* Apply clear gloss, matte or flat coat to seal decals following the instructions from the
manufacturer.
Visit our Website-
www.minicraftmodels.com
Minicraft Models (US) LLC
1501 Commerce Drive
Elgin, IL 60123
Phone: [phone]
Printed in China
