miniDSP U-DAC8 User manual

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 1
U-DAC8
8-CHANNEL HIGH-RESOLUTION USB DAC
User Manual

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 2
Revision history
Revision
Description
Date
1.0
First public release
12 March 2015
1.1
Error corrections, Windows signing
28 October 2015
1.2
Updated installation procedure,
added Mac firmware update
15 March 2016
1.3
Updated support links
6 July 2020

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 3
TABLE OF CONTENTS
Important Information........................................................................................................................................ 4
System Requirements –Windows.................................................................................................................... 4
System Requirements –Mac OS X.................................................................................................................... 4
Disclaimer/Warning ......................................................................................................................................... 4
Warranty Terms............................................................................................................................................... 4
FCC Class B Statement...................................................................................................................................... 4
CE Mark Statement.......................................................................................................................................... 5
Package Contents ............................................................................................................................................ 5
A Note on this Manual ..................................................................................................................................... 5
1Product Overview......................................................................................................................................... 6
2Hardware Connectivity................................................................................................................................. 7
2.1 Analog output ...................................................................................................................................... 7
2.2 DC Power ............................................................................................................................................. 7
2.3 USB ...................................................................................................................................................... 8
3Installation and Configuration –Windows.................................................................................................... 9
3.1 Before you start ................................................................................................................................... 9
3.2 Installation ........................................................................................................................................... 9
3.2.1 Download the latest driver ........................................................................................................... 9
3.2.2 Connect your U-DAC8................................................................................................................... 9
3.2.3 Setup the driver package ............................................................................................................ 10
3.3 Configuration ..................................................................................................................................... 10
3.3.1 Driver info .................................................................................................................................. 10
3.3.2 Buffer settings ............................................................................................................................ 11
3.3.3 Firmware upgrade ...................................................................................................................... 11
3.3.4 Device configuration................................................................................................................... 12
3.3.5 Output channel volume control (playback) ................................................................................. 12
3.3.6 Clock source ............................................................................................................................... 13
3.3.7 Stream formats........................................................................................................................... 13
4Installation and Configuration –Mac OS X.................................................................................................. 14
4.1 Installation ......................................................................................................................................... 14
4.2 Configuration ..................................................................................................................................... 14
5Additional Information ............................................................................................................................... 17
5.1 Specifications ..................................................................................................................................... 17
5.2 Firmware Upgrade.............................................................................................................................. 17
5.3 Obtaining support .............................................................................................................................. 17

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 4
IMPORTANT INFORMATION
Please read the following information before use. In case of any questions, please contact miniDSP via the
support portal at support.minidsp.com.
SYSTEM REQUIREMENTS –WINDOWS
•1GHz or higher processor clock speed recommended / Intel® Pentium®/Celeron® family, or AMD K6®/AMD
Athlon®/AMD Duron® family, or compatible processor recommended.
•512 megabytes (MB) of RAM or higher recommended
•One free USB 2.0 port
•Microsoft• ® Windows® XP SP2/Vista/Win7/Win8
SYSTEM REQUIREMENTS –MAC OS X
•Intel Core Duo processor or greater
•256 megabytes (MB) of RAM or higher recommended
•One free USB 2.0 port
DISCLAIMER/WARNING
miniDSP cannot be held responsible for any damage that may result from the improper use or incorrect
configuration of this product. Please read this manual carefully to ensure that you fully understand how to
operate and use this product, as incorrect use or use beyond the parameters and ways recommended in this
manual have the potential to cause damage to your audio system.
Please also note that many of the questions we receive at the technical support department are already
answered in this User Manual and in the online application notes on the miniDSP.com website. So please take
the time to carefully read this user manual and the online technical documentation. Thank you for your
understanding!
WARRANTY TERMS
miniDSP Ltd warrants this product to be free from defects in materials and workmanship for a period of one
year from the invoice date. Our warranty does not cover failure of the product due to incorrect connection or
installation, improper or undocumented use, unauthorized servicing, modification or alteration of the unit in any
way, or any usage outside of that recommended in this manual. If in doubt, contact miniDSP prior to use.
FCC CLASS BSTATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
•This device may not cause harmful interference.

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 5
•This device must accept any interference received, including interference that may cause undesired
operation.
Warning: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Notice: Shielded interface cable must be used in order to comply with emission limits.
Notice: Changes or modification not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
CE MARK STATEMENT
The U-DAC8 has passed the test performed according to European Standard EN 55022 Class B.
PACKAGE CONTENTS
Your U-DAC8 package includes:
•One U-DAC8 multichannel high-resolution D/A convertor
•One universal 5 VDC power supply
•One USB cable for computer connectivity (1.5m)
ANOTE ON THIS MANUAL
This User Manual is designed for reading in both print and on the computer. If printing the manual, please print
double-sided. The embedded page size is 8 ½” x 11”. Printing on A4 paper will result in a slightly reduced size.
For reading on the computer, we have included hyperlinked cross-references throughout the manual. In
addition, a table of contents is embedded in the PDF file. Displaying this table of contents will make navigation
much easier:
•In Adobe Reader on Windows, click on the “bookmarks” icon at the left. The table of contents will appear on
the left and can be unfolded at each level by clicking on the “+” icons.
•In Preview on the Mac, click on the View menu and select Table of Contents. The table of contents will
appear on the left and can be unfolded at each level by clicking on the triangle icons.

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 6
1PRODUCT OVERVIEW
Thank you for purchasing a miniDSP U-DAC8 high-resolution multi-channel D/A convertor. The U-DAC8 supports
8 channels of audio playback at sample rates up to 192 kHz, and is an ideal solution for:
•High-resolution multi-channel audio
•Computer-based (HTPC) home theater
•Surround-sound mixing and mastering
•Computer-based active loudspeaker systems
The U-DAC8 outputs can be connected directly to power amplification (and optionally a subwoofer):
The outputs of the U-DAC8 can also be connected to any device with multichannel analog inputs, such as an A/V
receiver or processor:

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 7
2HARDWARE CONNECTIVITY
2.1 ANALOG OUTPUT
Connect the analog outputs to your A/V receiver, multichannel preamp, or directly to amplification and
subwoofer.
Always be sure to turn off all equipment before connecting or disconnecting audio signal cables.
2.2 DC POWER
The supplied 5 VDC power supply includes a set of interchangeable power pins. Fit the correct pins for your
country. Connect the DC plug to the DC (5V) power socket.

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 8

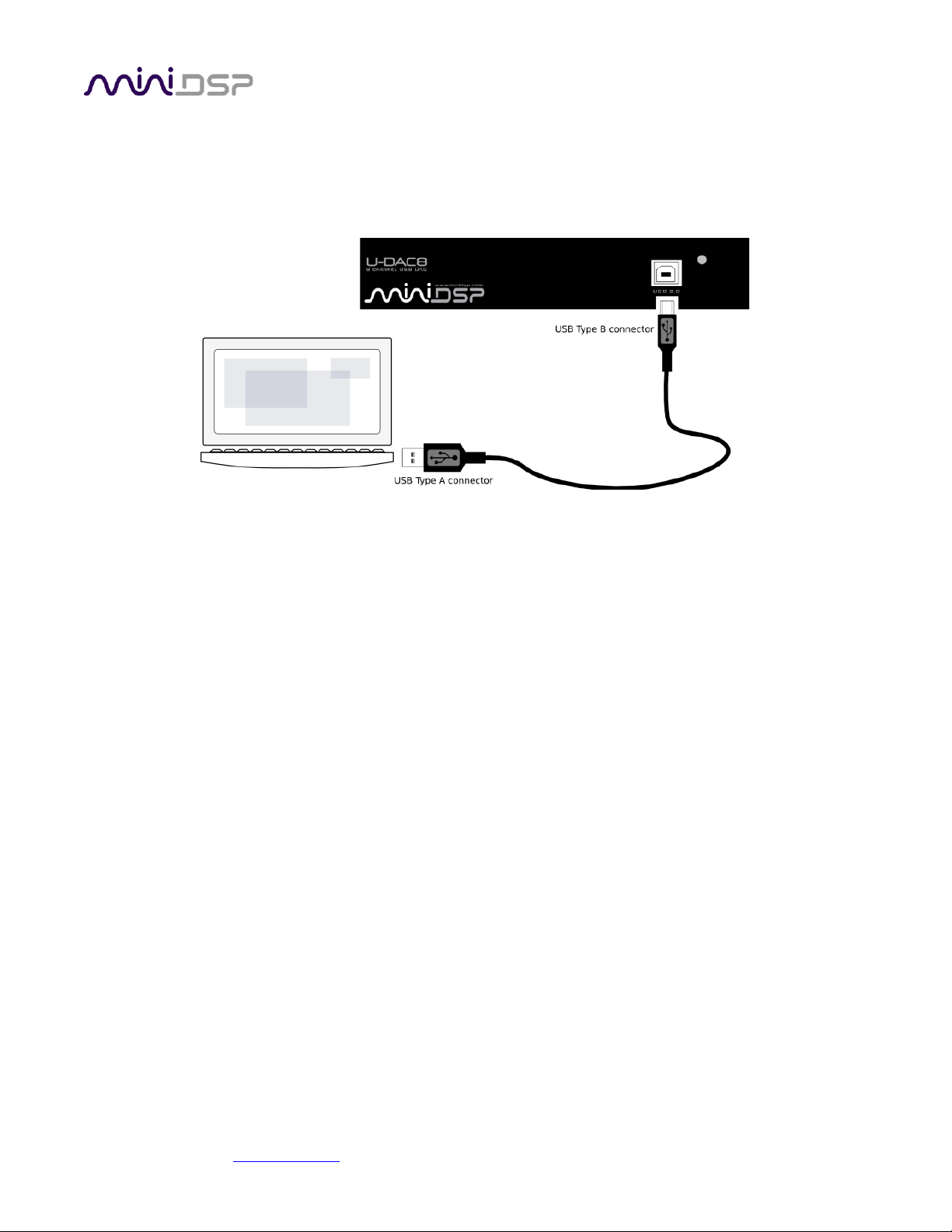

2.3 USB
To play audio through the U-DAC8, connect the USB port of the U-DAC8 to a USB 2.0 port on your computer
using the supplied cable. The U-DAC8 should also be connected for initial driver installation under Windows.

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 9
3INSTALLATION AND CONFIGURATION –WINDOWS
Please read and follow all steps in this section carefully.
3.1 BEFORE YOU START
64-bit editions of Microsoft Windows 8 and later require by default that software drivers be digitally signed. In
order to complete the installation steps below on these versions of Windows, you will need to change the
default behavior. Rather than describe all the steps here, we refer you to websites that explain the steps in
detail:
•http://www.howtogeek.com/167723/how-to-disable-driver-signature-verification-on-64-bit-windows-
8.1-so-that-you-can-install-unsigned-drivers/
•http://www.top-password.com/blog/how-to-disable-driver-signature-enforcement-in-windows-10-8-7/
3.2 INSTALLATION
The U-DAC8 is a USB Audio Class 2.0 device. For use with Microsoft Windows, driver installation is required.
3.2.1 Download the latest driver
When you receive notification that your order has shipped, your installation software download will be available
at the User Downloads section of the miniDSP website:
http://www.minidsp.com/userdownloads
(If you are unable to access this section of the website, please login first.)
Download the installation zip file under the USB Streamer Driver heading and unzip the folder on your PC.
3.2.2 Connect your U-DAC8
In order to automatically detect the U-DAC8 during driver installation, connect the U-DAC8 to your PC and
power it on before going to the following step.

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 10
3.2.3 Setup the driver package
Click on the setup.exe application in the unzipped installation folder to start the installation process. The
installer will first check for the presence of the U-DAC8, then continue with installing the driver.
Installation will take several minutes. Accept the defaults for screens such as install location. If you receive a
warning that Windows cannot verify the publisher, click Install this driver software anyway.
3.3 CONFIGURATION
To configure the U-DAC8, open the USBStreamer Control Panel (from Start Menu -> miniDSP Ltd ->
USBStreamer). It has several panes, described below.
3.3.1 Driver info
This panel provides general information and the driver version.

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 11
3.3.2 Buffer settings
The buffer settings are for those looking to optimize the buffering and latency settings of the interface. Note
that changing these settings may result in unstable operation since such changes are dependent on the
resources of the PC. For example, the lowest latency settings require high amounts of CPU and memory, and
may not work on some machines. If you do not require lowest latency, we recommend that you do not depart
from the default safe settings.
3.3.3 Firmware upgrade
This screen is used to update the U-DAC8 when a firmware update becomes available. The updated firmware
will be made available in the User Downloads section of the miniDSP.com website. After downloading, click on
Browse, select the downloaded firmware file, then click on Start Firmware Upgrade.
DO NOT DISCONNECT THE USB CABLE OR POWER FROM THE U-DAC8 WHILE FIRMWARE UPDATE IS IN
PROGRESS. DOING SO MAY “BRICK” YOUR U-DAC8.

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 12
3.3.4 Device configuration
This panel is the configuration panel for the device currently connected to the PC. Note that while multiple U-
DAC8s can be connected to a single PC, they should not use the same USB Controller in order to avoid any
chance of overloading the bandwidth of the controller.
The current sample rate shown reflects the sample rate of the file being played by the Windows player. This
setting cannot be changed in the Control panel, but simply reflects the current sample rate of the U-DAC8.
3.3.5 Output channel volume control (playback)
This panel contains a master volume control for all eight output channels, and individual level controls for each
channel. If the Link button is pressed, the volume controls for both channel of a pair (e.g. Analogue 1, Analogue
2) are controlled together.

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 13
oTo reset the master volume control or a pair of channels to 0 dB (no attenuation), click the 0dB button.
oTo mute all channels, click the M button above MASTER.
oTo mute a pair of channels, click the M button above the names of the channel pair.

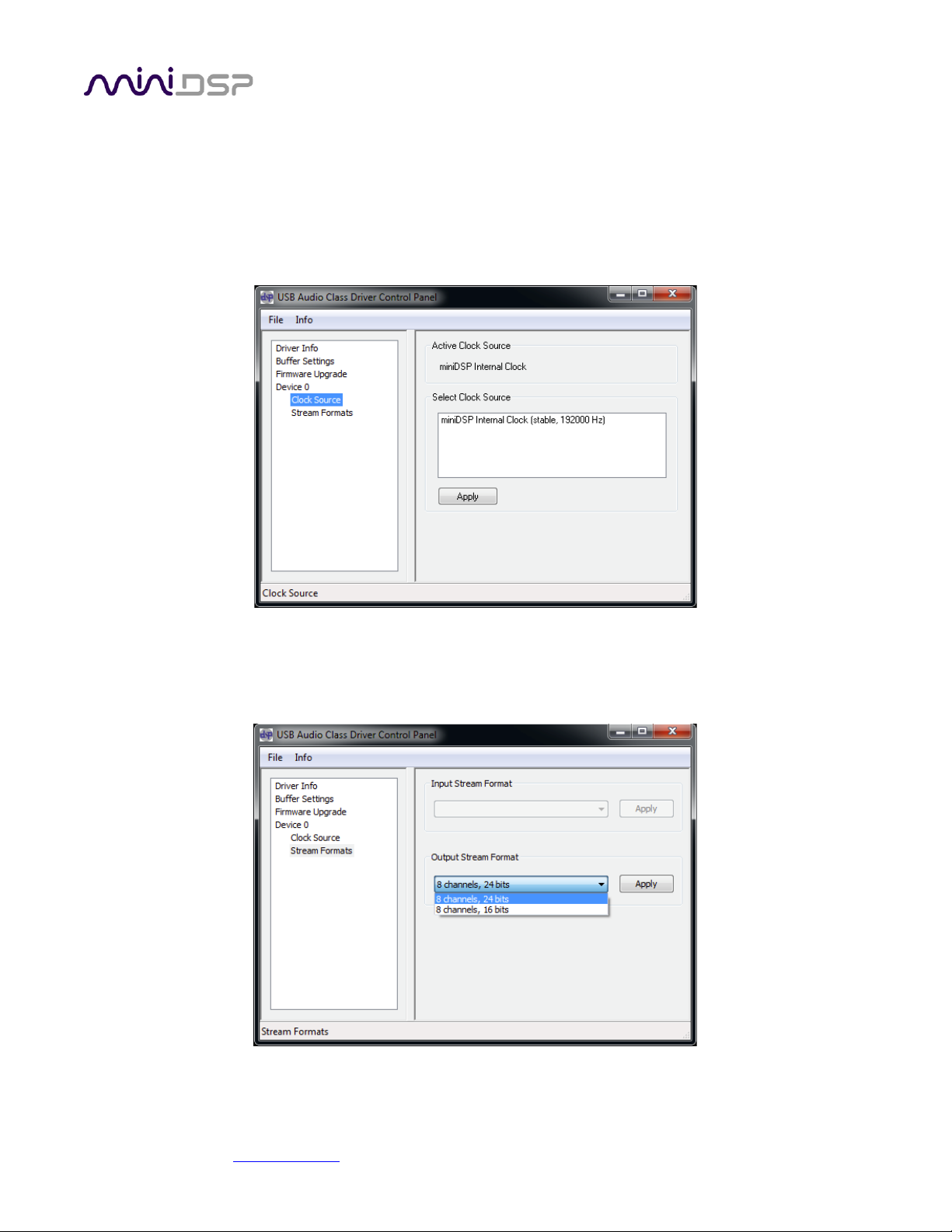

3.3.6 Clock source
This pane displays the clock source. The U-DAC8 does not allow the clock source to be changed.
3.3.7 Stream formats
This pane allows 24-bit or 16-bit data to be selected. The output is always set for eight output channels.

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 14
4INSTALLATION AND CONFIGURATION –MAC OS X
4.1 INSTALLATION
Mac OS X has native support for USB Audio class 2.0 devices, so no driver installation is required. The U-DAC8
will automatically be detected by Mac OS X as a compliant multichannel USB audio interface.
4.2 CONFIGURATION

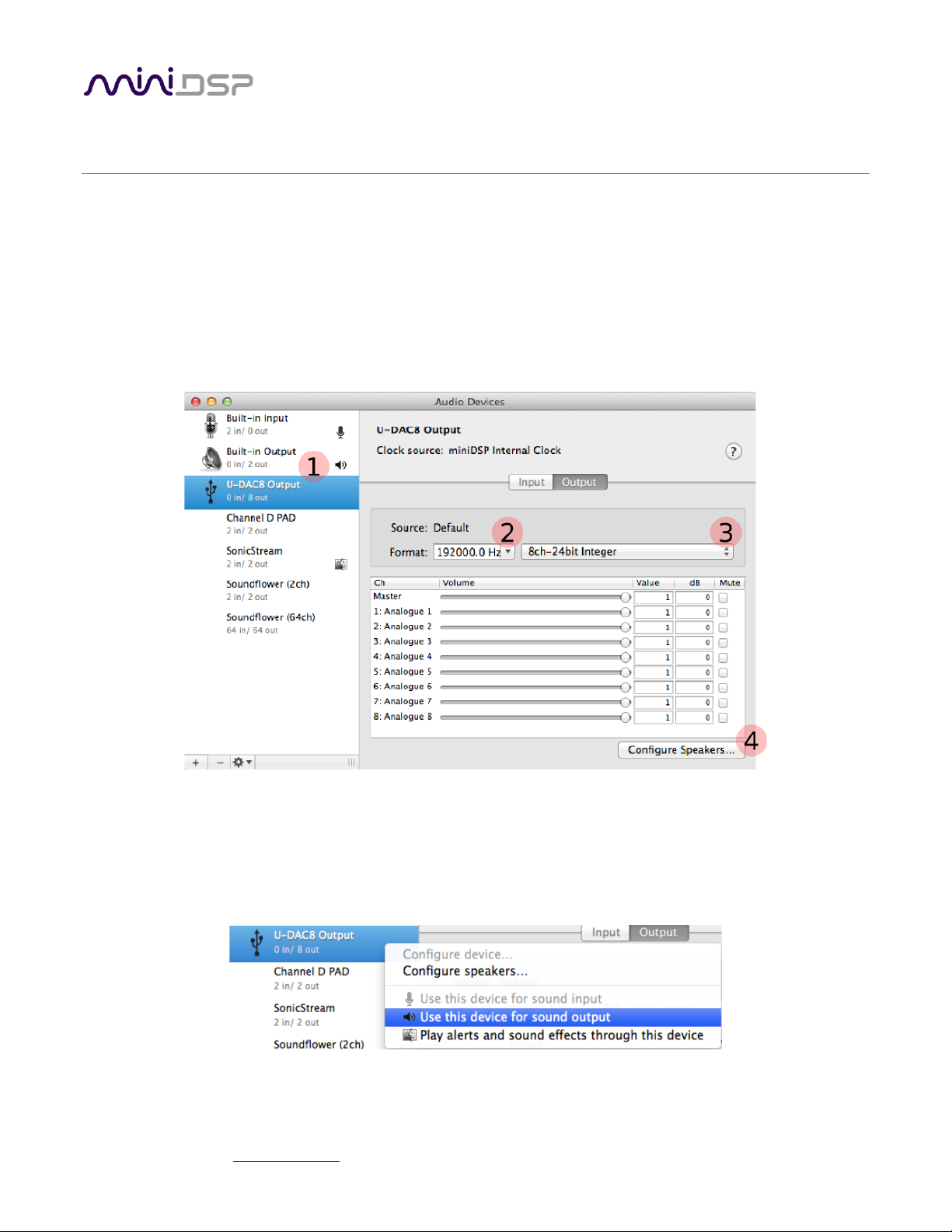

Open the program Audio MIDI Setup (in Applications->Utilities). The U-DAC8 will appear automatically in the
list on the left hand side, as the device USBStreamer.
Refer to the numbers on the above screenshot:
1. Click on U-DAC8 Output to select the U-DAC8 for settings changes. To set the U-DAC8 to be the default
audio output device, right-click and select “Use this device for sound output”.

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 15

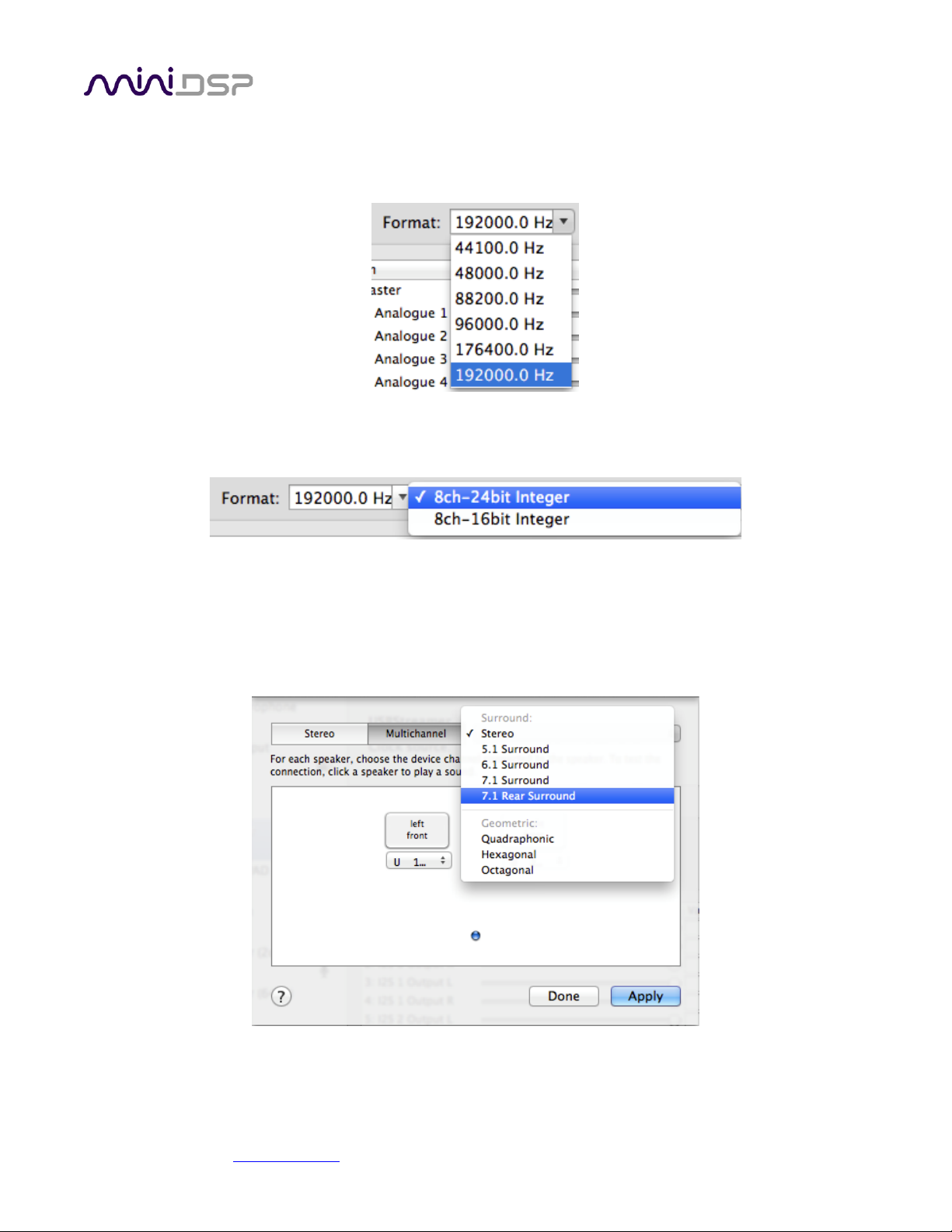

2. Select the output sample rate. Note however that many audio players will automatically change this
setting according to the media being played. The sample rate can be set to all common rates from 44.1
to 192 kHz.
3. Select 24-bit or 16-bit data. The default 24-bit is usually fine.
4. To set up the U-DAC8 for multichannel audio, click on Configure Speakers… .
On the popup pane that appears after clicking on Configure Speakers…, click on Multichannel and then pop
down the selector to choose one of the multichannel formats:
The display will change to show the selected multichannel speaker layout.

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 16

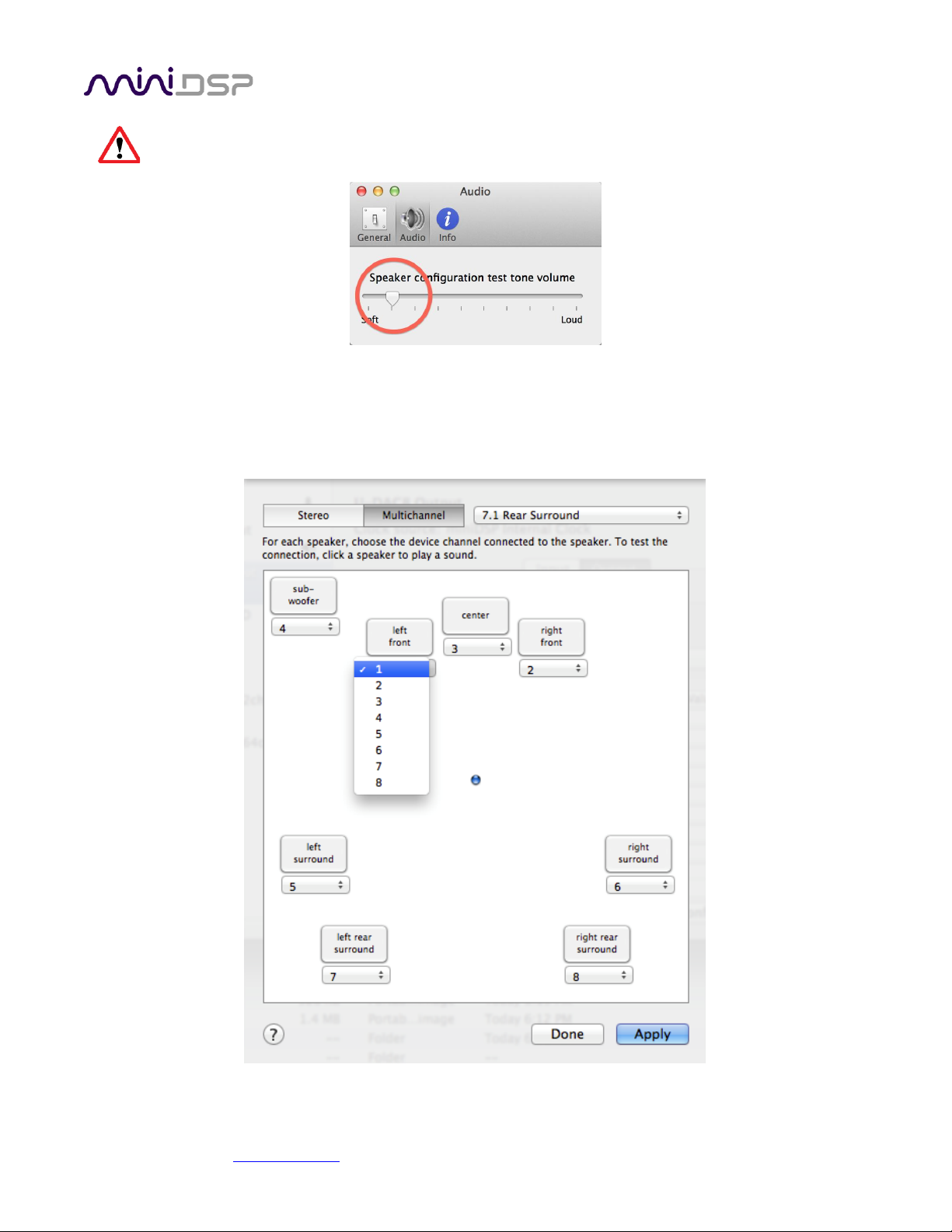

Before proceeding, set the test signal volume in Audio MIDI Preferences->Audio to be very low.
Otherwise, you may generate a very loud test signal in the next step and even damage a loudspeaker.
On the multichannel layout diagram, confirm that the speaker channels are as expected. Click on the name of
each speaker to generate the test signal. (Increase the volume on the Preferences pane if necessary at this
time.) The dropdown channel selectors underneath each speaker can be used to select the output channel
number for that speaker if necessary (see screenshot below).
When finished, click Apply and then Done.

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 17
5ADDITIONAL INFORMATION
5.1 SPECIFICATIONS
Computer connectivity
USB 2.0, USB Audio Class 2 compliant
Driver
Mac OS X: No driver required
Windows: Thesycon driver provided
Analog outputs
8 unbalanced (RCA) outputs
Output level: 2 Vrms
Dynamic range: 103 dB
THD: 0.006%
Output impedance: 560 Ohms
Audio sample rate /
Resolution
Input/output resolution: 24-bit integer
Sample rate: Up to 192 kHz
Power supply
5 VDC single supply
Dimensions (H x W x D)
31 x 161 x 110 mm
5.2 FIRMWARE UPGRADE
If a firmware upgrade has been provided to enhance features or functionality, use the USBStreamer Control
Panel to update the U-DAC8. Firmware upgrade can currently be performed only on Windows. See Firmware
Upgrade on page 11.
5.3 OBTAINING SUPPORT
1. Check the forums on miniDSP.com to see if this issue has already been raised and a solution or solutions
provided.
2. Contact miniDSP via the support portal at support.minidsp.com with:
a. The product information including OS version and version of driver installed (for Windows).
b. A clear explanation of the symptoms you are seeing.
c. A description of the troubleshooting steps you performed and the results obtained.
