MINJAN MGS-120 User manual
CONTENTS
IMPORTANT SAFEGUARDS.............................................................1
SPECIFIC OPERATIONS WARNINGS............................................ 2
TROUBLESHOOTNG.......................................................................... 4
FEATURES............................................................................................6
ASSEMBLING....................................................................................... 7
GRINDING AND STUFFING INSTRUCTIONS............................... 9
CLEANING AND MAINTENANCE...................................................11
LIMITED WARRANTY....................................................................... 13
KEEP THESE INSTRUCTIONS!
Refer to them often and use them to instruct others.
1
IMPORTANT
SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed the following as below:
1. READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. Failure to follow
all instructions may result in serious injury or property damage.
2. The warnings, cautions, and instructions in this manual cannot cover all possible
conditions or situations that could occur. Exercise common sense and caution when
using this grinder. Always be aware of the environment and ensure that the grinder is
used in a safe and responsible manner.
3. Do not allow persons to operate or assemble the grinder until they have read this
manual and have developed a thorough understanding of how it works.
4. Do not modify this grinder in any way. Unauthorized modification may impair the
function and/or safety and could affect the life of the product. There are specific
applications for which the product was designed.
5. Do not use this grinder for a purpose for which it was NOT intended.
6. Inspect the work area before each use. Keep work area clean, dry, free of clutter,
and well-lit. Cluttered, wet, or dark work areas can result in injury. Using the product in
confined work areas may put you dangerously close to cutting tools and rotating parts.
7. Close adult supervision must be provided when this appliance is used near children.
This appliance is NOT intended for use by children. Keep the appliance out of the
reach of children and pets.
8. Be aware of all power lines, electrical circuits, water pipes, and other mechanical
hazards in your work area. Some of these hazards may be hidden from your view and
may cause personal injury and/or property damage if contacted.
9. Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your
hair, clothing and gloves away from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
10. Keep proper footing and balance of your body and appliance at all times.
11. Wear the proper personal protective equipment when necessary.
KEEP THESE INSTRUCTIONS!
Refer to them often and use them to instruct others..
2
12. Stay alert, watch what you are doing. Do not use the meat grinder while you are
tired or under the influence of drugs, alcohol, or medication. A moment of inattention
while operating the meat grinder may result in serious personal injury.
SPECIFIC OPERATIONS
WARNINGS
1. This product is for household use only, NOT for industrial use.
2. Do not force the grinder. This may cause the grinder to jam. Grinders are safer and
do a better job when used in the manner for which they are designed.
3. Check for parts before each use. Before use, please check whether the power cord,
plug and other spare parts are normal. If any damage is found, please stop using the
products and Do not disassemble by yourself. Please contact our customer service in
time.
4. Do not use a product with a malfunctioning switch. Any electric meat grinder that
cannot be controlled with the power switch is dangerous and must be repaired by
maintenance professionals before using.
5. Only plug the product into a standard 110V AC 60Hz electrical outlet. Check if the
voltage indicated on the appliance corresponds to the local voltage before you connect
the appliance.
6. Do not operate another electrical product on the same electrical circuit as this
product to avoid a circuit overload.
7. Place the switch in the ‘OFF’ position and Disconnect the power supply from the
product before making any adjustments, like changing accessories, disassembling,
cleaning and storing the grinder. Such preventive safety measures reduce the risk of
starting the grinder accidentally.
8. Store the product when it is NOT in use. Store it unplugged in a dry, secure place
out of the reach of children. Inspect the grinder for good working condition prior to
storage and before re-use.
9. Use only accessories that are recommended by the manufacturer for use with your
product. Accessories that may be suitable for one grinder may create a risk of injury
when used with another grinder.
KEEP THESE INSTRUCTIONS!
Refer to them often and use them to instruct others.
3
10. Thoroughly clean the parts that will come into contact with food before you use the
appliance for the first time.
11. Do not leave the grinder running unattended.
12. Never operate the grinder without the Food Tray in place. Avoid contact with
moving parts. Never put your fingers near the blade while it is operation. Always use
meat pusher to push the meat into the grinder head.
13. Never put the grinder near a hot burner, in an oven, or in a dishwasher.
14. Do not use grinder outdoors. This grinder is intended for household use only.
15. Do not let cord hang over the edge of a table or counter, come into contact with
sharp edges, or touch hot surfaces. Do not let cord become kinked or trapped under
the grinder. Do not let the cord wind around the grinder.
16. Place the grinder on a firm and stable surface away from the edge of the worktop.
Never use the grinder unless it is fully upright and completely assembled.
17. Do not use in wet areas. Do not put grinder in water or other liquids. Do not operate
grinder with wet hands or while standing on a wet floor.
18. Never use abrasive cleaning agents or abrasive cloths when cleaning the unit.
19. Use the grinder to cut only designated food. Do not attempt to grind frozen food,
bones, cardboard, plastic, etc. Do not grind ginger or other materials with hard fiber.
20. This grinder has a sharp blade. Be careful when removing food from meat grinder.
Never use fingers to scrape food away from discharge disc while appliance is operating.
If you want to scrape off the food, be sure to turn off the power and then use a
long-handled spoon to scrape the food off the machine.
21. Never move meat grinder when in use. When lifting the machine, please turn
power off and hold the grinder with both hands. Do not move the machine by holding
Hopper Plates or Grinder Head.
22. Use protective cut-resistant gloves whenever handling blades.
23. Avoid bumping or impacting meat grinder.
24. Always use meat grinder in accordance with all applicable local, state and federal
fire codes.
25. Do not insert any metallic objects into the meat grinder.
26. Do not run the grinder for more than 10 continuous minutes. After running for 10
minutes, allow it to cool down for 10 minutes before using again.
KEEP THESE INSTRUCTIONS!
Refer to them often and use them to instruct others.
4
27. Do not fix the cutting blade or cutting plate when using the Kubbe Kit.
28. If circuit breaker activates, Do not switch on.
29. Idling time should NOT exceed 2 minutes. Friction between moving parts may
cause the parts wear and the engine overheat
30. In order to avoid a hazardous situation, this appliance must NEVER be connected
to a timer switch.
31. Reduce risk of unintentional starting. Make sure the power switch is in the “OFF”
position before attaching to the power source.
32. Do not pull on the power cord to disconnect, pull on the head of the plug.
33. Do not heat any part of the product.
Troubleshooting
Fault Type
Fault Cause
Troubleshooting method
Grinder
doesn’t work
No power
Make sure the grinder plugs in
Long time running
Waiting for 30 minutes to let the grinder cool
down. The thermostats automatically reset and
the grinder can resume normal operation.
Note: Grinder equipped with overheating protection.
The thermostat will automatically shut off the motor
when the operating temperature reaches 105
℃
(221
℉
).
Blockage
1. Please press the button to shut down
the machine.
2. After 3 seconds, press the REV button to
reverse the motor.
3. Make sure the blockage is removed, unplug
the power and take out the food that stuck in the
grinder head.
Low grinding
efficiency
Not install properly
Assemble correctly according to page 7
The blade wear
Replace the blade
Low voltage
Add voltage regulator
KEEP THESE INSTRUCTIONS!
Refer to them often and use them to instruct others.
5
OIL
PURPOSE
NOTE: Some metal parts are coated with colorless and odourless FOOD GRADE
MINERAL OIL. Oil could keep your grinder well lubricated and prevent rust from
forming during storage. That’s why it’s important to coat meat grinder part with a small
layer of oil.
SHORT CORD
PURPOSE
NOTE: A short power cord is provided to reduce the risk of personal injury resulting
from becoming entangled in or tripping over a longer cord.
Longer power-supply cords or extension cords are available and may be used if care is
exercised in their use.
If an extension cord is used:
(1) the marked electrical rating of the extension cord should be at least as great as the
electrical rating of the product;
(2) the extension cord should be arranged so that it will NOT drape over the countertop
or tabletop where it can unintentionally be pulled on or tripped over by children or pets.
POLARIZED
PLUG
If this appliance is equipped with a polarized plug (one blade is wider than the other),
please follow the below instructions:
To reduce the risk of electrical shock, this plug is intended to fit into a polarized outlet
only one way. If you are unable to fit the plug into the electrical outlet, try reversing the
plug. If the plug still does NOT fit, contact a qualified electrician. Never use the plug
with an extension cord unless the plug can be fully inserted into the extension cord. Do
not alter the plug of the product or any extension cord being used with this product. Do
not attempt to defeat the safety purpose of the polarized plug.
KEEP THESE INSTRUCTIONS!
Refer to them often and use them to instruct others.
6
FEATURES
1. Food Pusher
11. Kubbe Kits
2. Food Tray
12. Cutting Plate Cleaners
3. Fasten Button
13. Cookie Makers
4. Power Cord
14. Fan-shaped Cutting plate
5. ON/OFF/REVERSE Switch
15. Ø3mm Cutting Plate (Fine)
6. Motor Housing
16. Ø5mm Cutting Plate (Medium)
7. Attachment Opening
17. Ø7mm Cutting Plate (Coarse)
8. Grinder Head
18. Screw Fixing Ring
9. Feed Screw
19. Sausage Stuffer Tube
10. Cutting Blade
KEEP THESE INSTRUCTIONS!
Refer to them often and use them to instruct others.
7
Before assembling the Grinder:
1. Inspect the package carefully upon receipt. If there are signs of damage to the
packaging, carefully check contents to ensure there are no missing or damaged parts.
2. We suggest you save all the packing material if future shipping of the machine is
needed.
3. Keep all plastic bags away from children.
ASSEMBLING
1. Rinse, wash and Sanitize. Before you
assemble your meat Grinder, you should
wash, rinse, and sanitize all of the
assemble assembly parts. After washing,
let the pieces air dry.
2. Disconnect Power Cord. Check to
ensure that the power cord is
disconnected before assembly.
3. Insert Grinder Head tightly into
attachment opening. Press the fasten
button and holding head with one
hand.(FIG.1,2)
Note:
The Fasten Button need to be loosened
to allow the Grinder Head to be fully
inserted.
4. Insert Feed Screw. Insert Feed Screw
into Grinder Head, long end spindle first;
turn it slightly until it is set into Motor
Housing. (FIG.3)
5. Add Cutting Blade. Position Cutting Blade onto Feed Screw shaft.(FIG.4)
Note: If it is NOT fitted properly, meat will NOT be ground and the Cutting Plate may be
permanently damaged.
KEEP THESE INSTRUCTIONS!
Refer to them often and use them to instruct others.
8
Correct/Incorrect Cutting Blade Assembly
6. Place Cutting Plate. Position the desired Cutting Plate onto the Feed Screw against
the flat sides of the Cutting Blade. Ensure the notches of the Cutting Plate fit into the
slots of the Grinder Head tube. (FIG.5)
7. Attach Screw Fixing Ring. Securely attach the Screw Fixing Ring to the end of the
Grinder Head tube. Do not over tighten.(FIG.6)
8. Attach Food Tray. Place the Food Tray on the upright part of the Grinder Head.
NEVER use the Grinder without the Food Tray installed(FIG.7).
Kubbe Kit Assembly:
1. Insert the Feed Screw into the front
part of the grinding head with the short
end of the Feed Screw facing out
(FIG.8).When you insert the Feed Screw,
you may have to twist just a little until
you feel it set into the motor housing.
2. Insert the 1st part of the Kubbe Kit on
the front of the grinding head. Then
insert the 2nd part of the Kubbe Kit over
the 1st part (FIG.8).
3. Attach Screw Fixing Ring. Securely
attach the Screw Fixing Ring to the end
of the Grinder Head tube. Do not over
tighten.(FIG.9)
4. Attach Food Tray. Place the Food Tray
on the upright part of the Grinder Head. NEVER use the Grinder without the Food Tray.
5. Use meat pusher. When mincing the meat, you can only use the food pusher stick
to push the meat into the head.(FIG.10)
KEEP THESE INSTRUCTIONS!
Refer to them often and use them to instruct others.
9
Cookie Maker Assembly:
1. Insert the Feed Screw into the front part of the grinding head with the short end of
the Feed Screw facing out (FIG.11).
2. Insert the 1st part of the Cookie Makers on the front of the Grinder Head. The 1st
part of the Cookie Maker depends on the type of size you prefer. Then insert the 2nd
part of the Cookie Makers over the 1st part (FIG.11).
3. Attach Screw Fixing Ring. Securely attach the Screw Fixing Ring to the end of the
Grinder Head tube. Do not over tighten.(FIG.12)
Sausage Stuffer Tube Assembly:
1. Attach grinder head to motor and install Feed Screw, Cutting Blade and Cutting
Plate as described above in General Assembly.(FIG.13)
2. Slide the stuffing tube through the spacer and place in Grinder Head (FIG.13).
Stuffing tube size depends on the type of casing you have chosen to use.
3. Attach Screw Fixing Ring. Securely attach the Screw Fixing Ring to the end of the
Grinder Head tube. Do not over tighten.
GRINDING & STUFFING
INSTRUCTIONS
GRINDING INSTRUCTIONS:
1. When using the grinder, it is important that you stand in the correct position. Do not
position yourself so that any part of your body comes in direct contact with the grinder
when working.
2. Cut meat into Approximately 20mm*20mm*60mm strips or 25mm cubes. Make sure
to remove all bones, gristle, fat and sinew.
3. For best results, frozen meat should be thawed before processing.
4. Plug in, then turn the switch to ON position to start.
KEEP THESE INSTRUCTIONS!
Refer to them often and use them to instruct others.
10
5. Raise the Food Pusher; feed the meat into the tube. Do not force the meat into the
opening. Use the food pusher to push the meat into the grinder.
6. If the motor slows or stops, this may be due to jammed food. Immediately switch the
grinder to OFF to shut down the appliance for at least 3 seconds. Set the switch to
Reverse and then turn the grinder to ON again. If the grinder should get jammed again,
you may need to switch it off, unplug, disassemble the grinder head and clean the
internal parts.
7. Freshly ground meat should be refrigerated and cooked within 24 hours.
8. Switch unit off and unplug when you have finished using the appliance, then strip
the appliance and thoroughly clean all components.
STUFFING INSTRUCTIONS:
How to make Kubbes
Kubbe is a traditional Middle Eastern appetizer comprised of a small football shaped
shell filled with meat (usually bulgur wheat and lamb). The center section is often
stuffed with spiced minced lamb filling and the ends are sealed. Kubbe is usually deep
fried resulting in a crispy outside with a delicious filling. It is time consuming to make,
but well worth the effort. This delicious treat can be frozen raw and fried straight from
the freezer.
1. Feed the mixture into the Food Tray and let the mixture extrude. The mince will roll
out as a hollow cylinder into the bowl.
2. Cut or pinch off to your desired length leaving one end open. You now have the
finished outer shell for the kubbe.
3. Stuff the interior of the shell with your choice of meat filling.
4. Seal the open end.
How to make Sausages
1. Place artificial or natural intestines onto sausage funnel.
2. Load hopper with prepared meat and feed meat into Grinder Head opening before
operating.
3. Feed the mixture into the meat hopper and let the mixture extrude.
4. Hold the casing on the sausage tube in one hand and slowly let meat output pull
KEEP THESE INSTRUCTIONS!
Refer to them often and use them to instruct others.
11
casing from tube.
5. As the casing begins to fill, Twist or Tie the sausage into links as desired. Tie the
end securely with a string or into a knob.
CLEANING &
MAINTENANCE
CLEANING
Always be as thorough as possible when cleaning and sanitizing components. Any part
exposed to raw meat may harbor or develop bacteria, potentially causing illness or
death. Please follow the cleaning steps for your health.
1. Clean appliance after each use and start cleaning immediately after use. Expect
meat to leave oil and grease behind as it passes through your grinder (as well as stray
bits of meat). These will dry and crust over if given time, so don’t wait too long before
cleaning up.
2. Feed bread into the grinder. Meat left behind may be removed by passing a slice of
bread through the grinder head.
3. Before cleaning, Make sure that the motor has stopped completely and unplug the
meat grinder from the power source.

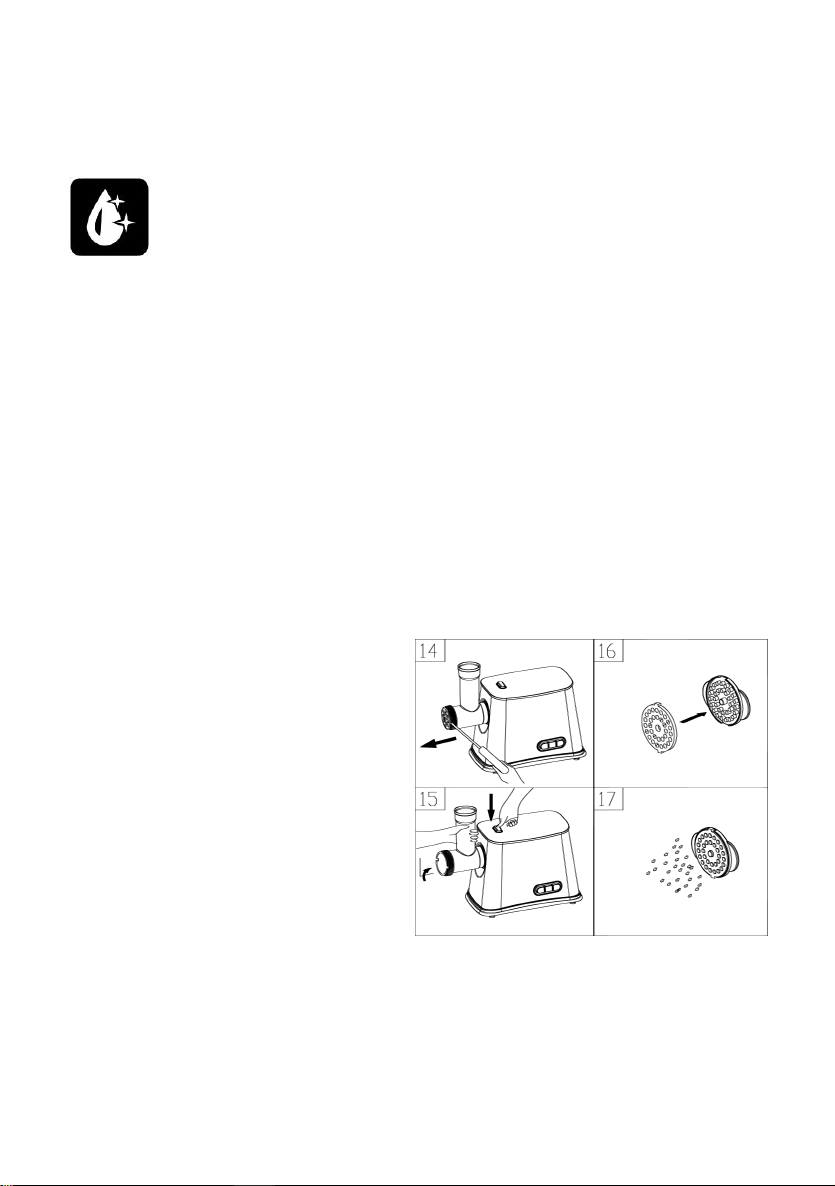

4. Disassemble the Grinder:
- Remove the Food Pusher and Food
Tray.
- Unscrew the Screw Fixing Ring and
remove all parts from the grinder head. If
Cutting Plate is difficult to remove, place
a screwdriver between the cutting plate
and the head to lift it up (FIG.14).
- Press the Fasten Button to loosened
and remove the Grinder Head (FIG.15).
5. Use Cutting Plate cleaners to clean the used Cutting Plates. Insert the Cutting Plate
to the matched Cleaner (FIG.16). The minced meat that stick to the cutting plate will be
push out (FIG.17).
KEEP THESE INSTRUCTIONS!
Refer to them often and use them to instruct others.
12
6. Soak the parts except the motorized parts. Fill a sink or bucket with warm water and
add some dish detergent. Place the disassembled parts inside once full. Let them sit for
about a quarter of an hour to loosen up any remaining grease, oil, or meat.
Warning: Do not use bleaching solutions containing chlorine as this will discolor
aluminum surfaces. Aluminum parts are NOT suitable for use in a dishwasher.
Hand wash only.
7. Wipe down the outside of the Motor Housing with a damp cloth and then a fresh one
to dry it.
Warning: Never use abrasive cleaning agents or abrasive cloths when cleaning
the unit.
8. Scrub the parts. Use a sponge to clean the Screw, Cutting Plate, and Cutting Blade.
Be careful when handling the blade, since this is sharp and can easily cut you if
mishandled. Switch to a bottle brush to clean the inside of the Grinder Head, Food Tray.
Rinse each part with clean water when finished
Warning: Never clean the meat grinder with a pressurized water-jet, industrial
cleaner, or any other type of cleaning utensil that could damage the surface of
the appliance.
9. Dry the parts. First, wipe them down with a dry towel to get rid of excess water. Then
lay them on a fresh towel or wire rack to air-dry. Avoid rust and oxidation by waiting until
they are totally dry before putting your grinder away.
MAINTENANCE
1. Oil any metal parts. Keep your grinder well lubricated and prevent rust from forming
during storage. Fill a spray bottle with food-grade mineral oil. Then mist all of your
grinder’s metal parts (excluding an electric parts) with an even coat of oil.
2. Store any metal parts in your freezer if possible. Keep in mind that your grinder
works best when its parts are cold. Keep any non-electric metal parts in the freezer if
there’s space.
KEEP THESE INSTRUCTIONS!
Refer to them often and use them to instruct others.
13
LIMITED
WARRANTY
Warranty period of the Electric Meat Grinder is 1 year. During the warranty period, the
damage caused by non-human factors, we will be responsible for the free repair or
replacement. Damages caused by other factors or after the warranty period, we will
continue to provide services with reasonable price to the customer.
WHAT THE WARRANTY COVERS
• Manufacturer Defects
Our products are warranted against defects in material and workmanship for a period
of 1 year from the date of purchase when used in accordance with the User Guide.
• Qualified Replacements
If your product does NOT work as it should, we will send you a new one. If the product
is no longer available, we will replace it with an identical product or one that is
comparable.
THIS WARRANTY DOES NOT COVER
• Misuse - Damage that occurs from neglectful or improper use of products; Damage
that occurs as a result of usage with incompatible voltage. See Safety Instructions for
information on proper use.
• Poor Maintenance - General lack of proper care. See Cleaning & Maintenance
Instructions for information on proper maintenance.
• Commercial Use - Damage that occurs from commercial use.
• Altered Products - Damage that occurs from alterations or modifications by any entity
other than; removal of rating label.
• Catastrophic Events - Damage that occurs from fire, floods, or natural disasters.
• Loss of Interest - Claims of loss of interest or enjoyment.
HAVE A QUESTION? NEED MORE HELP?
We’re here for you! Please reach out to us via this email address
Home Kitchen Appliances Professor
A Letter of Thanks to Our Customer:
Dear Customer:
Thank you for purchasing our products. As a reliable seller, we have always promised
to provide 100% customer satisfactory to our customer, not only for products but also
for services, so we hope that you can get the same feeling in this shopping experience.
Good service to you is our lifetime pursuit.
If you find any damage or dissatisfaction after receiving the product, you are welcome
to contact us as soon as possible, and we will provide you with a 100% satisfactory
solution.
If you are satisfied with our products and services, I hope you can share your using
experiences at a convenient time. I think your experiences will be a useful reference for
other users like you in future, and other customers will also be grateful to you.
Yours Sincere Seller
MINJAN Shopkeeper
Table of contents
