Minka-Aire DELANO II Guide

INSTRUCTION MANUAL WARRANTY CERTIFICATE
DELANO II
BY
U.S. Patents: D595,403; D597,655

This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.

Minka-Aire warrants to the original owner that this fan will be free fromdefects in material and workmanship for one
year from the date of purchase, excluding the motor. Minka-Aire warrants to the original owner that the motor in this fan
shall be free from defects in material and workmanship for as long as the original purchaser owns the fan, and it remains in
the original installation.
This is a limited warranty. Minka-Aire's only obligation under this limited warranty is to replace or repair, or refund the purchase price, in
Minka-Aire's sole discretion without charge to the original owner, of the fan once Minka-Aire confirms that the fan has a defect covered by this
limited warranty.
Call our customer service department at 1-800-307-3267 to obtain the name of the Minka-Aire authorized dealer closest to your location, or
contact us through our web site, www.minkagroup.net and write to: Ask Mr. Minka if you have any questions or require further assistance.
To obtain warranty service, the owner should return the fan along with proof of purchase to a Minka-Aire authorized dealer. The Minka-Aire
authorized dealer shall then, at its sole discretion: repair the fan, replace the fan, refund the purchase price less the amount directly attributable to
the consumer's prior usage of the fan, or if necessary instruct the consumer to contact Minka-Aire directly for warranty service. Minka-Aire will be
responsible for the cost of any repair, or replacement for any warranty service provided by a Minka-Aire authorized dealer for product under
warranty.
You may also at your preference obtain warranty service by returning the fan directly to Minka-Aire along with proof of purchase, your name
and return address, and a description of the claimed product defect. Pack carefully; damage sustained in return transit to Minka-Aire will be the
original owner's responsibility. Original owner shall be responsible to pay all shipping charges. To obtain warranty service, you may return a fan that
proves to be defective during the warranty period to the following address:
Minka-Aire - Warranty Service, 1151 W. Bradford Court, Corona, CA 92882
R
R
R
R
R
R
R
R
R
R
R
R
R
R

Date Purchased Store Purchased Model Number Serial Number
F711
This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as a result of the removal
of the fan from the origial installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which the
fan was not designed. The purchaser of the fan shall be responsible for any cost of removing the old fan, installing a new fan, or any other costs.
This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and
Minka-Aire shall not under any circumstances be liable for incidental or consequential damages. Some States do not allow the exclusion of or
limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. We encourage you to promptly
complete and return the enclosed warranty registration card. However, return of the warranty registration card is not a condition of this warranty.
R

CONTENTS
INSTALLING THE MOUNTING PLATE............................................
INSTALLING THE LIGHT KIT...............................................................
INSTALLING THE LIGHT BULBS AND GLASS SHADE ...........
OPERATING THE REMOTE CONTROL/WALL CONTROL.....
CARE OF YOUR FAN..............................................................................
TROUBLESHOOTING............................................................................
SPECIFICATIONS.....................................................................................
1
2
3
4
5
6
7
8
9
10
11
12
13
14
SAFETY RULES....................................................................................
PACKAGE CONTENTS.....................................................................
INSTALLING THE MOUNTING BRACKET..............................
ELECTRICAL CONNECTIONS.......................................................
INSTALLING THE WALL TRANSMITTER................................
FINISHING THE INSTALLATION................................................
BLADE INSTALLATION..................................................................
1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267

1
SAFETY RULES
1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a
do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the
floor and 18 inches from the tip of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure the
box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50 pounds) Do
not use a plastic box.
6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.

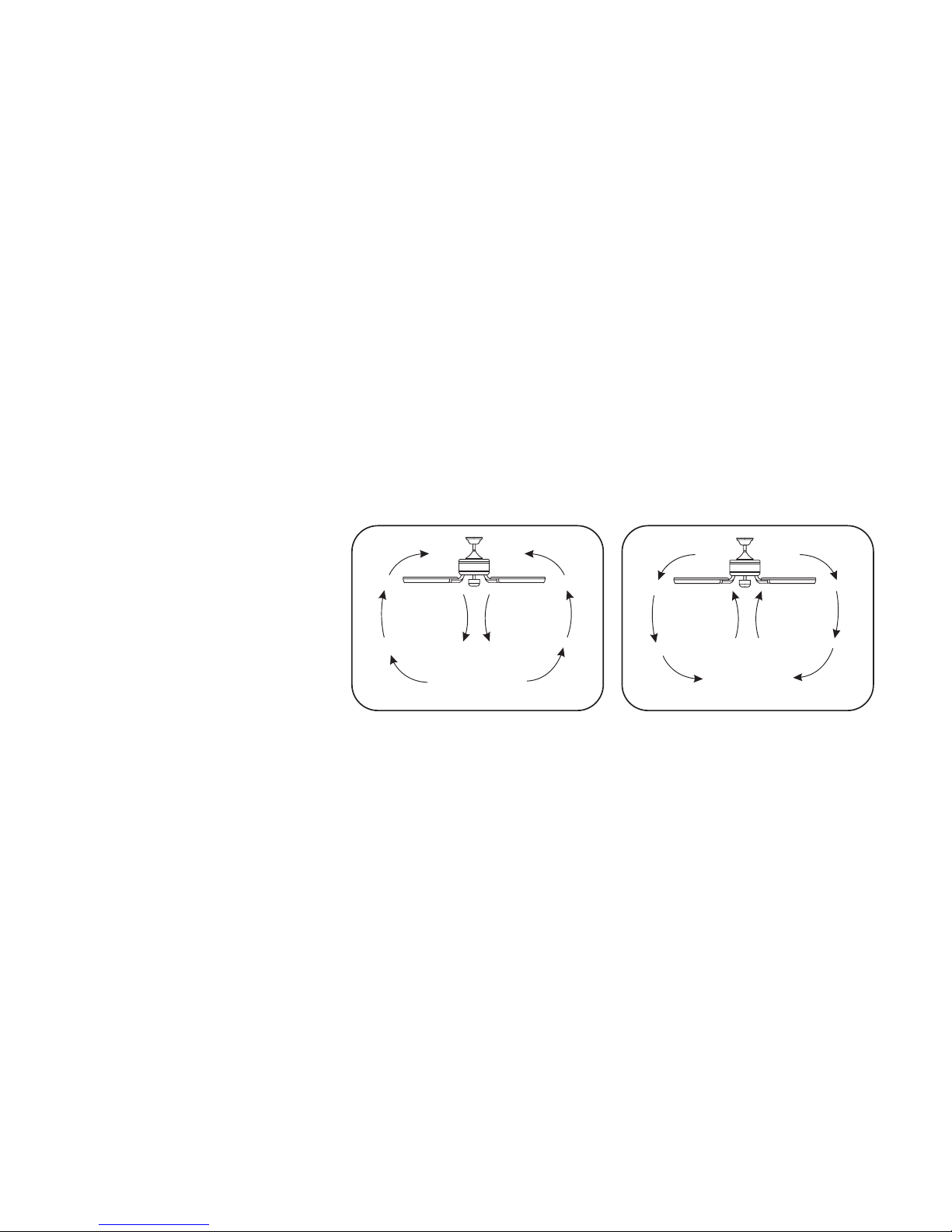

10. To operate the reverse function on this fan, press the reverse button while the fan is running.

WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR SUPPORTING SYSTEM
MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE LOCK WASHERS
PROVIDED WITH THE FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND
NEED TO BE REPLACED. CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be
supplied by the person (s) installing, caring for and operating the unit.
NOTE:READ AND SAVE ALL INSTRUCTIONS!

2
1. Fan Blades (5)
2. Mounting bracket
3. Fan motor ass'y
4. Motor housing
5. Blade holders (5)
6. Mounting plate
7. Light kit
8. Glass shade
9a. Wall transmitter Incl. 2 mounting
screws and 3 wire nuts
9b. Wall plate w/2 mounting screws
10. Extra Wall Plate w/2 Mounting
screws
11. 50W Mini-Can halogen bulbs (2)
12. Balancing kit
A. Mounting hardware:
#10 x 1.5" Wood screws (2)
#8 x 3/4" Machine screws (2)
Lock washers (2)
4mm star washers (2)
Wire nuts (3)
Washers (2)
B. Blade attachment hardware:
3/16" x 12.3 mm screws (16)
Rubber washers (16)
C. Bracket holder hardware:
1/4" x 1/2" Screws with lock washers (11)
PACKAGE CONTENTS
1
2
4
3
7
5
6
8
12
Unpack your fan and check the contents. You should have the following items:
9a
9b
10
11
A
B
C

3
Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.
INSTALLING THE MOUNTING BRACKET
WARNING: All of the parts, hardware and components have been provided for your safety and the proper
installation of your new ceiling fan. The use of other parts, hardware or components not supplied by
Minka Aire® with the fan will void the Minka Aire® Warranty.
REMEMBER To turn off the power. Follow the steps below to hang your fan properly.
Step 1. Attach the mounting bracket to the outlet box with two screws and washers provided with the
outlet box. Make sure the bracket is tight and secured. (Fig. 1)
Step 2. Lift fan into position by hanging the motor assembly onto the hook from the ceiling mounting
bracket allowing it to hang freely. (Fig. 1)
FIG. 1
OUTLET BOX
MOUNTING BRACKET
MOTOR

4
WARNING: To avoid possible electrical shock be sure electricity is
turned off at the main fuse or breaker box before wiring.
NOTE: The Aire Control® System is equipped with a learning frequency
function which has 256 code combinations to prevent potential
interference from other remote units. The frequency on your Receiver
and Transmitter units have been preset at the factory. (Fig.2) No
frequency change is necessary, should you desire to install another fan
within the same home or area with a seperate frequency code please see
the "frequency interference" troubleshooting section of this instruction
manual to learn how to change the frequency.
Caution! The dip switches on the receiving unit are covered with a rubber
cover, remove the rubber cover and then have it replaced after making any
changes to the dip switches.
Step 1 Connect the fan supply (black) wire to the black household supply
wire as shown in Figure 3 & 4.
Step 2. Connect the neutral fan (white) wire to the white neutral
household wire.
Step 3 Connect the fan ground wire (green) to the household ground wire.
Step 4. After all splices are made, check to make sure there are no loose
strands. As an additional precaution we suggest to secure the plastic wire
connectors to the wires with electrical tape.
ELECTRICAL CONNECTIONS

Fig. 3 Fig. 4
Fig. 2
WHITE (NEUTRAL)
GREEN OR BARE
COPPER (GROUND)
WHITE ("AC IN N")
OUTLET BOX
BLACK (HOT)
BLACK ("AC IN L")
RECEIVER
WALL
CONTROL
BLACK
BLACK
BLACK
BLACK
BLACK
WHITE
GROUND
INPUT
AC120V
AC SUPPLY
BLACK
WHITE
GREEN
GROUND
GREEN

5
Fig. 5
WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF
ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE
TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR.
Step 1. Remove the existing wall plate and switch from the wall outlet box.
Step 2. Make the electrical connections as shown in Fig.4. If your outlet box has a ground
wire (Green or Bare Copper) connect the Transmitter's ground wire directly to one of the
screws from the outlet box. Secure all wire connections with the plastic wire nuts provided.
Step 3. Carefully tuck the wire connections inside the outlet box. Use the screws provided
to secure the wall transmitter and wall plate to the outlet box. (Fig. 5)
NOTE: Your Aire Control
TM
System includes two sets of face and decorative plate color
options. The wall control comes with standard white faceplate attached. If you desire to
replace it with the Ivory color faceplate included, use a small flat screw driver and gently
pry it apart from the top or bottom of the plate.

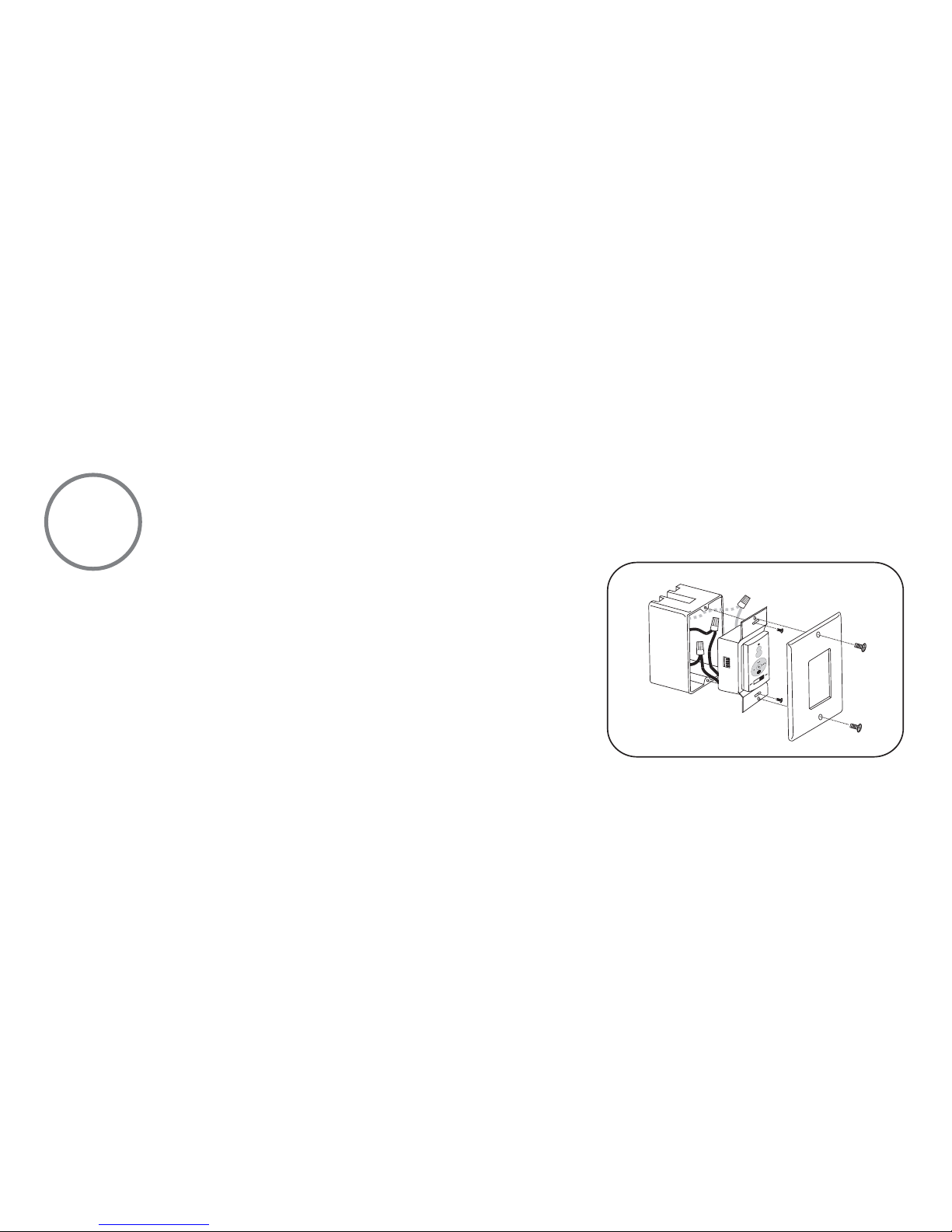

INSTALLING THE WALL TRANSMITTER

FINISHING THE INSTALLATION

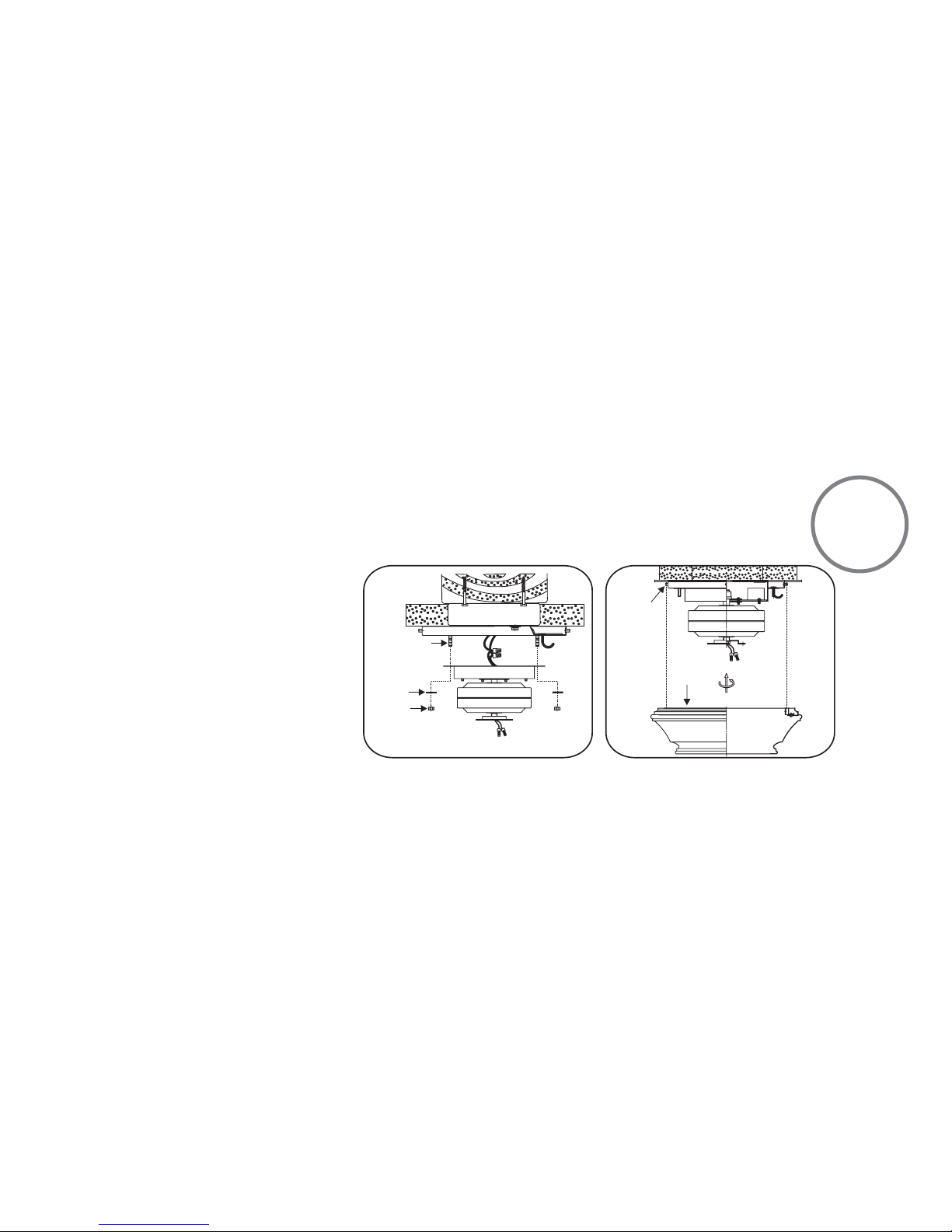

Step 1. Move fan into position over the four mounting
screws and secure with the provided washers and nuts.
(Fig. 6)
Step 2. Raise the motor housing up against the
mounting bracket, the four supports inside the housing
should be placed against the four studs on mounting
bracket, twist the housing clockwise until snug. (Fig. 7)
6
Fig. 6 Fig. 7
WASHERS
NUT
SCREWS
STUDS
MOTOR
HOUSING

7

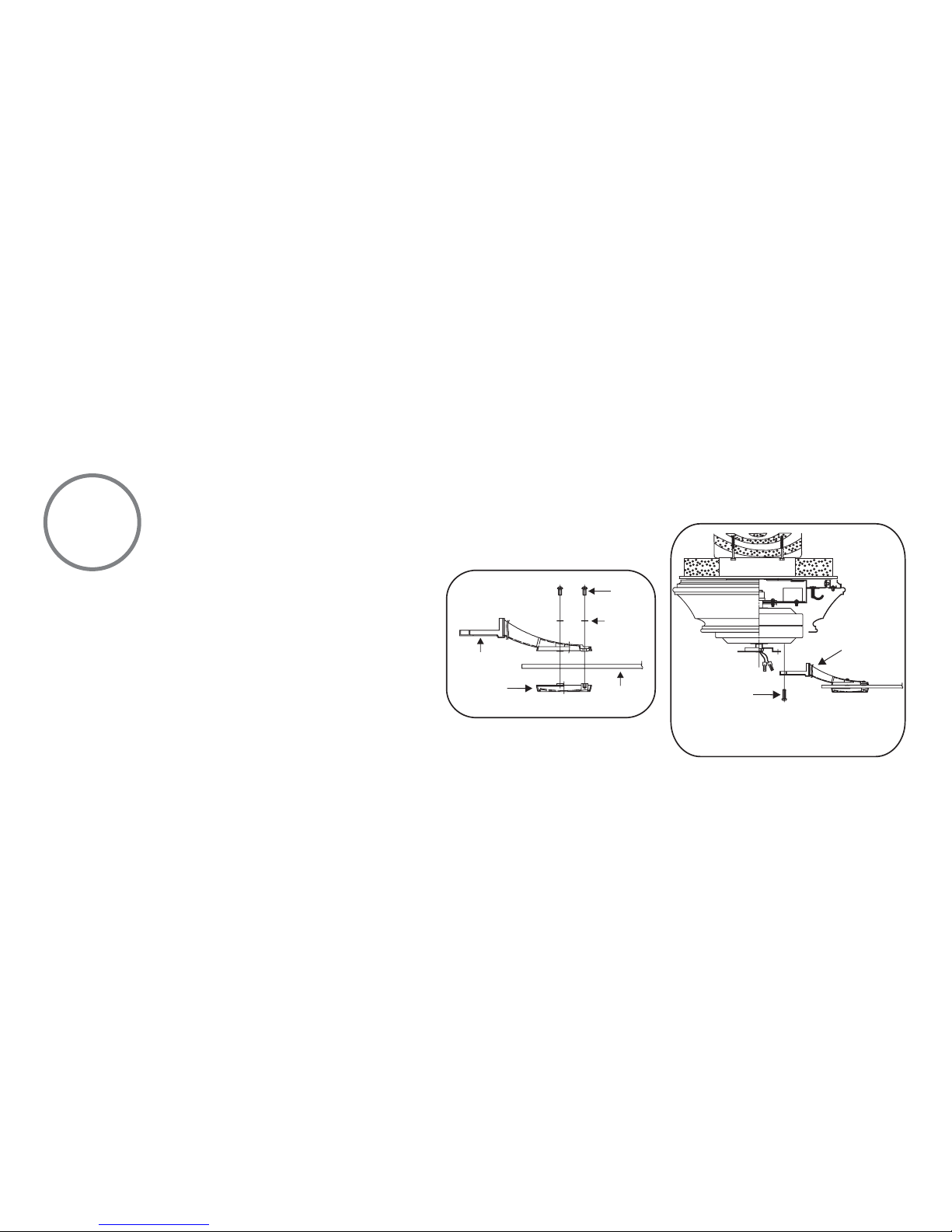

Fig 8
Fig 9
THE FOLLOWING OPERATION MUST BE ACCOMPLISHED
BEFORE INSTALLING THE GLASS SHADE.
Step 1. Attach the fan blade
and medallion to the blade
holder using the screws and rubber washers provided. Tighten
screws securely. Repeat process for remaining blades.(Fig. 8)
Step 2. Rotate the motor so that the screw holes in motor are
aligned with the holes in blade holder and secure with proper
screws. Repeat process for the other blade holders. (Fig. 9)
BLADE INSTALLATION
BLADE HOLDER
SCREWS
RUBBER
WASHERS
BLADE
MEDALLION
BLADE HOLDER
BLADE
HOLDER
SCREWS

8
Fig 10
Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not
remove)
Step 2. Place the key holes from the mounting plate over the 2 screws previously loosened
from the mounting ring, turn mounting plate until it locks in place at the narrow section of
the key holes. Secure by tightening the 2 screws previously loosened and the one previously
removed. (Fig. 10)
INSTALLING THE MOUNTING PLATE
MOUNTING PLATE SCREWS
MOUNTING RING

9

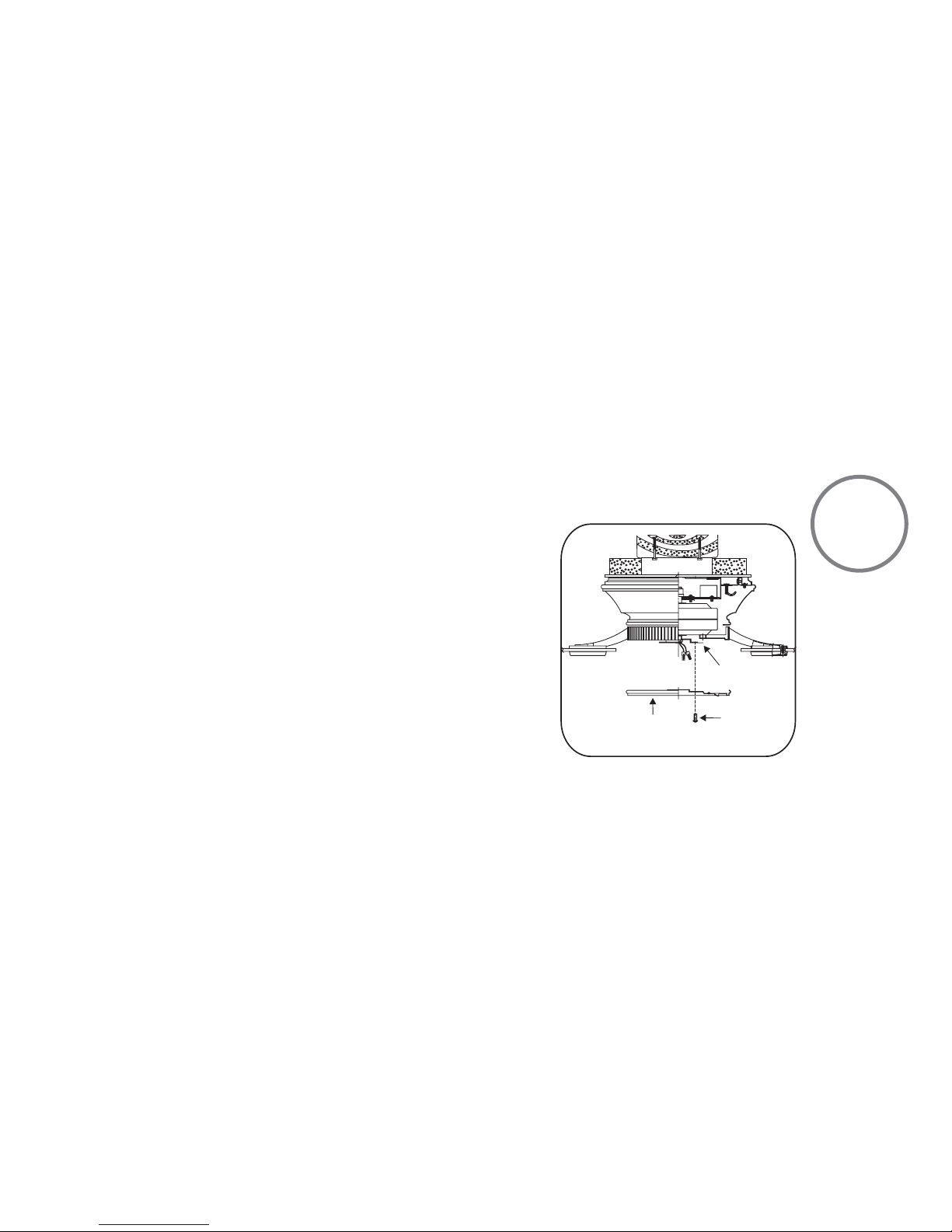

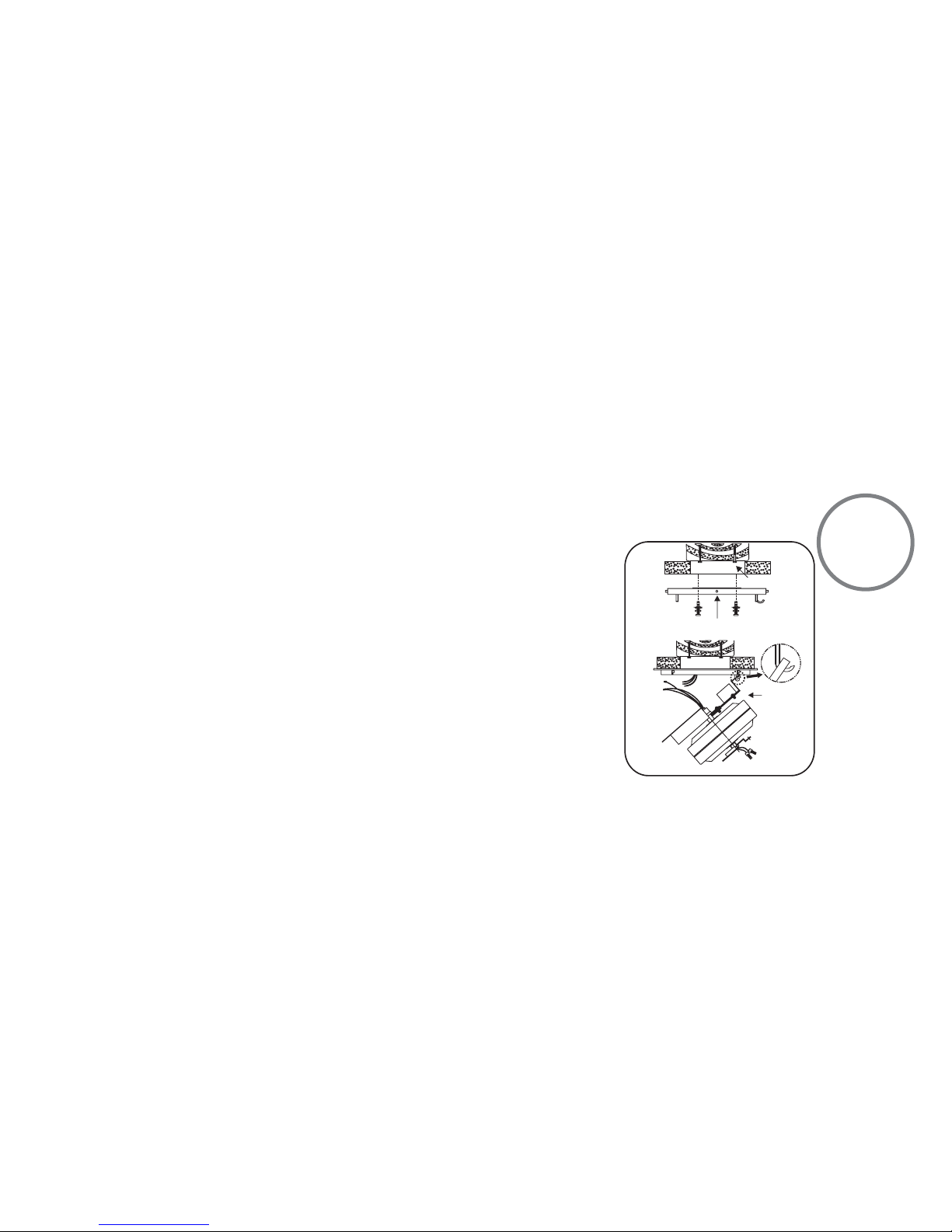

Fig. 11
NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or
removing the fuse at fuse box.
1. Raise and hold the light kit close to the mounting plate and proceed to do the wire connections.
Connect the white wire connectors from the light kit and fan, follow the same procedure with the
black wire connector from the fan and the black wire connector from the light kit. (Fig. 11)
2. Carefully tuck all wire connections back into the light kit, then install the light kit onto the
mounting plate with 3 screws provided. Be sure to tighten all screws. (Fig. 11)
INSTALLING THE LIGHT KIT
LIGHT
KIT
MOUNTING
PLATE
SCREWS
CONNECTORS

10

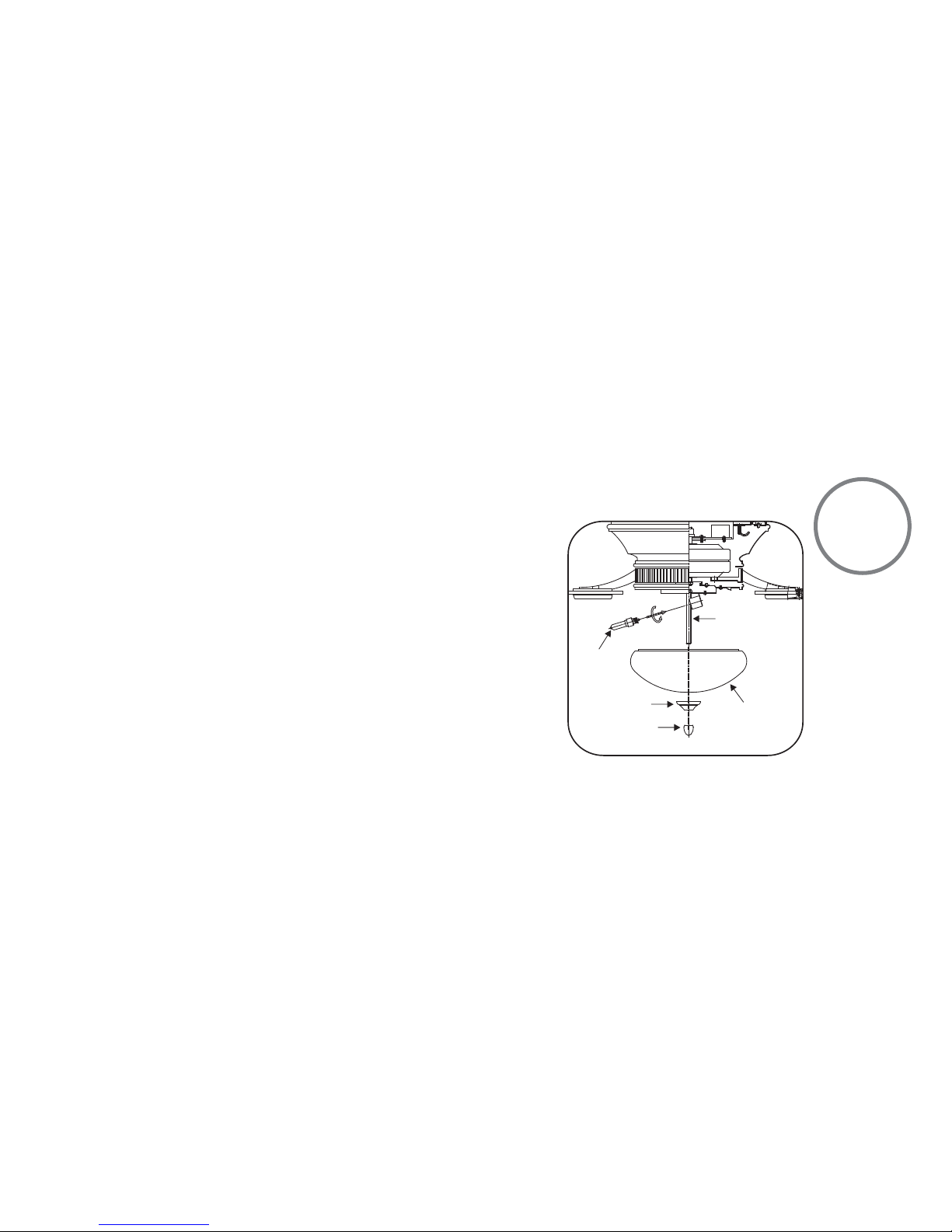

Fig. 12
WARNING: Shut of the power supply before removing or replacing lamp. In handling of
halogen bulb, care should be taken not to touch it with your bare hands. Oil residue will
shorten the life of the halogen bulb. If you accidentally come into contact, wipe thoroughly
with a clean, lint-free, cotton cloth. Allow the bulb to cool off for 10 minutes before changing
the bulb. Use light bulb in accordance with the fan's specification. TO REDUCE THE RISK OF
FIRE DO NOT EXCEED MAXIMUM WATTAGE RATING.
1. Install 2x50W halogen bulbs (included) into bulb sockets. (Fig. 12)
2. Remove the glass cap and decorative nut from the light kit. Raise the glass shade up against
the light kit, place the glass cap and decorative nut against the glass shade and secure it to
the stem by turning the decorative nut clockwise until snug. Do not overtighten. (Fig. 12)
INSTALLING THE LIGHT BULBS & GLASS SHADE
50 W
HALOGEN
BULBS
GLASS SHADE
DECORATIVE NUT
GLASS CAP
LIGHT KIT

11
OPERATING THE REMOTE CONTROL/WALL CONTROL
Restore Power to Ceiling Fan.
A. Buttons:
These buttons are used to set the fan speeds as follows;
= Low Speed
= Medium Speed
= High Speed
B. Button:
This button turns the fan off.
C. Button:
These buttons turn the light ON or OFF and also control
the brightness settings of the light. The following
instructions apply to ceiling fans that feature a DOWN
light ( button) only or ceiling fans that feature an UP
light ( button) and a DOWN light ( button) that are
controlled independent of each other;
Press and release the button for the desired light to turn
the light ON or OFF. Press and hold the button to set the
desired light brightness. The light will cycle between
bright and dim settings as long as the button is pressed.
The light key has an automatic auto-resume feature that
allows the light to remain at the same brightness as the
last time it was turned off.
D. OFF-ON Slide Button (Wall Control Fans Only)
This button turns the power Off and On to the Fan and
Light(s).
E. Button: (Full Function Remote Control Units Only)
This button is used to change the direction of the
rotation of the blades; forward for warm weather or
reverse for warm weather.
NOTE: If your Remote Control or Wall Control does not
have a " " button, Please look for a slide reverse
switch on the motor housing.
Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time.

Fig 13 Fig 14
Speed settings for warm or cold weather
depend on factors such as room size, ceiling
height and number of fans.
NOTE: To change the direction of the rotation of
the blades the fan must be in operation mode.
Warm Weather (forward)
A DOWNWARD airflow creates a cooling effect
as shown in Figure 13. This allows you to set
your air conditioner on a warmer setting
without affecting your comfort.
Cool Weather (Reverse)
An UPWARD airflow moves warmer air off the
ceiling area as shown in Figure 14. This allows
you to set your heating unit on a cooler setting
without affecting your comfort.
SUMMER OPERATION WINTER OPERATION

12
Here are some suggestions to help maintain your fan.
1. Because of the fan's natural movement some connections may become
loose. Check the support connections, brackets and blade attachments
twice a year. Make sure they are secure. (It is not necessary to remove
fan from the ceiling).
2. Clean your fan periodically to help maintain its new appearance over
the years. Use only a soft brush or lint free cloth to avoid scratching the
finish. Plated finishes are sealed with lacquer to minimize discoloration
or tarnishing.
3. Use a lint free lightly damp cloth or duster to remove dust from the
blades.
4. There is no need to oil your fan. The motor has permanently lubricated
bearings.
5. If your fan is provided with glass shades, clean with lukewarm soapy water
and a soft cloth or sponge. DO NOT IMMERSE GLASS SHADES IN HOT WATER.
DONOTPUTGLASSSHADESINTOANAUTOMATICDISHWASHER.
CARE OF YOUR FAN
WARNING!
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT
ANY REPAIRS. REFER TO THE SECTION,
"ELECTRICAL CONNECTIONS".
