SAFETY RULES

1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.

2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.

3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a

do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.

4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the

floor and 18 inches from the tip of the blades to the wall.

5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure

the box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50 pounds)

Do not use a plastic box.

6. Caution:

Caution:

To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.

7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).

8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.

9. Do not insert anything into the fan blades while the fan is operating.

10. Turn the fan off and wait for the blades to stop completely before changing the fan direction.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR SUPPORTING SYSTEM MARKED

ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE

FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED.

CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT

INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE MR36T SOLID-STATE SPEED CONTROL WITH TR111A WALL CONTROL ONLY.

NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may

occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be

supplied by the person (s) installing, caring for and operating the unit.

NOTE: READ AND SAVE ALL INSTRUCTIONS!

ATTENTION:

The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the

ceiling fan's light kit will shut off automatically.

1. Fan blades (5 )

2. Hanger bracket

3. Canopy

4. Canopy cover

5a. Standard downrod assembly

5b. Minimum-length downrod (for close

to ceiling mounting only)

6. Coupling cover

7. Upper housing

8. Bulb holder assembly

9. Fan motor/housing assembly

10. Blade holders (5)

11. 50W Halogen bulb (2)

12. Glass shade

13. Light kit stem

14a.Wall Transmitter Incl. 2 Mounting

Screws and 3 Wire Nuts

14b.Wall Plate w/2 Mounting screws

15. Receiver with 7 wire nuts

16, Extra Wall Plate w/2 Mounting screws

17. Balancing kit

A. Mounting Hardware:

#10 x 1.5" Wood Screws (2 PCs.)

#8 x 3/4" Machine screws (2 PCs.)

Lock washers (2 PCs.)

4mm Star washers (2 PCs.)

Wire nuts (3 PCs. )

Washers (2 PCs.)

B. Blade Attachment Hardware:

3/16" x 7.5 mm Screws (16 PCs.)

Fibber Washers (16 PCs.)

C. Bracket Holder Hardware:

3/16" x 3/4" Screws with lock washers (11 PCs.)

PACKAGE CONTENTS

14a

14b

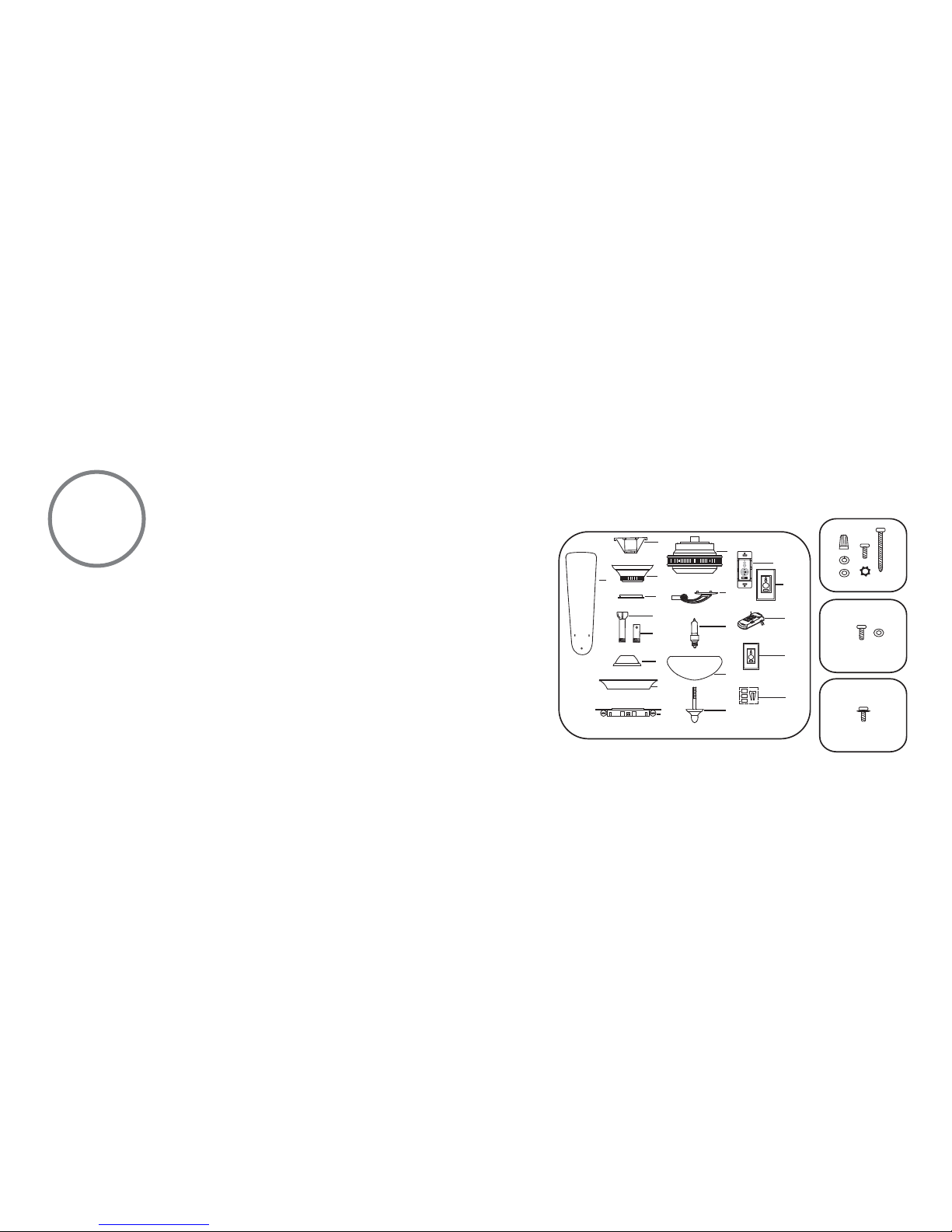

Unpack your fan and check the contents.

You should have the following items:

Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.

INSTALLING THE FAN

MOUNTING OPTIONS

If there isn't an existing mounting box, then read the following instructions. Disconnect the

power by removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building structure. Use appropriate fasteners and building

materials. The outlet box and its support must be able to fully support the moving weight of

the fan (at least 50 lbs.). Use a UL Listed metal outlet box. Do not use a plastic outlet box.

Figure 1, 2 and 3 are examples of different ways to mount the outlet box.

Note:You may need a longer downrod to maintain proper blade clearance when installing on a

steep, sloped ceiling. Longer downrods are available from your Minka-Aire dealer.

To hang your fan where there is an existing fixture but no ceiling joist, you may need to install

a hanger bar as shown in Fig. 4 (available at your Minka-Aire dealer).

FIG. 1

FIG. 3

FIG. 2

FIG. 4

CROSS BRACE

CEILING

JOIST

CEILING

JOIST

CEILING

JOIST

OUTLET BOX

PARALLEL WOOD BRACE

(Min. 2" Thick)

OUTLET

BOX

OUTLET BOX

CEILING JOIST OR

CROSS BRACE

ANGLED CEILING

MAXIMUM 29 ANGLE PROVIDE

STRONG

SUPPORT

RECESSED

OUTLET BOX

HANGER

OPENING

MUST BE

FACING

UPSIDE

HANGER BAR

(OPTIONAL)

HANGER

BRACKET

Your fan is packed with the motor and Upper Housing unassembled, proceed

the following steps for fan assembly:

Step1. Remove the two screws and rubber washers from the top of the motor

center band. Place the upper housing over the motor center band and secure it

with the two screws and rubber washers previously removed. (Fig.5)

Step2. Engage the white wire connectors from the motor and the bulb holder

assembly make sure the connection is secured Follow the same procedure for the

orange and black wire connectors.(Fig.6)

Step3. Loosen the three screws (do not remove) from the motor coupling. (Fig. 7)

Step4. Place the bulb holder assembly key holes over the 3 screws previously

loosened from the motor coupling, turn the bulb holder assembly until it locks in

place at the narrow section of the key holes. Secure by tightening the three

screws previously loosened. (Fig.7)

ASSEMBLING THE FAN

Fig. 5

Top motor

Motor

center

band

Screw

Upper housing

Fig. 6

Wire

connectors Bulb holder

assembly

Motor

Rubber

washers

Screws

Fig. 7

Motor

coupling

Bulb holder

assembly

WARNING: All of the parts, hardware and components such as the

hanger bracket and hanger ball have been provided for your safety and

the proper installation of your new ceiling fan. The use of other parts,

hardware or components not supplied by Minka Aire®with the fan will

void the Minka Aire®Warranty.

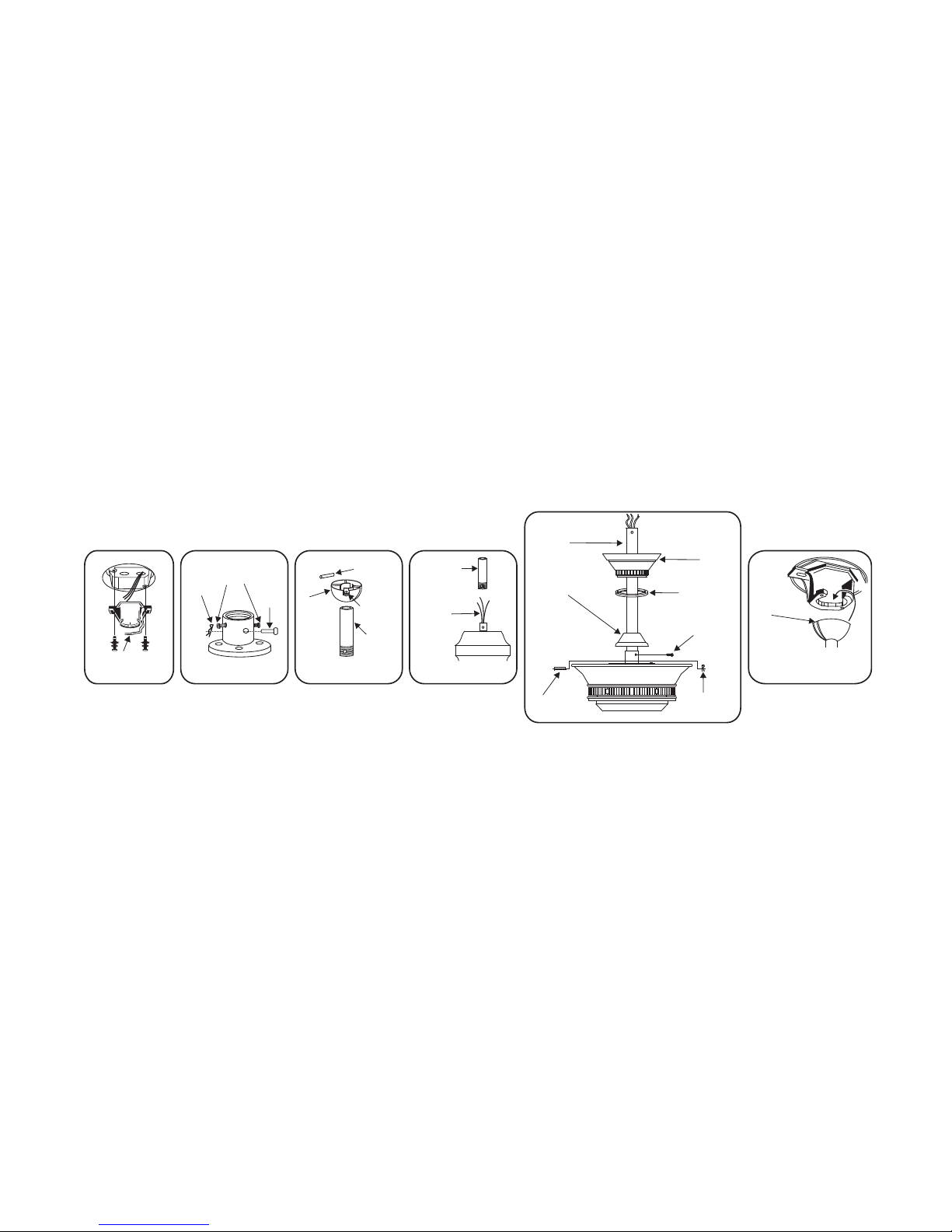

REMEMBER to turn off the power. Follow the steps below to hang your

fan properly:

Step 1. Secure the hanger bracket to the ceiling outlet box using screws

included with your outlet box, lock washers included with the fan. (Fig.8)

Step 2. Loosen the two set screws and remove the hitch pin and lock pin

in the top coupling of the motor assembly. (Fig. 9)

Step 3. Remove hanger ball from downrod assembly by loosening set

screw, removing the cross pin, and sliding ball off rod. (Fig. 10)

Step 4. Carefully feed fan wires up through the downrod. (Fig. 11)

Thread the rod into the coupling, next line up holes and replace lock

pin and hitch pin. Tighten set screws.

Step 5. Slip coupling cover, canopy cover and canopy onto downrod.

(Fig. 12) Carefully reinstall hanger ball onto rod being sure that cross

pin is in correct position, set screws are tighten and wires are not

twisted.

Step 6. Now lift motor assembly into position and place hanger ball

into hanger bracket. Rotate until the check groove has dropped into

the registration slot and seats firmly. (Fig. 13) Rod should not rotate if

this is done correctly.

HANGING THE FAN

Outlet box

Hanger bracket

Downrod

Supply

wires

Fig. 8

Fig. 10 Fig. 11Fig. 9 Fig. 13

Registration

slot

Cross pin

Hanger

ball

Downrod

Hitch

pin Lock

Allen set

screws

Set screw

Fig. 12

Downrod

Coupling

*Omit coupling

cover when

downrod

cover

using

the minimum-length

Canopy

Canopy cover

Set screws

Hitch pin

Lock pin

WARNING: To avoid possible electrical shock be sure electricity is

turned off at the main fuse or breaker box before wiring.

NOTE: The Aire Control®System is equipped with a learning frequency

function which has 256 code combinations to prevent potential

interference from other remote units. The frequency on your Receiver

and Transmitter units have been preset at the factory. (Fig. 14) No

frequency change is necessary, should you desire to install another fan

within the same home or area with a seperate frequency code please

see the "frequency interference" troubleshooting section of this

instruction manual to learn how to change the frequency.

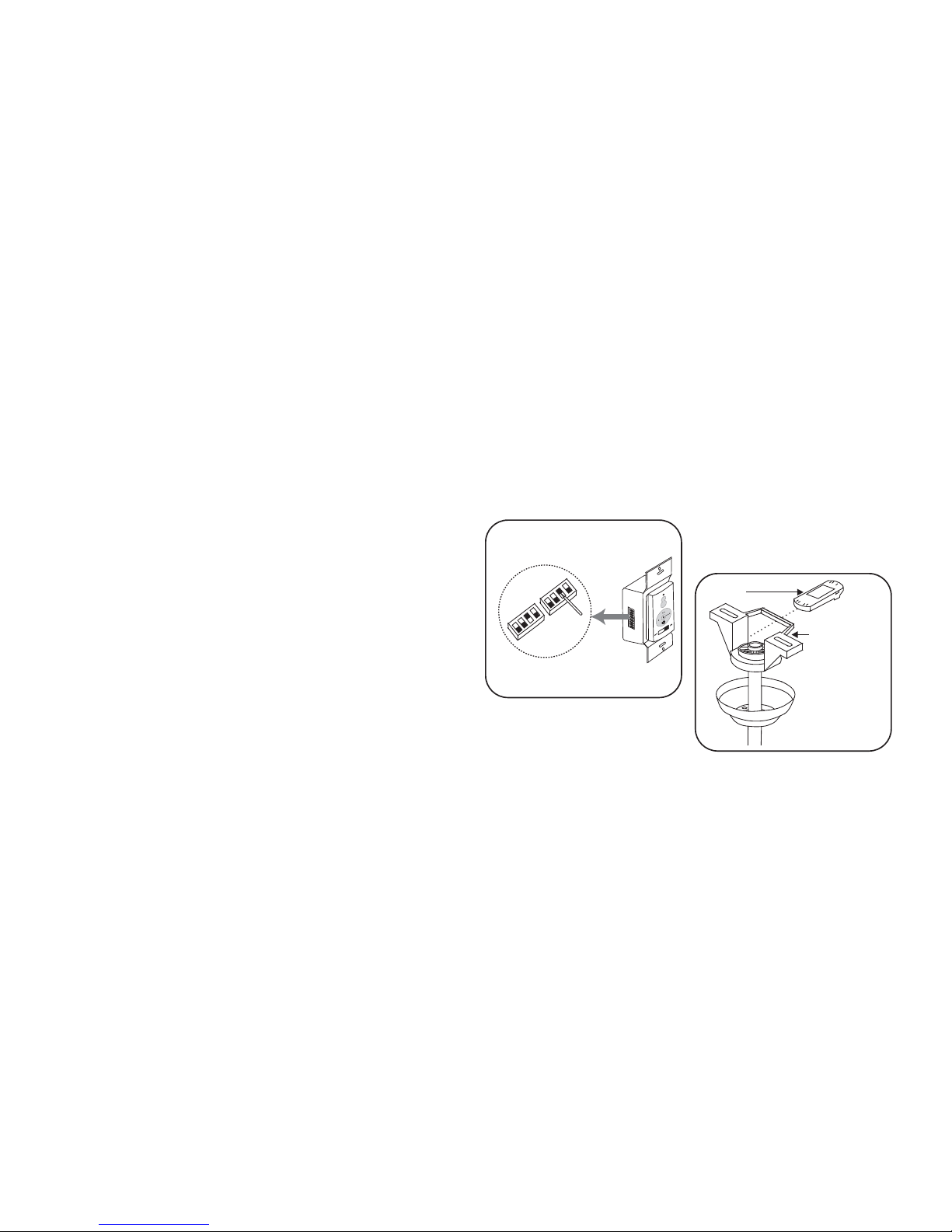

Step 1. Insert Receiver into Hanger Bracket with the flat side of the

Receiver facing the ceiling. (Fig. 15)

Step 2. Motor to Receiver Electrical Connections: Connect the

WHITE wire from the fan to the WHITE wire marked "TO MOTOR N" from

the Receiver. Connect the BLACK wire from the fan to the BLACK wire

marked "TO MOTOR L" from the Receiver. Connect the BLUE wire from the

fan to the BLUE wire marked "For Light" from the Receiver.

NOTE: If your ceiling fan features an UP Light: Connect the ORANGE wire

from the fan to the ORANGE wire marked "For Up Light" from the Receiver.

Otherwise disregard this step and proceed to secure all wire connections

with the plastic wire nuts provided. (Fig. 16 & 17)

Note: Fan must be installed at a maximum distance of 40 feet from the

transmitting unit for proper signal transmission between the transmitting

unit and the fan's receiving unit.

ELECTRICAL CONNECTIONS

Step 3. Receiver to House Supply Wires Electrical Connections:

Connect the WHITE wire (Neutral) from the outlet box to the WHITE

wire marked "AC in N" from the receiver. Connect the BLACK wire

(Hot) from the outlet box to the BLACK wire marked "AC in L" from

the receiver. Secure all wire connections with the plastic wire nuts

provided. (Fig. 16 & 17)

Step 4. If your outlet box has a GROUND wire (Green or Bare Copper)

connect this wire to the Hanger Ball and Hanger Bracket Ground

wires. If your outlet box does not have a Ground Wire, then connect

the Hanger Ball and Hanger Bracket Ground Wires together. Secure

wire connection with the plastic wire nut provided. (Fig. 16 & 17)

After all splices are made, check to make sure there are no loose

strands. As an additional precaution we suggest to secure the plastic

wire connectors to the wires with electrical tape.

Fig. 14

Fig. 15

RECEIVER

HANGER BRACKET

Fig. 16 Fig. 17

Wall

control

Black

White

Orange

White

Blue

Ground

Orange

Green

INPUT

AC120V

AC SUPPLY

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

White ("to motor N")

Ground

(green)

(Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Outlet box

Black (hot)

Black ("AC IN L")

Black ("to motor L")

Receiver

Blue (for light)

Orange

(for upper light)

Black (motor)

Orange

(for upper light)

Fig. 18

WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE

OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE

TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR.

Step 1. Remove the existing wall plate and switch from the wall outlet box.

Step 2. Make the electrical connections as shown in Fig.17. If your outlet box has a ground

wire (Green or Bare Copper) connect the Transmitter's ground wire directly to one of the

screws from the outlet box. Secure all wire connections with the plastic wire nuts

provided.

Step 3. Carefully tuck the wire connections inside the outlet box. Use the screws provided

to secure the wall transmitter and wall plate to the outlet box. (Fig. 18)

NOTE: Your Aire Control

System includes two sets of face and decorative plate color

options. The wall control comes with standard white faceplate attached. If you desire to

replace it with the Ivory color faceplate included, use a small flat screw driver and gently

pry it apart from the top or bottom of the plate.

INSTALLING THE WALL TRANSMITTER

Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other

one half a turn from the screw head.

Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy

over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section

of the key holes. (Fig. 19)

Step 3. Align the circular hole on canopy with the remaining hole on the hanger bracket,

secure by tightening the two set screws.

Note: Adjust the canopy screws as necessary until the canopy and canopy cover are snug.

FINISHING THE INSTALLATION

Fig. 19

OUTLET BOX

HANGER

BRACKET

HANGER

BALL

CANOPY

COVER

Fig 20

Fig 21

THE FOLLOWING OPERATION MUST BE ACCOMPLISHED

BEFORE INSTALLING THE LIGHT KIT.

Step1. Attach the fan blade to the blade holder using the

screws and fiber washers provided. Tighten screws

securely. Repeat process for remaining blades.(Fig. 20)

Step2. Rotate motor until holes become visible through

the light plate access window. Align the holes from the

blade holder to the holes from the motor and secure in

place with screws provided. (Fig. 21)

BLADE INSTALLATION

Blade

bracket

Blade

Screws

Fiber

washers

Blade holder

Blade

holder screw

Access

window

Light plate

Fig. 22

WARNING: Shut of the power supply before removing or replacing lamp. In handling of halogen

bulb, care should be taken not to touch it with your bare hands. Oil residue will shorten the life of

the halogen bulb. If you accidentally come into contact, wipe thoroughly with a clean, lint-free,

cotton cloth. Allow the bulb to cool off for 10 minutes before changing the bulb. Use light bulb in

accordance with the fan's specification. TO REDUCE THE RISK OF FIRE DO NOT EXCEED MAXIMUM

WATTAGE RATING.

ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt

limiting device. If lamping exceeds 190 watts, the ceiling fan's light kit will shut off automatically.

Step 1. Install 2x50W halogen bulbs by screwing it clockwise into bulb sockets. (Fig. 22)

Step 2. Raise the glass shade up against the light plate and secure it to the fan with the light kit

stem. (Fig. 22)

INSTALLING THE LIGHT BULBS & GLASS SHADE

Bulb

socket

Light kit stem

Glass shade

Light plate

Light kit stem

50 W

halogen bulb

OPERATING THE REMOTE CONTROL/WALL CONTROL

Restore Power to Ceiling Fan.

A. Buttons:

These buttons are used to set the fan speeds as follows;

= Low Speed

= Medium Speed

= High Speed

B. Button:

This button turns the fan off.

C. Button:

These buttons turn the light ON or OFF and also control

the brightness settings of the light. The following

instructions apply to ceiling fans that feature a DOWN

light ( button) only or ceiling fans that feature an UP

light ( button) and a DOWN light ( button) that are

controlled independent of each other;

Press and release the button for the desired light to turn

the light ON or OFF. Press and hold the button to set the

desired light brightness. The light will cycle between

bright and dim settings as long as the button is pressed.

The light key has an automatic auto-resume feature that

allows the light to remain at the same brightness as the

last time it was turned off.

D. OFF-ON Slide Button (Wall Control Fans Only)

This button turns the power Off and On to the Fan and

Light(s).

E. Button: (Full Function Remote Control Units Only)

This button is used to change the direction of the

rotation of the blades; forward for warm weather or

reverse for cool weather.

NOTE: If your Remote Control or Wall Control does not

have a " " button, Please look for a slide reverse

switch on the motor housing.

Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time.

Table of contents
