Minka Group minkaAire GEORGE KOVACS SPECTRE Guide

INSTRUCTION MANUAL WARRANTY CERTIFICATE
U.S. Patents: D778,422; D779,052; D779,093; D792,577; D806,226; D808,513; D814,622
SPECTRE
A

This product is protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
©2019 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including
Patents, Trademark, and/or Copyright Laws.

The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer.
This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs
excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling
fan (excluding wall controls and electrical components), to the original purchaser or user.
* The warranty is voided with the use of any non- Minka-Aire®electrical devices, E.g., wall controls or electrical dimmer switches, etc…
* The warranty is void once the original purchaser or user ceases to own the fan or the fan is moved from its original point of installation.
* The warranty is void with the use of any hanger bracket (non-Minka Aire or non-fan specific) other than the hanger bracket supplied & installed
with this specific fan.

Date Purchased Store Purchased Model Number Serial Number
F726
Warranty Service Information
To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of
purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty
claim. Replacement is subject to availability of the same model. If the model is unavailable it will be replaced by one of equal value. This is a
limited warranty; the original purchaser or user is responsible for the cost of removal and reinstallation of repaired or replacement product.
To obtain the name of the Minka-Aire® authorized dealer nearest you call the Minka-Aire® customer care department at 1-800-307-3267, or
contact Minka-Aire® through www.minkagroup.net and select FAQ to answer any questions or if you require additional assistance submit the
question form found there.

CONTENTS
SAFETY RULES...........................................................................................
PACKAGE CONTENTS............................................................................
INSTALLING THE FAN............................................................................
HANGING THE FAN................................................................................
ELECTRICAL CONNECTIONS..............................................................
FINISHING THE INSTALLATION.......................................................
ATTACHING THE FAN BLADES.................................................................
INSTALLING THE LED LIGHT KIT ..............................................................
OPERATING THE REMOTE CONTROL/WALL CONTROL.............
CARE OF YOUR FAN......................................................................................
TROUBLESHOOTING...................................................................................
SPECIFICATIONS............................................................................................
1
2
3
4
5
6
7
8
9
10
11
12
1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267
UL
LISTED
E75795
R

SAFETY RULES
1
1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a
do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 10 feet from
the floor and 18 inches from the tip of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure the
box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50 pounds) Do
not use a plastic box.
6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.
10. Turn the fan off and wait for the blades to stop completely before performing any maintenance or cleaning.

WARNING
SUPPORT DIRECTLY FROM BUILDING STRUCTURE.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY. MOUNT FAN DIRECTLY TO THE BUILDING JOIST USING THE WOOD SCREWS AND
WASHERS PROVIDED WITH THE FAN. THE WOOD SCREWS MUST GO THROUGH THE OUTLET BOX VIA THE KNOCK OUTS. CONSULT A QUALIFIED ELECTRICIAN IF IN
DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES, OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE UC7084T REMOTE CONTROL ONLY.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be
supplied by the person (s) installing, caring for and operating the unit.
NOTE: READ AND SAVE ALL INSTRUCTIONS!

2
A. Mounting hardware:
#10 x 1.5" Wood screws (2 PCs.)
#8 x 3/4" Machine screws (2 PCs.)
Lock washers (2 PCs.)
4mm Star washers (2 PCs.)
Wire nuts (3 PCs. )
Washers (2 PCs.)
B. Blade attachment hardware:
3/16" x 13mm Screws and fiber
washers (9 PCs.)
C. Allen Wrench
1. Fan blades (4)
2. Hanger bracket
3. Canopy
4. Canopy cover
5. Downrod assembly
6. Fan motor/housing assembly
7. 17W LED Light kit
8. Remote control with holder and 2
mounting screws
9. 12V MN21/A23 battery
10. Balancing kit

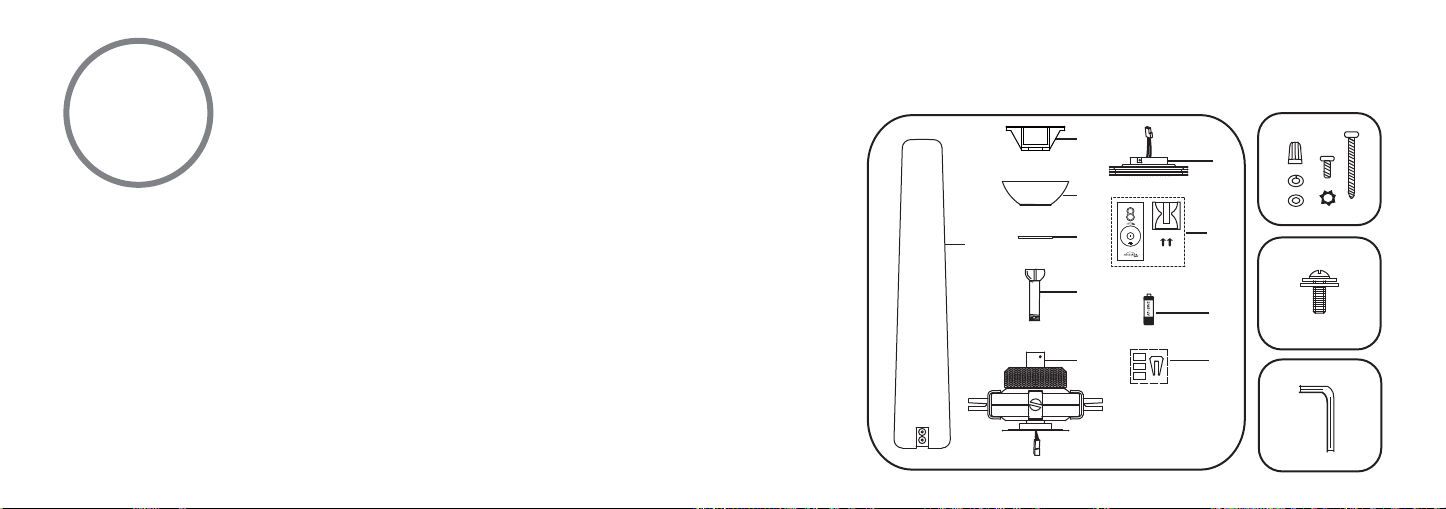

PACKAGE CONTENTS
Unpack your fan and check the contents. You should have the following items:
B
A
C
1
2
7
8
9
3
4
5
610
1
2
34
5
6

3
Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.
INSTALLING THE FAN
MOUNTING OPTIONS
If there isn't an existing mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and building
materials. The outlet box and its support must be able to fully support the moving weight of
the fan (at least 50 lbs.). Use a UL Listed metal outlet box. Do not use a plastic outlet box.
Figure 1, 2 and 3 are examples of different ways to mount the outlet box.
Note: You may need a longer downrod to maintain proper blade clearance when installing on a
steep, sloped ceiling. Longer downrods are available from your Minka-Aire®dealer.
To hang your fan where there is an existing fixture but no ceiling joist, you may need to install
a hanger bar as shown in Fig. 4 (available at your Minka-Aire® dealer).
FIG. 1
FIG. 3
FIG. 2
FIG. 4
CROSS BRACE
CEILING
JOIST
CEILING
jOIST
CEILING
JOIST
OUTLET BOX
PARALLEL WOOD BRACE
(MIN. 2" THICK)
OUTLET
BOX
OUTLET BOX
CEILING JOIST OR
CROSS BRACE
ANGLED CEILING
MAXIMUM 18 ANGLE PROVIDE
STRONG
SUPPORT
RECESSED
OUTLET BOX
HANGER
OPENING
must be
FACING
UPSIDE
HANGER BAR
(OPTIONAL)
HANGER
BRACKET

4
WARNING: All of the parts, hardware and components such as the
hanger bracket and hanger ball have been provided for your safety and
the proper installation of your new ceiling fan. The use of other parts,
hardware or components not supplied by Minka Aire®with the fan will
void the Minka Aire®Warranty.

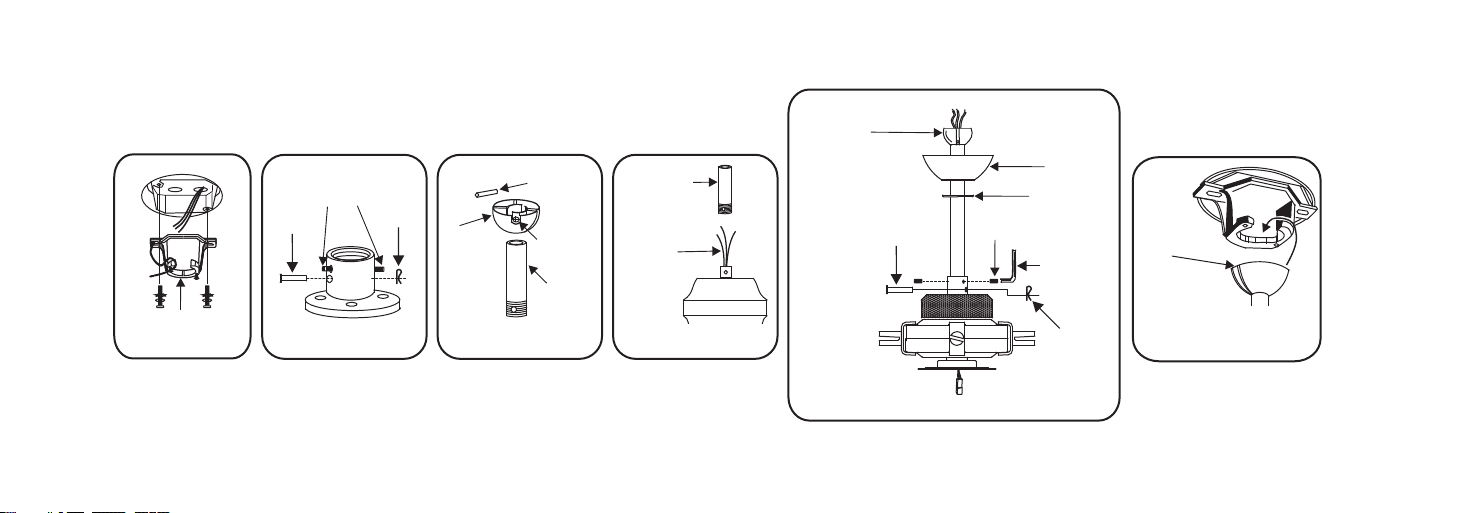

REMEMBER to turn off the power. Follow the steps below to hang your
fan properly:
Step 1. Secure the Hanger Bracket to the ceiling outlet box using the screws
provided with your outlet box in conjunction with the lock-washers
provided with the fan. (Fig. 5)
Step 2. Loosen the two Allen Set Screws
and remove the hitch pin and lock
pin from the coupling located on the top of the Motor Assembly. (Fig. 6)
Step 3. Remove the Hanger Ball from the Downrod Assembly by loosening
the Set Screw and removing the Cross Pin. (Fig. 7)
Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) Thread
Downrod into the Coupling and
replace lock pin and hitch pin and secure
with the Allen Set Screws previously loosened
. tighten Set Screws. (Fig. 9)
Step 5. Slip canopy cover and canopy onto downrod. (Fig. 9) Carefully
reinstall hanger ball onto rod being sure that cross pin is in correct
position, set screws are tighten and wires are not twisted.
Step 6. Lift the Motor Assembly and place the Hanger Ball into the Hanger
Bracket. Rotate the Motor Assembly as needed until the check groove
from the Hanger Ball rests firmly over the registration tab from the
Hanger Bracket. Motor Assembly should not rotate if this is done
correctly. (Fig. 10)
HANGING THE FAN

DOWNROD
SUPPLY
WIRES
Fig. 7 Fig. 8Fig. 6
CROSS PIN
HANGER
BALL
DOWNROD
SET SCREW
Fig. 9
DOWNROD
CANOPY
ALLEN SET SCREWS
CANOPY
COVER
Fig. 10
REGISTRATION
SLOT
ALLEN
WRENCH
ALLEN
SET SCREWS
HITCH PIN
LOCK PIN
LOCK PIN
HITCH PIN
OUTLET BOX
HANGER BRACKET
Fig. 5

5
ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock be sure electricity is turned off at the
main fuse or breaker box before wiring.
NOTE: The Aire Control®System for this DC motor fans is equipped with a learning
frequency function which has 32 code combinations to prevent potential interference from
other remote units. The frequency on your Receiver and Transmitter units have been preset
at the factory. (Fig. 11) No frequency change is necessary, should you desire to install
another Minka Aire DC motor fan within the same home or area with a separate frequency
code please see the "frequency interference" troubleshooting section of this instruction
manual to learn how to change the frequency.
FREQUENCY
Fig. 11

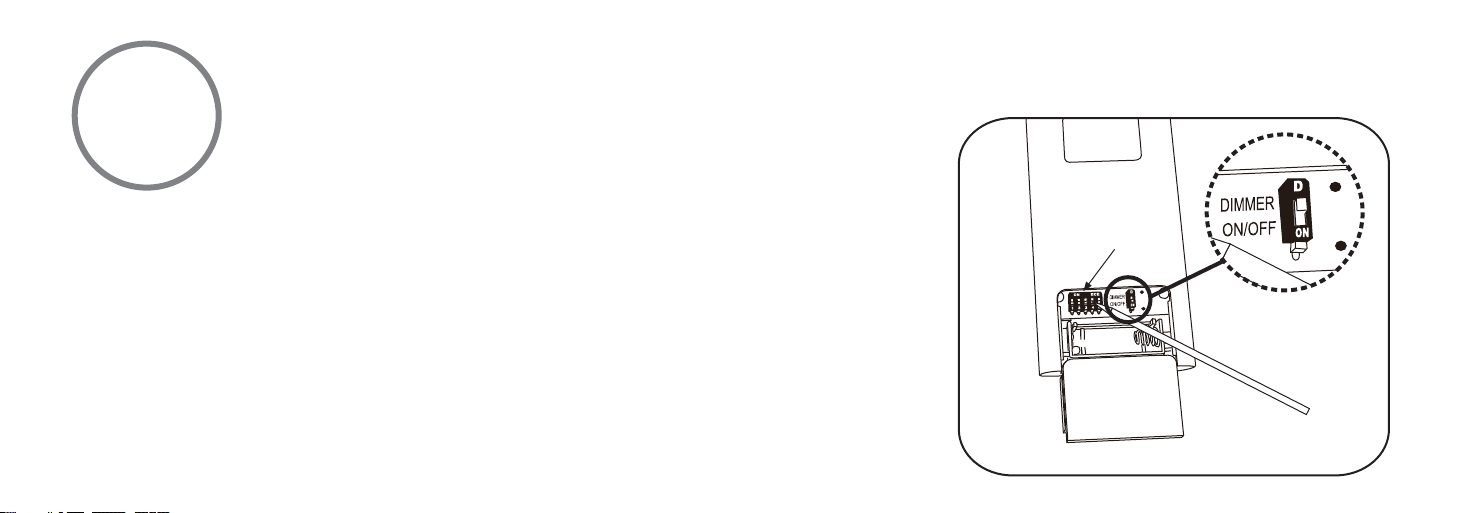

The “D (DIMMER)” selection is the light dimmable selection and is to be used with all bulbs
except for CFL bulbs. The “ON (ON/OFF)” selection is the light on only (no dimming function)
and is to be used with CFL bulbs as CFL bulbs cannot be dimmed properly. The LED bulb
included with this fan is dimmable. The switch has to be set at "D."

Step 1. Motor to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from
the outlet box to the WHITE wire marked "AC in N" from the motor. Connect the BLACK wire (Hot)
from the outlet box to the BLACK wire marked "AC in L" from the motor. Secure all wire connections
with the plastic wire nuts provided. (Fig. 12)
Step 2. If your outlet box has a GROUND wire (Green or Bare Copper) connect this wire to the
Hanger Ball and Hanger Bracket Ground wires. If your outlet box does not have a Ground Wire, then
connect the Hanger Ball and Hanger Bracket Ground Wires together. Secure wire connection with
the plastic wire nut provided. (Fig. 12)
After all splices are made, check to make sure there are no loose strands. As an additional precaution
we suggest to secure the plastic wire connectors to the wires with electrical tape.
WHITE (NEUTRAL)
WHITE ("AC IN N")
GREEN OR BARE
COPPER (GROUND)
GROUND
(GREEN)
(CONNECT TO
GROUND WIRE
ON HANGER
BRACKE IF NO
HOUSE GROUND
WIRE EXISTS.)
BLACK (HOT)
BLACK ("AC IN L")
Fig. 12

6

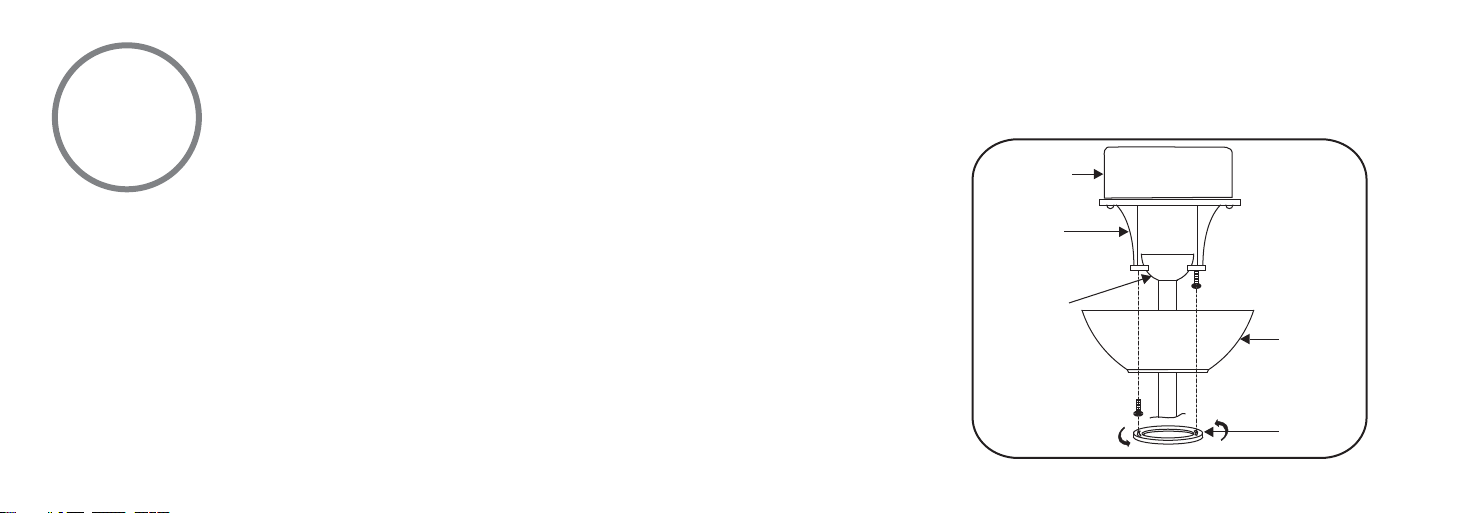

Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the
other one half a turn from the screw head.
Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy
over the screw on the hanger bracket, turn canopy until it locks in place at the narrow
section of the key holes. (Fig. 13)
Step 3. Align the circular hole on canopy with the remaining hole on the hanger bracket,
secure by tightening the two set screws.
Note: Adjust the canopy screws as necessary until the canopy and canopy cover are snug.
FINISHING THE INSTALLATION
Fig. 13
OUTLET BOX
HANGER
BRACKET
HANGER
BALL
CANOPY
CANOPY
COVER

7

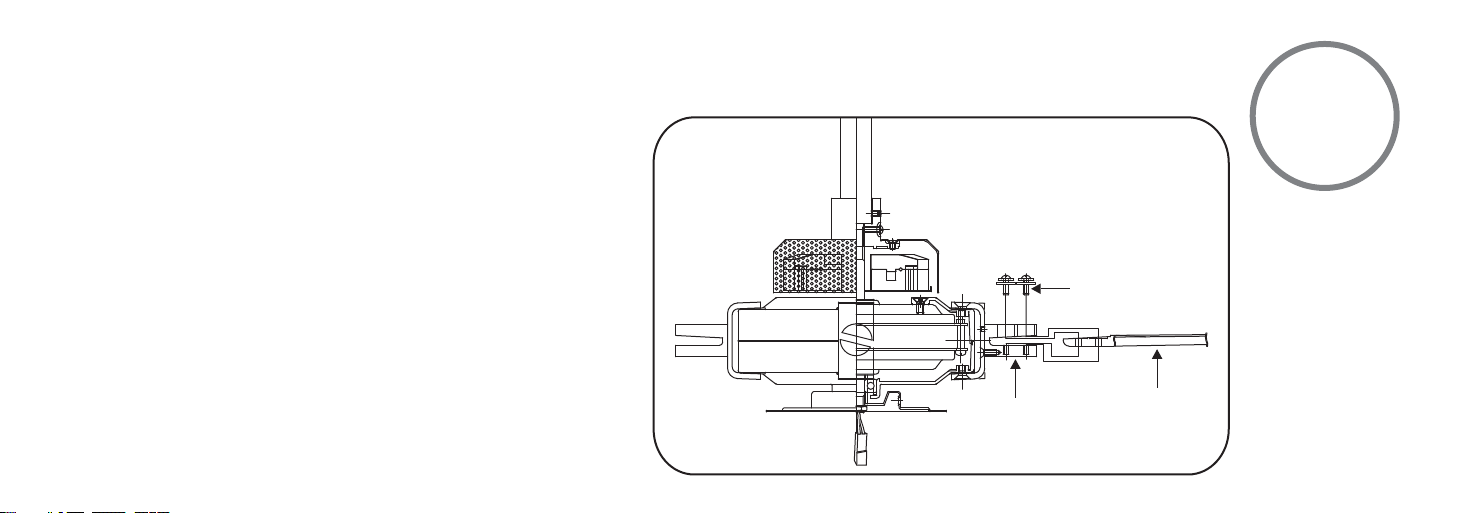

ATTACHING THE FAN BLADES
Attach the fan blade to the blade holder using the screws and fiber
washers provided. Tighten screws securely. Repeat process for
remaining blades. (Fig. 14)
Fig. 14
FAN BLADE
SCREWS AND
FIBER WASHERS
BLADE HOLDER

8
INSTALLING THE LED LIGHT KIT
Step 1. Remove the 3 screws from the mounting plate.
Step 2. While holding the LED light kit under the fan motor assembly, make the 2-pin wire
connections:
- White to white
- Black to black
Step 3. Carefully tuck all wire connections back into the LED light kit, then install the LED light kit
onto the mounting plate with 3 screws previously removed. Be sure to tighten all screws. (Fig. 15)

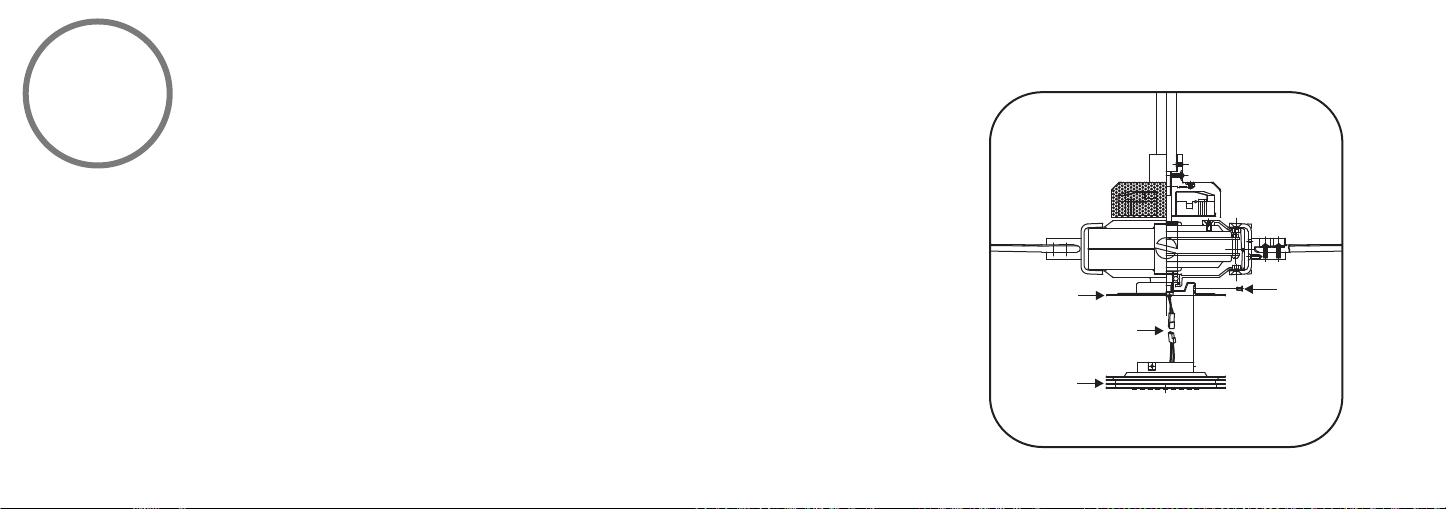

Fig. 15
MOUNTING
PLATE
SCREWS
CONNECTORS
LED LIGHT KIT

9
OPERATING THE REMOTE CONTROL/WALL CONTROL
B. Reverse button:
This button is used to change the direction of
the rotation of the blades; forward for warm
weather or reverse for warm weather.
C. button:
This button turns the power Off and On to
the Fan.
D. Button:
These buttons turn the light ON or OFF, this
fan's light is dimmable. The following
instructions apply to ceiling fans that feature
a DOWN light ( button) only or ceiling fans
Restore power to ceiling fan and test the
transmitter as below for proper operation:
A. 1, 2, 3, 4, 5 and 6 button:
These six buttons are used to set the fan
speed as follows:
1 = minimum speed
2 = low speed
3 = medium low speed
4 = medium speed
5 = medium high speed
6 = high speed
that feature an UP light ( button) and a DOWN
light ( button) that are controlled independent
of each other;
Press and release the button for the desired light
to turn the light ON or OFF. Press and hold the
button to set the desired light brightness. The
light will cycle between bright and dim settings
as long as the button is pressed. The light key
has an automatic auto-resume feature that
allows the light to remain at the same brightness
as the last time it was turned off.
Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time.

1. Select desired frequency from the back of
transmitter.
2. Press the transmitter’s “ ” button, and hold
the “ ” button for over 5 seconds or until the
fan’s light blinks.
3. “D” and “ON” dip switch:
The “D” selection is the light dimmable selection
and is to be used with all bulbs except for CFL
bulbs. The “ON” selection is For CFL bulbs.
Speed settings for warm or cold weather
depend on factors such as room size, ceiling
height and number of fans.
NOTE: To change the direction of the rotation of
the blades the fan must be in operation mode.
Warm Weather (forward)
A DOWNWARD airflow creates a cooling effect
as shown in Figure 16. This allows you to set
your air conditioner on a warmer setting
without affecting your comfort.
Cool Weather (Reverse)
An UPWARD airflow moves warmer air off the
ceiling area as shown in Figure 17. This allows
you to set your heating unit on a cooler setting
without affecting your comfort.

Fig 17
WINTER OPERATION
(CLOCKWISE DIRECTION)
Fig 16
SUMMER OPERATION
(COUNTERCLOCKWISE DIRECTION)

10
Here are some suggestions to help maintain your fan.
1. Because of the fan's natural movement some connections may become
loose. Check the support connections, brackets and blade attachments
twice a year. Make sure they are secure. (It is not necessary to remove
fan from the ceiling).
2. Clean your fan periodically to help maintain its new appearance over
the year. CAUTION; many common household cleaning products contain
chemicals that could damage the finish of your fan. Use only a soft lint
free cloth and soapy water.
3. If your fan is provided with wood veneer blades; you can apply a light
coat of furniture polish for additional protection and enhanced beauty.
Cover small scratches with a light application of shoe polish.
4. Use a lint free lightly damp cloth or duster to remove dust from
the blades.
5. There is no need to oil your fan. The motor has permanently lubricated
bearings.
6. If your fan is provided with glass shades, clean with lukewarm soapy water
and a soft cloth or sponge. DO NOT IMMERSE GLASS SHADES IN HOT WATER.
DO NOT PUT GLASS SHADES INTO AN AUTOMATIC DISHWASHER.
CARE OF YOUR FAN
WARNING!
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT
ANY REPAIRS. REFER TO THE SECTION,
"ELECTRICAL CONNECTIONS".
