Minka Group Minka-Aire Kewl F833 User manual

CERTIFICATE
Kewl

Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.

The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer.
This warranty is only valid to the original purchaser or user against all defects in material and workmanship light bulbs (
excluded for one full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling ) (1)
fan excluding wall controls and electrical components , to the original purchaser or user. ( )
* The warranty is voided with the use of any non- Minka-Aire®electrical devices, E.g., wall controls or electrical dimmer switches, etc…
* The warranty is void once the original purchaser or user ceases to own the fan or the fan is moved from its original point of installation.
* The warranty is void with the use of any hanger bracket (non-Minka Aire or non-fan specific other than the hanger bracket supplied ) & installed
with this specific fan.

Date Purchased Store Purchased Model Number Serial Number
F833
Warranty Service Information
To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of
purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty
claim. Replacement is subject to availability of the same model. If the model is unavailable it will be replaced by one of equal value. This is a limited
warranty; the original purchaser or user is responsible for the cost of removal and reinstallation of repaired or replacement product.
To obtain the name of the Minka-Aire® authorized dealer nearest you call the Minka-Aire® customer care department at 1-800-307-3267, or
contact Minka-Aire® through www.minkagroup.net and write to: “Ask Mr. Minka” to answer any questions or if you require assistance.

CONTENTS
INSTALLING THE WALL CONTROL
FINISHING THE INSTALLATION
OPERATING YOUR FAN
CARE OF YOUR FAN
TROUBLESHOOTING
SPECIFICATIONS
SAFETY RULES
PACKAGE CONTENTS
INSTALLING THE FAN
BLADE INSTALLATION
HANGING THE FAN
ELECTRICAL CONNECTIONS
1
2
3
4
5
6
7
8
9
10
11
12
........................................................
.......................................................................
..............................................................................
...........................................................................
..................................................................................
....................................................
......................................
......................................
...................................
..........................................
..........................
...................................................

SAFETY RULES
1
1.
2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinance, or National Electrical Codes. Hire a qualified electrician or
consult a do-it-your self wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet
from the floor and 18 inches from the top of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L Listed metal octagonal outlet box marked"Acceptable For Fan Support".
Secure the box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at
least 50 pounds). Do not use a plastic box.
6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with
the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.
10. Turn the fan off and wait for the blades to stop completely before performing any maintenance or cleaning.
Before you begin installing the fan, shut power off the circuit breaker of the fuse box.

NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and
situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into
this product. These factors must be supplied by the person(s) installing, caring for and operating the unit.
NOTE: READ AND SAVE ALL INSTRUCTIONS!
WARNING
TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L LISTED OUTLET BOX OR SUPPORTING
SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE
LOCK WASHERS PROVIDED WITH THE FAN. MOST OUTLET BOXS COMMONLY USED FOR THE SUPPORT OF LIGHTING FIXTURES ARE NOT
ACCEPTABLE FOR FAN SUPPORT AND MAY NEED TO BE REPLACED. CONSULT A QUALIFIDE ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING BALANCING THE BLADES OR CLEANING
THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE UC9020 SOLID-STATE SPEED CONTROL ONLY.

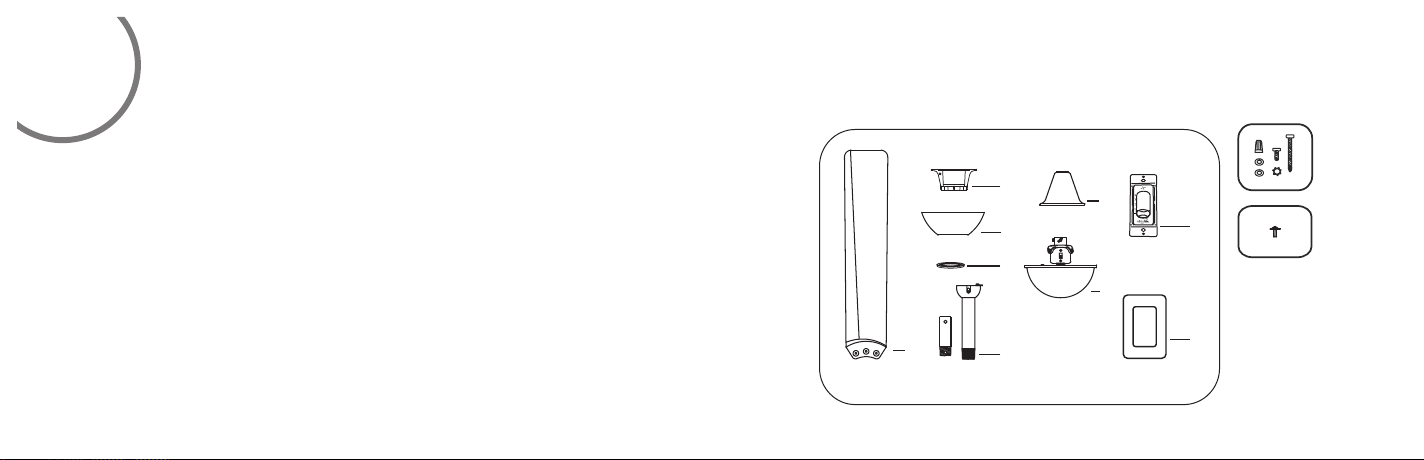

PACKAGE CONTENTS
1. Fan blades(3)
2. Hanger bracket
3. Canopy
4. Canopy cover
5. Standard downrod assembly(6")
Minimum-length downrod(3.5")
6. Coupling cover
7. Fan motor/housing assembly
8. Wall control with 2 mounting
screws and 3 wire nuts
9. Wall plate with 2 mounting screws
A
A. Mounting hardware:
Wire nuts(3)
#8x3/4”Machine screws (2)
#10x1.5Wood screws (2)
4mm Star washers (2)
Metal washers (2)
Lock washers (2)
B. Blade attachment hardware:
3/16“x12.7mm screws (10)
2
Unpack your fan and check the contents. You should have the following items:
B
1
2
3
4
5
6
7
8
9

3
INSTALLING THE FAN
FIG. 1
CROSS BRA CE
CEILING
JOIST
CEILING
jOIST
OUTLET BOX
FIG. 2
PARALL EL WOOD BRAC E
(MIN. 2’’ THICK )
OUTLET
BOX
CEILING JOIST OR
CROSS BRA CE
FIG. 3
ANGLED CEILI NG
MAXIMUM 18° ANGLE
PROVIDE
STRONG
SUPPORT
RECESSED
OUTLET
BOX
HANGER
OPENING
must be
FACING
UPSIDE
FIG. 4
CEILING
JOIST
OUTLET BOX
HANGER BA R
(OPTIONAL)
HANGER
BRACKET
MOUNTING OPTIONS
If there isn't an existing mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and
building materials. The outlet box and its support must be able to fully support the moving
weight of the fan (at least 50 lbs.).Use a UL listed metal outlet box.
Do not use a plastic outlet box.
Figure1,2 and 3 are examples of different ways to mount the outlet box.
Note: You may need a longer downrod to maintain proper blade clearance when installing on
a steep, sloped ceiling. .
To hang your fan where there is an existing fixture but no ceiling joist, you may need to
install a hanger bar as shown in Fig.4 .
R
Longer downrods are available from your Minka-Aire dealer
R
(available at your Minka Aire dealer or local hardware store)
Tools Required: Philips screw driver, slotted screw driver, step-ladder, wire cutters, electrical tape.

4BLADE INSTALLATION
Blade
Fig. 5
Screw
Fan motor
Align the 3 holes from the blade to the fan motor.
Secure blade with 3 blade screws provided. Follow the same process for the remaining
two blades. (Fig. 5)
All blade sets are grouped together by weight. Because plastic materials vary in density,
the fan may wobble even though the blades are weight matched.

5
HANGING THE FAN
WARNING: All of the parts, hardware and components such as the
hanger bracket and hanger ball have been provided for your safety and
the proper installation of your new ceiling fan. The use of other
R
parts,hardware or components not supplied by Minka Aire with the fan
R
will void the Minka Aire Warranty.
REMEMBER to turn off the power. Follow the steps below to hang your
fan properly:
Stpe 2.Lossen the two set screws and remove the hitch pin and lock pin
from the top coupling of the motor assembly.(Fig 7)
Step 3.Remove hanger ball from downrod assembly by loosening set
screw,removing the cross pin, and sliding ball off rod.(Fig 8)
Step 1.Secure the hanger bracket to the ceiling outlet box using screws
and washers included with mounting hardware.(Fig.6)
Step 4.Carefully feed fan wires up through the downrod(Fig 9).
Thread the rod into the coupling, next line up holes and replace lock
pin and hitch pin. Tighten set screws.
NOTE:DO NOT INSTALL THE COUPLING COVER IF YOU PLAN TO USE
THE MINIMUM LENGTH DOWNROD.
Step 6. Now lift motor assembly into position and place hanger ball
into hanger bracket. Rotate until the check groove has dropped into
the registration slot and seats firmly.(Fig 11)Rod should not rotate if
this is done correctly.
Step5.Slip coupling cover, canopy cover, and canopy onto downrod
(Fig.10).Carefully reinstall hanger ball onto rod being sure that cross
pin is in the correct position, set screws are tighten and wires are
not twisted.

Fig. 11
REGISTRATION
SLOT
Fig. 9
DOWNROD
SUPPLY
WIRES
Fig. 8
CROSS PIN
HANGER
BALL
DOWNROD
SET SCREW
Fig. 7
HITCH
PIN LOCK
PIN
SET SCREWS
Fig. 6
OUTLET BOX
HANGER BRACKET
Fig. 10
LOCK PIN
COUPLING
COVER
DOWNROD
CANOPY
SCREWS
HITCH PIN
CANOPY
COVER

6
ELECTRICAL CONNECTIONS
Follow the steps below to connect the fan to your house supply wires.
Use the wire nuts supplied with your fan. Secure the wire nuts by wrapping
the connection with electrical tape.
Step 1. Disconnect the power and remove the existing wall plate and switch
from the wall junction box.
Step 2. Set knobs on the wall control in the “ “ position.
Step 3. Make wire connections (Fig. 12) and secure with wire nuts supplied.
• Black wire from fan to black wire from wall control.
• Black wire from wall control to black wire from the A/C supply source.
• White wire from fan to white wire from the A/C supply source.
• Connect the fan ground wire (green) to the household ground wire.
If your outlet box has a ground wire (green or bare copper) connect the wall
control's ground wire to it; otherwise connect the wall control's ground
wire directly to one of the screws from the outlet box.

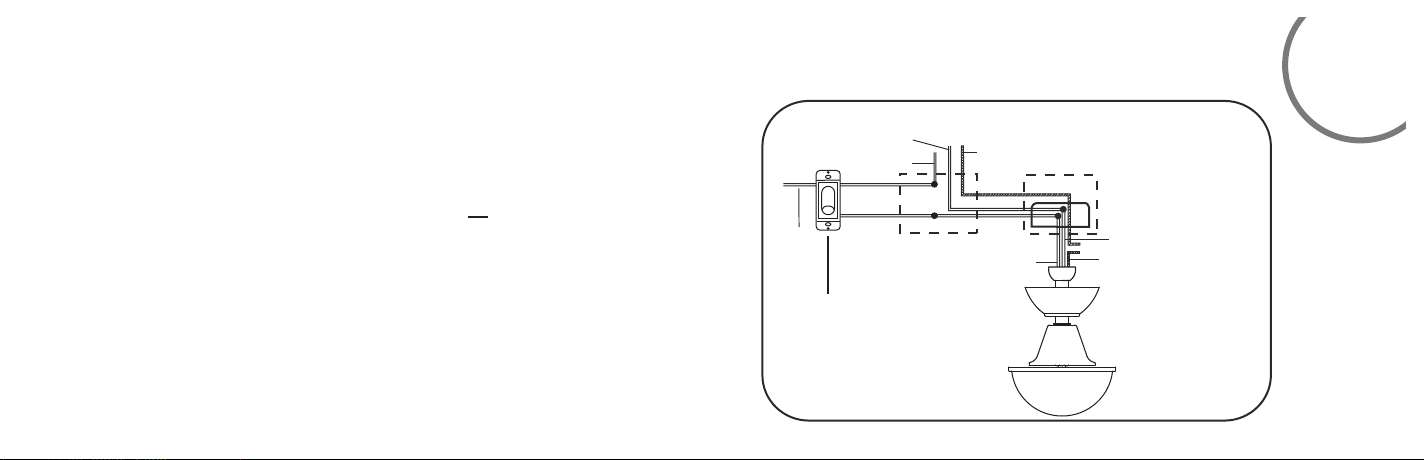

Fig.12
BLACK (HOT)
WALL
WHITE (NEUTRAL)
GREEN (GROUND)
CEILING
HOUSE WIRE SUPPLY
BLACK (MOTOR)
WHITE (NEUTRAL)
FAN WALL CONTROL
GROUND
(CONNECT TO GROUND WIRE ON
HANGER BRACKET IF NO HOUSE
GROUND WIRE EXISTS.)
GREEN
(GROUND)
BLACK

7INSTALLING THE WALL CONTROL
Fig.13
Remember to shut the power off at the circuit breaker or fuse box.
WARNING: HOOK UP IN "SERIES ONLY" DO NOT CONNECT THE HOT AND
NEUTRAL WIRES OF ELECTRIC CIRCUIT TO THE WALL CONTROL - DAMAGE TO
THE SWITCH AND POSSIBLE FIRE COULD OCCUR.

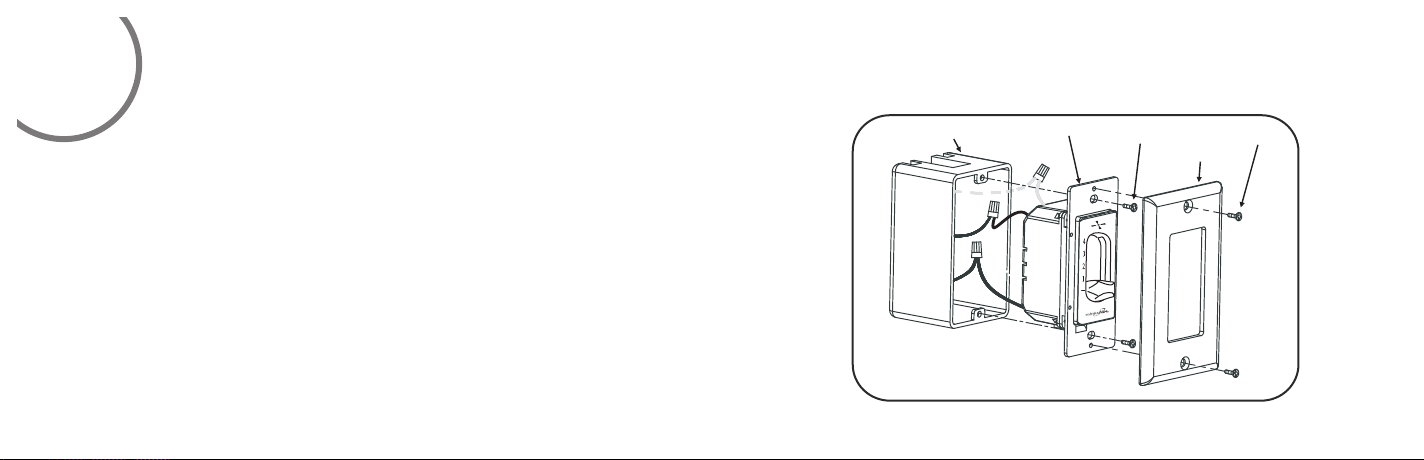

1. (Fig. 13) Carefully tuck the wire connections inside the outlet box. Secure the wall
control with the two screws provided.
2. Attach the wall plate over the wall control and secure with the two screws
provided.
Screws
Wall control
Outlet box
Wall plate
Screws

8

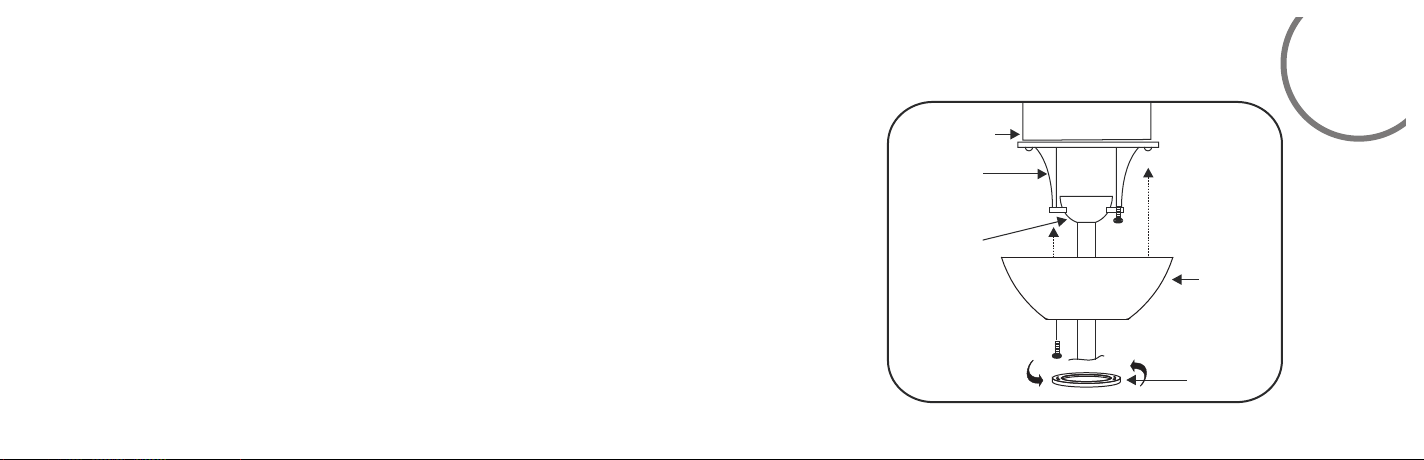

FINISHING THE INSTALLATION
Fig. 13
OUTLET BOX
HANGER
BRACKET
HANGER
BALL
CANOPY
CANOPY
COVER
Step 1. Tuck connections neatly into ceiling outlet box.
Step 2. Remove one screw from the hanger bracket and loosen the other screw around
1/4”.
Step 3. Align the canopy up to ceiling and over the loose screw. Place the canopy into
key hole and rotate canopy clockwise. (Figure 13)
Step 4. Secure the canopy by use previous removed screw.
Step 5. Place the canopy cover to the canopy and rotate canopy cover clockwise until
it is locked into right position.(Figure 13)

9
OPERATING YOUR FAN
Restore power to ceiling fan and test for proper operation.
The fan 4-speed control is used to set the fan speed as follows:
= Turns the fan off
1= High Speed
2= Medium High Speed
3= Medium Speed
4= Low Speed
Speed settings for warm or cool weather depend on factors such as the room size. Ceiling
height, number of fans, etc.

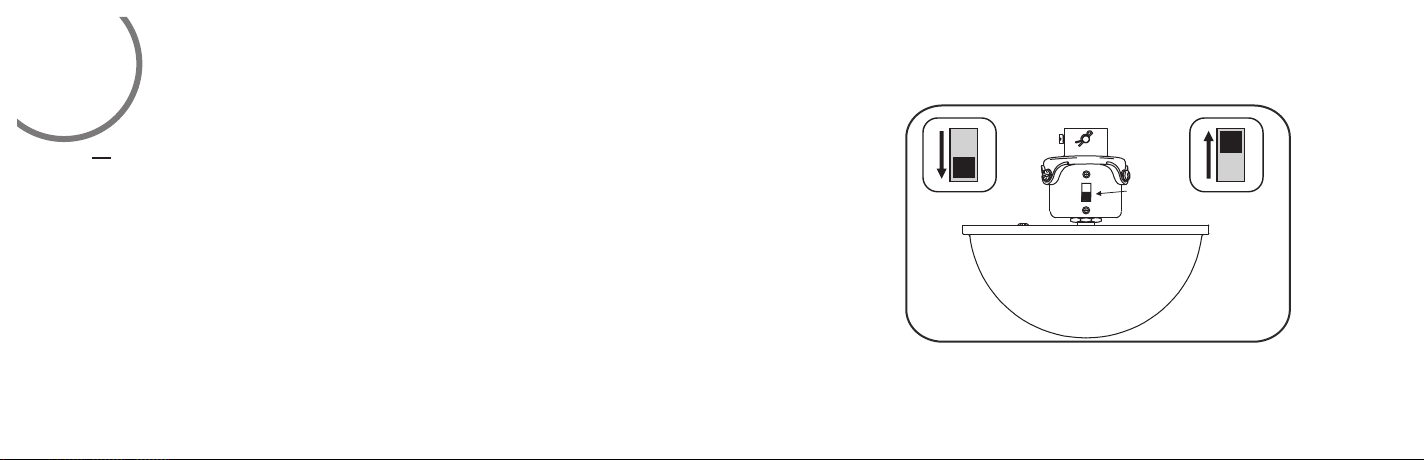

The Reverse switch is located on the coupling. (Fig 15) Slide the switch to the down for
warm weather operation. Slide the switch to the up for cool weather operation.
NOTE: Wait for fan to stop before changing the setting of the slide switch.
Reverse
switch
Fig. 15
Warm
weather
Cool
weather

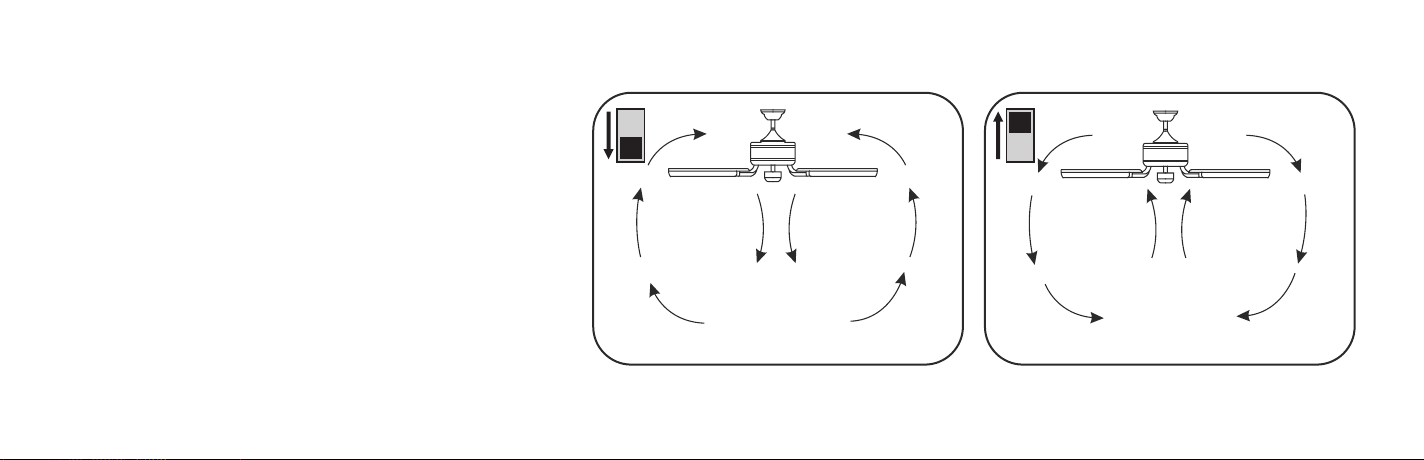

Warm Weather(forward)
A DOWNWARD airflow creates a cooling effect as shown
in Figure 16. This allows you to set your air conditioner on a
warmer setting without affecting your comfort.
Cool Weather(Reverse)
An UPWARD airflow moves warmer air off the ceiling
area as shown in Figure 17. This allows you to set your
heating unit on a cooler setting without affecting your
comfort.
Fig. 17
WINTER OPERATION
Fig. 16
SUMMER OPERATION

Here are some suggestions to help maintain your fan.
1.Because of the fan’s natural movement some connections may
become loose. Check the support connections, brackets and blade
attachment twice a year. Make sure they are secure.(It is not necessary
to remove fan from the ceiling).
2.Clean your fan periodically to help maintain its new appearance over
the years. Use only a soft brush or lint free cloth to avoid scratching
the finish. Plated finishes are sealed with lacquer to minimize
discoloration or tarnishing.
Do not use water when cleaning, this could damage the motor, wood
blades or possibly cause an electrical shock.
3.Use a lint free lightly damp cloth or duster to remove dust from the
blades.
4.There is no need to oil your fan. The motor has permanently
lubricated bearings.
5.If your fan is provided with glass shades, clean with lukewarm
soapy water and a soft cloth or sponge. DO NOT IMMERSE
GLASS SHADES IN HOT WATER. DO NOT PUT GLASS SHADES
INTO AN AUTOMATIC DISHWASHER.
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL
BOX BEFORE YOU ATTEMPT ANY REPAIRS. REFER TO THE
SECTION”ELECTRICAL CONNECTIONS”.
10 CARE OF YOUR FAN

SYMPTOM
Fan will not start
SOLUTION
Check to make sure the wall switch is turned on.
Check circult fuses or breakers.
Caution! Make sure the power is turned off before performing the
following steps.
Remove canopy and check wire connections.
Check wall control transmitter connections(if applicable).
Note:fan must be installed at a maximum distance of 40 feet from
the transmitting unit for proper signal transmission between the
transmitting unit and the fan’s receiving unit.
SYMPTOM
Fan Sounds Noisy
SOLUTION
Allow a 24 - hour “ break in ” period. Most noises associated
with a new fan will go away during this time.
Make sure the screws that attach the fan blade holder to the
motor hub is tight.
Make sure outlet box is secured to building structure, if
necessary use the wood screws provided to fruther secure
outlet box to joist.
Make sure hanger bracket is secure to the outlet box,screws are
tight.
11
TROUBLESHOOTING

SYMPTOM
Fan Wobble
SOLUTION
NOTE: All blade sets are grouped by weight. Because wood and plastic blades vary in density, the fan may wobble even though blades are matched.
Make sure outlet box is secured to building structure, if necessary use the wood screws provided to further secure outlet box to joist.
Make sure hanger bracket is secure to the outlet box, screws are tight.
If a Balancing kit is provided follow the instructions included with the balancing kit to help correct any excessive wobble.
