MINN KOTA RAPTOR User manual

RAPTOR
SHALLOW WATER ANCHOR
Installation Instructions

2 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
INTRODUCTION
Made by Minn Kota
Johnson Outdoors
Marine Electronics, Inc.
121 Power Drive
Mankato, MN 56001 USA
Outboard Motors
Produced in 2015
RAPTOR 8', BLACK
MODEL 1810600
SER NO S365 MK12345
EXAMPLE
NOTICE: The serial number on your Raptor is located on
the mounting bracket beneath the Arm.
THANK YOU
Thank you for purchasing the Minn Kota®Raptor shallow water anchor. This revolutionary shallow water anchor uses state-of-the-art
technology to deliver unprecedented levels of boat control. Intuitive features and wireless control enable Raptor to accurately position
your boat and improve your bait presentation. Raptor holds your boat in position so you can focus on fishing.
Model:__________________________________________________________________________________________________________________
Serial Number: __________________________________________________________________________________________________________
Purchase Date: __________________________________________________________________________________________________________
Store Where Purchased:___________________________________________________________________________________________________
REGISTRATION
Remember to keep your receipt and immediately register your
Raptor. To receive all the benefits of your product warranty,
please fill out and mail the registration card. You may also
register your product online at minnkotamotors.com.
SERIAL NUMBER
Your Minn Kota 11-character serial number is very important. It
helps to determine the specific model and year of manufacture.
When contacting Consumer Service or registering your product,
you will need to know your product’s serial number. We
recommend that you write the serial number down so that you
have it available for future reference.
NOTICE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace this unit. You
may obtain service by: calling Minn Kota at [phone]; returning your Raptor to the Minn Kota Factory Service Center;
sending or taking your product to any Minn Kota authorized service center. A list of authorized service centers is available on our
website, at minnkotamotors.com. Please include proof of purchase, serial number and purchase date for warranty service with any
of the above options.
RAPTOR INFORMATION
(For Consumer Reference Only)
Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the
badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device
or its compliance with safety and regulatory standards. iPad, iPad Air, and iPhone are trademarks of Apple Inc., registered in the U.S. and
other countries. The trademark “iPhone” is used in Japan with a license from Aiphone K.K. The Android™ robot is reproduced or modified
from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.
Made for iPhone®8, iPhone 7, iPhone 6, and iPad Air®2
For updated iOS, Humminbird®and Minn Kota® compatibility,
visit minnkotamotors.com
Made for
Android™

minnkotamotors.com | 3
©2021 Johnson Outdoors Marine Electronics, Inc.
SAFETY CONSIDERATIONS
Please thoroughly read the user manual. Follow all instructions and heed all safety considerations. Use of this product is only permitted
for persons that have read and understood these instructions. Minors may use this product only under adult supervision.
WARNING
You are responsible for the safe and prudent operation of your boat or vessel, and Raptor(s). This product does not relieve you from the
responsibility of safe operation of your boat. It may be hazardous to operate your Raptor in rough or turbulent water conditions, such
as fast currents or changing environmental conditions. Do not deploy your Raptor if these conditions are present, especially when the
underwater topography is unknown. Failure to follow this warning may result in unexpected operation or failure of the Raptor to operate
or anchor and could cause death or serious injury. You must avoid hazards to anchoring and always maintain a permanent watch so you
can maintain proper control of your boat. You must always be prepared to regain manual control of your boat. Learn to operate your
Minn Kota product in an area free from hazards and obstacles.
WARNING
The Raptor should be disconnected from the power source when it is not in use or is off the water for more than a month. When
connecting the power-supply cables of the Raptor to the battery or power switch, ensure that they are not kinked or subject to chafe
and route them in such a way that persons cannot trip over them. Before using the Raptor make sure that the insulation of the power
cables is not damaged. Disregarding these safety precautions may result in electric shorts of battery(s) and/or the product. Always
disconnect the Raptor from battery(s) before cleaning or checking the Raptor. In the event of unexpected operation, remove power
leads from the battery. Avoid submerging the Pump Assembly as water may enter, considerable damage to the product can occur. This
damage will not be covered by warranty. The constant noise pressure level of the Raptor during use is less than 70dB(A). The overall
vibration level does not exceed 2,5 m/sec2.
WARNING
Take care that neither you nor other persons approach the Raptor Spike too closely while operating, neither with body parts nor
with objects. The Raptor is powerful and may endanger or injure you or others. While the Raptor is operating, watch out for persons
swimming and for floating objects. Persons who lack the ability to run the Raptor or whose reactions are impaired by alcohol, drugs,
medication, or other substances are not permitted to use this product.
WARNING
It is recommended to only use Johnson Outdoors approved accessories with your Raptor. Using non-approved accessories including
those used to mount or control your product may cause damage, unexpected operation and injury. Be sure to use the product and
all approved accessories, including remotes, safely and in the manner directed to avoid accidental or unexpected operation. Keep
all factory installed parts in place including motor, electronic and accessory covers, enclosures and guards. Failure to adhere to this
warning may affect your warranty.
CAUTION
Never leave the boat unattended with the Raptor as your only boat anchor. The Raptor is not intended to provide primary anchorage.

4 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
KNOW YOUR BOAT
Keel
Bow
Hull
Bow
Stern
Stern
Port
Port Starboard
Starboard
Gunwale
Gunwale
Inboard
Outboard
Transom

minnkotamotors.com | 5
©2021 Johnson Outdoors Marine Electronics, Inc.
INSTALLATION
INSTALLING THE RAPTOR
Your new Raptor comes out of the box with the hardware you’ll need to install it directly to the transom of your boat. If you have an
irregularly shaped transom that cannot accept a direct mount, or you prefer to mount the Raptor with an adapter bracket for ease
of mounting and removal, please visit minnkotamotors.com for details on our Raptor adapter brackets. For installation with a Raptor
adapter bracket, refer to the installation instructions provided with the bracket. For compatible Raptor adapter brackets, to locate the
nearest dealer, or for additional product support, please visit minnkotamotors.com. To install the Raptor directly to the boat, please
follow the directions provided in these installation instructions. Please review the parts list, mounting considerations and tools needed
for installation prior to getting started.

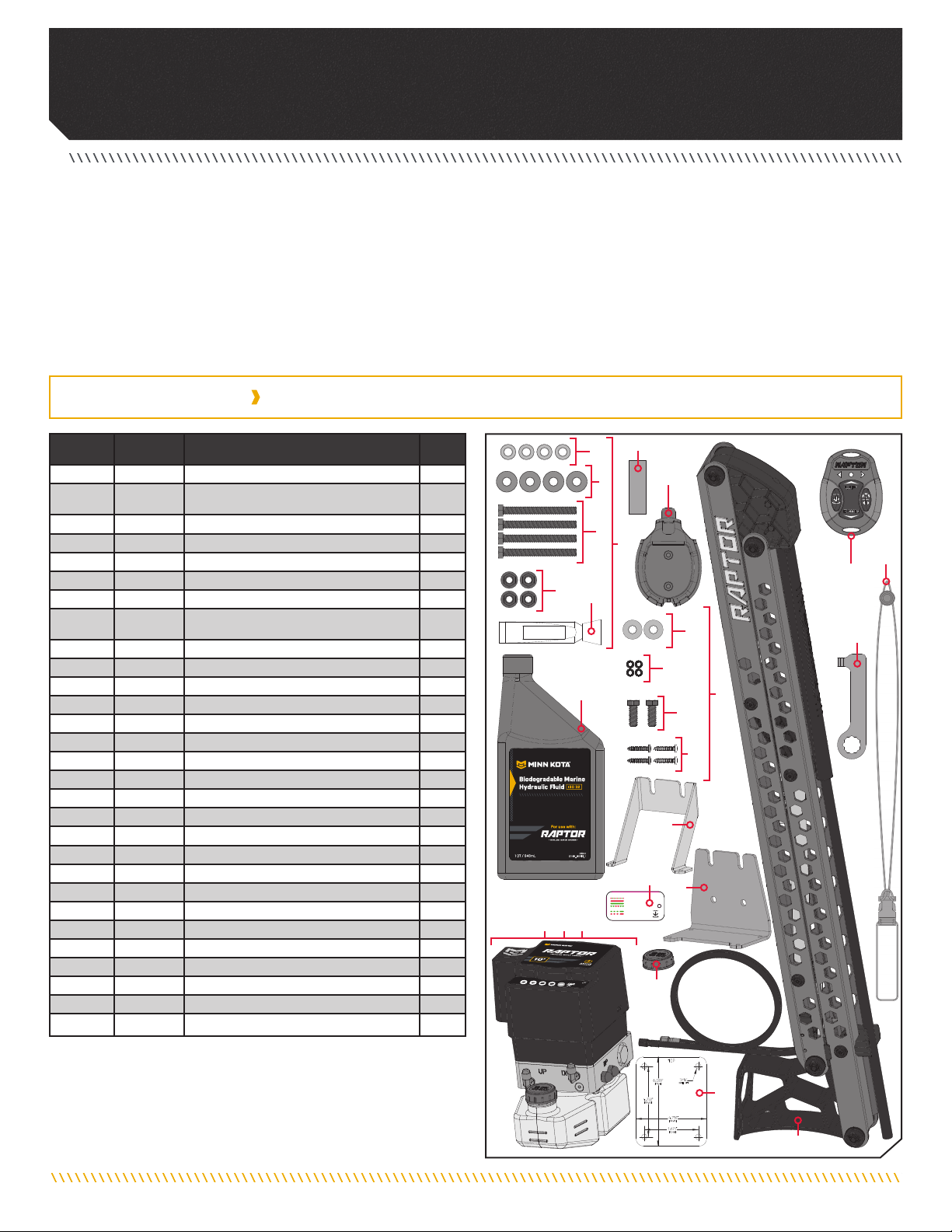

INSTALLATION PARTS LIST
Item /
Assembly Part # Description Qty.
A✖RAPTOR ASSEMBLY 1
B
Items 2-10 2994943 BAG, ASM, RAPTOR HWD 1
22371758 WASHER-3/8 HD FLAT SS 4
42371759 WASHER-3/8 HD FENDER SS 4
62383421 SCREW-3/8-16X3 1/2 HHCS SS 4
82353102 NUT-3/8-16 FLANGE,NYLOK,SS 4
10 2378608 ANTI SEIZE TUBE, 4CC, TALON 1
C
Items 12-18 2994944 BAG ASM, RAPTOR PUMP HDW 1
12 2351735 WASHER-3/8" BELLEVILLE SS 2
14 2351733 WASHER-#10 BELLEVILLE SERRATED 4
16 2353412 SCREW-3/8-16 X 1.0" HHCS SS 2
18 2353420 SCREW-#10-16X1.00 TY AB SS 4
20 2351933 BRACKET-MOUNTING, PUMP 1
22 2351934 BRACKET-REINFORCING 1
24 2357700 OIL-HYDRAULIC, QUART, RPTR 1
26 2358800 WRENCH-PRESSURE, RAPTOR 1
28 2390801 LANYARD, REMOTE 1
30 2371829 BRACKET,RMT DASH MNT HLDR 1
32 2375104 TAPE,MNTG,FOAM ULINE #S-10131 1
D2774106 ASSEMBLY, MAIN PUMP STD 8' *8ft Standard* 1
E2774105 ASSEMBLY, MAIN PUMP AA 8' *8ft AA* 1
F2774107 ASSEMBLY, MAIN PUMP AA 10' *10ft AA* 1
G2994156 TRANSMITTER ASM, RAPTOR 1
s2357141 INSTALL. INSTRUCTIONS,RPTR 1
s2357142 DISCLAIMER-DOWNLOAD,MANUAL 1
s2357140 MANUAL, RAPTOR ANCHOR 1
34 2358830 RAPTOR MOUNTING TEMPLATE 1
36 2354110 TAG, REMOTE, RAPTOR 1
38 2350200 CAP-FILL, RESERVOIR 1
8
2
4
6
16
18
12
14
B
ED F
28
✖This part is included in an assembly and cannot be ordered individually.
sNot shown on Parts Diagram.
C
10
32
24
26
G
30
A
34
38
2358830
2358830_GRAPHICS_B
22
20
36
Rough Water Mode
SINGLE PRESS TO DISPLAY MODE; ADDITIONAL TO CHANGE
PRESS AND HOLD
Active Anchoring Enabled*
Active Anchoring Disabled*
Auto Bottom*
Soft Bottom Mode
*ACTIVE ANCHORING MODELS ONLY
Standard Mode

6 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
ANCHOR MOUNTING CONSIDERATIONS
Minn Kota recommends mounting the Raptor directly to the transom of the boat with the built-in Mounting
Bracket. Your Raptor comes complete with all the necessary hardware to mount directly to the transom. The
Raptor may also be mounted using an optional adapter bracket when direct transom mounting is not possible or
desired due to obstructions or irregularly shaped transoms. For more information on universal adapter brackets and
other Minn Kota®Raptor accessories, please visit minnkotamotors.com. When using an adapter bracket to mount
the Raptor, please use the instructions included with the accessory.
In order to use the direct mount installation, the following conditions need to be met:
1. Unobstructed Mounting - When selecting the Raptor Mounting Bracket mounting location, examine your boat
to ensure that you will not drill into any obstructions and that the hardware will be accessible for assembly. Make
sure that the Transom is strong enough to accept the Raptor mounted at the intended location.
2. Unobstructed Deployment and Retraction - The Raptor is designed to mount on either the port or starboard side
of the transom. The Raptor must have a clear, unobstructed path to deploy. Check to make sure that your proposed
location will allow the anchor to deploy and retract without hitting trim tabs, poling platforms, ladders, the engine
or other obstructions. You should also consider your fishing methods when selecting the mounting location.
211
UnobstructedUnobstructed
DeploymentDeployment
PolingPoling
PlatformPlatform
PolingPoling
PlatformPlatform
RaptorRaptor
RaptorRaptor
RaptorRaptor
EngineEngine
EngineEngine
MOUNTING CONSIDERATIONS
View accessories
available for
your Raptor at
minnkotamotors.com.
Anchor Mounting Considerations
CAUTION
Follow all instructions and heed all safety considerations. Minn Kota recommends having a second person help with installation.
Not following proper installation and rigging instructions may result in injury. Mounting the Raptor too low can cause undue drag
from the Raptor or Mounting Bracket when operating the boat. It is important to mount the Raptor as recommended to avoid unsafe
driving conditions.

minnkotamotors.com | 7
©2021 Johnson Outdoors Marine Electronics, Inc.
ANCHOR MOUNTING CONSIDERATIONS
3
4"4"
Edge of Deploying AnchorEdge of Deploying Anchor
TransomTransom
EdgeEdge
RaptorRaptor
RaptorRaptor
RaptorRaptor
RaptorRaptorRaptorRaptor
RaptorRaptor
Range ofRange of
MotionMotion
44
5
NOTICE: In some instances, boat manufactures have
begun to make hollow boat Transoms. We recommend
speaking to your local boat dealer or OEM Manufacturer
for mounting recommendations.
3. Transom to Raptor Clearance - The Raptor Mounting Bracket
included with your unit will allow for approximately 4" of
clearance or set back from the transom to the front edge of the
deploying anchor.
4. Raptor to Hull Clearance - The bottom edge of the Raptor
should never be less than 4" above the hull directly below the
Raptor to prevent spray and drag conditions.
5. Raptor to Engine Clearance - When selecting a mounting
location, make sure that no interference exists between the
Raptor and your engine during normal operation. Once you have
selected your mounting location, trim the engine all the way
up and all the way down, and steer the engine fully to the left
and right to confirm proper engine clearance. Ensure there is a
minimum of two to three inches of clearance from any point on
the Raptor in all states of stow and deploy.
If these conditions are not met, please consider using an optional
Minn Kota adapter bracket accessory. There are many adapter
brackets designed for the Raptor that allow for greater adjustability of the mount and allow for greater clearances to operate the Raptor.
Please visit minnkotamotors.com to learn more about selecting and installing an adapter bracket.
Review the mounting considerations for the hydraulic pump and hose routing before installing the anchor to the boat.
2"2"
MinimumMinimum
2"2"
MinimumMinimum
4" Minimum4" Minimum
Hull directly
below Raptor
Hull directly below Raptor
Outboard Motor
Range of Motion
Bottom EdgeBottom Edge
of Raptorof Raptor
Bottom EdgeBottom Edge
of Raptorof Raptor
4" Minimum4" Minimum
2"2"
MinimumMinimum
2"2"
MinimumMinimum

8 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
HYDRAULIC PUMP MOUNTING CONSIDERATIONS
1. Hydraulic Hose Routing - The hydraulic hoses exit the anchor near the top of the built-in mounting bracket and will be routed to the
hydraulic pump. When selecting the mounting location for the hydraulic pump, examine your boat to ensure that you can route hydraulic
hoses to the intended hydraulic pump mounting location, and the hoses can be connected once the pump is mounted. Hoses may be
routed over or through the hull of the boat. It is recommended to route hoses through an established routing on the boat, such as where
the main engine lines are routed. If routing through an established routing on the boat such as the manufacturer's boot, ect, make sure
they are re-rigged and tightened to their original state when installation is complete. If drilling holes in the hull of the boat is necessary,
make sure that the drilled location is free from obstructions that could damage existing gas or electrical lines. Make sure that the hoses
have enough slack so that the anchor can be deployed and stowed without creating pinch points or excessive tightness along the path
for the intended mounting locations. Make sure that the hoses do not pass over any sharp surfaces or edges that could cause abrasions
over time. Make sure that the hydraulic hoses are not kinked or bent when routing through the boat compartment. The minimum bend
radius for hose routings is 1.25 inches. Hydraulic lines shall be routed away from heat sources. There shall be no joints or connections in
hydraulic lines directly over exhaust lines or high temperature manifolds. Make sure that the routed hoses do not create a tripping hazard.
2. Keep Hydraulic Lines Clean - During installation, precautions must be taken to prevent the entrance of foreign material into
components or hydraulic lines. Take note of the black and green caps on the hose fittings on the hydraulic pump and hydraulic hoses.
Do not prematurely remove the protective caps from the ends of the hydraulic hoses that exit the anchor or the hose fittings on the
pump assembly. Keep the fill cap on the pump reservoir in place unless filling the reservoir, to keep dirt and debris from entering.
3. Hose Attachment - Install the pump in a way so that there is space between the compartment or mounting locations and the pump to
attach hoses. The hose fittings are located on the manifold of the hydraulic pump between the pump reservoir and control panel. Also
be sure that the location will have room to allow the hoses to pass through and maintain proper hose placement that will prevent it from
bending or kinking.
Hydraulic Pump Mounting Considerations
Minn Kota recommends reviewing all mounting considerations for the hydraulic pump and hose routing for the Raptor to ensure that all
circumstances are taken into account before installation.
In order to successfully route the hydraulic hoses and mount the hydraulic pump, please consider the following:
2 41
Built-inBuilt-in
MountingMounting
BracketBracket
HydraulicHydraulic
HosesHoses
RaptorRaptor 3
Pump Reservoir
Hose Fittings
Hydraulic
Hoses
Control Panel
Control PanelControl Panel
Hydraulic
Hose Caps
Biodegradable
Marine
Hydraulic
Fluid ISO 32
Bypass
Valve
Funnel
Hydraulic
Fitting
Caps
Reservoir
Fill Cap
Reservoir
Fill Cap
Manifold
1.25"1.25"
MinimumMinimum
Bend RadiusBend Radius
Reservoir
Fill Cap

minnkotamotors.com | 9
©2021 Johnson Outdoors Marine Electronics, Inc.
HYDRAULIC PUMP MOUNTING CONSIDERATIONS
4. Hydraulic Fluid and Filling Access - Make sure that the mounting location allows for the pump to be filled with hydraulic fluid. The cap
to the pump assembly must be accessible to fill the hydraulic pump reservoir with hydraulic fluid. Be sure that the installation location
allows access with a funnel or similar tool to aide in filling the reservoir. The pump is filled with fluid as noted on the red cap marked "Hyd
Oil ISO 32". Biodegradable Marine Hydraulic Fluid ISO 32 (Item# 2357700) is provided for the installation.
5. Secured Mounting - Mount the pump in a secure location where it will remain affixed to a rigid surface. Hydraulic components shall be
secured to the boat's structure in consideration of the potential forces transmitted. It is recommended to mount the hydraulic pump with
the Two-piece Mounting Bracket provided. The Pump Assembly must be mounted vertically. If adjustments to the mounting need to be
made, adjust the position of the Two-piece Bracket that will accommodate keeping the Pump Assembly vertical. Make sure that there is
enough room to successfully use the tools needed to secure the installation hardware to the intended mounting location. Make sure that
the hydraulic hoses will not be kinked or bent when attached to the pump. Options for mounting the pump include:
a. Standard Installation - Mounting the pump with the
Two-piece Mounting Bracket.
b. Modified Installation - Mounting the pump using either both
of the pieces from the Two-piece Mounting Bracket rotated to
fit your specific mounting needs or just the Pump Mounting
Bracket (Item #20) on its own rotated to fit your specific
mounting needs.
c. Direct Mounting - Mounting the Hydraulic Pump directly to
a secure structure on the boat without the use of the bracket.
5a
Two-piece
Mounting Bracket
Standard Installation
Modified Installation
Direct Mounting
Mounting
Surface
Mounting
Surface
5b
5c

10 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
HYDRAULIC PUMP MOUNTING CONSIDERATIONS
• Drill
• 5⁄16" Drill Bit
• 9⁄16" Box End or Socket Wrench
• Marine Grade Sealant
• Cable Ties
• 30ft/lb capacity Torque Wrench
• Awl or similar marking tool
• A second person to help
with installation
• Funnel
• Masking Tape
• 7/16" Drill Bit
• 5/16" Deep Well Socket or
5/16" Ratchet Wrench
• 1/8" Drill Bit
• 3/4" Drill Bit
• Anti-seize
• 5/32" Drill Bit
• File, sand paper, or emery board
• #2 Phillips Bit
• Tie Wraps
TOOLS AND RESOURCES REQUIRED
8
Standard InstallationStandard Installation
9090°°Rotation towards Power CordRotation towards Power Cord 9090°°Rotation Towards Bypass ValveRotation Towards Bypass Valve
Pump Reservoir
Pump
Reservoir
Pump
Reservoir
HydraulicHydraulic
HosesHoses
6
Power Cord
Pump Assembly
7Hydraulic
Hoses
Control PanelControl Panel
Bypass
Valves
BP
Pressure
Wrench
6. Power Source - Make sure that the power cord can reach its
intended power source and will not pose as a tripping hazard. It
is recommended to mount the pump as close to the power source
as possible to create the least obtrusive routing for cables between
the pump and power source.
7. Bypass Access - On the side of the hydraulic pump manifold,
there are two acorn nuts that cover manual Bypass Valves in the
event of the need to Emergency Stow. The installation kit comes
with a Pressure Wrench (Item #2358800). Be sure that the
installation location allows a minimum of 1-1/2 inch clearance
around the "BP" on the pump manifold to access these acorn nuts
and the Bypass Valves below them and enough space to utilize the
Pressure Wrench. Store the pressure wrench in the boat.
8. Reservoir Clearance - When selecting the mounting location,
it may be necessary to rotate the position of the reservoir on the
hydraulic pump to accommodate for tight mounting locations. The
hydraulic pump comes out of the box with the reservoir fill cap
directly below the hydraulic hose fittings on the pump manifold.
The reservoir can be rotated 90 degrees to either the right or the
left so that the fill cap is either directly below the power cord, or
directly below the bypass valves on the manifold to accommodate a variety of installation variability. If you need to rotate your Pump
Reservoir, please see the "Rotating the Pump Reservoir" section of these instructions.
NOTICE: The orientation of the Reservoir on the pump
may affect how the Two-piece Mounting Bracket is used.
WARNING
Do not run the Hydraulic Pump until after hydraulic fluid has been added. Running the Hydraulic Pump without hydraulic fluid can
damage the pump.

minnkotamotors.com | 11
©2021 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE RAPTOR
Installing the Raptor
a. Review the Mounting Considerations to determine
if it is acceptable to complete a direct mount of the
Raptor Built-in Mounting Bracket. Move the Hydraulic
Hoses away from the bracket and out of the way
for installation. If acceptable, position the Built-in
Mounting Bracket (Item #A) at the selected location
and mark the edge of the Mounting Bracket with a
pen or similar marking tool. Mark at least 2 of the 4
edges and then set the Mounting Bracket aside.
1
1a
ITEM(S) NEEDED
#A x 1 #34 x 1
TransomTransom
Built-inBuilt-in
MountingMounting
BracketBracket
MarkedMarked
EdgesEdges
MarkedMarked
EdgesEdges
Marked EdgesMarked Edges
Hydraulic HosesHydraulic Hoses
INSTALLATION
NOTICE: The Raptor weighs approximately
27lbs. It is recommended to have a second
person help with installation.
2358830
2358830_GRAPHICS_B
b. With the Raptor set aside, take the Mounting
Template (Item #34) and place it along the marked
edges. Using a level along the edge of the Mounting
Template, rotate the position of the template so that it
sits level. Use an awl or similar marking tool and mark
all four Mounting Holes. All 4 Mounting Holes are
used for the installation of the Raptor.
1b
2358830
2358830_GRAPHICS_B
MarkedMarked
EdgesEdges
MarkedMarked
LocationsLocations
Marked LocationsMarked Locations
MountingMounting
TemplateTemplate
TransomTransom

12 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE RAPTOR
3d
Drilled LocationDrilled Location
d. Place a 1/8" bead of Marine Grade Sealant on the
Transom of the boat around the drilled holes.
e. Place the Marine Grade Sealant around the Mounting
Holes on the face of the Built-in Mounting Bracket
that will contact the boat Transom/Stern when
mounted. Keep the sealant approximately centered
between the outside edge of the Mounting Bracket
and the Mounting Holes. Once the sealant is in
place, align the Built-in Mounting Bracket in the
desired orientation with the holes that were drilled
in the Transom/Stern. Make sure that the Hydraulic
Hoses are out of the way to install hardware.
3
2
3e
Marine Grade SealantMarine Grade Sealant
Transom Built-in MountingBuilt-in Mounting
BracketBracket
Marine Grade Sealant
MountingMounting
HolesHoles
NOTICE: When drilling the marked holes, make sure that
the drill bit is perpendicular to the Transom/Stern of the
boat and that the holes are being drilled straight. Not
drilling the holes straight will give the mounting hardware
a poor fit.
NOTICE: When drilling holes into fiberglass, it
is helpful to first cover the surface with masking
tape. This will help keep the boat surface
unmarked and help with cleanup. Cover the surface
and then mark the location to drill. Once the
holes are drilled, remove the masking tape before
continuing installation.
2c
Marked LocationsMarked Locations
Drilled LocationDrilled Location
TransomTransom
c. Double check that the mounting location is clear to
drill holes and then use a Drill with a 7/16" Drill Bit
to drill through the Transom/Stern of the boat on the
marked locations.
3e
TransomTransom
Built-inBuilt-in
MountingMounting
BracketBracket
DrilledDrilled
LocationLocation
Drilled LocationDrilled Location
Hydraulic HosesHydraulic Hoses
CAUTION
Do not use the Built-in Mounting Bracket or Raptor as a
step to enter the boat. The bracket will be slippery when
wet and is not designed to support people. Using this
product as a step may result in injury.

minnkotamotors.com | 13
©2021 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE RAPTOR
f. Take each of the four 3-1/2" Stainless Steel Hex
Head Cap Screws (Item #6) and place one Flat
Washer (Item #2) on them. Apply anti-seize (Item
#10) to the hardware. Place one screw in each of the
Mounting Holes so that it passes through the Built-
in Mounting Bracket and the drilled holes on the
transom of the boat.
g. Place a Fender Washer (Item #4) on the end of each
Screw on the inside of the Transom and then secure
each with a Flange Nut (Item #8). Apply anti-seize
to the threads before tightening. Tighten the screws
with a 9/16" Box End or Socket Wrench. Do not
over-tighten. Tighten to 20 ft-lbs. Recheck mounting
hardware periodically to make sure it remains tight.
4
4f
4g
#2 x 4 #4 x 4 #6 x 4 #8 x 4 #10 x 1
NOTICE: To prevent seizing of the stainless steel
hardware, do not use high speed installation tools.
Applying an anti-seize may help prevent seizing.
NOTICE: If you are replacing a Talon with the
Raptor, DO NOT REUSE the 5/16" Talon mounting
hardware for mounting purposes.
Built-in Mounting BracketBuilt-in Mounting Bracket
Transom
Fender
Washer
TransomTransom
DrilledDrilled
HolesHoles
Built-inBuilt-in
MountingMounting
BracketBracket
Flange
Nut
Hydraulic Hoses
Stainless Steel HexStainless Steel Hex
Head Cap ScrewsHead Cap Screws
HydraulicHydraulic
HosesHoses
Flat WashersFlat Washers
ITEM(S) NEEDED

14 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
ROTATING THE PUMP RESERVOIR
Rotating the Pump Reservoir
After reviewing the mounting considerations for your installation, you may have identified that the reservoir on your Pump Assembly needs to be
rotated. If your installation requires rotating the Pump Reservoir, please follow the instructions below. If your installation does not require the
Pump Reservoir to be rotated, please see "Installing the Hydraulic Pump " section of these instructions.
a. Take the Pump Assembly (Assembly D, E, or F) and
identify the four Flanged Bolts that hold the Pump
Reservoir in place on the Pump Assembly.
b. Using a 5/16" Deep Well Socket or 5/16" Ratchet
Style Wrench, remove all four Flanged Bolts and set
them aside.
c. Determine which direction the Pump Reservoir will
be rotated. While firmly holding the top of the Pump
Assembly, rotate the Pump Reservoir to its new
position. Complete the rotation be making sure that
the holes in the Pump Reservoir are aligned with the
holes for the Flanged Bolt.
1
2
1a
2c
2c
1b
2c
ITEM(S) NEEDED #D, E, or F x 1
NOTICE: Do not pull the Pump Reservoir off of
the Pump Assembly. It is recommended to rotate
the Pump Reservoir in place to maintain a proper
seal between pump components.
NOTICE: If the Pump Reservoir becomes
detached from the Pump Assembly, make sure
that the O-ring that sits on the bottom of the Pump
Manifold is fully seated in the groove along the
assembly. In the event that the reservoir needs to
be pushed back in place on the Pump Assembly,
make sure that the O-ring does not get pinched
between the pieces. An improperly seated seal
between components will affect pump operation.
PumpPump
ReservoirReservoir
Pump AssemblyPump Assembly
Flanged BoltsFlanged Bolts
FlangedFlanged
BoltsBolts
AlignAlign
HolesHoles
Align HolesAlign Holes
ReservoirReservoir
RotationRotation ReservoirReservoir RotationRotation
ProperlyProperly
SeatedSeated
O-ringO-ring
PumpPump
ReservoirReservoir
ManifoldManifold

minnkotamotors.com | 15
©2021 Johnson Outdoors Marine Electronics, Inc.
ROTATING THE PUMP RESERVOIR
d. With the Pump Reservoir rotated and seated in place,
use the 5/16" Deep Well Socket or 5/16" Ratchet-
Style Wrench to replace the four Flanged Bolts.
Tighten to 12 in-lbs.
e. With the Flanged Bolts back in place, continue with
the Hydraulic Pump installation.
33d
3e
3d
3e
Flanged BoltsFlanged Bolts
Flanged BoltsFlanged Bolts

16 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE HYDRAULIC PUMP
Installing the Hydraulic Pump
Review the mounting considerations at the beginning of the
installation. If it is necessary to rotate the Pump Assembly, refer to
the "Rotate the Pump Assembly" section of these instructions. When
ready to install the pump, follow the directions below.
a. Take the Pump Assembly (Assembly D, E, or F) and
identify the two mounting holes on the Manifold.
The mounting holes are on the opposite side of the
pump from the brass colored Hydraulic Hose Fittings.
Position the Pump Assembly at the intended mounting
location. Review the mounting considerations and
make sure the selected location is acceptable.
b. The Two-piece Mounting Bracket consists of the
Pump Bracket (Item #20) and the Reinforcing
Bracket (Items #22). For a standard installation,
the Reinforcing Bracket sits nested on top of the
Pump Bracket with the U-shaped slots aligned.
Take the Two-piece Mounting Bracket and align
the U-shaped slots.
c. Slide the Pump Bracket and Reinforcing Bracket
together and then slide the Pump Assembly into
the bracket. The angled sides of the Reinforcing
Bracket fit along each side of the Pump Reservoir
in a standard installation. Review the mounting
considerations and position the Pump Assembly
with the Two-piece Bracket in the intended
mounting location.
1
1a
1b
ITEM(S) NEEDED #D, E, or F x 1 #20 x 1 #22 x 1
Pump AssemblyPump Assembly
HydraulicHydraulic
Hose FittingHose Fitting
ManifoldManifold
Pump AssemblyPump Assembly
MountingMounting
SurfaceSurface
MountingMounting
SurfaceSurface
Reinforcing BracketReinforcing Bracket
Pump ReservoirPump Reservoir
PumpPump
BracketBracket
MountingMounting
HolesHoles
Mounting HolesMounting Holes
U-shapes SlotsU-shapes Slots
CAUTION
Avoid the risk of electric shock. Do not connect the
Pump Assembly to a power source before installation.
NOTICE: Installation for your Pump Assembly may
vary from the standard installation. Review the mounting
considerations for variations in mounting.
NOTICE: If the Pump Reservoir is rotated for
installation, it will not be possible to install the
Reinforcing Bracket. The position of the Pump
Bracket may vary for your installation based on
conditions outlines in the mounting considerations.
NOTICE: The Pump Assembly must be mounted
vertically. If adjustments to the mounting need to be
made, rotate the position of the Two-piece bracket to
accommodate the necessity to keep the pump vertical.

minnkotamotors.com | 17
©2021 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE HYDRAULIC PUMP
2
3
ITEM(S) NEEDED #16 X 2 #12 X 2
Mounting SurfaceMounting Surface
MountingMounting
SurfaceSurface
MountingMounting
SurfaceSurface
BellevilleBelleville
WashersWashers
Alternate PumpAlternate Pump
AssemblyAssembly
Mounting HolesMounting Holes
Hex HeadHex Head
Cap ScrewsCap Screws
MarkedMarked
LocationLocation
MarkedMarked
LocationLocation
Drill PilotDrill Pilot
HolesHoles
MarkedMarked
LocationLocation
MarkedMarked
LocationLocation
PumpPump
BracketBracket
ReinforcingReinforcing
BracketBracket
d. The U-shaped Slots on the Mounting Bracket allow
for adjustability between the Pump and the mounting
bracket. Take both Hex Head Cap Screws (Item #16)
and place one 3/8" Belleville Washer (Item #12) on
each. The Hex Head Cap Screws will hold the Pump
in place along the U-shaped slots. Insert the bolts with
the washers in place so that they are partially installed
into the Mounting Holes on the Pump. The washers
should sit on the outside of the Mounting Bracket,
farthest from the Pump Assembly on the screws.
Hand tighten or use a 9/16" Wrench just until the
bolts are placed. It may be easier to first install the
screws and washers partially and then lower the Pump
Assembly to fit in the U-shaped slot on the brackets,
making sure the washer is closest to the screw head.
e. Once partially installed, check the mounting location
and determine the final position of the Pump
Assembly and mounting bracket at the intended
mounting location.
f. Once positioned, take a pen or similar marking
tool and mark the Mounting Surface where the
Reinforcing Bracket and Pump Bracket overlap at the
Mounting Hole on each side of the Pump Reservoir.
Also mark the bottom holes on the Pump Bracket. It
is recommended to mark all four Mounting Holes in
the Mounting Bracket.
g. Set the Pump Assembly aside and use a Drill with a
1/8" Drill Bit to drill Mounting Holes in the Mounting
Surface at the marked locations.
NOTICE: When drilling holes, especially into
fiberglass, it is helpful to first cover the surface with
masking tape. Use a 5/32" Drill Bit when drilling
into Fiberglass for the Pilot Holes. Masking Tape will
help keep the boat surface unmarked and help with
cleanup. Cover the surface and then mark the location
to drill. Once the pilot holes are drilled, remove the
masking tape before continuing installation.
3f
3g
NOTICE: The U-shaped slots and the larger holes on the
Pump Bracket may be used to mount the Pump Assembly
to the bracket. The holes used will depend on individual
mounting circumstances.

18 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE HYDRAULIC PUMP
4
5
ITEM(S) NEEDED
ITEM(S) NEEDED
#14 X 2
#14 X 2
#18 X 2
#18 X 2
h. Replace the Pump Bracket only and align the
Mounting Holes with the Pilot Holes.
i. Take two 1" Stainless Steel Screws (Item #18) and
two Serrated Washers (Item #14). Place one washer
on the end of each screw so that the crown of the
washer is facing up towards the head of the screw.
Install the Screws with drill and a #2 Phillips Bit. The
screws should pass through the Serrated Washer and
Pump Bracket and then into the Mounting Surface.
j. With the two Screws installed, replace the Reinforcing
Bracket onto the Pump Bracket so that the mounting
holes are again aligned.
k. Take the two remaining 1" Stainless Steel Screws
(Item #18) and two Serrated Washers (Item #14).
Place one washer on the end of each screw so that
the crown of the washer is facing up towards the head
of the screw. Install the Screws with a Drill and a #2
Phillips Bit in the overlapping holes of the Two-Piece
Mounting Bracket. The Screws should pass through
the Serrated Washer, Reinforcing Bracket and Pump
Bracket and into the Mounting Surface.
Mounting SurfaceMounting Surface MountingMounting
SurfaceSurface
CrownCrown
UpUp
CrownCrown
UpUp
Pump BracketPump Bracket
Reinforcing BracketReinforcing Bracket
Pilot HolesPilot Holes
Pump BracketPump Bracket
Pilot HolesPilot Holes
StainlessStainless
Steel ScrewSteel Screw
StainlessStainless
Steel ScrewSteel Screw
SerratedSerrated
WasherWasher
SerratedSerrated
WasherWasher
Pump BracketPump Bracket
Pump BracketPump Bracket
Reinforcing BracketReinforcing Bracket
4h
5j
4i
5k
NOTICE: If the Pump Reservoir is rotated for
installation, it will not be possible to install the
Reinforcing Bracket. To complete installation, it is
recommended to use all four Stainless Steel Screws
and Serrated Washers to secure the Pump Bracket
to the Mounting Surface.

minnkotamotors.com | 19
©2021 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE HYDRAULIC PUMP
6
7ITEM(S) NEEDED
#26 X 1
l. With the Two-Piece Mounting Bracket fully installed,
replace the Pump Assembly on the Mounting Bracket.
Make sure that the Belleville Washers sit between
the head of the screw and the Mounting Bracket. The
Pump Assembly is secured to the mounting bracket
by tightening the Hex Head Cap Screws that were
previously put in place on the Manifold.
m. Slide the Pump Assembly either up or down in the
U-shaped slots to find the position that works best
for your installation. When satisfied with the position,
tighten the hardware with a 9/16" Wrench to 12 ft-lbs.
n. Take the Pressure Wrench (Item #26) and store it in
a secure location on the boat. The Pressure Wrench is
only needed if pressure in the hydraulic system needs
to be manually relieved. To learn more, please refer to
the Owner's Manual.
Pump AssemblyPump Assembly
AdjustAdjust
U-shapedU-shaped
SlotsSlots
Hex HeadHex Head
Cap ScrewCap Screw
Hex HeadHex Head
Cap ScrewCap Screw
ManifoldManifold
5j
BellevilleBelleville
WashersWashers
NOTICE: When direct-mounting the Pump
Assembly, only the two Hex Head Cap Screws are
used for installation. If direct mounting the Pump
Assembly, use a Drill with a 7/16" Drill Bit to drill
Pilot Holes in the Mounting Location. Secure the
Pump Assembly in place by placing a Belleville
Washer on each screw. Then place the screw
through the mounting surface and into the mounting
holes on the Manifold of the Pump Assembly.

20 | minnkotamotors.com ©2021 Johnson Outdoors Marine Electronics, Inc.
INSTALLING HYDRAULIC HOSES
Installing Hydraulic Hoses
Review the Mounting Considerations at the beginning of installation and then locate the Hydraulic Hoses attached to the Raptor. There
will be a green Cap on one hose, designated as the hose controlling the UP/retract function. The hose with the black cap is designated
for the DOWN/deploy function. The hose with the black cap (DOWN) extends further from the Raptor due to its mounting position within
the Raptor. Determine if hydraulic hoses may be routed through an established route on the boat to the Hydraulic Pump. The Hydraulic Hoses
are 15 feet in length. If longer hoses are needed for your installation, Minn Kota recommends the Raptor Hydraulic Hose Extension Kit
2771401. If holes need to be drilled to provide a suitable routing for the installation location of the connected components, please give
consideration to the following:
1. Above Water Line - If drilling holes to route the Hydraulic Hoses through the Hull, Transom, or other appropriate structure of the boat, make
sure that the holes drilled are above the water line when the boat sits in water.
2. Minimum Clearance - It is recommended to place the holes a minimum of 1 inch from any obstruction to allow for complete installation of the
Grommet. This may include structural changes to the selected location such as seams or structural supports and the presence of any existing
hardware such as ladders, brackets and existing accessories.
3. Hole Spacing - Two separate holes will need to be drilled for the Hydraulic Hoses. There is a rubber Grommet on each hose. The intention
is to use the Grommet to cover the space between the hose and the transom where the holes are drilled. To allows space for the hoses and a
proper seal on the Grommet, drill the holes between 1-1/2 and 2 inches apart.
1 2 3
GunwaleGunwale GunwaleGunwale
GunwaleGunwale
GrommetGrommet
1-1/2 to 2"1-1/2 to 2"
MinimumMinimum
Water LineWater Line
TransomTransom
TransomTransom TransomTransom
1"1"
MinimumMinimum
Drilled HolesDrilled Holes
are 3/4 inchare 3/4 inch
1"1"
MinimumMinimum
WARNING
• Only use hydraulic hose approved by Johnson Outdoors with the Raptor. The use of unapproved hydraulic components may cause
damage, unexpected operation, or injury.
• Do not allow hoses to kink, twist, curl, be crushed or bent in a manner that blocks or reduces the flow of fluid within the hose. The
minimum bend radius for the hydraulic hoses is 1.25 inches.
• Do not overtighten hydraulic connections.
