Parts and Instruction Manual
R100C Rush Carpet Extractor

Parts and Instruction Manual - R100C Rush Carpet Extractor
Model R100C
TECHNICAL SPECIFICATIONS
Model Rush 100 Cold
^ŽůƵƟŽŶdĂŶŬ 12 gallon
ZĞĐŽǀĞƌLJdĂŶŬ 11 gallon
sĂĐƵƵŵDŽƚŽƌƐ Dual 2-stage
^ŽůƵƟŽŶWƌĞƐ-
sure 100 psi
tĂƚĞƌ>ŝŌ 150”
dĂŶŬŽŶƐƚƌƵĐ-
ƟŽŶ Polyethylene
ĂƐĞƉůĂƚĞ ¼” aluminum
ZĞĂƌtŚĞĞůƐ 10” non-marking
ĂƐƚĞƌƐ 4” locking
WŽǁĞƌŽƌĚ ϱϬŌĚĞƚĂĐŚĂďůĞ
ŝŵĞŶƐŝŽŶƐ 35”H x 31”L x
18”W
tĞŝŐŚƚ ϳϴůďƐ
^ŚŝƉƉŝŶŐtĞŝŐŚƚ ϵϰůďƐ
^ŚŝƉƉŝŶŐŝŵĞŶ-
ƐŝŽŶƐ
ϯϲϱ,džϯϭϱ>dž
19”W
ůĞĐƚƌŝĐĂůƌĂǁ ϭϯϱĂŵƉƐ
,ĞĂƚĞƌ No Heat
sĂĐƵƵŵ^ŽůƵ-
ƟŽŶ,ŽƐĞ 15’
ĂƌƉĞƚtĂŶĚ ^ŝŶŐůĞ:Ğƚʹ^ƚĂŝŶ-
less Steel

Parts and Instruction Manual - R100C Rush Carpet Extractor
Table of Contents
TECHNICAL SPECIFICATIONS ........................................................................................................... 2
INSPECTION ......................................................................................................................................... 4
SAFETY INSTRUCTIONS ..................................................................................................................... 5
GROUNDING ........................................................................................................................................ 7
MAINTENANCE .................................................................................................................................... 8
MACHINE OVERVIEW ........................................................................................................................ 10
CLEANING CARPET .......................................................................................................................... 11
CLEANING UPHOLSTERY ................................................................................................................. 12

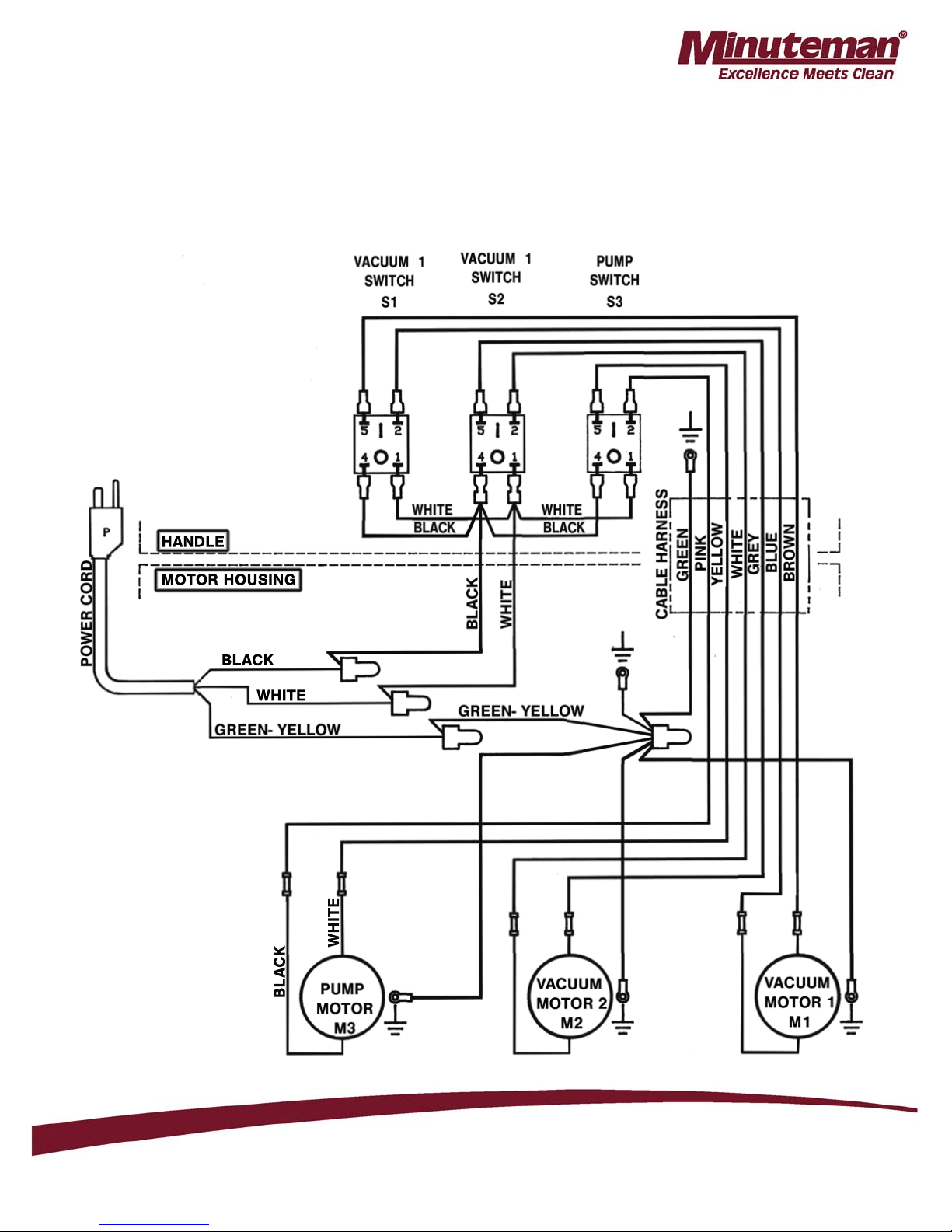

WIRING ............................................................................................................................................... 13
UPPER ASSEMBLY ............................................................................................................................ 14
UPPER ASSEMBLY BOM ................................................................................................................. 15
LOWER ASSEMBLY ........................................................................................................................... 16
LOWER ASSEMBLY BOM ................................................................................................................ 17
WARRANTY ........................................................................................................................................ 20

Page 4
Parts and Instruction Manual - R100C Rush Carpet Extractor
INSPECTION
UNPACKING YOUR NEW R100C: When your package is delivered, check the carton carefully
for signs of rough handling. If your R100C is damaged, notify the carrier immediately and request an
inspection. Be sure to keep the carton, packing inserts, packing lists and carrier’s receipt until the
inspector has verified your claim.
MINUTEMAN’s liability ceases when the carrier picks up the shipment. However, our customer service
staff will be happy to furnish any information needed in connection with the claim and will attempt to
expedite a resolution.
PLEASE READ BEFORE OPERATING YOUR NEW R100C:
Read the manual carefully and completely before attempting to operate the unit. This manual has
important information for the use and safe operation of the machine. Keep this manual handy at all
times.
This equipment has been engineered and manufactured to provide excellent performance and service. To
ensure that your equipment will continue to perform as intended:
tMaintain equipment regularly- following the suggested maintenance schedule provided.
tUse only original MINUTEMAN parts when servicing.
tOperate equipment with care.
If additional information is needed, please contact:
MINUTEMAN INTERNATIONAL 630- 627-6900
All information and specifications printed in the manual are current at the time of printing; however
because of MINUTEMAN’s policy of continual product development, we reserve the right to make
changes at any time without notice.

Page 5
Parts and Instruction Manual - R100C Rush Carpet Extractor
SAFETY INSTRUCTIONS
FAILURE TO COMPLY WITH THE FOLLOWING WARNINGS AND
INSTRUCTIONS WILL VOID THE WARRANTY.
WA R N I N G !
tThe machine was designed for use on carpet cleaning applications as per instructions and
recommendations written in this manual. Any deviation from its proper use or purpose and the
consequential damage that may occur is the sole responsibility of the end user.
tDisconnect the power cord from the outlet before servicing. Do not leave machine connected to an
electrical outlet when unattended.
tDo not immerse or use this machine in standing water. Such use may cause electric shock.
tWhen using an extension cord, use only a 3-prong conductor grounding cord-12 gauge wire or
heavier.
tTo avoid electric shock, do not expose the unit to rain or snow. Store it indoors in a heated location
only.
tDo not use the machine for dry vacuuming.
tUse defoamer at all times to prevent damage to the vacuum motor.
tDo not use water in excess of 130°F (54°C) in the solution tank
tTo prevent seal damage and chemical build-up to the pump system, run clean water through the
solution lines after each day’s use.
tUse only commercially available carpet cleaning solutions and defoamer intended for use with machines
of this type. Do not use dyes, bleaches, ammonia, or other additives.
tThe use of powdered cleaning solution, if not diluted properly, may result in damage to the pump.
Powdered chemical is not recommended. If powdered chemicals are used, premix in a separate
container before placing in the solution tank.
tAlways read and understand your chemical’s MSDS (Material Safety Data Sheet) before use.
tThis equipment is not designed to handle or use combustible/volatile substances such as gasoline or
kerosene, in, on, or near the machine. The use of such materials will cause extreme hazardous
condition.
tDo not expose machine to freezing temperatures.

Page 6
Parts and Instruction Manual - R100C Rush Carpet Extractor
tAll repairs must be done by an authorized MINUTEMAN repair station.
tDo not use replacement parts other than original MINUTEMAN parts.
tDo not allow your spray stream to remain in one fixed location as surface damage may occur.
tCheck that all spray nozzles are securely fastened. Loose nozzles could be ejected from equipment at
high speeds.
tThis is not a toy. Keep away from children.
tDo not pull by the power or use power cord as a handle. Always unplug by grabbing the plug and
pulling, do not unplug by pulling the power cord.
tInspect cord for damage. Do not use damaged cords. Connect only to properly grounded outlets.
tKeep hair, fingers, loose clothing, and body parts away from moving parts and openings.
tTurn off all controls before disconnecting machine
tUse caution with ejected liquid or chemicals. High pressures and temperatures could be hazardous to
nearby people or surroundings.
ELECTRICAL - 115 Volt
Model: R100C
This machine is designed to operate on a standard 15 amp, 120 volt, 60 Hz, AC circuit. Voltages below
105 volt AC or above 125 volts AC could cause serious damage to the motor.

Page 7
Parts and Instruction Manual - R100C Rush Carpet Extractor
GROUNDING
GROUNDING INSTRUCTIONS:
This piece of equipment must be grounded. Should an electrical malfunction occur, grounding
provides a path of least resistance for electrical current- reducing the risk of electric shock. This piece
of equipment is furnished with a cord that has a grounding conductor and grounding plug. The
grounded plug must only be plugged into an appropriate outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
WA R N I N G :
Connecting the equipment to an improperly grounded outlet can result in an increased risk of electric
shock. A qualified electrician should be consulted if you are unsure that the outlet is properly grounded.
Do not modify the plug provided with the equipment. If it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
This appliance is designed for use on a 120-volt circuit. The grounding plug provided looks like the plug
illustrated in Figure 1. Replace the power cord if the grounding pin is damaged or broken.
Extension cords connected to this machine should be 12 gauge, three-wire cords with three-prong
plugs and outlets. DO NOT use extension cords more than 25 feet (7.6 m) long
Figure 1

Page 8
Parts and Instruction Manual - R100C Rush Carpet Extractor
MAINTENANCE
MAINTENANCE:
This R100$has been engineered and built to require minimum maintenance. But like any machine, it
does require some care to keep it in optimum working condition. Careful attention to these maintenance
instructions will give you maximum operating performance and life expectancy of the machine.
CAUTION: Disconnect the power cord from the outlet before doing any clean up or maintenance
on the machine
tKeep the machine clean. Do not allow dust to accumulate on external surfaces or near any moving
parts.
tAfter every job, wipe down the surface of the machine with a clean damp cloth.
tInspect cord for damage. Do not use machine with a damaged cord.
PERIODIC MAINTENANCE
tUse only chemicals safe for extractors
tAdhere to the appropriate mix ratios for all chemicals
tFor optimal performance, it is suggested that the operator flush the system after every job or at the
end of the day.
tPump seals and valves may need to be replaced at the 1000 hour mark if a loss in pressure is noted
Daily:
1. Always keep the machine clean inside and out.
2. Pour 2 gallons of clean hot water in the solution tank. Turn the pump on and flush the entire system
through the wand nozzles for about a minute to pre- vent alkaline build-up.
3. Remove dirt and lint build-up inside the filter screen in the recovery tank. Lint should be cleaned off
so that air flow is not impeded.
4. Check the solution tank strainer in the solution tank. If lint has accumulated in the screen, remove
and rinse it in clear running water.
Weekly:
1. Check and clean solution filter
2. Check for obstructions in vacuum pathway
Quarterly:
1. Check pump, plumbing and fittings for leaLT
2. Check power cords and hoses for tears

Page 9
Parts and Instruction Manual - R100C Rush Carpet Extractor
CORD STORAGE:
While not in use, storage can be accomplished by winding cord around handle assy. Cord should be
completely unwound during operation.
CORD SAFETY
xDo not leave appliance when plugged in. Unplug from outlet when not in use and before
servicing
xDo not use with damaged cord or plug. If appliance is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water, return to service center for inspection and repair.
xDo not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp
edges or corners. Do not run this 3$ over cord. Keep cord away from heated surfaces.
xDo not unplug by pulling cord. To unplug, grasp the plug, not the cord.
xDo not handle plug or appliance with wet hands.
xThis equipment should be stored indoors and not exposed to rain.

Page 10
Parts and Instruction Manual - R100C Rush Carpet Extractor

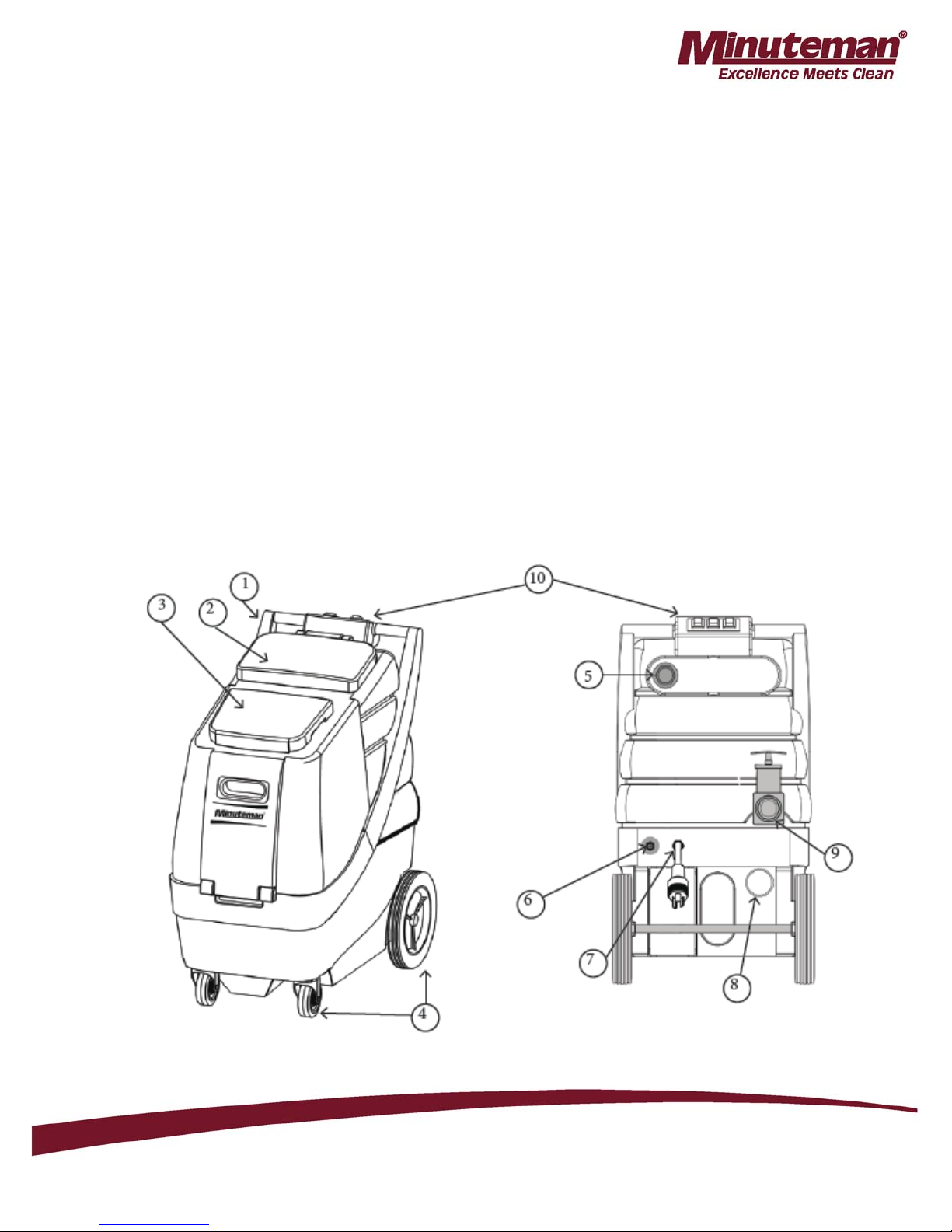

MACHINE OVERVIEW
1. Handle- Used to maneuver and position
the R100C.
2. Contains switch box (For switchbox, see
#10)
3. Recovery tank and lid- Tank collects
recovered waste water. Lid allows access
to recovery tank and creates a seal to
ensure suction.
4. Solution tank and lid- Tank used to store
clean water or solution for your job. Lid
allows access to the solution tank and
prevents external contamination of
solution tank.
5. Non-marking front 4” locking casters
and rear 10” wheels
6. Recovery/vacuum hose inlet barb-
connect your recovery vacuum
hose to this barb
7. Solution line Q.D.- Pressurized
connection for solu- tion line
8. Twist lock pigtail- connects to 50ft power
cord
9. Cool air intake for vacuum
10. Recovery tank dump valve- Pull up to
open
11. Switch box- Two switches marked
“VACUUM” and one switch marked
“PUMP”. Switches light up when
powered on.

Page 11
Parts and Instruction Manual - R100C Rush Carpet Extractor
CLEANING CARPET
CLEANING CARPET
tUsing a dedicated dry vacuum, pre-vacuum the space to be cleaned to remove as much dirt as
possible. Do not use the extractor to dry vacuum as it does not have a dry filter.
tPre-spray the carpet
tPour clean water or solution into the solution tank. Do not use water over 130 degrees F.
tSlide vacuum hose on to the black hose adapter (located at the back of machine) and the wand or
upholstery tool. (see #5 on page )
tConnect the female on your solution hose to the male
Q.D. on the machine (#6 on page ).
tConnect the male end of the solution hose to the wand.
tMake sure the drain valve (#9 on page ) is closed by pushing the T-handle all the way in.
tAlways use de-foamer. Previously shampooed carpets usually have a heavy build-up of old shampoo
residue which can cause the vacuum system to ingest foam and result in damage to the vacuum
motor.
tTurn on the vacuum and solution switches. Slowly pull the tool towards you with the solution valve
trigger engaged. Then make a pass forward and backward with only the vacuum motor on (no spray)
over the cleaned area to remove as much dirt and solution as possible. Do not over wet carpet! Make
overlapping passes to prevent streaking.
tIf the carpet is heavily soiled, squeeze solution valve lever on the forward pass as well as backwards,
allow- ing cleaning solution a few seconds longer to work- prior to vacuuming. Another method is
to raise the wand 8” above the carpet and pre-spray lightly prior to cleaning passes. On extremely
soiled carpets, we recommend using a pre-spray solution.
tWhen you are close to running out of solution, turn off the pump. Attach the drain elbow on the
drain valve. Place a pail under the downspout and pull up the drain valve T-handle. Dirty solution
will pour out until the tank is empty. Close the drain valve. Use a clean bucket when you refill the
solution tank.
tWhen the job is completed, turn the switches off, disconnect the vacuum and solution hoses from
the carpet tool and the machine. Drain the recovery tank through the drain valve as before.

Page 12
Parts and Instruction Manual - R100C Rush Carpet Extractor
CLEANING UPHOLSTERY:
Cleaning upholstery with success requires a good knowledge of the type of fabric to be worked on. Look
for the cleaning instruction label sewn on the underside of the furniture for the recommended method
of cleaning the fabric. If it calls for dry cleaning, do not attempt to clean with the wet extraction
method. Otherwise, damage to the fabric could occur. Extraction works perfectly on most synthetic
fabrics including synthetic velvets.
Before proceeding, test the fabric for colorfastness. Apply a small amount of ready-to-use cleaning
solution on the fabric in an inconspicuous spot. Wait for 2 to 3 minutes and rub the area with a white
terry cloth towel. If no color comes off the towel, the fabric should be safe to clean. If a little color
comes off, there is some risk of colors running when you clean. It may be possible to stabilize colors by
cleaning with an acidic rinse.
tPrepare the machine in the same manner as for carpet cleaning (see CLEANING CARPET), except
attach the upholstery tool to the vacuum and the solution hose.
tPour hot water into the solution tank. Add recommended amount of cleaning concentrate into the
solution tank. Do not use water over 130 degrees F.
tTurn on the vacuum and pump switches.
tClean with the upholstery tool using as little solution as possible. Make overlapping passes to prevent
streaking. Go over the area you just cleaned with- out depressing the lever (vacuum only) and gauge
the amount of moisture extracted through the view window for dryness. On heavily soiled areas like
arm rests, pre-treat with a recommended pre-spray and / or hold the upholstery tool a few inches above
the fabric and press lever to spray on the solution before making a pass.
CLEANING UPHOLSTERY

Page 13
Parts and Instruction Manual - R100C Rush Carpet Extractor
R100C WIRING
WIRING

Page 14
Parts and Instruction Manual - R100C Rush Carpet Extractor
UPPER ASSEMBLY
1
3
4
5
8
9
10 11 12 13 14
22
21
20
19
27
28
29
30
31
32
33
34
35
36
37
3839
41
42
6
7
18
26
43
15
24
R100C
8-9-16
1716
23
25
4-A
4-D
4-C
4-B
44
40
29
46
47
48
*Not shown:
Minuteman front
decal. Part# H13699
42
2
45

Page 15
Parts and Instruction Manual - R100C Rush Carpet Extractor
UPPER ASSEMBLY BOM
BILL OF MATERIAL
ITEM PART NO. QTY DESCRIPTION ITEM PART NO. QTY DESCRIPTION
1 F11787-MM 1 SOLUTION TANK 23 B00177-1 4 TERMINAL LUG, FEMALE, QD,
0.25 X 0.032
2 F11788-MM 1 RECOVERY TANK 24 B00185-
30
1 WIRE,14 GA WHITE, UL1015, 10
IN
3 E11124 1 GASKET, RECOVERY TANK 25 C02315 2 LOCKWASHER, #10 INT. STR, SS
4 12904A 1 STAND PIPE ASSEMBLY 26 C00264 1 NUT, 10-32
4-A K11965 1 ELBOW, 180 DEG. FLOAT
BALL
27 C11141 8 SCREW, ALLEN HEAD, 10-24 X
1.25 IN
4-B K00672 1 PVC PIPE, 1.5 X 12 IN, SCH 40
WHT
28 K00665-1 1 HOSE ADAPTER, 1.5IN, BLACK
4-C 10989-2A 1 FLOAT BALL SCREEN 29 E11128 2 GASKET, DRAIN VALVE
4-D K00741 1 ADAPTER 30 K00710 1 ELBOW, DRAIN VALVE, BLACK
5 F11785-MM 1 LID, RECOVERY TANK 31 K00711 1 DRAIN VALVE, BLACK
6 C12039 2 WASHER, 1/4 X 1, SS 32 C00233 2 WASHER, FLAT, .25 IN
7 C02322 2 1/4 X 20 BOLT 33 C00254 2 LOCK WASHER, 1/4IN SPLIT
8 B11769 1 EXTENSION CORD, 12-3
SJTW
34 C02294 2 SCREW, 1/4 - 20 X 1.25
9 B12915 1 VELCRO STRAP 35 K11185 1 ELBOW, 90, 1.5 IN, MT-MS, PVC
10 H02548-2 1 LABEL, IMPORTANT, CORD 36 K00672-1 1 PVC PIPE, 1.5 X 2.25 IN,
11 B00185-30 1 WIRES, 73 IN 37 E11129 1 GASKET, BASE
12 B00185-40 1 WIRES, 73 IN 38 A00060 1 3/8 BARB X 1/4MP, BRASS
13 B010314 1 WIRE HARNESS 39 A00052 1 .25 X .375 M-F 90 DEG
14 F11786-MM 1 HANDLE 40 C11244 1 WASHER, .56 X 1.5 X 0.05
15 B00177 2 TERMINAL LUG, FEMALE, QD,
0.25 X .032, 16-14 AWG, FULLY
41 A00124 1 HEX NUT, .25 NPT BRASS
16 B00185-40 1 WIRE,14 GA BLACK, UL1015,
10 IN
42 D00373 1 INLET FILTER, .25 NPT
17 C00295-1 2 #10 X .75IN PAN, BLACK SMS,
PHILLIPS
43 C11143 2 SCREW, 1/4 - 20 X 1.5 IN, SS
18 C00293 2 #8 X .5IN PAN, BLACK SMS,
PHILLIPS
44 S11179 1 NON-SKID TAPE, 1 IN. ROLL
19 D11168 1 COVER, SWITCHPLATE 45 F11791-
MM
1 LID, SOLUTION TANK
20 B02211-1 3 SWITCH, ROCKER, GREEN
LIGHT
46 D13153 1 STAINLESS STEEL LANYARD
21 D010284 1 SWITCHPLATE 47 C00311 2 SCREW, 8-32 X 3/8
22 E010453 1 GASKET, SWITCHPLATE 48 K00666 1 90 ELBOW, SCHD 40, 1.5"

Page 16
Parts and Instruction Manual - R100C Rush Carpet Extractor
LOWER ASSEMBLY
234 6789
11
12
13
15
16
23
22
25
42
2627
323334
33
3536
37 7
38
39
41
43 44 45
46
41
6
17
7
47
48
49
50
29
28
40
R100C BASE
8-9-16
24
1
14
1918
30
31
42
620
5
10
21
51

Page 17
Parts and Instruction Manual - R100C Rush Carpet Extractor
LOWER ASSEMBLY BOM
BILL OF MATERIAL
ITEM PART NO. QTY DESCRIPTION ITEM PART NO. QTY DESCRIPTION
1 J13152 1 DOUBLE GRIP HOSE CLAMP 2 7 B00192 1 MOUNT, NYLON TIE
2 J11863 1 HOSE, 3 IN 28 B11606 1 STRAIN RELIEF, PIGTAIL
3 J00639 3 SCREW CLAMP, 1.63 - 2.43IN. 2 9 K10510 1 PLUG, 1.25 IN, BLACK
4 J00618 1 VACUUM HOSE, 2IN GREY,
WIRE, 22 IN LG
30 H03545 1 COVER, SERIAL # LABEL
5 F11178-BLK 1 INTERCOOLER, , BLACK 31 H00565-5 1 LABEL, SERIAL NUMBER
6 C00273 16 LOCKNUT, 1/4 X 20, NYLON,
SS
32 C02305 2 CAP NUT, .5IN PUSH-ON
7 C00233 22 WASHER, FLAT, .25 IN 33 C00240 4 WASHER, SHOULDER, NYLO N
8 E00449 6 GROMMET 34 G11767 2 WHEEL, 10 IN
9 C00284 2 SCREW, 10-32 X .375 35 D11170 1 AXLE
10 B11150 2 GROUND WIRE, 36 F11789-
MM
1 BASE
11 G00537 2 VACUUM MOTOR, 82 IN, 115 V 37 C00314-1 8 HEX BOLT, 1-4 X 20 X 1IN
12 J00657 1 HOSE CLAMP, 2 INSLDPRT 38 G03518-L 2 LOCKING CASTER, 4 IN
13 J00618 1 VACUUM HOSE, 2 IN GREY,
WIRE, 4 IN LG
39 J00613B 1 SOLUTION HOSE, BLACK, 33 IN
14 C00254 1 LOCK WASHER, 1/4IN SPLIT 40 J11508 4 SCREW CLAMP #6, .43 TO
15 C00261 6 NUT, .25-20, HEX 41 A00054 2 ELBOW, 90, .375MP X .375B,
16 D11134-1 1 VAC PLATE 42 B00191 4 NYLON TIE, 11IN BLACK
17 C11189 5 SCREW, 1-4 X 20 X 4.5 IN, 43 B00190 13 NYLON TIE, 4IN
18 C11516 1 SCREW, 1-4 X 20 X 4.5 IN, 44 G13761 1 PUMP, 120 PSI, 115 V
19 C02312 1 LOCKWASHER, .25 IN., INTER-
NAL STAR
45 D11194 1 PUMP PLATE
20 H02564-2 1 LABEL, CAUTION, MOTOR
HOUSING
46 J11154 1 SOLUTION HOSE, .375 X 14 IN,
WIRE REINFORCED
21 A00060 1 .25 MALE X .375 BARB, BRASS 47 J00618 1 VACUUM HOSE, 2 IN GREY,
WIRE, 7 IN LG
22 C11244 2 WASHER, .5 ID X 1,5 OD 48 E11169 2 GASKET, VAC MOTOR
23 A00104 1 QD, 1-4 M X 1-4 FP, BRASS 49 B00179-2 1 CLOSED END CNTR, 16-3
24 C11165, 4 SCREW, #8 X 1 IN, PAN,
BLACK
50 B00179-1 3 CLOSED END CNTR, 16-3
25 F11790-MM 1 HEATER, TUNNEL COVER 51 B11779 1 12/3 TWIST LOCK PIGTAIL
26 C00293 2 #8 X .5IN PAN, BLACK SMS,
PHILLIPS

Page 18
Parts and Instruction Manual - R100C Rush Carpet Extractor
NOTES

Page 19
Parts and Instruction Manual - R100C Rush Carpet Extractor
TROUBLESHOOTING
ELECTRICAL SYSTEM
PROBLEM SOLUTION
NO ELECTRICAL POWER 1. Defective power cord.
2. House or building circuit breaker tripped
POWER IS INTERMITTENT TO ONE OR ALL MO-
TORS
1. Faulty electrical cable.
2. Defective switches.
3. Loose terminal or discolored terminal connections.
VACUUM SYSTEM
PROBLEM SOLUTION
NO VACUUM SUCTION 1. Drain Valve open.
2. Vacuum lid is not sealed against tank.
3. Loose vacuum hose, vacuum connection
LOW VACUUM SUCTION 1. Accumulated dirt on lid screen.
2. Worn out vacuum lid gasket.
3. Lint & dirt build-up on wand head.
4. Defective vacuum hose.
5. Loose connection in the vacuum motor(s).
SOLUTION SYSTEM
PROBLEM SOLUTION
PUMP MOTOR RUNS BUT NO SPRAY THROUGH
SPRAY TIPS
1. Clogged spray tips.
2. Clogged solution intake lter screen.
3. Clogged female quick disconnect coupler.
4. Quick disconnects not fully connected
5. Dirty or damaged pump head valves.
6. Defective pump check valve.
7. Crack in pump housing.
8. Lost Prime.
UNEVEN OR WEAK SPRAY FOR SPRAY TIPS 1. Clogged or dirty spray tips.
2. Accumulated dirt on solution intake lter screen.
3. Accumulation of debris inside pump and plumbing.
4. Worn pump bearing (excessive noise).
5. Punctured pump diaphragm.
6. Defective rectier or motor.
7. Worn nozzles.
ERRATIC PRESSURE 1. Pump check valves defective or dirty
2. Lost prime.

14N845 U.S. Route 20, Pingree Grove, IL 60140 USA
Phone [phone] - www.minutemanintl.com
A Member of the Hako Group
Minuteman International Made Simple Commercial Limited Warranty
REVISION P
EFFECTIVE 5/1/2017
Minuteman International, Inc. warrants to the original purchaser/user that the product is free from
defects in workmanship and materials under normal use. Minuteman will, at its option, repair or
replace without charge, parts that fail under normal use and service when operated and
maintained in accordance with the applicable operation and instruction manuals. All warranty
claims must be submitted through and approved by factory authorized repair stations.
This warranty does not apply to normal wear, or to items whose life is dependent on their use and
care, such as belts, cords, switches, hoses, rubber parts, brushes, electrical motor components
or adjustments. Parts manufactured by Minuteman are covered by and subject to the warranties
and/or guarantees of their manufacturers. Please contact Minuteman for procedures in warranty
claims against these manufacturers.
Special warning to purchaser -- Use of replacement filters and/or pre-filters not manufactured
by Minuteman or its designated licensees, will void all warranties expressed or implied. A
potential health hazard exists without original equipment replacement.
All warranted items become the sole property of Minuteman or its original manufacturer,
whichever the case may be.
Minuteman disclaims any implied warranty, including the warranty of merchantability and the
warranty of fitness for a particular purpose. Minuteman assumes no responsibility for any special,
incidental or consequential damages.
This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the
original user/purchaser of this product. Customers outside the U.S.A. and Canada should contact
their local distributor for export warranty policies. Minuteman is not responsible for costs or
repairs performed by persons other than those specifically authorized by Minuteman. This
warranty does not apply to damage from transportation, alterations by unauthorized persons,
misuse or abuse of the equipment, use of non-compatible chemicals, or damage to property, or
loss of income due to malfunctions of the product.
If a difficulty develops with this machine, you should contact the dealer from whom it was
purchased.
This warranty gives you specific legal rights, and you may have other rights which vary from state
to state. Some states do not allow the exclusion or limitation of special, incidental or
consequential damages, or limitations on how long an implied warranty lasts, so the above
exclusions and limitations may not apply to you.
WARRANTY
