Mira Advance ATL Thermostatic User manual

These instructions are to be used in conjunction with the Mira Advance ATL Installation
and User Guide (IUG) to make sure that key installation and operation actions are
followed. Leave these instructions with the user.
Please tick the boxes to conrm the following actions:
If you encounter any problems with the operation of this product
please contact Kohler Mira Customer services Department.
1. Flush a minimum of
10 litres (2 gallons)
through pipework
prior to connection.
2. Isolation valve tted
and tested for leaks.
3. Check for leaks
BEFOREconnecting
electricity.
3. Ret the splash guard and
connect the ribbon cable to the
inside of the cover.
4. Ret the cover. inserts are
provided to nish the cover as
required.
Prime the Unit and Fit the Cover
4. Prime the appliance and t the
cover (refer to next section).
5. Set the maximum temperature
and commissioning cycle (refer to
section overleaf).
1. Connect hose and showerhead,
pointing into bath or tray.
2. Make sure electricity is isolated!
Push down and hold air bleed
button to prime appliance until
water appears from shower head.
Failure to prime will seriously
affect shower performance!
Carefully dry off water before
connecting/reinstating electricity.
Installer Checklist
1075282-W4-D © Kohler Mira Limited, December 2008

B
E
A
B
C
a
r
e
R
a
n
g
e

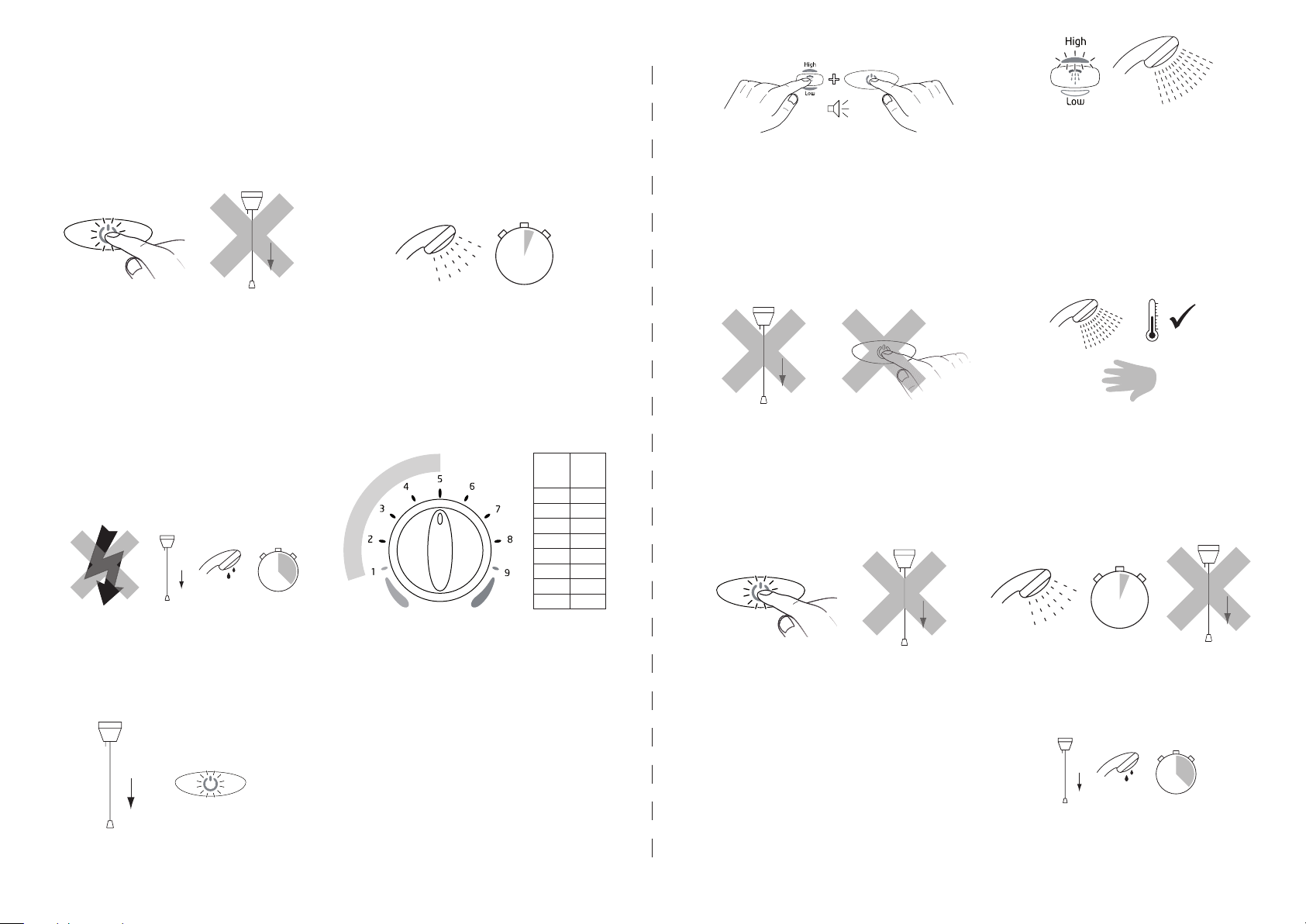

5. Power to appliance, check for blue
light.
4. Turn dial to desired position in table.
This will set the maximum
showering temperature (i.e.
Position 5 = Max Temp of 41°C).
(See also section: 'BEAB Care' in the IUG).
6. Within 30 seconds,simultaneously
push and hold down Flow and
Start/Stop.
On the 1st beep, release Start/
Stop, on the 2nd beep, release
Flow.
The max temperature setting is
now stored.
7. Water ows for approximately
2 minutes. If there is no water
after 5 seconds, make sure that
the appliance is primed (refer to
section: 'Prime the Unit and Fit
the Cover').
9. Following commissioning check
that the maximum temperature is
acceptable to the user.
8. In some installations, the
commissioning cycle may take up to
6 minutes. Once the cycle has been
activated, allow the water to turn
off automatically when complete.
Do not interrupt unless the Reset
light turns on, refer to section: 'Fault
Diagnosis'.
Warning! Commissioning
Max. Temp. reaches 44 ºC!
No.
Max.
Temp
°C
1 37
2 38
3 39
4 40
5 41
6 42
7 45
8 48
Flow Start/Stop
Set Maximum Temperature and Commissioning Cycle
Important! On initial installation, the appliance needs to 'learn' about the site
conditions and does so during the commissioning cycle. It is important that the
shower is commissioned correctly otherwise an error condition may occur. Once
set, the shower constantly updates it's memory with information about the site
conditions to deliver the best performance.
_
+
10. Push Start/Stop to turn off the
appliance. The pulsing light and
"beep" indicates the shower is
shutting down.
Important! DO NOT isolate the
power to the appliance as this may
result in a temporary malfunction.
11. The appliance will purge water
from its tank for a few seconds.
Important! DO NOT isolate the
power to the appliance.
1. If the appliance is running, push
Start/Stop to turn it off. The pulsing
light and "beep" indicates that the
appliance is shutting down.
Important! DO NOT isolate the
power to the appliance as this may
result in a temporary malfunction.
2. The appliance will purge water
from its tank for a few seconds.
Important! DO NOT isolate the
power to the appliance.
3. Wait until the water has stopped
owing and turn off the power to
the appliance, residual water may
drain over a few minutes.
12. Wait until the water has stopped
owing and turn off the power to
the appliance, residual water may
drain over a few minutes.
