Mira Advance ATL Operation manual

1
Installation & User Guide
MIRA ADVANCE ATL
These instructions are to be left with the user
9.0 AND 9.8 kW
ELECTRIC SHOWER
This product is suitable for mains fed cold water only.
ADJUSTABLE TEMPERATURE LIMIT THERMOSTATIC

2
CONTENTS
To The Customer .....................................................................................3
Guarantee ............................................................................................4
Patents and Design Registration..........................................................4
Important Safety Information .................................................................5
Pack Contents ......................................................................................... 8
Specications ..........................................................................................9
Standards and Approvals .....................................................................9

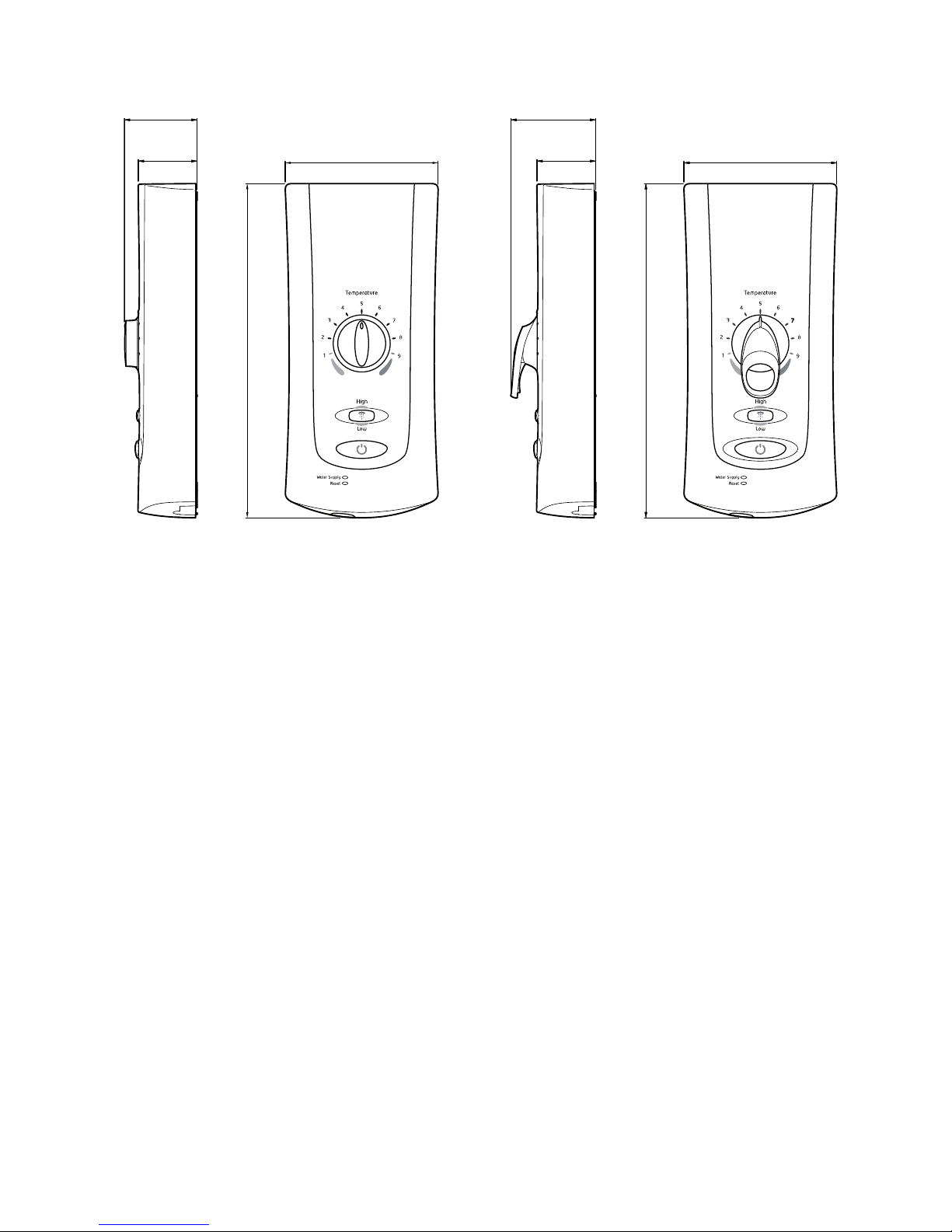

Dimensions.........................................................................................10
Shower performance............................................................................. 11

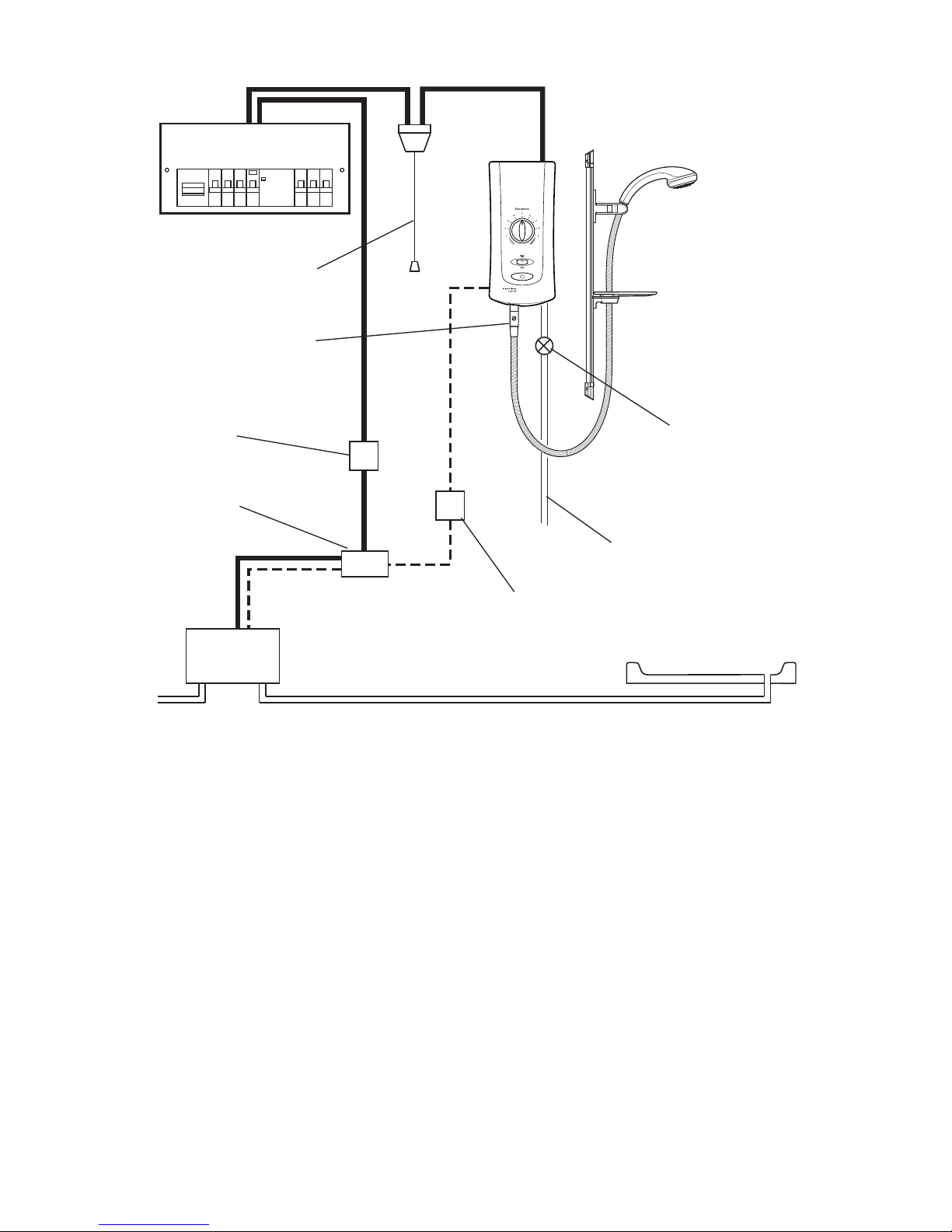

Installation Requirements .................................................................... 12
General............................................................................................... 12
1. Plumbing ........................................................................................ 12
2. Electrical.........................................................................................13

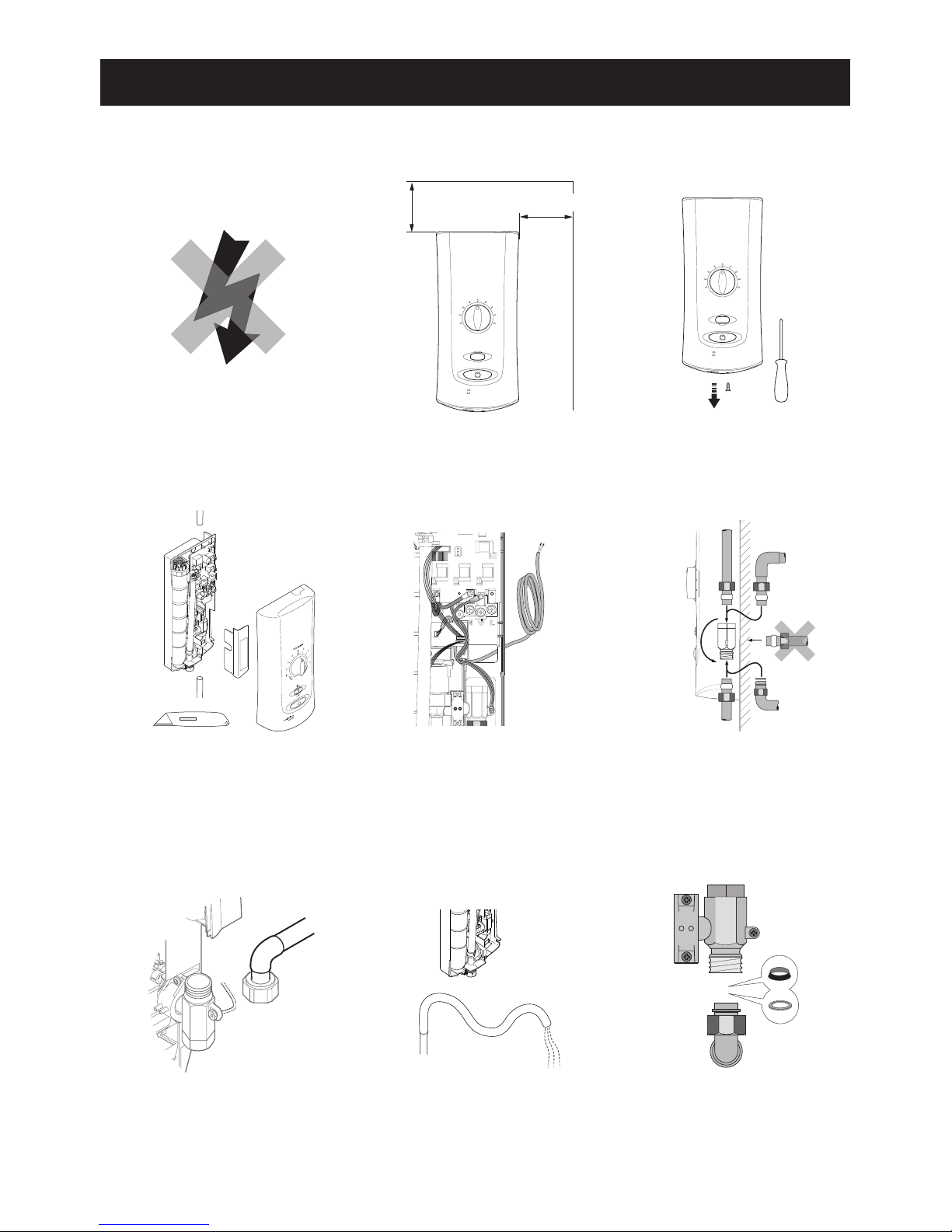

Installation .............................................................................................16
Basic Post Installation Checks ...........................................................19

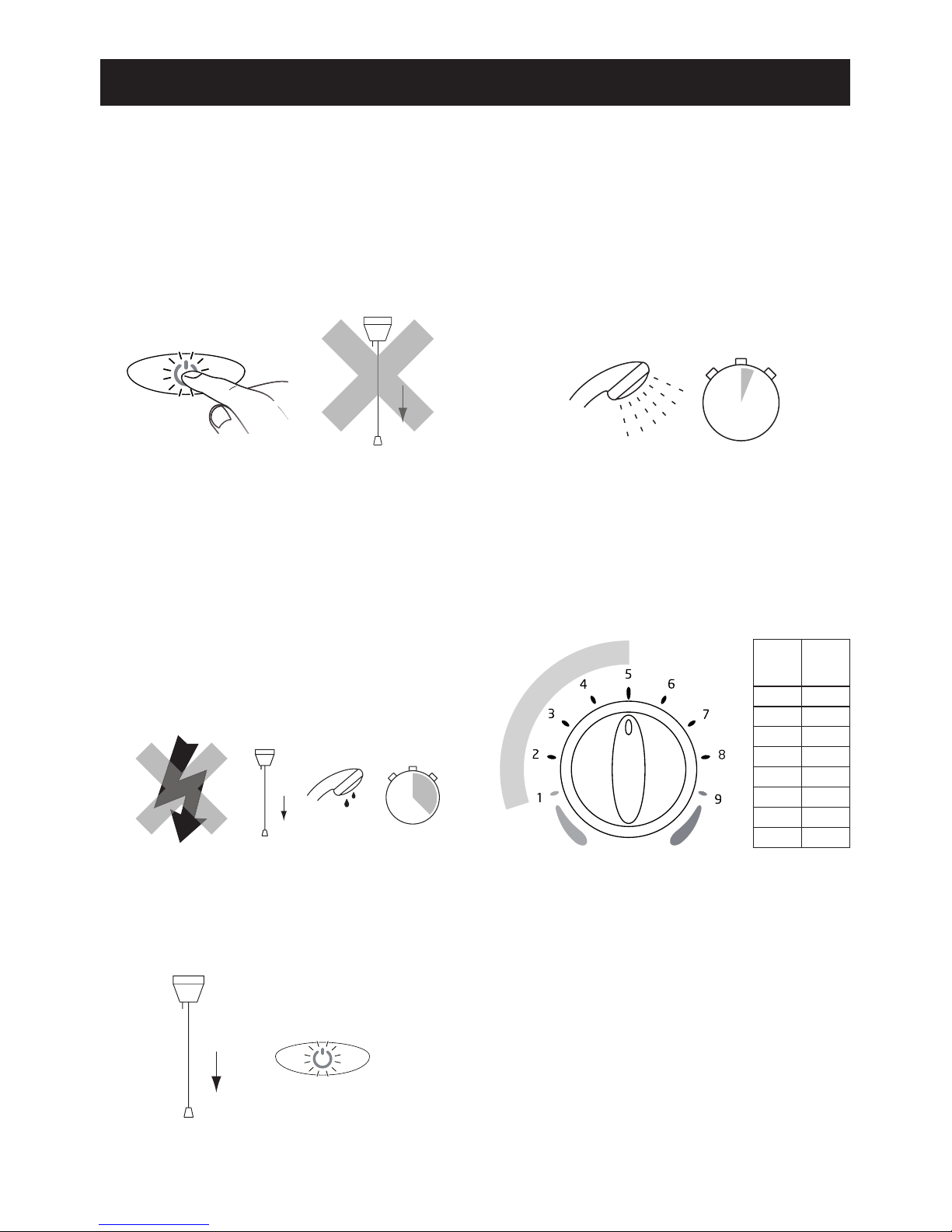

Commissioning .....................................................................................20
Set Maximum Temperature and Commissioning Cycle......................20
BEAB Care.........................................................................................22
Memory Model....................................................................................22
Operation ...............................................................................................23
1. How your Shower Works................................................................23
2. Using the Shower...........................................................................25
3. Storing the Memory Presets (Memory Control Model only) ........... 26
Fault Diagnosis......................................................................................27
1. User Troubleshooting Guide...........................................................27
2. Installer Troubleshooting Guide......................................................30
Maintenance...........................................................................................34
Spare Parts ............................................................................................ 35
Wiring Diagram......................................................................................38
Care Maintenance................................................................................39
BEAB CARE Requirements: .............................................................. 39
Customer Service..................................................................................40

3
If you experience any difculty with the installation or operation of your new Electric
Shower, then please refer to 'Fault Diagnosis', before contacting Mira Showers.
Our contact details can be found on the back cover of this guide.
TO THE CUSTOMER
Mira Advance ATL key features:
Designed for safe and reliable control.•
Automatically adjusts to maintain constant temperature.•
Constantly monitors supply conditions.•
Mira Advance ATL models covered by this guide
Product
Variant 9.0 9.8
Adjustable
Temperature
Limit
Memory
Push
Button
Feature
Extended
Lever
Control
Drain
Pump
Compatible
Standard      
Memory      
Flex      
Standard
Extra      
Flex
Extra      
The following separate drain kits are required for the 'Extra' models:
SDP124T - Mira Whale Tray Kit (complete with 50 mm gully)•
SDP134T - Mira Whale Wet Floor Kit (complete with wet gully for•
vinyl)
This product must only be used with a Whale Shower Drain Pump (included in the
kits listed above).
Please pass on this guide in the event of change of ownership of the installation
site.

4
Guarantee
For domestic installations, Mira Showers guarantee the Mira Advance ATL against
any defect in materials or workmanship for a period of two years from the date of
purchase (shower ttings for one year).
For non-domestic installations, Mira Showers guarantee the Mira Advance ATL
against any defect in materials or workmanship for a period of one year from the
date of purchase.
For Terms and Conditions refer to the back cover of this guide.
Recommended Usage
Domestic 
Light Commercial 
Heavy Commercial 
Healthcare 
Patents and Design Registration
Design Registration: 000738141: 0003, 0006, 0007, 0009
Patents: GB: 2269466, 2270370, 2298478, 2298479, 2298481

5
Installation must be carried out in accordance with these instructions, and must be
conducted by designated, qualied and competent personnel.
WARNING!
Follow all warnings, cautions and instructions contained in this guide, and on or
inside the shower.
1. This shower can deliver scalding temperatures if not operated, installed
or maintained in accordance with the instructions, warnings and cautions
contained in this guide and on or inside the appliance.
1.1. Products manufactured by us are safe and risk-free, provided that they are
installed, used and maintained in good working order, in accordance with our
instructions and recommendations.
1.2. This product is suitable for installation within Zone 1 and is rated IP X4.
1.3. Isolate the electrical and water supplies before commencing installation. The
electricity must be turned off at the mains and the appropriate circuit fuse
removed, if applicable.
1.4. Mains connections are exposed when the cover is removed.
1.5. Refer to the wiring diagram before making any electrical connections.
1.6. Make sure all electrical connections are tight, to prevent overheating.
1.7. Make sure that any pipework that could become frozen is properly insulated. The
shower unit must not be tted where it may be exposed to freezing conditions.
The water supplies to this product must be isolated if the product is not to be
used for a long period of time. If the product or pipework is at risk of freezing
during this period they should also be drained of water.
1.8. DO NOT switch on if there is a possibility that the water in the shower is
frozen.
1.9. DO NOT install the product in a position in which service access is restricted.
1.10.DO NOT commission this appliance if water leaks from the unit or the heater tank
pressure relief valve. If water leaks from the pressure relief valve, maintenance
will be required before the shower can be safely used.
1.11.DO NOT t any form of outlet ow control as the outlet acts as a vent for the
tank body. Only Mira recommended outlet ttings should be used.
1.12.This product is not suitable for areas with high humidity (i.e steam rooms).
Please consult your installer.
1.13.THIS APPLIANCE MUST BE EARTHED. MAKE SURE SUPPLEMENTARY
BONDING COMPLIES WITH THE ‘REQUIREMENTS FOR ELECTRICAL
INSTALLATIONS’.
In accordance with the current edition of ‘The Plugs and Sockets etc. (Safety)
Regulations in force at the time of installation, this shower is intended to be
permanently connected to the xed electrical wiring of the mains system.
IMPORTANT SAFETY INFORMATION

6
1.14.This appliance must be provided with means for disconnection that is
incorporated into the xed wiring in accordance with the relevant local wiring
regulations.
1.15 The appliance is suitable for installation within the shower area and may be
tted with a pressure relief valve. It must be positioned over a water catchment
area with the controls at a convenient height for the user. The shower tting
should be positioned so that it discharges down the centre line of the bath, or
across the opening of a shower cubicle, and must be directed away from the
appliance.
2. Caution!
2.1. Read all of these instructions and retain this guide for later use.
2.2. The electrical installation must comply to 'BS 7671 - Requirements for Electrical
Installations', commonly referred to as the IEE Wiring Regulations - Part 7, or
any particular regulations and practices, specied by the local electricity supply
company.
2.3. The plumbing installation must comply with the requirements of UK Water
Regulations/Bye-laws (Scotland), Building Regulations or any particular
regulations and practices, specied by the local water company or water
undertakers.
2.4. Make sure that you fully understand how to operate this shower and make sure
that it is properly maintained in accordance with the instructions given in this
manual.
2.5. Anyone who may have difculty understanding or operating the controls of any
shower should be attended whilst showering. Particular consideration should
be given to:
2.5.1. The young.
2.5.2. The elderly.
2.5.3. The inrm.
2.5.4. The disabled.
2.5.5. Anyone who suffers from a medical condition that can result in temporary
incapacity (e.g. epilepsy or blackouts).
2.5.6. Anyone inexperienced in the correct operation of the controls.
2.6. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their safety.
2.7. Children should be supervised to make sure that they do not play with the
appliance.
2.8. Sunburn or skin conditions can increase your sensitivity to hot water. Make
sure that you set the shower to a cooler temperature.

7
2.9. If any of the following conditions occur, isolate the electricity and water supplies
and refer to 'To contact us', on the back page of this guide.
2.9.1. If the cover is not correctly tted and water has entered the appliance
case.
2.9.2. If the case is damaged.
2.9.3. If the appliance begins to make an odd noise, smell or smoke.
2.9.4. If the appliance shows signs of a distinct change in performance,
indicating a need for maintenance.
2.9.5 If the shower is frozen.
2.9.6 DO NOT operate this appliance if water leaks from this appliance.
3. Switch off the appliance at electrical isolating switch when not in use. This is
for safety and is recommended with all electrical appliances.
4. DO NOT position the handset to spray water directly on to the appliance.
e.g. when cleaning shower control.
5. When this appliance has reached the end of its serviceable life, it should
be disposed of in a safe manner, in accordance with current local authority
recycling, or waste disposal policy.
6. Having completed the installation, make sure that the user is familiar with the
operation of the appliance.
7. Make sure that this guide is left with the user.

8

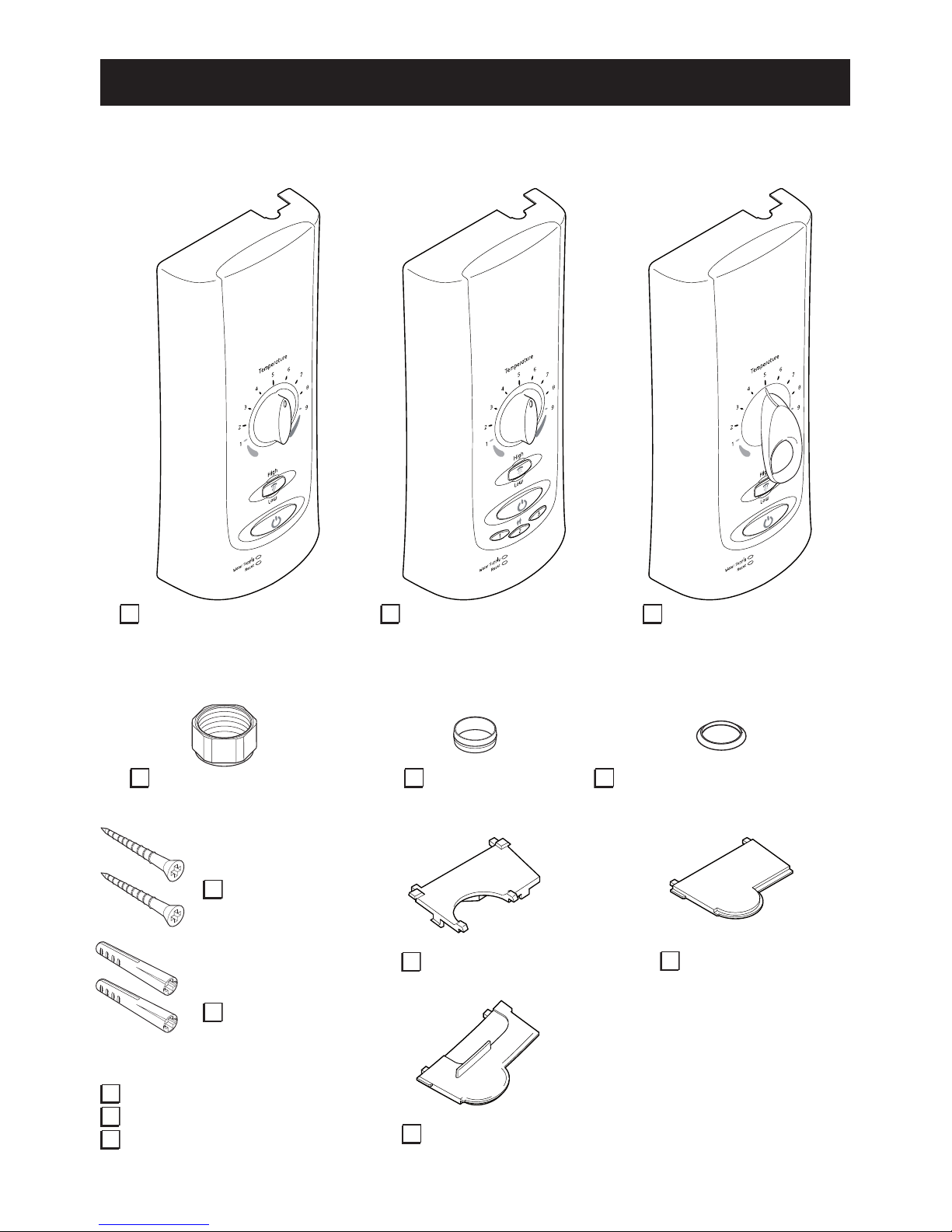

PACK CONTENTS
Tick the appropriate boxes to familiarise yourself with the part names and to conrm
that the parts are included.
Documentation
1 x Installer Checklist
1 x Installation Template
1 x Guarantee Registration
Document
1 x Olive
1 x Compression Nut 1 x Tap Connector Adaptor
(for tting to existing tap connector)
1 x Mira Advance ATL
Standard or Standard Extra
(Whale Shower Drain Pump
supplied separately)
2 x Wall Screws
2 x Wall Plugs
Or Or
1 x Mira Advance ATL
Memory
1 x Mira Advance ATL
Flex or Flex Extra
(Whale Shower Drain Pump
supplied separately)
1 x Cover Insert Top
1 x Cover Insert Bottom
1 x Cover Insert Falling Supply

9
SPECIFICATIONS
Plumbing Supply
Supply Source Mains pressure cold water only
Minimum Dynamic Pressure* 50 kPa (0.5 bar)
Maximum Static Pressure 1000 kPa (10 bar)
Minimum Static Pressure** 20 kPa (0.2 bar)
Maximum Inlet Temperature 28°C
Minimum Inlet Temperature 2°C
Inlet Connection ½" BSP male & 15 mm
compression tting.
Outlet Connection ½" BSP male fitting
Electrical Supply
Nominal Rating at 230 V 8.2 kW 9.0 kW
Nominal Rating at 240 V 9.0 kW 9.8 kW
Supply Fuse/Circuit Breaker 9.0 kW 40 Amps
9.8 kW 45 Amps
Residual Current Device RCD 30 mA
Supply Cable
No larger than 16 mm²
Note: RefertocurrentIEE regulations
and BS 7671 to determine minimum
cable size.
Isolation Switch 45 Amp Double pole, with 3 mm
contact separation.
Maximum Ambient Temperature 30°C
Minimum Ambient Temperature 2°C
* Recommended dynamic pressure of 100 kPa (1.0 bar) for full ow performance.
** Static pressure must never fall below 20 kPa (0.2 bar) when other draw offs are in use, e.g. ushing
toilet. This is the minimum pressure required to keep the ow valve closed.
Standards and Approvals
The Mira Advance ATL complies with the requirements of the BEAB Care Mark
Standard and the relevant directives for CE marking.

10
Dimensions
Advance ATL
Standard / Memory
Advance ATL Flex
403 mm
184 mm
87.5 mm
71 mm
403 mm
184 mm
102 mm
71 mm

11
SHOWER PERFORMANCE
What affects shower performance?
The shower's top priority is to keep the desired water temperature constant. To
maintain this temperature, the shower may have to automatically change the rate of
water owing through the appliance. Any of the following conditions can cause the
shower to change the ow rate (force of the shower) in order to keep the temperature
constant. Most changes are minor and will go unnoticed.
_
+
WATER
SUPPLIER
Seasonal changes
affecting water supply
temperature. Changes of incoming
supply voltage.
Changes of incoming
supply pressure.
Mains cold water draw
off, e.g. toilet, wash
basin etc.
Changes in Flow Rate
(force of shower).
Temperature remains constant.
Heat transfer due to
position of mains cold
water pipe.
E.g.
Positioned next to hot•
water pipe.
Routed through heated•
area such as loft or
airing cupboard.
hot pipe mains cold
pipe

12
General
This product works best when supply temperatures and pressures remain stable
and within the product specications, refer to section 'Specications'. If the supply
conditions fall outside the specications, the shower may go into a safe shut down
condition.
If pipework and/or electrical cables enter the shower from the rear through a hole
in the wall provision must be made to prevent water ingress back into the wall
structure.
1. Plumbing
Refer to section: 'Important Safety Information' rst.
1.1 Do not use sealing compounds on any pipe ttings or joints.
1.2 To avoid damage to the case when soldered ttings are used, pre-solder
the pipework and fittings before connecting them to the inlet connector
assembly.
1.3 Never t the appliance to hot water supplies or to gravity systems of any
description. Only t the product to a mains cold water pipe.
1.4 Avoid layouts where the shower hose will be sharply kinked. This may reduce
the life of the hose.
1.5 Supply pipework MUST be ushed to clear debris before connecting the
appliance. Debris will reduce the performance of the shower.
Avoid running the pipework through excessively hot or cold areas such as hot
loft spaces, airing cupboards, or in close proximity to hot water pipes. If this
cannot be avoided, we would recommend insulating the pipes.
1.6 The appliance must be tted onto the nished wall surface i.e. on top of the
tiles. DO NOT tile up to the sides of the shower or use a sealant around the
case. Failure to do this may cause appliance failure. To ensure the case and
other components are not put under strain during installation always provide
mechanical support when making plumbing connections. Upon completion of
the installation ensure connections and back case are not under any stress
due to misaligned pipework or electrical cables.
1.7 We recommend that a non-restrictive (free owing) isolating valve is tted in
the cold water supply pipe to allow maintenance of the appliance.
1.8 When installed in very hard water areas (above 200 ppm temporary hardness)
your installer may advise the installation of a water treatment device, to reduce
the effects of limescale formation. Any malfunction due to limescale is not
covered by the manufacturer's guarantee. Your local water company will be
able to advise the hardness of water in your area.
INSTALLATION REQUIREMENTS

13
1.9 Caution! Double checkvalves, tted in the inlet supply to the appliance, cause
a pressure buildup, which could exceed the maximum static inlet pressure and
cause water to leak into the appliance.
2. Electrical
Refer to section: 'Important Safety Information' rst.
2.1 In a domestic installation, the rating of the electricity supplier’s fuse and the
consumer unit must be adequate for the additional demand. All Mira Advance
ATL electric showers are high power appliances. Voltage drop due to local
heavy demand will reduce the shower’s performance.
2.2 The appliance must be earthed by connecting the supply-cable earth conductor
to the earth terminal.
Any supplementary bonding and supply cable size must conform to
BS 7671.
2.3 As a guide only, and in accordance with BS 7671 we recommend close circuit
protection:
I.e. 9.0 kW = 40 Amp
9.8 kW = 45 Amp
A 30mA Residual Current Device (RCD) MUST be included in the electrical
circuit. This may be part of the consumer unit or a separate unit.
A separate, permanently connected supply is taken from the consumer unit
to the appliance through a double-pole switch. The switch can be a ceiling
mounted pullcord type or a wall mounted switch in an adjacent room.
2.4 DO NOT exert strain on the terminal block, however make sure that the electrical
connections are tightly screwed down.
2.5 DO NOT turn on the electrical supply until the plumbing has been completed.
2.6 Unless otherwise stated, electrical equipment such as extractor fans, pumps
must not be connected via this product.

14
Plumbing and Electrical Schematic Diagram
Optional Outlet
Double Checkvalve
45 Amp Double-pole
Isolating Switch
Mains-fed Cold
Water Supply
Consumer Unit
Isolating
Valve
Terminal Block
Switched
Spur
Transformer/
Controller
Whale
Shower
Drain Pump
Standard Extra & Flex Extra
models only
supply cable
supply cable
signal cable

15

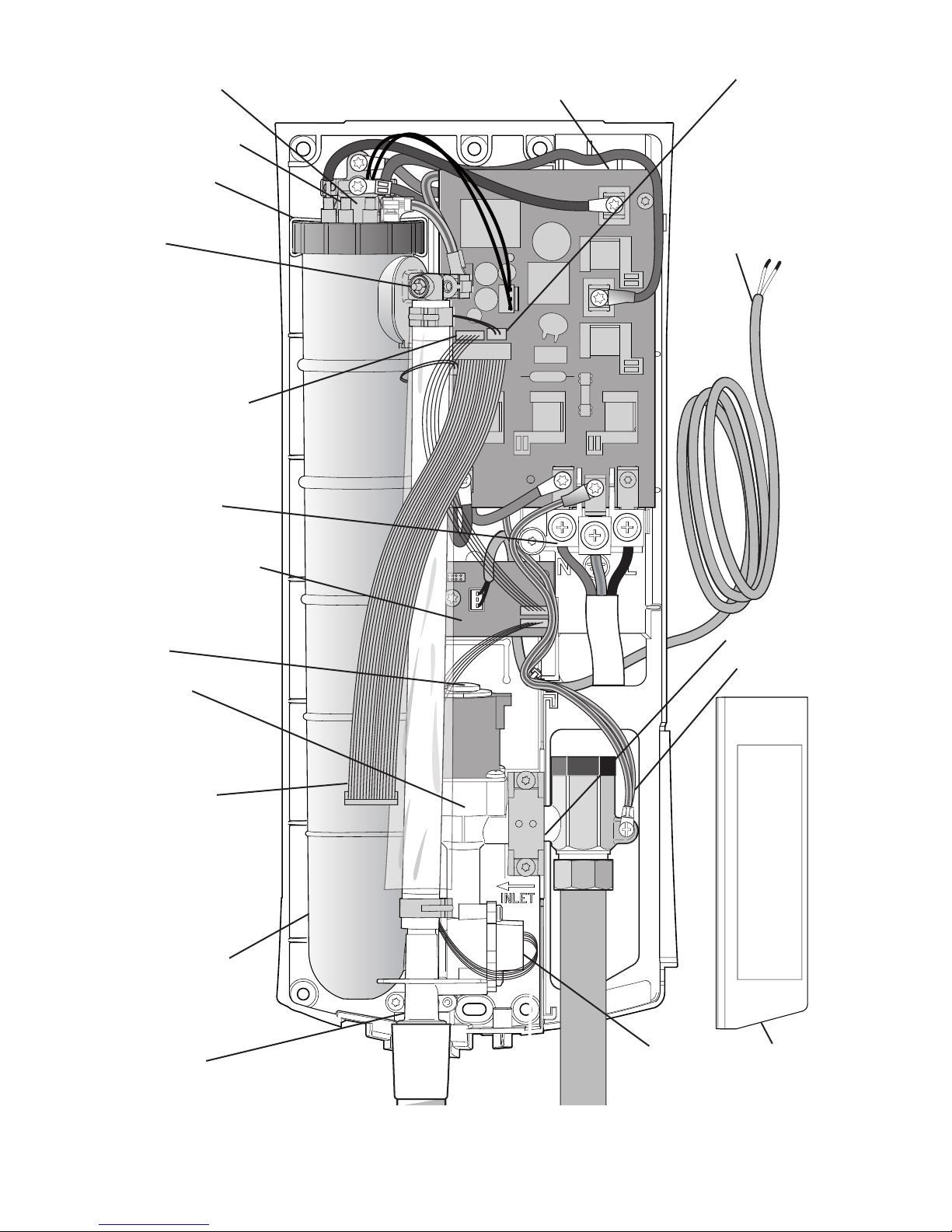

Terminal Block
Tank Assembly
Outlet
Connector
Flow Valve
Turbine and
Inlet Sensor
Wire 75 Earth
Inlet Clamp
Splash Guard
Relay Board
Flow Valve
Solenoid
Connector
Lead Socket
Thermal Switch
Element Assembly
Clip (secures
thermal switch)
Outlet
Sensor
Connector Lead
Sockets for the Flow
Valve Turbine and
Inlet Sensor, and
the Tank Assembly
Sensor.
Ribbon Cable
(connect to front Cover).
Flow Valve
Air Bleed
Button
Drain Pump PCB
(Standard Extra and
Flex Extra models only)
Pump Signal
Cable
(Standard Extra
and Flex Extra
models only)
Mira Advance ATL
(Standard Extra and Flex Extra models shown)

16
INSTALLATION
Refer to section: 'Important Safety Information' rst.
This installation covers all models of the Mira Advance ATL Thermostatic
shower.
1. Electrical supply
is turned off at the
mains.
2. Determine the shower
position, leaving
adequate space for
maintenance.
3. Remove cover screw.
4. Remove the cover
and splash guard.
Determine supply pipe
position and if required
cut a slot in the case
for the rising supply.
5. Make provision for
signal cable to connect
to shower drain pump
(if applicable). Also
refer to whale drain
pump instructions.
6. Turn inlet connector
to suit supply pipe. Do
not trap green wire.
7. Complete any
soldering required
away from appliance.
9. Whe n f it ti ng to a
tap connection, use
adaptor (supplied). Do
not t bre washer.
8. Flush a minimum of
10 litres (2 gallons)
through pipework prior
to connection.
10 mm
100 mm

17
10. Caution! Do not drill into
buried cables or pipes.
11. Use template provided
to mark and drill
required xing holes.
Screws and plugs
are supplied for two
required holes only.
Mira Advance A T L
Attention Installer
IMPORTANT!The following key details should be read in
conjunction with the Installation and User Guide.
Optional
Fixing Hole Required
Fixing Hole
1083677-W7-A ©Kohler Mira Limited, May2007
Optional
For technical support and general enquires,
spare parts and after sales service contact us on:
Telephone : [phone]
Fax : [phone]
email :[email protected]
Optional Optional
Leave minimum gap to
install and maintain
Do not install the appliance where it
may become frozen.
Do not drill into buried cables or
pipes.
Avoid dust contamination of the
product by using this template to mark
and drill into the wall. Drill appliance
case separately.
Do not use alternative screws to
secure the cover.
Do not seal any part of the appliance.
Use the correct supply cable
size. Refer to BS 7671.
Leave minimum gap
to remove cover
Required
Fixing Hole
Thoroughly fl ush the
pipework before connecting
to the appliance.
12. Drill holes through
plastic case as
required. Route signal
cable to shower drain
pump (if applicable).
Fix appliance to wall.
15. Connect hose and
showerhead, pointing
into bath or tray.
14. Turn on water supply
and check for leaks.
13. Connect supply pipe.
Do not overtighten.
Find the whale shower drain
pump transformer and identify
it's type number.
Jumper position for Mira
Advance ATL drain pump
PCB.
Type: 755.171 = LK1
Type: 755.299 = LK2
13. Mira Advance ATL Standard Extra & Flex Extra variants only!

18

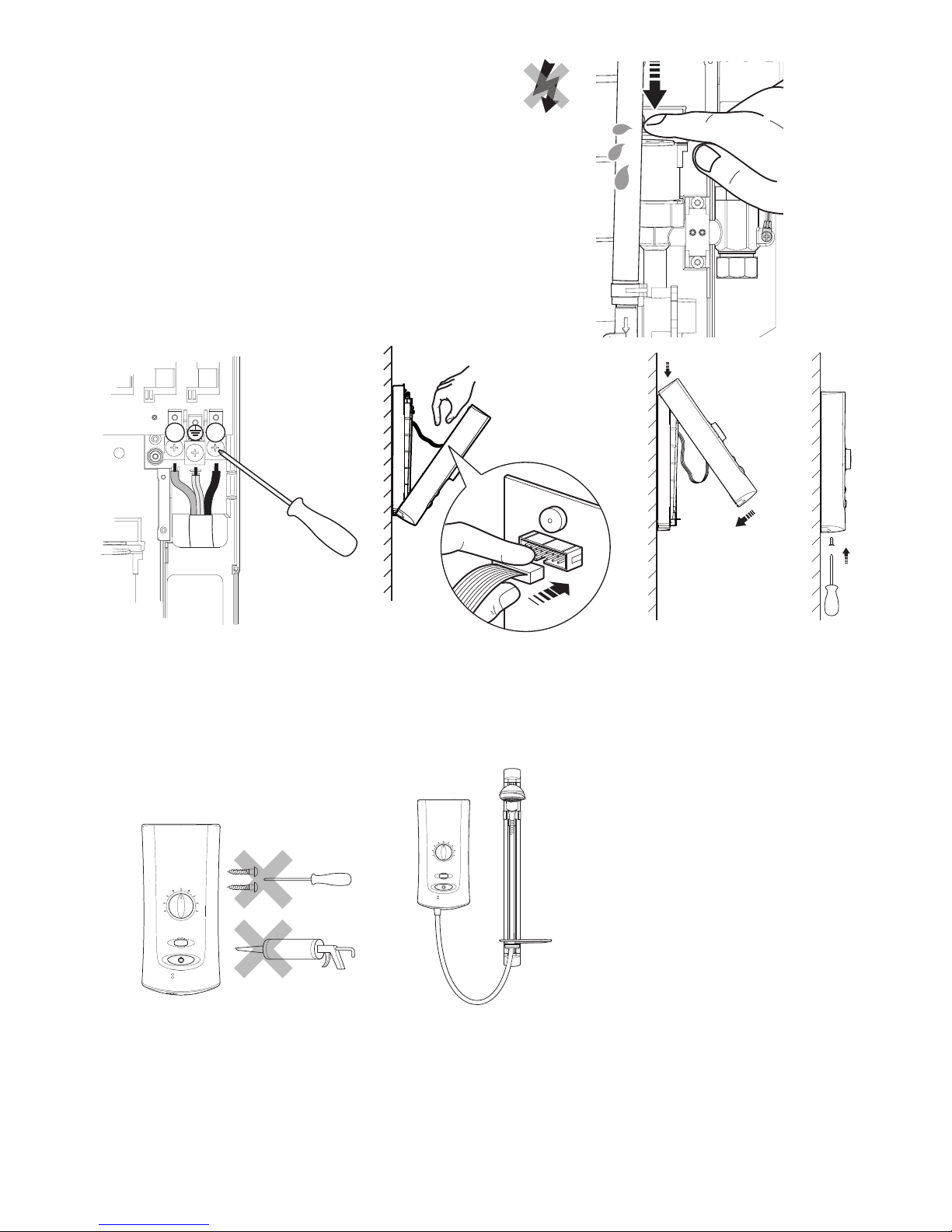

17. Important! Priming the Shower
Make sure electricity is isolated!
Push down and hold air bleed
button to prime appliance until water
appears from shower head. Failure to
prime will seriously affect shower
performance!
Carefully dry off water before
connecting/reinstating electricity.
21. Do not use alternative
screws to secure
cover. This can cause
internal damage to the
appliance. Do not seal
around any part of the
appliance.
22. Install the shower
f i t t i n g s . R e f e r t o
separate Installation
and User Guide.
20. Refit cover. Inserts
are provided to nish
the top and bottom as
required.
19. Ret splash guard and
connect ribbon cable
to the inside of the
cover.
N = BLUE
E = GREEN
L = BROWN
NL
18. F e e d c a b l e i n t o
case. Fit earth sleeve
and strip insulation.
Firmly connect the
conductors. DO NOT
exert strain on terminal
block.

19
Basic Post Installation Checks
1. Tu r n o n e l e c t r i c a l
supply.
4. Temperature to full cold. 5. Start shower to test for
water ow.
6. If there is no water after
5 seconds, make sure
that the appliance has
been primed.
5 secs
2. Test shower drain pump
(if applicable).
3. Power to appliance,
check Start/Stop for
blue light.
OR
7. Push Start/Stop to turn off the
appliance. The pulsing light and
"beep" indicates that the appliance
is shutting down.
Important! DO NOT isolate the
power to the appliance as this may
result in a temporary malfunction.
8. The appliance will purge water from
its tank for a few seconds.
Important! DO NOT isolate the
power to the appliance.
Go to section: 'Commissioning'.

20
B
E
A
B
C
a
r
e
R
a
n
g
e
5. Power to appliance, check for blue
light.
4. Turn dial to desired position in table.This
will set the maximum showering
temperature (i.e. Position 5 = Max
Temp of 41°C).
(See also section: 'BEAB Care').
No.
Max.
Temp
°C
1 37
2 38
3 39
4 40
5 41
6 42
7 45
8 48
COMMISSIONING
Important! On initial installation, the appliance needs to 'learn' about the site
conditions and does so during the commissioning cycle. It is important that the shower
is commissioned correctly otherwise an error condition may occur. Once set, the
shower constantly updates it's memory with information about the site conditions to
deliver the best performance.
Set Maximum Temperature and Commissioning Cycle
1. If the appliance is running, push
Start/Stop to turn it off. The pulsing
light and "beep" indicates that the
appliance is shutting down.
Important! DO NOT isolate the
power to the appliance as this may
result in a temporary malfunction.
2. The appliance will purge water from
its tank for a few seconds.
Important! DO NOT isolate the
power to the appliance.
3. Wait until the water has stopped
owing and turn off the power to the
appliance, residual water may drain
over a few minutes.
