Mira SDP044T Operation manual

1
Installation & User Guide
MIRAADVANCE ATL
These instructions are to be left with the user
8.7 AND 9.8 kW
ELECTRIC SHOWER
This product is suitable for mains fed cold water only.

2
CONTENTS
Introduction .............................................................................................3
Important Safety Information.................................................................4
Pack Contents .........................................................................................6
Dimensions..............................................................................................7
Specifications..........................................................................................8
1. Plumbing ..........................................................................................8
2. Electrical...........................................................................................8
3. Standards and Approvals.................................................................8
4. Patents.............................................................................................8
Shower Performance ..............................................................................9
Installation Requirements ....................................................................10
1. Plumbing ........................................................................................10
2. Electrical.........................................................................................12
Installation .............................................................................................14
Priming the Mira Advance ATL...........................................................17
Adjustable Temperature Limit..............................................................20
Commissioning .....................................................................................21
Operation ...............................................................................................23
1. Using your Mira AdvanceATL....................................................... 23
2. Storing the Memory Presets (Memory Control Model only) ...........25
3. How your Mira AdvanceATL Shower Works..................................26
Fault Diagnosis......................................................................................28
1. Users Troubleshooting Guide.........................................................28
2. Installers Troubleshooting Guide....................................................30
Maintenance...........................................................................................34
Wiring Diagram......................................................................................40
Spare Parts ............................................................................................42
Accessories...........................................................................................42
Customer Service....................................................................Back Page

3
TO THE CUSTOMER...
Mira Advance ATL key features:
• Designed for safety and comfort.
• Automatically adjusts to maintain constant temperature.
• Constantly monitors supply conditions.
Mira AdvanceATL models covered by this guide
Product
Variant 8.7 9.8 Adjustable
Temperature
Limit
Memory
Push
Button
Feature
Extended
Lever
Control
Drain
Pump
Compatible
Standard 99 9 8 8 8
Memory 99 9 9 8 8
Flex 99 9 8 9 8
Standard
Extra 98 9 8 8 9
Flex
Extra 98 9 8 9 9
• The following separate drain kits are required for the "Extra" models:
SDP044T Mira Whale Tray Kit (complete with 50 mm gully)
SDP054T Mira Whale Wet Floor Kit (complete with wet gully for vinyl)
Ifyouexperience any difficultywith theinstallationoroperationofyour new Electric
Shower,thenpleasereferto “Fault Diagnosis”, before contactingKohler Mira Ltd.
Our telephone and fax numbers can be found on the back cover of this guide.

4
IMPORTANT SAFETY INFORMATION
1. Warning!
1.1 Products manufactured by us are safe and without risk provided they are
installed, used and maintained in good working order in accordance with our
instructions and recommendations.
1.2 THIS APPLIANCE MUST BE EARTHED. MAKE SURE SUPPLEMENTARY
BONDING COMPLIES WITH THE "REQUIREMENTS FOR ELECTRICAL
INSTALLATIONS".
In accordance with the current edition of 'The Plugs and Sockets etc. (Safety)
Regulations' in force at the time of installation, this appliance is intended to be
permanently connected to the fixed electrical wiring of the mains system.
1.3 DO NOT twist the individual cable cores of the live and neutral conductors, as
this will prevent them from entering the terminal block.
1.4 The shower unit must not be fitted where it may be exposed to freezing
conditions. Make sure that any pipework that could become frozen is properly
insulated.
1.5 DO NOT operate this appliance if it appears to be frozen. Allow the appliance
to thaw and then contact your installer before using again.
1.6 DO NOT operate this appliance if water leaks from the Case. Maintenance may
be required before the appliance can be safely used.
1.7 DO NOT fit any form of outlet flow control as the outlet acts as a vent for the
tank body. Only Mira recommended outlet fittings should be used.
1.8 Thereare nouserserviceablecomponents beneaththecover of thisappliance.
Only a competent tradesperson should remove the cover.
1.9 Ifany of thefollowingconditionsoccur, isolatetheelectricityand water supplies.
Contact your installer or refer to 'To contact us', on the back page of this
guide.
1.9.1 If the cover is not correctly fitted and water has entered the appliance
case.
1.9.2 If the case is damaged.
1.9.3 If the appliance begins to make an odd noise, smell or smoke.
1.9.4 If the appliance shows signs of a distinct change in performance,
indicating a need for maintenance.
1.10Isolate the electrical and water supplies before removing the cover.
1.11Mains connections are exposed when the cover is removed.
1.12Refer to the wiring diagram before making any electrical connections.
1.13Make sure all electrical connections are tight, to prevent overheating.

5
2. Caution!
2.1 Read all of these instructions and retain this guide for later use.
2.2 Pass on this guide in the event of change of ownership of the installation site.
2.3 Follow all warnings, cautions and instructions contained in this guide, and on
or inside the appliance.
2.4 The electrical installation must comply with the "Requirements for Electrical
Installations" commonly referred to as the IEE Wiring Regulations, or any
particular regulations and practices, specified by the local electricity supply
companyinforce at thetimeofinstallation.Theinstallationshouldbe carried out
byan electricianorcontractor who is"PartP" (BuildingRegulations)registered,
or is a member of, an association such as:
2.4.1 National Inspection Council for Electrical Installation and Contracting
(NICEIC), throughout the UK.
2.4.2 The Electrical Contractors Association (ECA), England and Wales.
2.4.3 The Electrical Contractors Association of Scotland (ECAS).
2.5 Thisapplianceisahighpowerunit,itisessentialtocontactyourelectricitysupply
company to ensure that the electricity supply is adequate for the purpose.
2.6 The plumbing installation must comply with the requirements of UK Water
Regulations/Bye-laws (Scotland), Building Regulations or any particular
regulations and practices, specified by the local water company or water
undertakers. The installation should be carried out by a plumber or contractor
who is registered, or is a member of, an association such as:
2.6.1 Institute of Plumbing (IOP), throughout the UK.
2.6.2 National Association of Plumbing, Heating and Mechanical Services
Contractors (NAPH & MSC), England and Wales.
2.6.3 ScottishandNorthernIrelandPlumbingEmployers’Federation(SNIPEF),
Scotland and Northern Ireland.
2.7 Anyone who may have difficulty understanding or operating the controls of any
shower should be attended whilst showering. Particular consideration should
be given to the young, the elderly, the infirm, or anyone inexperienced in the
correct operation of the controls.
2.8 When this appliance has reached the end of its serviceable life, it should be
disposedofinasafemanner, in accordance with current local authority recycling,
or waste disposal policy.

6
Medium
Low
Stop
Reset
Low Pressure
Temperature
High
Flow
Medium
Low
Stop
Reset
Low Pressure
Tem perature
High
Flow
Medium
Low
Stop
Store
Reset
Low Pressure
Temperature
High
Flow
PACK CONTENTS
1 x Installation and User Guide
1 x Installer Checklist
1 x Installation Template
1 x Guarantee Card
1 x Olive1 x Compression Nut 1 x Tap Connector Adaptor
(for fitting to existing tap connector)
1 x Mira Advance ATL
Standard or Standard Extra
(Whale Shower Drain Pump
supplied separately)
2 x Wall Screws
2 x Wall Plugs
1 x Earth Sleeve
Or Or
Tick the appropriate boxes to familiarize yourself with the part names and to
confirm that the parts are included.
1 x Mira Advance ATL
Memory 1 x Mira Advance ATL Flex or Flex Extra
(Whale Shower Drain Pump
supplied separately)

7
56
4
7
3
8
2
9
1
1
234
5
Flow
High
Medium
Temperature
Stop
Low
Reset Low Pressure
56
4
7
3
8
2
9
1
Flow
High
Medium
Temperature
Stop
Low
Reset Low Pressure
56
4
7
3
8
2
9
1
1
2345
Flow
High
Medium
Temperature
Stop
Store
Low
Reset Low Pressure
DIMENSIONS
168 mm 168 mm
168 mm
Advance ATL Flex
or Flex Extra
Advance ATL Standard
or Standard Extra Advance ATL Memory
84.5 mm
68 mm
84.5 mm
68 mm
395 mm395 mm 395 mm
110 mm
68 mm
All dimensions are nominal

8
SUPPLY/SPECIFICATIONS
Plumbing Supply
Supply Source Mains cold water only
Recommended Minimum
Dynamic Pressure* 100 kPa (1.0 bar)
Maximum Static Pressure 1000 kPa (10 bar)
Minimum Static Pressure** 20 kPa (0.2 bar)
Maximum Inlet Temperature 28°C
Minimum Inlet Temperature 2°C
Inlet/Outlet Connections ½" BSP male fitting
Electrical Supply
Nominal Rating at 230 V 8.0 kW 9.0 kW
Nominal Rating at 240 V 8.7 kW 9.8 kW
Supply Fuse/Circuit Breaker 8.7 kW 40 Amps
9.8 kW 45 Amps
Residual Current Device RCD
(Strongly Recommended) 30 mA
Supply Cable
No larger than 16mm²
Note: Refer to current IEE
regulations to determine
minimum cable size.
Isolation Switch 45 Amp Double pole, with
3mm contact separation.
Maximum Ambient Temperature 30°C
Minimum Ambient Temperature 2°C
* Thermostatic performance will be maintained down to 50 kPa (0.5 bar) with reduced flow
performance.
** Static pressure must never fall below 20 kPa (0.2 bar) when other draw offs are in use, e.g. flushing
toilet. This is the minimum pressure required to keep the flow valve closed.
Standards and Approvals
The Mira Advance ATL complies with the requirements of the BEAB Care Mark
Standard and the relevant directives for CE marking.
Patents and Design Registration
Design Registration: 2 087 315, 2 087 316, D.13322, D.13320
Patents: 2269466, 2270370, 2298478, 2298479, 2298481

9
SHOWER PERFORMANCE
Seasonal changes
affecting water supply
temperature.
Changes of incoming
supply pressure.
Changes of incoming
supply voltage.
Mains cold water draw
off, e.g. toilet, wash
basin etc.
Heat transfer due to
position of mains cold
water pipe.
Changes in Flow Rate
(force of shower).
Temperature remains
constant.
What affects shower performance?
The shower unit's top priority is to keep the desired water temperature constant.
To maintain this temperature, the shower may have to automatically change the
rate of water flowing through the unit.Any of the following conditions can cause the
showertochange theflowrate(forceofthe shower) inordertokeep the temperature
constant. Most changes are minor and will go unnoticed.
hot pipe mains cold
pipe
E.g.
Positioned next to hot
water pipe.
Routed through heated
area such as loft or
airing cupboard.

10
General Notes
This product works best when supply temperatures and pressures remain
stable and within the product specifications, refer to section "Specifications".
If the supply conditions fall outside the specifications, the shower may go into
a safe shut down condition.
1. Plumbing
Refer to section: "Important Safety Information" first.
1.1 Do not use sealing compounds on any pipe fittings or joints.
Supply pipework MUST be flushed to clear debris before connecting the Mira
Advance ATL. Debris will reduce the performance of the unit.
1.2 Avoid running the pipework through excessively hot or cold areas such as hot
loft spaces, airing cupboards, or in close proximity to hot water pipes. If this
cannot be avoided, we would recommend insulating the pipes.
1.3 Never fit the unit to hot water supplies or to gravity systems of any description.
Only fit the product to a mains cold water pipe.
1.4 The MiraAdvanceATLis suitable for installation within a shower area and must
be positioned over a water catchment area with the controls at a convenient
heightfor theuser.Theshower fittingsshouldbe positionedsothat thehandset
discharges down the centre line of the bath, or across the opening of a shower
cubicle, and must be directed away from the Mira AdvanceATL.
1.5 TheMiraAdvanceATLisfittedwith an inletconnectorassemblythatis designed
toacceptwatersuppliesfromthetopor bottom.Thewatersupplycanbefedwith
15 mm pipe or 10 mm microbore pipe, suitably adapted for the inlet connector
assembly.If10mm microbore isused, thenan allowanceforincreasedpressure
loss must be made to make sure that the minimum maintained inlet pressure
of 1 bar is achieved, refer to section: "Specifications".
1.6 The MiraAdvanceATLmust be fitted onto the finished wall surface i.e. on top of
the tiles. Do not block the air ventilation gaps around the sides of the unit, either
by tiling up to the sides of the unit or by using a sealant around the case (Small
pillars moulded on to the back of the case allow air circulation). The appliance
is designed to be ventilated. Failure to do this may cause product failure.
1.7 We recommend that a non-restrictive (free flowing) isolating valve is fitted in
the cold water supply pipe to allow maintenance of the Mira Advance ATL. Do
not fit a valve that has a loose washer plate (jumper) as this can lead to a build
up of static pressures.
1.8 When installed in very hard water areas (above 200 ppm temporary hardness)
your installer may advise the installation of a water treatment device, to reduce
the effects of limescale formation. Malfunction of the MiraAdvance ATL due to
excessive limescale formation is not covered by the manufacturer's guarantee.
Your local water company will be able to advise the hardness of water in your
area.
INSTALLATION REQUIREMENTS

11
1.9 Thehose should befittedthrough the hoseretainingring to preventthehandset
from dropping below the spill-over level of the bath or shower, which could lead
tocontaminationfrombacksiphonage.
The hose retaining ring should meet
the majority of user requirements
for shower installations with flexible
outlet fittings. However, there will be
occasions when the hose retaining
ringwillnotprovideasuitablesolution.
In these instances an outlet double
checkvalve, e.g. the Mira DCV-
H, must be fitted, refer to section:
"Accessories". The inclusion of the
MiraDCV-H will increasetherequired
supply pressure typically by 10 kPa
(0.1 bar).
Caution! Double checkvalves, fitted
in the inlet supply to the appliance,
causeapressurebuildup,whichcould
exceed the maximum static inlet pressure for the appliance.
1.10Avoid layouts where the shower hose will be sharply kinked. This may reduce
the life of the hose.
Spill-over
Level
25 mm
minimum

12
2. Electrical
Refer to section: "Important Safety Information" first.
2.1 In a domestic installation, the rating of the electricity supplier’s fuse and the
consumer unit must be adequate for the additional demand. All Mira Advance
ATL electric showers are high power units, therefore it is essential to contact
your electricity supplier to make sure that the supply is adequate for the
product. Voltage drop due to local heavy demand will reduce the shower’s
performance.
2.2 The Mira Advance ATL must be earthed by connecting the supply-cable earth
conductor to the earth terminal.
Supplementary bonding: Within the bathroom or shower room, all accessible
conductivepartsof electrical equipment andextraneousconductiveparts(metal
parts) that are likely to introduce earth potential, must be electrically bonded to
earth using a minimum cable size of 4.0 mm2if the cable is not mechanically
protected, (2.5 mm2if mechanically protected).
2.3 The minimum required supply cable size must conform to BS 7671.
2.4 As a guide only, and in accordance with BS 7671 we recommend close circuit
protection:
i.e. 8.7 kW = 40 Amp
9.8 kW = 45 Amp
It is strongly recommended that a 30 mA Residual Current Device (RCD) is
included in the electrical circuit. This may be part of the consumer unit or a
separate unit.
A separate, permanently connected supply is taken from the consumer unit to
the appliance through a double-pole switch, which has at least 3 mm contact
separation.Theswitchcanbe aceilingmountedpullcordtype withintheshower
room or a wall mounted switch in an adjacent room.
2.5 DO NOT twist the individual cable cores of either the live or neutral conductors,
as this will prevent them from entering the terminal block.
2.6 DO NOT exert strain on the terminal block. Make sure that the electrical
connections are tightly screwed down.
2.7 DO NOT turn on the electrical supply until the plumbing has been completed.

13
Plumbing and Electrical Schematic Diagram
5
4
7
3
8
2
9
1
Low Pressure
High
Medium
Low
Stop
Tem perature
Service
Flow
Mira Advance ATL
Optional Outlet
Double Checkvalve
45 A Double-pole
Isolating Switch
Hose
Retaining
Ring
Mains-fed Cold
Water Supply
Clamp
Bracket
RF2 Handset
Holder
Consumer Unit
Isolating
Valve
Terminal Block
Switched
Spur
Transformer/
Controller
Shower
Drain Pump
Standard Extra & Flex Extra
models only
Signal Cable
Push Button
Override Switch

14
INSTALLATION
Plumbing Connection

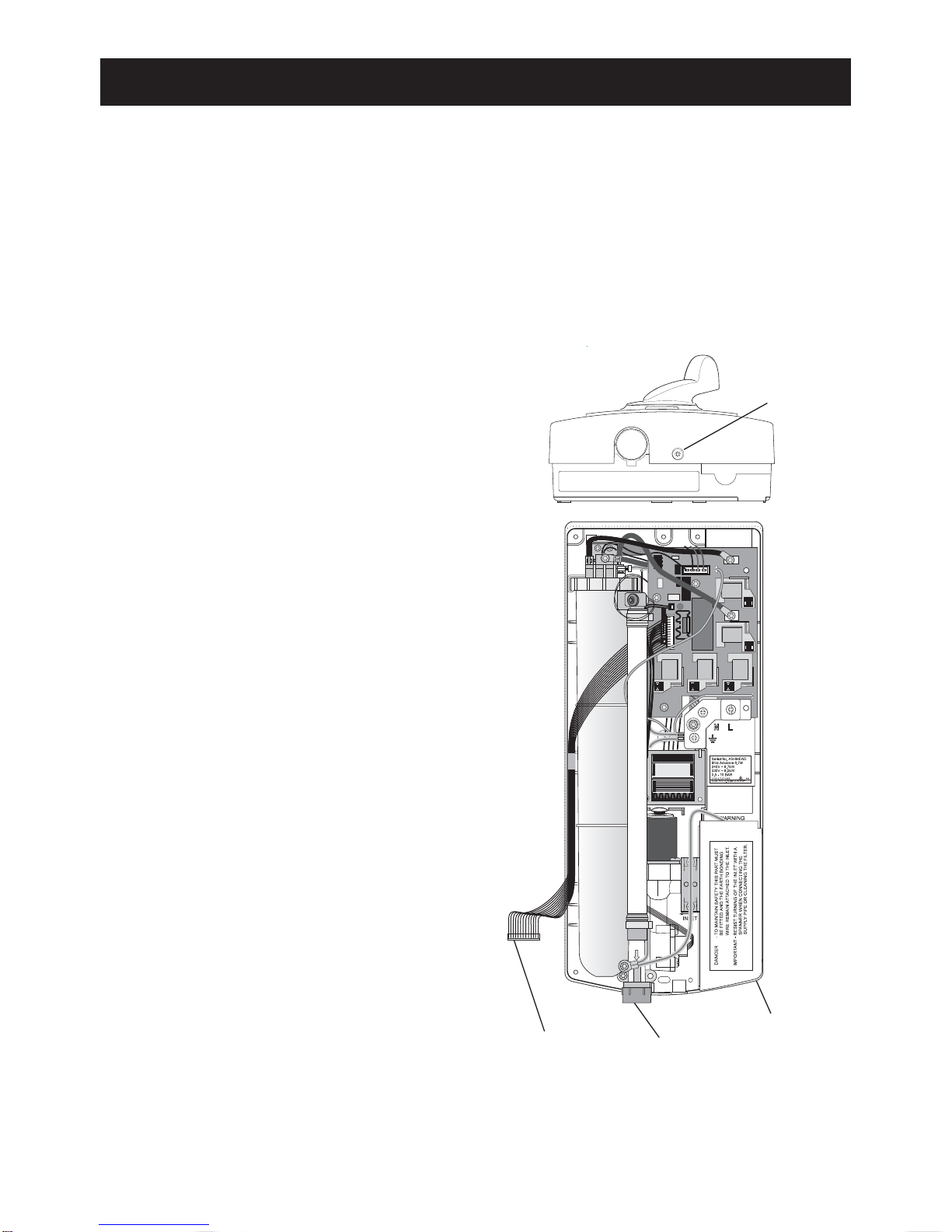

1.1 Unscrew the Case Securing Screw
and carefully pull the bottom of the
Cover outwards and upwards off the
Case.
1.2 Removethe Inlet Shield,locatedover
the Inlet Connector Assembly.
1.3 When deciding the position of the
Mira Advance ATL on the wall, allow
100 mm minimum clearance to
the right hand side of the case, to
provide unrestricted access to the
inlet connector, for installation and
maintenance.Allow 10 mm minimum
clearance from the top of the case to
allow the cover to be removed.
1.4 Determine whether the cold water
andcablesupplieswillbe top (falling),
bottom (rising), or rear inlet to the
MiraAdvanceATL.Provisionmust be
madeforroutingthe signal cablefrom
the appliance to the Shower Drain
pump (up to 2 m), this applies to the
StandardExtraandFlexExtramodels
only.
Note! Rearinlet must allowaccessto
the water supply pipe fittings.
Refer to section: "Important Safety Information" first.
This installation covers all models of the Mira Advance ATL Thermostatic
shower.
Warning! Isolate the electrical and water supplies before proceeding with the
installation of the MiraAdvanceATL. The electricity supply must be turned off at the
mains and the appropriate circuit fuse removed, if applicable.
Note! Bottom inlet is illustrated for clarity in these instructions.
Case Securing
Screw
13-Way
Multi-Connector
Inlet Shield
Transit
Sealing Cap
(outlet)

15
100 mm
Minimum
10 mm Minimum
Rising
Rear Inlet
Supply
Falling
Rear Inlet
Supply
Falling
Supply
Rising
Supply
Front
of Mira
Advance
ATL
?
9
8
1.5 Turn the inlet connector assembly to
suit the supply pipe position. Avoid
trapping the green earth bonding
wire.
1.6 Remove as appropriate, the thinned
sections in the Mira Advance ATL
case, to allow the pipe and cable to
enter the product.
1.7 Installthemains-fedcoldwatersupply
pipe.
Caution! Do not use sealing
compounds on any pipe fittings for
the installation.
The Mira Advance ATL can be
connected to either a compression
fitting (supplied) or a tap connector
(not supplied).
If upgrading from an existing shower
that uses a tap connector, then
the tap connector adapter can be
used in place of the fibre washer.
This allows the tap connector to
be used in conjunction with the
compression fitting of the product
(refer to illustration).
For rear inlet supplies, the cold water
pipemust emerge fromthesurface of
the wall 'square' to prevent straining
the inlet connector clamp bracket.
Refer to illustration for options.
Toavoiddamageto the MiraAdvance
ATL when soldered fittings are used,
soldering must not be carried out in
the vicinity of the unit as heat transfer
can damage components.
For connection to a
tap connector use the
tap connector adaptor
(supplied). Do not fit
the fibre washer.

16
1.8 Thoroughly flush the mains-fed cold
water supply pipe. The water supply
pipeworkmustbe clean andfreefrom
debris before connecting to the Mira
Advance ATL.
Note! Pipeworkdebris will reducethe
performance of the unit.
To flush the pipework, turn on the
water supply and drain a minimum
of 10 litres (2 gallons) of water into a
bucketorcatchmentarea.Turnoffthe
water supply.
1.9 Avoiding buried cables and pipes,
choose one of the upper fixing holes
whichwillallow the MiraAdvanceATL
to be firmly fixed to the wall structure,
and drill through the thinned hole
section in the back of the case.
1.10Unscrew the transit sealing caps
from the inlet and outlet of the Mira
Advance ATL.
Note! A small amount of water may
be released.
1.11Offer the Mira Advance ATL up to
the wall and temporarily connect the
mains-fed cold water supply pipe.
Mark through the casing the position
oftheupperandlowerholes.Remove
the Mira Advance ATL from the wall
beforedrilling.Thiswillpreventdebris
from entering the Mira AdvanceATL.
1.12Drill and suitably plug the two fixing
holes. Route the Signal Cable to
the Terminal Block located on the
Transformer Cable of the Shower
DrainPump(Standard Extra andFlex
Extra models only).
Upper Fixing Holes
Lower Fixing Holes
Do not connect
Signal Cable to mains
Electricity Supply!
(Standard Extra and Flex Extra
models only)

17
Air Bleed
Button
1.13Secure the Mira Advance ATL to
the wall with the screws provided.
Alternative fixings (not supplied)
may be necessary for some wall
structures.
Maketheconnection to themains-fed
coldwatersupplypipe,DO NOT allow
debris to enter the inlet connector.
Hold a wrench across the flats of the
inlet connector assembly to prevent
damage to the connector, whilst
tightening the compression nut. Turn
on the water supply and check for
leaks.
Priming the Mira Advance ATL
Caution!Makesureelectricityisisolated
before priming the unit.
1.14 Connect the shower hose to the Mira
AdvanceATLandposition the hoseto
dischargeintothe shower trayorbath
waste outlet.
1.15 Press down the air bleed button,
located on top of the flow valve. This
will allow the Mira Advance ATL to
fill with water and expel any trapped
air. A small amount of water must be
discharged.
Note! Failure to prime the unit will
severely affect performance.
Note! When the air bleed button is
pressed, water at full mains supply
pressure will flow from the shower
hose.
Caution! When the air bleed button
has been pressed, make sure that
it does not foul when released;
otherwise water will continue to
discharge from the bleed button.
Dry off any excess water prior to
connecting electrical supply.

18
Earth Sleeve
Electrical Connection
1.16Bring the electrical supply cable into
the case via one of the cable entry
points, and offer up to the terminal
block.
1.17Strip back approximately 40 mm of
theoutercableinsulation.Fittheearth
sleeve over the earth conductor.
Note! DO NOT twist the individual
cable cores of the live and neutral
conductors, as this will prevent them
from entering the terminal block.
Connect the cables firmly into the
Terminal Block Conductor Clamps.
Make sure that the bare cores of
each cable are securely trapped
within each Conductor Clamp (refer
to illustration).
Usingasuitablescrewdriver,securely
tighten the Conductor Clamp
Screws.
L= Brown Wire
N= Blue Wire
E= Yellow/Green sleeved wire
1.18Check that the earth bonding wire to
the inlet connector assembly is tight.
Make sure that the 13-Way Multi-
Connector lead is clear of the cover
whenitis refitted. Refit the inletshield
over the inlet connector assembly.
1.19If necessary, fit an earth bonding
clamp to the copper supply pipe and
make sure bonding complies with the
relevant regulations in force at the
time of the installation.
40 mm
98
Terminal Block
Conductor Clamps
Multi Connector
Lead
Inlet Shield
Terminal Block

19
1.19Connect the 13-Way Multi-Connector
lead from the relay board, in the Mira
Advance ATL, to the socket on the
control PCB located in the cover.
The multi-connector is a one way
fit into the receiving socket on the
control PCB. Make sure that the
multi-connectoriscorrectlyorientated
as illustrated. Make sure that the
connector is pushed home fully.
1.20Make sure that the 13-Way Multi-
Connectorleadisseatedbetweenthe
tankbodyandtheleft hand side ofthe
case. Then refit the cover by locating
the top of the cover onto the location
strip on the top of the case.
1.21Push the bottom of the cover against
the case until it locates correctly.
Install the screw and tighten.
1.22If required, refer to section:
"Adjustable Temperature Limit"
for setting the maximum temperature
of the shower.
1.23Route Pump signal cable from
the appliance out of the bathroom
area and connect to the pump,
refer to Whale Shower Drain Pump
manufacturer's recommendations
(Standard Extra and Flex Extra
models only).
Note: Polarity is not important.
Shower Fittings
1.23Install the shower fittings, refer to
the fittings "Installation and User
Guide".
Note! The high capacity spray plate
illustrated in the shower fitting guide
isnot suppliedwiththis MiraAdvance
ATL.
Mains Terminal Conductor Clamps
Important! The connector
must be correctly orientated
and pushed fully home

20
TheMiraAdvanceATLhasbeenfactory set todeliveramaximumwater temperature
of 48°C. If the shower is to be operated within a healthcare or special needs
environment, it is recommended that you carry out the procedure detailed below.
The Mira Advance ATL is capable of limiting the maximum water temperature to
between 37°C and 48°C.
Example: If the Temperature Restriction Dial has been set to correspond with
position4 (41°C),thenthemaximumshoweringtemperatureof 41°C will be achieved
at approximately position 6 on the 'Temperature Knob' on the Front Cover of the
Shower. Further clockwise movement of the 'Temperature Knob' will not increase
the showering temperature.
Note!AdvanceATLMemory:Selecting a presettemperaturethat was previouslyset
above the new maximum temperature setting will cause the shower to shut down
automatically. This is a safety precaution.
To adjust the Maximum Temperature Setting:
1. Remove the Cover, refer to section: 'Maintenance, 3. Cover, Removal and
Reassembly'.
Note! There is no need to remove the 13-Way Multi-Connector.
2. Using a small screwdriver, rotate the "Temperature Restriction Dial" to the
desired setting.
3. Refit the Cover.
ADJUSTABLE TEMPERATURE LIMIT
Advance ATL Cover
(viewed from the back)
Rotate the arrow on the Temperature Restriction
Dial to set the desired maximum water temperature
Restriction Dial Setting
Position Temp °C
037
138
239
340
441
542
645
748
