Miranda NV8500 Series User manual

NV8500 Family
Digital Routers
User’s Guide
Miranda Technologies Inc.
3499 Douglas B. Floreani
Montreal, Quebec
Canada H4S 2C6

ii Rev 2.2 • 27 Mar 10
NV8500 Family Digital Routers—User’s Guide
•Revision: 2.2
•Software Version: -none-
•Part Number: UG0034-03
• Copyright: © 2010 Miranda Technologies. All rights reserved.
• No part of this manual may be reproduced in any form by photocopy, microfilm, xerography or
any other means, or incorporated into any information retrieval system, electronic or mechani-
cal, without the written permission of Miranda Technologies, Inc.
• The information contained in this manual is subject to change without notice or obligation.
• All title and copyrights as well as trade secret, patent and other proprietary rights in and to the
Software Product (including but not limited to any images, photographs, animations, video,
audio, music, test, and “applets” incorporated into the Software Product), the accompanying
printed materials, and any copies of the Software Product, are owned by Miranda Technologies,
Inc. The Software Product is protected by copyright laws and international treaty provisions.
Customer shall not copy the printed materials accompanying the software product.
Notice
The software contains proprietary information of Miranda Technologies, Inc. It is provided under a
license agreement containing restrictions on use and disclosure and is also protected by copyright
law. Reverse engineering of the software is prohibited.
Due to continued product development, the accuracy of the information in this document may
change without notice. The information and intellectual property contained herein is confidential
between Miranda and the client and remains the exclusive property of Miranda. If you find any
problems in the documentation, please report them to us in writing. Miranda does not warrant that
this document is error-free.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Declaration of Conformance (CE)
All of the equipment described in this manual has been designed to conform with the required
safety and emissions standards of the European Community. Products tested and verified to meet
these standards are marked as required by law with the CE mark. (See Symbols and Their Mean-
ings on page v.)

NV8500 family Digital Routers • User’s Guide iii
When shipped into member countries of the European Community, this equipment is accompanied
by authentic copies of original Declarations of Conformance on file in Miranda GVD offices in
Grass Valley, California USA.
Trademarks
Miranda is a registered trademark of Miranda Technologies, Inc.
Brand and product names mentioned in this manual may be trademarks, registered trademarks or
copyrights of their respective holders. All brand and product names mentioned in this manual serve
as comments or examples and are not to be understood as advertising for the products or their man-
ufactures.
Software License Agreement and Warranty Information
Contact Miranda for details on the software license agreement and product warranty.
Technical Support Contact Information
Miranda has made every effort to ensure that the equipment you receive is in perfect working order
and that the equipment fits your needs. In the event that problems arise that you cannot resolve, or
if there are any questions regarding this equipment or information about other products manufac-
tured by Miranda, please contact your local representative or contact Miranda directly through one
of the appropriate means listed here.
• Main telephone: [phone] (9 am to 9 pm PST)
Fax: [phone]
In the Americas, call toll-free: [phone] (9 am to 9 pm EST)
In Europe, the Middle East, African or the UK, call [phone] (9 am to 6 pm, GMT)
In France, call [phone] (9 am to 5 pm, GMT + 1)
In Asia, call [phone] (9 am to 5 pm, GMT + 8)
In China, call [phone]
• Emergency after hours: toll-free: [phone]
Tel: [phone]
•E-Mail:
In the Americas, [e-mail]
In Europe, the Middle East, African or the UK, [email protected]
In France, euro[email protected]
In Asia, [email protected]
In China, [email protected]
• Website: http://www.miranda.com
• Mail Shipping
Miranda GVD Miranda GVD
P.O. Box 1658 125 Crown Point Court
Nevada City, CA 95959, USA Grass Valley, CA 95945, USA
Note Return Material Authorization (RMA) required for all returns.

iv Rev 2.2 • 27 Mar 10
Change History
The table below lists the changes to the Digital Router User’s Guide.
• User’s Guide Part # UG0034-03
• Software version: -none-
Restriction on Hazardous Substances (RoHS)
Miranda is in compliance with EU Directive RoHS 2002/95/EC governing the restricted use of cer-
tain hazardous substances and materials in products and in our manufacturing processes.
Miranda has a substantial program in place for RoHS compliance that includes significant invest-
ment in our manufacturing process, and a migration of Miranda product electronic components and
structural materials to RoHS compliance.
It is our objective at Miranda GVD to maintain compliance with all relevant environmental and
product regulatory requirements. Detailed information on specific products or on the RoHS pro-
gram at Miranda is available from Miranda Customer Support at
1-800-719-1900 (toll-free) or
1-530-265-1000 (outside the U.S.).
Rev Date ECO Description Approved By
1.0 21 Apr 09 15703 Initial release. DM, DC
2.0 10 Oct 09 16114 Incorporates material for the NV8576, NV8280, and
NV8144 with corrections and new information.
DM, DC
2.1 12 Jan 10 16272 Minor corrections, page 74, 76. DM, DC
2.2 27 Mar 10 16912 Changes to SFP modules; UniConfig connections;
Added signal numbering for backplanes. Changed
WECO to terminal block. Added monitoring functions
for NV8144.
DEM, RH, BH

NV8500 family Digital Routers • User’s Guide v
Important Safeguards and Notices
This section provides important safety guidelines for operators and service personnel. Specific
warnings and cautions appear throughout the manual where they apply. Please read and follow this
important information, especially those instructions related to the risk of electric shock or injury to
persons.

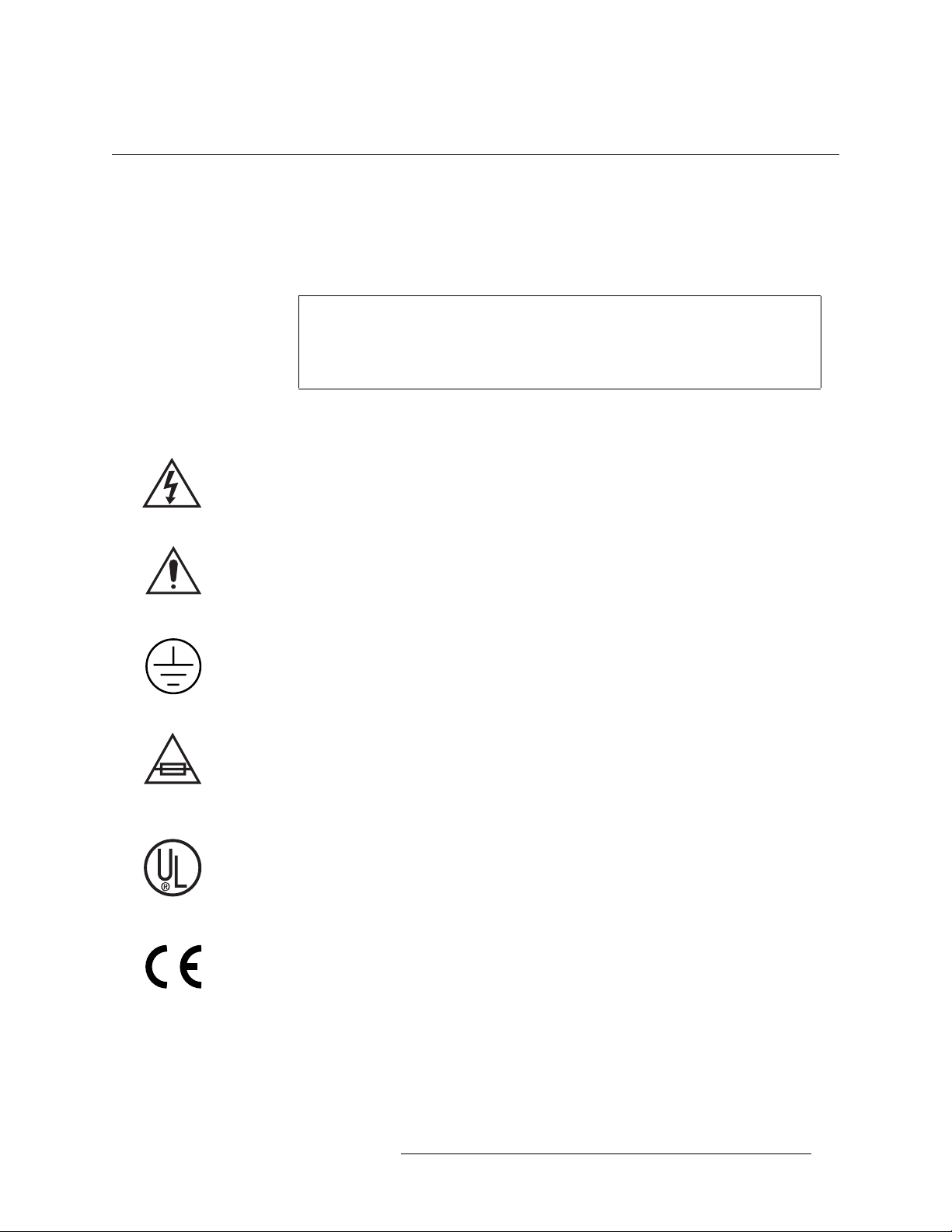

Symbols and Their Meanings
The lightning flash with arrowhead symbol within an equilateral triangle alerts the user to the pres-
ence of dangerous voltages within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle alerts the user to the presence of important
operating and maintenance/service instructions.
The Ground symbol represents a protective grounding terminal. Such a terminal must be connected
to earth ground prior to making any other connections to the equipment.
The fuse symbol indicates that the fuse referenced in the text must be replaced with one having the
ratings indicated.
The presence of this symbol in or on Miranda equipment means that it has been designed, tested
and certified as complying with applicable Underwriter’s Laboratory (USA) regulations and rec-
ommendations.
The presence of this symbol in or on Miranda equipment means that it has been designed, tested
and certified as essentially complying with all applicable European Union (CE) regulations and
recommendations.
Warning Any instructions in this manual that require opening the equipment cover or
enclosure are for use by qualified service personnel only. To reduce the risk of
electric shock, do not perform any service other than that contained in the operat-
ing instructions unless you are qualified to do so.

vi Rev 2.2 • 27 Mar 10
General Warnings
A warning indicates a possible hazard to personnel which may cause injury or death. Observe the
following general warnings when using or working on this equipment:
• Heed all warnings on the unit and in the operating instructions.
• Do not use this equipment in or near water.
• This equipment is grounded through the grounding conductor of the power cord. To avoid elec-
trical shock, plug the power cord into a properly wired receptacle before connecting the equip-
ment inputs or outputs.
• Route power cords and other cables so they are not likely to be damaged.
• Disconnect power before cleaning the equipment. Do not use liquid or aerosol cleaners; use
only a damp cloth.
• Dangerous voltages may exist at several points in this equipment. To avoid injury, do not touch
exposed connections and components while power is on.
• Do not wear rings or wristwatches when troubleshooting high current circuits such as the power
supplies.
• To avoid fire hazard, use only the specified fuse(s) with the correct type number, voltage and
current ratings as referenced in the appropriate locations in the service instructions or on the
equipment. Always refer fuse replacements to qualified service personnel.
• To avoid explosion, do not operate this equipment in an explosive atmosphere.
• Have qualified service personnel perform safety checks after any service.
General Cautions
A caution indicates a possible hazard to equipment that could result in equipment damage. Observe
the following cautions when operating or working on this equipment:
• When installing this equipment, do not attach the power cord to building surfaces.
• To prevent damage to equipment when replacing fuses, locate and correct the problem that
caused the fuse to blow before re-applying power.
• Use only the specified replacement parts.
• Follow static precautions at all times when handling this equipment.
• This product should only be powered as described in the manual. To prevent equipment dam-
age, select the proper line voltage on the power supply(ies) as described in the installation doc-
umentation.
• To prevent damage to the equipment, read the instructions in the equipment manual for proper
input voltage range selection.
• Some products include a backup battery. There is a risk of explosion if the battery is replaced by
a battery of an incorrect type. Dispose of batteries according to instructions.
• Products that have (1) no on/off switch and (2) use an external power supply must be installed
in proximity to a main power output that is easily accessible.

NV8500 family Digital Routers • User’s Guide vii
Table of Contents
Chapter 1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Fuses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Signal Rates and Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Signal Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Standalone Routers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Expandable Routers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Slots and Corresponding Signal Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Expandable Frames and Signal Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Crosspoint Slots and Signals Switched . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Backplane Connectors and Individual Signal Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connector Location and Signal Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Card Slot and the Range of Signal Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connectors, Signal Numbers and Specific Frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Front Module Slots and Rear Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Front Slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
NV8144 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
NV8280 and NV8280-Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
NV8576 and NV8576-Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Rear Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
NV8144 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
NV8280 and NV8280-Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
NV8576 and NV8576-Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Backplanes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
About Monitor Backplanes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
System Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Router Control System Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Diagnostic Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
AES Reference Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Video Reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Time Code Reference Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
System Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Active Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Combining Input Cards and Output Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Control Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Input Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Input Card Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Visual Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Crosspoint Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Redundant Crosspoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Visual Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Output Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Output Card Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
‘Standalone’ Output Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
‘Expansion’ Output Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
‘Filler’ Output Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Visual Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Monitor Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

viii Rev 2.2 • 27 Mar 10
Table of Contents
Frame Expansion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Chapter 2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Preparing for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Rack Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
How to Rack Mount the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Installing Backplanes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
How to Install a Backplane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Installing Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
How to Install Active Cards in the NV8144 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
How to Install Active Cards in the NV8280 and NV8280-Plus . . . . . . . . . . . . . . . . . . 55
How to Install Active Cards in the NV8576 and NV8576-Plus . . . . . . . . . . . . . . . . . . 56
Making Signal Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Backplane Connectors and Individual Signal Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Local Signal Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
How to Make Local I/O Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Expansion Signal Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
How to Make I/O Expansion Connections Between Two NV8280-Plus Routers. . . . . 65
How to Make I/O Expansion Connections Between Two NV8576-Plus Routers. . . . . 67
Making Router Control System Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Serial Control Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Ethernet Control Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Aux Bus Control Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Control System Expansion Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
How to Make Expansion Connections Between Two Routers . . . . . . . . . . . . . . . . . . . 74
Making Diagnostic Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Router IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
How to Make Permanent Diagnostic Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Making AES Reference Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
How to Make Connections to the AES Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Making Video Reference Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
How to Make Connections to the Video References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Making Monitor Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Monitor Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
How to Make NV8144 Monitor Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
How to Make Output Monitor Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Expansion Frame Monitor Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
How to Make Output Expansion Monitor Connections for NV8280-Plus . . . . . . . . . . 81
How to Make Output Expansion Monitor Connections for NV8576-Plus . . . . . . . . . . 82
Making Alarm Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
How to Make Alarm Connections for Routers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Alarm Indicator Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
NV8000 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Router Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Connecting to Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
NV8000 Monitor and Alarms Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
NV8000 Power Cords and Branch Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Making Power Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
How to Connect Power to the NV8144 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
How to Connect One NV8000 Frame to One Router Frame (NV8280 or NV8576) . . 89
How to Connect Two NV8000 Frames to One Router Frame (NV8576 only) . . . . . . . 91
Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

NV8500 family Digital Routers • User’s Guide ix
Table of Contents
Chapter 3 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Chapter 4 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Miranda Control Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Third-Party Control Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Setting Redundant Crosspoint Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
How to Change Redundant Crosspoint Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Chapter 5 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Fuse Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Indicator LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Power Supplies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Backplanes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Control Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Input and Output Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Crosspoint Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Air Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Fan Cleaning and Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Intake Filter Screen Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Obtaining Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Chapter 6 Technical Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107
Power Specifications (NV8000, PS8100) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Audio Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Video Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Time Code Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Appendix A Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Chapter 7 NV8576 I/O Signal Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
Appendix B Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

xRev 2.2 • 27 Mar 10
Table of Contents

NV8500 family Digital Routers • User’s Guide 1
1. Introduction
The NV8500 family is a series of highly flexible high-density routers supporting Standard Defini-
tion (SD), High Definition (HD) and 3.0 Gb/s (3Gig) video signals, and AES Asynchronous audio
signals. This section provides an overview of the NV8500 family of routers, including signal flow
and rates, power supply, active cards and frame expansion. It is recommended that you read this
section before starting any installation tasks.
Product Overview
The NV8500 family is composed of several routers that are either standalone routers or routers that
can be connected together to create larger switching matrices called “expandable” router frames.
Expandable router frames are denoted by the word “Plus.” A fully non-blocking matrix architecture
allows for one-to-one and one-to-many routing. Because inputs and outputs are independent, con-
figurations do not have to be numerically squared or identical in number.
Standalone routers allow for configurations as small as 9 inputs and 18 outputs, increasing in incre-
ments of 9 inputs or 18 outputs. Expandable routers allow for configurations as small as 9 inputs
and 9 outputs, increasing in increments of 9 inputs or 9 outputs. When two routers are connected
together, the number of inputs and outputs that can be switched doubles. The two connected routers
are considered a single matrix.
The following is a list of routers within the NV8500 family.
Input cards, output cards, control cards, crosspoint cards, monitor cards, and power supply modules
are “hot swappable” and installed through the front of the frame for easy access. The rear of the
router features a back plate into which backplanes housing different types of connectors for receiv-
ing and distributing signals are installed. Each backplane receives or distributes signals for a single
card allowing for maximum switching configuration flexibility. The back plate also contains con-
nections to system functions, such as a router control system, alarms or reference signals.
Router
Switching
Matrix Expandable Expanded Switching Matrix Configurations based on
NV8144 144 × 144 No — 9 inputs and 18 outputs
NV8280 288 × 576 No — 9 inputs and 18 outputs
NV8280-Plus 288 × 288 Yes 576 × 576 9 inputs and 9 outputs
NV8576 576 × 1152 No — 9 inputs and 18 outputs
NV8576-Plus 576 × 576 Yes 1152 × 1152 9 inputs and 9 outputs

2Rev 2.2 • 27 Mar 10
1. Introduction
Product Overview
Mounting
The NV8500 family router frames mount in a standard 19″rack. The frame heights are as follows:
NV8576, NV8576-Plus 32RU 55.97″1.422 m
NV8280, NV8280-Plus 16RU 27.97″0.710 m
NV8144 8RU 13.97″0.355 m
The depth of each frame is approximately 17″. With 3″clearance for cabling, the minimum mount-
ing depth is approximately 20″. Doors add 0.8″of depth.
When placing the rack in your facility, be sure to leave enough space for air flow through the front
and rear of the router and within easy access of an AC power source. For installation instructions,
see Rack Mount on page 49.
Fuses
Routers in the NV8500 family have no user-serviceable fuses.
Cooling
Router frames in the NV8500 family have one or more fan trays providing forced air cooling
through five speed-controlled fans. In the NV8144, NV8280 and NV8280-Plus frames, a single fan
tray is located at the top of the chassis. For the NV8576 and NV8576-Plus frame, there are two fan
trays: one located at the top and one located at the bottom of the chassis. Fan trays are accessed
from the front of the frame. The fans draw cooling air from the center-front of the router, through
the door, and exhaust it through the rear of the frame at the top and bottom. The router must have
the door correctly installed and closed for proper airflow through the chassis.
Each fan features speed control which spins the fan at the optimal rate required to ensure that a con-
stant temperature is maintained within the router. Temperature sensors on the fans sense the exiting
temperature and increase or decrease the speed of the fan as required. By rotating only as required
to meet cooling needs, fan noise is significantly reduced in partially loaded frames or in environ-
ments with lower ambient temperatures. Maintaining a constant temperature also increases cir-
cuitry life span.
Each fan features two LEDs that indicate if the fan is receiving power and if there is a failure. For
more information, see Indicator LEDs on page 101.
There is a removable air filter located on the inside of the door assembly. It is recommended that
maintenance filters be performed on a regular basis. For more information, see Air Flow on page
103.
Caution If airflow is impeded, overheating may occur.

NV8500 family Digital Routers • User’s Guide 3
1. Introduction
Power Supply
Power Supply
Power for the NV8500 family routers frames is supplied through the Miranda PS8100 power sup-
ply module. The module is either installed in the router frame (the NV8144) or installed in an exter-
nal, separate frame, the NV8000. The NV8000 can house up to 4 modules. Each PS8100 module
produces 850 Watts.
The number and type of power supply modules required, and if and how many NV8000 power sup-
ply frames are required, depends on which and how many routers are being used. For redundancy,
additional (optional) power supply modules can be installed as a backup power source should the
primary module fail. For a list of power requirements, see Connecting to Power on page 85.
The PS8100 power supply module accepts a wide range of AC input voltages and produces five
+48 VDC outputs. The power supply automatically senses the AC input voltage range (90–130 and
180–250 VAC) and adjusts to maintain a relatively constant DC output; no voltage selection is
required.
The five regulated outputs are directed to modules in the router where on-board regulators produce
the DC voltages required by the local circuits. Each output powers one of the five green LEDs and
output test points located on the front of the PS8100 power supply module. Under normal opera-
tion, all five LEDs are lit. For more information on LEDs, see Indicator LEDs on page 101.
Figure 1-1 shows the PS8100 power supply module architecture.
Figure 1-1. PS8100 Power Supply Module Diagram
For information on making power supply connections, see Connecting to Power on page 85.
The PS8100 power supply module, and the NCV8000 power supply frame, have no serviceable
fuses.
Cooling is provided by a single low-speed fan located along the front edge of each PS8100 power
supply module, which draws a small quantity of air across the internal heat sinks.
Power Sense
and Limiting
AC Input, Fuse,
Rectifiers, and Filter
Power Factor
Correction
+48 DC
Regulators (×5)
+48 DC
Out (×5)
90130 AC or
180250 AC In

4Rev 2.2 • 27 Mar 10
1. Introduction
Signal Rates and Flow
Signal Rates and Flow
Routers in the NV8500 family support SD, HD and 3Gig video signals, and AES3 Digital Audio
Asynchronous audio signals, both balanced and unbalanced. The following table lists the standards
and rates for each signal type. HD signals are managed through active 3Gig cards. Embedded audio
signals are passed through. For a description of each card and corresponding part numbers, see
Input Cards on page 38 and Output Cards on page 40.
Reference signals are required for proper switching of video signals. See Video Reference on page
35. No reference is required for AES3 Digital Audio Asynchronous signals.
Product Overview on page 1
Signal Flow
Routers switch incoming signals to designated output connections. Switching is directed by settings
configured in the router control system, which sends commands to the control card. In turn, the
control card directs how switching occurs on the crosspoint card. For a description of control cards
and crosspoint cards, see Active Cards on page 37.
Standalone Routers
The NV8500 family standalone routers include the NV8144, NV8280 and NV8576. The NV8144
can house two 144 x 144 crosspoint cards (one required and one optional for redundancy).
The NV8280 and NV8576 router frames each house up to 8 crosspoint cards and an optional redun-
dant crosspoint cardset (a single module). The NV8280 crosspoint cards having a switching matrix
of 144 x 144 and the NV8576 crosspoint cards have a 288 x 288 matrix. The crosspoint card slots
are numbered 1 through 10, from left to right. An optional redundant crosspoint cardset can be
installed in slots 5 and 6. All other crosspoint cards are installed in slots 1 through 4 and slots 7
through 10. The 8 crosspoint cards are divided into 2 sets of 4, with each set of 4 fanning out and
distributing inputs to all outputs.
Each standalone router switches signals via the crosspoint card differently. In a fully loaded
NV8144 frame (i.e., all active cards installed), all inputs are sent to the crosspoint cards for distri-
bution to any or all outputs.
In a fully loaded NV8280 or NV8576 frame, inputs on the left side of the frame (when facing the
front of the router) are forwarded to crosspoint cards 1, 2, 7 and 8. Inputs situated on the right side
of the frame are forwarded to crosspoint cards 3, 4, 9 and 10, as shown in Figure 1-2 on page 6. All
Signal Type Standard Rates Supported
Audio AES3
asynchronous
(balanced or
unbalanced)
AES3 Sample rates 32 to 192kHz (passed through)
Standard Definition
(SD-SDI)
SMPTE
259M
Auto re-clock at 270Mb/s or auto bypass with pass-through from
19 Mb/s to 360 Mb/s
3Gig (SD-SDI, HD-SDI
and 3.0 Gb/s combined)
SMPTE
259M, 292M
424M
Auto re-clock at 270Mb/s and 1.483, 1.485, 2.966, 2.970 Gb/s or
auto bypass with pass-through from 19 Mb/s to 3.0 Gb/s

NV8500 family Digital Routers • User’s Guide 5
1. Introduction
Signal Rates and Flow
inputs are also forwarded to the optional redundant crosspoint cardset. The optional redundant cros-
spoint cardset feeds any input to any output depending on which active crosspoint card it is taking
over for.
Outputs are distributed from each crosspoint card to specific output cards such that crosspoint cards
in the left side of the frame (when facing the front of the router) feed output cards located in the left
side of the frame. Similarly, crosspoint cards in the right side of the frame feed output cards located
in the right side of the frame, as shown in Figure 1-3 on page 7.
For more information on crosspoint cards, the slots into which they are inserted, and the signals
switched, see Crosspoint Slots and Signals Switched on page 13.
Router
Maximum Switching
Matrix
Signals switched by
one Crosspoint Card Inputs
Forwarded to Crosspoint
Cards in Slots
NV8144 144 × 144 144 × 144 1–72 1, 2, 7 and 8
73–144 3, 4, 9 and 10
NV8280 288 × 576 144 × 144 1–144 1, 2, 7 and 8
145–288 3, 4, 9 and 10
NV8576 576 × 1152 288 × 288 1–288 1, 2, 7 and 8
289–576 3, 4, 9 and 10

6Rev 2.2 • 27 Mar 10
1. Introduction
Signal Rates and Flow
As an example, NV8576 has 8 crosspoint cards that each manage up to 288 × 288 signals and are
divided into 2 sets of 4, with each set of 4 fanning out and distributing 288 inputs (1–288 and 289–
576) to all 1152 outputs. In a fully loaded frame, inputs 1–288 on the left side of the frame (when
facing the front of the router) are forwarded to crosspoint cards 1, 2, 7 and 8. Inputs 289–576, situ-
ated on the right side of the frame, are forwarded to crosspoint cards 3, 4, 9 and 10. (See Figure 1-2
and Figure 1-3 on page 7.)

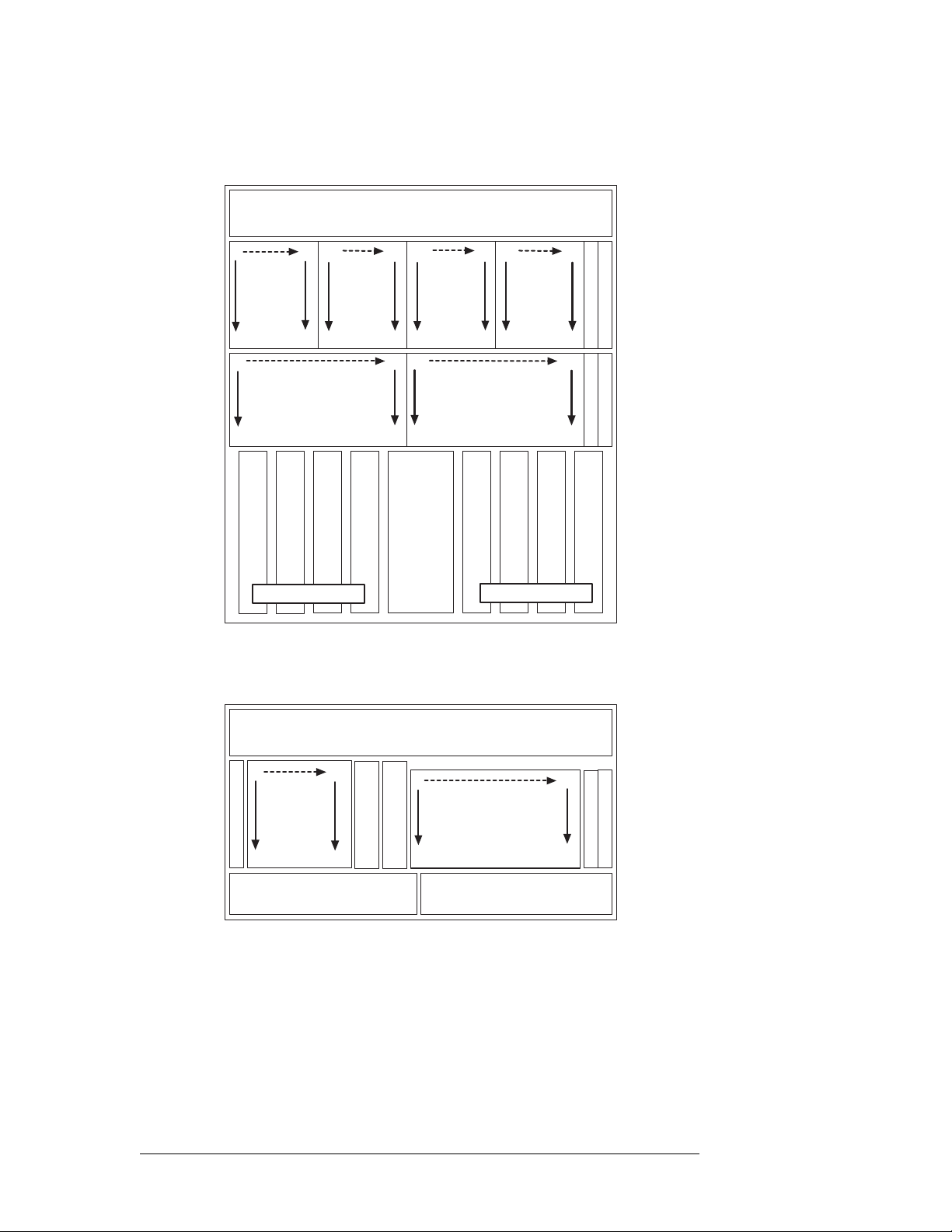

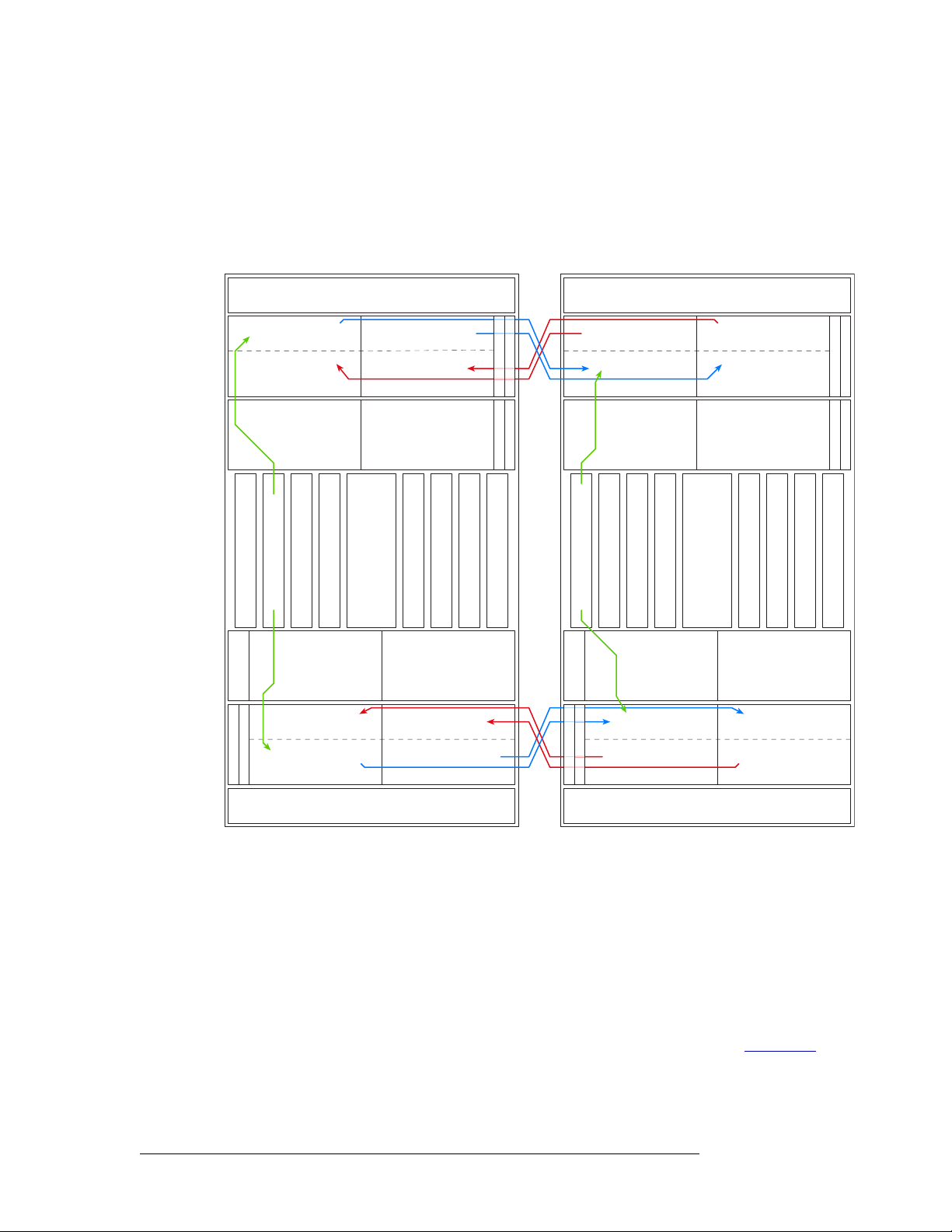

Figure 1-2. Example of NV8576 Inputs Signal Flow (Front View)
FAN
OUTPUTS
1144
INPUTS
1144
XPT (INPUTS 1288)
INPUT MONITOR
(8 cards)
OUTPUTS
289 432
(8 cards)
OUTPUTS
577720
(8 cards)
OUTPUTS
8651008
(8 cards)
OUTPUT MONITOR
(16 cards)
INPUTS
289 432
(16 cards)
OUTPUTS 1576 OUTPUTS 5771152
OUTPUTS
145 288
(8 cards)
INPUTS
145 288
(16 cards)
INPUTS
433 576
(16 cards)
(not used)
FAN
OUTPUTS
433 576
(8 cards)
OUTPUTS
721864
(8 cards)
OUTPUTS
100 9 1152
(8 cards)
INPUT MONITOR OUTPUT MONITOR
SEC. CONTROL PRIM. CONTROL
XPT (INPUTS 1288)
XPT (INPUTS 289576) XPT (INPUTS 289576)
XPT (INPUTS 1288) XPT (INPUTS 1288)
XPT (INPUTS 289576) XPT (INPUTS 289576)
REDUNDANT CROSSPOINT

NV8500 family Digital Routers • User’s Guide 7
