Mircom TX3 Series User manual

Version 6 TX3 Telephone Access System Installation and Operation Manual 1
LT-969 March 2021
TX3 Series
TELEPHONE ACCESS SYSTEMS
Installation and Operation Manual

2TX3 Telephone Access System Installation and Operation Manual Version 6
LT-969 March 2021
March 2021 Mircom Inc.
All rights reserved.
TX3 Installation and Operation Manual v 6
Microsoft, MS-DOS, Windows, and Windows 2000/NT/XP/Vista/7/8/10 are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Mircom
25 Interchange Way
Vaughan, Ontario
L4K 5W3
905.660.4655
http://www.mircom.com

TX3 Telephone Access System Installation and Operation Manual 3
Contents
1 Introduction 7
1.1 TX3 Systems 8
1.2 Features 10
1.3 Lobby Control Unit Enclosures 11
1.4 Lobby Control Unit Accessories 15
1.5 Mounting requirements from the 2010 ADA Standards for Accessible
Design 16
1.6 About This Manual 17
1.7 Warranty and Special Notices 17
1.8 Contact Us 17
2 Enclosure Installation 18
2.1 Grounding the Telephone Access System 18
2.2 Installing the Enclosures and Lobby Control Unit 18
2.3 Installing the Heater 27
3 TX3 System 28
3.1 TX3 System 28
3.2 Single Lobby Control Unit 29
3.3 Dual Lobby Control Units 32
3.4 Three Lobby Control Unit Configuration 33
3.5 Multiple Lobby Control Units 34
3.6 Networking TX3 Panels 34
3.7 Lobby Control Unit Wiring 37
4 Lobby Control Unit Setup 38
4.1 Controller Board 39
4.2 Controller Board Connectors - Bottom 41
4.3 Controller Board Connectors - Top 46
4.4 Modem Module 49
4.5 IP Module 50
4.6 RS-485 Add-on Module 50
4.7 Wiegand Output Module 52
4.8 Guard Phone Module 52
4.9 Guard Phone 53
4.10 Controller ID Setup 54
4.11 Configuration Using a PC 56
4.12 Updating Firmware 57
4.13 Beginning Configuration 58
5 NSL Relay Cabinet Installation and Wiring 60
5.1 NSL Relay Cabinet Mechanical Installation 61
5.2 NSL Relay Control Unit and Expanders 63

4TX3 Telephone Access System Installation and Operation Manual
Contents
5.3 Wiring the TX3-NSL-8M Main Controller Board 66
5.4 Updating Firmware 83
6 Adding Controllers and Accessories 84
6.1 Adding a Controller 84
6.2 Installing the TX3-P300-HA Card Reader 85
7 Specifications 87
8 Resident Operating Instructions 89
8.1 NSL Resident Operating Instructions 90
8.2 ADC Resident Operating Instructions 92
Warranty & Warning Information 93
Special Notices 98

TX3 Telephone Access System Installation and Operation Manual 5
List of Figures
Figure 1 TX3-200-8U-C, TX3-1000-8U-C, TX3-2000-8U-C,
TX3-120U-C Dimensions 19
Figure 2 Dimensions of TX3-UFT and the Universal enclosure 20
Figure 3 Mounting TX3-UFT Universal Series Flush Trim Ring 20
Figure 4 TX3-200-4U-C, TX3-1000-4U-C, TX3-2000-4U-C
Dimensions 23
Figure 5 Dimensions of TX3-USFT and the Universal Slim-line
enclosure 24
Figure 6 Mounting TX3-USFT Slim Line Universal Flush Trim
Ring 24
Figure 7 TX3-200-8C-C, TX3-1000-8C-C, TX3-2000-8C-C,
TX3-120C-C Dimensions 25
Figure 8 Mounting the Continental enclosure 26
Figure 9 Heater TH-102 Installation Location 27
Figure 10 Single Lobby Control Unit 29
Figure 11 Single Lobby Control Unit with ADC and NSL Lines 30
Figure 12 Single Entrance System Wiring 31
Figure 13 Dual Lobby Control Units 32
Figure 14 Multiple Lobby Control Units to Multiple Lines 33
Figure 15 Many Lobby Control Units to One Line 34
Figure 16 TX3 devices on an RS-485 network. 35
Figure 17 TX3 devices on an Ethernet TCP/IP network. 35
Figure 18 Lobby control units using both Ethernet and RS-485
networks 36
Figure 19 Lobby Control Unit Wiring 37
Figure 20 Lobby Control Unit Main Controller Board 39
Figure 21 Controller Board Connectors - Bottom 41
Figure 22 Tamper Switch 42
Figure 23 RS-485 Wiring 44
Figure 24 Power Supply 45
Figure 25 Controller Board Connectors - Top 46
Figure 26 Main Door Dry Contact Wiring 48
Figure 27 Modem Module Telephone Connectors 49
Figure 28 IP Module Data and Ethernet Connectors 50
Figure 29 RS-485 Add-on Module 51
Figure 30 Guard Phone Module 53
Figure 31 NSL Relay Cabinet 61
Figure 32 TX3-NSL-8M Relay Control Unit 63
Figure 33 NSL Expanders 65
Figure 34 TX3-NSL-8M Main Controller Board 66
Figure 35 NSL System with Telephone Line 68
Figure 36 NSL Controller Telephone Lines 69
Figure 37 NSL Backplane 71
Figure 38 ADSL-100 Filter Module Installation 72
Figure 39 Backplane Number Section 73
Figure 40 2012 NSL Relay Board 76
Figure 41 CA-71A BIX Block Wiring Configuration 77
Figure 42 RJ-71C Punch-Down Block Wiring Configuration 80
Figure 43 Remove the 2 screws 85
Figure 44 Install TX3-P300-HA 86

6TX3 Telephone Access System Installation and Operation Manual
List of Tables
Table 1 RS-485 Add-on Jumper Settings 51
Table 2 TX3-WIEGAND-OUT Output 52
Table 3 Lobby Control Unit SW1 DIP Switch Settings 55
Table 4 NSL Relay Cabinet Dimensions 62
Table 5 Sample Backplane Relay Addresses 74
Table 6 CA-71A BIX Block Identification Form 78
Table 7 RJ-71C Punch-Down Block Identification Form 81

TX3 Telephone Access System Installation and Operation Manual 7
1 Introduction
This manual provides information about the installation and operation of the
Telephone Access System, and must be read in its entirety before beginning any
installation work.
Installation must be performed by a qualified technician and must adhere to the
standards and special notices set by the local regulatory bodies.
For warranty and special notices information see the Warranty chapter on page
104 and Special Notices on page 109.
Note: Mircom periodically updates panel firmware and Configurator
Software to add features and correct any minor inconsistencies. For
information about the latest firmware or software visit the Mircom
website at www.mircom.com.
Warning: The lobby control unit must be grounded by a
qualified electrician. An improperly grounded
unit can result in equipment malfunction and
electrical shock.
If you mount the lobby control unit outdoors,
follow these precautions:
Do not install the lobby unit in direct sunlight.
Use the rain hood and do not expose the lobby
unit to the elements. Make sure the lobby unit
is covered by a minimum 2 m (6 feet) overhang
in all directions.
Seal the openings in the lobby unit with
outdoor-rated weatherproof silicone.
Do not power wash the lobby unit.
Review our warranty and terms and
conditions, available at these links:
https://www.mircom.com/product-warranty
https://www.mircom.com/purchase-terms-and-conditions
https://www.mircom.com/software-license-terms-and-conditions
This manual explains
• Lobby Control Unit Installation and Operation
• NSL Control Unit Installation and Operation
• Card Reader Unit Integration

8TX3 Telephone Access System Installation and Operation Manual
Introduction
1.1 TX3 Systems
The Mircom's TX3 series of telephone access systems provide high quality two-
way communication between residents and their visitors in a multi-unit dwelling
establishment.
The basic TX3 system consists of the TX3 Lobby Control Unit and depending on
the application, may be integrated with a combination of Mircom Elevator
Restriction Units, Card Access Units and Touch Screens. All access systems
may be networked together using either a peer-to-peer RS-485 connection, an
Ethernet TCP/IP connections, or an Ethernet TCP/IP network with RS-485
subnetworks.
The TX3 system is capable of providing ADC or NSL type telephone access
control from a single panel or from a networked system.
A maximum of 63 units are supported with any combination of Touch Screens,
Lobby Control Units, Elevator Restriction Units and Card Access Units. Valid
network addresses range from 1 to 63. One of the networked units with a real time
clock, such as Touch Screen, Lobby Control or Card Access must have their
network address set to 1. In addition, units can be connected to either an Ethernet
TCP/IP network or a combination Ethernet TCP/IP network with RS-485
subnetworks, both of which allow more than 64 units to be networked. See
section 3.6 on page 34 for more information.
The access system can be configured as an autodialer controller (ADC) or as a no
subscriber line (NSL) system. Both system setups can be configured for multiple
entrances with independent doors and control devices such as electric door locks,
cameras, and garage doors.
1.1.1 ADC and NSL Capability
TX3 supports full ADC and NSL telephone connectivity from a single
Telephone Access System panel or from a networked system. A single panel
supports up to five ADC and/or NSL telephone lines.
An ADC connection requires a dedicated subscriber telephone line service
connected to an outside telephone line. This connection lets the visitor call the
tenant and access their voice mail.
An NSL type connection uses the existing building telephone lines for
communication and does not require a separate telephone line. This system may
consist of one or more Lobby Control Units connected to TX3-NSL-8M NSL

Introduction
TX3 Telephone Access System Installation and Operation Manual 9
Units, typically located in the electrical/telephone room of a building. The NSL
units intercept all telephone lines into the building’s suites and communicate
directly to the resident phone using the Lobby Control Unit.
Note: Non-configurable PBX systems are not supported. For more
information, contact technical support at Mircom.
1.1.2 Elevator Restriction Units
The TX3-ER-8-A and TX3-ER-8-B Elevator Restriction Units limit building
accessibility by granting visitor access only to the destination floor.
1.1.3 Other Controllers
Other Mircom controllers, such as the Elevator Restrictor Unit and the Card
Access controller, may be networked with the Lobby Control Unit. The network
options include a peer-to-peer RS-485 network, an Ethernet TCP/IP network, or
a combination Ethernet TCP/IP network with RS-485 subnetworks. See section
3.6 on page 34 for more information.
Notes: In order for a panel to connect to an Ethernet TCP/IP network:
• it must be IP capable. Panels described in this manual are
IP capable.
• it must have a TX3-IP IP Module installed if it is not a
Touch Screen.

10 TX3 Telephone Access System Installation and Operation Manual
Introduction
1.2 Features
Features of the TX3 series include:
• Stainless steel front panel
• Universal Series enclosure with a built-in rain hood
• Large scrolling 8 x 20 LCD display that eliminates the need for an external
directory
• Back-lit 16 digit keypad with dedicated operational buttons for Page Up,
Page Down, Call and Info
• Provisions for postal lock and camera
• Multilingual Display and Voice Greeting (English, French-Canadian and
Spanish) that provides instructions on how to use the Lobby Control Unit
• Concierge/Security Desk/Guard Phone capability
• Card Access Interface
• Supports both Auto Dialer (ADC) and NSL (no phone bill)
• Ability to network panels together (peer-to-peer)
• Hands free, full duplex communication
• Flexible one to four digit resident dial codes
• Dials up to 18 digit telephone numbers
• System can be configured locally using the keypad or a computer with the
TX3 configuration software
• Upload/download configuration files without taking the whole system
off-line
• Programming from one location
• Records a maximum of 5000 event logs
• Elevator restriction capability
• Schedule based call restrictions provide more security and flexibility
• Auto Unlock to leave the main door based on the selected schedule
• Capability of one person testing the NSL controller without using the
Lobby Control Unit
• Industry Canada and F.C.C. approved

Introduction
TX3 Telephone Access System Installation and Operation Manual 11
1.3 Lobby Control Unit Enclosures
There are four series of enclosures for Lobby Control Units:
Universal Series. The Universal Series enclosure is an indoor/outdoor unit for
the scrolling Lobby Control Unit.
Universal Slim-Line Series. The Universal Slim-Line enclosure is an indoor/
outdoor unit that is narrower and longer than the Universal and Continental
series, and is for the scrolling Lobby Control Unit. This series is also available as
a kit.
Continental Series. The Continental Series is a stainless steel indoor unit larger
than the Universal Series and is for the scrolling Lobby Control Unit.
Kiosk Free Standing.
1.3.1 Universal Series
The Universal Series enclosures are surface or semi-flush mounted with the
Lobby Control Units. Optional flush trim rings are available for semi-flush and
flush installations. A rain hood is included allowing for outdoor use.
The following Universal Panel models use the Scrolling Directory:
TX3-120U-C: Electronic Scrolling Directory plus Paper Directory Lobby
Control Unit Kit
• Four-line by 20 character LCD display
• 120 name paper directory
• Main controller board for 200 residents
• PS-4P Transformer
• Universal Enclosure complete with Rain Hood and Light Assembly
• IP capable
TX3-200-8U-C: Electronic Scrolling Directory Lobby Control Unit Kit
• Eight-line by 20 character LCD display
• Main controller board for 200 residents
• PS-4P Transformer
• Universal Enclosure complete with Rain Hood and Light Assembly
• Designed for outdoor applications
• IP capable
• Provision for card reader (sold separately) or postal lock
• Provision for TX3-CX-1NP Single Door Control Module, sold separately

12 TX3 Telephone Access System Installation and Operation Manual
Introduction
TX3-1000-8U-C: Electronic Scrolling Directory Lobby Control Unit Kit
• Eight-line by 20 character LCD display
• Main controller board for 1000 residents
• PS-4P Transformer
• Universal Enclosure complete with Rain Hood and Light Assembly
• Designed for outdoor applications
•IPcapable
• Provision for card reader (sold separately) or postal lock
• Provision for TX3-CX-1NP Single Door Control Module, sold separately
TX3-2000-8U-C: Electronic Scrolling Directory Lobby Control Unit Kit
• Eight-line by 20 character LCD display
• Main controller board for 2000 residents
• PS-4P Transformer
• Universal Enclosure complete with Rain Hood and Light Assembly
• Designed for outdoor applications
•IPcapable
• Provision for card reader (sold separately) or postal lock
• Provision for TX3-CX-1NP Single Door Control Module, sold separately
1.3.2 Universal Slim-Line Series
The Universal Slim-Line series enclosure houses the following models and can
be surface or semi-flush mounted:
TX3-200-4U-C: Slim-Line Electronic Scrolling Directory Lobby Control
Unit Kit
• 4 Line by 20 LCD character display
• Main controller board for 200 residents
• PS-4P Transformer
• Slim-line Universal Enclosure complete with Rain Hood and Light
Assembly
•IPcapable
• Provision for card reader (sold separately) or postal lock
• Provision for TX3-CX-1NP Single Door Control Module, sold separately

Introduction
TX3 Telephone Access System Installation and Operation Manual 13
TX3-1000-4U-C: Slim-Line Electronic Scrolling Directory Lobby Control
Unit Kit
• 4 Line by 20 LCD character display
• Main controller board for 1000 residents
• PS-4P Transformer
• Slim-line Universal Enclosure complete with Rain Hood and Light
Assembly
• IP capable
• Provision for card reader (sold separately) or postal lock
• Provision for TX3-CX-1NP Single Door Control Module, sold separately
TX3-2000-4U-C: Slim-Line Electronic Scrolling Directory Lobby Control
Unit Kit
• 4 Line by 20 LCD character display
• Main controller board for 2000 residents
• PS-4P Transformer
• Slim-line Universal Enclosure complete with Rain Hood and Light
Assembly
• IP capable
• Provision for card reader (sold separately) or postal lock
• Provision for TX3-CX-1NP Single Door Control Module, sold separately
1.3.3 Universal Slim-Line Kit
The Universal Slim-Line series is available as a kit:
TX3-NSL-12K-C. The TX3-NSL-12K kit consists of:
• TX3-200-4U slim-line entry panel with speaker and microswitch for
postal lock
• 4x20 LCD display
• PS-4P transformer plug
• TX3-NSL-8M Master NSL Relay Cabinet with one PS-4P transformer
plug
• 2012K Twelve Telephone Relay Kit with a 2012 Twelve Telephone Relay
board and a 9106 Cable
• RJ-71C Punch Down Block for outdoor applications

14 TX3 Telephone Access System Installation and Operation Manual
Introduction
The Universal Panel Accessories consist of the following:
TX3-UFT. Universal Flush mounting trim for use with TX3-120U-C,
TX3-200-8U-C, TX3-1000-8U-C and TX3-2000-8U-C. Stainless steel.
TX3-USFT. Universal Slim-Line Flush mounting trim for TX3-200-4U-C.
Stainless steel.
1.3.4 Continental Series
The Continental Series enclosure for Lobby Control Units are flush mounted and
for indoor use only. The following Continental Series models use the Scrolling
Directory:
TX3-120C-C: Electronic Scrolling Directory plus Paper Directory Lobby
Control Unit Kit
• Lighted sign box for directory or bulletins
• 4 Line backlit LCD electronic directory
• Flush mount for indoor applications
• Provisions for postal lock and camera
TX3-200-8C-C: Electronic Scrolling Directory Lobby Control Unit Kit
• Eight-line by 20 character LCD display
• Main controller board for 200 residents
• PS-4P Transformer
• Continental Enclosure
• Designed for indoor applications
•IPcapable
• Provision for card reader (sold separately) or postal lock
• Provision for TX3-CX-1NP Single Door Control Module, sold separately
TX3-1000-8C-C: Electronic Scrolling Directory Lobby Control Unit Kit
• Eight-line by 20 character LCD display
• Main controller board for 1000 residents
• PS-4P Transformer
• Continental Enclosure
• Designed for indoor applications
•IPcapable
• Provision for card reader (sold separately) or postal lock
• Provision for TX3-CX-1NP Single Door Control Module, sold separately

Introduction
TX3 Telephone Access System Installation and Operation Manual 15
TX3-2000-8C-C: Electronic Scrolling Directory Lobby Control Unit Kit
• Eight-line by 20 character LCD display
• Main controller board for 2000 residents
• PS-4P Transformer
• Continental Enclosure
• Designed for indoor applications
• IP capable
• Provision for card reader (sold separately) or postal lock
• Provision for TX3-CX-1NP Single Door Control Module, sold separately
1.4 Lobby Control Unit Accessories
The Lobby Control Unit accessories consist of the following items:
• TX3-NSL-8M Master NSL Relay Cabinet
• TX3-UFT Universal series flush trim ring.
• TX3-USFT Slim line Universal Series flush trim ring.
• TX3-UGA Gooseneck mounting adapter designed for use with the
standard Universal Series enclosure for pedestals.
• TX3-USGA Gooseneck mounting adapter designed for use with the TX3-
200-4U Slim Line Universal enclosure pedestals.
• TH-102 Thermostat Heater with one PS-24P Transformer Plug
• CAM-3 TX3 Camera
• TX3-MDM Modem Module
• TX3-GPM Guard Phone Module
• TX3-USB-AD USB to RS-485 Adapter
• TX3-IP IP Module
• TX3-P300-HA Mullion mount card reader. Fits inside panel
• TX3-CX-1NP Single Door Control Module, PoE, 12 VDC, 24-48 VDC
• TX3-WIEGAND-OUT Wiegand output module

16 TX3 Telephone Access System Installation and Operation Manual
Introduction
1.5 Mounting requirements from the 2010 ADA
Standards for Accessible Design
See http://www.ada.gov/ for more information.
308.2 Forward Reach.
308.2.1 Unobstructed. Where a forward reach is unobstructed, the high forward
reach shall be 48 inches (1220 mm) maximum and the low forward reach shall be
15 inches (380 mm) minimum above the finish floor or ground.
308.2.2 Obstructed High Reach. Where a high forward reach is over an
obstruction, the clear floor space shall extend beneath the element for a distance
not less than the required reach depth over the obstruction. The high forward
reach shall be 48 inches (1220 mm) maximum where the reach depth is 20 inches
(510 mm) maximum. Where the reach depth exceeds 20 inches (510 mm), the
high forward reach shall be 44 inches (1120 mm) maximum and the reach depth
shall be 25 inches (635 mm) maximum.
308.3 Side Reach.
308.3.1 Unobstructed. Where a clear floor or ground space allows a parallel
approach to an element and the side reach is unobstructed, the high side reach
shall be 48 inches (1220 mm) maximum and the low side reach shall be 15 inches
(380 mm) minimum above the finish floor or ground.
EXCEPTIONS:
1. An obstruction shall be permitted between the clear floor or ground space and
the element where the depth of the obstruction is 10 inches (255 mm) maximum.
2. Operable parts of fuel dispensers shall be permitted to be 54 inches (1370 mm)
maximum measured from the surface of the vehicular way where fuel dispensers
are installed on existing curbs.
308.3.2 Obstructed High Reach. Where a clear floor or ground space allows a
parallel approach to an element and the high side reach is over an obstruction, the
height of the obstruction shall be 34 inches (865 mm) maximum and the depth of
the obstruction shall be 24 inches (610 mm) maximum. The high side reach shall
be 48 inches (1220 mm) maximum for a reach depth of 10 inches (255 mm)
maximum. Where the reach depth exceeds 10 inches (255 mm), the high side
reach shall be 46 inches (1170 mm) maximum for a reach depth of 24 inches (610
mm) maximum.
EXCEPTIONS:
1. The top of washing machines and clothes dryers shall be permitted to be 36
inches (915 mm) maximum above the finish floor.
2. Operable parts of fuel dispensers shall be permitted to be 54 inches (1370 mm)
maximum measured from the surface of the vehicular way where fuel dispensers
are installed on existing curbs.

Introduction
TX3 Telephone Access System Installation and Operation Manual 17
1.6 About This Manual
This manual provides comprehensive information on the installation and
configuration of the TX3 Series Telephone Access System by the installation
technician. Tasks are described in the order that they are likely to be performed.
1.6.1 Additional Documentation
For additional documentation, see the following Mircom literature:
• LT-995 Touch Screen Administrators Guide
• LT-980 TX3-CX Card Access System Installation and Operation Manual
• LT-6618 TX3-CX-1 Installation Manual
• LT-1160 TX3-CX-A8 Aperio Interface Panel Installation and Operation
Manual
• LT-9940 TX3 Elevator Restriction Installation and Operation Manual
• LT-968 TX3 Telephone Access System User’s Guide
• TX3 Two Door Card Access System Kit Catalogue Number 6531
1.7 Warranty and Special Notices
Mircom values your business and always attempts to provide you with the very
best service.
Please see the Warranty chapter on page 93 and Special Notices on page 98 for
information about the warranty and special notices about equipment use.
1.8 Contact Us
1.8.1 Canada and USA
Toll Free: 1-888-660-4655
Local: 905-660-4655
Fax: [phone]
1.8.2 Website
http://www.mircom.com

18 TX3 Telephone Access System Installation and Operation Manual
2 Enclosure Installation
This chapter provides information on how to install the various enclosures and
panels.
This chapter explains
• Grounding the Telephone Access System
• Installing the Enclosures and Lobby Control Unit
• Installing the Heater
2.1 Grounding the Telephone Access System
Grounding reduces the risk of electrical shock by providing an alternate escape
route for the electrical current. Telephone Access System is equipped with a
16 gauge electrical wire attached to the panel chassis ground post.
To ground the Telephone Access System attach one end of the supplied cable to
a suitable grounding wire and connect it to the site ground.
2.2 Installing the Enclosures and Lobby Control Unit
Lobby Control Units use one of the following three types of Lobby Control Unit
enclosures:
Universal Series. The Universal Series are surface or semi-flush mounted with
the lobby Lobby Control Units. Optional flush trim rings are available for semi-
flush and flush installations. The semi-flush trim is the TX3-UFT. A rain hood is
included allowing for outdoor use.
Universal Slim-Line Series. The Universal Slim-Line series enclosure houses
the TX3-200-4U model and can be surface or semi-flush mounted. The semi-
flush trim is the TX3-USFT.
Continental Series. The Continental Series enclosure for Lobby Control Units
are flush mounted.

Enclosure Installation
TX3 Telephone Access System Installation and Operation Manual 19
2.2.1 Installing the Universal enclosure
Figure 1. TX3-200-8U-C, TX3-1000-8U-C, TX3-2000-8U-C, TX3-120U-C
Dimensions
The Universal enclosure mounts inside the wall with or without the TX3-UFT
Universal Series Flush Trim Ring TX3-UFT. This Trim Ring houses the
universal series enclosure as shown in figure 3.
16 13 3
1
1
316

20 TX3 Telephone Access System Installation and Operation Manual
Enclosure Installation

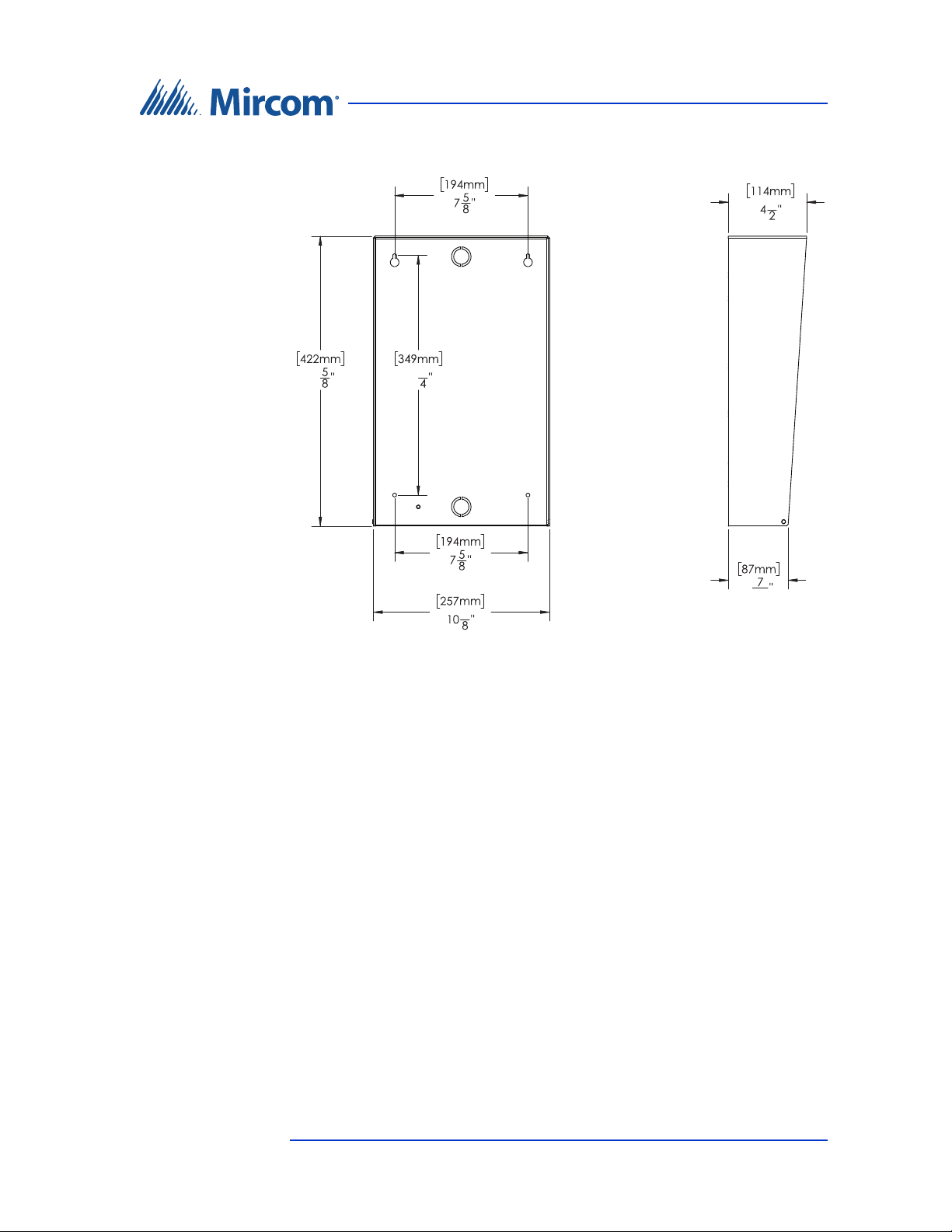

Figure 2. Dimensions of TX3-UFT and the Universal enclosure
Figure 3. Mounting TX3-UFT Universal Series Flush Trim Ring
1
2
10
1
2
Cutout in wall should be:
17” (432 mm) H
10 5/8” (269 mm) W
3” (76 mm) D
Universal
Enclosure
TX3-UFT
Semi-Flush Trim
