Mircom BPS-1100 User manual

Canada
25 Interchange Way
Vaughan, ON L4K 5W3
Tel: [phone] Fax: [phone]
 Mircom 2002
Printed in Canada
Subject to change without prior notice
www.mircom.com
BPS-1100
Signal Booster Power Supply
LT-913 Rev. 4
May 2008
Installation and Operation Manual
Advanced Life Safety Solutions Advanced Life Safety Solutions
U.S.A.
60 Industrial Parkway
Cheektowaga, NY 14227
Tel: [phone] Fax: [phone]
SIGNAL BOOSTER POWE R SUPPLY
BPS-1100

BPS-1100 Installation and Operation Manual
i
Table of Contents
1.0 Introduction ........................................................................................................................ 1
1.1 Overall Features: ............................................................................................................ 1
1.2 Controls and Indicators ................................................................................................... 1
2.0 General Notes..................................................................................................................... 2
3.0 System Components ........................................................................................................ 3
3.1 Chassis Type .................................................................................................................. 4
3.2 BPS-1100 Accessories ................................................................................................... 4
4.0 Mechanical Installation and Dimensions ......................................................................... 5
4.1 Main Chassis Installation ................................................................................................ 6
5.0 Modules Mounting Locations ........................................................................................... 7
6.0 Module Settings ................................................................................................................. 9
6.1 Main Chassis Board of the BPS-1100 ............................................................................ 9
6.2 Main Display Module (Part of Main Chassis) .................................................................. 10
6.3 Signal Adder Module (Model SGM-1004A)..................................................................... 11
6.4 Relay Adder Module (Model RM-1008A) ........................................................................ 12
7.0 Field Wiring......................................................................................................................... 13
7.1 Main Board Terminal Connections.................................................................................. 13
7.2 Signal Adder Module (SGM-1004A) Terminal Connections ........................................... 15
7.3 Relay Adder Module (RM-1008A) Terminal Connections............................................... 16
7.4 Power Supply Connections............................................................................................. 17
7.5 Wiring Tables & Information............................................................................................ 18
8.0 System Checkout ............................................................................................................... 19
8.1 Before Turning The Power "ON"..................................................................................... 19
8.2 Power-up Procedure ....................................................................................................... 19
8.3 Troubleshooting .............................................................................................................. 19
9.0 Indicators, Controls, & Operation..................................................................................... 20
9.1 Common Indicators......................................................................................................... 21
9.2 Common Controls ........................................................................................................... 21
9.3 Circuit Status Indicators .................................................................................................. 22
9.4 Circuit (Zone) Disconnect Switches ................................................................................ 22
9.5 Circuit Types ................................................................................................................... 23
10.0 System Configuration...................................................................................................... 24
10.1 Introduction To Configuration........................................................................................ 24
10.2 Entering Configuration Mode ........................................................................................ 25
10.3 Exiting Configuration Mode........................................................................................... 25
10.4 Factory Default Configuration ....................................................................................... 26
10.5 Restore To Default / Resize.......................................................................................... 26
10.6 Resize System (Set Adder Module Number & Type).................................................... 26
10.7 Configuring Features .................................................................................................... 27
10.8 Configuring Indicating Circuits: ..................................................................................... 28
10.9 Configuring Circuit Correlations: ................................................................................... 29
10.10 Display Configuration.................................................................................................. 29
Appendix A - Module Specifications And Features .............................................................. 30
Compliance ........................................................................................................................... 30
Appendix B - Power Supply & Battery Calculations (Selection Guide) .............................. 31
Warranty & Warning Information............................................................................................ 32
Warning Please Read Carefully............................................................................................ 32
Limited Warranty................................................................................................................... 34
Warranty Procedure.............................................................................................................. 34
Disclaimer of Warranties....................................................................................................... 34
Out of Warranty Repairs ....................................................................................................... 35

BPS-1100 Installation and Operation Manual
iii
List of Figures and Headings
Figure 1: BPS-1100 Flush or Surface Enclosure Installation and Dimensions ....................5

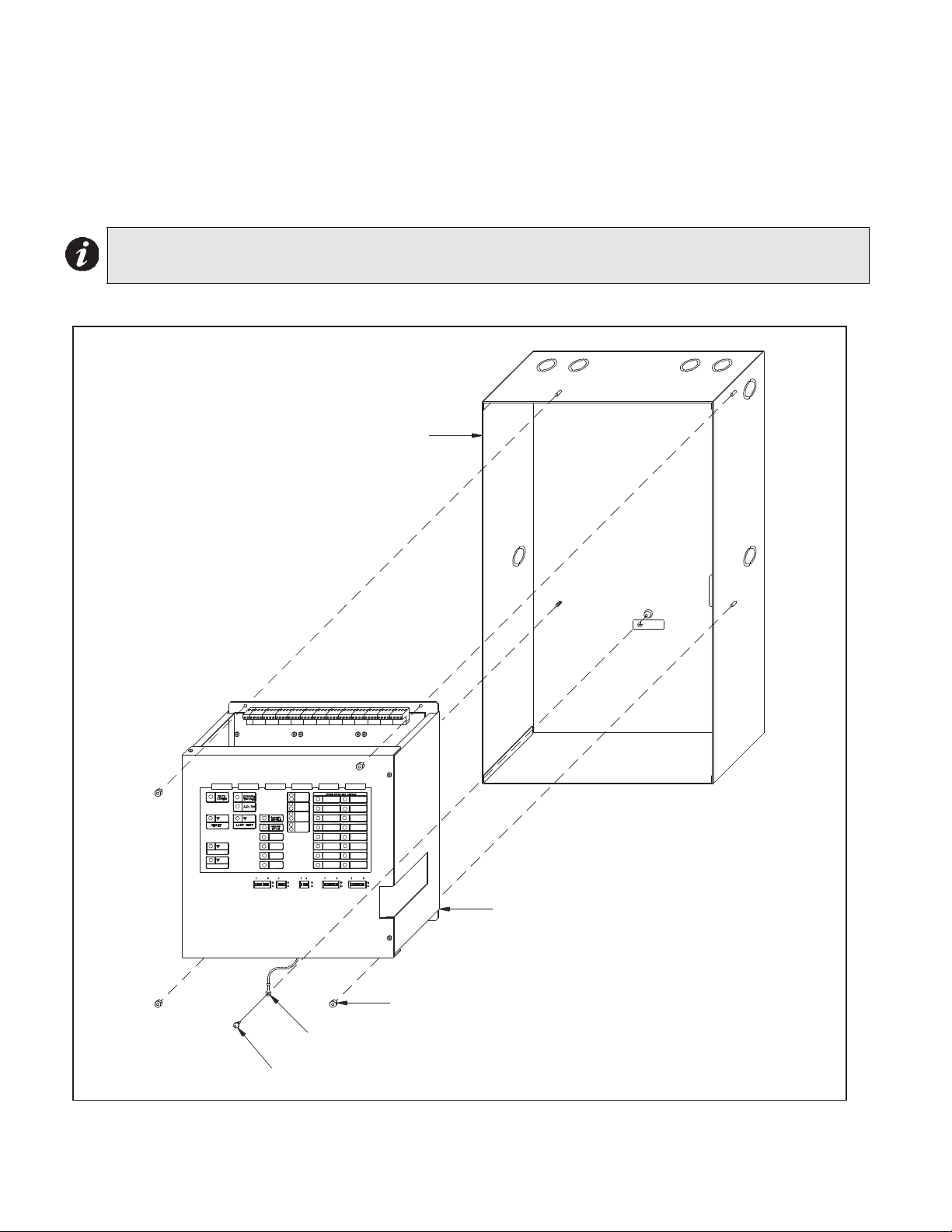

Figure 2: Main Chassis Installation ......................................................................................6
Figure 3: Module Mounting Locations ..................................................................................7

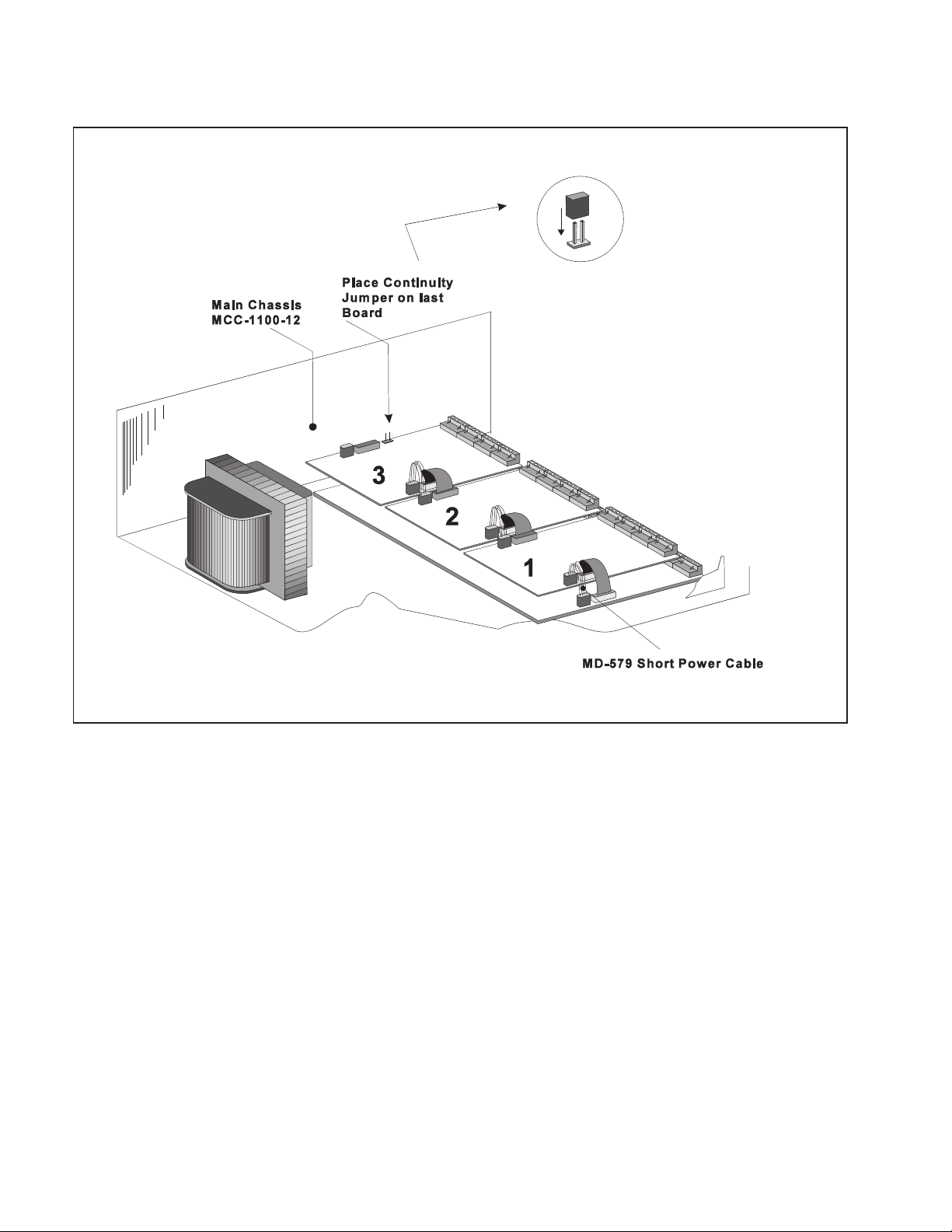

Figure 4: Adder Module Mounting Details ............................................................................8
Figure 5: Main Chassis board of the BPS-1100 ...................................................................9

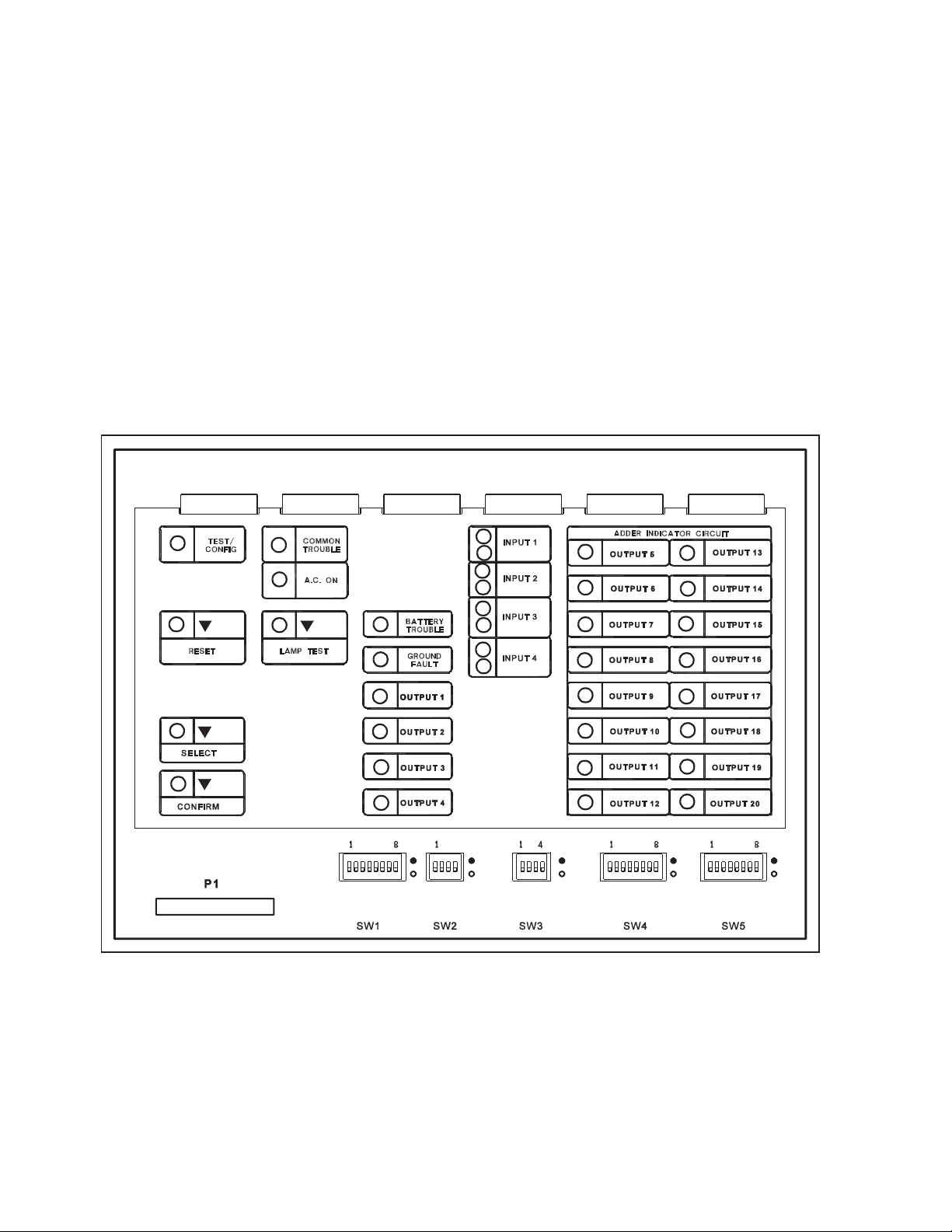

Figure 6: Main Display Module (For Service Personnel) .....................................................10

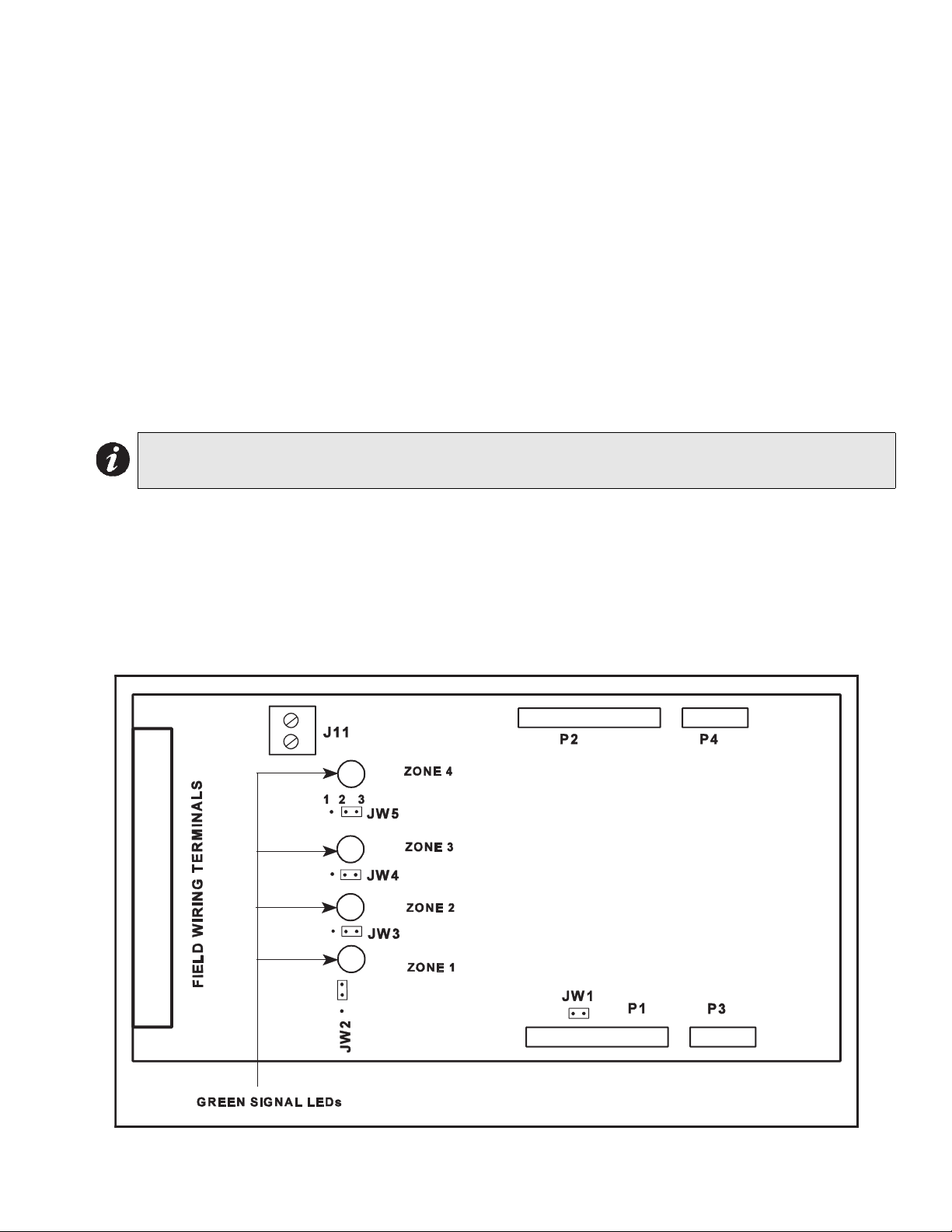

Figure 7: Signal Adder Module ............................................................................................11
Figure 8: Relay Adder Module .............................................................................................12
Figure 9: Main BPS-1100 Module Terminal Connections ....................................................13
Figure 10: Main BPS-1100 Module Terminal Connections (continued) ...............................14
Figure 11: Signal Module Terminal Connections .................................................................15
Figure 12: Relay Adder Module Terminal Connections .......................................................16
Figure 13: Power Supply Connections .................................................................................17
Figure 14: Indicators and Control Location ..........................................................................20
Figure 15: Evacuation Codes ...............................................................................................23
Figure 16: Configuration Indicators and Controls ................................................................24
Table 1: Wiring Table for Input Circuits ................................................................................18
Table 2: Wiring Table for Indicating Circuits ........................................................................18
Table 3: Configuration Dip Switch Function Table ...............................................................25
Table 4: Feature Configuration Dip Switch Table ................................................................27

BPS-1100 Installation and Operation Manual
1
1.0 Introduction
Mircom's BPS-1100 Signal Booster Power Supply provides up to 20 fully supervised Class A or B (UL Style Z or Y)
Indicating Circuits. All Indicating Circuits are fully supervised for opens, shorts and grounds. Optional Adder
Modules include additional Indicating Circuits and Relay Circuits. Flush or surface mountable enclosures can be
used for retrofits and on new installations.
1.1 Overall Features:
• 120V/240V AC, 24V DC, 11 Amps Max
• Basic unit has 4 Power Limited Class A/B (Style Z/Y) Indicating Circuits with individual trouble indicators (1.7A
Max per circuit).
• 4 supervised programmable inputs
• Optional 3 Adder Modules for additional Indicating and Relay Circuits. Indicating Circuits expandable by 16
(with 3 SGM-1004As) and Relay Circuits by 16 (with 2 RM-1008As).
• Supports supervised and unsupervised suite isolators
• Regulated Auxiliary Output 24V DC, 1.7A
• Space for 10 to 17 Amp Hour Batteries
• Each Indicator Circuit can be configured as Audible or Visual. Audibles may be steady, Temporal Code,
California Code, or March Time.
• Indicating Circuits may be individually Disconnected by a DIP Switch.
• Two outputs (200 mA each Max., 300 mA total Max.)
• Auxiliary Relay Contacts for Common Ground and Common Trouble.
• Easy Configuration via Pushbuttons and Switches.
• Extensive transient protection
• Surface Mountable Enclosures, Flush Trims Available

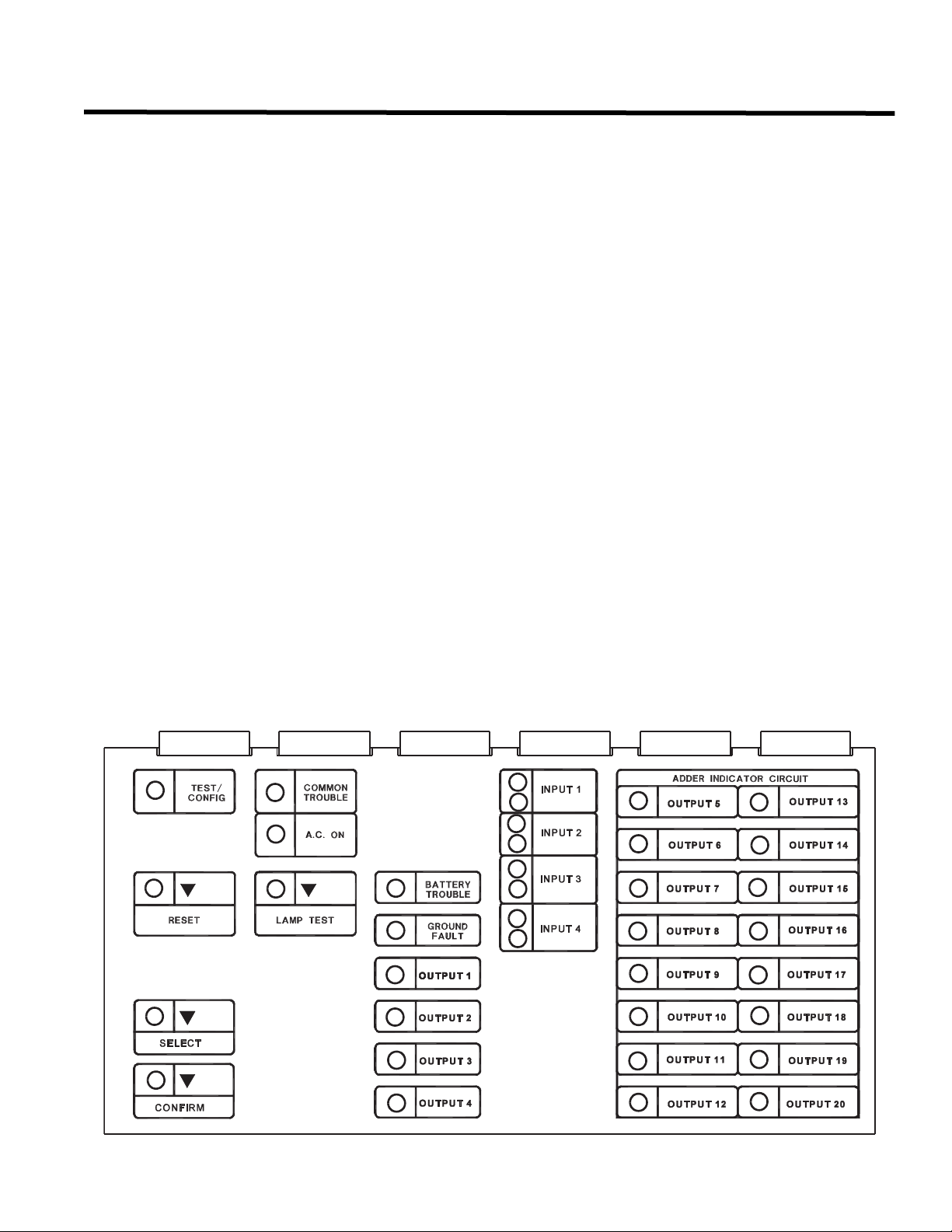

1.2 Controls and Indicators
4 Pushbuttons, 7 Common Indicators, provision for up to 4 Inputs and 20 Output Points.

2.0 General Notes
2
2.0 General Notes
Number Of Adders That May Be Installed
The maximum number of Adder Modules that may be physically installed in a BPS-1100 is 3 Adder Modules, a
combination of the following:
SGM-1004A Signal Adder Module (maximum of 16 Indicating Circuits in a system)
RM-1008A Relay Adder Module (maximum of 16 Relay Circuits in a system)
Circuits And Zones
Circuits refers to an actual electrical interface, Input (Detection), Indicating (Signal), or Relay.
Display Points
On the BPS-1100 an important concept is Display Points. Unlike some products the available LED Displays and
matching Circuit Disconnect Switches are not hard-wired to the Circuit Adder Modules. The Main Chassis provides
a fixed number of Display Points on their attached Display Boards. These are assigned during the Configuration
Adder Module Number and Type operation (see Configuration Section) as required in the cabling order in which
Adder Modules are installed. In any system setup, there must be at least as many Display Points available, as those
required by the Circuits.
Wiring Styles
Input Circuits are configured as Class B (Style B).
Indicating (Output) Circuits may be individually wired as Class A (Style Z) or Class B (Style Y) without affecting the
number of circuits available (see Field Wiring instructions).

BPS-1100 Installation and Operation Manual
3

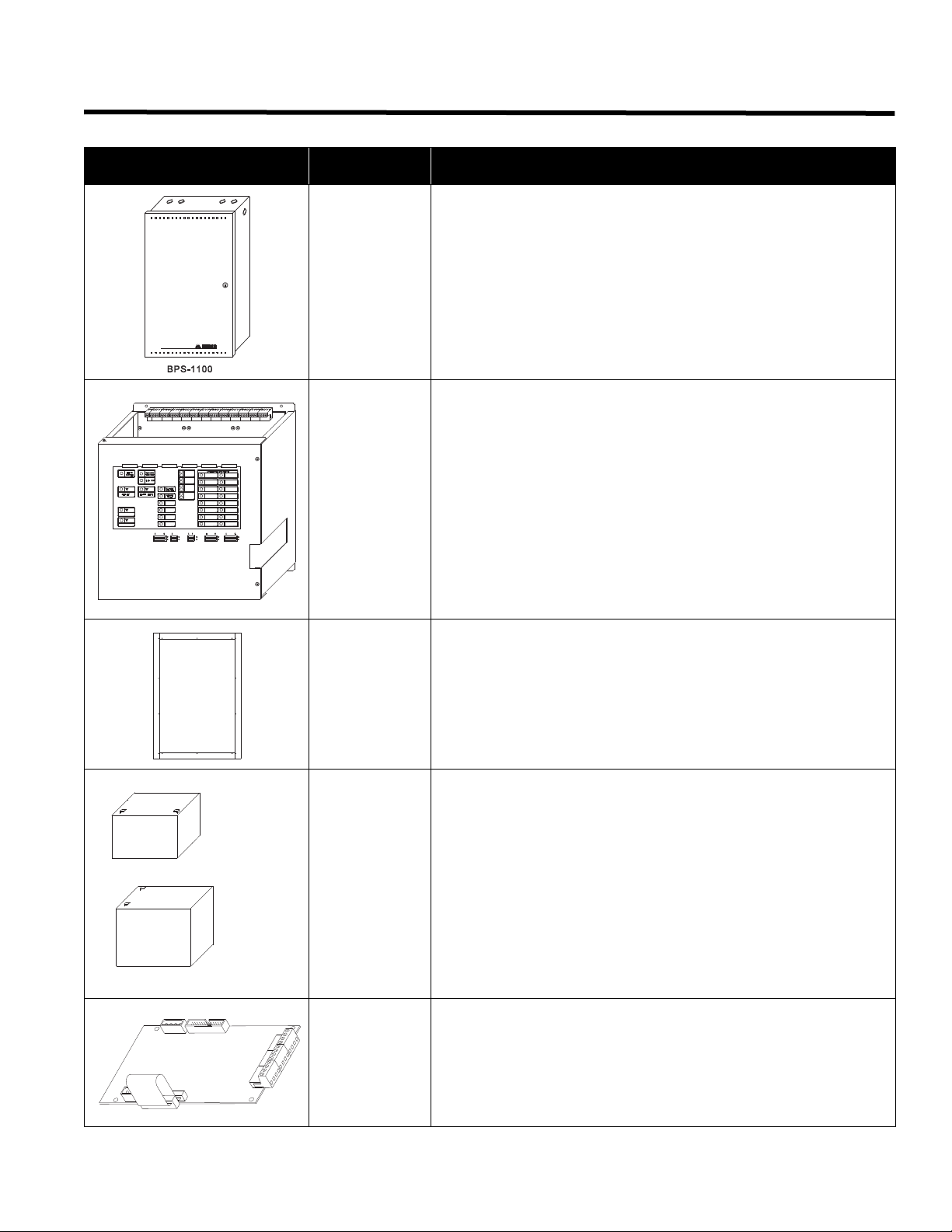

3.0 System Components
Model Description
BB-1024 Surface Enclosure
MCC-1100-12 12 A Main Chassis
FA-1024TR Flush Trim Ring (add another suffix R for Red Enclosure)
12 VOLT
Batteries (10
to 17AH)
(2 required for
24 volts)
Use Sota Enertech batteries models: SA12120 (Mircom
#BA-110) and SA-12180 (Mircom #BA-117).
SGM-1004A
RM-1008A
Circuit Adder Modules
SIGNAL BOO STER POWER SUPPL Y
BPS-1100
SELECT
CONFIRM
INPUT4
INPUT3
INPUT2
INPUT1
OUTPUT 1
OUTPUT 2
OUTPUT 3
OUTPUT 4
OUTPUT 5
OUTPUT 6
OUTPUT 1
OUTPUT 7
OUTPUT 8
OUTPUT 9
OUTPUT10
OUTPUT11
OUTPUT12
OUTPUT13
OUTPUT14
OUTPUT15
OUTPUT16
OUTPUT17
OUTPUT18
OUTPUT19
OUTPUT20
CONFIG. O/P ZONE
DISCONNECT
I/P ZONE
DISCONNECT
O/P ZONE
DISCONNECT
O/P ZONE
DISCONNECT
W= 5.94"
H= 3.94"
D= 3.86"
W= 7.13"
H= 6.58"
D= 2.29"
SA12120
10AH
SA12180
17AH

3.0 System Components
4
3.1 Chassis Type
MCC-1100-12
Main Chassis with 4 Style Y or Z Indicating
Circuits, and a 12 ampere Power Supply. See Module Specifications Appendix A - Module Specifications And
Features on page 30 for more details.
3.2 BPS-1100 Accessories
MP-300 EOL Resistor Plate
MP-300R EOL Resistor Plate, Red
MP-300S EOL Resistor Plate, Stainless steel finish
