Mistral Indulgence MISS10 Product information sheet

MISS10
SOFT SERVE ICE CREAM MAKER
Instructions and guarantee

2
3
Important Safeguards
When using electrical appliances, in
order to reduce the risk of fire, electric
shock and/or injury, these basic safety
precautions should always be followed:
For Your Safety
Read all instructions carefully, even if you feel
that you are familiar with the appliance.
• To protect against the risk of electric shock,
DO NOT IMMERSE the appliance, cord set or
plug in water or any other liquid.
• This appliance is not intended for use by
young children or infirm persons unless
they have been adequately supervised by a
responsible person to ensure that they can use
the appliance safely.
• Young children should be supervised
to ensure that they do not play with the
appliance.
• Operate on a dry level surface. Operating on
sinks, drainboards or uneven surfaces must be
avoided.
• Switch off the power outlet and remove the
plug when the appliance is not in use; before
assembling or disassembling parts; and before
cleaning. To unplug, grasp the plug and pull
from the power outlet. Never pull the cord.
• Avoid contact with moving parts. Keep hands,
hair and clothing, as well as spatulas and other
utensils, away during operation to prevent
injury and/or damage to the appliance.
• Do not operate any appliance with a damaged
cord or plug; after the appliance malfunctions;
or if it has been dropped or damaged in any
manner.
• The use of attachments or accessories not
recommended or sold by the manufacturer can
cause fire, electric shock or injury.
• Do not use outdoors.
• Store the unit indoors in a dry location.
• Do not allow the cord to hang over the edge of
a table or counter, or touch hot surfaces.
• Do not operate or place any part of this
appliance on or near any hot surfaces (such as
a gas or electric burner, or in a heated oven).
• Do not misuse the cord. Never carry the
appliance by the cord or pull to disconnect it
from the outlet. Instead, grasp the plug and
pull to disconnect.
• This product is intended for household use
only.
• This appliance is intended to be plugged in a
240V outlet only.
• Do not attempt to repair, disassemble or
modify the appliance. There are no user-
serviceable parts.
• Do not operate the appliance when empty.
Always have ice cream mixture in the unit
when turned on.
• Do not place the complete unit in the fridge or
freezer.
• Ensure the canister and lid cover are fitted
correctly before starting the appliance.
• Switch off the power outlet, unplug the
appliance and ensure the stirring paddle has
completely stopped before removing the cover.
Compulsory Warning
If the supply cord is damaged, the cord must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
hazard.
This product has not been designed for any uses
other than those specified in this booklet.
Save These Instructions

3
NOTE:-The ‘L’ or ‘N’ wire must NOT be
connected to the EARTH terminal marked ‘E’ or
coloured GREEN or GREEN and YELLOW.
If in doubt consult a qualified electrician who
will be pleased to do this for you. This product
conforms to EC Directive 92/31/EEC with respect
to Electromagnetic Compatibility.
NON-REWIREABLE MAINS PLUG
If your appliance is supplied with a nonrewireable
plug fitted to the mains lead, you will find that it
incorporates a fuse, the value of which is
indicated either on the base of the plug or on the
fuse carrier. Should the fuse need replacing, you
must use an ASTA approved one (conforming to
BS1362) of the same rating.
If the fuse cover is lost, the plug must not be used
until a replacement is obtained from an electrical
supplier.
If you need to remove the plug, cut it from the
mains lead and immediately dispose of it. Never
attempt to re-use this plug or insert it into a socket
outlet as there is a very great risk of an electric
shock.

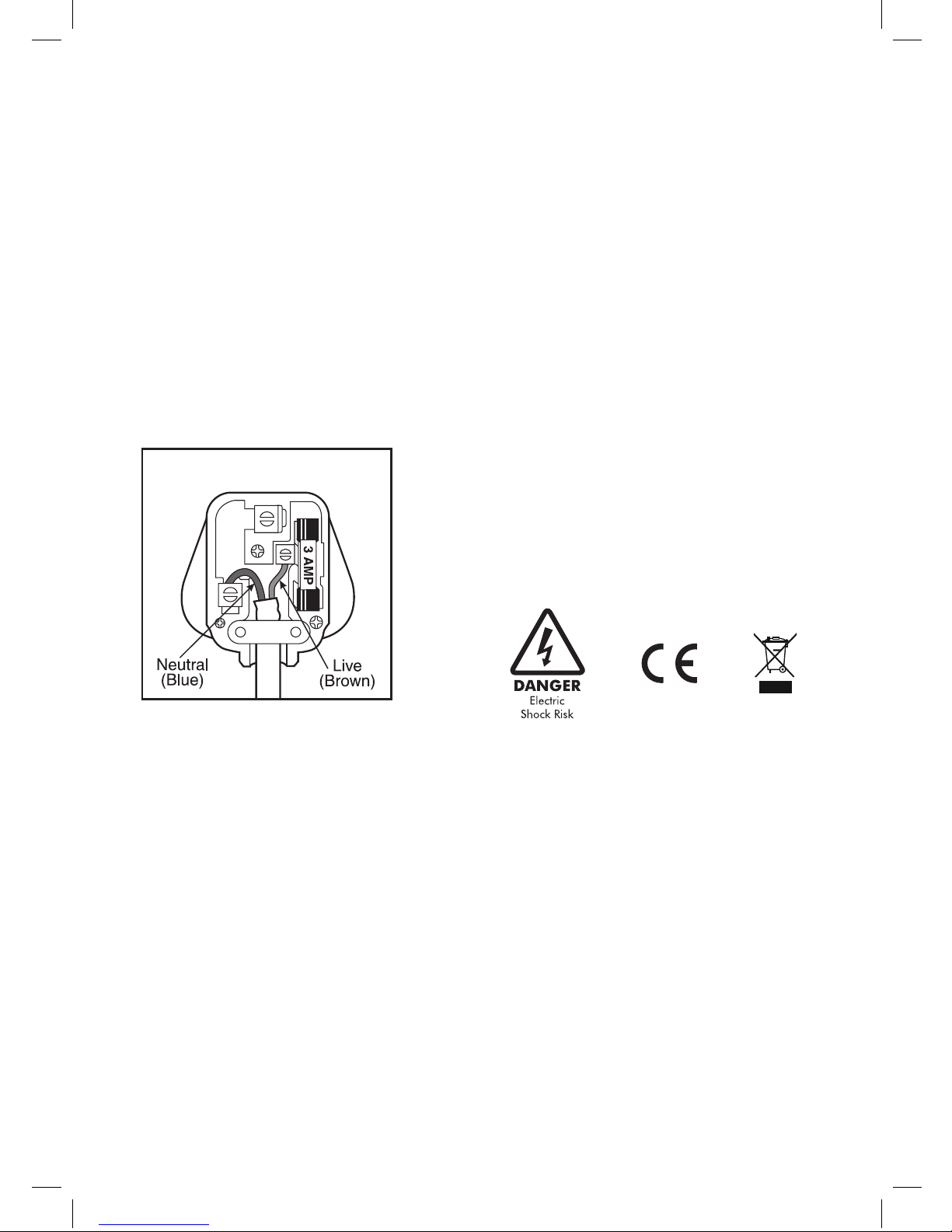

Connection to the
Mains Supply
Check that the voltage marked on the product
corresponds with your supply voltage.
This product is fitted with a 13A plug complying
with BS1363. If this plug is unsuitable or needs to
be replaced, please note the following:
This product is double insulated and therefore
does not require an earth connection.
Important: The wires in the mains lead are
coloured in accordance with the following code:
BLUE – NEUTRAL
BROWN – LIVE
This appliance is fitted with a plug which has a
3 amp fuse. Should the fuse fail, then it must
be replaced with an ASTA approved fuse
(conforming to BS1362) of the same rating. If
you need to replace the plug or if the plug is of
the incorrect type for your socket, remove it and
replace it with an appropriate plug. Dispose of the
old plug safely.
Important: The wires in the mains lead are
coloured in accordance with the following code:
Blue=neutral, Brown=live
As the colours of the wires in the mains lead may
not correspond with the coloured markings in your
plug, proceed as follows:
Connect the BROWN wire to the terminal marked
‘L’ or coloured RED.
Connect the BLUE wire to the terminal marked
‘N’ or coloured BLACK.

4
5
Features of Your Soft Serve Ice Cream Maker
Tap Dispenser
Motor Unit
Mixing Feeder
Lid
On/Off Switch Gear Box
Connecting Pins
Paddle
Canister
“O” Ring
Base
Drip Tray

5
Getting to Know Your
Soft Serve Ice Cream
Maker
Before first using your new Soft Serve Ice Cream
Maker, it is most important that you read and
follow the instructions in this use and care booklet,
even if you feel you are familiar with this type of
appliance.
Your attention is drawn particularly to the section
dealing with IMPORTANT SAFEGUARDS. Find
a safe and convenient place to keep this booklet
handy for future reference.
This appliance has been designed to operate
from a standard domestic power outlet. It is not
intended for industrial or commercial use.
Before First use
Carefully unpack the Soft Serve Ice Cream Maker
and remove all packaging materials.
Wash the canister, lid and paddle in warm soapy
water and dry thoroughly. These parts are not
dishwasher safe.
Use a damp cloth to clean the exterior of the
motor unit. Do not immerse the motor unit in
water.
PLEASE NOTE: The paddle is made up
of three parts which can be detached
so that any trapped food can be easily
cleaned. Please note that the part
labelled Paddle Part 3 in the diagram
below is very small so extra care should
be taken to ensure that this piece is not
rinsed away during cleaning.
When reassembling the three sections
it is very important that the sections are
pushed back together firmly until they
click into place.
How to Use Your Soft
Serve Ice Cream Maker
Step 1 – Freezing the Canister
To freeze the canister, wrap it in a plastic bag and
store it in the back section of your freezer, where
the temperature is the coldest. The plastic bag will
prevent freezer burn from occurring.
Table below indicates the amount of time required
to freeze the canister, freezing time varies
depending on the temperature of your freezer. For
most domestic freezers, 24 hours freezing time
will be required.
freezer approx.
temperature freezing time
-30°C/-22°F 8–9 Hours
-25°C/-13°F 12–13 Hours
-18°C/0°F 20–22 Hours
-15°C/5°F 24 hours or more
Note: The canister must be used
immediately after being withdrawn from
the freezer. Do not allow it to thaw.
For optimum results the temperature of the
canister should be between -15 to -20°C in
addition to the prepared mixture being chilled
to 1– 4°C (This can be achieved by leaving
the Soft Serve Ice Cream Maker mixture in the
fridge overnight). If you find the temperature of
the mixture is not low enough after chilling place
mixture in the freezer for 20-30 minutes before
adding it to the freezer canister. If the mixture
begins to freezer slightly stir well to remove any
frozen pieces before pouring into the canister
Step 2 – Preparing the Soft Serve Ice
Cream Mixture
Prepare the Soft Serve Ice Cream mixture from
one of the recipes in the ‘Recipe Ideas’ section of
this booklet.
It is advised that the Soft Serve Ice Cream mixture
is prepared one day prior to use and kept chilled
in the refrigerator. This allows the mixture to
achieve the recommended temperature.
Paddle part 3
Paddle part 2
Paddle part 1

6
7
Step 3 – Assembly of the Soft Serve Ice
Cream Maker
Please refer to the section “Features of your Soft
Serve Ice Cream Maker”.
Place the body of the Soft Serve Ice Cream Maker
onto the base and push down firmly to fit. Place
drip tray on base. Position on a dry, level surface.
When the Soft Serve Ice Cream mixture and
canister have reached the right temperature,
remove canister from the freezer and discard
plastic bag. Check to ensure the small “O” ring is
fitted at the base of the canister.
Place the canister into the body of the Soft Serve
Ice Cream Maker, turn canister slightly while
pressing down to ensure it slots properly into the
body.
Fit the tap dispenser to the body. Hold the tap
dispenser and lift up so the tap dispenser is
located in the hole, it may help to place one hand
on the rim of the canister to ensure it stays in
place. Rotate the tap dispenser anticlockwise
until it locks into position. Push the tap dispenser
handle down to ensure it is in the closed position.
Check carefully to ensure the tap dispenser is
fitted properly, otherwise mixture will leak out.
Attach the mixing paddle to the gear box by
slotting the rounded end into the largest of
the two holes. Carefully lower the paddle, with
gearbox attached into the canister, ensuring the
connecting pins fit into the slots on the main body.
Lock the lid into place around the gear box.
Step 4 - The Soft Serve Ice Cream Making
Process
Plug the Soft Serve Ice Cream Maker into a power
outlet and switch the power outlet on.
Pour the prepared mixture into the canister via
the mixing feeder.
Press the ‘ON’ switch on the Soft Serve Ice
Cream Maker and the paddle will begin to rotate.
The Soft Serve Ice Cream Maker making process
should take approximately 20-25 minutes.
This time varies on the temperature of your
freezer, the temperature of the mixture, the
weather and ingredients used. Check the soft
serve after 20 minutes churning time. Continue
churning until the ice cream is smooth and thick;
do not churn longer than 45 minutes. If the ice
cream is not ready after 40 minutes it is unlikely
to set. See Trouble shooting section for hints. The
ideal consistency for the soft serve is smooth and
creamy. Do not allow the mixture to churn for
too long or the mixture will become so think that
it blocks the dispenser outlet. Check consistency
regularly.
Note: Turning the appliance off during the
operation may cause the mixture to freeze
and restrict the movement of the paddle.
Once the desired consistency is achieved, hold
a cone or bowl under the dispenser and lift the
handle up. The Soft Serve Ice Cream will emerge
from the machine. To stop the ice cream flow,
push the handle down to return to the closed
position.
Note: The first few drops of ice cream will
not be frozen. This is normal as a small
amount of mixture finds its way into the
dispenser before the freezing process
starts.
When all the ice cream has been dispensed,
switch the Soft Serve Ice Cream Maker off.
Note: The maximum volume of mixture
that can be prepared in the canister is
600ml. As the mixture expands during the
freezing process, the maximum volume
of ice cream that can be made during the
Soft Serve Ice Cream making process is
approximately 700mls. This equates to
approximately 3-4 servings of Soft Serve
Ice Cream.

7
Care and Cleaning
Switch off and unplug the Soft Serve Ice Cream
Maker from the power outlet before disassembly
or cleaning.
Remove the lid and the mixing paddle, separate
from the gear box.
Unclip the small sections from the paddle to
enable ease of cleaning.
Remove the dispenser tap by turning it to the left
and then pulling straight down.
Remove the canister by pushing it up from
underneath.
Wash the lid, mixing paddle, dispenser tap and
canister in warm water with a mild detergent.
Rinse well and dry all parts thoroughly.
Note: Do not immerse the gear box or
motor unit in water. Your Soft Serve Ice
Cream Maker is not dishwasher safe.
Wipe the exterior of the motor unit with a soft
damp sponge or cloth. Dry thoroughly. Sharp
utensils, scouring pads or abrasive detergents
may harm your appliance.
Note: Ensure the ‘O’ ring is fitted to the
outlet at the base of the canister after
cleaning and before use.
TIP: It’s a great idea to put the canister back into
the freezer after cleaning so that it is ready for
immediate use next time you would like to enjoy a
Soft Serve Ice Cream.
Note: When reassembling the detachable section
inside the paddle it is important that the two
sections be pushed firmly together unitl they click.
Recipes
Note: For ideal results when making
the following recipes, the use of
full cream milk (4% fat content) and
regular thick cream (35% fat content)
is recommended. Full cream diary
products are ideal as they produce
thick, smooth and creamy soft serve
ice cream. If you wish to use reduced
fat milk or cream, be aware that the
soft serve ice cream will not be as
smooth and creamy. Generally, when
using reduced fat ingredients the
churning time will be longer and the soft
serve a little runnier. You may wish to
experiment by substituting half of the
milk or cream quantity with a reduced fat
version.
Old Fashioned Vanilla Ice Cream
300ml milk
Pinch salt
1⁄2 cup caster sugar
5cm piece vanilla bean
or 1 teaspoon vanilla essence
1 egg, beaten
250 ml cream
Combine half of the milk with the salt, sugar and
vanilla bean in a saucepan. Cook over medium
heat, stirring frequently until mixture nearly boils.
Remove from the heat. Combine remaining milk
with the egg and gradually stir into the warm milk
mixture in the saucepan, whisking constantly.
Cook over low heat, stirring constantly unitl
the mixture thickens slightly. Take care not to
overcook as this may cause the custard to curdle.
Remove from heat and allow to cool.
Refrigerate and chill thoroughly – preferably
overnight. Remove vanilla bean and add cream,
mixing with a wire whisk.
Pour into the Soft Serve Ice cream maker canister
and allow to churn and freeze.

8
9
Creamy Chocolate Ice Cream
120g chocolate pieces
1⁄2 cup caster sugar
250ml milk
2 egg yolks
250ml cream
Place chocolate, sugar and half the milk in a
saucepan and heat gently until chocolate melts.
Combine remaining milk and eggs and add to
chocolate mixture. Bring mixture gently to the boil,
stirring constantly. Remove from the heat and
allow to cool.
Refrigerate and chill thoroughly – preferably
overnight. Add cream and mix with a wire whisk.
Pour into the canister and allow to churn and
freeze.
Strawberry Ice Cream
150g fresh strawberries, washed and hulled
2 egg yolks
1/2 cup castor sugar
250ml cream
120ml milk
Place all ingredients in a blender or food
processor and process until smooth.
Refrigerate and chill thoroughly – preferably
overnight.
Pour into the canister and allow to churn and
freeze.
Honey Ice Cream
300ml Milk
200g honey
2 egg yolks
pinch salt
200ml cream
Place milk and honey in a saucepan and heat
gently. Whisk egg yolks and salt together and add
to mixture. Stir continually over a medium heat
until just boiling, remove immediately and allow
to cool.
Refrigerate and allow to chill – preferably
overnight. Add cream and mix with a wire whisk.
Pour into the canister and allow to churn and
freeze.

9
Trouble Shooting
Problem Cause / Solution
Ice cream too runny (not Soft Serve
consistency).
Ice Cream mixture not cold enough.
Too much mixture.
Ice cream not churned long enough.
Canister not cold enough.
Reduce the freezer temperature to that shown in
the section ‘How to use your Soft Serve Ice Cream
Maker’.
Reduce the fridge temperature or place the prepare
mixture in the freezer for 20-30 minutes until it is just
starting to freeze at the edges. Mix well to break up
any small frozen lumps before pouring into the canister.
Reduce the amount of mixture.
Allow to mix longer, but for no longer than
45 minutes.

10
11
A range of exciting products designed for
entertainment - as a stunning party centrepiece or
simply for enjoying at home with friends. With
their sleek livery to complement any decor, they’ll
take your occasion to a new dimension! Have fun
creating your own recipes and impress your guests
with your entertaining skills.
Chocolate Fondue Set
Use as a traditional fondue for guests to dip
a selection of tasty treats, or create your own
delicious hand-made chocolates by adding
flavourings and other ingredients.
Chocolate Fountain
A tower of luxurious cascading chocolate;
try dipping fruits, marshmallows, mini
doughnuts ... the possibilities are endless.
Mini Smoothie Maker
Perfect for wizzing up cocktails, shakes and
smoothies, and its compact design takes up
so little storage space.
Doughnut Maker
Bake delicious doughnuts in minutes, without
the need to cook in fat. Indulgence without
the extra calories!
Drink Fountain
Create a dramatic centrepiece for any event!
Simply place a glass under one of the spouts
and watch as it fills up with your favourite drink.
Base lights up and illuminates for that extra
special effect.
Multi Snack Maker
Choose from 4 inter changeable
plates to create a variety of delicious
snacks.

11
Service
This product is manufactured to the highest
standards, for more information or if you have a
query with the product which is not covered in this
manual, please contact our Customer Support
Team on the telephone number or the email
address below.
Customer Helpline: 01925 248999
Email Address: [email protected]
Disposal of the Product
Please do not dispose of this product as household
waste. The appliance should be taken to the
applicable collection point for the recycling of
electrical and electronic equipment.
For more detailed information, please contact your
local council, household waste disposal service or
the shop where you purchased the product.
WEEE Registration Number: WEE/FC0057TS

12
DO NOT SEND IN THIS WARRANTY
Fill out the following details and file with your
purchase invoice.
RETAIN & FILE WITH YOUR RECEIPT.
Your Purchase Receipt/Invoice is proof of date
of purchase. You must be able to present it at
the place of purchase to obtain a replacement or
service under warranty.
Premium Appliance Brands Ltd reserves the right
to discontinue items, modify designs and change
specifications without incurring obligation. Whilst
every effort is made to ensure that descriptions,
specifications and other information in this
publication is correct, no warranty is given in
respect thereof and the company shall not be
liable for any errors therein.
Purchased from:
Date of Purchase:
NOTE: Consistent with our continuing
product development policy,
improvements may have been made
which render the contents of this
package slightly different to that shown.
Cat. No. MISS10
March 2008
Warranty
This guarantee does not confer any rights other
than those expressly set out below and does
not cover any claims for consequential loss or
damage.
This guarantee is offered as an additional benefit
and does not affect your statutory rights as a
consumer.
This guarantee is valid in the UK and Ireland only.
Premium Appliance Brands Ltd warrant this
product for a period of 1 year from the date of
purchase for all parts defective in workmanship or
materials.
The product or defective parts will be replaced
free of charge.
WARRANTY CONDITIONS
1. This warranty is only valid for appliances
used according to the manufacturer’s
instructions.
2. This appliance must not be modified or
changed in any way.
3. Connection must be to the voltage
requirements as specified in the ratings label
located on the product.
4. The manufacturer does not accept liability
for any direct or consequential damage,
loss or other expense arising from misuse
or incorrect installation and operation of the
appliance.
5. Warranty will only be given where proof of
purchase is provided, e.g. original invoice.
6. Not designed or warranted for industrial or
commercial use.
